LG MultiSITE CRC1 Series User manual

MultiSITE CRC1 Series Controllers
USER INTERFACE GUIDE
PREMTBVC0 – MultiSITE CRC1
PREMTBVC1 –MultiSITE CRC1+

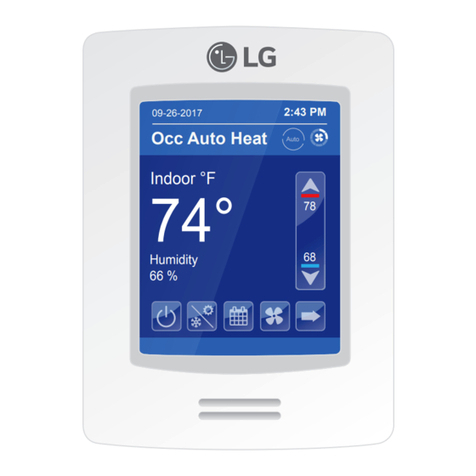

09-26-2017 2:43 PM
Occ Auto Heat
74° 78
Indoor °F
Humidity
66 %
68
Auto

The instructions included in this manual must be followed to prevent prod-
uct malfunction, property damage, injury, or death to the user or other
people. Incorrect operation due to ignoring any instructions will cause
harm or damage. A summary of safety precautions begins on page 4.
Do not throw away, destroy, or lose this manual.
Please read carefully and store in a safe place for future reference.
Content familiarity required for proper installation and operation.
For more technical materials such as submittals, engineering
databooks, and catalogs, visit www.lghvac.com.
For continual product development, LG Electronics U.S.A., Inc., reserves the right to change specifications without notice.
©LG Electronics U.S.A., Inc.
This document, as well as all reports, illustrations, data, information, and other materials are the property of LG Electronics U.S.A., Inc.
PROPRIETARY DATA NOTICE
This document, as well as all reports, illustrations, data, information, and other
materials are the property of LG Electronics U.S.A., Inc., and are
disclosed by LG Electronics U.S.A., Inc., only in confidence.
UM_CRC1_Series_Controllers_12_18

3
User Interface Guide
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
TABLE OF CONTENTS
Safety Instructions.......................................................................................................5
Introduction..................................................................................................................7
MultiSITE CRC1 Series Controllers .........................................................7
Compatible Equipment.............................................................................7
Accessories..............................................................................................7
Safety.......................................................................................................7
Controller Overview.....................................................................................................8
Home Screen ...........................................................................................8
Operation Mode .......................................................................................9
Adjusting Setpoints in Auto Mode ..........................................................10
Setpoint Adjustment ...............................................................................11
Using the Controller Conguration Screens...........................................12
Conguration Screens...............................................................................................13
Schedule Screen....................................................................................13
More Screens.........................................................................................15
Conguration Screens...............................................................................................17
Installer Conguration Screens..............................................................17
Conguration Main Screens...................................................................18
ZigBee Wireless System................................................................19
Building Manager Screens.............................................................20
Display/Date and Time Settings.............................................21
Customize Home View...........................................................22
Filter Functions ......................................................................23
Setpoints Conguration .........................................................24
SmartThinQ ...........................................................................25
Override Setup.......................................................................26
Setback Setup .......................................................................27
Outdoor Unit Control..............................................................28
Installer ..........................................................................................29
General Settings ....................................................................30
Temperature Settings.............................................................33
Fan Settings...........................................................................34
Heat Settings .........................................................................36
Emergency Heater Settings...........................................38
Accessories ...........................................................................39
BMS Conguration.........................................................................41
BACnet Settings ....................................................................41
ZigBee Conguration .............................................................43
Basic Diagnostic ............................................................................46
Password Setup.............................................................................49
Factory Default...............................................................................50
Relative Humidity Display ......................................................................51
Time and Date........................................................................................51
PIR (Motion Sensor) ..............................................................................52
BACnet Points ...........................................................................................................53
Controller BACnet Points .......................................................................53

4
MultiSITE CRC 1 Controller
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
The instructions below must be followed to prevent product malfunction, property damage, injury or death to the user or other people. Incor-
rect operation due to ignoring any instructions will cause harm or damage. The level of seriousness is classified by the symbols below.
SAFETYINSTRUCTIONS
WARNING
The information in this manual is intended for use by a
trained technician familiar with the U.S. National Electric
Code (NEC) who is equipped with the proper tools and test
instruments.
Failure to carefully read and follow all instructions in this manual may
result in equipment malfunction, property damage, personal injury and/
or death.
Risk of electric shock. Disconnect all power before
servicing.
Do not install the MultiSITE Controller unit if it will be
exposed to rain or other precipitation.
Do not install the unit in a location exposed to open ame
or extreme heat.
Do not touch the unit with wet hands.
There is risk of re, electric shock, physical injury and/or death.
Replace all control box and panel covers.
If cover panels are not installed securely, dust, water and animals may
enter the unit, causing re, electric shock, and physical injury or death.
Wear protective gloves when handling equipment.
Sharp edges may cause personal injury.
Dispose of any packing materials safely.
• Packing materials, such as nails and other metal or wooden parts
may cause puncture wounds or other injuries.
• Tear apart and throw away plastic packaging bags so that children
may not play with them and risk suffocation and death.
Do not change the settings of the protection devices.
If the pressure switch, thermal switch, or other protection device is
shorted and forced to operate improperly, or parts other than those
specied by LG are used, there is risk of re, electric shock, explosion,
and physical injury or death.
If the air conditioner is installed in a small space, take mea-
sures to prevent the refrigerant concentration from exceed-
ing safety limits in the event of a refrigerant leak.
Consult the latest edition of ASHRAE (American Society of Heating,
Refrigerating, and Air Conditioning Engineers) Standard 15. If the re-
frigerant leaks and safety limits are exceeded, it could result in personal
injuries or death from oxygen depletion.
DANGER
This symbol indicates an imminently hazardous situation which, if not avoided, will result in death or
serious injury.
WARNING
This symbol indicates a potentially hazardous situation which, if not avoided, could result in death or
serious injury.
CAUTION
This symbol indicates a potentially hazardous situation which, if not avoided, may result in minor or
moderate injury.
Note:
This symbol indicates situations that may result in equipment or property damage accidents only.
This symbol indicates an action that should not be performed.
TABLE OF SYMBOLS
DANGER
Do not touch any exposed wiring, terminals, or other electrical components with tools or exposed skin. Only qualied
technicians should install, use or remove this unit.
Improper installation or use may result in re, explosion, electric shock, physical injury and/or death.
Don’t use or store ammable gas or combustibles near an outdoor or indoor unit.
There is risk of re, explosion, and physical injury or death.

5
User Interface Guide
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
SAFETY INSTRUCTIONS
MultiSITE Controller is for use with select LG commercial air
conditioning systems only.
Do not attempt to use MultiSITE Controller with any other
type of system. Refer to the compatible equipment list in this
manual.
There is risk of equipment damage or degraded performance
Do not cut, lengthen or shorten the cable between the
MultiSITE Controller unit and the indoor unit.
Do not install the MultiSITE Controller unit in a location
where the cable cannot be safely and easily connected be-
tween the two units.
Do not allow strain on this cable.
There is risk of equipment damage.
Clean up the site after all procedures are nished, and check
that no metal scraps, screws, or bits of wiring have been left
inside or surrounding the controller or indoor units.
Provide power to the outdoor unit compressor crankcase
heaters at least six (6) hours before operation begins.
Starting operation with a cold compressor sump(s) may result in severe
bearing damage to the compressor(s). Keep the power switch on during
the operational season.
Do not block the indoor unit inlet or outlet.
Unit may malfunction.
Securely attach the electrical cover to the indoor unit. Non-
secured covers can result in re due to dust or water in the
service panel.
Do not allow water, dirt, or animals to enter the unit.
There is risk of unit failure or degraded performance.
Do not spill water or other liquid on the inside of the
indoor unit, especially on electrical components.
Do not drop the MultiSITE Controller unit into water. If the
unit is immersed in water or other liquid, contact your local
authorized LG distributor for support.
There is risk of unit failure or degraded performance.

6
MultiSITE CRC 1 Controller
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.

7
User Interface Guide
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
INTRODUCTION
MultiSITE CRC1 Series Controllers
This manual describes how to use the LG MultiSITE Commercial
Remote Controllers (CRC) 1. There are two models of this controller:
• MultiSITE CRC1 (Model PREMTBVC0)
• MultiSITE CRC1+ (Model PREMTBVC1)
The two models are identical with the exception of two functions
included in the MultiSITE CRC1+ only:
• Motion sensor
• Humidity sensor
Compatible Equipment
MultiSITE CRC1 Controllers are compatible with LG Commercial
Air Conditioning indoor units (except PTAC units).
Do not attempt to use a MultiSITE CRC1 controller with any
other equipment.
Accessories
These accessories are available for MultiSITE CRC1 controllers:
• ZigBee®Pro wireless card Model ZVRCZPWC1
• Door and window switch Model ZVRCZDWS1
• Wall mounted occupancy sensor Model ZVRCZWOC1
• Ceiling mounted occupancy sensor Model ZVRCZCOC1
The ZigBee®Pro wireless card is required for communication
between the controller and the other accessories.
Safety
Safety of personnel is the primary concern during all procedures.
Read and understand the safety summary at the front of this manual.
Ensure the controller is installed in accordance with the appropriate
LG installation manual.
WARNING
If troubleshooting is required, it must be performed by trained personnel
and in accordance with national wiring standards and all local or other
applicable codes. Improper troubleshooting and repair/replacement of
equipment can result in re, electric shock, physical injury, or death.
Note:
Improper troubleshooting and repair/replacement of equipment can
result in damaged equipment or degraded operation.
Typical MultiSITE CRC1 Controller
MultiSITE CRC1 Controller Accessories
09-26-2017 2:43 PM
Occ Auto Heat
74° 78
Indoor °F
Humidity
66 %
68
Auto
*ZigBee is a registered trademark of the ZigBee Alliance.
ZigBee®Pro Wireless Card Door/Window Switch
Wall Mounted
Occupancy Sensor
Ceiling Mounted
Occupancy Sensor

8
MultiSITE CRC 1 Controller
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
CONTROLLER OVERVIEW
Home Screen
Note:
Available functions/features may differ based on the connected system.
When any change is made to a parameter, the value is automatically saved in memory when the next
parameter is selected or another page is opened.
Arrows auto-increment/decrement at higher speed when holding button for more than 2.5 seconds.
09-26-2017 2:43 PM
Occ Auto Heat
74°
78
Indoor °F
Humidity
66 %
68
Auto
Locked by central controller
Occupancy Status
Occupied (Occ) or
Unoccupied (Unocc) Operation Mode Status
Current Fan Speed Setting
Up Arrow
Raise Temperature Setpoint
Room Indoor
Temperature
Down Arrow
Lower Temperature Setpoint
On/O󰀨
Turn the display
on or o󰀨
Schedule
Set weekly
schedule
More
Provides end user with
access to less often used
functions.
Fan Speed
Set fan to Slow, Low, Low-Med,
Medium, Med-High, High, Power,
Auto. (Available options depend
on IDU model.)
Operation Mode
Set Cool, Heat, Auto
Cool, Auto Heat,
Fan, Dry modes
Note: Pressing and holding the
Operation Mode icon takes the user
to the Operation Mode page.
Short Network Message
Note: Long-press of the Fan
Speed button when in cooling
mode triggers Power Cooling
mode. If in Power Cooling mode,
last airow segment on top is lit
in purple and the text changes
from “Fan” to “Power Cool”. This
mode lasts for 30 minutes and
then reverts back to the previous
fan speed.
Auto
The controller home screen is shown and described below.
Current Time
Room Indoor
Humidity
Current Date

9
User Interface Guide
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
CONTROLLER OVERVIEW
Operation Mode
OPERATION MODE
Auto
Cool
Fan
Dry
Heat
Auto
Setback
Selecting modes available on this screen places the IDU in that mode and then the user will be returned
to the home screen. Selecting the mode that is currently highlighted will maintain the current mode and
return the user to the home screen.

10
MultiSITE CRC 1 Controller
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
CONTROLLER OVERVIEW
Adjusting Setpoints in Auto Mode
Setpoints can be modied in three di󰀨erent ways when in Auto Mode: Cooling Setpoint change, Heating Setpoint change, or
Cooling/Heating Setpoint change.
Auto Mode, Cooling Cycle, Cooling Setpoint (Dual Setpoint setting)
When in cooling cycle of Auto Mode, use the up and down arrows to raise or lower the cooling setpoint.
When the setpoint is modified it will increase or decrease the difference between the cooling and heat-
ing setpoint values. The minimum difference allowed between cooling and heating setpoints is determined
by the Deadband control value setting (found in the Setpoint Config screen). "Cooling Setpoint" shows as
indicated on the screen to the left.
Auto Mode, Cooling Cycle, Heating Setpoint (Dual Setpoint setting)
To change the heating setpoint when in Auto Mode, cooling cycle, tap the up or down arrows to place the
controller into set point configuration mode and then immediately tap the Mode button once to change to
heating set point mode. "Heating Setpoint" shows when this parameter is set. Immediately move back to the
set point up or down arrows to change the heating set point.
Auto Mode, Cooling Cycle, Cooling/Heating Setpoint (Dual Setpoint setting)
To change the cooling and heating setpoints simultaneously, a third option is available for adjusting set-
points. If in Auto Mode (either cooling or heating cycle), tap either the up or down set point buttons, then
immediately tap the Mode button until “Cool/Heat” shows, indicating that the controller is in the correct set
point mode. Immediately move back to the up or down set point buttons to change the set points as desired.
09-26-2017 2:43 PM
Occ Auto Heat
74°
Indoor °F
Humidity
66 %
Auto
78
68

11
User Interface Guide
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
CONTROLLER OVERVIEW
Setpoint Adjustment
Setpoints can be modied in three di󰀨erent ways when in Auto Mode; Cooling Setpoint change, Heating Setpoint change or
Cooling/Heating Setpoint change.
09-26-2017 2:43 PM
Occ Auto Cool
74° 75.0
Cooling Setpoint °F
Humidity
45 %
2:43 PM
Occ Auto Heat
74° 75.0
Heating Setpoint °F
09-26-2017
Humidity
45 %
09-26-2017 2:43 PM
Occ Auto Heat
74°
Indoor °F
Humidity
66 %
Auto
78
68
Cooling mode or cooling only
sequence of operation
In Cooling mode, the setpoint displayed in the bar is the cur-
rent occupied cooling setpoint.
During occupied setpoint adjustment, the large digits are tem-
porarily used to display the occupied cooling setpoint while it
is adjusted.
Normal temperature display resumes after the setpoint is
adjusted and the actual occupied cooling setpoint is displayed
in the setpoint bar.
Heating mode or heating only
sequence of operation
In Heating mode, the setpoint displayed in the bar is the cur-
rent occupied heating setpoint.
During occupied setpoint adjustment, the large digits are tem-
porarily used to display the occupied heating setpoint.
Normal temperature display resumes after the setpoint is
adjusted and the actual occupied heating setpoint is displayed
in the setpoint bar.
Automatic Heating / Cooling mode
In automatic mode, the setpoint displayed at the top of
the set point bar represents the actual occupied cooling
setpoint.
During occupied setpoints adjustment, the large digits are
temporarily used to display the occupied “Cooling Set-
point” or occupied “Heating Setpoint”. The actual setpoint
is dependent on the last effective demand (heating or
cooling).
Normal temperature display resumes after the setpoints
are adjusted and the actual occupied heating and cooling
setpoints are displayed in the setpoint bar.

12
MultiSITE CRC 1 Controller
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
CONTROLLER OVERVIEW
1/3 Zigbee Configuration
Zigbee channel
Zigbee PAN ID
COM address
15
11
254
Zigbee short
0x0000
Node type
Zigbee status
No NWK
Coord.
Using the Controller Configuration Screens
Some of the buttons on the Home screen display conguration screens. Controller operating parame-
ters can be set as necessary for your system. The gure below describes how to use the conguration
screens.
Controls
The left side of the
screen lists controls and
monitored parameters.
Control Values
The right side of the
screen is a button you
can tap to change the
value of the control or
parameter displayed to
its left.
Read Only
Dark gray buttons are
read only. These values
can’t be changed by the
user.
Back Button
Tapping this button
goes back one level in
the screen hierarchy.
Left/Right Arrows
The left and right
arrows move between
screens on the same
level as the currently-
displayed screen.
Up/Down Arrows
The up and down
arrows are used to
change the value of
the active (highlighted)
control.
Screen Name

13
User Interface Guide
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
CONFIGURATION SCREENS
Schedule Screen
Press the Schedule button on the Home screen to display the Schedule Screen. There are different
schedule setting screens, one for each day of the week (7 days) titled accordingly. Each can have different
scheduled events where the room controller is set for set point, system mode, fan speed and occupancy
status. Five (5) separate events can be configured per day.
--:--
--:--
****day Schedule
--:--
Delete
--:--
--:--
Copy to
Adjust the time in the left column by pressing on the
Up and Down arrows. To configure the System mode
for the time selected tap on the right column.
Tap the left-hand button to set
the time for scheduled event.
When the time for a new event
is configured, the default sys-
tem mode of “Off” will appear
in the event overview portion of
the control on the right side.
Tap the right-hand side button
to enter the next screen.
74°F
70°F
Monday 06:00 AM
Setpoint cool
Setpoint heat
Heat
System mode
Fan speed
Occ. / Unocc.
Medium
Occupied
Up to 5 separate events per day can
be configured. User can set cooling
and heating set points, system mode
(Off, Dry, Cool, Heat, Fan and Auto),
fan speed and Occupied/Unoccupied
status.
This typical schedule screen shows the parameters that can be adjusted for a specific time and day in a week.
Once the event has been fully
configured, press the left ar-
row to be returned to the daily
schedule overview screen.

14
MultiSITE CRC 1 Controller
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
CONFIGURATION SCREENS
Parameter Parameter Settings Denition
Setpoint cool Range: 50-99 °F
Default value: 78°F
Range of cooling setpoint values
Setpoint heat Range: 40-90 °F
Default value: 68°F
Range of heating setpoint values
System mode Choices: Off, Cool, Heat, Fan, Auto, Dry
Default value: OFF
System modes
Fan Speed Choices: Slow, Low, Low-Med, Medium,
Med-High, High, Power, Auto
Default value: Low
Fan speed settings
Occ./Unocc. Choice: Unoccupied, Occupied
Default value: Unoccupied
Selection of unoccupied or occupied for the
conditioned space
Daily Schedule Screens –continued
06:00AM
05:00PM
Monday Schedule
H 74 / 70:O
C 71 / 69:U
Off
--:--
--:--
09:00PM
Copy to
Delete
H 74 / 70:O
To modify an existing
event, tap either the
left side control to
edit the time or tap
the right-hand side of
the control to re-enter
the event screen and
make your desired
changes.
If desired, use the
'Copy to' button to
copy the schedule
to another day of
the week. First
choose the time of
the event you want
to copy and then
choose ‘Copy to’.
Copy to day(s)
Monday
Tuesday
Wednesday
Thursday
Friday
Sunday
Thursday
Saturday
To delete an event,
tap the time of the
event and then tap
the Delete button.
Choose the day(s)
you want to copy the
event to and then
press the left arrow.
Event Overview Display Parameter Meaning
First Letter Mode (O=off, C=cool, H=heat, F=fan, A=auto, D=dry)
Second Number(s) Set Point(s)
Third Letter Occupancy Status (U=unoccupied, O=Occupied)
Current Example: H: 74 / 70: O = Heating Mode, Upper setpoint of 74, Lower setpoint of 70, Occupied

15
User Interface Guide
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
CONFIGURATION SCREENS
More Screens
Press the More button on the Home screen to display the More screen.
English
More
Language
°F(1)
Temp Units(12)
Off
Outside Air - Vent.
Off
Plasma Purifier
On
Aux Heat
Off
Disable Schedules
Language
Use the up and down
arrows to select English,
French, or Spanish Temp Units
Allows you to switch
between Celsius and
Fahrenheit
Parameter Parameter Values Denition
Language English, French, Spanish
Default value: English
Selects the language for the controller display
Temp Units - °F/°C (12) 0 = “°C (0)”, 1 = “°F (1)”
Default value: °F
Selects Celcius degrees or Fahrenheit degrees
Aux Heat 0 = “Off”, 1 = “On”
Default value: Off
Controls the auxiliary heater when Aux Heat Cntrl
(21) is enabled
Outside Air - Vent. 0 = “Off”, 1 = “On”
Default value: Off
Controls the outside air ventilation when Out_Air_
Vent(24) is enabled
Plasma Purifier 0 = “Off”, 1 = “On”
Default value: Off
Controls the plasma purifier when Plasma Kit (20)
is enabled
Disable Schedules 0 = “Off”, 1 = “On”
Default value: Off
Allows all existing loccal schedules to be disabled
without having to remove them. This option is
available only if a schedule has been set on the
remote controller.

16
MultiSITE CRC 1 Controller
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
CONFIGURATION SCREENS
More Screens –continued
Press the right arrow button to display these screens. To adjust vane angle, user selects vane(s) by tapping
vane icon at the top of the screen, adjusts vane angle by using up/down arrows and then selects Apply button.
Note:
Vane xed angle control for multi-vane systems occurs in pairs. Refer to the Vane Fixed Angle screen. If a 4-louver
device is identied, when the user chooses Vane 1 or Vane 3 control, the opposite vane (Vane 3 or Vane 1) will be
controlled at the same time. If Vane 2 or Vane 4 is selected, Vane 4 or Vane 2 will be controlled in lockstep with its
matching pair as well. The same control behavior holds for a 2-louver device.
Off(0)
Vane Direction
Airflow Up/Down
Off(0)
Airflow Left/Right
Off(0)
Airflow Circular
Apply
Reset
ALL
Vane Fixed Angle
Airflow Up / Down and
Airflow Left / Right con-
trols can both be “On” at
the same time. However,
when Airflow Circular
control is “On,” both of
the other two controls will
be set to “Off.”
Parameter Parameter Settings Denition
Airow Up / Down Choices: 0 = “O󰀨”, 1 = “On”
Default value: O󰀨
Selects the vane direction of the airow, up and down
Airow Left / Right Choices: 0 = “O󰀨”, 1 = “On”
Default value: O󰀨
Selects the vane direction of the airow, left and right
Airow Circular Choices: 0 = “O󰀨”, 1 = “On”
Default value: O󰀨
For 4-way cassette IDUs only. Selects circular vane
direction
Apply Sends the vane angle selected with the up and down
arrow keys to the IDU
Reset Sets all vane angles to the default position of “3”

17
User Interface Guide
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
CONFIGURATION SCREENS
Installer Configuration Screens
These screens are more commonly used during installation, system configuration, or troubleshooting than
by an end user. There is no icon on the Home screen to access these configuration screens. You must press
and hold the area of the screen indicated on the diagram below to access the first screen.
If a configuration / installer password is activated to prevent unauthorized access to the configuration menu
parameters, a password entry prompt will appear to prevent access to the device configuration components.
09-26-2017 2:43 PM
Occ Auto Heat
74°
78
Indoor °F
Humidity
66 %
68
Auto
Touch and hold here
for 3 seconds to enter
conguration mode.

18
MultiSITE CRC 1 Controller
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
CONFIGURATION SCREENS
Configuration Main Screens
There are two main configuration screens as shown below. Press the left and right arrow buttons to move
between these two screens. Press a button on a screen to display the parameter selections for that item.
Configuration 1/2
Building Manager
Installer
BMS Config
Basic Diagnostic
Password Setup
Factory Default
Enter Display, Date & Time, Filter, Setpoints, Override,
Setback and Outdoor Unit configuration
Enter General, Temperature, Fan and Heat settings and
Accessories configuration
Enter BACnet settings
Setup a password to restrict/allow access to the thermostat
View Diagnostic parameters
Reverts all controller control settings back to default values.
Note: Users will be given the option to conrm that they wish to
proceed. Once in the Factory Default screen, if user proceeds
with this step, all schedules and current controller settings includ-
ing time and date will be cleared. Settings cannot be recovered
after a Factory Default has been performed.
Configuration 2/2
Wireless Ecosystem
Enter ZigBee wireless zone configuration settings.

19
User Interface Guide
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
CONFIGURATION SCREENS
ZigBee Wireless System
When ZigBee wireless sensors are set up to communicate with the controller, the functioning of each
such sensor is described in a separate Zone screen, up to a maximum of 10 Zones. Press the left and
right arrow keys to move between Zone screens. Select the appropriate type of sensor using the up
and down arrow keys.
Configuration 2/2
Wireless Ecosystem
Enter ZigBee wireless Zone
configuration settings.
Set function to
Status
1/10 Zone
Battery
No
Paired
0x0000
IEEE addr.
None
Closed
Normal
Permit join
On
Set function to
Status
10/10 Zone
Battery
No
Paired
0x0000
IEEE addr.
None
Closed
Normal
Only last 4 digits
in HEX shown
Up to 10 separate
wireless sensors
can be configured,
each with its own
Zone screen

20
MultiSITE CRC 1 Controller
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
CONFIGURATION SCREENS
Building Manager Screens
There are two main configuration screens as shown below. Press the left and right arrow buttons to move
between these two screens. Press a button on a screen to display the parameter selections for that item.
1/2 Building Manager
Display / Date & Time
Customize Home View
Filter Functions
Setpoint Configuration
Smart ThinQ
1
Code Search
Code Search
Use the Up and Down arrows
to choose an available
Function Code and select the
Code Search button to navi-
gate to the screen where that
function code resides.
Codes can be found in
brackets next to a parameter
throughout all menus. This
function is used for quicker
menu navigation.
Display Basic Settings – Date / Time,
Display Color, Standby Brightness (and
delay timing), Night Backlight level, Standby
Screen).
Filter Functions – Clear Filter Alarm,
Remaining Time, Lower/Raise Grill, Robot
Cleaning
Customize Home View
Hide On/O󰀨, Mode, Schedule,
More, Set Temp, Space Temp,
Fan and Humidity options on
home screen. Setpoint Conguration
Choose between Single/Dual set point(s)
and congure set point max/min limits and
deadband.
Note: Available functions/features may differ
based on the connected system.
2/2 Building Manager
Outdoor Unit Control
Override Setup
Setback Setup
Override Setup
If controller is in the unoccu-
pied mode then the controller
enters Override mode when
the user taps the screen the
rst time.
Select this control to congure
settings for Override including
set points, system mode, fan
speed and duration of override.
Outdoor Unit Control
Manage outdoor unit functions
through the Controller’s
interface.
Setback Setup
Setback settings are congurable
with this control including set
points, system mode and fan
speed.
Smart ThinQ – Displays the Smart ThinQ
screen. Allows pairing of the controller and
the Smart ThinQ smartphone app. The Smart
ThinQ app allows air conditioner control from
the smartphone.
