ForestAir FA-10PA User manual

FA-UM-PAC-2812 - v1.0 - 11/2018 © Copyright, ForestAir, 2018
IMPORTANT : Please read this manual carefully before running this unit, and save it for future reference.
OWNER’S MANUAL
PORTABLE AIR CONDITIONER
FA-10PAC
FA-12PAC

3
Air conditioners, heat pumps and dehumidiers are pieces of high value. ln order to ensure your lawful
rights and interests, if you are not familiar with the installation of this type of appliance, please have a
professional technician do the installation for you. This instruction manual is the universal-purpose version
for dehumidier models manufactured by ForestAir. The appearance of the unit that you have purchased
may differ from the ones seen in this manual, however it does not change the basic instructions on how to
operate and use the appliance.
To ensure satisfactory operation for many years to come, this manual should be read carefully before
using the air conditioner. After reading, store in a safe place. Please refer to the manual for questions on
use or in the event that any irregularities occur.
1.0. SAFETY INSTRUCTIONS ........................................................................................................................4
2.0. COMPONENTS ........................................................................................................................................5
3.0. INSTALLATION GUIDE
3.1. Assembling the exhaust hose ................................................................................................................6
3.2. Assembling and installing the window kit ..............................................................................................7
3.3. Connecting the exhaust hose to the window kit....................................................................................8
4.0. OPERATION GUIDE
4.1. Control panel and remote control overview ........................................................................................10
4.2. Button functions ...................................................................................................................................12
4.3. Remote control operation ....................................................................................................................13
4.4. Other functions .....................................................................................................................................13
4.5. Water drainage .....................................................................................................................................14
5.0. CARE & MAINTENANCE
5.1. Cleaning the surface ............................................................................................................................15
5.2. Cleaning the lters ...............................................................................................................................15
5.3. Postseason storage .............................................................................................................................15
6.0. TROUBLESHOOTING ............................................................................................................................16
7.0. WARRANTY .............................................................................................................................................17
TABLE OF CONTENT
FOREWORD
Electrical products should be properly disposed.
Please recycle where facilities exist.
Check with your local authority or retailer for recycling.

4
1.0. SAFETY INSTRUCTIONS
Read the following safety instructions before installing the unit or doing service work.
To reduce the risk of re, electric shock, or personal injury when using this appliance, follow these basic
safety precautions.
PRECAUTIONS
▪ The air conditioner is only suitable for indoor use, no other applications.
▪ Follow local grid interconnection rules while installing the air conditioner and ensure that it is
properly grounded. If you have any question on electrical installation, follow the instructions of the
manufacturer, and if necessary, ask a professional electrician to install it.
▪ Place the unit on a at surface and in a dry area. Keep a clearance of at least 50 cm (20 in) around
the appliance and the surrounding objects or walls.
▪ After the air conditioner is installed, ensure that the power plug is intact and rmly inserted into the
electric outlet. Arrange the power cord so that no one accidentally trips over it or pulls it out of the
outlet.
▪ Do not put any object into the air inlet or outlet of the air conditioner. Keep the air inlet and outlet
free from obstructions.
▪ When installing the drainage hose, ensure that it is properly connected and not twisted or bent.
▪ While adjusting the horizontal and vertical shutters of the air outlet, handle gently to avoid
damaging shutters.
▪ When moving the appliance, make sure that it is in an upright position.
▪ Keep the appliance away from gasoline, ammable gas, stoves and other heat sources.
▪ Do not disassemble, overhaul or modify the air conditioner arbitrarily, it could cause a malfunction
or even personal injury and material damage. To avoid danger, if a failure occurs, ask the
manufacturer or professionals to repair it.
▪ Do not install and use the air conditioner in the bathroom or other humid environments.
▪ Do not pull the plug to turn the appliance off.
▪ Do not place liquid containers on top of the unit to prevent water or other liquids from spilling into
the air conditioner.
▪ Do not use insecticide sprays or other ammable substances near the air conditioner.
▪ Do not wipe or wash the air conditioner with chemical solvents such as gasoline or alcohol. When
cleaning the appliance, make sure to disconnect the power supply, then clean the surface with a
soft damp cloth. If the unit is really dirty, scrub with a mild detergent.
▪ This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
WARNING : Can cause serious personal injury or death.
CAUTION : Can lead to injury or structural damage under some conditions.

5
2.0. COMPONENTS
1
4
2
3
FRONT VIEW
7
9
8
5
11
10
6
REAR VIEW
1 Control panel
2 Air outlet / Shutters
3 Handle
4Castor
5 EVA lter
6 Remote storage space
7 Air exhaust vent
8Drain port
9 Rubber plug and drain cap
10
CON lter
11
Power cord and plug
Air exhaust hose Window adapter Hose connector Remote control
Wing nut and bolt (2)
Type A screw
Window slider kit (3 panels)
Drainage hose
Hose connector

6
3.0. INSTALLATION GUIDE
Note : Before using the air conditioner, make sure it has
been in an upright position for at least two hours.
Position the air conditioner near a window, on a level
surface, in the upright position. For best performance,
leave at least 50 cm (20 in) of clearance all around the
unit to allow good airow (see Figure 1). Do not install
and use the appliance in a bathroom or other humid
environments.

FIG. 1
Min. 50 cm (20 in)
Min. 50 cm (20 in)
5-10 cm (2-4 in)
Stretch out both ends of the exhaust hose for 10-15 cm (4-6in)
5-10 cm (2-4 in)
FIG. 2
█ 3.1. ASSEMBLING THE EXHAUST HOSE
1) Screw on the window adapter unto the extendable hose on one end, and the hose connector on
the other (as show in Figure 2). Ensure proper t on both ends. The supplied exhaust hose can be
extended to a maximum of 150 cm (59 in).
2) Connect the exhaust hose assembly to the air exhaust port on the back of the unit. Push in then
rotate counterclockwise (as shown in Figure 3).

FIG. 3
Counterclockwise

7
3.0. INSTALLATION GUIDE

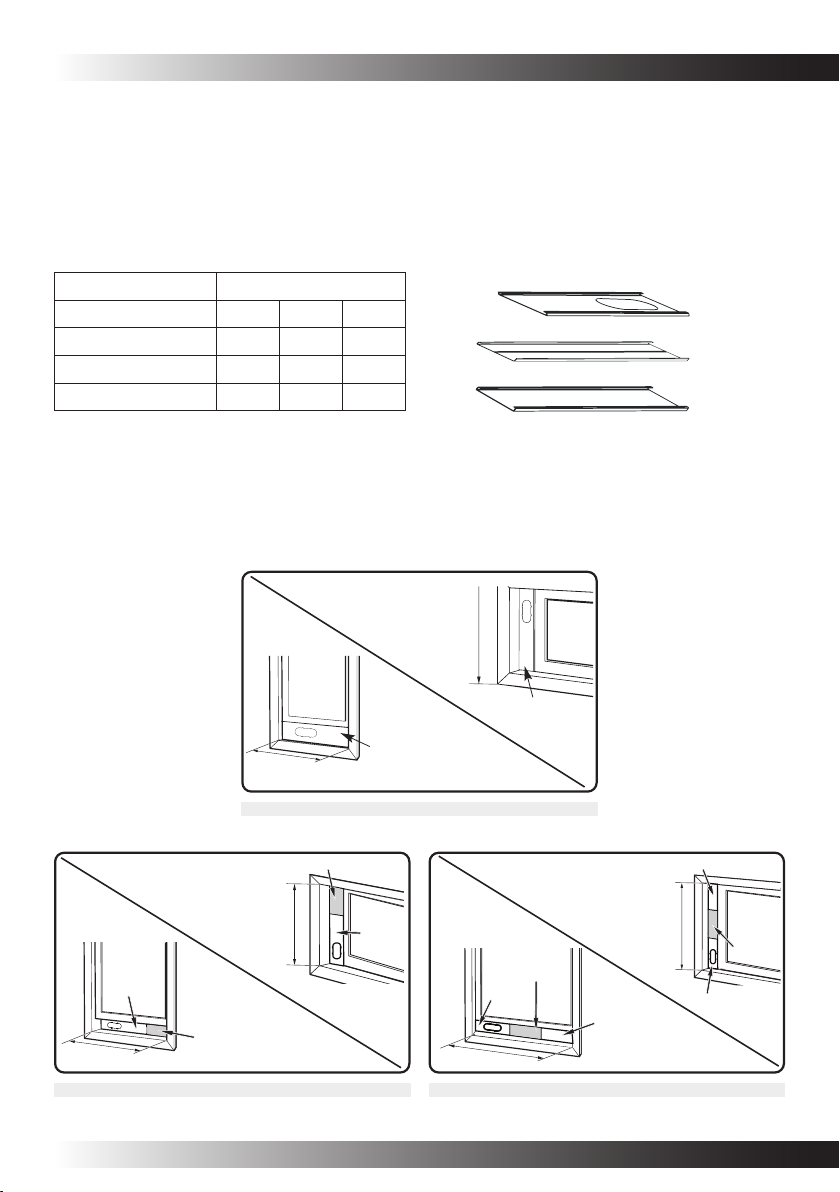

█ 3.2. ASSEMBLING AND INSTALLING THE WINDOW KIT
Your window slider kit has been designed to t most standard vertical and horizontal window
applications, however it may be necessary for you to improvise/modify some aspect of the installation
procedures for certain types of window. See table for minimum and maximum window openings.
MAXIMUM : 145 cm (57 in)
MINIMUM : 23 cm (9 in)
Panel
Window length ABC
23-46 cm (9-18 in) ●
48-96 cm (19-38 in) ● ●
99-145 cm (39-57 in) ● ● ●
Notes :
▪ Adjust to the desired length and use provided metal wing nuts and bolts to secure.
▪ If the window opening is less than 45 cm (18 in), the minimum length of the panel A, shorten the panel
by cutting off the exceeding length in order to t the window opening.
▪ Never cut out the hole from panel A.
A : 45 cm (18 in)
B : 55 cm (21 in)
C : 55 cm (21 in)
FIG. 5 – For a 23-46 cm (9-18in) window opening
Panel A
Panel A
23-46 cm (9-18 in)
23-46 cm (9-18 in)
Panel A
Panel B
Panel B
48-96 cm (19-38 in)
48-96 cm (19-38 in)
FIG. 6 – For a 48-96 cm (19-38in) window opening
Panel A
FIG. 7 – For a 99-145 cm (39-57 in) window opening
Panel C
Panel B
Panel B
Panel C
Panel A
Panel A
99-145 cm (39-57 in)
99-145 cm (39-57 in)

8
3.0. INSTALLATION GUIDE
█ 3.3. CONNECTING THE EXHAUST HOSE TO THE WINDOW KIT
Extend the exhaust hose and connect the end with the window adapter to the window kit (as shown in
Figure 9, 10 and 11).
Note : There may be a poor sealing
effect due to a large gap left by some
non-standard window. Please purchase
appropriate foam weatherstripping (not
included) in order to strengthen the air
conditioner refrigeration effect.
FIG. 10 – Slide to lock
Insert
Slide
FIG. 11 – Fix rmly with type A screws
Type A screw
FIG. 8 – Add foam weatherstripping
FIG. 9 – Connect to window panel A
Panel A

9
3.0. INSTALLATION GUIDE
Notes :
▪ The length of the exhaust hose is specially designed for the unit. Do not replace or connect to another
hose or this could cause malfunction.
▪ The exhaust hose should be free of any obstructions.
▪ An exhaust hose with sharp angles and bents will prevent the air from being evacuated properly
which could cause the unit to malfunction or shut-off.

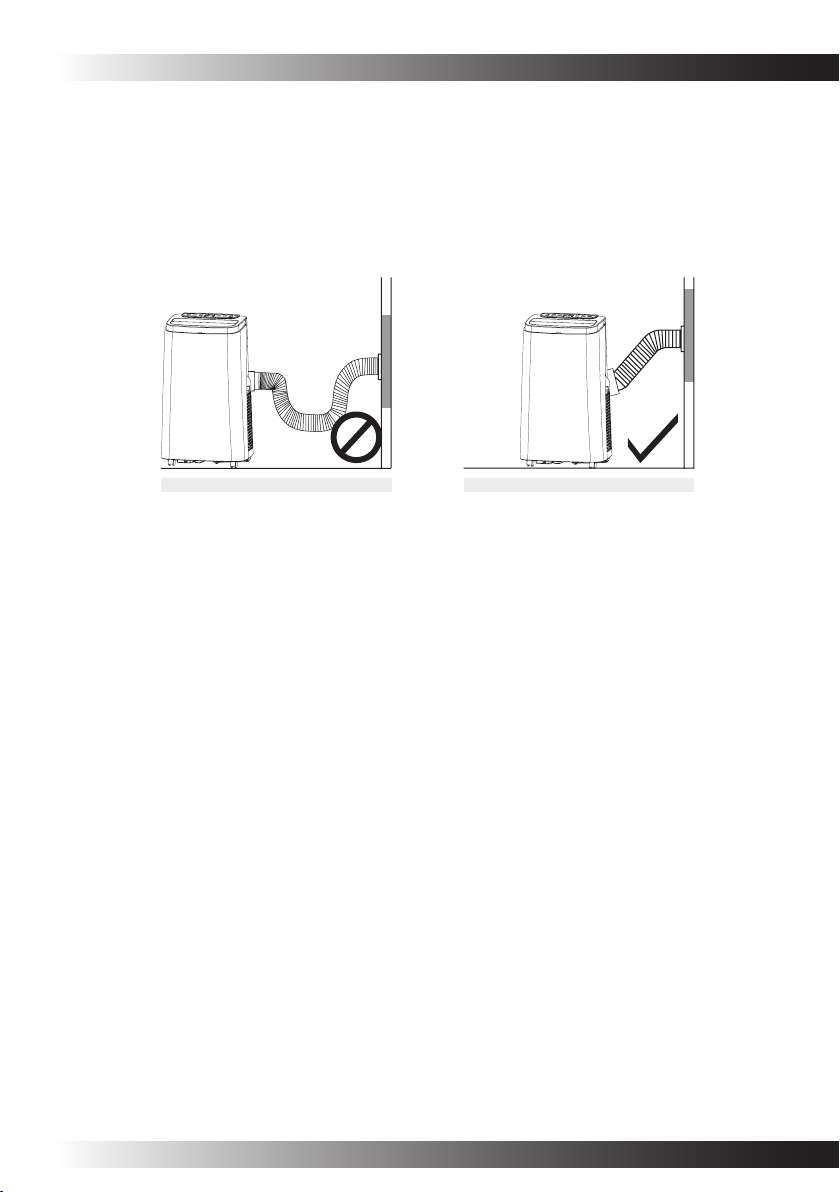

NOT RECOMMENDED RECOMMENDED

10
4.0. OPERATION GUIDE

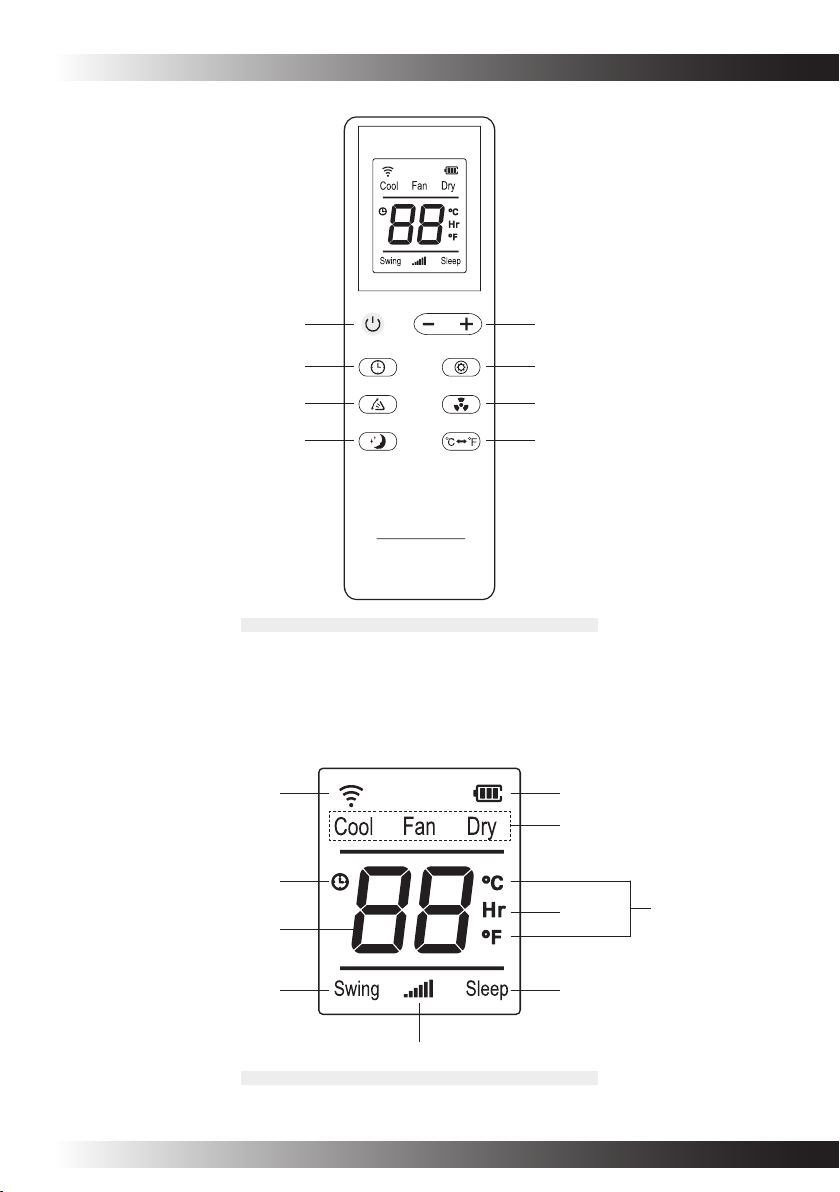

█ 4.1. CONTROL PANEL AND REMOTE CONTROL OVERVIEW
MODE
RESERVOIR FULL POWER ON / OFF
SLEEP MODE
HOUR
TEMPERATURE / TIME
LCD DISPLAY
TEMPERATURE UNIT (°C / °F)
TIMER
SETTING
FAN SPEED
SELECTION
UP DOWN MODE
SELECTION
POWER
ON / OFF
CONTROL PANEL KEYS
CONTROL PANEL INDICATORS

11
4.0. OPERATION GUIDE
MODE
HOUR
BATTERY LEVEL
SLEEP MODE
FAN SPEED
TEMPERATURE
UNIT (°C / °F)
SIGNAL
TIMER
TEMPERATURE / TIME
AUTOMATIC SWING
REMOTE CONTROL DISPLAY SCREEN
UP / DOWN
MODE SELECTION
FAN SPEED SELECTION
TEMPERATURE UNIT
SELECTION (°C / °F)
POWER ON / OFF
TIMER SETTING
AUTOMATIC SWING
SLEEP MODE
REMOTE CONTROL KEYS

12
4.0. OPERATION GUIDE
█ 4.2. BUTTON FUNCTIONS
Note : Operation of functions is the same when using remote or control panel, unless otherwise stated.
POWER ON AND OFF
Press this button to turn the unit ON or OFF. When rst powered on, the unit will
play music and go to standby. The display screen shows current temperature.
MODE SELECTION
While the unit is running, press this button to switch between operation mode :
Cooling, Fan and Dehumidication.
UP AND DOWN
Press these keys to change the set Temperature or Timer value as follows :
▪ When setting a Temperature, use UP or DOWN to increase or decrease
the desired temperature (not available in Fan or Dehumidication mode).
Temperature can be set between 16 – 31°C (61 – 88°F).
▪ When setting a Timer, use the UP or DOWN buttons to increase or decrease the
desired time value.
FAN SPEED SELECTION
In Cooling and Fan mode, press this key to select a ventilation speed : High,
Medium or Low.
In Dehumidication mode, the ventilation speed is automatically set to Low and
cannot be changed.
TIMER SETTING
While the unit is running, press this button to set a timer-OFF. While the unit is
turned off, press this button to set a timer-ON.
When the Timer symbol begins ashing, use the UP and DOWN buttons to select
the desired time value.
Timer can be set within 1-24 hours and is adjusted by increments of one hour.
Timer can be cancelled by setting a time value “00” or by powering off.
CONTROL
PANEL
REMOTE
CONTROL
AND/OR
SIMULTANEOUSLY
WITH
SIMULTANEOUSLY
WITH
N/A
SLEEP MODE
While in Cooling mode, press this button to turn on Sleep mode. The unit will
switch to energy-saving and quiet mode.
Note : Sleep mode cannot be activated in Fan or Dehumidication mode.
AUTOMATIC SWING
Press this button to activate the automatic Swing function of the top shutters.
TEMPERATURE UNIT SELECTION (°C/°F)
Press this key to switch between Celsius (°C) and Fahrenheit (°F).

13
█ 4.3. REMOTE CONTROL OPERATION

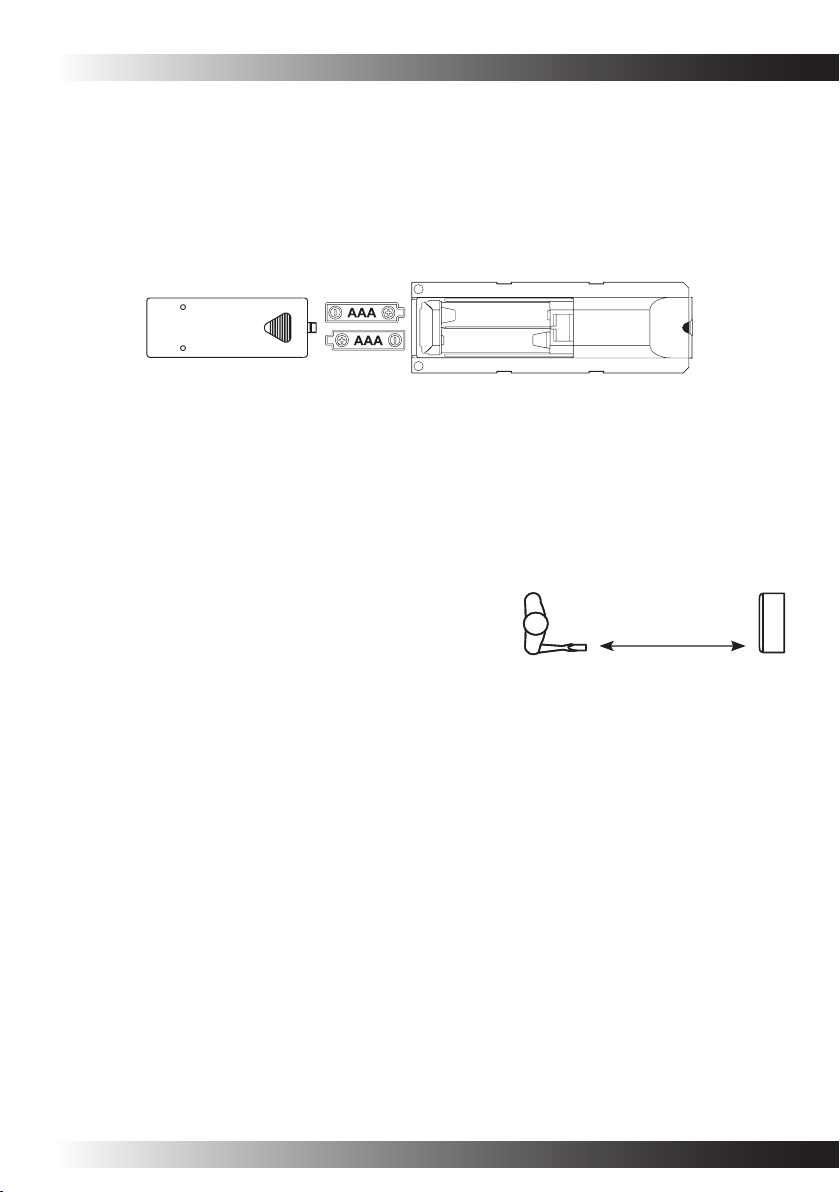

▪ Inserting batteries in the remote control
1) Press and slide down the battery compartment cover (located on the back of the remote) to remove it.
2) Insert two new R03 “AAA” 1.5 V batteries into the battery compar tment. Be sure to match the
polarities correctly.
3) Replace the cover.
Notes :
▪ Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable
batteries.
▪ If the remote control is not be used for a certain length of time, remove the batteries (batteries may
explode or leak).
▪ If the remote control unit is replaced or discarded, the batteries must be removed and disposed of in
accordance with current legislation as they are harmful to the environment.
▪ Operating the remote control
Point the remote control to the air conditioner and press the
desired keys. The remote control must be no more than 5 m
(16 ft) away from the appliance (without obstacles between
the remote control and the appliance).
Note : The remote control must be handled with care. Do not
drop or expose it to direct sources of heat, sunlight or water.
█ 4.4. OTHER FUNCTIONS
FROST PROTECTION
In a cold environment, if the temperature of the exhaust hose drops too low, the appliance automatically
enters a protection mode to ensure the unit is not damaged. When the temperature of the hose rises to a
warmer level (10°C / 50°F), the unit automatically reverts back to normal operation.
OVERFLOW PROTECTION
When the reservoir becomes full, the unit will emit a beeping sound and the overow indicator Full
on the display screen of the control panel will light up. At this point, you need to connect the drainage
hose to the air conditioner, and take the hose to a drain ditch leading to the sewers or other drainage
area to empty the water (for details, see section 4.5. Water Drainage of this manual). After the water is
drained, the unit resumes normal operation.
COMPRESSOR PROTECTION
To increase the service life of the compressor, it has a 3-minute delay booting protection function after
the compressor is turned off.
4.0. OPERATION GUIDE
MAXIMUM 5 M (16 FT)

14
4.0. OPERATION GUIDE
█ 4.5. WATER DRAINAGE
This ForestAir portable air conditioner has a self-evaporative system. The condensed water will be
recycled to the compressor and evaporator, so most of the water will be dissipated. This method not
only improves cooling efciency but also saves energy.
Since most of the condensed water will be used to aid the compressor, in general use, there will no
need of drain water. However, if you are using the air conditioner for cooling or dehumidifying in a high
humidity situation, the collected excess water will need to be drained through the drainage port at the
bottom of the unit. With a full reservoir, the compressor will stop working. Follow these steps to remove
the water :
1) Unscrew the drain cap and remove the rubber plug.
2) Assemble the drain cap and hose connector, then x to the drain port.
3) Push the drainage hose into the hose connector.
4) Take the hose to a container or drain ditch leading outside to empty the reservoir. The length of the
provided drainage hose is 60 cm (24 in) with a diameter of 1 cm (3/8 in).
5) Once the reservoir is fully drained, remove the drainage hose and hose connector, then replace the
rubber plug and drain cap.
Note : Do not run the appliance without the plug and drain cap in place otherwise the condensed
water will drip to the oor or carpet.
3M adhesive
Hose connector
To container
or drain ditch
Drain cap
Hose connector
Drainage hose
Drain cap
Rubber plug
Drainage port

15
5.0. CARE AND MAINTENANCE
Note : Make sure the power is off and the power plug removed from the electric outlet before
performing any maintenance on the unit.
█ 5.1. CLEANING THE SURFACE
Clean the casing with a damp cloth and dry with a soft towel. Avoid using harsh cleaning products
or abrasives such as benzene, alcohol, gasoline and the likes. Such products can cause premature
deterioration and/or yellowing of the surface nish of the air conditioner.
█ 5.2. CLEANING THE FILTERS
Clean the lter screens once every two weeks in
order to prevent dust from clogging the appliance and
reducing its effectiveness.
Note : Never operate the appliance without air lters.
▪ Cleaning the EVA lter
1) Hold the handle of the EVA lter protective grill then
force it down then pull out to remove it. Remove the
four screws that hold the lter in place (as shown in
the illustration) then pull the lter out.
2) Soak the EVA lter into warm water (about 40°C
/ 104°F) with a neutral detergent and let dry after
rinsing thoroughly before reinserting into the
appliance.
▪ Cleaning the CON lter
1) Hold the handle of the CON lter frame then pull gently to remove it.
2) Soak the CON lter into warm water (about 40°C / 104°F) with a neutral detergent and let dry after
rinsing thoroughly before reinserting into the appliance.
█ 5.3. POSTSEASON STORAGE
1) Unscrew the drain cap, remove the plug and drain any excess water out of the reservoir.
2) Clean the lters and dry thoroughly before putting back.
3) Turn the unit on, select Fan mode and adjust to Low ventilation speed. Allow the unit to operate in
this condition for a period of time in order to dry the drain pipe and inside of the appliance from any
moisture to prevent the growth of mildew. Once this is done, replace the water plug and drain cap.
4) Turn the unit off and unplug the power cord from the electric outlet.
5) Remove the air exhaust hose.
6) Remove the batteries from the remote control.
7) Cover the air conditioner and all its components with a plastic bag. Store the appliance in a cool, dry
place, away from direct sunlight, extreme temperatures, and excessive dust. Keep out of children's
reach.
SCREWS
HANDLE
HANDLE

16
6.0. TROUBLESHOOTING
Before you call for service, review the following list. It may save you time and expense. This list
includes common occurrences that are not the result of a defect in workmanship or materials.
SITUATION POSSIBLE CAUSES SOLUTIONS
The air conditioner
does not work.
There is no electricity. Turn it on after connecting the unit to a socket with
power.
The overow indicator Full is on. Drain the water from the unit.
The ambient temperature is too low or
too high.
The recommended working temperature for this unit
is 7 to 35°C (44 to 95°F).
In Cooling mode, the room temperature
is lower than the set temperature.
Change the set temperature.
In Dehumidication mode, the ambient
temperature is low.
The appliance must be placed in a room with an
ambient temperature greater than 17°C (62°F).
The efciency of the
cooling is very poor.
There is direct sunlight in the room. Pull the curtain or close the blinds to prevent
sunlight from heating the room.
Doors or windows are opened. Close doors and windows.
There are a lot of people in the room. Wait for people to leave to see if the room cools
down.
In Cooling mode, there are other
sources of heat present in the room.
Turn off or remove any heat sources that could be
counteracting the cooling effects of the unit.
The lter is dirty. Clean or replace the air lter.
The air inlet or outlet is obstructed. Clear objects or furniture that could be blocking the
inlet or outlet of the unit.
There is noise
coming from the unit.
The air conditioner is not placed on a
at surface.
To reduce noise and vibration, put the air conditioner
on a at and hard surface.
The compressor
does not work.
The unit was recently turned off. Wait for the 3-minute overheating protection delay to
pass then restart the appliance.
The remote control
does not work.
The distance between the appliance
and the remote control is too far.
Get closer to the unit so the remote control signal
can reach the unit's receiver.
The remote control is not properly
aligned with the portable unit signal
receiver.
Make sure to be facing the unit when pressing keys
on the remote control.
The batteries are dead. Replace with new batteries.
If problems not listed in the table occur or recommended solutions do not work, please contact after-
sales service for assistance.

17
█ LIMITED WARRANTY
This air conditioner is covered by a warranty against defects in materials and workmanship, if used
for the applications specied in this manual, for a period of ONE (1) year from the date of original
purchase in Canada.
During the warranty period, if the dehumidier fails under normal use, ForestAir will, at its option, either
repair the unit or replace it, free of charge, within a reasonable period of time after the air conditioner is
returned.
As a condition to any warranty service obligation, the customer must present this warranty certicate
along with the proof of purchase.
█ THIS WARRANTY DOES NOT COVER…
▪ Damage, accidental or otherwise, to the appliance that is not caused by materials or workmanship
defect.
▪ Damage caused by misuse, tampering or failure to follow the operating and maintenance instructions
provided in this manual.
▪ Damage to the nish of the unit enclosure or to other outer features caused by wear.
▪ The lters.
▪ Damage caused by repairs or modications to the appliance made by any person not duly authorized by
ForestAir.
▪ Insurance and freight costs for the warranty service.
ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY,
ARE LIMITED TO A ONE (1) YEAR PERIOD COVERED BY THIS EXPRESS LIMITED WARRANTY.
FORESTAIR DISCLAIMS ANY LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES AND,
IN NO EVENT SHALL FORESTAIR LIABILITY EXCEED THE RETAIL VALUE OF THE APPLIANCE
FOR BREACH OF ANY WRITTEN OR IMPLIED WARRANTY WITH RESPECT TO THIS AIR
CONDITIONER.
Keep this manual along with your proof of purchase in a safe place for future reference. You
must provide proof of purchase for warranty service.
Enter the following information about your air conditioner ; it will help you upon getting assistance or
service, if you ever need it. You will have to provide the model and serial numbers of the air conditioner.
These informations are detailed on the rating plate of the unit.
Dealer name : ____________________________________________________________________
Address : ________________________________________________________________________
Model number : ___________________________________________________________________
Serial number :____________________________________________________________________
Date of purchase : _________________________________________________________________
7.0. WARRANTY
