Forme Whisper User manual
Mounting Procedure
Installation
Forme Whisper –Wall Fan Heater
The Forme Whisper Wall Fan Heater is a metal bodied heater
ideal for bathrooms, kitchens and areas requiring localised,
controllable heat. The Forme Whisper features a variable
thermostat, with a frost protection setting, for increased
economy, pullcord operation, automatic overheat safety cut-
out and a power-on indicator light. For ease of installation it is
fitted with a 0.9m cable.
Features:
Thermostatic control •Pull-cord operation •Automatic
safety cut-out •Power-on indicator Fitted power supply
cable •Fixing/Securing bracket •Finished in Crisp White or
stainless •190(h) x 115(d) x 300(w) mm
Ensure that the electricity supply is disconnected from any relevant fixed wiring before commencing the
installation. Ensure that the mains supply voltage is as stated on the rating label. The supply circuit must be
adequate for the input of the appliance. This unit must be installed by a registered electrician. The installation of
this product must comply with NZS 3000.2007.
•The appliance should be fitted horizontally such that the cable entry is uppermost and the pullcord is at the
bottom.
•The unit must be mounted a minimum of 1.8m from the floor, also a minimum of 150mm below ceiling level or
any other projecting surface. It must also not be less than 250mm from any adjacent projecting surface.
•The unit must not be located immediately below a fixed socket outlet.
•Ensure that when in use the airstream is not obstructed by a cupboard or similar object.
•Do not attempt to repair the heater or unscrew the outer casing yourself.
•Do not place aerosols or similar containers or materials susceptible to heat in the direct airstream.

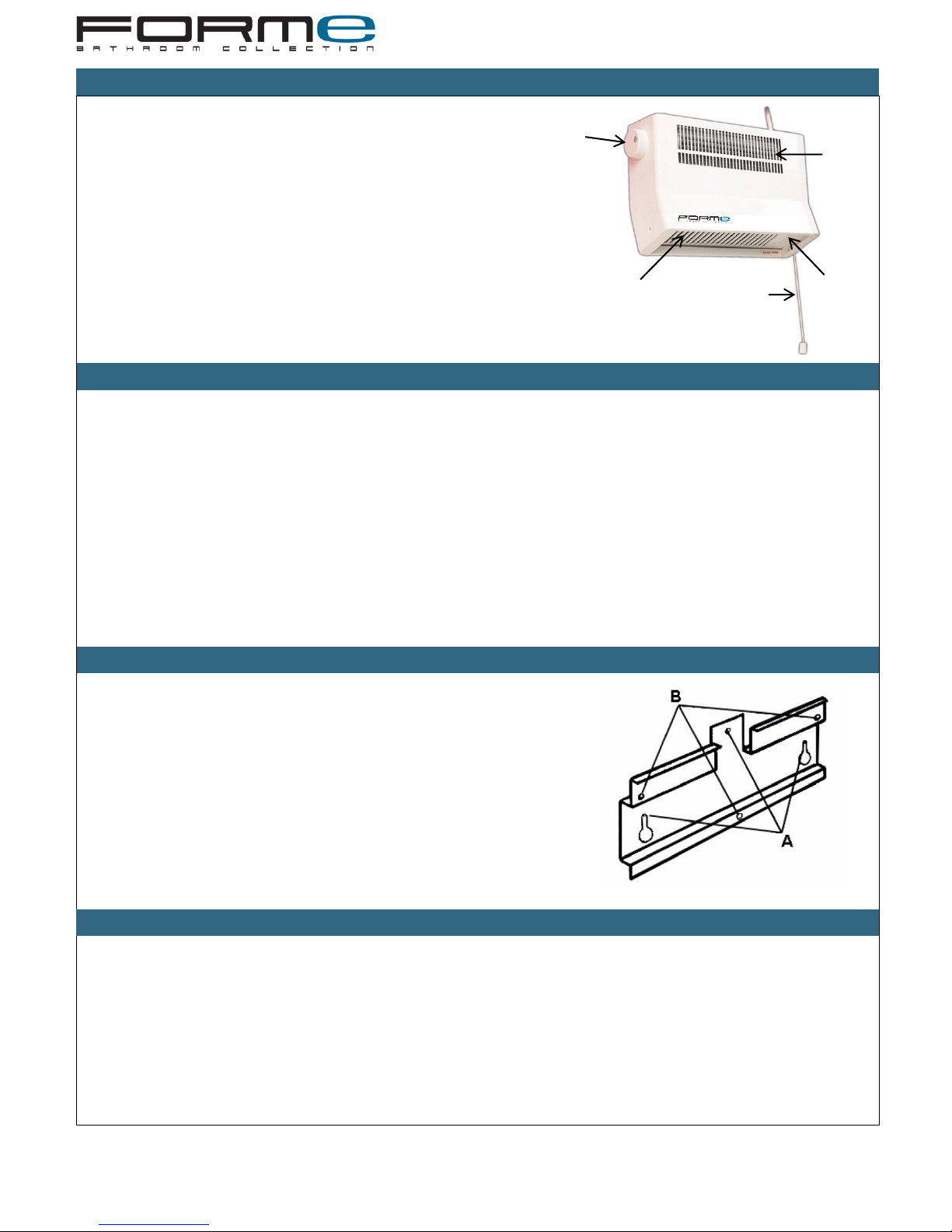

•Using the mounting bracket supplied as a template, position it
horizontally at a minimum of 1.92m from the floor to the underside
of the bracket and mark the position of the three fixing holes (Ref A
in diagram)
•Drill and plug the wall suitable of No. 8 screws
•Insert the two keyhole screws in the wall leaving approximately 2mm
gap between head and wall.
•Secure the mounting bracket to the appliance using the three No. 6
screws supplied (Ref B in diagram)
•Position the appliance on the partially inserted wall screws and
secure the third wall screw immediately above the appliance.
Controls
The Forme Whisper has a heat loading of 2kW. The heater is controlled by a pullcord operated on/off switch. A
neon indicator when lit shows that the unit is operational.
The appliance is fitted with an Electronic Safety Control (ES). This is a safety device which switches off the heater if
for any reason the appliance overheats. The ES control can only be re-set after the appliance has cooled down. In
order to re-set the ES Control proceed as follows:
•Switch off appliance by means of pullcord and leave for approximately 5 mins
•Switch appliance back on and ES control will re-set
•Ensure that the appliance is functioning correctly. Is the ES Control operates again, the appliance should be
checked by a registered electrician.
Thermostat
Control Knob
Inlet
Grille
Outlet
Grille
Switch
Pullcord
Neon
Indicator
CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be
supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched
on and off by the utility.
Cleaning
Product Warranty –2 year in-home warranty
Always disconnect the heater from the mains before cleaning. The fan heater should always be kept clean. An
occasional wipe over with a soft cloth is all that should be necessary, ensuring all inlet and outlet vents are kept
dust free.
•Do not use metal or furniture polish on any part of the heater.
•Do not touch the heater with wet hands or in any way bring water in contact with it.
The supply cord on this appliance can only be replaced by the use of special tools, and should any damage or fault
occur to the heater, it must be serviced by an accredited service agent.
Safety
•This heater has been designed and manufactured to the highest international standard, but, like all other
electrical appliances which are operated by mains voltage, care must be taken if you are to obtain the best
results and safety is to be assured.
•This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions
concerning use of the appliance by a person responsible for their safety.
•Children should be supervised to ensure that they do not play with the appliance.
•The heater is to be installed so that switches and other controls cannot be touched by a person in the bath or
shower.
•The heater must not be installed in front of a socket-outlet.
•Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
•If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
•Do not handle the appliance with wet hands.
•Do not use the appliance in workshops or rooms where excessive dust is generated or present.
•Ensure that nothing is pushed into any aperture of this appliance.
•Do not touch the outlet grill when the appliance is in use.
Thermostat Control
The Forme Whisper is fitted with a thermostat.
To set the thermostat to the required temperature, turn the control knob fully clockwise. When
the desired room temperature is reached, turn the knob slowly anti-clockwise and when the
thermostat ‘clicks’ off, leave the control at this setting. Thereafter, the fan heater will control
the heat output automatically.
To set the heater to the Frost Watch mode, rotate the thermostat control knob fully to the lowest setting (N, 1)
Thereafter the heater will trip in if the temperature drops sufficiently. The heater needs to be in the “ON” mode
with the neon indicator light illuminated for this function to operate.
⁻⁺
Hot
Cold
Any bathroom heater that is found to be defective due to substandard materials and/or workmanship within 2
(two) years from the date of purchase, will be replaced. To make a claim under this warranty, contact the store
where you purchased your product.
Your claim will be assessed based on the information you provide. You will be required to return the defective
product for assessment at your cost. The warranty does not cover any installation or removal costs. The benefits
given by this warranty are additional to other rights and remedies that you may have under laws relating to our
products.
Our goods come with guarantees that cannot be excluded under the New Zealand/Australian Consumer Law. You
are entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of
acceptable quality and the failure does not amount to a major failure.
•The warranty does not extend to any consequential loss, damage, misuse, neglect, alteration or incorrect
installation.
•Attach your proof of purchase and keep it in a safe place with this warranty form. You must have your proof of
purchase for your warranty to be valid.
