Fortador Power Bank V Series User manual

2
NOTE
Read the operating instructions carefully before starting up to avoid incorrect use or dangerous
situations for people, animals or objects. The manufacturer is not responsible and excludes the
application of the warranty conditions in cases of: improper use or use in improper conditions,
damage resulting from normal wear and tear or aging, misuse, negligence, improper operation
or storage, exposure to moisture, self-modication or repair, improper installation, use of
improper power source, operator errors, failure to follow instructions or other events which
are not the manufacturer’s fault, including loss or damage during transportation.

3
TABLE OF CONTENTS
Note ..............................................................................................................................................................................2
Table of Contents.......................................................................................................................................................3
Introduction.................................................................................................................................................................4
Technical specication ..............................................................................................................................................5
Device characteristics................................................................................................................................................6
Safety information.....................................................................................................................................................7
Unpacking ....................................................................................................................................................................9
Before each start-up...............................................................................................................................................10
How to use and install the device for the rst time ........................................................................................11
Washing.....................................................................................................................................................................13
Control panel functions .........................................................................................................................................16
Shutdown procedure..............................................................................................................................................18
Inspection schedule................................................................................................................................................20
FAQ .............................................................................................................................................................................21
CE Declaration of Conformity...............................................................................................................................25
Transportation .........................................................................................................................................................26
Final remarks............................................................................................................................................................27

4
INTRODUCTION
Thank you for purchasing Power Bank V-Series mobile power supply. The Fortador brand is the
eect of many years of experience and a response to the needs of our customers. Technology
enclosed in a modern housing provides more power and performance than ever before and
less failure. Fortador Power Bank V Series is an alternative to fuel or gas powered generators.
It generates no annoying sound or fumes, so it can be used in HACCAP conditions, healthcare
or rooms with limited ventilation. It allows you to work with a load of up to 3000 Watts. It is
charged by connecting to a standard 220V socket or solar panels installed on the roof of the car
or a photovoltaic system in the house, workshop or car wash. The advantage of this device is a
very small size while maintaining maximum power.
The device is equipped with components that allow for virtually lifetime operation. This is one
investment that allows you to benet for years from running on reliable equipment and free
electricity generated by solar panels or other sources of renewable energy like windmills or
water turbines.
The proprietary design and power management system allows for maintenance-free operation.
This exclusive model meets even the highest expectations by allowing you to charge and draw
electricity at the same time.
Manufacturer and service
www.fortador.com

5
TECHNICAL
SPECIFICATION
Technical data
Power supply 2500 VA
Battery voltage 24 VDC
Charging current 20 A
Charging voltage 27,6V +/- 0,5V
AC voltage range 150 ~ 270 VAC
Output voltage range
AVR: 230 / 110V VAC +/- 8% ;
Batteries: 230 / 110V VAC +/-1%
(depending on version)
Inverter output frequency 50 Hz +/- 0.5 Hz
Overload protection
Battery mode: when the 110%~130%
overload mode is activated, the
device can still work for 30 seconds
then turn o the device; when the
130% and above overload mode is
activated, immediately disconnect
the device from the external power
source and turn o the device.
Network mode: overload warning
Temperature range 0~40 C
Humidity range 10%RH~90%RH
Operating noise level 71 dB
Weight 85 kg
Technical data is shown on the nameplate mounted on the rear panel of the
housing. Always quote the serial number on the rating plate when contacting the
service department.
Fortador EuropeManufacturer:
Model:
230V AC 50-60 HzVoltage (IN):
230V AC+-1%(ACU)+-8%AVRVoltage (OUT):
2500 VA /1800 W / <1APower:
2x100Ah VRLA AGMBattery:
24V DCBatery Voltage:
85kgWeight:
V010011S/N:
2021Manufacturing year:
Fortador Power Bank V-Series
Read the instructions carefully before use! Made in Poland

6
DEVICE
CHARACTERISTICS

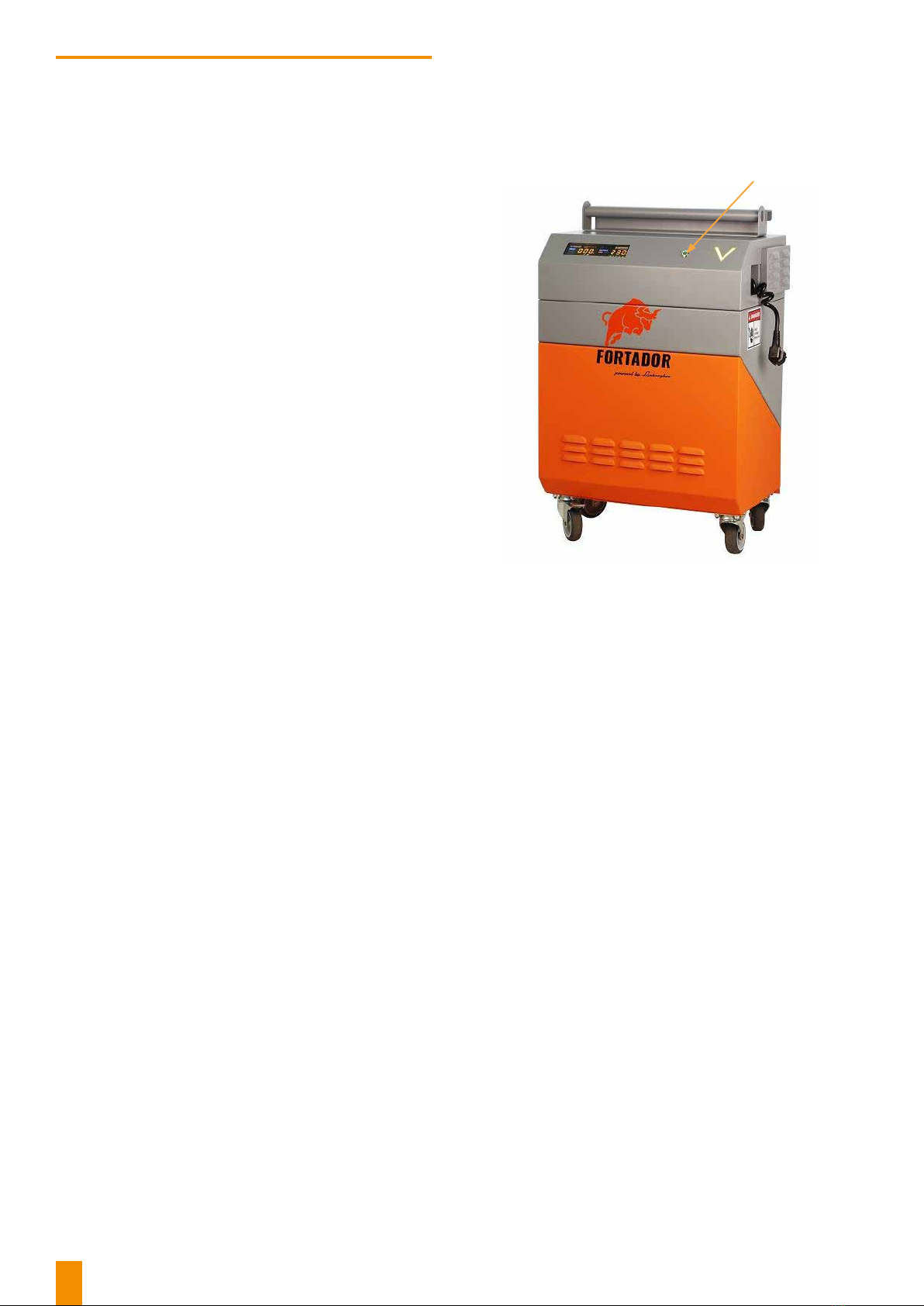

1. Display
2. Grip/holder for Pro+/ProS device
3. On/o switch
4. Power cord
5. On/o switch. vacuum cleaner. socket number 7
6. Charging on/o switch
7. Electric socket with a “Soft start” function for connecting a vacuum cleaner
8. Power socket for Fortador devices
1 2
4
36
87
5

7
SAFETY
INFORMATION
The V-Series Industrial Portable Power Bank should not be handled by anyone unaware of the hazards involved. The
information and recommendations in these instructions must be properly understood and followed if the correct and safe
operation of the device is to be achieved.
As with most mechanical equipment, proper safety precautions must be observed when operating and handling this device.
Failure to follow the instructions and recommendations contained in this document may result in personal injury or damage
to the device itself or other property in the vicinity. At the same time, it should be borne in mind that it is not possible
to provide exhaustive guidance and recommendations which would allow for the complete elimination of risks during the
operation and handling of this equipment and during the handling and use of the chemical products which this equipment has
been designed to process. Additional safety measures may be necessary for specic applications and operating conditions
that are not covered in this document. In cases not discussed, the user must comply with generally accepted safety rules.
Please read these instructions carefully before starting the unit and operating it.
The owner’s manual should be kept for later use or for the next owner.
Do not open the device while it is in
operation. Risk of electrocution.
Be careful - device under voltage. Do not direct a jet of water or steam
towards the unit.
IMPORTANT:

8
• The operator should be sober, of legal age and trained in the operation.
• Spare parts must not be dierent from those recommended and manufactured by
the manufacturer
• If damaged, the power cord must be replaced by an authorized service center
under penalty of warranty.
• Before starting the machine, check that the operating openings are clear of debris.
• Do not start the machine if the electrical cord or any other part is damaged.
• Do not operate the machine in the rain or when it is wet.
• Never tilt or roll the machine while it is turned on.
• Always turn o the unit when it is being cleaned.
• Children must absolutely not be allowed to come into contact with the device.
• Use caution when working near children or animals.
• Do not use a damaged machine or one in which the power cord shows signs of
damage. If the machine is not working as it should, has fallen, been damaged, been
left outside, or has been ooded, contact service: [e-mail].
• Do not pull or lift by the power cord.
• Keep the machine away from open ames, radiators, stoves or other heat sources.
• Do not operate the machine in a very humid and/or dusty environment.
• The unit should not be moved during operation.
• The machine should be connected to an electrical system with a working ground.
Operating the machine connected to a system without earthing is prohibited and
may result in electric shock!
• Do not immerse the machine or any of its components in water or other liquids.
• It is strictly prohibited to use the machine in explosive areas.
• Never use the machine in the vicinity of toxic/hazardous substances.
• Never place the machine on temperature-sensitive surfaces.
• Do not leave the machine in places exposed to the forces of nature.
• Do not use excessive force when operating buttons / switches / sockets
• The machine should stand horizontally on a stable surface.
• Ensure that the wheels are locked during operation.
• Never leave the machine running unattended.
• Do not point a jet of steam or water at the appliance.
• The machine should be switched o when not in use.
• It is unacceptable to repair fuse links by means wire which consists in putting a wire
or other metal objects in place of a burnt fuse wire.
• Do not operate electrical equipment with wet hands or while standing on a wet
oor; in damp rooms and other areas where there is an increased risk of electric
shock, hand-held equipment not equipped with double insulation is not permitted.
• Do not remove covers (housings) from the unit when it is switched on.
• Do not change the type of plug installed on the device.

9
UNPACKING
1. Gently remove the machine from the packaging.
2. Inspect the unit for any damage that may have occurred
during delivery.
3. We recommend that you keep the packaging.

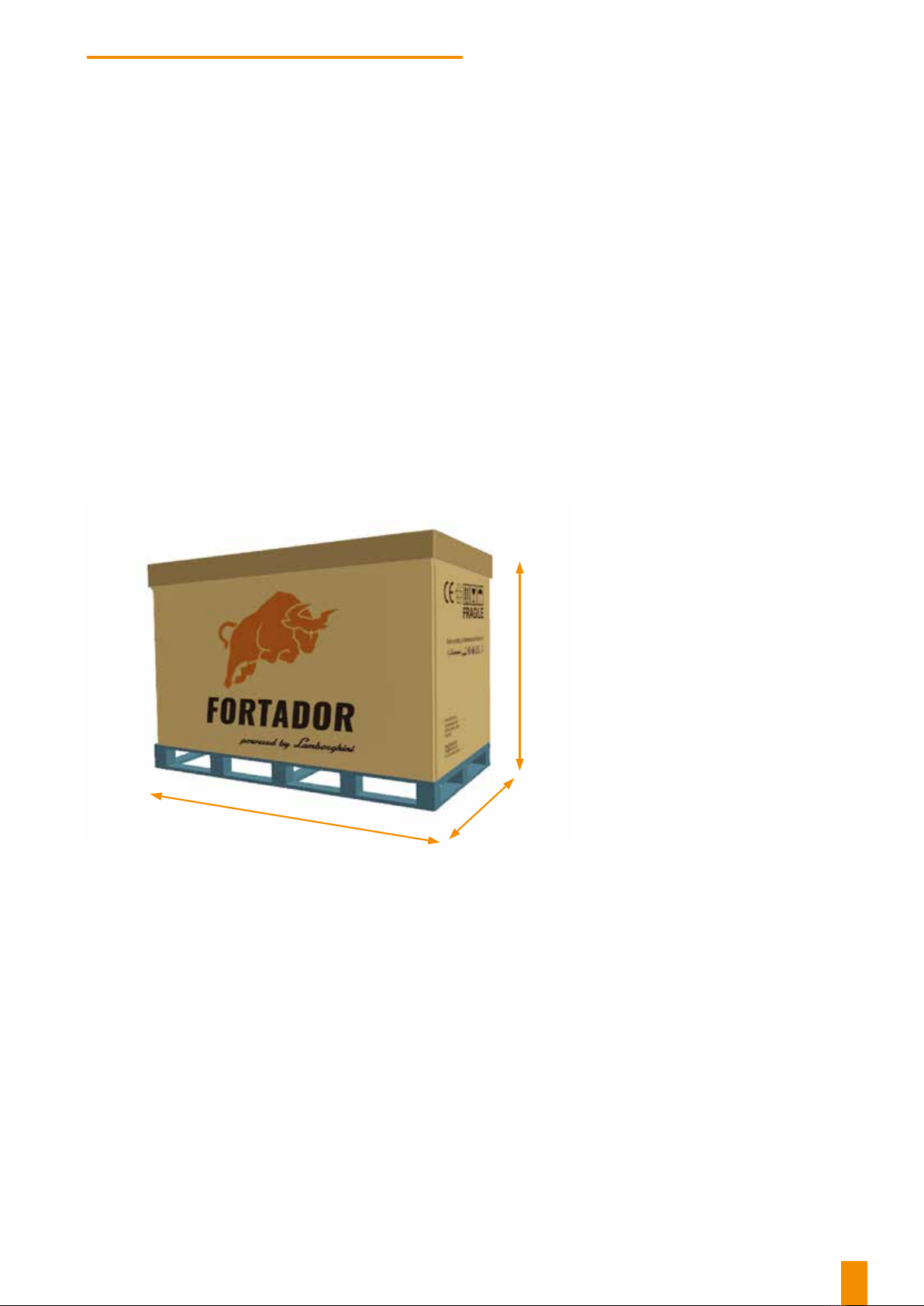

Packaging dimensions
120 cm
80 cm
116 cm

10

The procedure should be carried out before starting the
machine to ensure proper and safe operation.
1. Make sure that the electrical cord, electrical outlets are
not damaged.
2. Check that the case is closed.
3. USet the vacuum cleaner star/stop switch to the “0”
position.
4. If the unit is discharged, plug the unit into a grounded
electrical outlet to recharge.
Start/stop button

11
HOW TO USE AND INSTALL THE
DEVICE FOR THE FIRST TIME
Startup procedure for the Power Bank
Press and hold the start/stop button. Hold down the button
for 5 seconds until a beep sounds and the device display
switches on.

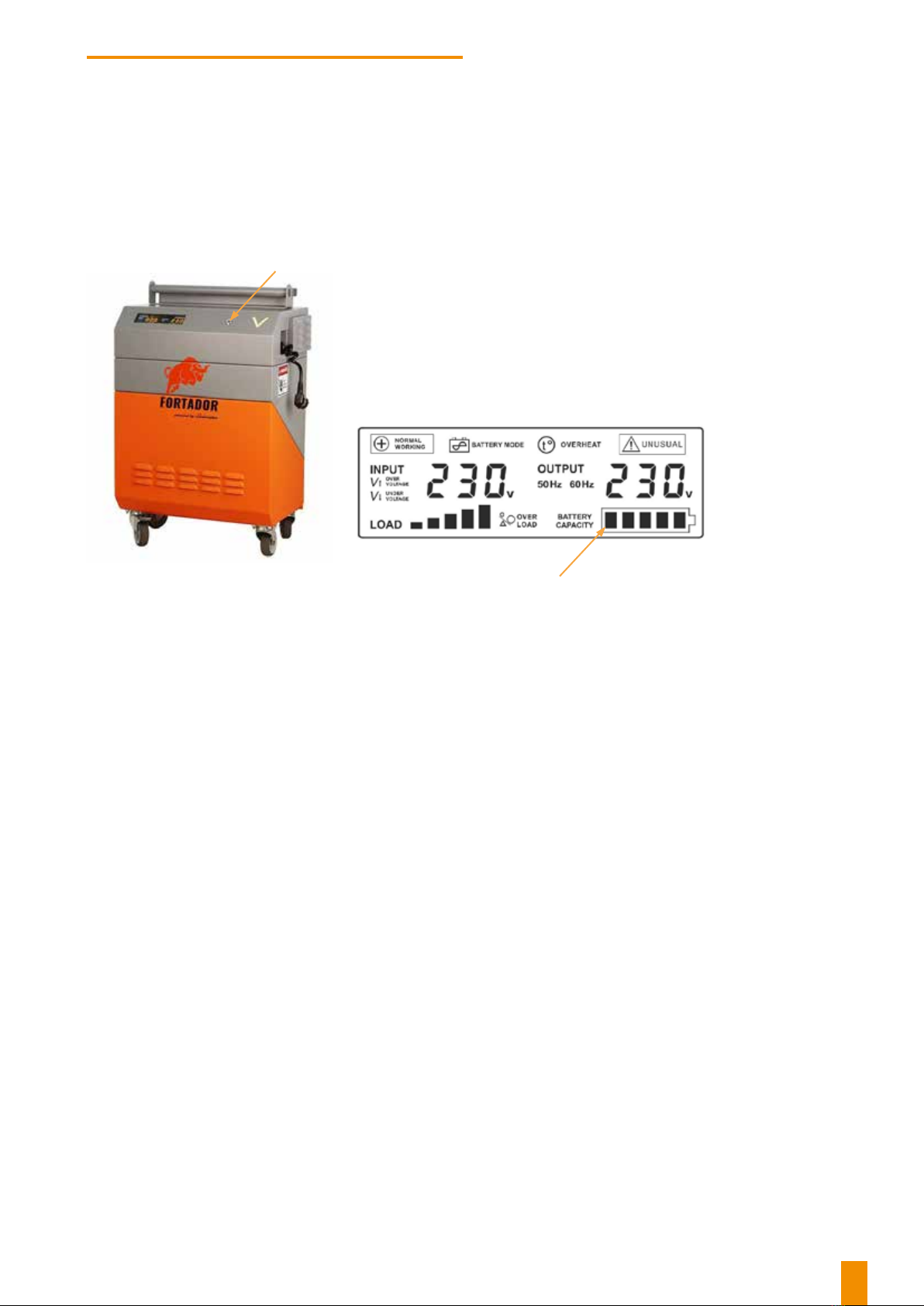

Check the battery status on the display. One bar indi-
cates the minimum charge level. Five bars indicate the
maximum charge level..
If the batteries are discharged, follow the instructions
Charging the Power Bank.
If the unit shows the maximum battery charge - follow
the instructions - Connecting the Fortador car wash to a
portable power source Power Bank V series.
1
2
3
4
Start/stop
button
Battery charge level

12

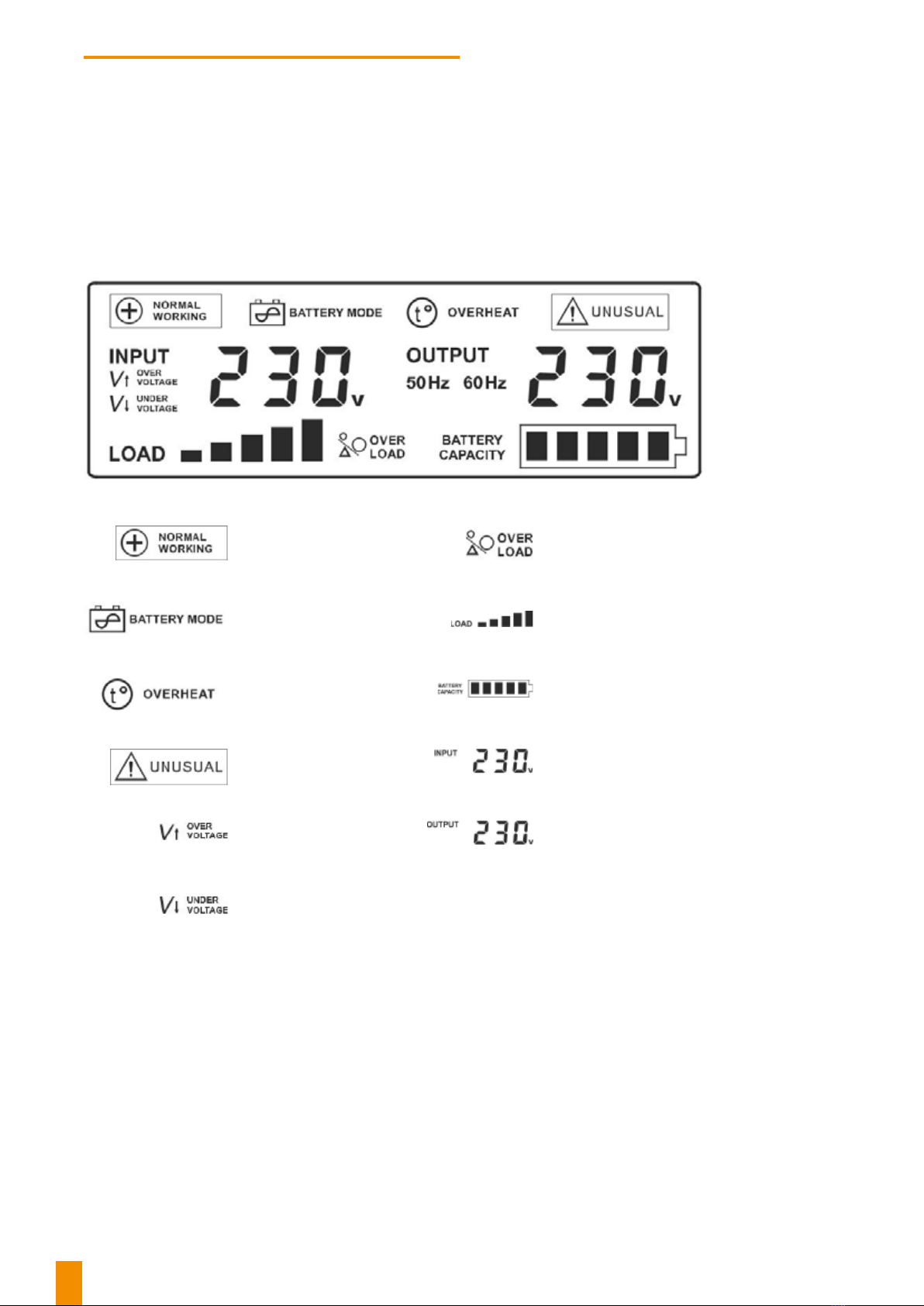

Device connected to exter-
nal power supply - AVR.
Charging exceeds the
rated power of the device.
Battery charge level
information.
Battery bar showing batte-
ry capacity.
Input voltage
Output voltage
The device uses battery
power supply - AC
The temperature is too
high, the unit shuts o the
power
Excessive battery voltage,
disable charging.
Too high voltage from the
public grid.
Voltage from the public
grid is too low.
DESCRIPTION OF THE POWER
BANK DISPLAY FUNCTIONS

13
CONNECTING
DEVICES
Start the Power Bank according to the Power Bank Startup
procedure.
Check that the device shows the correct battery level on the
display.
Connect the Fortador device to outlet number 8
When connecting the Pro+ device, you must rst connect the
unit’s vacuum cleaner to socket number 7 on the Power Bank.
The Pro+ should then be plugged into socket number 8 on the
Power Bank.
1
2
3
4
Power socket for
Fortador devices
(number 8)
Power socket for
Fortador devices
(number 8)
Electric socket with a
“Soft start” function
for connecting a
vacuum cleaner
(number 7)

14
Switch the on/o button to position 1 (this must be done
when the Fortador Pro+ is connected).
5
After completing the steps of connecting the Fortador to
the portable Power Bank, depending on the model of the
unit, start the Fortador and begin operation.
6



15
CHARGING THE POWER
BANK DEVICE

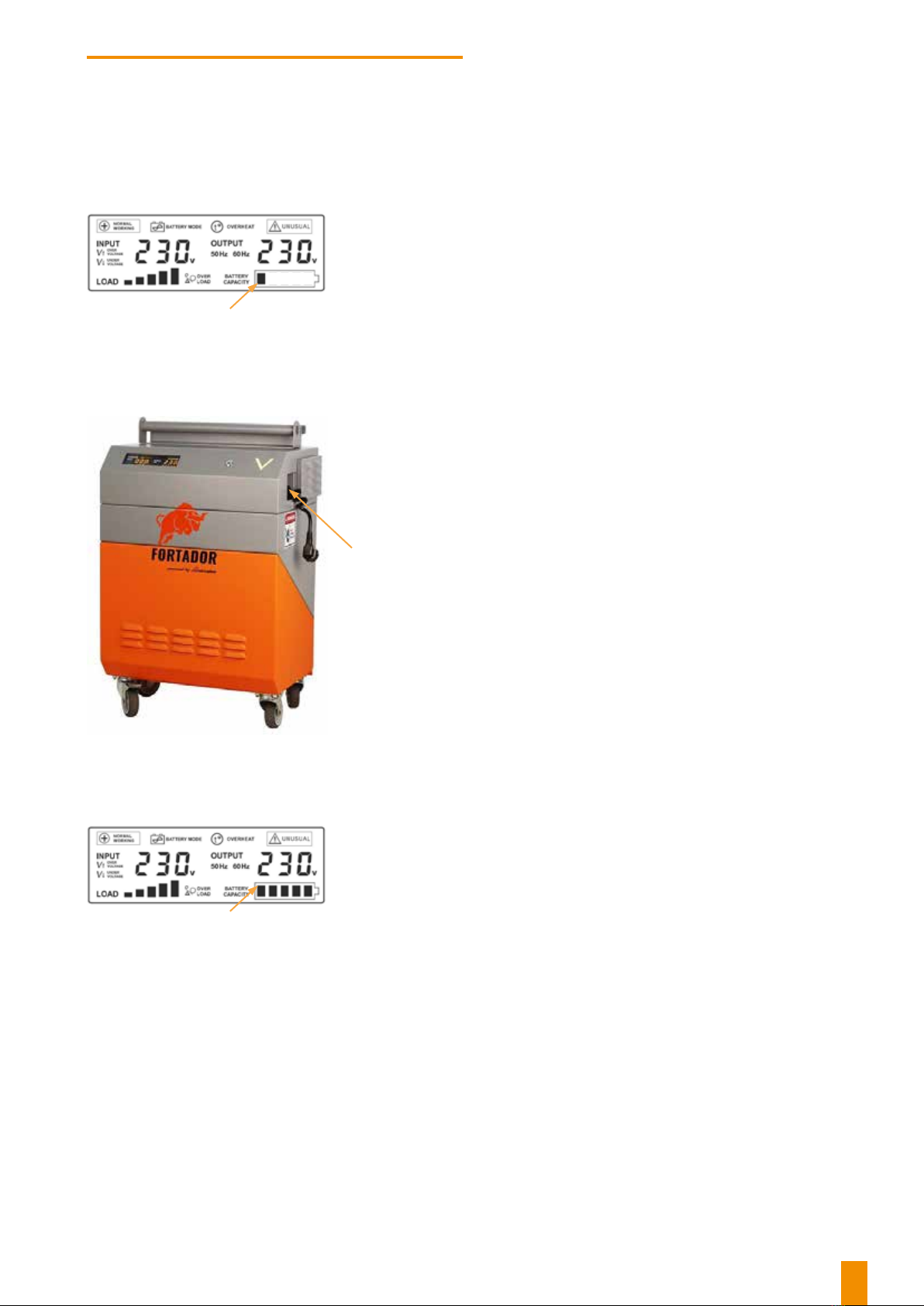

If the unit is discharged, the display will indicate that the unit
is out of power, in the form of a single dash on the battery
meter.
Connect the unit to an external power source using the
power cord.
2
1
Start charging by pressing the on/o charging switch - but-
ton number 6.
3
When the device is fully charged, the display will show 5 ver-
tical bars.
Press the charge button (button number 6) again to turn o
the charge.
Disconnect the device from the external power supply
4
5
6
Battery bar showing battery
capacity
Battery bar showing battery
capacity
Power cord

16
SWITCH OFF
PROCEDURE
Disconnect all devices connected to the Power Bank device,
sockets number 7 and 8.
Disconnect the device from the external power supply.
Hold down the start/stop button for 5 seconds until a beep
sounds.
1
2
3
8
7
Power cord
Start/stop button

17
CE DECLARATION
Manufacturer
Fortador K.A. Traczyńscy Sp.J.
Aleja Krakowska 108
05-090 Sękocin Stary, Poland
Product designation Portable power suply unit
Brand Fortador
Model Power Bank V-Series
Directive No. 89 / 336 / EEC
Voltage during test AC 230 V / 50 Hz
Technical standards
EN 55014-1
EN 55014-2
EN 60335-1
EN 60335-2-79
EN 61000-3-2
EN 61000-3-3
Date of test 23-25 .11.2020
The CE declaration of conformity is based on the directive 89/336/EEC relating
to electromagnetic compatibility of devices. This declaration conrms that the
equipment in question complies with the essential requirements of the directive
and refers to the sample and the technical documentation submitted to TUV SUD
Product Service GmbH for testing and certication.
After preparation of the necessary technical documentation as well
as the conformity directives have to be observed.

18
TRANSPORT
The device can be transported by any means of transport, provided that it is properly immobilised (e.g.
with belts) and protected against damage in the original box delivered with the machine.
Make sure that the wheels of the machine are properly locked and the belts are properly tightened to
prevent the machine from moving.

19
FINAL REMARKS
Properly maintained and serviced, FORTADOR Power Bank devices ensure a long period of reliable
operation. Problems that may occur while using the unit should be resolved before proceeding. When
operating any machine, it is essential to have knowledge of the normal operation of the machine so
that incorrect operation can be recognized. Observe all generally accepted safety precautions when
working with electrical devices. This manual has been written to provide the most complete knowledge
of the operations performed by this device. It is imperative that operators read and understand this ma-
nual before attempting to solve any problems. All repairs, made by yourself during the warranty period
are prohibited and will void the warranty, so if you have any problems or concerns, please contact our
service department.

tel. [phone]

www.fortador.com
