FortiAnalyzer 3700F

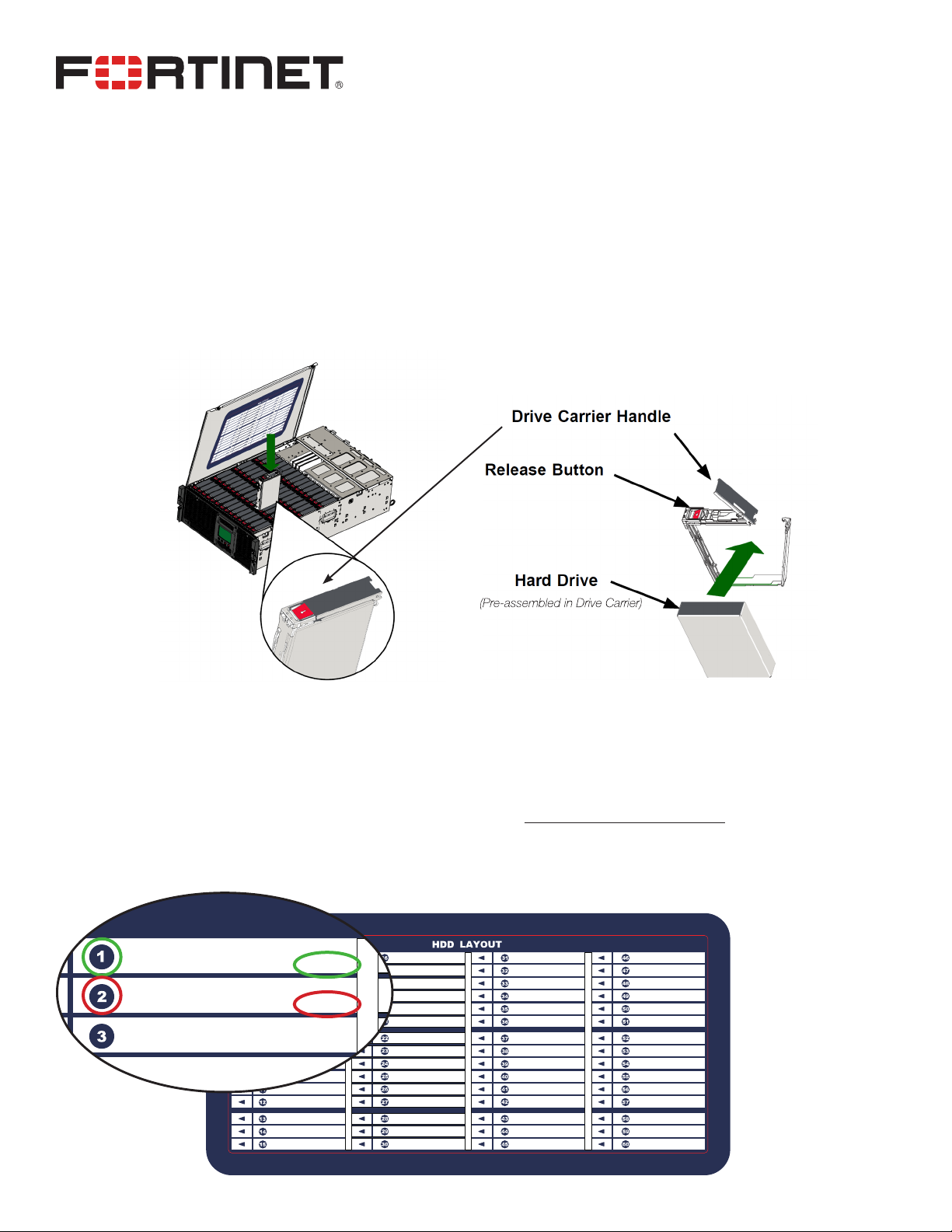

Hard Drive Installation
The FAZ-3700F supports 60 x 3.5"hard drives in pre-assembled drive carriers. To install a hard drive:
1. Power down the system and disconnect the AC power cords
WARNING: Do not operate the system with drives removed, unless for short periods of time such as
when hot-swapping hard drives
2. Open the top lid of the chassis
3. Take a pre-assembled hard drive and drive carrier
4. Press the release button on the drive carrier to retract the handle
5. Push the carrier and handle into the hard drive bay until they both lock in position
NOTE: Match the labels on the hard drive and carrier as per the HDD LAYOUT diagram
Drive #: 00
Drive #: 01
Drive #: 02
Drive #: 03
Drive #: 04
Drive #: 05
Drive #: 15
Drive #: 16
Drive #: 17
Drive #: 18
Drive #: 19
Drive #: 20
Drive #: 30
Drive #: 31
Drive #: 32
Drive #: 33
Drive #: 34
Drive #: 35
Drive #: 45
Drive #: 46
Drive #: 47
Drive #: 48
Drive #: 49
Drive #: 50
Drive #: 06
Drive #: 07
Drive #: 08
Drive #: 09
Drive #: 10
Drive #: 11
Drive #: 21
Drive #: 22
Drive #: 23
Drive #: 24
Drive #: 25
Drive #: 26
Drive #: 36
Drive #: 37
Drive #: 38
Drive #: 39
Drive #: 40
Drive #: 41
Drive #: 51
Drive #: 52
Drive #: 53
Drive #: 54
Drive #: 55
Drive #: 56
Drive #: 12
Drive #: 13
Drive #: 14
Drive #: 27
Drive #: 28
Drive #: 29
Drive #: 42
Drive #: 43
Drive #: 44
Drive #: 57
Drive #: 58
Drive #: 59
Drive #: 00
Drive #: 01
Drive #: 02
Drive #: 03
Drive #: 04
Drive #: 05
Drive #: 15
Drive #: 16
Drive #: 17
Drive #: 18
Drive #: 19
Drive #: 20
Drive #: 30
Drive #: 31
Drive #: 32
Drive #: 33
Drive #: 34
Drive #: 35
Drive #: 45
Drive #: 46
Drive #: 47
Drive #: 48
Drive #: 49
Drive #: 50
Drive #: 06
Drive #: 07
Drive #: 08
Drive #: 09
Drive #: 10
Drive #: 11
Drive #: 21
Drive #: 22
Drive #: 23
Drive #: 24
Drive #: 25
Drive #: 26
Drive #: 36
Drive #: 37
Drive #: 38
Drive #: 39
Drive #: 40
Drive #: 41
Drive #: 51
Drive #: 52
Drive #: 53
Drive #: 54
Drive #: 55
Drive #: 56
Drive #: 12
Drive #: 13
Drive #: 14
Drive #: 27
Drive #: 28
Drive #: 29
Drive #: 42
Drive #: 43
Drive #: 44
Drive #: 57
Drive #: 58
Drive #: 59
FAZ-HDD20190503

FortiAnalyzer 3700F
Product Photos
Release Button
Install Diagrams and HDD LAYOUT on Chassis Lid
HDD Label
Pre-assembled
HDD in Carrier
Carrier Handle
Drive
Carrier
