Fortis CROSS TRAINER User manual

AUTOMATIC VARIABLE RESISTANCE
MAGNETIC FLYWHEEL ELLIPTICAL
CROSS TRAINER (FXT-500A)
FSAEXT500AA

Read all of the instructions in this guide before using this product. Retain this guide for
future reference. Do not skip, substitute or modify any steps or procedures in this guide, as
doing so could result in personal injury or product damage.
• Before starting any exercise program, consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk or
prevent you from using the equipment properly. Your physician’s advice is essential if
you are taking any medication that may affect your heart rate, blood pressure or
cholesterol level.
• Incorrect or excessive exercise can damage your health. Stop exercising if you
experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, shortness of breath, light headedness, dizziness or feelings of nausea. If you
experience any of these conditions, you should consult your physician before continuing
with your exercise program.
• This equipment is intended for adult use only. Keep children and pets away from the
machine.
DO NOT
leave children unattended in the same room with the equipment.
• This appliance is designed for consumer use. Follow directions and use only as
described.
• Once fully assembled, inspect to ensure all hardware parts such as bolts, nuts and
washers are positioned correctly and tightly secured.
• Always inspect the safety chain guard that protects the moving parts of the bike to be
in safe and good order.
• Always inspect the seat, seat slider and grips to make sure they are in safe and stable
position before using the rower.
• It is recommended to lubricate all moving parts on a monthly basis.
• Do not wear loose clothing while rowing.
• Dry after each use to remove moisture. Wipe regularly with a mild, non-abrasive cleaner
and water solution. To avoid damaging the finish, never use a petroleum-based
solvent.
• Use the equipment on a solid, flat level surface with a protective cover for your floor or
carpet. To ensure safety, the equipment should have at least 2 feet (approximately 60
cm) of free space on each side.
• Prior to assembly, ensure you have all the components and tools listed. Some
components are pre-assembled to help with the assembly process.
• Always use the equipment as intended. If you find any defective components while
assembling or checking the equipment, or if you hear any unusual noises coming from
the equipment during exercise, cease use immediately and contact help.kogan.com for
assistance. Do not use until resolved.
• Do not place fingers or any other objects into moving parts of the exercise equipment.
• Do not exceed the maximum user weight of 150 KG.
SAFETY & WARNINGS

• Be careful when lifting and moving the equipment. Always use proper lifting technique
and seek assistance if necessary.
• Your equipment is intended for use in cool, dry conditions. You should avoid storage in
extreme cold, hot or damp areas as this may lead to corrosion and other related
problems.
• Operating temperature: 0 - 40 °C
• Storage temperature: -10 - 60°C
• This appliance contains no user-serviceable parts. If it suffers any failure or damage,
cease use immediately and contact help.kogan.com
• This equipment is designed and intended for indoor use only.

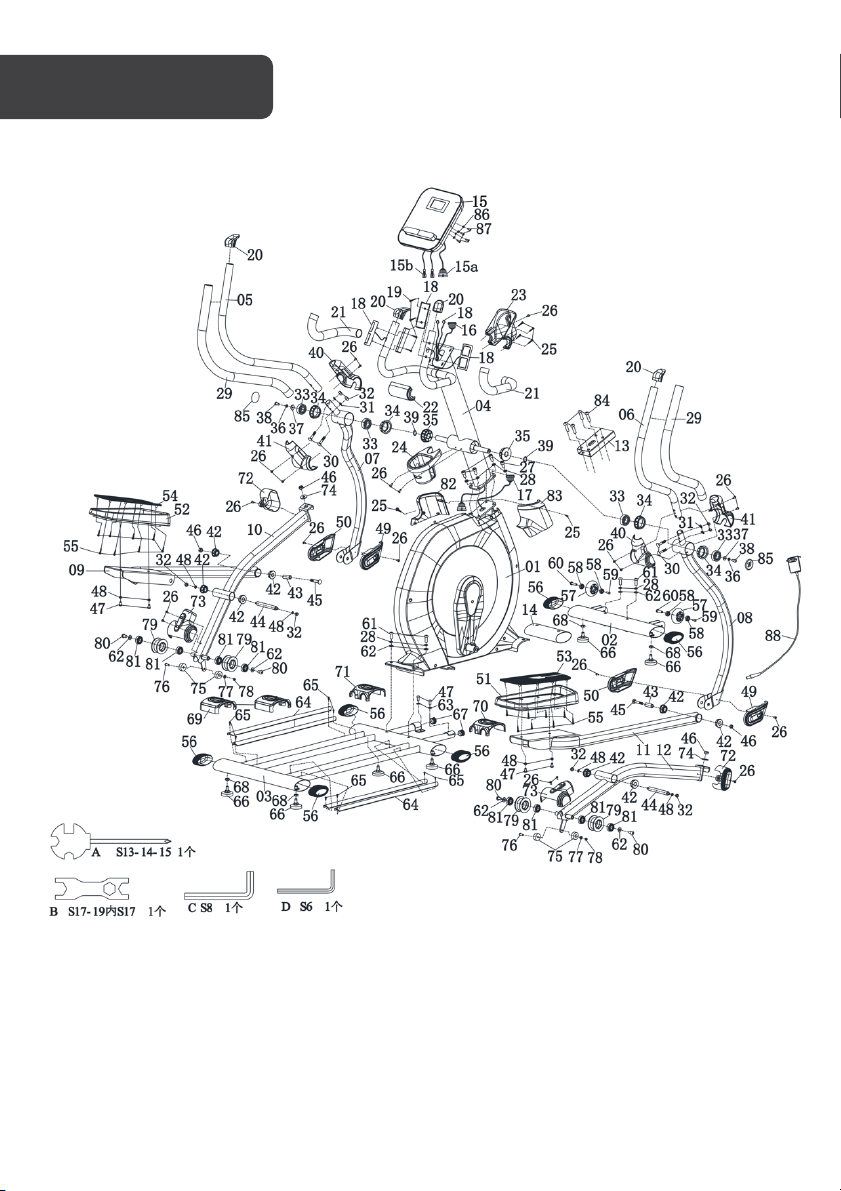

OVERVIEW

Part
Description
Qty.
Part
Description
Qty.
1
Main frame
1
26
Screw M5 x 10 x Φ9
21
2
Front stabilizer
1
27
Bolt M10 x 20 x S8
4
3
Rear stabilizer
1
28
Spring washer d10
8
4
Handlebar post
1
29
Foam grip
2
5
Handlebar L
1
30
Bolt M8 x 43 x 20 x H5
4
6
Handlebar R
1
31
Arc washer d8 x Φ20 x 2 x
R16
4
7
Swing rod L
1
32
Nut M8 x H7.5 x S13
8
8
Swing rod R
1
33
Bearing 6204-2RS
4
9
Pedal Support
1
34
Bushing Φ60 x Φ47 x 18
4
10
Connecting rod L
1
35
Bushing 1 Φ60 x Φ20.2 x 18
2
11
Pedal Support
1
36
Spring washer d8
2
12
Connecting rod R
1
37
Washer d8 x Φ32 x 2
2
13
Protected tube
1
38
Screw M8 x 20 x S6
2
14
Protected tube
1
39
C ring d20
2
15
Console
1
40
Cover
2
16
Trunk wire
1
41
Cover
2
17
Sensor wire
1
42
Bushing 2 Φ38 x Φ16.2 x 15
8
18
Handle pulse
2
43
Bushing Φ16 x Φ10.1 x 39.5
2
19
Screw ST3.5 x 25 x Φ7
4
44
Axle Φ16 x 139.5 x M8 x 10
2
20
End cap
4
45
Bolt M10 x 55 x 15 x S6
2
21
Foam grip
2
46
Nut M10 x H9.5 x S17
4
22
Cover
1
47
Bolt M8 x 16 x S6
6
23
Cover
1
48
Washer d8 x Φ20 x 1.5
8
24
Bottle holder
1
49
Cover
2
25
Screw ST4.2 x 19 x Φ8
6
50
Cover
2

Part
Description
Qty.
Part
Description
Qty.
51
Pedal (Right)
1
72
Cover
2
52
Pedal (Left)
1
73
Cover
2
53
Pedal pad (Right)
1
74
Washer d10 x Φ30 x 2.5
2
54
Pedal pad (Left)
1
75
Foot pad Φ33 x Φ8 x 13
4
55
Screw ST4.8 x 13 x Φ8
16
76
Bolt M6 x 20 x S5
2
56
End cap
6
77
Washer d6*Φ12*1.2
2
57
Roller Φ71 x Φ19 x 24
2
78
Nut M6*H6*S10
1
58
Bearing 608ZZ
4
79
Roller Φ66*34*Φ35
4
59
Bolt M6 x 12 x S5
2
80
Bolt M10*16*S6
4
60
BoltΦ7.8 x 30 x M6 x S5
2
81
Bearing 6003－2RS
8
61
Bolt M10 x 25 x S6
4
82
Cover
1
62
Washer d10 x Φ20 x 1.5
8
83
Cover
1
63
Washer d8 x Φ16 x 1.5
2
84
Bolt M10*40*15*S6
4
64
Aluminium rail
4
85
Decal
2
65
Screw ST4.2 x 13 x Φ8
8
86
Washer d4*Φ10*1.0
4
66
Foot pad Φ52 x 43 x
M10
6
87
Screw M4*10
4
67
End cap Φ28 x 16
2
88
Adaptor
1
68
Nut M10 x S17 x 6.0
4
A
Spanner S13-14-15*180
1
69
Cover
2
B
Spanner S17-19 S17
1
70
Cover
1
C
Spanner S8
1
71
Cover
1
D
Spanner S6
1

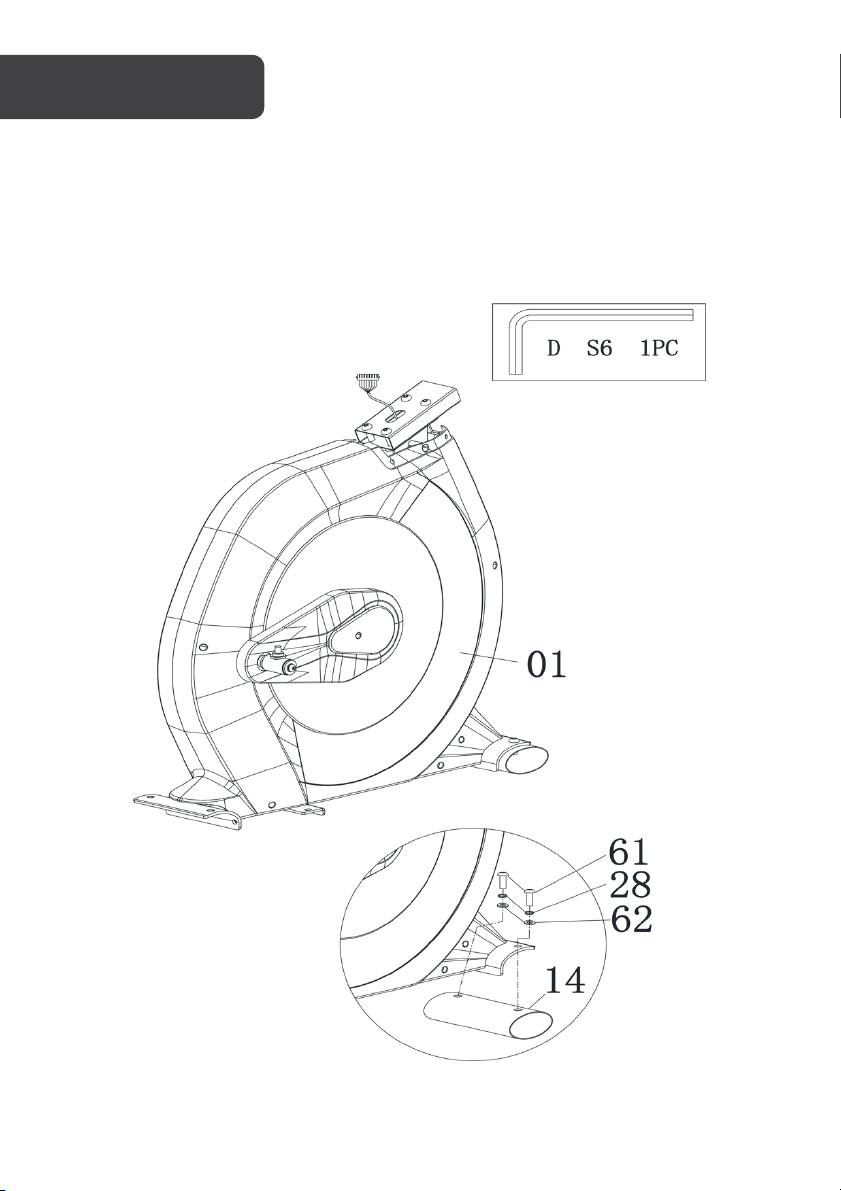

Step 1:
Remove the bolt (
61
), washer (
62
) and spring washer (
28
) and remove protected tube (
14
)
from the main frame (
01
) with spanner (
D
).
Discard the protected tube (
14
) which is not needed for the assembly of the rower.
Reserve the bolt (
61
), washer (
62
) and spring washer (
28
) for the assembly of the rower.
ASSEMBLY

Step 2:
Secure front stabilizer (
02
) to main frame (
01
) with bolts (
61
), washers (
62
) and spring
washers (
28
) by spanner (
D
).
Secure rear stabilizer (
03
) to main frame (
01
) with bolts (
61
), washers (
62
) and spring washers
(
28
).
Secure the metal plate in front of the rear stabilizer (
03
) to main frame (
01
) with bolt (
47
) and
washer (
63
).

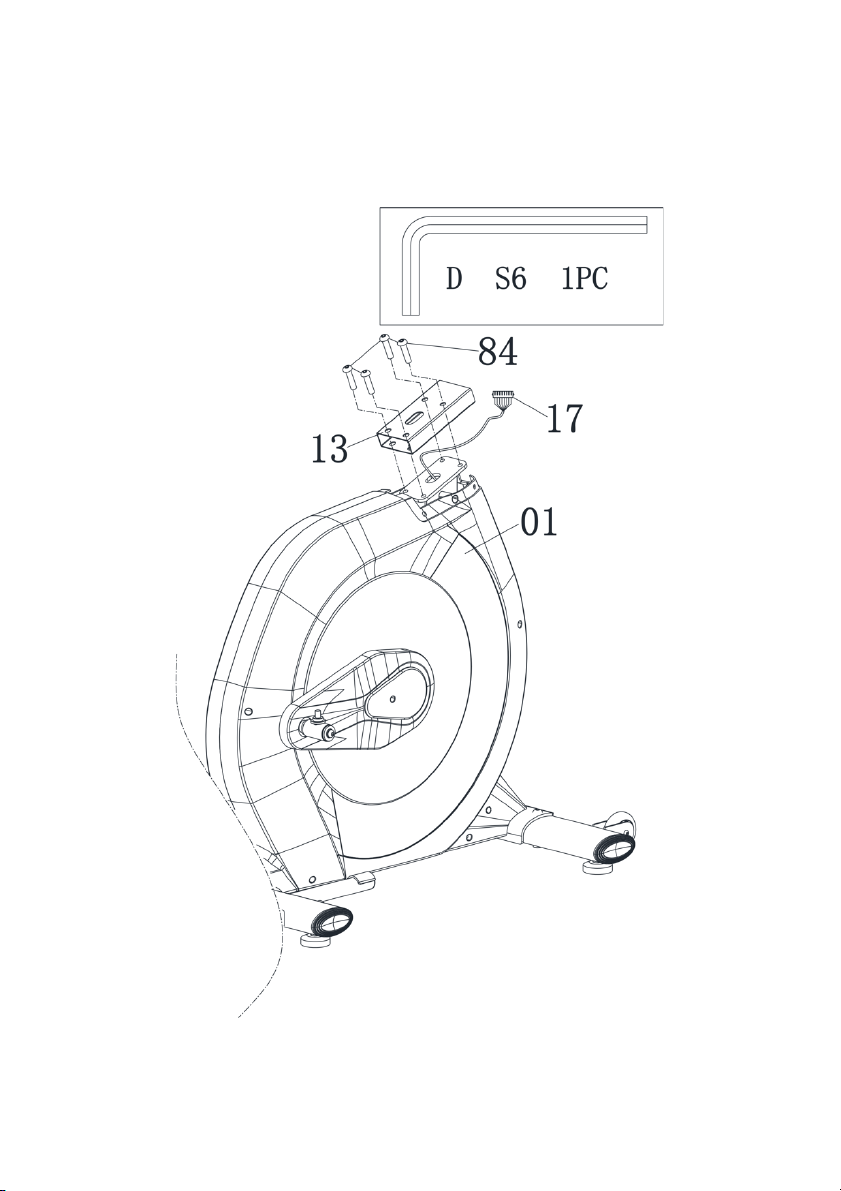

Step 3:
Ta k e o u t t h e p ro t e c t e d t u b e (
13
) from main frame (
01
) with spanner (
D
). Be careful not to
break the sensor wire (
17
).
Discard the bolt (
84
) and protected tube (
13
) which are not needed for the assembly of the
rower.

Step 4:
Connect trunk wire (
16
) with sensor wire (
17
). Fasten the handlebar post (
04
) to main frame
(
01
) with spanner (
C
), bolt (
27
) and spring washer (
28
).
Secure the cover (
82 & 83
) to main frame (
01
) with spanner (
A
) and screw (
25
).
Secure the bottle holder (
24
) to handlebar post (
04
) with spanner (
A
) and screw (
26
).

Step 5:
Remove the bolt (
38
), washer (
37
) and spring washer (
36
) from handlebar post (
04
) with
spanner (
D
).
Fasten the handlebar L (
05
) and handlebar R (
06
) to swing rod L (
07
) and swing rod R (
08
)
separately with bolt (
30
), arc washer (31) and nut (32) by spanner (
A
). Pay attention to the
left and right directions.
Secure the cover (
40, 41
) to handlebar (
L
) (
05
) and handlebar(
R
) (
06
) separately with screw
(
26
) by spanner (
A
).

Step 6:
Put axle (
44
) through the U bracket of pedal support (
09
) and bushing of connecting rod L
(
10
). Note: D groove is fitted to U bracket. Then fasten it with washer (
48
), nut (
32
) by
spanner (
A
).
Put axle (
44
) through the U plate of pedal support (
11
) and bushing of connecting rod R (
12
).
Note: D groove is fitted to U bracket. Then fasten it with washer (
48
), nut (
32
) by spanner (
A
).
Remove the pre-assembled washer (
74
) and nut (
46
) from main frame (
1
) using spanner (
B
).
Secure the connecting rod L (
10
) and connecting rod R (
12
) to the both sides of main frame
(
01
) separately. Then fix it with washer (
74
) and nut (
46
) using spanner (
B
).
Secure the pedal (Left) (
52
) and pedal (Right) (
51
) to the pedal support (
09 & 11
) separately
with washer (
48
) and bolt (
47
) by spanner (
D
).

Step 7:
Connect the console wire (
15a
) with trunk wire (
16
) and connect console wire (
15b
) with
handle pulse wire (
18
).
Remove the washer (
86
) and screw (
87
) on the back of console (
15
) by spanner (
A
). Attach
the console (
15
) to the handlebar post (
04
), then fix it with washer (
86
) and screw (
87
).
Secure the cover (
22, 23
) to the handlebar post (
04
). Fix it with screw (
26
) and screw (
25
) by
spanner (
A
).

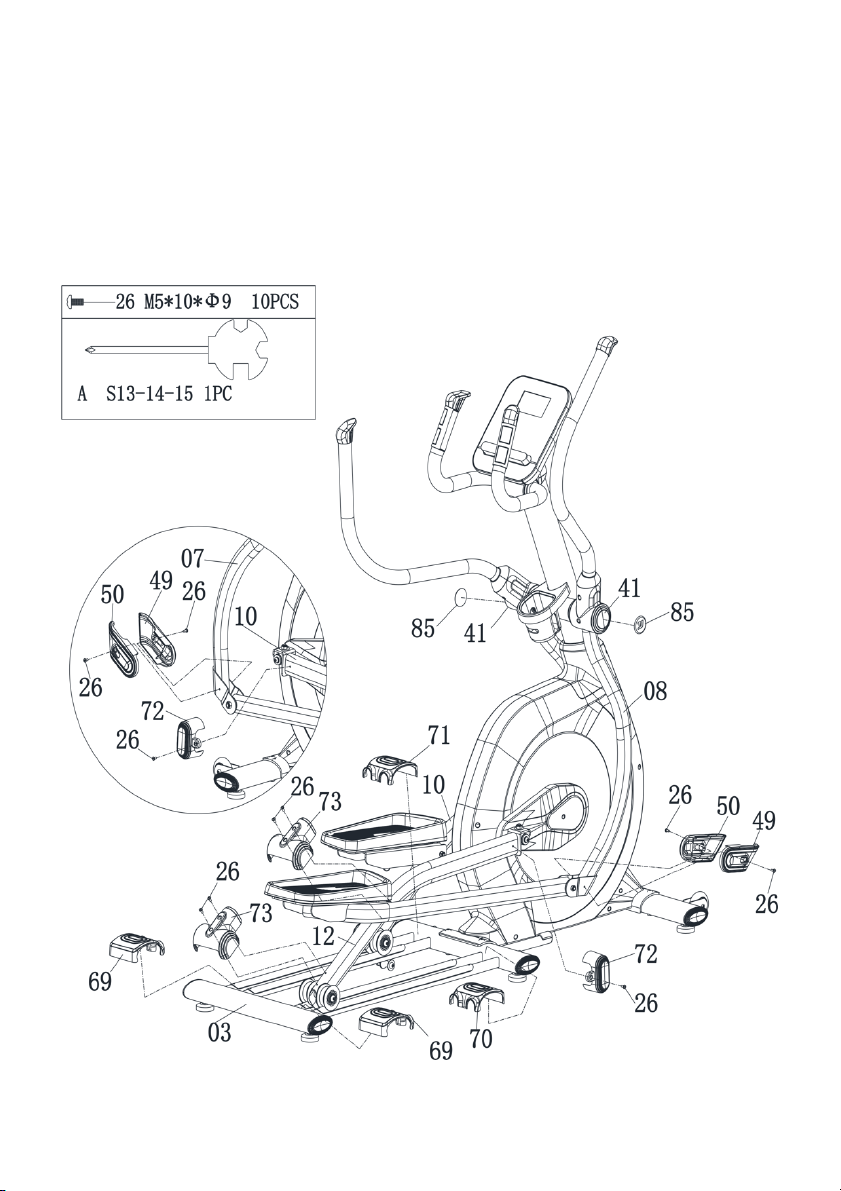

Step 8:
Secure the cover (
72
) and cover (
73
) to the connecting rod L (
10
) and connecting rod R (
12
)
with screw (
26
) by spanner (
A
).
Secure the cover (
50
) and the cover (
49
) to swing rod L (
07
) and swing rod R (
08
) with screw
(
26
) by spanner (
A
).
Attach the cover (
69
) to the rear left and rear right sides of the rear stabilizer (
03
). Attach the
cover (
70
) and (
71
) to front left and front right of the rear stabilizer (
03
).
Paste decal (
85
) to the both cover (
41
).

Step 9:
Plug the adaptor (
88
) wire to the front hole of main frame (
01
), then connect the adaptor
(
88
) to the power supply. Reserve the adaptor (
88
) for recycle use.

1. Tu r n o n t h e c o m p u t e r
Plug in one end of the adaptor to the AC electrical source and connect the other end to the
computer.
The computer will beep and enter into initial mode.
2. Program select and value setting
Manual Program and Preset Program P1～P10
• Press UP, DOWN button to select the program that you like.
• Press ENTER button to confirm the selected program and enter time setting
window.
• The time will flash and then press UP, DOWN button to set up your desired time.
Press ENTER to confirm the value.
• The distance will flash and then press UP, DOWN button to set up the desired
distance value. Press ENTER to confirm the value.
• The calories will flash and then press UP, DOWN to set up the desired calories.
Press ENTER to confirm the value.
• Press START/ STOP to begin exercise.
User Profile Programs: CUSTOM1～CUSTOM5(P11-P15)
• Press UP, DOWN button to select the user.
• Press ENTER to confirm your choice and enter into time setting window.
• The time display will flash and then press UP, DOWN button to set up the desired
time to do the exercise. Press ENTER to confirm the value.
• The distance will flash and then press UP, DOWN button to set up the desired
distance value. Press ENTER to confirm the value.
• The calories will flash and then press UP, DOWN button to set up the desired
calories. Press ENTER to confirm the value.
• The first resistance level will flash and then press UP, DOWN button to set the
desired load resistance. Press ENTER to confirm. Then repeat above operation to
set the resistance from 2 to 10.
• Press START/ STOP to begin exercise.
OPERATION

Watt Control Program (WATT PRO: P16)
• Press UP, DOWN to select the watt control program.
• Press ENTER to confirm the selected watt control program and enter into time
setting window.
• The time will flash and then press UP, DOWN button to set up the desired time,
Press ENTER to confirm the value.
• The distance will flash and then press UP, DOWN button to set up the desired
distance value. Press ENTER to confirm the value.
• The calories will flash and then press UP, DOWN button to set up the desired
calories. Press ENTER to confirm the value.
• The watt display will flash and then press UP, DOWN button to set up the watt to
do the exercise. Press ENTER to confirm the value.
• Press START/ STOP to begin exercise.
HEART RATE CONTROL PROGRAM: 55% H.R, 75% H.R and 95% H.R(PULSE PRO:
P17-P19)
The maximum heart rate depends on users age and this program will ensure you
are exercise within maximum heart rate.
• Press UP, DOWN button to choose the heart rate control program.
• Press ENTER to confirm the heart rate control program and enter into AGE setting
window.
Note:
The WATT value is decided by the TORQUE and RPM. In this program, the WATT
value will keep at constant value. It means that if you peddle quickly, the load
resistance will decrease and if you peddle slowly, the load resistance will increase to
ensure you at the same watt value.

• The time will flash and then press UP, DOWN button to set up the desired time.
Press ENTER to confirm the value.
• The distance will flash and then press UP, DOWN button to set up the desired
distance value. Press ENTER to confirm the value.
• The calories will flash and then press UP, DOWN button to set up the desired
calories. Press ENTER to confirm the value.
• The age will flash and then press UP, DOWN button to set the user's age. Press
ENTER to confirm the value.
• When the target heart rate control program flash, the computer will display the
user's target heart rate according to user's age.
• Press START/ STOP to begin exercise.
HEART RATE CONTROL PROGRAM: TARGET HEART RATE (PULSE PRO: P20)
The user can set any target heart rate to do the exercise.
• Press UP, DOWN button to select TARGET HEART RATE program.
• Press ENTER to confirm your choice and enter time setting window.
• The time display will flash and then press UP, DOWN button to set the desired time
to do the exercise. Press ENTER to confirm the value.
• The distance will flash and then press UP, DOWN button to set up the desired
distance value. Press ENTER to confirm the value.
• The calories will flash and then press UP, DOWN button to set up the desired
calories. Press ENTER to confirm the value.
• The target heart rate will flash and then press UP, DOWN button to set up your
target heart rate. Press ENTER to confirm the value.
• Press START/ STOP to begin exercise.
Note:
During exercise, the user's heart rate value depends on resistance level and speed.
The heart rate control program is to ensure your heart rate within the preset value.
When the computer detects your current heart rate is higher than preset, it will
decrease the resistance level automatically or you may slow down exercise. If your
current heart rate is lower than preset, it will increase resistance and you may speed
up.

The pulse recovery test is to compare your heart rate before and after exercise. It is
targeted to determine your heart strength via the measuring. Please do the test as
below:
• Both your hands hold the pulse sensor or via wireless transmitter belt to test the
pulse (if applicable), the computer will display your current pulse value.
• Press RECOVERY to enter the pulse recovery test and the computer program will
enter the stop status.
• Keep pulse detecting.
• Time will count down from 60 seconds to 0 second.
• When time reaches 0, the test result (F1-F6) appears on the display.
F1= Excellent
F2= Good
F3= Fair
F4= Below average
F5= No Good
F6= Poor
• If the computer does not detect your current heart rate first, pressing RECOVERY
will not enter into pulse recovery test. During the pulse recovery test, press
RECOVERY to exit the test and return to the stop status.
• Pulse Measurement
Please place both your palms on the contact pads and the computer will show your current
heartbeat rate in beats per minute (BPM) on the LCD after 3~4 seconds. During the
measurement, heart icon will flash with simulative ECG showing.
Remark: During the process of pulse measurement, because of the contact jamming, the
measurement value may not be stable when start, then it will return to normal level. The
measurement value cannot be regarded as the basis of medical treatment.
Note:
If the computer is also equipped with wireless heart rate measuring via the
transmitter belt and with hand pulse function, the hand-measurement-signal-
detecting is preferred.
