Fortrezz Fts05us User manual

USER MANUAL

Congratulations on your purchase! The FTS05 sensor is a Z-WavePlusTM Security-enabled device that detects water leaks and

measures temperature. In case of leak or high/low temperature conditions it will send alerts on your network. The FTS05 is

compatible with other Z-WaveTM and Z-WavePlusTM certified products. The FTS05 sensor comes in two part numbers for each

geographic region (where ‘yy’ below indicates, for example, US or EU):

•FTS05US and FTS05EU

Pair together with our Automatic Water Shut-off Valve & Flow Meter for a complete Damage Prevention system!

Flow Meter

Version 1.0 Updated: 07/25/2017

PAIRS GREAT WITH OUR

WATER SHUT-OFF VALVE

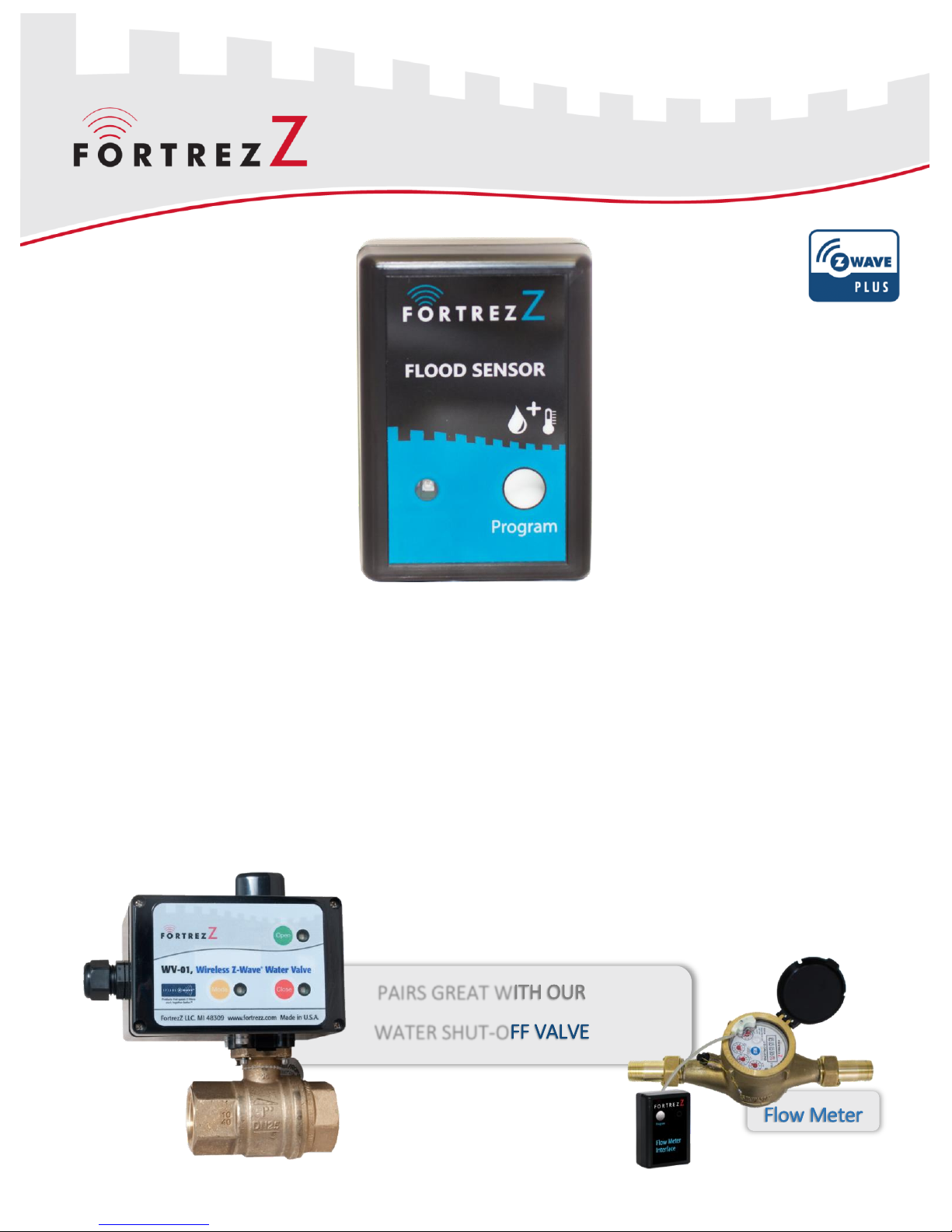

FLOOD & TEMPERATURE SENSOR

FTS05

WARNINGS AND PRECAUTIONS

•Do not store highly flammable items such as oily rags or other combustibles near your FTS05.

•Do not apply electrical power to the unit unless the unit is fully assembled.

•Sensor functionality is based on wireless (RF) transmissions. Any wireless transmission can be subject to RF interference or loss of

communication. This interference or loss of communication may cause the unit to not operate as intended. You, the end-user, are

responsible for ensuring that the FTS05 functionality and installation meets your desired requirements.

oWARNING –This sensor must not be used in life support and / or safety applications.

•Do not place on or near metal objects. This decreases range and/or blocks wireless transmissions.

•Information provided in this manual is for your convenience and may be superseded by updates. This manual is subject to change

without notice. It is your responsibility to ensure that the FTS05 functionality meets your needs and specifications.

WHAT’S IN THE BOX?

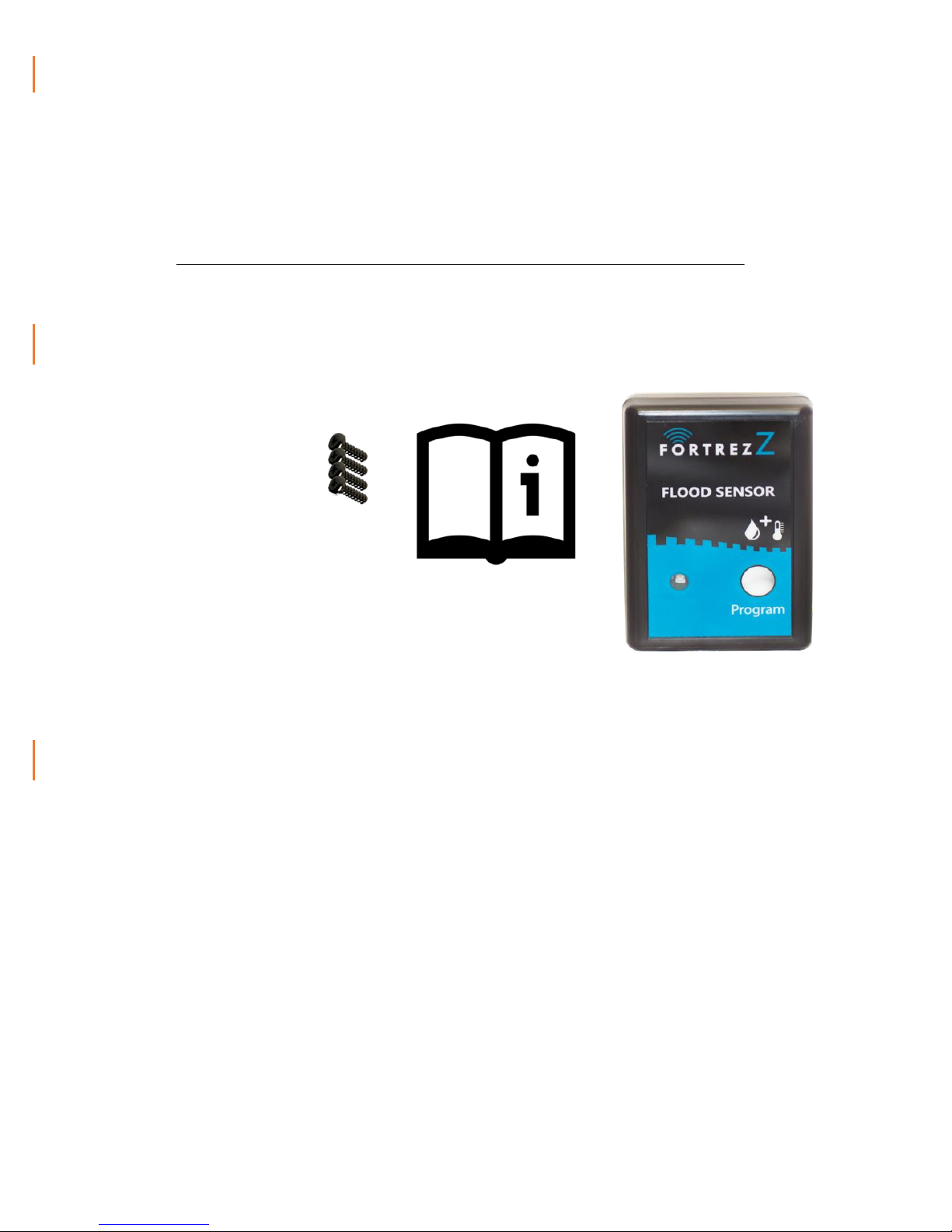

Components included in the box:

1. FTS05 Sensor

2. 4 Small Casing Screws

3. Install Guide

** 2x AA Batteries Required (Not included)

ASSEMBLE & TEST YOUR SENSOR

We recommend you test your sensor for its functionality before adding it to your network. Please follow these instructions:

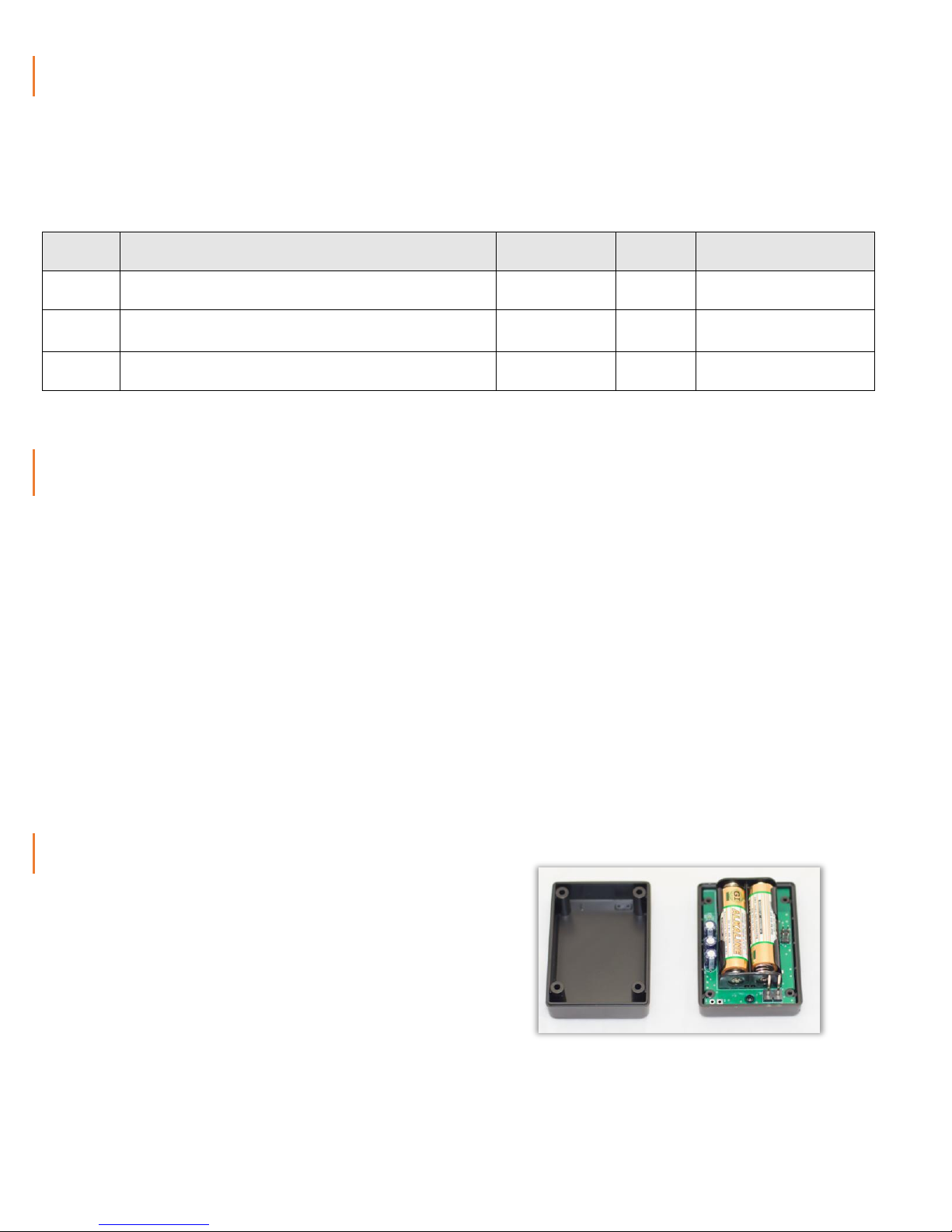

1. Ensure that the LED blinks when inserting new batteries.

2. Make sure the batteries are seated in place and secure.

3. Using the screws (4) provided, attach back cover to sensor making sure to align the sensing prongs.

*Do not over tighten screws.

4. Pour a small amount of water onto a plate or counter top. Place sensor onto the wet area, making sure the sensing

element is touching the water.

5. Once detected (within 5s), the LED will blink twice to indicate alert. Dry off the sensor with a towel to reset.

6. If the LED doesn’t blink, refer to Troubleshooting section.

Installation Guide

LOCATIONS TO INSTALL SENSOR

The sensor is suitable for use in normally dry, interior locations only. Do not install outside or in areas that become wet

normally or have high humidity. Avoid placing the unit close to a metal frame, or other metal appliances that may affect its’

range. Place the unit flat on the floor or inside cabinet so that any leaks that may occur will not drip directly on the unit, but

next to it, and form a puddle that will wet the sensor. Using Velcro tape is a great way to keep sensors in place.

Recommended Uses:

•Under sinks

•Next to Sump pumps

•Water Heaters

•Laundry Room Appliances

•Behind toilets

•Dishwashers

•Refrigerators

•Bath tubs

Sensing Element

Note: Water must come into contact with this part of the sensor to

activate the sensor. Be sure to place sensor flat on its bottom surface

(pictured right) with the sensing element in the flood path.

Note about Concrete or Natural Stone Floors: Placing the sensor directly onto a cold surface, such

as a concrete or natural stone floor may cause false alarms. The humidity and out-gassing that rises out

of curing concrete may set off the sensor, triggering a water alarm. To avoid this, you can place a small

spacer (such as a piece of foam tape or Velcro) between the sensor and the floor,

making sure not to cover the sensing element. The 3mm thickness is enough to

keep the sensing element low to detect leaks, but high enough to avoid false alarms.

Using Velcro tape is a great way to keep sensors in place and avoid them being displaced

while cleaning floors.

INCLUDING THE SENSOR IN YOUR Z-WAVE NETWORK

1. Install the two AA batteries and secure the bottom cover using the 4 supplied screws.

2. Walk sensor to its installation location. Make sure it is within 25 feet of the Z-Wave hub or another Z-Wave signal

repeating device.

3. Set your Z-Wave Hub into Inclusion mode. Refer to your controller’s user manual for specific details on network

inclusion, exclusion or association.

Inclusion (adding to network)

1. Set inclusion mode on your controller

2. Press and hold the program button for 1-3 seconds. The LED on the sensor will blink twice if successful.

Exclusion (Removing from network)

1. Set up exclusion mode on your controller

2. Press and hold the button for 1-3 seconds. The LED on the sensor will blink four times once complete.

Trouble connecting to your Z-wave Network?

1. Check to make sure the sensor isn’t already in a network. Press the program button and observe LED indicator. You

may need to first exclude the unit from a network, then include it.

Status LED Indications

Number of LED Blinks

Meaning

Fast Blinks

(switch pressed; continually on while switch is pressed)

In-Network After Battery Replacement or Add/Inclusion (also, after button held while in-Network)

Out of Network After Battery Replacement or Remove/Exclusion (also given if Add was not

completed) –May take up to 30 seconds to display after button press

Low Battery (repeated every approx. 40 seconds)

Slow Blinks

Firmware Update (OTA) mode has been started; continuous while waiting for update to start

Water Alarm

Heat Alarm (either high or low set point triggered)

An active alarm has been cleared (when a water alarm or a temperature alarm is no longer active)

Note: Your Z-Wave HUB may not support this device. Check our website, or Contact us for a list of compatible Hubs’.

DURING AN ALARM

Water Alarm

If water is detected at the monitoring location or an over/under-temperature condition is detected, the unit will send an

alert message(s) to the Z-WaveTM network. The type of alert message depends on how the sensor is configured.

Clearing an Alarm

Drying the sensor contacts will clear the Water Alarm. If an over/under temperature alarm occurred and the temperature

alarm conditions are no longer present, an ‘alarm clear’ message is also sent.

Remote Alert

Depending on your specific controller’s capabilities you will be able to remotely check the status of the sensor in your

network and setup automatic notifications to your mobile devices when an alarm is detected.

ASSOCIATIONS

Once in a network, use your controller to associate the sensor with other devices in the Z-WaveTM network, such as a water

valve. For example, when a water leak is detected, the sensor can be set up to automatically send a command to turn off a

Water Shut-off Valve. Refer to your controller’s documentation on how to associate the sensor with another device in your

network. The sensor supports eight association groups with a maximum of 2 associated devices in each group.

Note: Association groups 5 through 8 allow the temperature to be sent to an associated device (such as the controller).

The sensor allows the sending rate of the reports to be optimized so that the battery life can be maximized by using the

longest acceptable interval between temperature updates. The temperature report was not included in the Lifeline so that

you have the most flexibility for optimizing battery life and getting updates for your specific application. If you want

temperature updates, you should only select one of these association groups to send to a particular device.

Caution –More frequent notifications will decrease battery life!

Association

Group (Name)

Max.

Associations

per Group

Supported Events (Command Classes)

1 (Lifeline –the

controller should

automatically set

up this

association)

•Device Reset Locally (via 3 quick presses of the program switch)

•Battery Report (when calculated battery life percentage changes)

•Notifications

oWater (Type 5; Event Waterleak_Detected)

oHeat (Type 4; Event Underheat_Detected)

oPower (Type 8; Events Power_Applied, Replace_Soon, Replace_Now)

Basic Set Command ON (default, 0xFF) or OFF (0x00) is sent to the associated nodes

to indicate that a Water Alarm is active. This depends on the parameter 4

configuration value. When the water alarm is cleared, one additional report with

the opposite value is sent.

Basic Set Command with value = 0xFF is sent to the associated nodes to indicate

that a Temperature High condition has been detected. When the temperature is

back in the normal range, one additional report with value = 0x00 is sent.

Basic Set Command with value = 0xFF is sent to the associated nodes to indicate

that a Temperature Low condition has been detected. When the temperature is

back in the normal range, one additional report with value = 0x00 is sent.

Temperature report (Multilevel Sensor) when the temperature has changed (with

filtering/hysteresis to avoid continuous transmissions at a transition point).

Temperature report (Multilevel Sensor) every 5 minutes

Temperature report (Multilevel Sensor) every 20 minutes

Temperature report (Multilevel Sensor) every 60 minutes

ADVANCED CONFIGURATIONS FOR YOUR SENSOR

The high and low temperature set points in the sensor can be configured. The low temperature set point must always be set

at least two degrees below the high temperature set point. The low temperature set point cannot be set less than –10

degrees C and the high temperature set point cannot be set greater than 70 degrees C. The temperature set points can be

configured using your Z-Wave controller after your sensor is included into the network.

Configuration Command Class Parameters

PARA-

METER

DESCRIPTION

DEFAULT

VALUE

SIZE

(bytes)

POSSIBLE VALUES

Temperature low threshold

0x04

(4⁰C)

0xF6..0x45

(-10..69⁰C)

Temperature high threshold

0x46

(70⁰C)

0xF7..0x46

(-9..70⁰C)

Water Alarm Association Mode (send Basic Set ON or

Basic Set OFF when alarm detected)

0xF0 (send

Basic Set ON)

0x00 (send OFF) or 0xF0

(send ON)

FACTORY RESET & FIRMWARE UPDATES

Reset the device to factory Defaults:

**Please use this procedure only when the Z-Wave controller is missing or otherwise inoperable.

1. Press and hold the program button for longer than 15 seconds.

2. Release the button.

3. The LED will flash approx. 30 times.

This can be done while the device is either in or out of a network. Caution –When this is done in-network, the device

will no longer be in the network and all configurations and associations will be set to default.

Over-the-Air (OTA) Firmware Update mode: If running on batteries, a firmware update should only be done with new

batteries.

1. Quickly press the program button 3 times while in-network.

2. Then quickly activate your controller’s update mode.

Caution –This should not be done unless a firmware update will be immediately started at the controller. Do not allow

the OTA mode to continue indefinitely without starting the firmware update at your controller. Refer to your

controller’s manual for update procedures. Press the button once to exit the OTA mode.

MAINTAINANCE

Sensor uses 2 AA standard alkaline 1.5V batteries (not included).

When low, the sensor will send low battery alerts via Z-Wave.

Replacing batteries: (Do this at minimum Once a Year)

1. Remove the bottom cover to expose the batteries.

2. Remove the AA batteries and replace with NEW ones.

3. Re-fasten bottom cover using the four screw’s.

TECHNICAL APPENDIX

Z-WaveTM INFORMATION

Node Information Frame (NIF): Always listening flag set, Optional functionality flag set

Manufacturer ID 0X0084

Product ID 0x0073 (FTS05, US), 0x00A3 (FTS05P, US)

Device Type / Supported Command Classes

Generic Device Type: GENERIC_TYPE_SENSOR_NOTIFICATION

Specific Device Type: SPECIFIC_TYPE_NOTIFICATION_SENSOR

COMMAND_CLASS_ZWAVEPLUS_INFO_V2

COMMAND_CLASS_VERSION_V2

COMMAND_CLASS_MANUFACTURER_SPECIFIC_V2

COMMAND_CLASS_DEVICE_RESET_LOCALLY_V1

COMMAND_CLASS_ASSOCIATION_GRP_INFO (Info about Root Associations)

COMMAND_CLASS_NOTIFICATION_V3 (Power Management, System Fault, Water, and Heat alarm handling)

COMMAND_CLASS_ASSOCIATION_V2 (Refer to Association Section)

COMMAND_CLASS_POWERLEVEL

COMMAND_CLASS_BASIC (for controlling associated nodes when Water and Heat alarms exist; Basic commands to the

water sensor are ignored)

COMMAND_CLASS_SENSOR_MULTILEVEL_V9 (Temperature value type)

COMMAND_CLASS_CONFIGURATION

COMMAND_CLASS_WAKE_UP

COMMAND_CLASS_BATTERY

COMMAND_CLASS_NOTIFICATION

Notifications are sent for the following types and events:

Power Management

EVENT_INACTIVE 0x00

EVENT_POWER_HAS_BEEN_APPLIED 0x01

EVENT_AC_MAINS_DISCONNECTED 0x02 (FTS05P only)

EVENT_AC_MAINS_RECONNECTED 0x03 (FTS05P only)

EVENT_REPLACE_BATTERY_SOON 0x0A

EVENT_REPLACE_BATTERY_NOW 0x0B

Heat

EVENT_INACTIVE 0x00

EVENT_OVERHEAT_DETECTED 0x02

EVENT_UNDERHEAT_DETECTED 0x06

Water

EVENT_INACTIVE 0x00

EVENT_WATERLEAK_DETECTED 0x02

EVENT_WATERLEVEL_DROPPED 0x04 (FTS05P only)

System

EVENT_INACTIVE 0x00

EVENT_SYSTEM_HARDWARE_FAILURE 0x03

Parameter = 0x01, Probe disconnected / Thermistor open

Parameter = 0x02, Thermistor shorted

TROUBLESHOOTING

Please check our Frequently Asked Questions (FAQ’s)

Check our FAQ’s section on our website for commonly asked questions specific to your product.

For more troubleshooting help, online resources, and more, please visit our website or contact us

Sales & Product Inquiries: [email protected]

Tech Support / Warranty Inquiries: support@fortrezz.com

Or Visit our website at http://www.fortrezz.com/support/#Contact-Us to submit a support inquiry.

LIMITED WARRANTY

THE PRODUCT IS PROVIDED WITH ONE YEAR LIMITED MANUFACTURER WARRANTY. FORTREZZ, LLC warrants its products to be free from defects in material and

workmanship under normal use for one year, and is not responsible for consequential damages or installation costs of any nature. FORTREZZ, LLC. expressly disclaims

all implied warranties, including but not limited to the implied warranties of merchantability and fitness for a particular purpose. FORTREZZ, LLC. does not warrant,

guarantee, or make any representations regarding the use or the results of the use of the products or any accompanying materials in terms of their correctness,

accuracy, reliability or otherwise. In no event shall FORTREZZ, LLC. be liable to Purchaser hereunder or in respect of any products ordered or delivered to Purchaser,

whether in contract, tort including negligence or otherwise for a loss of profits or loss of use or for any incidental, consequential, special or indirect damages

howsoever caused whether or not FORTREZZ, LLC. has been advised of the possibility of such loss or damage. FORTREZZ, LLC's maximum liability to Purchaser under

these conditions shall in no event exceed the amount paid by Purchaser for the products that are the subject of the claim and in respect of all claims for products

ordered from FORTREZZ, LLC. to which these conditions apply to the amount paid by Purchaser for the products which are the subject of the claims. If you are not

comfortable with your limited warranty, or not completely satisfied with the MIMO, or the FTS05 does not perform as expected we encourage you to return the

FTS05 to your DISTRIBUTOR for an exchange or for a full refund within 30 days of purchase. Or, you can return the FTS05 to FORTREZZ, LLC with an RGA number.

REGULATORY INFORMATION

FCC Compliance Statement Statements

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Contains Transmitter Module

FCC ID: WRD-FM5202

FCC Warning (Part 15.21). Changes or modifications not expressly approved by the party responsible for compliance could void he user’s authority to operate the equipment.

FCC Interference Statement (Part 15.105 (b)). This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the

following measures:

(1) Reorient or relocate the receiving antenna / (2) Increase the separation between the equipment and receiver / (3) Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected / (4) Consult the dealer or an experienced radio/TV technician for help.

Industry Canada Statement per Section 4.0 of RSP-100

The term "IC:" before the certification/registration number only signifies that the Industry Canada technical specifications were met.

Section 7.1.5 of RSS-GEN. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including

interference that may cause undesired operation.

From section 5.2, RSS-Gen, Issue 2, June 2007 Equipment Labels: Contains IC: 8156A-FM5202; PN: Model: FM5202-US-SMT

From section 7.1.6, RSS-Gen, Issue 2, June 2007

Digital Circuits:

If the device contains digital circuitry that is not directly associated with the radio transmitter, the device shall also have to comply with ICES-003, Class A or B as appropriate, except for ICEC-003 labeling

requirements. The test data obtained (for the ICES-003 tests) shall be kept by the manufacturer or importer whose name appears on the equipment label, and made available to Industry Canada on

request, for as long as the model is being marketed in Canada.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas

produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

Note: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. HELPFUL

WEB SITE: Industry Canada http://www.ic.gc.ca/

Europe

The FMI module has been tested for use in European countries. The following testing has been completed:

Test standard EN 300 220 ; (2012-05) Test standards ETSI EN 301 489-1 ; (2011-09)

A helpful document that can be used as a starting point in understanding the use of short range devices (SRD) in Europe is the European Radio Communications Committee (ERC) Recommendation 70-03 E,

downloadable from the European Radio Communications Office (ERO) http://www.ero.dk. The end user is responsible for ensuring compliance with harmonized frequencies and labeling requirements for

each country the end device is marketed and sold. A Declaration of Conformity must be issued for each of these standards and kept on file as described in Annex II of the R&TTE Directive.
