Forza FRT304GN User manual

INSTALLATION
MANUAL
INSTALLATION
MANUEL
MANUAL DE
INSTALACIÓN
P. 39
P. 3
P.75
RANGE TOP

3
INSTALLATION
MANUAL
RANGE TOP MODELS
FRT304GN
FRT366GN

4
Congratulations on your recent Forza purchase! Before you begin using your new Forza product, please take a moment
to review the Installation Manual. You will find the answers to all of your questions as well as some very important safety
information. Pay special attention to the Important Safety Instructions located at the beginning of the manual. Your Forza
product is ready and waiting to be used for your next gourmet creation!
Table of Contents
05 Safety Instructions
08 Ventilation Requirements
08 Cabinet Preparation
15 Unpacking, Assembly and Moving of the Rangetop
16 Unpacking the Rangetop
18 Gas Requirements
22 Electrical Requirements
24 Test Rangetop Burners
25 Converting Appliance for Use with LP Gas
27 Converting Appliance for Use with Natural Gas
30 Low Flame Adjustment
33 High-Altitude Adjustment Instructions
35 Technical Data
37 Installer Checklist
This Forza appliance is proudly made in Modena, Italy
by GlemGas S.p.A, a family owned company.
www.forzacucina.com

5EN
Safety Instructions
Pay attention to these symbols present in this manual:
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
You can be killed or seriously injured if you don’t immediately
follow instructions.
You can be killed or seriously injured if you don’t follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you
what can happen if the instructions are not followed.
IMPORTANT: Save these instructions for local electrical inspector use.
INSTALLER: Please leave this manual with owner for future reference. Leave these instructions with the appliance.
OWNER: Please keep this manual for future reference.
IMPORTANT: Special Warning – Please read all instructions before using this appliance as proper installation
is the owner’s responsibility. Have a qualified technician install this range.
IMPORTANT:
• Observe all governing codes and ordinances.
• Write down the model and serial numbers before installing the range. Both numbers are on the serial rating
plate, located under or behfind the product.

6
Before Starting Installation:
• Check location where range will be installed. The location should be away from strong drafty areas, such as windows,
doors and strong heating vents or fans.
• Ensure electrical grounding is readily available as it is required for proper installation.
• Assure that electrical installation is adequate and in conformance with National Electrical Code, ANSI/ NFPA 70 -
latest edition**, or Canadian Electrical Code, part 1 C22.1 (latest edition)*** and all local codes and ordinances.
• Assure that gas connection conforms with local codes and ordinances. In the absence of local codes, installations must
conform with American National Standard, National Fuel Gas Code ANSI Z223/NFPA 54 - latest edition** Canadian
CAN/ CGA_B 149.1 or CAN/CGA-149.2 latest edition.**
Copies of the standards listed may be obtained from:
** National Fire Protection Association One Batterymarch Park Quincy, Massachusetts 02269
*** CSA International 8501 East Pleasant Valley Rd. Cleveland, OH 44131-5575
Examine the appliance after unpacking it. In the event of transport damage, do not plug it in.
Remove all tape and packaging before using the appliance. Destroy the packaging after install. Never allow children to play
with packaging material.
If the information in this manual is not followed exactly, a fire or explosion may
result in property damage, personal injury or death.
Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
What to do if you smell gas.
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service
agency or the gas supplier.

7EN
NOTE: This range is NOT designed for installation in manufactured (mobile) homes or Recreational Park Trailers.
Mobile Home Installation
The installation of this appliances must conform to the Manufactured Home Construction and Safety Standards, Title 24
CFR, Part 3280 (formerly the Federal Standard for Mobile Home Construction and Safety; Title 24 HUD part 280); or when
such standard is not applicable, the Standard for Manufactured Home Installations (Manufactured Home Sites, Communi-
ties and Setups), ANSI A225.1 - latest edition, or with local codes.
IMPORTANT: GAS TYPE VERIFICATION
Before connecting the appliance to the gas supply line, ensure that its gas setting is appropriate.
The type of gas adjusted and shipped from the factory is indicated on the rating plate.
CAUTION: These ranges weigh up to 400 pounds. Some disassembly will reduce the weight considerably.
Due to the weight and size of the range and to reduce the risk of personal injury or damage to the product:
TWO PEOPLE ARE REQUIRED FOR PROPER INSTALLATION.
FOR MASSACHUSETTS INSTALLATIONS:
1. Installation must be performed by a qualified or licensed contractor,
plumber or gas fitter qualified or licensed by the state, province or
region where this appliance is being installed.
2. Shut-o valve must be a “T” handle gas cock.
3. Flexible gas connector must not be longer than 36” (914mm).
When connecting the unit to propane gas, make certain the propane gas tank
is equipped with its own high pressure regulator in addition to the pressure
regulator supplied with the range. The maximum gas pressure to this
appliance must not exceed 14.0” water column (34.9 mb) from the propane
gas tank to the pressure regulator.

8
Ventilation Requirements
Vent Hood Combinations:
It is recommended that these ranges be installed in conjunction with a suitable overhead vent hood.
Due to the high heat capacity of this unit, particular attention should be paid to the hood and ductwork installation to assure it
meets local building codes.
WARNING: Air curtain or other overhead hoods, which operate by blowing a downward air flow on to a range-
top, shall not be used in conjunction with ranges with gas cooktop other than when the hood and range-top
have been designed, tested and certified by an independent test laboratory for use in combination with each
other. Clearances to horizontal surfaces above the range, measured to the cooking surface are below. Failure
to comply may result in fire hazard.
• Installations without a hood require 30” minimum to combustibles;
• A custom hood installation with exposed horizontal combustible surfaces must have an Auto-On feature;
• For other installations with a hood, refer to the hood installation instructions for specific hood clearances.
Cabinet Preparation

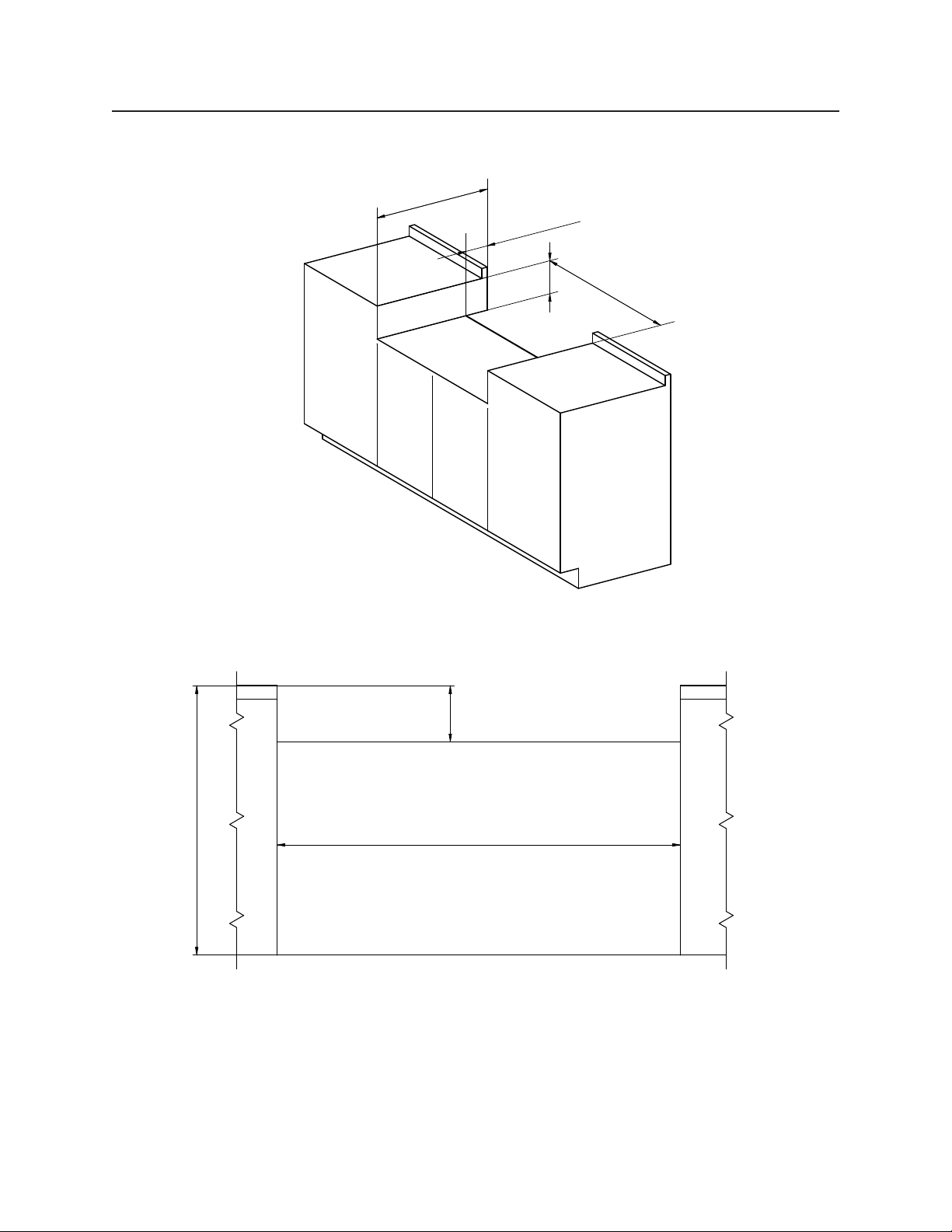

IMPORTANT NOTE: When installing against a combustible surface, a minimum riser is required for a the
range-top, follow all minimum clearances to combustible surfaces shown in the illustration on the previous
pages. The range-top is a free standing unit. If the unit is to be placed adjacent to cabinets, the clearances
shown in Figure 1, are required. The same clearances apply to island installations, except for the overhead
cabinets, which must have a space wide enough to accept the flared island hood.
• Any openings in the wall behind the range and in the floor under the range must be sealed.
• When using the island hood a minimum 12” (305 mm) rear clearance to a combustible surface is recommended (see
Figure 2 on page 10, Cabinet Clearances). Clearances from non-combustible materials are not part of the ANSI Z21.1
scope. Clearances ofless than 12” (305 mm)must beapproved bythe local codes and/or bythelocal authority having jurisdiction.
• When the range is installed against a combustible side wall a minimum clearance of 8” (203mm) is needed from the side
of the range to the wall.
• Always keep appliance area clear from combustible materials, gasoline and other flammable vapors and liquids. The
maximum depth of overhead cabinets installed on either side of the hood is 13” (330mm).
• Do not obstruct the flow of combustion and ventilation air to the unit.
There is a 48” (1220 mm) minimum clearance required between the top of the cooking surface and the bottom of an
unprotected cabinet.
A 48-inch minimum clearance is required between the top of the cooking surface and the bottom of an unprotected cabinet.
A 30- inch clearance can be used when the bottom of the wood or metal cabinet is protected by not less than No. 28MSG
sheet steel, 0.015 inch (0.4 mm) thick stainless steel, 0.024 inch (0.6 mm) aluminium, or 0.020 inch (0.55 mm) thick copper.
Flame retardant materials bear the mark:
UNDERWRITERS LABORATORIES INC. CLASSIFIED MINERAL AND FIBER BOARDS SURFACE CHARACTERISTICS
Followed by the flame spread and smoke ratings. These designations are shown as “ FHC ( Flame Spread/Smoke Devel-
oped)”. Materials with “O” flame spread ratings are flame retardant. Local codes may allow other flame spread ratings.

9EN
Electrical Supply
The cord supplied with the gas ranges having an electric griddle requires a NEMA 5-15 receptacle.
When the power supply cord is connected to the mating receptacle, the combined plug/receptacle connection should
protrude no more than 1,55” (39,4 mm) from the rear wall.
This product must be properly grounded.
NOTE: Plug styles may vary.

10
Product Dimensions
30” Wide Rangetop Models
8 1/8" 20.7
26 7/8" 68.4
29 5/8" 75.2
6 1/2" 16.5
28" 71.2
24" 61.0Min.
8 1/8" 20.7
29 7/8" 75.9
30" 76.2
6 1/2" (71.1)
29 7/8" (75.9)
28" (71.1)
Max. 25 5/8" (65.0)
8 1/8" 20.7
26 7/8" 68.4
29 5/8" 75.2
6 1/2" 16.5
28" 71.2
24" 61.0Min.
8 1/8" 20.7
29 7/8" 75.9
30" 76.2
6 1/2" (71.1)
29 7/8" (75.9)
28" (71.1)
Max. 25 5/8" (65.0)
8 1/8" 20.7
26 7/8" 68.4
29 5/8" 75.2
6 1/2" 16.5
28" 71.2
24" 61.0Min.
8 1/8" 20.7
29 7/8" 75.9
30" 76.2
6 1/2" (71.1)
29 7/8" (75.9)
28" (71.1)
Max. 25 5/8" (65.0)

11 EN
Product Dimensions
36” Wide Rangetop Models
QUESTO DISEGNO NON PUO ESSERE RIPRODOTTO O CONSEGNATO A TERZI SENZA AUTORIZZAZIONE SCRITTA DA PARTE DELLA GLEM-GAS
Diseg.
Verifica:
Data: Scala:
Codice:
N. Dis.
DENOMINAZIONE:
PROGETTO:
Materiale:
Dimensioni:
Finitura:
Tutte le quote tollerate
devono essere controllate
Quote con controllo accurato
GRADO PRECISIONE
GROSSOLANO UNI 5307
MEDIO UNI 5307
FINE UNI 5307
Fino a 6
Da 6 a 30 Da 30 a 120 Da 120 a 315 Da 315 a 1000
+2 -2
+1.2 -1.2+0.8 -0.8+0.5 -0.5+0.2 -0.2
+0.8 -0.8+0.5 -0.5+0.3 -0.3+0.2 -0.2+0.1 -0.1
+0.3 -0.3+0.2 -0.2+0.15 -0.15+0.1 -0.1
+0.05 -0.05
I.M.
DESCRIZIONE MODIFICA DATA
FIRMA
VERIFICA
30
POS.
S. Cesario s/P.
(Modena) Italy
Superficie in vista priva di
qualsiasi difetto o segni di unione stampo
Protezione:
Trattamento:
SOSTITUISCE IL
Dis.
Cod.
N. Dis.
.
.
..
..
.
.
Errore: Nessun riferimento
1:5 Errore: Nessun riferimento
Errore: Nessun riferimento
Errore: Nessun riferimento
Errore: Nessun riferimento
Errore: Nessun riferimento
Errore: Nessun riferimento
Rev.
PRELIMINARY
‹
N.B.
Il particolare deve essere in piano ed a squadro,
non svergolato.
Bordi privi da difettosità di processo.
Per quote mancanti riferirsi ai files 3D.
Particolare conforme alla normativa RohS.
26 7/8" 68.4
29 5/8" 75.2
24" 61.0Min.
8 1/8" 20.7
6 1/2" 16.5
8 1/8" 20.7
36" 91.4
35 3/4" 91.1
28" 71.1
6 1/2" (71.1)
35 3/4" (91.1)
28" (71.1)
Max. 25 5/8" (65.0)
QUESTO DISEGNO NON PUO ESSERE RIPRODOTTO O CONSEGNATO A TERZI SENZA AUTORIZZAZIONE SCRITTA DA PARTE DELLA GLEM-GAS
Diseg.
Verifica:
Data: Scala:
Codice:
N. Dis.
DENOMINAZIONE:
PROGETTO:
Materiale:
Dimensioni:
Finitura:
Tutte le quote tollerate
devono essere controllate
Quote con controllo accurato
GRADO PRECISIONE
GROSSOLANO UNI 5307
MEDIO UNI 5307
FINE UNI 5307
Fino a 6
Da 6 a 30 Da 30 a 120 Da 120 a 315 Da 315 a 1000
+2 -2
+1.2 -1.2+0.8 -0.8+0.5 -0.5+0.2 -0.2
+0.8 -0.8+0.5 -0.5+0.3 -0.3+0.2 -0.2+0.1 -0.1
+0.3 -0.3+0.2 -0.2+0.15 -0.15+0.1 -0.1
+0.05 -0.05
I.M.
DESCRIZIONE MODIFICA DATA
FIRMA
VERIFICA
30
POS.
S. Cesario s/P.
(Modena) Italy
Superficie in vista priva di
qualsiasi difetto o segni di unione stampo
Protezione:
Trattamento:
SOSTITUISCE IL
Dis.
Cod.
N. Dis.
.
.
..
..
.
.
Errore: Nessun riferimento
1:5 Errore: Nessun riferimento
Errore: Nessun riferimento
Errore: Nessun riferimento
Errore: Nessun riferimento
Errore: Nessun riferimento
Errore: Nessun riferimento
Rev.
PRELIMINARY
‹
N.B.
Il particolare deve essere in piano ed a squadro,
non svergolato.
Bordi privi da difettosità di processo.
Per quote mancanti riferirsi ai files 3D.
Particolare conforme alla normativa RohS.
26 7/8" 68.4
29 5/8" 75.2
24" 61.0Min.
8 1/8" 20.7
6 1/2" 16.5
8 1/8" 20.7
36" 91.4
35 3/4" 91.1
28" 71.1
6 1/2" (71.1)
35 3/4" (91.1)
28" (71.1)
Max. 25 5/8" (65.0)
QUESTO DISEGNO NON PUO ESSERE RIPRODOTTO O CONSEGNATO A TERZI SENZA AUTORIZZAZIONE SCRITTA DA PARTE DELLA GLEM-GAS
Diseg.
Verifica:
Data: Scala:
Codice:
N. Dis.
DENOMINAZIONE:
PROGETTO:
Materiale:
Dimensioni:
Finitura:
Tutte le quote tollerate
devono essere controllate
Quote con controllo accurato
GRADO PRECISIONE
GROSSOLANO UNI 5307
MEDIO UNI 5307
FINE UNI 5307
Fino a 6
Da 6 a 30 Da 30 a 120 Da 120 a 315 Da 315 a 1000
+2 -2
+1.2 -1.2+0.8 -0.8+0.5 -0.5+0.2 -0.2
+0.8 -0.8+0.5 -0.5+0.3 -0.3+0.2 -0.2+0.1 -0.1
+0.3 -0.3+0.2 -0.2+0.15 -0.15+0.1 -0.1
+0.05 -0.05
I.M.
DESCRIZIONE MODIFICA DATA
FIRMA
VERIFICA
30
POS.
S. Cesario s/P.
(Modena) Italy
Superficie in vista priva di
qualsiasi difetto o segni di unione stampo
Protezione:
Trattamento:
SOSTITUISCE IL
Dis.
Cod.
N. Dis.
.
.
..
..
.
.
Errore: Nessun riferimento
1:5 Errore: Nessun riferimento
Errore: Nessun riferimento
Errore: Nessun riferimento
Errore: Nessun riferimento
Errore: Nessun riferimento
Errore: Nessun riferimento
Rev.
PRELIMINARY
‹
N.B.
Il particolare deve essere in piano ed a squadro,
non svergolato.
Bordi privi da difettosità di processo.
Per quote mancanti riferirsi ai files 3D.
Particolare conforme alla normativa RohS.
26 7/8" 68.4
29 5/8" 75.2
24" 61.0Min.
8 1/8" 20.7
6 1/2" 16.5
8 1/8" 20.7
36" 91.4
35 3/4" 91.1
28" 71.1
6 1/2" (71.1)
35 3/4" (91.1)
28" (71.1)
Max. 25 5/8" (65.0)

12
Cutout Requirements
To eliminate the risk of burns or fire by reaching over heated surface units, cabinet storage space located above the surface
units should be avoided. If cabinet storage is to be provided, the risk can be reduced by installing a range hood that projects
horizontally a minimum of inches beyond the bottom of the cabinets. All openings in the wall or floor where the range is to be
installed must be sealed.
Figure 1

13 EN
Installation with separator sheet, type 1 (perspective view)
Installation with separator sheet, type 1 (plan view)
30" or 36"
6 1/2" (16.5)
Min. 24" (61.0)
Max. 255/8" (65.0)
Figure 2
Figure 3
2 1/4" 5.7
2 1/2" 6.3
30" or 36"
1" 2.5
1 1/2" 3.8
3 1/2" 8.9
3 1/2" 8.9
HOLE FOR ELECTRICAL 3" (7.6) CUTOUT FOR GAS
Min. 24" (61.0) Max. 25 5/8" (65.0)

14
Installation with separator sheet, type 2 (perspective view)
Installation with separator sheet, type 2 (plan view)
6 1/2"(16.5)
Min.24"(61.0)
Max.255/8"(65.0)
2 1/4" 5.7
2 1/2" 6.3
30" or 36"
1" 2.5
1 1/2" 3.8
3 1/2" 8.9
3 1/2" 8.9
HOLE FOR ELECTRICAL 3" (7.6) CUTOUT FOR GAS
Min. 24" (61.0) Max. 25 5/8" (65.0)
9
Min.3 1/2"(8.9)
Max. 5"(12.7)
30" or 36"
61/2" (16.5)
Min.24"(61.0)
Max.25 5/8"(65.0)
30" or 36"
30" or 36"
Min. 24" (61.0) Max. 25 5/8" (65.0)
Min. 3 1/2" (8.9)
Max. 5" (12.7)
Figure 4
Figure 5
6 1/2"(16.5)
Min.24"(61.0)
Max.255/8"(65.0)
2 1/4" 5.7
2 1/2" 6.3
30" or 36"
1" 2.5
1 1/2" 3.8
3 1/2" 8.9
3 1/2" 8.9
HOLE FOR ELECTRICAL 3" (7.6) CUTOUT FOR GAS
Min. 24" (61.0) Max. 25 5/8" (65.0)
9
Min.3 1/2"(8.9)
Max. 5"(12.7)
30" or 36"
61/2" (16.5)
Min.24"(61.0)
Max.25 5/8"(65.0)
30" or 36"
30" or 36"
Min. 24" (61.0) Max. 25 5/8" (65.0)
Min. 3 1/2" (8.9)
Max. 5" (12.7)
Choosing Range Location
Carefully select the location where the range will be placed. The range should be located for convenient use in the kitchen,
but away from strong drafts.
Strong drafts may be caused by open doors or windows, or by heating and/or air conditioning vents or fans.

15 EN
Unpacking, Assembly and Moving of the Rangetop
Cut Hazard
Beware of sharp edges. Use the polystyrene ends when carrying the product. Failure to use caution could result in minor
injury or cuts.
Remove packaging materials and literature package from the oven before beginning installation.
Remove Installation Instructions from the literature pack and read them carefully before you begin.
DO NOT lift the appliance by the range’s control panel.
The unit is heavy and should be handled accordingly. Proper safety equipment such
as gloves and adequate manpower of at least two people must be used in moving the
range to avoid injury and to avoid damage to the unit or the floor.
Rings, watches, and any other loose items that may damage the unit or otherwise
might become entangled with the unit should be removed.
Hidden surfaces may have sharp edges. Use caution when reaching behind or under
appliance.
DO NOT use a hand truck or appliance dolly on the back or front of the unit. Handle
from the side only.
KEEP AWAY FROM SMALL CHILDREN. THE THIN FILM MAY CLING TO NOSE
AND MOUTH AND PREVENT BREATHING.
To avoid danger of suocation, keep the plastic bag away from babies and children.
Do not use this bag in cribs, beds, carriages or play pens. This bag is not a toy.

16
Unpacking the Rangetop
1) Remove the outer carton and packing materials, but leave the adhesive-backed foam layer over brushed-metal
surfaces, to protect finish from scratches, until the range is installed in its final position.
CAUTION: Stand clear. The ends of the cut banding may snap toward you.
2) It is recommended that the grates, griddle plate, burner caps and oven racks be removed to facilitate handling.
3) Slide the range top into place.
CAUTION: Doors and passageways leading to the installation location require at least 31” opening. If the
opening is less than 31”, the oven door(s) and control knobs must be removed. (See Use & Care manual for
oven door removal instructions).

17 EN
Moving the Range
Due to the weight, a furniture dolly with soft wheels or an air lift should be used to move this unit. The weight must be
supported uniformly across the bottom.
30’’ RANGE-TOP 36’’ RANGE-TOP
Shipping Weight 88 lvr (40Kg) 108 lvr (49Kg)
Weight without packaging materials 84 lvr (38Kg) 104 lvr (47Kg)

18
Gas Requirements
QUALIFIED SERVICE MAN OR GAS APPLIANCE INSTALLER MUST MAKE THE GAS
SUPPLY CONNECTION.
High Altitude
For altitudes above 2,000 feet (610 m) above sea level, adjustments can be made with the instructions in the manual. If flame
performance is satisfactory, will not be required regulation. It is required that a Certified Professional make the high altitude
adjustments during installation.
Gas line must not come in contact with any components inside back cover of
the range.
If the line pressure supplying the appliance pressure regulator exceeds 14
inches W.C. (any gas), an external regulator must be installed in the gas line
ahead of the appliance regulator to reduce the pressure to no more than 14
inches W.C. Failure to do this can result in malfunction and damage to the
appliance.
The appliance must be isolated from the gas supply piping system by closing
its individual manual shut-o valve during any pressure testing of the gas
supply piping system at test pressures exceeds, equal to or less than ½ psig
(3.5kPa.) and damage to the appliance.

19 EN
Gas Connection
A manual gas shut-o valve must be installed external to the appliance, in a location accessible from the front, for the purpose
of shutting o the gas supply. The supply line must not interfere with the back of the unit. Make sure the gas supply is turned
o at the manual shut-o valve before connecting the appliance. Use a ¾” (19 mm) flex line (48 Ft max - 1219 mm) to connect
between the gas supply and the appliance gas inlet.
The gas pressure regulator is supplied and already installed with this appliance.The supply piping, except as noted, should
use common National Pipe Thread (N.P.T.).
The appliance gas inlet connection is ½” (12.7 mm) NPT.
For all pipe connections use an approved pipe joint compound resistant to the action of LP gas.
Take care not to apply excessive pressure when tightening the fittings.
IMPORTANT: Never reuse old connectors when installing this range.
To reduce the likelihood of gas leaks, apply teflon tape or a thread compound approved for use with LP or Natural gases to all
threaded connections.
Apply a non-corrosive leak detection fluid to all joints and fittings in the gas connection between the supply line shut-o valve
and the cooktop inlet.
Check for leaks!
Bubbles appearing around fittings and connections will indicate a leak. If a leak appears, turn o supply line gas shut-o
valve, tighten connections, turn on the supply line gas shuto valve, and retest for leaks. Never test for gas leaks with an open
flame.
NEVER TIGHTEN TO MORE THAN 35 ft lbs OF TORQUE.
OPEN POSITION

20
CAUTION: Do not attempt to attach the flexible connector directly to an external pipe thread. Connection
requires flare union adapters.
FOR ALTERNATIVE PIPING METHODS TO CONNECT THE APPLIANCE TO THE GAS SUPPLY, A TRAINED SERVICE
TECHNICIAN OR GAS APPLIANCE INSTALLER MUST MAKE THE GAS SUPPLY CONNECTION.
Leak testing of the appliance shall be conducted by the installer according to the instructions given.
For Massachusetts Installations:
1) Shut-o valve must be a “T” handle gas valve.
2) Flexible gas connector must not be longer than 36 inch.
3) Not approved for installation in a bedroom or a bathroom unless unit is direct vent.
This appliance is designed for use with NG gas or LP gas. The gas pressure regulator is supplied with this appliance. It
must be installed in the gas ahead of the manifold entrance. It could be pre-set for use with natural gas. Check the data plate.
To use it with dierent gas it must be converted, as described in the Gas Conversion paragraph.
If at any time the appliance is to be used with a dierent type of gas, all the conversion adjustments must be made by a
qualified technician before attempting to operate the range with that gas.
GAS
PRESSURE
REGULATOR
POSITION
