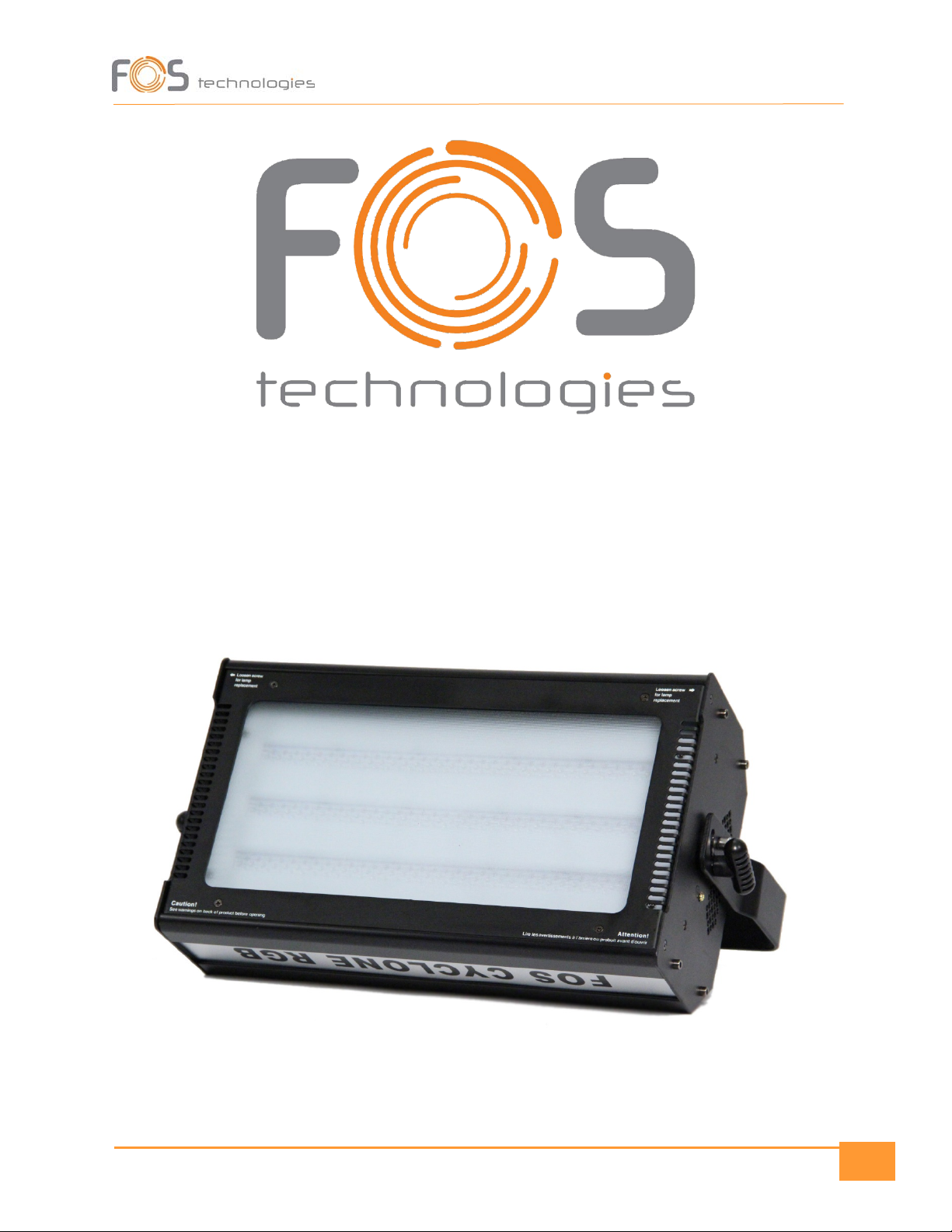

FOS Technologies Cyclone RGB User manual

1
FOS Cyclone RGB

2
PRODUCT SPECIFICATIONS
TECHNICAL SPECIFICATION
Voltage: 100/240 Volt AC, 50/60 Hz.
Power Consumption: 1200 Watt.
Light Source: 297 High Powered Strobe Leds, RGB, 3 Watt each.
Luminosity: 80,000 lumens.
Beam Angle: 120°.
Control: DMX512.
DMX Channels: 1, 2, 4, 6 & 7 control channels.
Protection Class: IP20 (suitable for indoor use only)
Width: 486 mm
Depth: 145 mm
Height: 250 mm
Height including the bracket in vertical position:305 mm
Weight: 8,2 Kg
SAFETY WARNING
Super Power Strobe! Please avoid extended periods of
continuous flashing!
This product must be installed by a qualified professional. All maintenance must be carried out by a
qualified electrician. A minimum distance of 0.5 m must be maintained between the equipment and a
combustible surface. The product must always be operated in a well-ventilated area. DO NOT stare
directly into the light source. Always disconnect the power before carrying out any maintenance. The

3
earth must always be connected to the ground. Ensure that all parts of the equipment are kept clean and
free of dust.
PROTECTION AGAINST SOLIDS AND WATER
Only for IP-rated fixtures
The protection level of a housing is set by applied standards. For classification there is used the IP-Code.
It contains the declaration „IP“and two following numbers. The first number characterizes the protection
against harmful effects of solids, the second is rating the water protection. It is important to distinguish
whether encapsulation and harmful effect! There can be housing that is not capsuled completely but still
avoids harmful effect of solids or water.
PROTECTION EXAMPLES:
IP20: Protection against intruding objects >12,5mm „Finger protected “; No waterproofing. TYPICAL
PROTECTION FOR INDOOR USE FIXTURES
IP33: Protection against intruding objects >2,5mm; Falling water within an angle of 60° has no harmful
effect TYPICAL PROTECTION OF LED-LIGHTS USING RECESSED POWERCON AND DMX SOCKET. This
protection is linked to the mounting position of the fixture and always refers to typical mounting situation
like a Floor spot used standing on the ground.
IP54: complete protection against solids and low-pressure water from any side THIS TYPE OF FIXTURES
CAN BE USED UNDER NORMAL OUTDOOR CONDITIONS.
IP65: shielded against dust and pressurized water from any side. TYPICAL PROTECTION FOR OUTDOOR
RATED EVENTFIXTURES USING WATERPROOFED POWER AND SIGNAL LINK.
IP67: shielded against dust and protected for accidental briefly submerge. PROTECTION AGAINST
ACCIDENTIAL SUBMERGING ON TEMPORARY FLOODED AREA.
TEMPORARY USE
Event equipment is designed for temporary use. This are typical purpose as concerts, festivals, theatre,
clubs and disco use and referable venues. Long-term use, specially under outdoor conditions and fixed
outdoor installation can bring damage in aging materials and affect the coated surface. Sealings as well as
cables are made from rubber material and will age by long-term UV-emission as sunlight and should be
checked frequently.

4
LIMITATIONS OF IP PROTECTION
IP-Rating doesn´t mean unlimited outdoor use and protection against any kind of environmental
influence! Especially sunlight and included UV will bring accelerated aging. Some fixtures need special
parts or processes to fit the rated IP-Protection, like mounting covers or caps or similar. Sealings and other
plastic or rubber materials are aging parts. They must be checked frequently to ensure the protection and
safety of the fixtures. Also specified torque of screws can affect protection!
Installation
Hanging: The fixture can be mounted in a hanging position using the supporting bracket. The bracket
should be secured to the mounting truss or structure using a standard mounting clamp. Please note that
when hanging the unit, a safety cable should also be used.
UPRIGHT: The fixture can be mounted in an upright or sitting position using the supporting brackets.
NOTE! If the signal cable is over 60 m between the DMX512 controller and fixture or between
two fixtures, then a DMX signal amplifier is needed as well.
Menu Screen
You can easily navigate through menu’s options with the four buttons under the screen. Navigating in the
menu is simple! With the Up / Down buttons, you are moving through menu’s choices, pressing Enter,
you are entering the sub menu of the option you have chosen, with the Up / Down buttons you’re moving
through the sub menu’s options, with Enter, you are confirming your choice. The FOS Cyclone RGB offers
the following options:
Addr:Set the DMX address.
Chnd:Select the channel mode. Press Enter and the Down / Up buttons for choosing between the 5 modes
(1, 2, 4, 6 & 7).

5
LED:Turns on or off the LED menu screen after use.
disp:Inverts the LED display.
bala: Adjust the Red, Green, Blue power mode between 255 and 125 (full and half power).
Test:performs an operational test to the fixture.
temp:shows the fixtures operating temperature.
def:sets the factory default options (choose Yes or No).
Ver: shows the firmware version of the fixture.
Channel Modes
1 Channel
1. Strobe:
•0 – 5 Blackout
•6 – 250 Flash rate, slow to fast
•251 – 255 Blinder effect
2 Channels
1. Strobe:
•0 – 5 blackout.
•6 – 255 Flash rate from slow to fast.
2. Intensity:
•0 – 5 blackout.
•6 – 255 gradual dimming from minimum to maximum.
3 Channels
1. Intensity:
•0 – 5 blackout.
•6 – 255 gradual dimming from minimum to maximum.

6
2. Flash duration:0 – 255 Minimum to maximum frequency (0 – 650 ms @ 50 Hz AC, or 0 – 530 ms
@ 60 Hz AC)
3. Flash rate (0,5 – 25 Hz@50 Hz AC, or 0,6 – 30 Hz @ 60 Hz AC):
•0 – 5 No Flash (single flash with ch.1)
•6 – 255 Flash active
4 Channels
1. Intensity:
•0 – 5 blackout.
•6 – 255 gradual dimming from minimum to maximum.
2. Flash duration:0 – 255 Minimum to maximum frequency (0 – 650 ms @ 50 Hz AC, or 0 – 530 ms
@ 60 Hz AC)
3. Flash rate (0,5 – 25 Hz@50 Hz AC, or 0,6 – 30 Hz @ 60 Hz AC):
•0 – 5 No Flash (single flash with ch.1)
•6 – 255 Flash active
4. Special effects:
•0 – 5 No effect
•6 – 50 Fade in effect.
•51 – 100 Fade out effect.
•101 – 150 Fade in / out effect.
•151 – 200 Lighting effect.
•201 – 255 Random flash.
6 Channels
1. RED intensity:Red LEDs dimming from minimum to maximum.
2. GREEN intensity: Green LEDs dimming from minimum to maximum.
3. BLUE intensity: Blue LEDS dimming from minimum to maximum.
4. Master dimmer: intensity adjustment for the RGB LEDs from minimum to maximum.
5. Flash Duration: 0 – 255 (0 – 650 ms@50 Hz AC, or 0 – 530 ms@60 Hz AC)
6. Flash Rate:
•0 – 5 No flash (single flash with ch.1)
•6 – 255 Flash (0,5 – 25 Hz@50 Hz, or 0,6 – 30 Hz@60 Hz)
7 Channels
1. RED intensity:Red LEDs dimming from minimum to maximum.

7
2. GREEN intensity: Green LEDs dimming from minimum to maximum.
3. BLUE intensity: Blue LEDS dimming from minimum to maximum.
4. Master dimmer: intensity adjustment for the RGB LEDs from minimum to maximum.
5. Flash Duration: 0 – 255 (0 – 650 ms@50 Hz AC, or 0 – 530 ms@60 Hz AC)
6. Flash Rate:
•0 – 5 No flash (single flash with ch.1)
•6 – 255 Flash (0,5 – 25 Hz@50 Hz, or 0,6 – 30 Hz@60 Hz)
7. Special Effects:
•0 – 5 No effect
•6 – 50 Fade in effect.
•51 – 100 Fade out effect.
•101 – 150 Fade in / out effect.
•151 – 200 Lighting effect.
•201 – 255 Random flash.
General Information
Replacing a fuse:
Always disconnect the fixture from main power before replacing a fuse. Use only the appropriate fuse,
with the same type and rating. A fuse with different rating, can damage the fixture in case of failure.
Risk of electric shock and / or fire:
The fixture must be earthed, supplied always with its nominal voltage and cleaned periodically from dust.
For cleaning use only, a moist cloth. Never use liquids or force water. After cleaning, let the fixture dry
before use.
Intensity
Flash intensity can be set from minimum (blackout), to maximum on 1 channel DMX modes, channel 2, in
2 channel DMX mode and channel 1 in the 3 and 4 channel DMX modes.
Duration

8
Flash duration can be set from 0 to 650 ms on 50 Hz power supplies, or 0 to 530 ms on 60 Hz power
supplies, on channel 2 in the 3 and 4 channel DMX modes. Flash duration is fixed in 1 channel DMX mode.
Rate
Flash rate can be set from 0 flashes per second, to 17,5 on 50 Hz power supplies and 20 flashes per second
on 60 Hz power supplies, on channel 3 in the 3 and 4 channel DMX modes. Flash rate is also controllable
in 1 and 2 channel DMX modes.
