Fotric 600 Series User manual

1 1

Contents
Legal Disclaimer � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 1
1.1 Legal Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Usage Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.3 Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.4 Quality Assurance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.5 Export Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety Information � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 5
Thermal Camera � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Manual Focus Model Schematics . . . . . . . . . . . . . . . . . . . 10
Auto Focus Model Schematics . . . . . . . . . . . . . . . . . . . . . 12
Rear Interface Schematic . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Mounting Holes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
IP Address Setting � � � � � � � � � � � � � � � � � � � � � � � � � � � � 21
FAQs � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 23
Read Before Using: � � � � � � � � � � � � � � � � � � � � � � � � � � � � 26
Software Download � � � � � � � � � � � � � � � � � � � � � � � � � � � 26
Appendix � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 27

1 1
Legal Disclaimer
1�1 Legal Disclaimer
Uncooled thermal imaging manufactured by FOTRIC
are entitled to 1-2-years warranty (depending on the
speci󽗉c model) from the date of initial purchase and
delivery. Warranty covers defects caused by materials and
production processes, provided that such products are
handled under normal storage, use, and repair conditions
and in accordance with FOTRIC instructions.
Products not manufactured by FOTRIC but included in
the system that FOTRIC sells to the original purchaser are
covered by the speci󽗉c supplier's warranty terms (if any)
and FOTRIC is not liable for those products. This warranty is
provided to the original purchaser and is not transferable.
This warranty does not apply to any product that has
been damaged by misuse, neglect, accident, or abnormal
operating conditions. Consumable parts are not covered by
this warranty.
Any defects in the products covered by this warranty must
be reported and the product must not be used to prevent
further damage. The purchaser must report any defects to
FOTRIC immediately, otherwise this warranty will not apply.

2 3
If the product is proven defective in relation to materials
or manufacturing after FOTRIC's inspection, it is up to
the user whether it is to be repaired free of charge or
replaced, provided that the product must be returned to
FOTRIC within 3 Months from above mentioned report
date. FOTRIC has no obligation or liability for any defects
other than those mentioned above. This product is exempt
from any other warranties, expressed or implied. FOTRIC
hereby disclaims any implied warranties of merchantability
and applicability for a particular purpose. FOTRIC is not
responsible for any direct, indirect, special, incidental or
consequential loss or damage based on contract, civil, or
any other legal theory. This warranty clause shall apply the
relevant provisions of the laws of the People's Republic
of China. Any dispute or claim arising out of or related to
this warranty shall be 󽗉nally settled through arbitration in
accordance with the rules of the Shanghai Pudong New
District People's Court of the People's Republic of China.
The place of arbitration shall be Shanghai.
1�2 Usage Statistics
FOTRIC reserves the right to collect anonymous usage
statistics to help maintain and improve the quality of the
software and services provided.

2 3
1�3 Copyright
No parts of this software (including source code) may be
reproduced, transmitted, transcribed, or translated into
any kind of language or computer language in any form or
by electronic, electromagnetic, optical, manual ways, or
any other means without the prior written permission of
FOTRIC.
No parts of this document may be reproduced,
photocopied, reprinted, translated, or transmitted to any
readable electronic medium or machine without the prior
written consent of FOTRIC.
The names and logos shown on the products herein are
either registered trademarks or trademarks of FOTRIC
and/or its a󽗋liates. All other trademarks, trade names or
company names referenced herein are for identi󽗉cation
purposes only and are the property of their respective
owners.
1�4 Quality Assurance
The quality management system for the development and
production of these products in FOTRIC has been certi󽗉ed
in accordance with the ISO 9001 standard.
FOTRIC is committed to a policy of continuous
development, so we reserve the right to modify or improve

4 5
any product without prior notice.
1�5 Export Control
Thermal imaging products are listed as export-controlled
products by the U.S. Department of Commerce, United
Nations Security Council (UNSC), and European Union
(EU). This product contains a focal plane array and cannot
be used in controlled countries (such as North Korea,
Iran, Syria, Cuba, Sudan, etc.), so please do not bring this
product into or used in controlled countries. Any loss or
liability arising from the above actions will be borne by you.

4 5
Safety Information
This product complies with the restrictions for Class A
digital equipment in Chapter 15 of the FCC Rules. These
restrictions are designed to provide reasonable protection
against harmful interference in a residential installation.
If not installed and used in accordance with instructions,
this equipment may cause personnel injure or property
loss. Please maintain this user manual in safe condition for
future reference.
De󽗉nition
! Warning > Represents a hazardous situation or
behavior that could result in potential personnel
serious injury or death.
! Caution > Represents conditions or actions
that could result in potential personnel injury or
property loss.

6 7
Warning!
• Please use power source that complies with SELV
(Separated Extra Low Voltage), and rated 12V/24V power
supply which meets the standards of Limited Power
Source according to IEC60950-1.
• If the product does not work properly, please contact
your local distributor or FOTRIC service center
immediately. Fotric shall not bear the responsibility for
any damage which caused by improper use, improper
maintenance, unauthorized repair or disassembly of
equipment.
• In order to reduce the risk of 󽗉re accident or electric
shock, please keep the indoor products in rain/
waterproof and avoid moisture.
• The installation of this product shall be carried out
or conducted by professional service personnel, and
comply with local regulations.
• Easy-to-use power-o󽗈 equipment is recommended to
incorporate into building's installation wirings.

6 7
Caution!
• Please check the power supply carefully before connect
to the thermal camera.
• Please protect the product from drop to ground or
strong shock.
• Please do not touch directly on the lens. If necessary,
Use a soft cloth and pure water/Non-irritant cleaning
liquid to clean gently. When the thermal imager is not
in use, store it in a clean environment to protect it from
dust.
• Please do not point the infrared camera (with or
without the lens cover) at strong energy sources or the
sun, otherwise it may cause an unwanted e󽗈ect on the
accuracy of the camera, or even permanently damage
the IR detector.
• Please do not place the thermal camera on humid,
dusty, extremely hot, extremely cold (working
temperature -20~50℃ ), and strong electromagnetic
radiation 󽗉led.
• Please keeps installation position enough distance
away from the surrounded electromagnetic sensitive
equipment, to avoid possible electromagnetic
interference.

8 9
• Please ensure enough installation space to maintain
ventilation around the thermal imager.
• Original packing box is highly recommended to be kept
during transportation. Please avoid strong impact on the
packing during transportation.

8 9
Thermal Camera
Overview

10 11

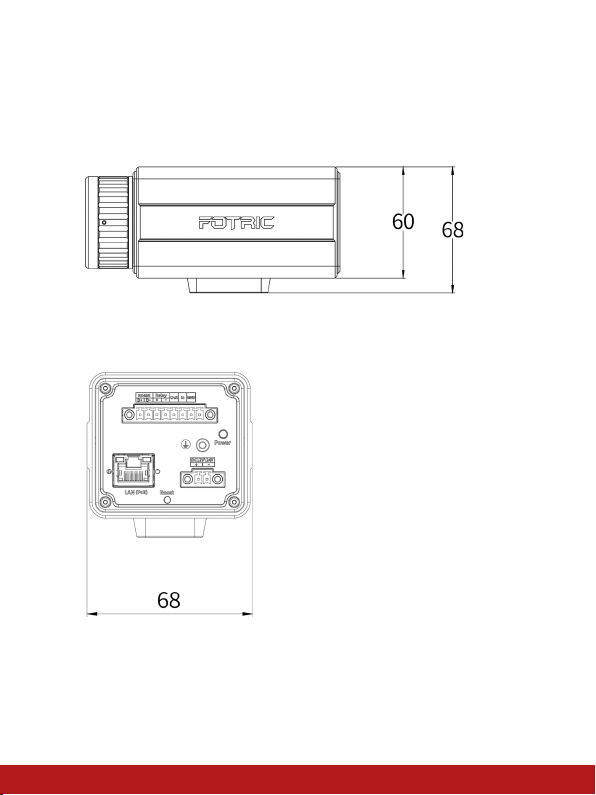

Manual Focus Model Schematics
(unit: mm)
16
28 38
4-M2

10 11

12 13

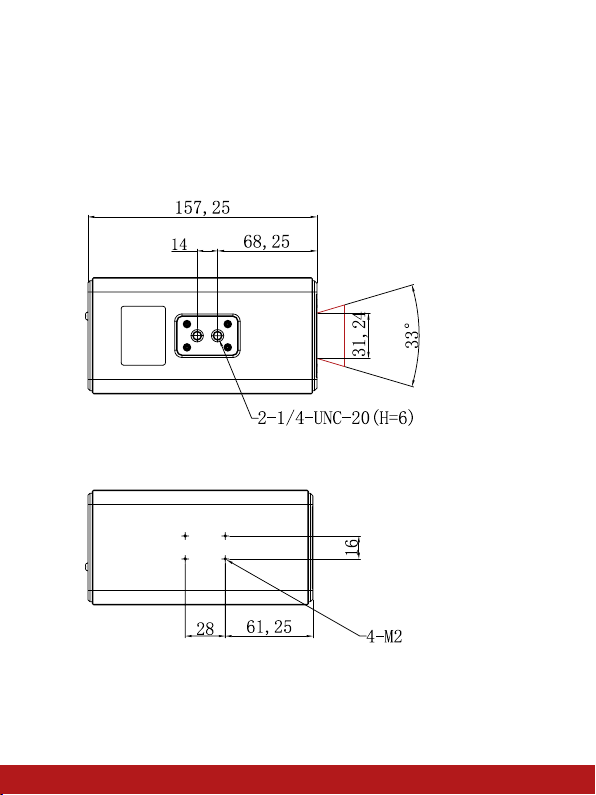

Auto Focus Model Schematics
(unit: mm)

12 13

14 15

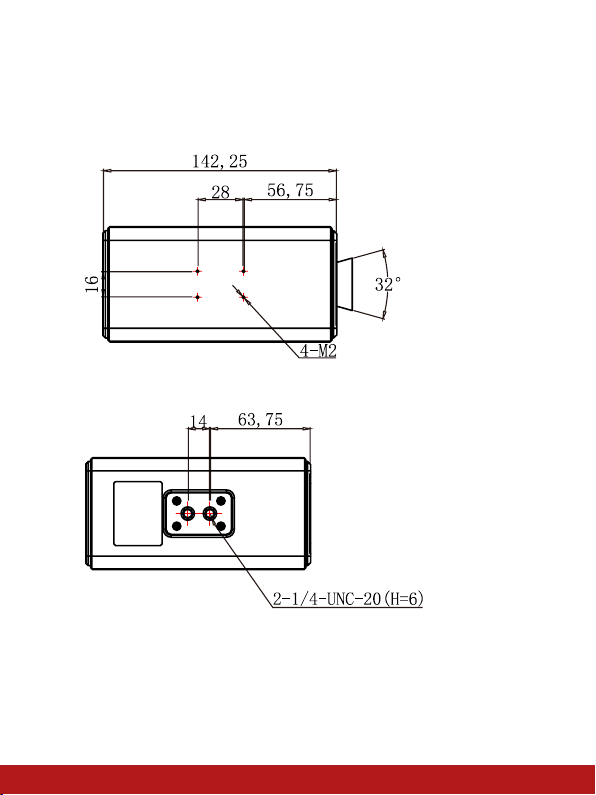

Auto Focus Model Schematics

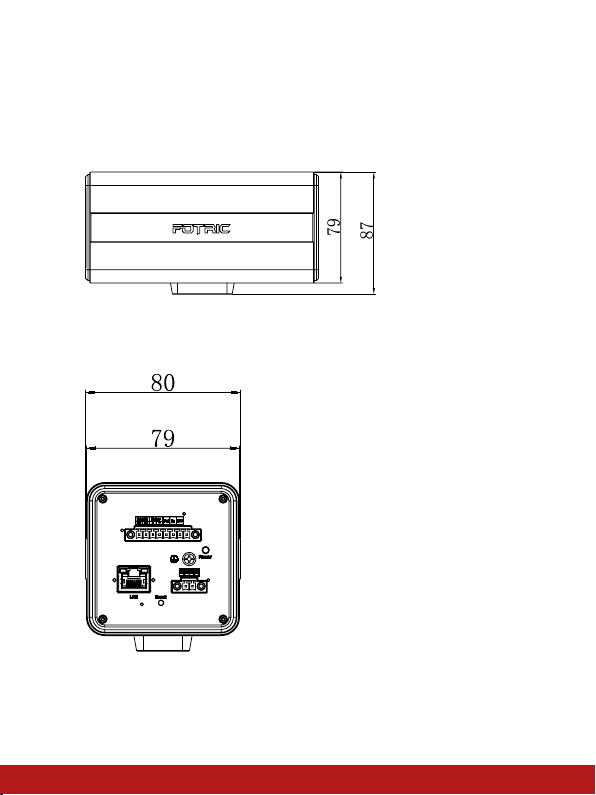

High temperature expansion FOTRIC 626CH
(unit: mm)

14 15

16 17
Auto Focus Model Schematics

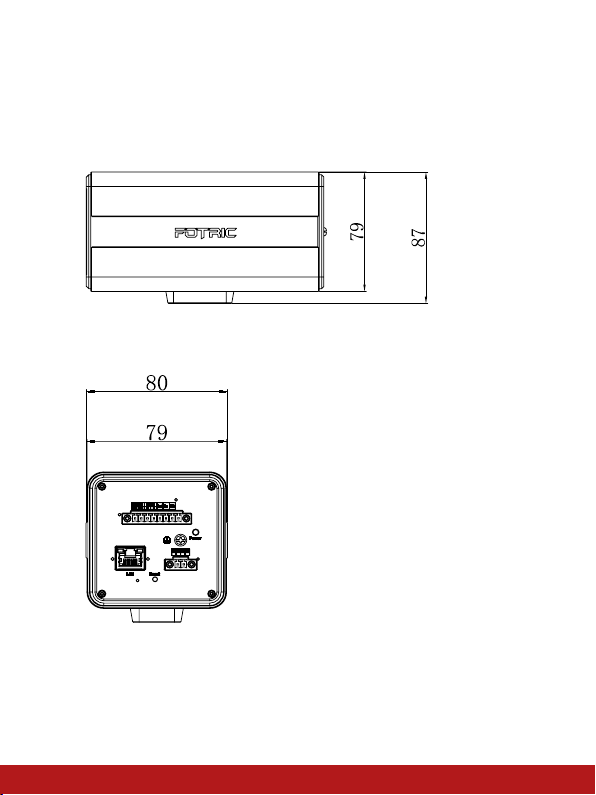

High temperature expansion FOTRIC 628CH
(unit: mm)

16 17

18 19
Rear Interface Schematic
