FOURKAY MX4K44BT-TW User manual

M 4K44BT-TW
4K/18G 4x4 HDMI/HDBaseT Matrix w/ Audio Breakout

Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please keep
this manual for future reference.
SURGE PROTECTION DEVICE RECOMMENDED
This product contains sensitive electrical components that may be damaged by electrical
spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly
recommended in order to protect and extend the life of your equipment.
SAFTY NOTICE
1. The transmission distances of HDMI over UTP cables are measured using TE
CONNECTIVITY 1427071-6
2. EIA/TIA-568-B termination (T568B) for CAT cables is recommended for better
performance.
3. DO NOT use 568A/568B standard mixed CAT cable (cross-over cable) because there are
2 pairs swapped, this will make POE OVER-CURRENT and damage POE components.
Please use straight-through CAT cable (both RJ45 headers are 568A or 568B standard).
4. It is recommended that power up the device after connections of source, sink and CAT
cable.
5. To reduce the interference among the unshielded twisted pairs of wires in CAT cable, do
not run HDBaseT / Zone Cat5e/6/6a cabling with or in close parallel proximity to mains
power cables. Shielded CAT cables can be used to improve EMI problems, which is
worsen in long transmission.
6. Because the quality of the CAT cables has the major effect on how long the transmission
limit can achieve and how good is the received picture quality, the actual transmission
range is subject cables.
7. Do not substitute or use any other Power Supply other than the enclosed unit, or a Factor
Electronics approved Replacement Part. Doing so will void the warranty and potentially
expose the user to dangerous voltages resulting in an electrical shock.
8. Do not disassemble the device
warranty. Also, our unique case is an integral part of the design of this unit and is
responsible for cooling and circuitry shielding. Any modifications to this case will
potentially cause malfunction and product failure.
9. Do not expose the device to water, moisture, or liquid. Possible electric shock may result
as well as failure of the unit to operate.

Table of Content
Introduction......................................................................................................4
Features...........................................................................................................4
Panel Descriptions...........................................................................................5
Front Panel...............................................................................................5
Back Panel................................................................................................7
Remote Control Description.............................................................................8
Application Diagram.........................................................................................9
Specifications.................................................................................................10
Package Contents..........................................................................................10
RS-232 Pin Assignment.................................................................................11
RS232 and Telnet Commands.......................................................................12

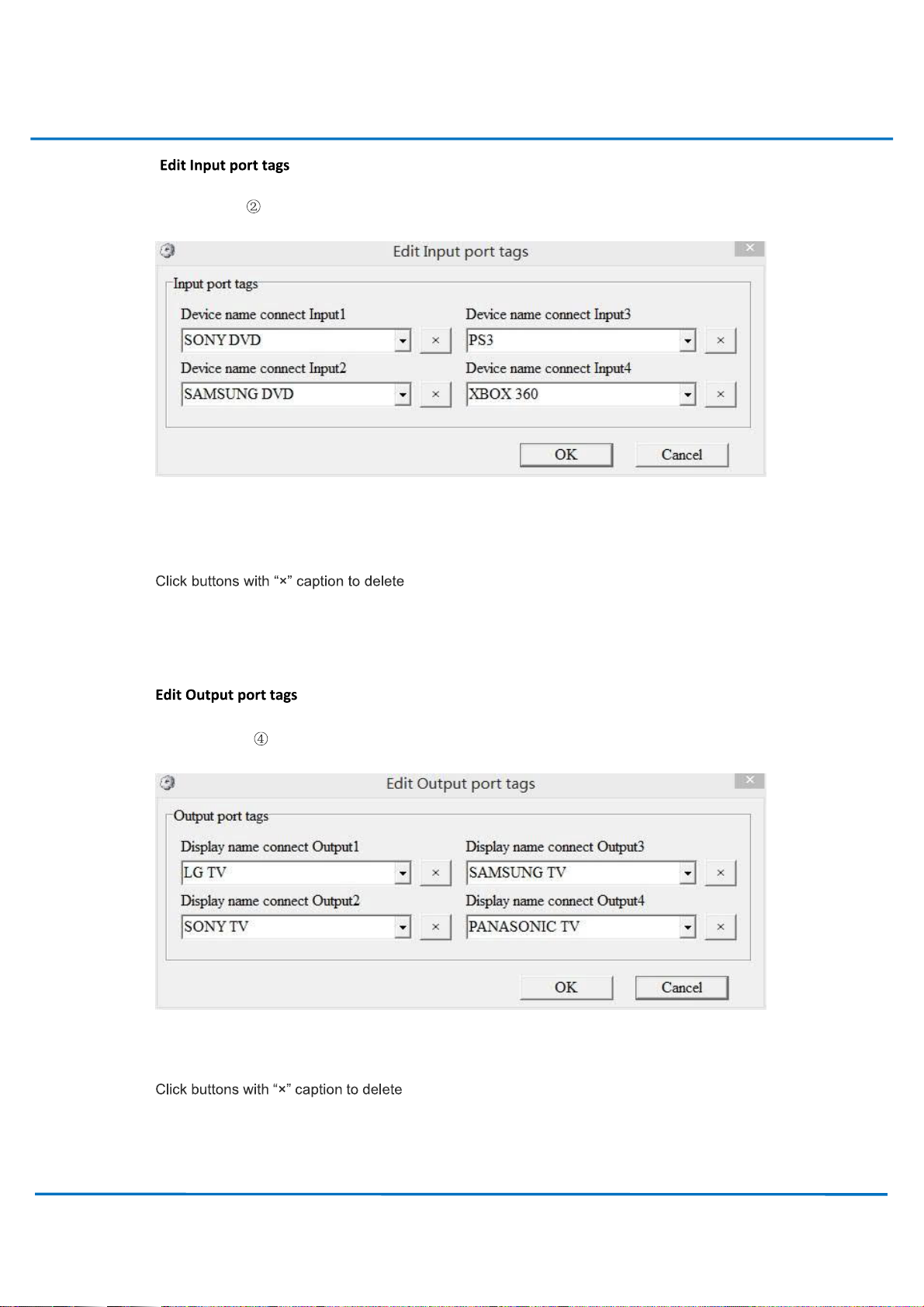

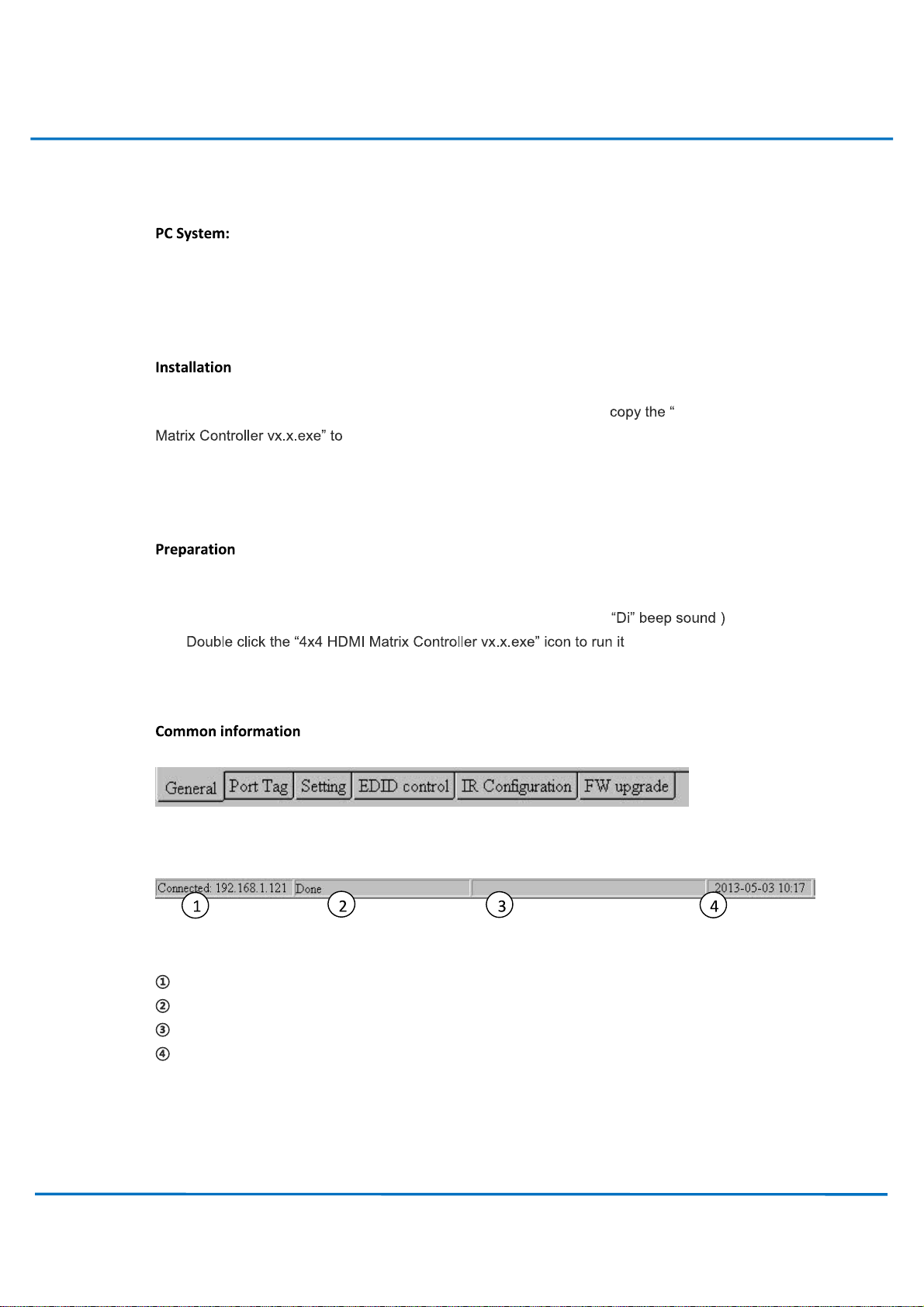

GUI Control....................................................................................................15
Maintenance ................................................................................................. 25

Introduction
The MX4K44BT is a HDMI/HDBaseT matrix which can routes four Hi-Def sources to any four
HDTV displays, supporting 1080p Full HD up to 4K@60Hz HDR plus all 3D formats, along with
multichannel digital audio formats such as Dolby® True HD and DTS-
Embedded audio extractors can extract the audio and output via L/R or Coaxial. Volume can
be controlled for analogue audio out. Based on HDBaseT Lite chipset inside, the output
distance can reach up to 70m via Cat5e/Cat6. Each source can be routed to any display using
the front-panel push buttons, IR remote control, RS-232 interface, or via TCP/IP.
Features
4x HDMI inputs, 4x HDBT outputs and 1x HDMI loop output
Supports 4K@60Hz 4:4:4, HDR and full 3D
HDBT output 1 supports conversion from 4K to 1080P
Supports 4K resolution up to 40m, and 1080p to 70m over single CAT cable
Smart CSC technology supports outputting 6G or 3G video depends on sink device
IR/RS232 signal can pass through to the corresponding receiver (1 to 1, 2 to 2, 3 to 3, 4 to
4) via HDBaseT.
Supports IR extension to control the matrix via remote control away from 10m
Supports IR Matrix function to control the sinks or sources.
Support IDIR function to separately control each sink connected to HDBT Output.
1x L/R audio input, can be embedded into any HDMI input
Analogue/ digital audio output simultaneously
Push buttons, IR, RS-232, TCP/IP and Web GUI for control
EDID management
HDCP 2.2 compliant
Volume control on analogue audio outputs
12V POC

Panel Descriptions
Front Panel
1. LCD display---Shows the status of input-output selection, EDID info and so on.
2. IR receiver window----Receives the IR from the remote control of the HDBaseT-4x4Matrix.
3. Power LED indicator---Indicates the power status for the matrix.
4. Power button---Press to power on/off the matrix.
5. HDMI output selection buttons 1 to 4---Press to select the outputs from 1 to 4.
6. All button for HDMI outputs---Press to select all of the outputs from 1 to 4.
7. Menu button---Press to enter EDID set mode. Three EDID segments will display on the LCD
panel formatted as: INPUT VIDEO AUDIO, for example: IN1 1080P 2.0CH, means to set
1080P 2.0CH EDID to INPUT1. The blinking segment can be changed currently. Segment
content items listed below:
INPUT VIDEO AUDIO Note
IN1 1080P 2.0CH.
IN2 1080I 5.1CH
IN3 3D 7.1CH
IN4 4K303G HDMI 4K@30Hz 444
ALL 4K603G ALL=Set EDID to ALL INPUTs
HDMI 4K@60Hz 420
4K606G HDMI 4K@60Hz 444

D1024 D1024=DVI 1024 x 768
D1080 D1080=DVI 1920 x 1080
D1200 D1200=DVI 1920 x 1200
OUT1 OUT1=Copy OUTPUT1 EDID to INPUTx
OUT2 OUT2=Copy OUTPUT2 EDID to INPUTx
OUT3 OUT3=Copy OUTPUT3 EDID to INPUTx
OUT4 OUT4=Copy OUTPUT4 EDID to INPUTx
8. Up selection button--- Press to change a
9. ESC---Press to quit EDID set mode.
10. Lock LED indicator---Indicates the status of Lock.
11. Lock button---Press to lock the buttons of the front panel.
12. HDMI input selection button 1 to 4---Press to select the inputs from 1 to 4.
13. PTP button---Press to mirror all inputs and outputs (e.g. output 1 to input1, output 2 to
input2 and so on).
14. Selection button---Press to select a segment to change settings. The selected segment will
be blinking.
15. Down select button---
16. Enter button--- Press to set the EDID to a specified INPUT or copy the EDID from a
specified OUTPUT to a specified INPUT.

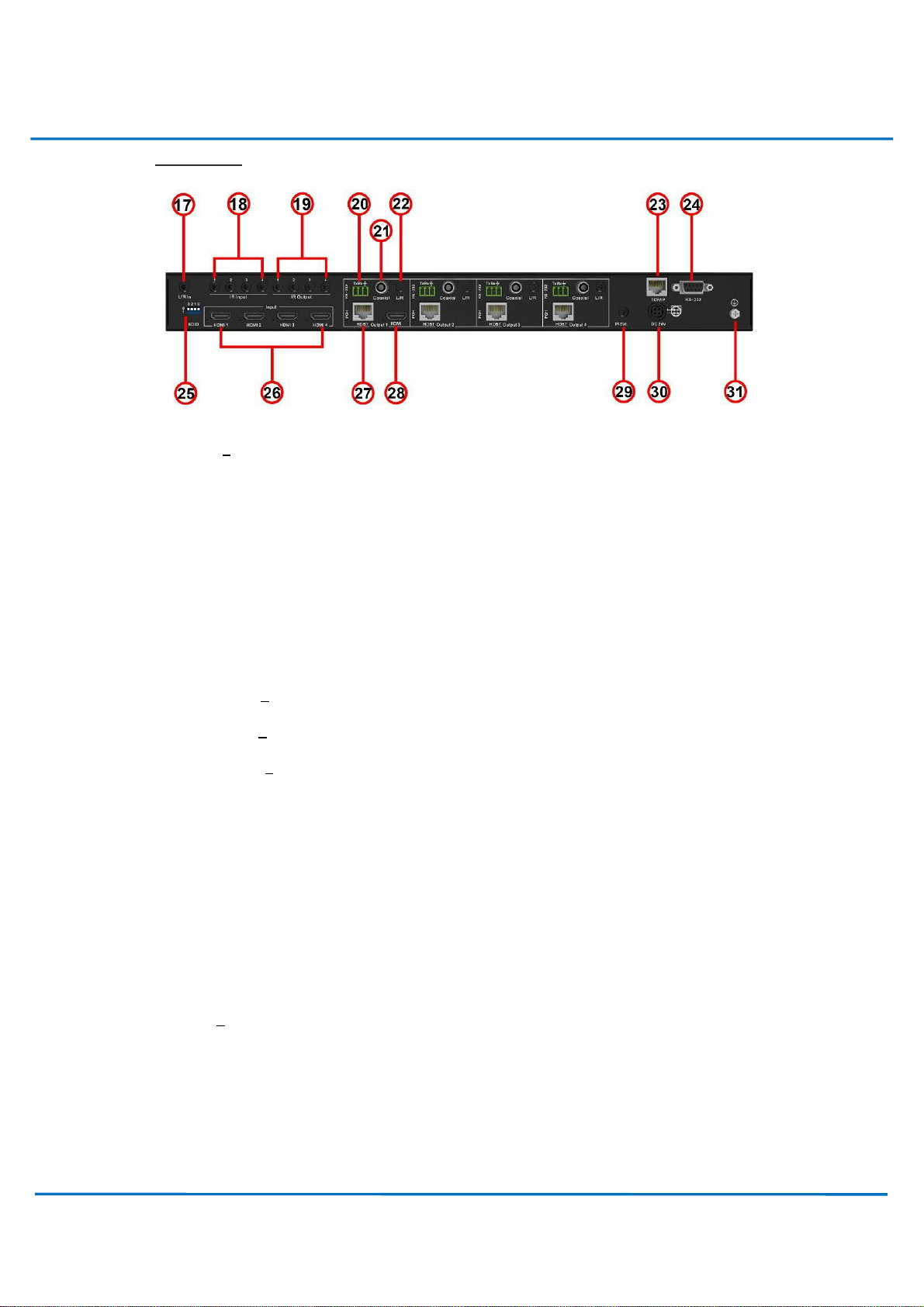

Back Panel
17. L/R in 3.5mm Analogue audio input for embedding audio onto HDMI outputs.
18. IR inputs 1 to 4--- 3.5mm stereo phone-jack, connect to an IR receiver
19. IR outputs 1 to 4 --- 3.5mm mono phone-jack, connect to an IR transmitter cable.
20. RS232 port with each HDBT out--- 3-pin phoenix terminal connector. Connect to a PC,
RS232 extension to the Balun.
21. Coaxial digital audio output ---Extracted audio corresponds with the HDMI video output
22. L/R analog audio output---Extracted audio corresponds with the HDMI video output.
23. TCP/IP port RJ45 connector, TCP/IP control
24. RS232 port DB9 connector, to control the matrix from a PC or control processor
25. DIP switches Used for global EDID settings
26. HDMI inputs 1 to 4---Connect HDMI sources
27.HDBT outputs 1 to 4--- Connect to remote baluns via CAT cable
28. HDMI loop output 1--- Connect to HDMI display device.
29. IR extension receiver input --- 3.5mm stereo phone-jack, connects to the IR receiver cable
to receive the IR from the HDBaseT-4x4Matrix remote.
30. Power port---Use the included 24V/3.5ADC adaptor to power the matrix.
31. GND Connect to ground if necessary

Remote Control Description
A. OUTPUT-X select INPUT-Y:
1. Press OUTPUT-X (X = outputs1 to 4 ) Press INPUT-Y ( Y = inputs 1 to 4 )
2. Press OUTPUT-X (X= outputs 1 to 4 ) press the left and right arrow buttons to select
the input.
B. All outputs select INPUT-Y: PressALL button in zone OUTPUT Press INPUT-Y button ( Y
means 1 to 4 of inputs ), then INPUT-Y switched to ALL OUTPUTS
C. Mirror all inputs and outputs (Ex. Input 1 to output 1, input 2 to output 2, etc): Press PTP
button in the Zone OUTPUT
A. Fixed EDID to INPUT-Y/ALL
Press 1080I/1080P/3D/4K Press 2.0CH/5.1CH/7.1CH INPUT-Y/ALL button in Zone
INPUT
B. Copy EDID of OUTPUT-X to INPUT-Y/ALL
Press COPY button Press OUTPUT-X button Press INPUT-Y/ALL button
C. User defined EDID to INPUT-Y/ALL
Press USER1/USER2 button Press INPUT-Y/ALL
NOTE: Pressing button sequence should be finished in 5 seconds, otherwise, operation
discarded.

Application Diagram
Note: There is three IR Control Modes
1. Via IR extension to control the matrix using matrix remote control
2. Via IR input cable on HDBT Receiver and IR output cable on matrix to return control the DVD.
3. Via IR input on matrix to control the TV.

Specifications
Bandwidth 18Gbps (4K@60Hz 4:4:4 8bit)
Video Input Connectors 4xHDMI Type A, 19-pin, female
Video Output Connectors 1x HDMI Type A, 19-pin, female, 4x RJ45 Connector
Audio Input Connectors 1x L/R
Audio Output Connectors 4x RCA(SPDIF), 4x L/R
RS232 Serial port 1x DB-9, female
4x 3-pin phoenix terminal connector.
TCP/IP Control 1x RJ45, female
IR input ports 5x3.5mm stereo jack
IR output ports 4x3.5mm mono jack
Rack-Mountable rack ears included
Dimensions(Lx WxD) 440mm x 235mm x 43mm, w/o feet
Shipping Weight 2.7KG
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -4°F to 140°F(-20°C to 60°C)
Power Supply 24V/3.5A DC
Package Contents
1) 1x MX4K44BT-TW
2) 1x 24V/3.5A DC Power Supply
3) 1x Power Cord
4) 1x Master Remote Control
5) 4x IR Transmitter
6) 5x IR Receiver
7) 1xRack-mount kit

RS-232 Pin Assignment
Baud Rate: 57600 bps
Data Bits: 8-bit
Parity: None
Stop Bit: 1-bit
Flow Control: None
NOTE: Use a Straight Through DB9 Cable to connect the matrix with a computer, DO NOT
use a Crossover Cable (Null Modem Cable).
MX4K44BT-TW DCE) Remote Control Console (DTE)
PIN Assignment PIN Assignment
1 NC 1 NC
2 Tx 2 Rx
3 Rx 3 Tx
4 NC 4 NC
5 GND 5 GND
6 NC 6 NC
7 NC 7 NC
8 NC 8 NC
9 NC 9 NC

RS232 and Telnet Commands
No. Command Action
0 ? Print Help Information
1 HELP Print Help Information
2 STATUS Print System Status And Port Status
3 PON Power On, System Run On Normal State
4 POFF Power Off, System Run On Power Save State
5 PMD xx
Power Deep Off Mode
Control For "POFF" Command,
xx=ON: Only Panel And IR Can Wake Up System,
xx=OFF: RS232, Network, Panel And IR Can Wake Up System,
6 IR ON/OFF Set System IR Control On Or Off (Only for IR Extension)
7 KEY ON/OFF Set System KEY Control On Or Off
8 BEEP ON/OFF Set Onboard Beep On Or Off
9 LCD ON/OFF Set LCD Always On Or Auto Turn Off In Power On State
10 RESET Reset System And Network To Default Setting
(Should Type "Yes" To Confirm, "No" To Discard)
11 RSB x Set RS232 Baud Rate to x bps
x=[0:115200 1:57600, 2:38400, 3:19200, 4:9600]
12 RESET ALL Reset System And Network To Default Setting
13 OUT xx ON/OFF Set OUTPUT:xx On Or Off
14 OUT xx FR yy Set OUTPUT:xx From INPUT:yy
15 POH xx ON/OFF
Set OUTPUT:xx POH On Or Off
xx=00: Select All OUTPUT Port
xx=[01...04]: Select One OUTPUT Port
yy=[01...04]: Select One INPUT Port
16 EDID xx CP, yy Set Input:xx EDID Copy From Output:yy
17 EDID xx DF zz
Set Input:xx EDID To Default EDID:zz
xx=00: Select All Input Port
xx=[01...04]: Select One Input Port
yy=[01...04]: Select One Output Port
zz=00: HDMI 1080p@60Hz, Audio 2CH PCM

zz=01: HDMI 1080p@60Hz, Audio 5.1CH DTS/DOLBY
zz=02: HDMI 1080p@60Hz, Audio 7.1CH DTS/DOLBY/HD
zz=03: HDMI 1080i@60Hz, Audio 2CH PCM
zz=04: HDMI 1080i@60Hz, Audio 5.1CH DTS/DOLBY
zz=05: HDMI 1080i@60Hz, Audio 7.1CH DTS/DOLBY/HD
zz=06: HDMI 1080p@60Hz/3D, Audio 2CH PCM
zz=07: HDMI 1080p@60Hz/3D, Audio 5.1CH DTS/DOLBY
zz=08: HDMI 1080p@60Hz/3D, Audio 7.1CH DTS/DOLBY/HD
zz=09: HDMI 4K@30Hz 4:4:4, Audio 2CH PCM
zz=10: HDMI 4K@30Hz 4:4:4, Audio 5.1CH DTS/DOLBY
zz=11: HDMI 4K@30Hz 4:4:4, Audio 7.1CH DTS/DOLBY/HD
zz=12: DVI 1280x1024@60Hz, Audio None
zz=13: DVI 1920x1080@60Hz, Audio None
zz=14: DVI 1920x1200@60Hz, Audio None
zz=15: User EDID 1
zz=16: User EDID 2
zz=17: GUI Download EDID
zz=18: HDMI 4K@60Hz 4:2:0, Audio 2CH PCM
zz=19: HDMI 4K@60Hz 4:2:0, Audio 5.1CH DTS/DOLBY
zz=20: HDMI 4K@60Hz 4:2:0, Audio 7.1CH DTS/DOLBY/HD
zz=21: HDMI 4K@60Hz 4:4:4, Audio 2CH PCM
zz=22: HDMI 4K@60Hz 4:4:4, Audio 5.1CH DTS/DOLBY
zz=23: HDMI 4K@60Hz 4:4:4, Audio 7.1CH DTS/DOLBY/HD
18 PRESET pp SET aa,bb,cc,dd Set Preset: pp Config
19 PRESET pp SAVE Save Current Output Connection To Preset: pp Config
20 PRESET pp APPLY
Apply Preset: pp Config To Output Connection
pp=[01..08]: Select Preset Index
aa=[01..04]: Output 01 From aa, [00]: Not Set
bb: Output 02 ... dd: Output 04
PRESET STATUS Print Preset Config Status
21 MUTE mm TX yy Set Output(TX):yy Audio Mute ON Or OFF
22 VOL xx TX yy
Set Output(TX):yy Audio Volume to xx
xx=[00...30]: Volume Value
xx=+: Volume Increase
xx=-: Volume Decrease
mm=ON: Mute On

mm=OFF: Mute Off
yy=00: Select All Output Port
yy=[01...04]: Select One Output Port
AUD RX xx ORG Input Port:xx Use Orginal Receive HDMI/DVI Signal
AUD RX xx ANA Input Port:xx Embeded Analog L/R To HDMI/DVI Signal
AUD RX xx AUTO Input Port:xx Embeded Analog L/R When DVI
Signal,mm=ON: Mute On
mm=OFF: Mute Off
yy=00: Select All OUTPUT Port
yy=[01...04]: Select One OUTPUT Port
xx==[00]: All Input Port, [01...04]: Input Port
23 NET DHCP ON/OFF Set Auto IP(DHCP) ON Or OFF
24 NET IP xxx.xxx.xxx.xxx Set IP Address
25 NET GW xxx.xxx.xxx.xxx Set Gateway Address
26 NET SM xxx.xxx.xxx.xxx Set Subnet Mask Address
27 NET TN XXXX Set Telnet Port
38 NET RB Set Network Reboot and Apply New Config!!!

GUI Control
Microsoft Windows Operation System
The HDBaseT4x4 Matrix software controller is green software.Simply 4x4 HDMI
your PC which is used to control the Matrix by connecting an
RS232 COM or TCP port to complete the installation.
1. Connect the PC and Matrix with the included RS232 cable or UTP cable
2. Power up Matrix (It will take approx 5 seconds to be ready with a
3.
Click to select tab page
COM port or TCP connect status
Control command process status
Prompt message display area
Date and Time display

Select control mode: RS232 COM mode (Auto COM ports detected) or TCP mode
List detected COM ports
List all Matrix devices after search operation
Click to search all Matrix devices that connected in same subnet
Click to configuration
Click to connect or disconnect the PC and Matrix ( Connection will be established
automatically before the control commands transmit )
Click to refresh the device status: include device information displayed in area and
Input/output port connection status in area.
NOTE:Tab pages cannot be changed while the control command is processing.
To enable or disable Input/output tags displaying when setting buttons on the s
page focused
Device information display area
Input/output port connection status

Set the tag to identify Matrix device
Set IP mode: Subnet should support DHCP protocol when set Auto IP mode, then Matrix
device will obtain IP automatically. Otherwise, set Static IP mode and designate a useable
IP for Matrix device
Set IP address, not editable when Auto IP mode selected.
Note -252.
Matrix device MAC address
Click OK to set the configuration. If the configuration is set to OK, the Matrix devices will be
searched out again
Click to Close the window and cancel the configuration
Click the Config button to show the TCP configuration window.

Input port tags
Click to edit Input port tags
Output port tags
Click to edit Output port tags
NOTE:Edit boxes are read only, click the to edit the tags in the pop up window .
One set of Input/output port tags can be set for the Matrix device when the COM control mode
is selected.
Input/output port tags can be set for each respective Matrix device according to the
MAC address.

After action of , edit form will pop-up as below:
Define tags for respective Input port, then devices connect the Input ports can be easily
remembered.
the tag that you want to delete, if a tag is still used by
any other Input port, the delete action will be discarded.
After action of , edit form will pop-up as below:
Define the tags for each respective Output port, the Output ports will be easily remembered.
a tag. If a tag is still being used by any other Output port,
the delete action will be discarded.

LED displays the Input number for respective Output port
Click to select the Input port for the respective Output port
Click to select previous or next Input ports for the respective Output port
Displays the IN/OUT with tag information when a mouse moves cursors over buttons
Pre-Setting items: Default is Port to Port
Click to edit selected pre-setting item
Set selected pre-setting item to Matrix
NOTE: When you s the software will try to refresh the source
selection status of the Output port.
