Foxconn 650M02 Series User manual

Chapter
Thank you for your buying Foxconn’s 650/651M02 series mother-
board. This series of motherboard is one of our newest products,
and offers superior performance, reliability and quality, at a
reasonable price. This motherboard adopts the advanced SiS
650GX/651+962L/962 chipsets, providing users a computer
platform with a high integration-compatibility-performance price
ratio.
This chapter includes the following information:
Main Features
Motherboard Layout
1
1

Chapter 1 Product Introduction
2650M02 and 651M02 Series User Manual
Main Features
Size
mATX form factor of 9.6” x 8.5”
Microprocessor
Supports Intel® Pentium®4 Socket 478 (Willamette/Northwood) processors
Supports Intel® Celeron®Socket 478 (Willamette/Northwood) processors
Supports FSB at 400MHz/533MHz (FSB 533MHz Supported on 651M02 only)
Supports up to 2.8GHz Socket 478 Northwood processor
Chipset
650M02: SiS650GX (North Bridge) + 962L/962 (South Bridge)
651M02: SiS651 (North Bridge) + 962L/962 (South Bridge)
System Memory
Provides two 184-pin DDR DIMM Sockets
Supports for PC 1600/PC 2100/PC 2700 (PC 2700 supported on 651M02 only)
Supports for 64Mb/128Mb/256Mb/512Mb technology up to 2GB
USB 2.0 Ports
Supports hot plug
Six USB 2.0 ports (four rear panel ports, one onboard USB headers provid-
ing two extra ports)
Supports wake-up from S3 (optional), S1
Supports USB 2.0 Protocol, 480 Mbps transmission rate
Onboard 1394 (optional)
Support hot plug
With rate of transmission at 400Mbps
Self-configured addressing
Can connect with 2 independent 1394 units synchronously at most, such
as HDD, CD-ROM
OnboardLAN
Supports 10/100Mbit/sec Ethernet
10/100M LAN interface built-in on board

3
650M02 and 651M02 Series User Manual
Chapter 1 Product Introduction
OnboardIDE
Supports up to four independent drives
Supports Ultra DMA 133/100/66
Two IDE interfaces can connect with four IDE units, including hard disk and
CD-ROM/DVD-ROM etc.
Onboard I/O
One FDD interface; supports two 3.5” or 5.25” FDDs with 360K/720K/1.2M/
1.44M/2.88M format
One high-speed 16550 COM interface with 16-byte FIFO buffer
One infrared interface (optional)
Four USB ports (with 6 ports supported at most)
one 1394 port (with 2 ports supported at most) (optional)
One parallel port supporting SPP/EPP/ECP mode
All I/O ports can be enabled/disabled in the BIOS setup
OnboardAudio
AC’ 97 2.2 Specification Compliant
Supports S/PDIF output (optional)
Onboard Line-in jack, Microphone jack, Line-out jack
Supports 5.1 channels audio (optional)
Onboard Graphics
Supports integrated VGA display functions
Supports external AGP 2.0 specification; supports 4X display cards
BIOS
Licensed advanced AWARD (Phoenix) BIOS, supports flash ROM, plug-
and play ready
Supports IDE, CD-ROM, SCSI HDD and USB device boot up
Green Function
Supports ACPI (Advanced Configuration and Power Interface)
Supports five system modes—S0 (normal), S1 (power on suspend),S3
(suspend to RAM)(optional), S4 (Suspend to disk – depends on OS), and
S5 (soft-off)

Chapter 1 Product Introduction
4650M02 and 651M02 Series User Manual
Expansion Slots
Three PCI slots
One AGP slot
One CNR slot (optional)
Advanced Features
PCI 2.2 Specification Compliant
Supports Windows 98/2000/ME/XP soft-off
Supports Wake-on-LAN

5
650M02 and 651M02 Series User Manual
Chapter 1 Product Introduction
MotherboardLayout
Note:
The above motherboard layout is provided for reference only;
please refer to the physical motherboard.
1
2
3
4
5
6
7
10 98 11
12
13
14
16
15

Chapter 1 Product Introduction
6650M02 and 651M02 Series User Manual
1394 PHY (optional)
The RTL8801B is IEEE 1394a 100/200/400 Mbps 2-Port Cable Transceiver/
Arbiter (PHY) Chip. Provides two fully compliant cable ports at 100/200/400
Mbps.
ATX 12V connector
This power connector connects the 4-pin 12V plug from the ATX 12V power
supply.
AGPslot
This Accelerated Graphics Port (AGP) slot supports 1.5V AGP4X mode
graphics cards for 3D graphical applications.
CPU socket
A 478-pin surface mount, Zero Insertion Force (ZIF) Socket for the Intel®
Pentium®4 processor, with 533/400MHz system bus that allows 4.2GB/s
and 3.2GB/s data transfer rates, respectively.
North Bridge controller
The SiS650GX/651 controller integrates a high performance host interface
for the Intel®Pentium®4 processor, a memory controller and SiS MuTIOL te-
chnology.

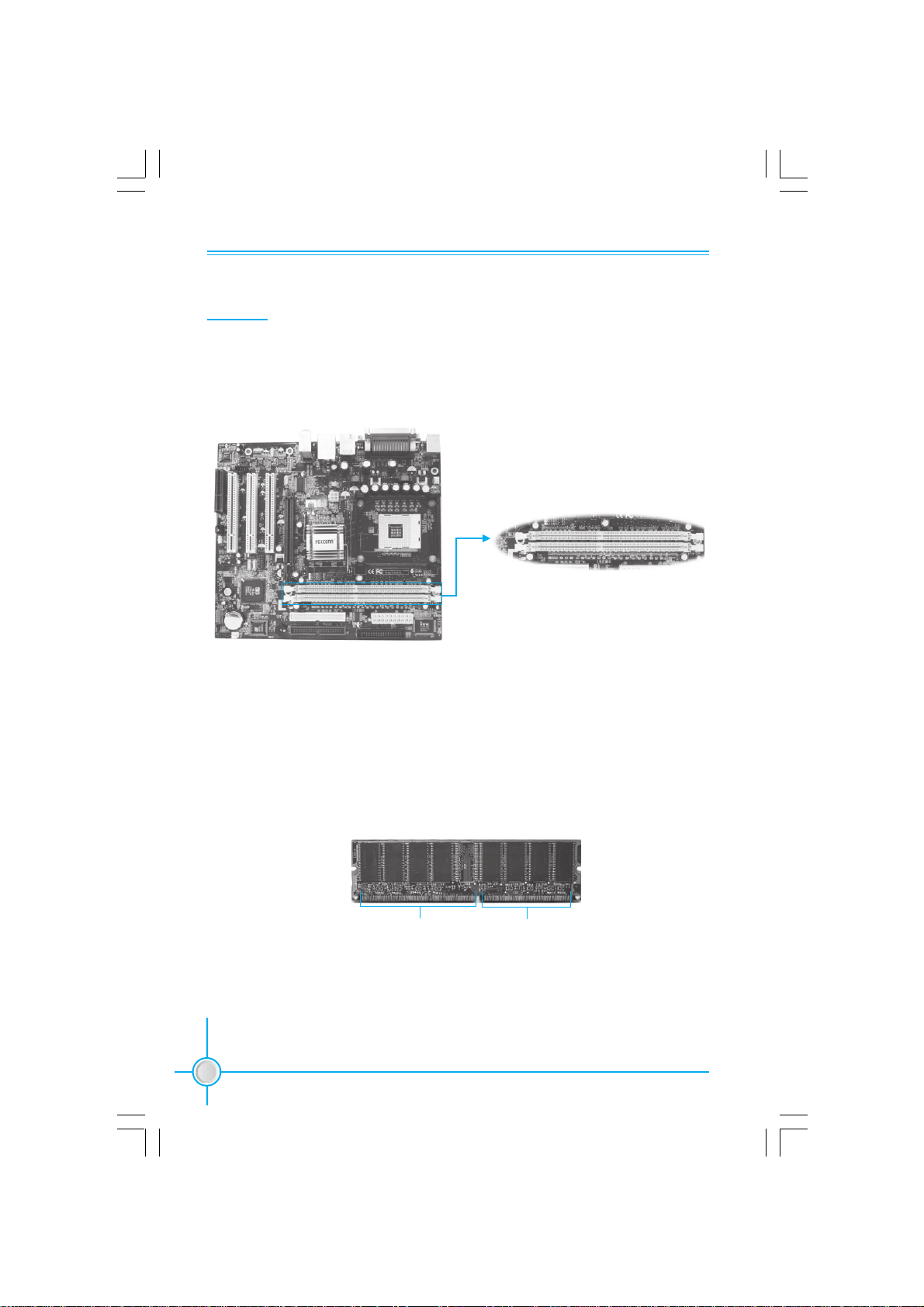

DDR DIMM sockets
These two 184-pin DIMM sockets support up to 2GB system memory
using unbuffered non-ECC PC2700 (651M02 series only)/PC2100/PC1600
DDR DIMMs.
ATX power connector
This 20-pin connector connects to an ATX power supply. The power supply
must have at least 1A on the +5V standby lead (+5VSB).
Super I/O controller
The Pin Count (LPC) interface provides the commonly used Supper I/O
functionality. The chipset supports a high-performance floppy disk controller
for a 360K/720K/1.44M/2.88M floppy disk drive, a multi-mode parallel port,
one serial port, the mouse and keyboard interface and a Flash ROM interface.
1
3
4
5
6
7
2
8

7
650M02 and 651M02 Series User Manual
Chapter 1 Product Introduction

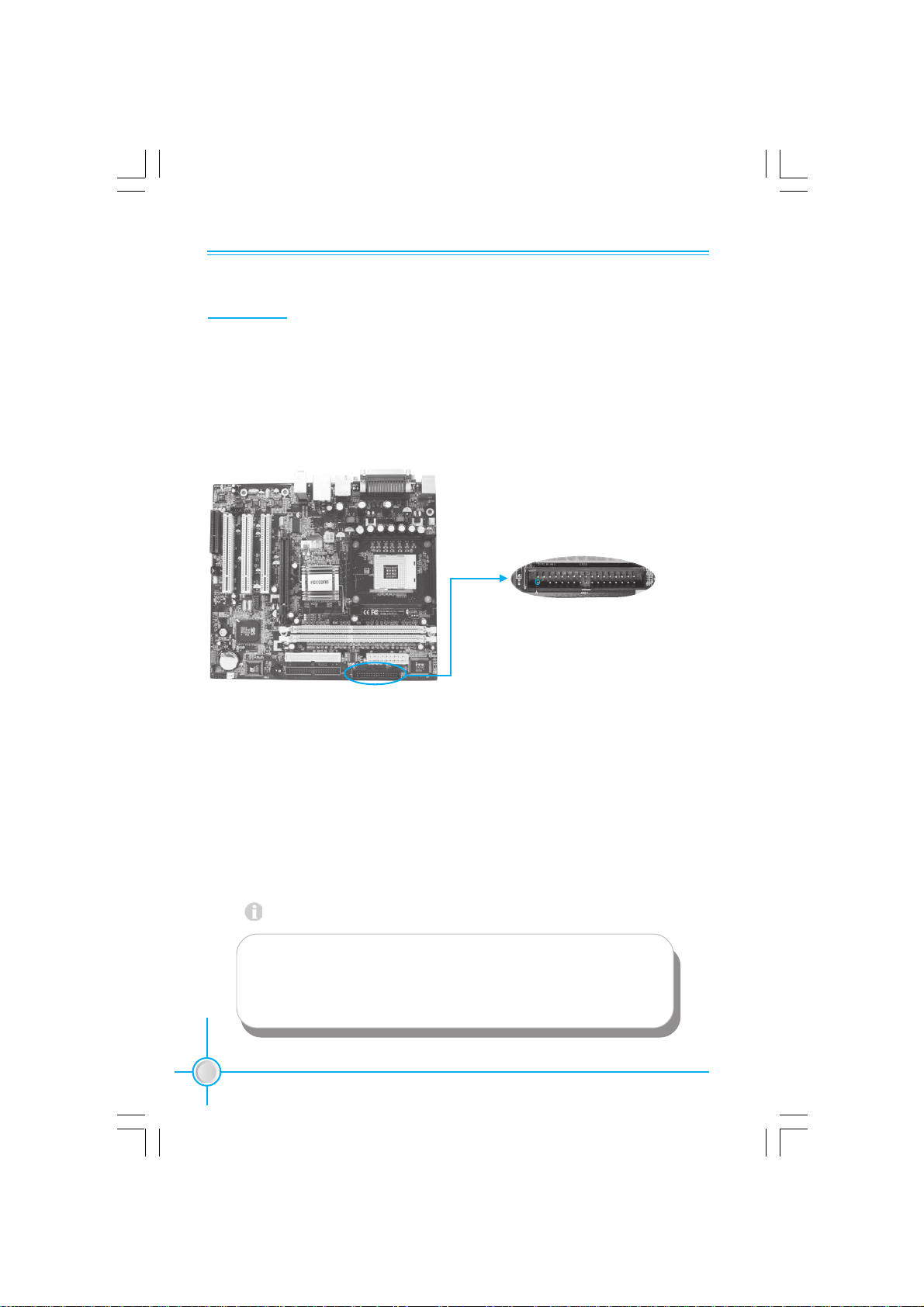

Floppy disk connector
This connector accommodates the provided ribbon cable for the floppy disk
drive. One side of the connector is slotted to prevent incorrect insertion of
the floppy disk cable.
IDE connectors
These dual-Channel bus master IDE connectors support Ultra DMA 133/
100/66, PIO Modes 3 & 4 IDE devices. Both the primary (blue) and secondary
(white) connectors are slotted to prevent incorrect insertion of the IDE ribbon
cable.
Flash Rom
This 2Mb firmware contains the programmable BIOS program.
South Bridge controller
Referred to as the SiS962/SiS962L MuTIOL Media I/O, this controller
integrates the audio controller with AC’97 interface, Ethernet MAC, Dual
Universal Serial Bus Host controller, IDE Master/Slave controllers, and the
MuTIOL Connect to PCI Bridge.
PCI Slots
These three 32-bit PCI 2.2 expansion slots support bus master PCI cards
like SCSI or LAN cards with 133MB/s maximum throughput.
CNR Slot (optional)
This slot is specifically designed for the Communication and Networking
Riser (CNR) card. The CNR supports V.90 analog modem, CNR audio
card, etc.
LANPHY
The SiS 962L/962 integrated 10/100Mbps Fast Ethernet with Realtek
external PHY supports your local area networking needs.
6-Channel Audio CODEC (optional)
The ALC655 is an AC’97 CODEC that allows 6-Channel audio playback. The
audio CODEC provides six DAC channel for 5.1 surround sound, S/PDIF
output and Line-in stereo inputs, integrated headphone amplifier, greater
than 90dB dynamic range with the jack sense and jack enumeration feature.
9
10
11
12
13
14
15
16

Chapter 2 Installation Instructions
8650M02 and 651M02 Series User Manual
This chapter introduces the hardware installation process,
including the installation of the CPU, memory, power supply,
slots, rear panel and pin headers, and the mounting of
jumpers. Caution should be exercised during the installation
of these modules. Please refer to the motherboard layout prior to
any installation and read the contents in this chapter carefully.
This chapter includes the following information:
CPU
Memory
Power supply

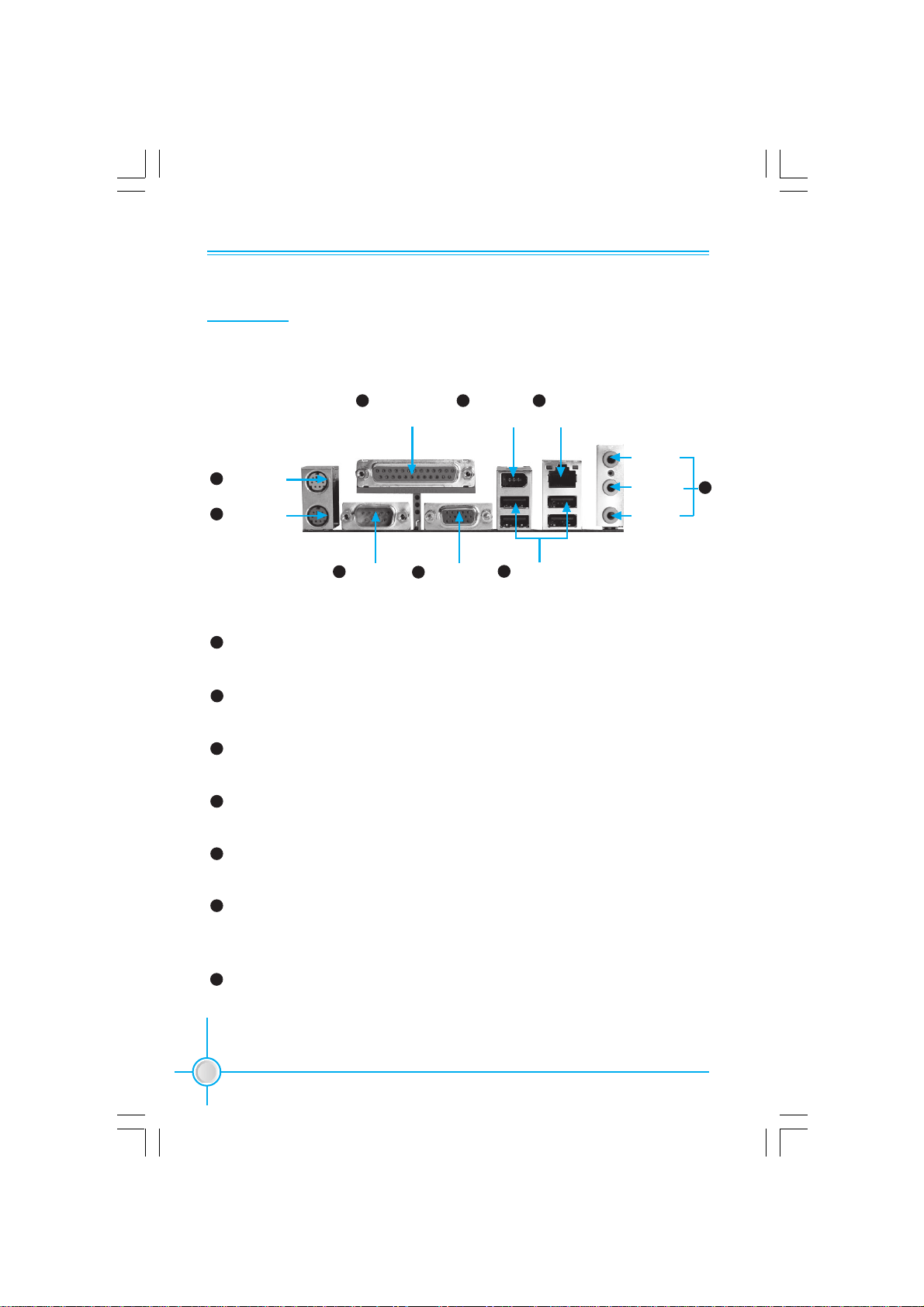

Rear Panel
Connectors
Expansion Slots
Jumpers
Chapter2
2

Chapter 2 Installation Instructions
9
650M02 and 651M02 Series User Manual
Notes:
Take note of the following precautions before you install motherboard
Components or change any motherboard settings.
1. Unplug the power cord form the wall socket before touching
any component.
2. Use a grounded wrist strap or touch a safely grounded object
or to a metal object, such as the power supply case, before
handling components to avoid damaging them due to static
electricity.
3. Hold components by the edges to avoid touching the ICs on
them.
4. Whenever you uninstall any component, place it on a grounded
Antistatic pad or in the bag that came with the component.
5. Before you install or remove any component, ensure that the
ATX power supply is switched off. Failure to do so may cause
severe damage to the motherboard, peripherals, and /or
components.

Chapter 2 Installation Instructions
10 650M02 and 651M02 Series User Manual
CPU
This motherboard supports socket 478 CPU with a FSB 400/533 MHz (FSB
533MHz Supported on 651M02 only).
Installation of CPU
Follow these steps to install a CPU.
1. Unlock the socket by pressing the
lever sideways, then lift it up to a 900
angle.
2. Align the cut edge to the gap in the
base of the socket. Carefully insert
the CPU into the socket until it fits in
place.
3. When the CPU is in place, press it
firmly on the socket while you push
down the socket lever to secure the
CPU. The lever clicks on the side
tab to indicate that it is locked.
Cut edge
90°
Gap in the base
Push down the socket
lever to secure the CPU.
Attention:
The CPU pins must be properly aligned with the slots in the
socket, otherwise the CPU may be damaged.

Chapter 2 Installation Instructions
11
650M02 and 651M02 Series User Manual
Note :
1. Locate the CPU slot and base for
fan on the motherboard.
3. Attach the fan to the base.

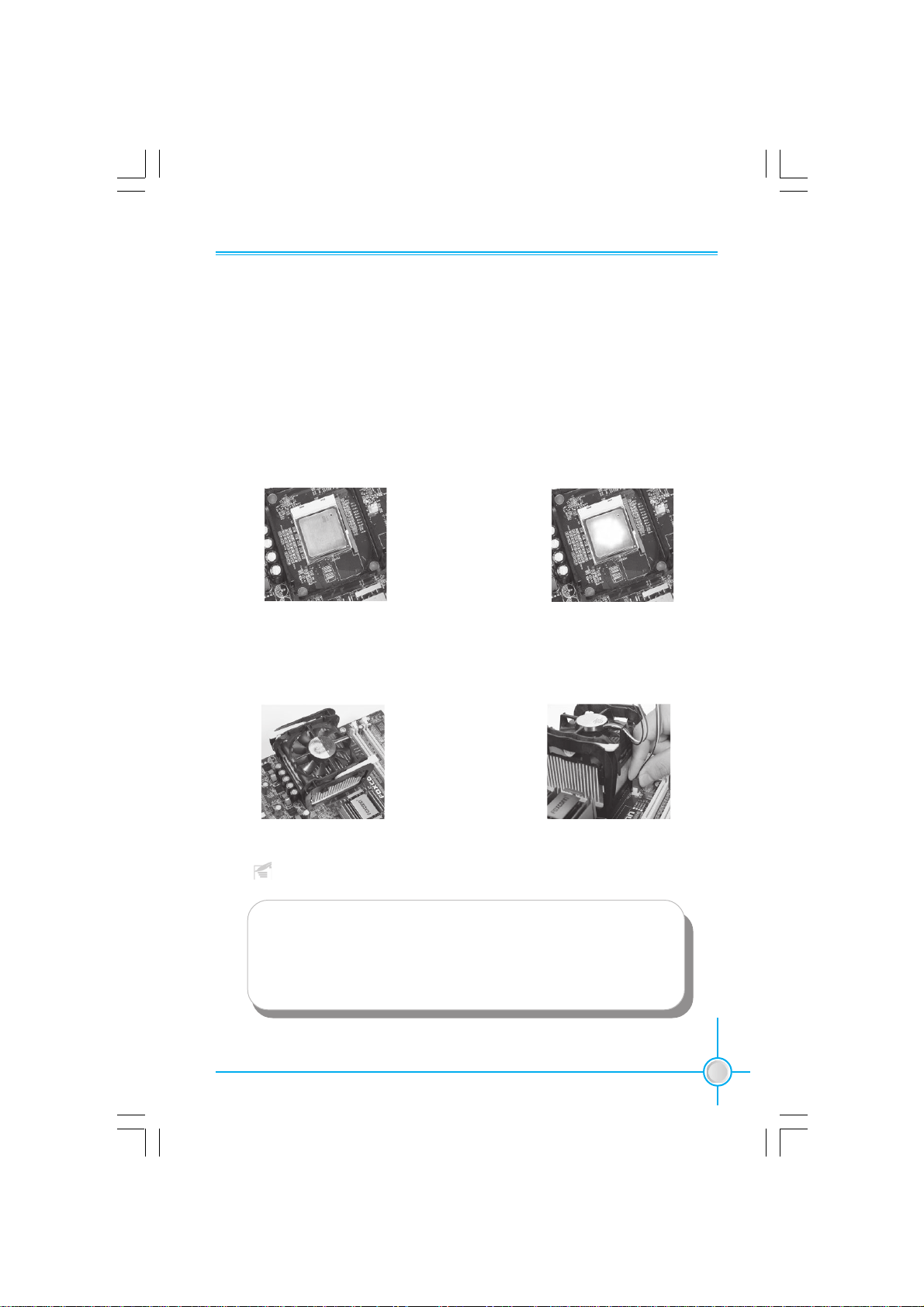

Installation of CPU Fan
New technology allows processors to run at higher and higher frequencies. To
avoid problems arising from high-speed operation, for example, overheating,
you need to install the proper fan. The following procedures are provided for
reference only, please refer to your CPU fan user guide to install it.
2. Apply a little silica gel to the back of
the CPU.
4. Connect the power fan’s power
cable to the appropriate 3-pin
connector on the motherboard.
Excessive temperatures will severely damage the CPU and
system. Therefore, make sure that the cooling fan works normally
at all times in order to prevent overheating and damaging to the
CPU.

Chapter 2 Installation Instructions
12 650M02 and 651M02 Series User Manual

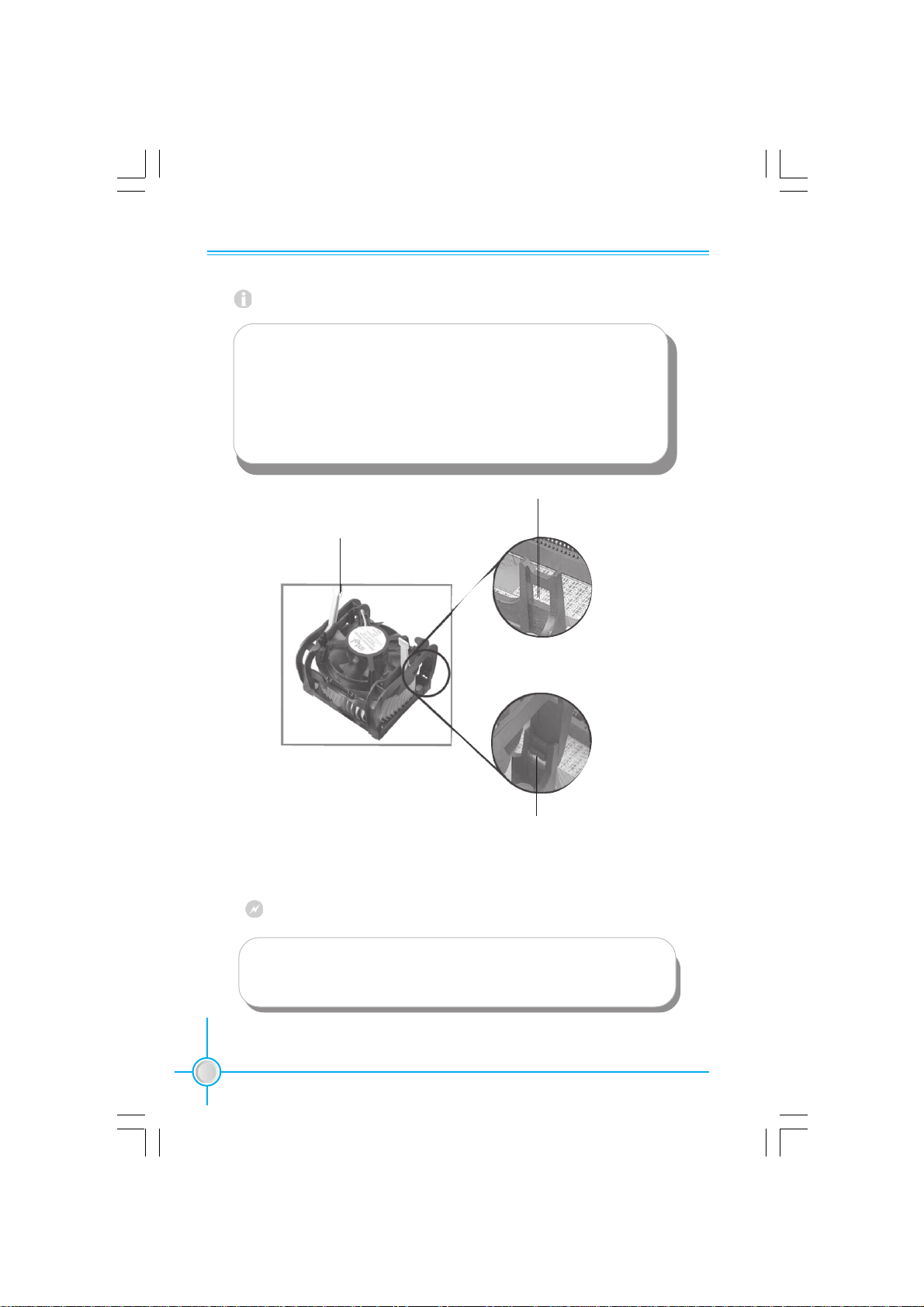

Warning:
Keep the retention locks lifted upward while fitting the retention
mechanism to the module base.
Retention Hole
Retention Lock
Retention Hook Snapped
to the Retention Hole
Attention:
1.Position the fan with the retention mechanism on top of the
heatsink. Align and snap the four hooks of the retention
mechanism to the holes on each corner of the module base.
2.Make sure that the fan and retention mechanism assembly
perfectly fits the heatsink and module base, otherwise you
cannot snap the hooks into the holes.

Chapter 2 Installation Instructions
13
650M02 and 651M02 Series User Manual
Attention:
1.Push down the locks on the retention mechanism to secure
the heatsink and fan to the module base.
2.When secure, the retention locks should point to opposite
directions.
CPU Qualified Vendor List
The following table lists the CPU modules that have been tested and quali-
fied for use with this motherboard.
Note:
Make sure to use only the tested and qualified CPU listed above.
Other CPU manufactured by other vendors may not be suitable
for this motherboard.
Vendor Type FSB Frequence
Intel Pentium (Willamette) 400 MHz 1.4G, 1.5G, 1.6G, 1.7G, 1.8G
Intel Celeron (Willamette) 400 MHz 1.7G, 1.8G
Intel Pentium (Northwood) 400 MHz 2.0G, 2.2G, 2.4G, 2.5G, 2.6G
Intel Celeron (Northwood) 400 MHz 2.0G, 2.1G, 2.2G, 2.4G
Intel Pentium (Northwood) 533 MHz 2.4G, 2.53G, 2.66G, 2.8G

Chapter 2 Installation Instructions
14 650M02 and 651M02 Series User Manual
Memory
This motherboard includes two 184-pin slots with 2.5 V DDR DIMM, so you
can install PC 1600/PC 2100/PC 2700 (PC 2700 supported on 651M02 only)
memory module. You must install at least one memory module to ensure normal
operation.
DIMM1
DIMM2
Installation of DDR Memory
1. There is only one gap in the center of the DIMM slot, and the memory module
can be fixed in one direction only. Unlock a DIMM slot by pressing the module
clips outward.
2. Align the memory module to the DIMM slot, and insert the module vertically
into the DIMM slot.
3. The plastic clips at both sides of the DIMM slot will lock automatically.
104
Pins 80 Pins

Chapter 2 Installation Instructions
15
650M02 and 651M02 Series User Manual
Warning :
Be sure to unplug the AC power supply before adding or remov-
ing expansion cards or other system peripherals, especially the
memory devices, otherwise your motherboard or the system
memory might be seriously damaged.
Memory Qualified Vendor List
The following table lists the Memory modules that have been tested and quali-
fied for use with this Motherboard.
Vender Type Size
Infineon PC2100 (DDR 266) 256M
Infineon PC2700 (DDR 333) 256M, 512M
Micron PC2100 (DDR 266) 128M, 256M, 512M
Micron PC2700 (DDR 333) 128M, 256M, 512M
Samsung PC2100 (DDR 266) 128M, 256M
Samsung PC2700 (DDR 333) 256M, 512M, 1G
Kingmax PC2100 (DDR 266) 128M, 256M
Kingmax PC2700 (DDR 333) 256M, 512M
Kingston PC2100 (DDR 266) 256M
Kingston PC2700 (DDR 333) 256M, 512M
Hynix PC2100 (DDR 266) 128M, 256M
Hynix PC2700 (DDR 333) 256M, 512M
Transcend PC2100 (DDR 266) 256M
Transcend PC2700 (DDR 333) 256M, 512M
Apacer PC2100 (DDR 266) 256M

Chapter 2 Installation Instructions
16 650M02 and 651M02 Series User Manual
Note:
Make sure to use only the tested and qualified DDR DIMMS
listed above. Other DDR DIMMs manufactured by other
vendors may not be suitable for this motherboard.
Vender Type Size
Apacer PC2700 (DDR 333) 256M, 512M
A-DATA PC2100 (DDR 266) 256M
A-DATA PC2700 (DDR 333) 256M
Nanya PC2100 (DDR 266) 128M, 256M, 512M
Nanya PC2700 (DDR 333) 128M, 256M, 512M
Winbond PC2700 (DDR 333) 256M, 512M

Chapter 2 Installation Instructions
17
650M02 and 651M02 Series User Manual
Power Supply
This motherboard uses an ATX power supply. In order to avoid damaging any
devices, make sure that they have been installed properly prior to connecting
the power supply.
20-pin ATX power connector: PWR1
PWR1 is the ATX power supply connector. Make sure that the power supply
cable and pins are properly aligned with the connector on the motherboard.
Firmly plug the power supply cable into the connector and make sure it is secure.
4-pin ATX_12V Power Connector: PWR2
The ATX power supply connects to PWR2 and provides power to the CPU.
Attention
You have to press the power button for more than four seconds if
you change the default “Instant Off” setting to “Delay 4 Sec” from
the “Power Button Override” option in the BIOS Power Manage-
ment Setup.
20-pin ATX power connector
1
11
3.3V
-12V
GND
-5V 5VGND
GND
PS-ON
GND 5V
10
20
3.3V 5V 12V5V PW-OK
3.3V GND GND GND 5VSB
4-pin ATX_12V power connector
GND GND
12V
3
1
4
2
12V

Chapter 2 Installation Instructions
18 650M02 and 651M02 Series User Manual
Rear Panel
This motherboard provides the ports as below:
PS/2 Mouse Connector
This green 6-pin connector is for a PS/2 Mouse.
PS/2 Keyboard Connector
This purple 6-pin connector is for a PS/2 keyboard.
Serial Port (COM1)
This 9-pin COM1 port is for pointing devices or other serial devices.
Parallel Port (Printer Port)
This 25-pin port connects a parallel printer, a scanner, or other devices.
VGA Connector
The VGA connector is for output to a VGA-compatible device.
USB 2.0 ports
These four Universal Serial Bus (USB) ports are available for connecting USB
2.0 devices.
1394 port (optional)
This digital interface supports electronic devices such as digital
cameras, scanners and printers.
1
2
3
5
4
6
7
Serial Port
(COM1)
VGAConnector USB 2.0Portx4
PS/2Mouse
Connector
ParallelPort
(Printer Port) LAN
connector
Line-in jack
Line-out jack
Microphone
jack
1
2
3
4
6
5
8
9
1394Port
(optional)
7
PS/2 Keyboard
Connector

Chapter 2 Installation Instructions
19
650M02 and 651M02 Series User Manual
LAN connector
This port allows connection to a Local Area Network (LAN) through a network hub.
Line-in jack, Line-out jack, Microphone jack
When using a two-Channel sound source, the Line-out jack is used to connect to
speakers or headphones; the Line-in port connects to an external CD player,
tape player or other audio device. The Microphone jack is used to connect to the
microphone.
When using a 6-Channel sound source (optional), connect the front speaker to
the green audio output; connect the surround sound speaker to the blue
audio input; connect the center speaker/subwoofer to the red Microphone
input, as shown in the following figure:
8
9
Line-out
(Frontchannels)
Line-in
Microphone
FrontLeft Front
Right
RearLeft Rear Right
Subwoofer
Center
Blue
Green
Red

Chapter 2 Installation Instructions
20 650M02 and 651M02 Series User Manual
Connectors
This motherboard includes connectors for FDD, IDE HDD, USB, CPU fan,
system fan and others.
FDD
This motherboard includes a standard FDD connector, supporting 360K, 720K,
1.2M, 1.44M and 2.88M FDDs.
FDD connector
HDD connectors: PIDE & SIDE
These connectors supports the provided UltraDMA 133/100/66 IDE hard
disk ribbon cable. Connect the cable’s blue connector to the primary
(recommended) or secondary IDE connector, then connect the gray connector
to the Ultra DMA 133/100/66 slave device (hard disk drive) and the black
connector to the Ultra DMA 133/100/66 master device. If you install two hard
disks, you must configure the second drive as a slave device by setting its
jumper accordingly. Refer to the hard disk documentation for the jumper settings.
Attention:
Ribbon cables are directional, therefore, make sure to always
connect with the cable on the same side as pin 1 of the PIDE/
SIDE or FDD connector on the motherboard.
1
