Foxconn G45M Series User manual

G45M Series
Motherboard
User’s Manual

Statement:
This manual is the intellectual property of Foxconn, Inc. Although the information
in this manual may be changed or modied at any time, Foxconn does not obligate
itself to inform the user of these changes.
Trademark:
All trademarks are the property of their respective owners.
Version:
User’s Manual V1.1 for G45M Series motherboard.
P/N: 3A2216800-000-G
Symbol description:
Caution: refers to important information that can help you to use motherboard
better, and tells you how to avoid problems.
Warning: indicating a potential risk of hardware damage or physical injury may
exist.
WEEE:
The use of this symbol indicates that this product may not be treated as household
waste.Byensuringthisproductisdisposedof correctly,you willhelppreventpotential
negative consequences for the environment and human health, which could other-
wise be caused by inappropriate waste handling of this product. For more detailed
information about recycling of this product, please contact your local city ofce, your
household waste disposal service or the shop where you purchased this product.
More information:
If you want more information about our products, please visit Foxconn’s
website: http://www.foxconnchannel.com
CAUTION
!
W
A
R
N
I
N
G
!
© All rights reserved.
All trade names are registered trademarks of respective manufacturers listed.
All images are for reference only, please refer to the physical motherboard for specic features.

Declaration of conformity
HON HAI PRECISION INDUSTRY COMPANY LTD
66 , CHUNG SHAN RD., TU-CHENG INDUSTRIAL DISTRICT,
TAIPEI HSIEN, TAIWAN, R.O.C.
declares that the product
Motherboard G45M/G45M-S
is in conformity with
(reference to the specication under which conformity is declared in
accordance with 89/336 EEC-EMC Directive)
■ EN 55022: 1998/A2: 2003 Limits and methods of measurements of radio
disturbance characteristics of information technology
equipment
■ EN 61000-3-2/:2000 Electromagnetic compatibility (EMC)
Part 3: Limits
Section 2: Limits for harmonic current emissions
(equipment input current <= 16A per phase)
■ EN 61000-3-3/A1:2001 Electromagnetic compatibility (EMC)
Part 3: Limits
Section 2: Limits of voltage uctuations and icker in low
voltage supply systems for equipment with rated current
<= 16A
■ EN 55024/A2:2003 Information technology equipment-Immunity
characteristics limits and methods of measurement
Signature : Place / Date : TAIPEI/2008
Printed Name : James Liang

Declaration of conformity
Trade Name: FOXCONN
Model Name: G45M/G45M-S
Responsible Party: PCE Industry Inc.
Address: 458 E. Lambert Rd.
Fullerton, CA 92835
Telephone: [phone]
Facsimile: 714-738-8838
Equipment Classication: FCC Class B Subassembly
Type of Product: Motherboard
Manufacturer: HON HAI PRECISION INDUSTRY
COMPANY LTD
Address: 66 , CHUNG SHAN RD., TU-CHENG
INDUSTRIAL DISTRICT, TAIPEI HSIEN,
TAIWAN, R.O.C.
Supplementary Information:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions : (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Tested to comply with FCC standards.
Signature : Date : 2008

Installation Precautions
Please carefully read the following procedures to install your computer :
■ It is suggested to select high-quality, certied fans in order to avoid damage
to the motherboard and CPU due to high temperature. Never turn on the
computer if the CPU fan is not properly installed.
■ We cannot guarantee that your system can operate normally when your
CPU is overclocked. Normal operation depends on the overclocking capac-
ity of your device.
■ If there is any, when connecting USB, audio, 1394a, RS232 COM, IrDA or
S/PDIF cables to the internal connectors on the motherboard, make sure
their pinouts are matching with the connectors on the motherboard. Incorrect
connections might damage the motherboard.
■ When handling the motherboard, avoid touching any metal leads or connec-
tors.
■ If there is a PCI Express x16 graphics card installed in your system, we
recommend using a 24-pin ATX power supply to get the best performance.
■ Before turning on the power, please make sure the power supply AC input
voltage setting has been congured to the local standard.
■ To prevent damage to the motherboard, do not allow screws to come in contact
with the motherboard circuit or its components. Also, make sure there are no
leftover screws or metal components placed on the motherboard or within the
computer casing.
■ If you are uncertain about any installation steps or have a problem related to
the use of the product, please consult a certied computer technician.
CAUTION
!
■ Electrostatic discharge (ESD) is the sudden and momentary electric current
that ows between two objects at different electrical potentials. Normally it
comes out as a spark which will quickly damage your electronic equipment.
Please wear an electrostatic discharge (ESD) wrist strap when handling
components such as a motherboard, CPU or memory.
■ Ensure that the DC power supply is turned off before installing or removing
CPU, memory, expansion cards or other peripherals. It is recommended to
unplug the AC power cord from the power supply outlet. Failure to unplug
the power supply cord may result in serious damage to your system.
W
A
R
N
I
N
G
!

TABLE OF CONTENTS
Chapter 1 Product Introduction
Product Specications..............................................................................2
Layout.......................................................................................................4
Back Panel Connectors............................................................................5
Chapter 2 Hardware Install
Install the CPU and CPU Cooler..............................................................8
Install the Memory..................................................................................11
Install an Expansion Card ......................................................................13
Install other Internal Connectors ............................................................14
Jumpers..................................................................................................19
Chapter 3 BIOS Setup
Enter BIOS Setup...................................................................................21
Main Menu..............................................................................................21
System Information ................................................................................23
Central Control Unit................................................................................25
Advanced BIOS Features.......................................................................28
Advanced Chipset Features...................................................................31
Integrated Peripherals............................................................................35
Power Management Setup.....................................................................40
PnP/PCI Conguration ...........................................................................42
PC Health Status....................................................................................43
BIOS Security Features..........................................................................44
Load Optimal Defaults............................................................................45
Save Changes and Exit..........................................................................45
Discard Changes and Exit......................................................................45
Chapter 4 CD Instruction
Utility CD content....................................................................................47
Install driver and utility............................................................................48
FOX ONE
Main Page........................................................................................50
CPU Control.....................................................................................54
Frequency Control............................................................................56
Limit Setting......................................................................................57
Voltage Control.................................................................................59
Fan Control.......................................................................................60
FOX LiveUpdate
Local Update....................................................................................61

Website :
http://www.foxconnchannel.com
Support Website :
http://www.foxconnsupport.com
Worldwide online contact Support :
http://www.foxconnchannel.com/support/online.aspx
CPU, Memory, VGA Compatibility Supporting Website :
http://www.foxconnchannel.com/product/Motherboards/compatibility.aspx
Support
Online Update ..................................................................................63
Congure .........................................................................................66
About & Help....................................................................................68
FOX LOGO.............................................................................................69
FOX DMI ................................................................................................70
Chapter 5 RAID Conguration
RAID Conguration Introduction.............................................................73
Intel®Matrix Storage Manager ...............................................................75
Create a RAID Driver Diskette ...............................................................76
BIOS Conguration ................................................................................78
Create RAID in BIOS..............................................................................78
Install a New Windows XP ...................................................................102
Existing Windows XP with RAID built as data storage.........................106
Technical Support :

ThankyouforbuyingFoxconnG45MSeriesmotherboard.Foxconn
products are engineered to maximize computing power, providing
only what you need for break-through performance.
With advanced overclocking capability and a range of connectivity
features for today multi-media computing requirements, G45M/
G45M-S enables you to unleash more power from your computer.
This chapter includes the following information:
■ Product Specications
■ Layout
■ Back Panel Connectors

1
2
1-1 Product Specications
CPU Support LGA775 socket Intel® CPU:
CoreTM 2 Quad/CoreTM 2 Extreme/CoreTM 2 Duo/ Pentium® Dual-Core/
Celeron® Dual-Core/Celeron® (Conroe-L)processors
Support 45nm processors
Front Side Bus 1600 (oc*) /1333/1066/800MHz FSB (oc* : Overclocking)
Chipset North Bridge: Intel® G45
South Bridge: Intel®ICH10 (G45M) / Intel®ICH10R (G45M-S)
Memory 4 x 240-pin DDR2 DIMM sockets
Support up to 16GB of system memory
Dual channel DDR2 800/667MHz architecture
Audio Realtek 8-channel audio chip
High Denition Audio
2/4/5.1/7.1-channel
Support for S/PDIF out
Support Jack-Sensing function
LAN Realtek 10/100/1000Mb/s LAN chip
Expansion Slots 1 x PCI Express x16 slot
1 x PCI Express x1 slot
2 x PCI slots
Onboard Serial ATA 6 x SATA connectors
300MB/s data transfer rate
Support hot plug and NCQ (Native Command Queuing )
USB Support hot plug
Support up to 12 x USB 2.0 ports (4 rear panel ports, 4 onboard USB
headers supporting 8 extra ports)
Supports USB 2.0 protocol up to 480Mb/s
Internal Connectors 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x Floppy disk drive connector
6 x SATA connectors
4 x USB 2.0 connectors (supporting 8 x USB devices)
1 x CPU fan header (4-pin)
1 x System fan header (4-pin)
1 x NB fan header (4-pin)
1 x Front Panel connector
1 x CD_IN connector
1 x Front Audio connector
1 x IR/CIR connector
1 x Chassis intrusion alarm header (INTR)
1 x S/PDIF_OUT connector
1 x Speaker connector
1 x TPM connector
1 x 1394 connector (Only available in G45M-S)

3
1
3
1 x COM1 connector
Back Panel 1 x PS/2 keyboard port
Connectors 1 x PS/2 mouse port
1 x HDMI port
1 x VGA port
1 x 1394a port (Only available in G45M-S)
4 x USB 2.0 ports
1 x RJ-45 LAN port
8-channel audio ports
1 x Display Port
Hardware Monitor System voltage detection
CPU/System temperature detection
CPU/System fan speed detection
CPU/System overheating shutdown
CPU/System fan speed control
PCI Express x1 Support 250MB/s (500MB/s concurrent) bandwidth
Low power consumption and power management features
PCI Express x16 Support 8GB/s (16GB/s concurrent) bandwidth
Low power consumption and power management features
Green Function Support ACPI (Advanced Conguration and Power Interface)
Support S0 (normal), S1 (power on suspend), S3 (suspend to RAM), S4
(suspend to disk), and S5 (soft - off)
Bundled Software FOX ONE
FOX LiveUpdate
FOX LOGO
FOX DMI
Operating System Support for Microsoft®Windows®Vista/XP
Form Factor Micro ATX Form Factor, 9.6 inches x 9.6 inches (24.4cm x 24.4cm)
This motherboard does not support Windows® 2000.
CAUTION
!

1
4

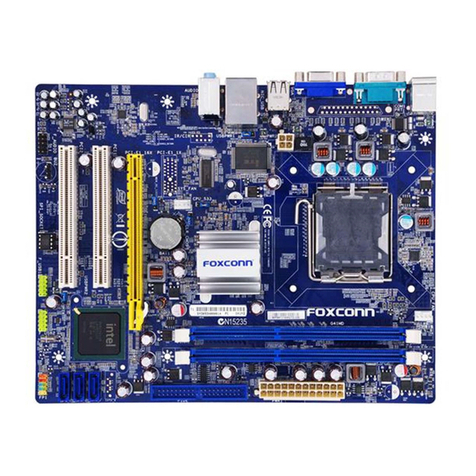

1-2 Layout
Note : The above motherboard layout is for reference only, please refer to the physical
motherboard for detail.
1. 8-pin ATX 12V Power Connector
2. NB (North Bridge) Fan Header
3. North Bridge: Intel ® G45
4. PCI Express x16 Slot
5. PCI Express x1 Slot
6. Clear CMOS Jumper
7. PCI Slots
8. S/PDIF_OUT Connector
9. Front Audio Connector
10. CD_IN Connector
11. Speaker Connector
12. 1394a Connector (G45M-S)
13. Front USB Connectors
14. Front Panel Connector
15. SATA Connectors
16. SYS_FAN Header
17. COM1 Header
18. South Bridge: Intel ® ICH10 (G45M)
Intel ® ICH10R (G45M-S)
19. 24-pin ATX Power Connector
20. Floppy Connector
21. TPM Connector
22. Chassis Intrusion Alarm Header
23. IrDA/CIR Connector
24. DDR2 DIMM Slots
25. CPU_FAN Header
26. LGA 775 CPU Socket
1
13
9
15 22
21
17
3
20
12
16
10
18 19
14
42
23
11
26
24
25
67
85

5
1
5
1-3 Back Panel Connectors
DisplayPort
LAN Port
PS/2 Mouse Port
Audio Ports
Line Out
Microphone In
Subwoofer
Rear Speaker
Side Speaker
Line In
6
3
USB Ports
5
4
1
2
PS/2 Keyboard Port
7
1394a Port
HDMI Port
VGA Port
8
9
1. PS/2 Mouse port
Use the upper port (green) to connect a PS/2 mouse.
2. PS/2 Keyboard Port
Use the lower port (purple) to connect a PS/2 keyboard.
3. DisplayPort
The DisplayPort standard species a high-bandwidth, bidirectional display interconnect that
enables a common interface approach for internal and external display connectivity. It replaces
both DVI and LVDS, addresses the current issues with DVI and its derivatives, and ensures
signicant future extensibility to meet customer needs. You need to connect to a display device
with a DisplayPort interface.
4. HDMI Port
The HDMI (High-Denition Multimedia Interface) provides an all-digital audio/video interface to
transmit the uncompressed audio/video signals and is HDCP compliant. Connect the HDMI au-
dio/video to this port. The HDMI Technology can support a maximum resolution of 1920x1080p,
but the actual resolutions supported depend on the monitor being used.
5. VGA Port
To connect with external display devices, such as monitor or LCD display.
For VGA port, DisplayPort and HDMI port, any two of them can work together, but
three ports are not able to work at the same time. If an independent Graphics card is
installed, all these three onboard ports will be turned off automatically.
CAUTION
!
With current chipset driver, in different HDMI resolutions, the display may not center at
or occupy the full screen. Please select a suitable resolution for your usage or look for
a new driver update from our website.
CAUTION
!

1
6
6. USB Ports
The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as an
USB keyboard/mouse, USB printer, USB ash drive and etc.
7. 1394a Port (Only available in G45M-S)
This port is used to connect a 1394a device.
8. RJ-45 LAN Port
The Ethernet LAN port provides Internet connection at up to 10/100/1000Mb/s data rate.
9. Audio Ports
For the denition of each audio port, please refer to the table below :
Port 2-channel 4-channel 5.1-channel 7.1-channel
Blue Line In Line In Line In Line In
Green Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink Microphone In Microphone In Microphone In Microphone In
Orange - - Center/Subwoofer Out Center/Subwoofer Out
Black - Rear Speaker Out Rear Speaker Out Rear Speaker Out
Grey - - - Side Speaker Out
Active
LED Link
LED
LAN Type Left: Active Right: Link
Status Description Status Description
1000M
Off No Link Off No Link
Green
Blinking Data Activ- ity
Off 10 Mb/s Connection
Green 100 Mb/s Connection
Orange 1000 Mb/s Connection

This chapter introduces the hardware installation process, including
the installation of the CPU, memory, power supply, slots, pin
headers and the mounting of jumpers. Caution should be exercised
during the installation of these modules. Please refer to the
motherboard layout prior to any installation and read the contents in
this chapter carefully.
This chapter includes the following information :
■ Install the CPU and CPU Cooler
■ Install the Memory
■ Install an Expansion Card
■ Install other Internal Connectors
■ Jumpers
Please visit this website for more supporting information about CPU, Memory and
VGA for your motherboard :
http://www.foxconnchannel.com/product/Motherboards/compatibility.aspx

8
2
8
2-1 Install the CPU and CPU Cooler
Install the CPU
Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.
Read the following guidelines before you begin to install the CPU :
■ Make sure that the motherboard supports the CPU.
■ Always turn off the computer and unplug the power cord from the power supply before
installing the CPU to prevent hardware damage.
■ Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or
you may locate the notches on both sides of the CPU and alignment keys on the CPU
socket.)
■ Apply an even and thin layer of thermal grease on the surface of the CPU.
■ Do not turn on the computer if the CPU cooler is not installed, otherwise overheating
and damage of the CPU may occur.
■ Set the CPU host frequency in accordance with the CPU specications. It is not
recommended that the system bus frequency be set beyond hardware specications
since it does not meet the standard requirements for the peripherals. If you wish to
set the frequency beyond the standard specications, please do so according to your
hardware specications including the CPU, graphics card, memory, hard drive, etc.
Hyper-Threading Technology System Requirements:
(Go to Intel's website for more information about the Hyper-Threading Technology)
■ An Intel®CPU that supports HT Technology
■ A chipset that supports HT Technology
■ An operating system that is optimized for HT Technology
■ A BIOS that supports HT Technology and has it enabled
CAUTION
!
LGA775 CPU Socket
Alignment Key
Pin-1 corner of the CPU
Socket
LGA775 CPU
Notch
Pin-1 triangle marking
of CPU

9
2
9
Follow the steps to install the CPU onto the CPU socket :
1. Remove protective socket cover. 2. Release the CPU socket lever.
3. Lift the metal cover on the CPU
socket.
5. When CPU is properly seated,
replace the metal cover and push the
CPU socket lever back to its locked
position.
4. Check pin one marking (triangle)
with the pin one corner of the CPU
socket, align the CPU notches with
the socket alignment keys and gently
put the CPU onto the socket.
Before installing the CPU, make sure to turn off the computer and unplug the power
cord from the power outlet to prevent damage to the CPU.
CAUTION
!

10
2
10
Install the CPU Cooler
Follow the steps below to correctly install the CPU cooler on the motherboard. (The following
procedures use Foxconn cooler as the example.)
1.Applyandspreadaneventhermal
grease on the surface of CPU. 2. Place the four bolts of the CPU coolertotheholesofthemotherboard,
pushthemstraightdownfromthetop,
and the bolts will be fastened on the
motherboard. That's it.
3. Check the solder side of the
motherboard,the push pinshouldbe
xed as depicted in the picture.
32
1
4. Attach the 4-wire CPU cooler
connector to the CPU FAN header
on the motherboard .
Release bolts of CPU cooler from
motherboard :
1.Turning the push pin (bolt)
along with the direction of arrow
(counterclockwise).
2. Pull the push pin straight up.
3. Turning push pin clockwise to its
default position.
Use extreme care when removing the CPU cooler because the thermal grease may
adhere to the CPU. Inadequately removing the CPU cooler may damage the CPU.
CAUTION
!

11
2
11
2-2 Install the Memory
Dual Channel Memory Conguration
This motherboard provides four DDR2 memory sockets and supports Dual Channel Technology.
When memory is installed, the BIOS will automatically check the memory in your system.
Four DDR2 memory sockets are divided into two channels and each channel has two memory
sockets as following:
Channel 0 : DIMM1, DIMM2
Channel 1 : DIMM3, DIMM4
The combinations of DIMM modules are :
DIMM1 DIMM2 DIMM3 DIMM4
Single Channel DS/SS - - -
Single Channel DS/SS DS/SS -
Single Channel - - DS/SS -
Single Channel - - DS/SS DS/SS
Dual Channel DS/SS - DS/SS -
Dual Channel - DS/SS - DS/SS
Dual Channel DS/SS DS/SS DS/SS DS/SS
(DS : Double Side, SS : Single Side, - : No Memory)
It is recommended that memory of the same capacity, brand, speed, and chips be
used and please select dual channel rst to achieve optimum performance.
CAUTION
!
Read the following guidelines before you begin to install the memory :
■ Make sure that the motherboard supports the memory. It is recommended that memory
of the same capacity, brand, speed, and chips be used.
■ Always turn off the computer and unplug the power cord from the power outlet before
installing the memory to prevent hardware damage.
■ Memory modules have a foolproof design. A memory module can be installed in only
one direction. If you are unable to insert the memory, switch the direction.
CAUTION
!

12
2
12
Installing a Memory
Ifyoutakealookatfrontsideofmemorymodule,ithasasymmetricpincountsonbothsidesseparated
by a notch in the middle, so it can only t in one direction. Follow the steps below to correctly install
your memory modules into the sockets.
Step 1:
Spread the clips at both ends of the memory socket.
Place the memory module onto the socket, then put
your ngers on top edge of the module, and push
it down rmly and seat it vertically into the memory
socket.
Step 2:
Theclipsatbothendsofthesocketwillsnapintoplace
when the memory module is securely inserted.
Before installing a memory module, make sure to turn off the computer and unplug the
power cord from the power outlet to prevent damage to the memory module. Be sure
to install DDR2 DIMMs on this motherboard.
CAUTION
!
Notch
112-Pin128-Pin

13
2
13
2-3 Install an Expansion Card
Follow the steps below to correctly install your expansion card in the expansion slot.
1. Locate an expansion slot that supports your card. Remove the metal slot cover from the chassis
back panel.
2. Align the card with the slot, and press down on the card until it is fully seated in the slot.
3. Make sure the metal contacts on the card are completely inserted into the slot.
4. Secure the card's metal bracket to the chassis back panel with a screw.
5. After installing all expansion cards, replace the chassis cover.
6. Turn on your computer. If necessary, go to BIOS Setup to make any required BIOS changes for
your expansion card(s).
7. Install the driver provided with the expansion card in your operating system.
Installing and Removing a PCI Express x16 Graphics Card :
• Installing a Graphics Card:
Gently insert the graphics card into the PCI Express x16 slot.
Make sure the graphics card is locked by the latch at the end of
the PCI Express x16 slot.
• Removing the Card:
Push the latch at the end of the PCI Express x16 slot to release
the card and then pull the card straight up from the slot.
■ Make sure the motherboard supports the expansion card. Carefully read the manual
that came with your expansion card.
■ Always turn off the computer and unplug the power cord from the power outlet before
installing an expansion card to prevent hardware damage.
CAUTION
!
PCI
PCI Express x1
PCI Express x16
