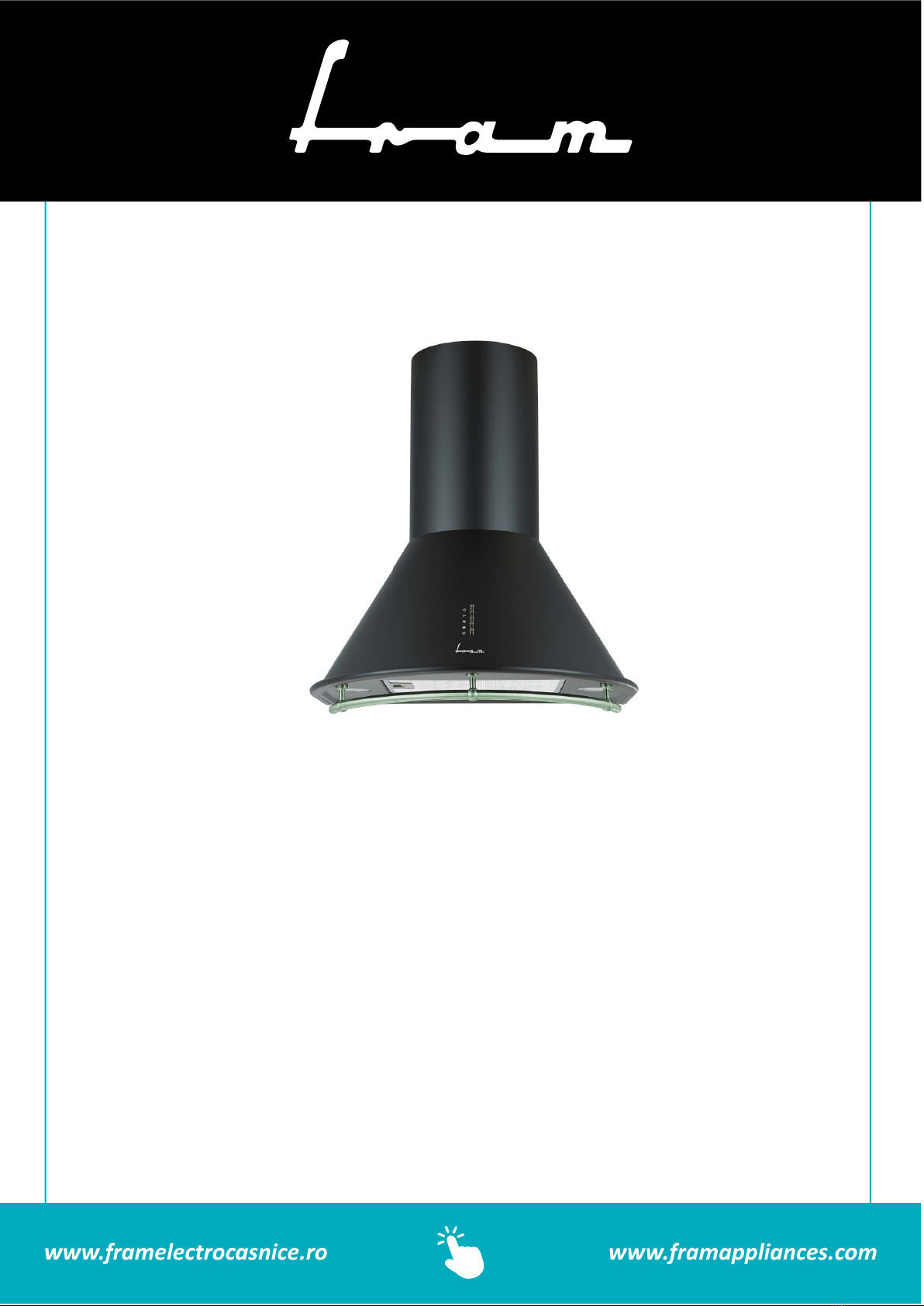

FRAM FDH-660HRBK User manual

FDH-660HRBK
DECORATIVE COOKER HOOD
Suction power: 589 m³/h
Color: Black

1
Before using the appliance, please read carefully this instruction manual and keep it for future reference.
This instruction manual is designed to provide you with all required instructions related to the installation,
use and maintenance of the appliance.
In order to operate the unit correctly and safety, please read this instruction manual carefully before
installation and usage.
➔Decorative cooker hood
➔User manual
➔Warranty card
This manual explains the proper installation and use of your cooker hood, please read it carefully before using
even if you are familiar with the product. The manual should be kept in a safe place for future reference.
Never to do:
•Do not try to use the cooker hood without the grease filters or if the filters are excessively greasy!
•Do not install above a cooker with a high level grill.
•Do not leave frying pans unattended during use because overheated fats or oils might catch fire.
•Never leave naked flames under the cooker hood.
•If the cooker hood is damaged, do not attempt to use.
•Do not flambé under the cooker hood.
3. SAFETY PRECAUTIONS
Thank you for choosing this Fram product!
1. INTRODUCTION
2. YOUR PACKAGE CONTAINS

2
•CAUTION: Accessible parts may become hot when used with cooking appliances.
•The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest
part of the cooker hood. (When the cooker hood is located above a gas appliance, this distance shall be
at least 65 cm).

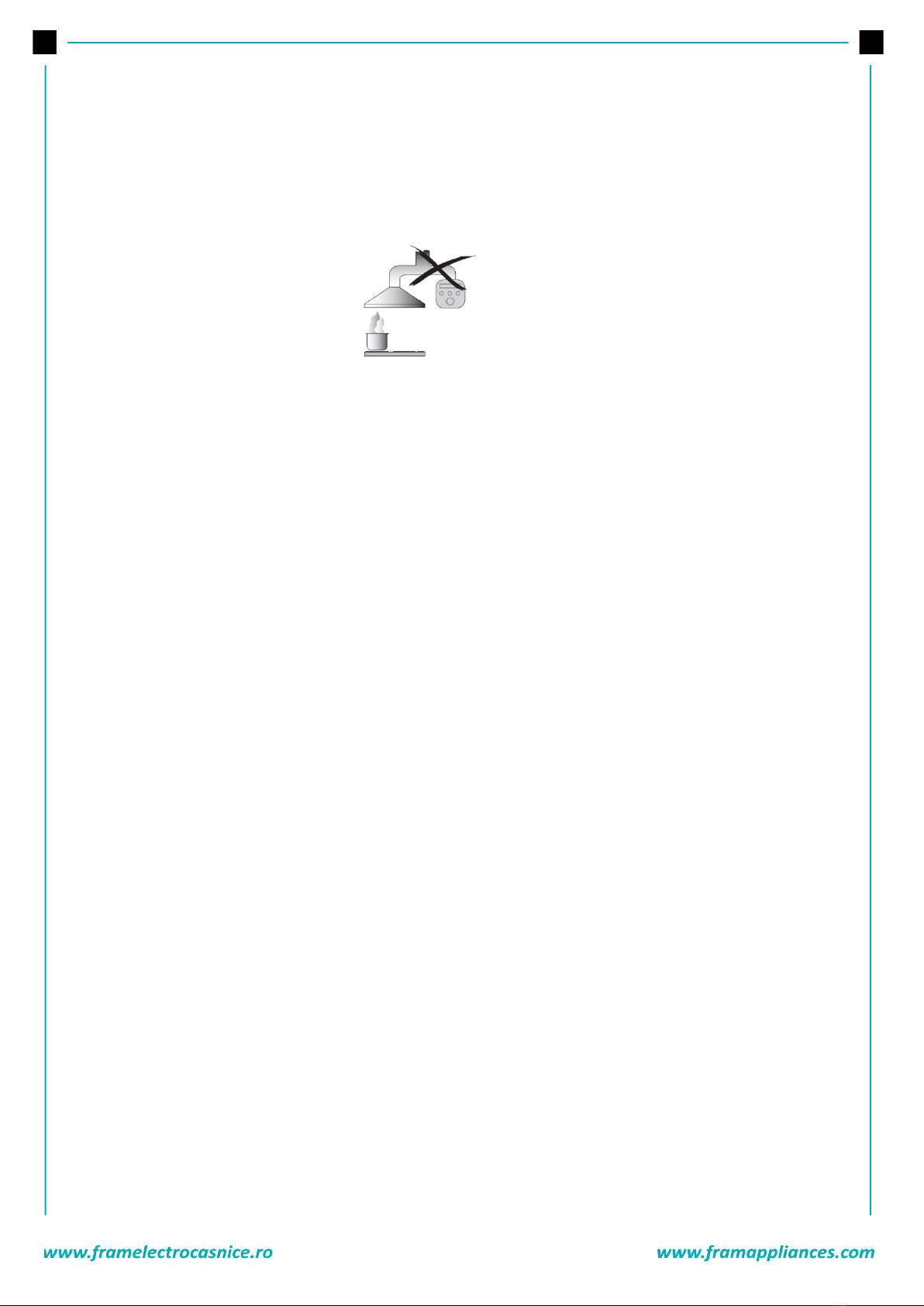

•The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas
or other fuels.
Always to do:

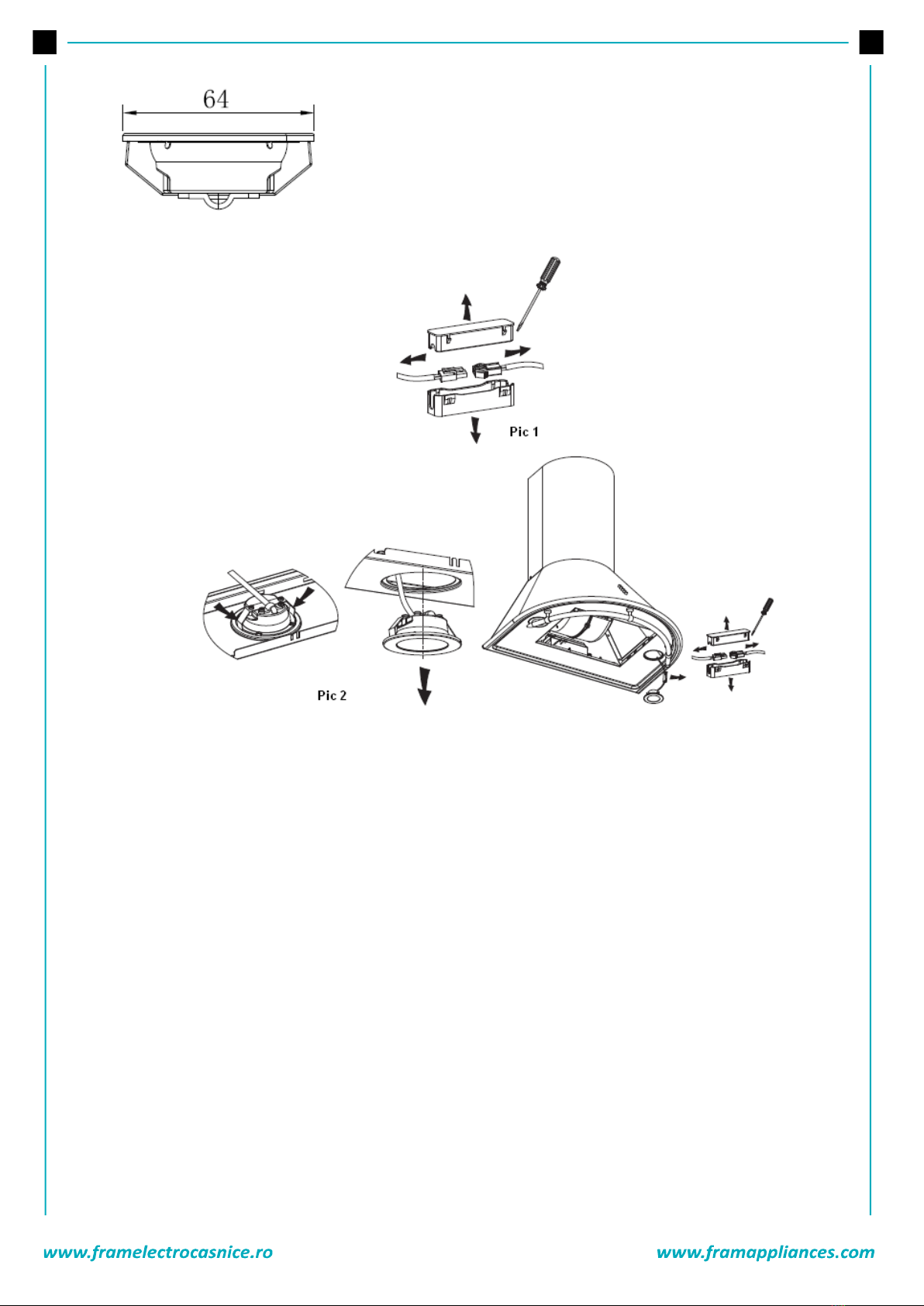

•Important! Always switch off the electricity supply at the mains during installation and maintenance
such as light bulb replacement.
•The cooker hood must be installed in accordance with the installation instructions and all
measurements followed.
•All installation work must be carried out by a competent person or qualified electrician.
•Please dispose of the packing material carefully. Children are vulnerable to it.
•Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning.
•Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efficiency of the
cooker hood.
•Warning: Failure to install the screws or fixing device in accordance with these instructions may result
in electrical hazards.
•Warning: Before obtaining access to terminals, all supply circuits must be disconnected.
•Always put lids on pots and pans when cooking on a gas cooker.
•When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that
proper ventilation measures are being observed. The cooker hood removes odors from room but not
steam.
•There shall be adequate ventilation of the room when the cooker hood is used at the same time as
appliances burning gas or other fuels.
•Cooker hood is for domestic use only.
•If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons to avoid a hazard.
•This appliance can be used by children aged from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
•Caution: The appliance and its accessible parts can become hot during operation. Be careful to avoid
touching the heating elements. Children younger than 8 years old should stay away unless they are
under permanent supervision.
•There is a fire risk if cleaning is not carried out in accordance with the instructions.
•Regulations concerning the discharge of air must be fulfilled.

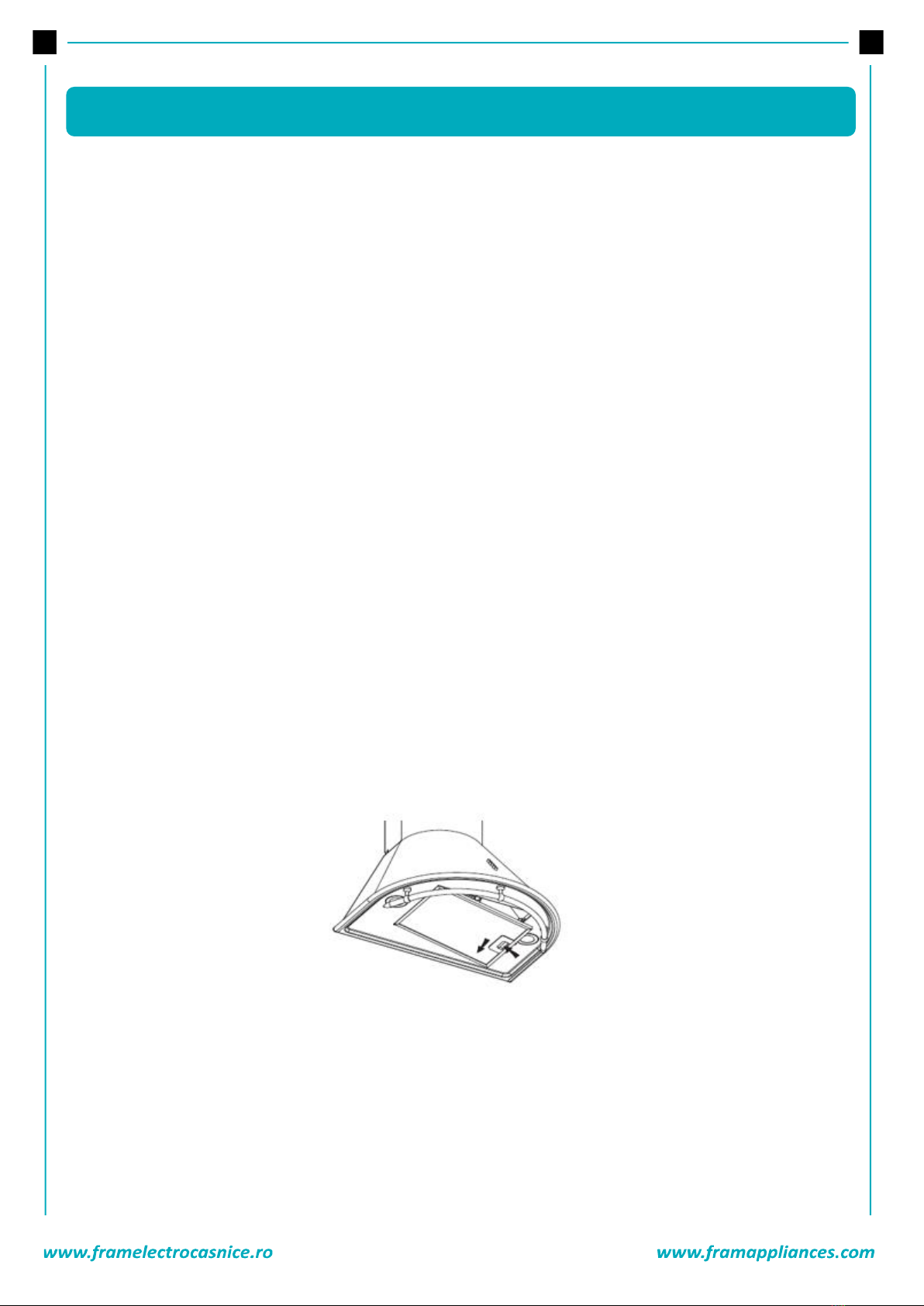

•Clean your appliance periodically by following the method given in the chapter Maintenance.
•For safety reason, please use only the same size of fixing or mounting screw which are recommended in
this instruction manual.
•Regarding the details about the method and frequency of cleaning, please refer to maintenance and
cleaning section in the instruction manual.

3
•Cleaning and user maintenance shall not be made by children without supervision.
•When the cooker hood and appliances supplied with energy other than electricity are simultaneously in
operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).
•Warning: Danger of fire. Do not store items on the cooking surfaces.
•A steam cleaner is not to be used.
•Never try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a
lid or a fire blanket.

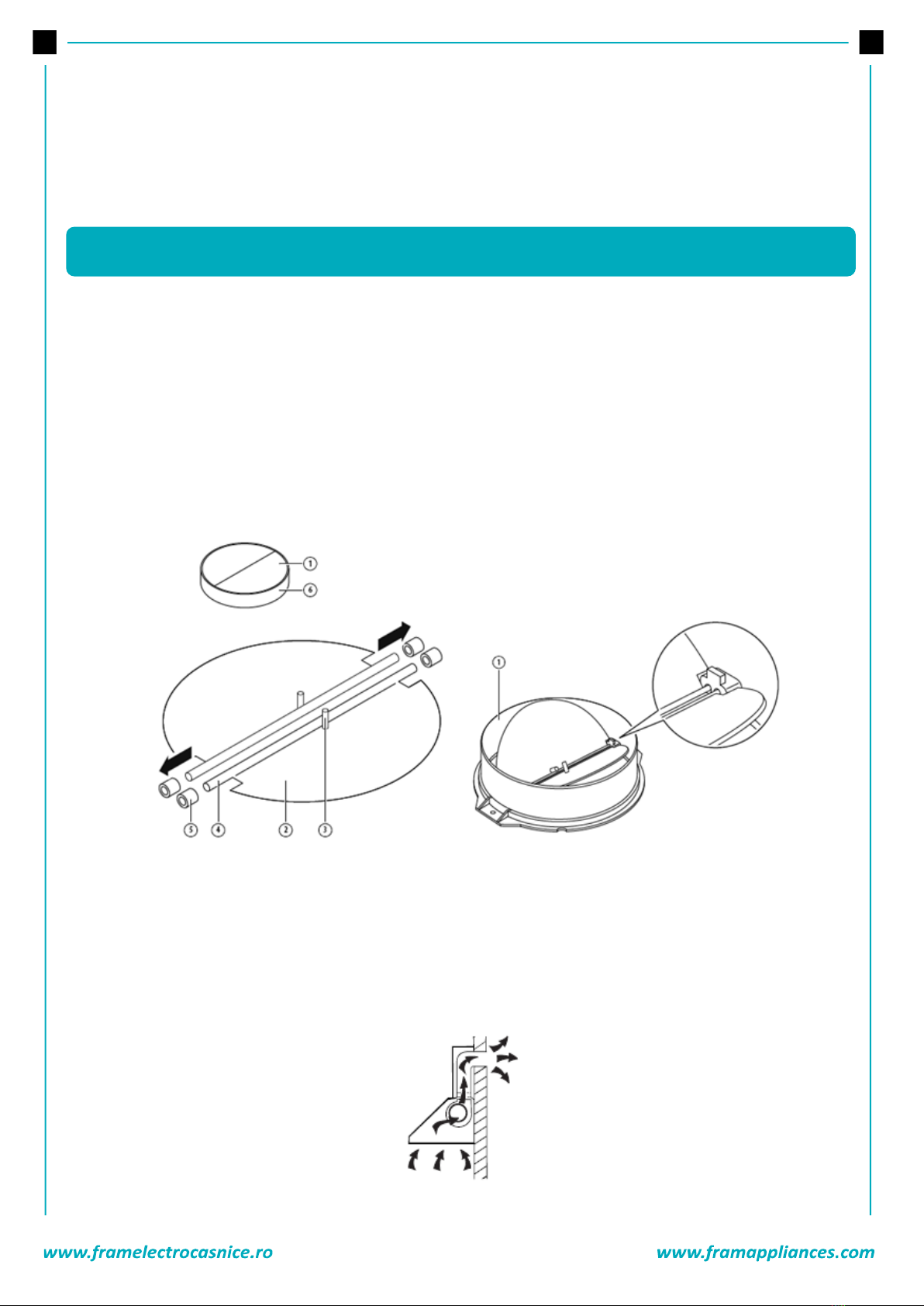

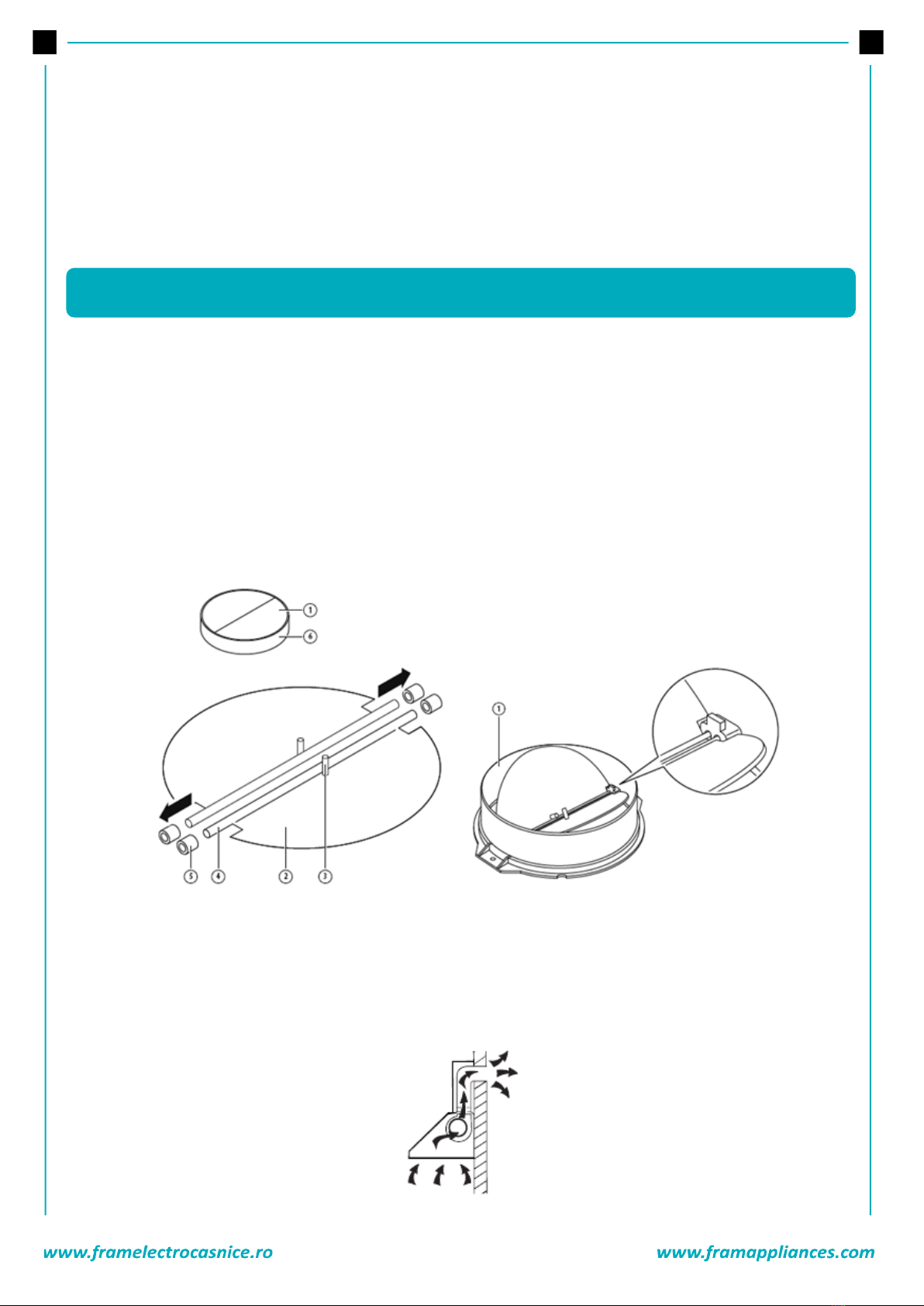

Mounting of the V-Flap
If the cooker hood does not have an assembled V-flap 1, you should mount the half-parts to its body. The
images only show an example of how to mount the V-flap, because the outlet may vary according to
different models and configurations.
To mount the V-flap 1 you should:
•Mount two half-parts 2 into the body 6.
•The pin 3 should be top oriented.
•The axis 4 should be inserted into the holes 5 on the body.
•Repeat all the operations for the 2nd half-part.
Installation
If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an
extraction duct (enamel, aluminum, flexible pipe or non-flammable material with an interior diameter of
150 mm).
4. INSTALATION

4

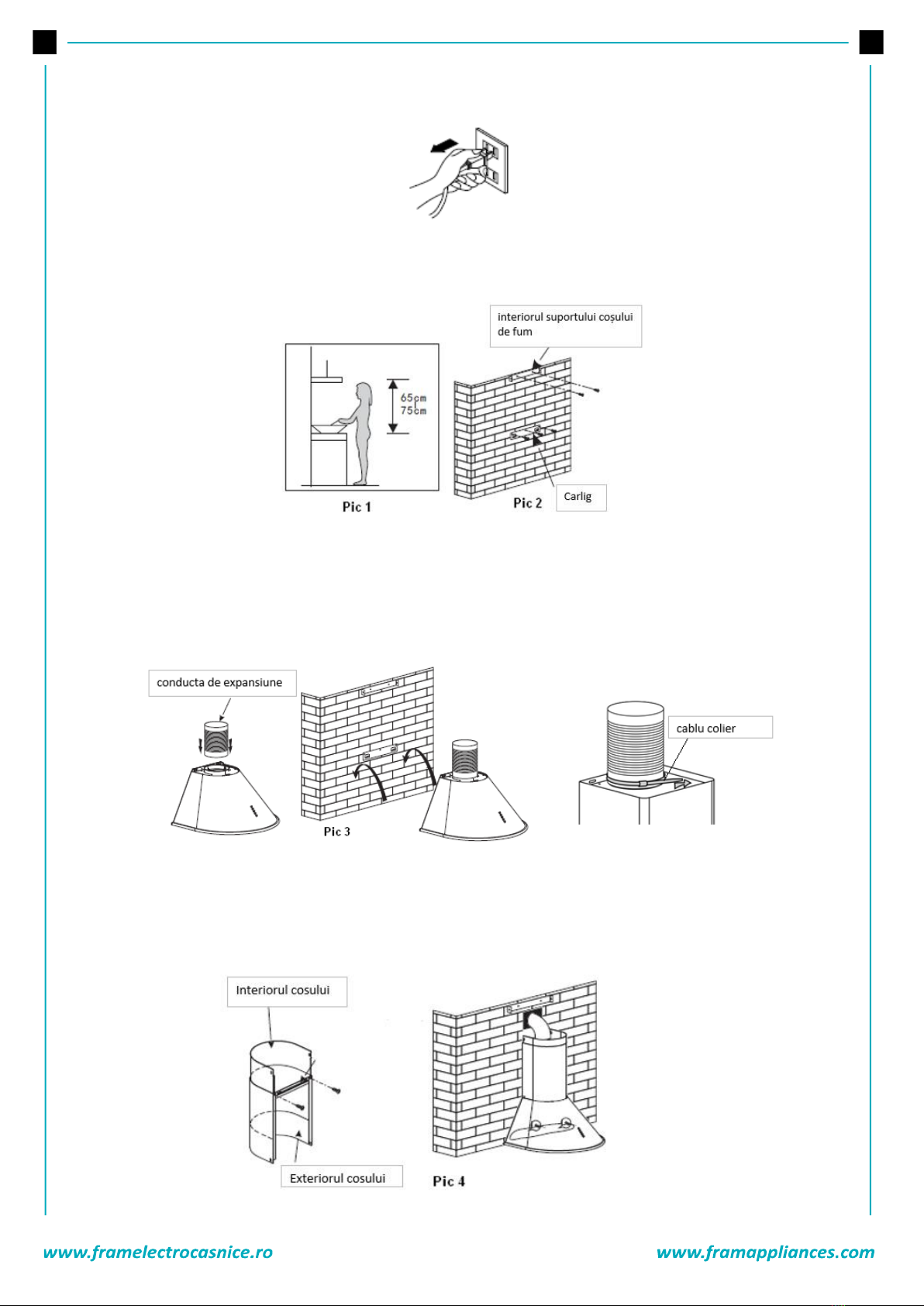

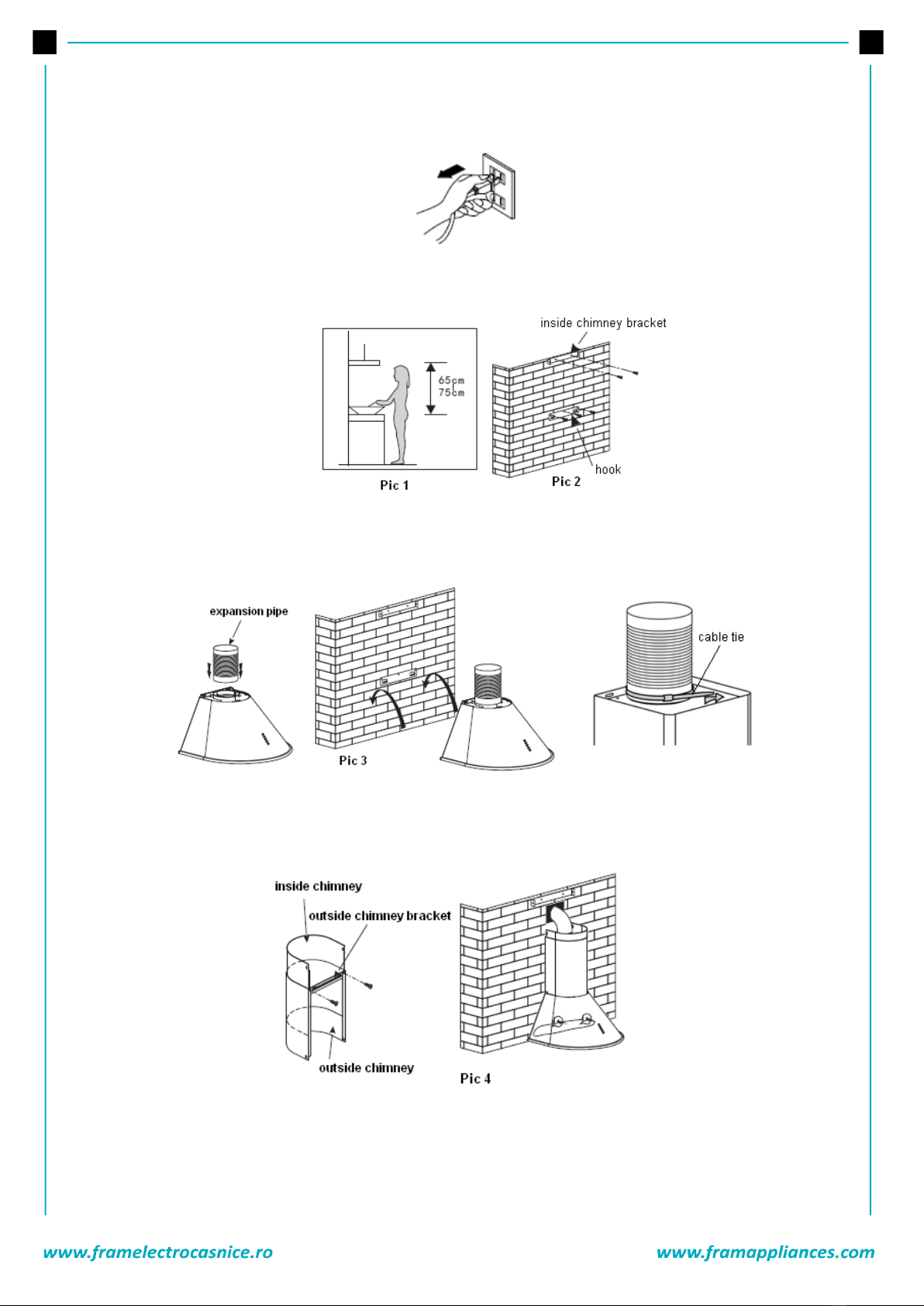

1. Before installation, turn the unit off and unplug it from the outlet.
2. The cooker hoods should be placed at a distance of 65-75cm from the cooking surface for best effect.

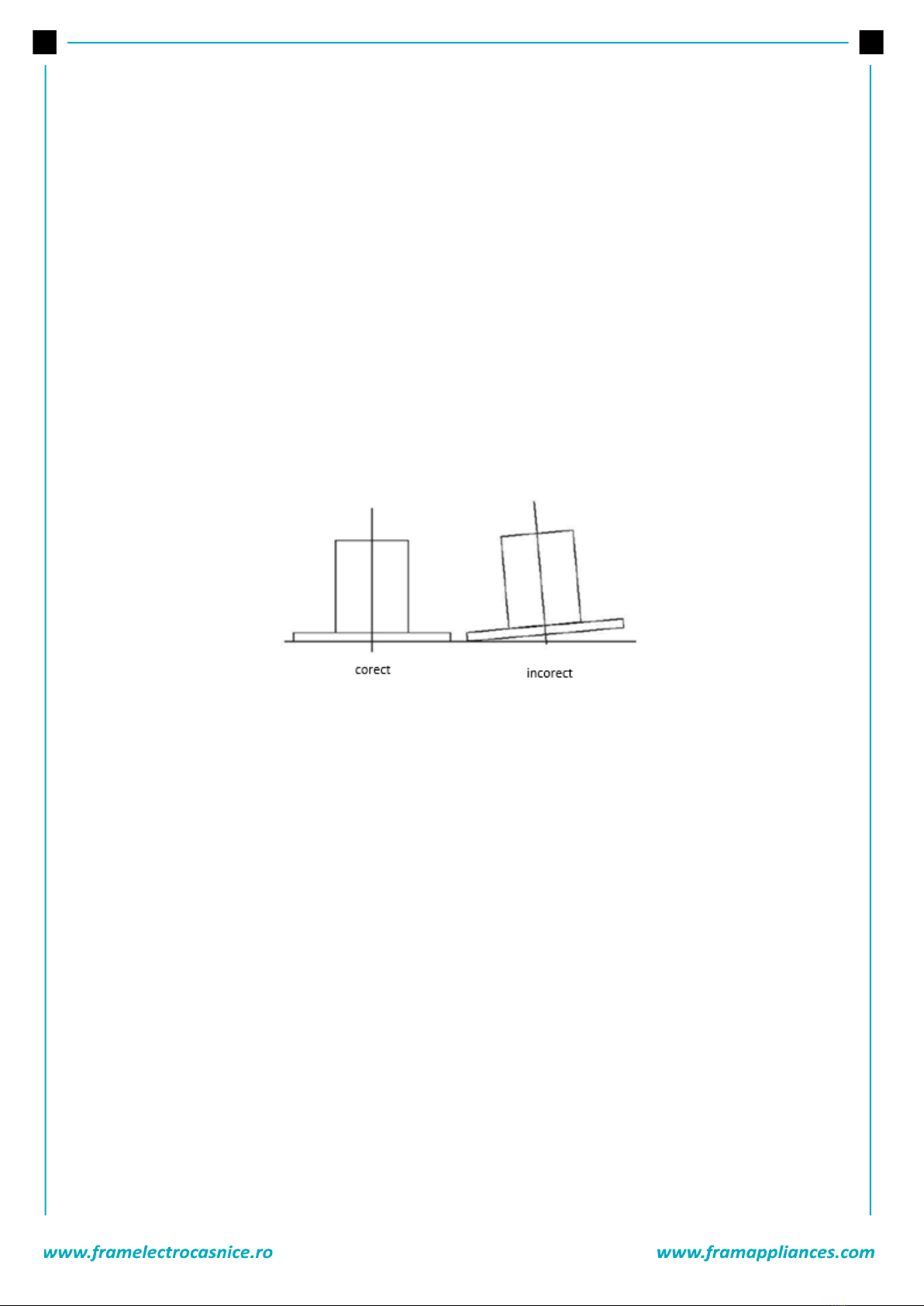

3. Install the hook on a suitable place once the installation height is fixed, and keep it in line. The fixed
position of the inside chimney bracket is the place of chimney. See pic 2.
4. Install the expansion pipe and fixed with a cable tie. Then put the cooker hood on the hook. See pic 3.
5. Fix the outside chimney bracket on the outside chimney and be sure that the inside chimney can be
adjusted the height in it freely. Afterwards, install the chimney on the cooker hood and lift up
expansion pipe till it out of the wall through the hole on the wall. See Pic 4.
6. Adjust the height of the inside chimney to the position of the inside chimney bracket and fix on it with
screws, meanwhile, fix the outside chimney on the cooker hood body by screws. After adjusting the
position, fix the body with safety screws. Note: The two safety vents are positioned on the back
housing, with a vdiameter of 6mm. See Pic 5.
