Framework FRANBPOOOO User manual

Framework™ Laptop Online User Manual
Model: FRANBP0000
Product: Framework Laptop
May 4th, 2021
Revision 2

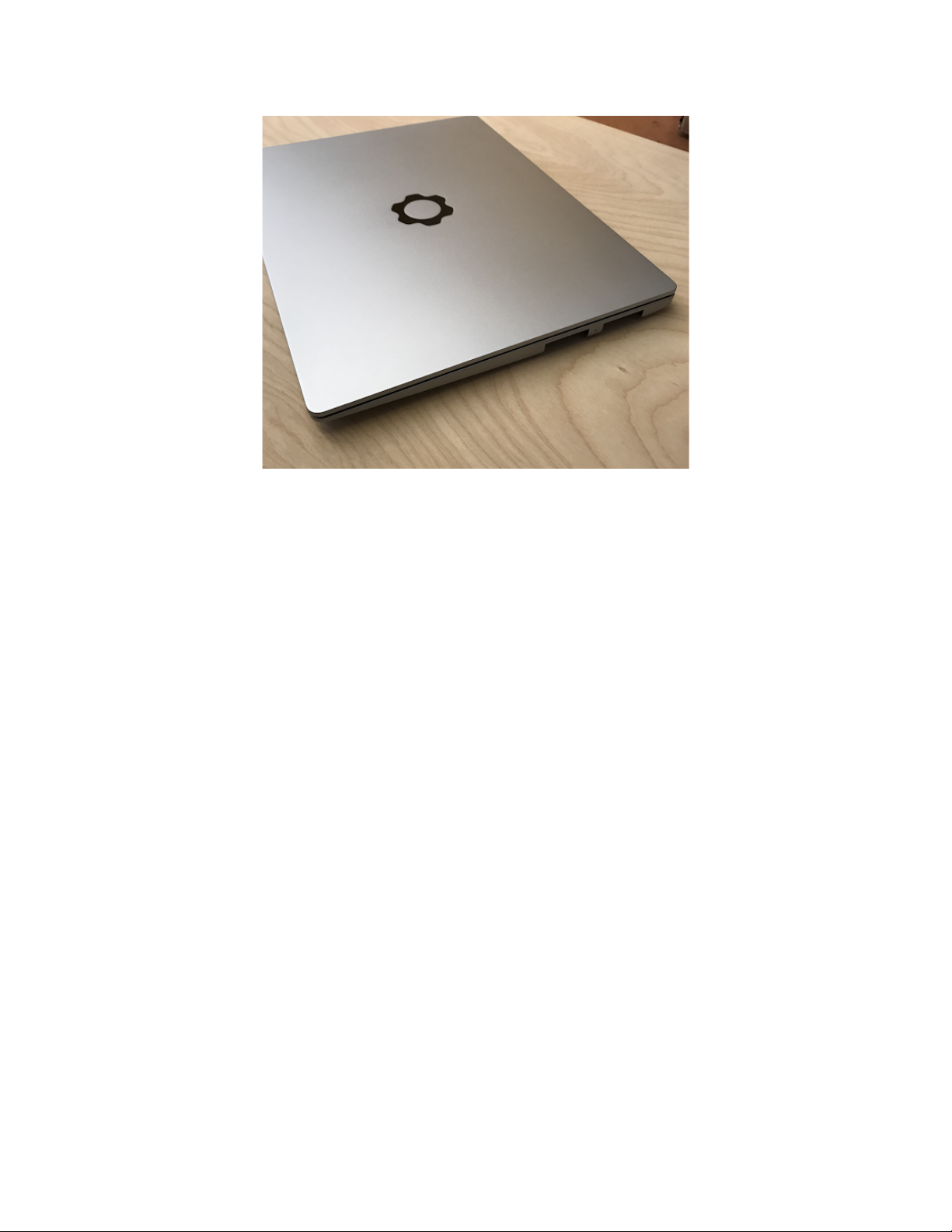

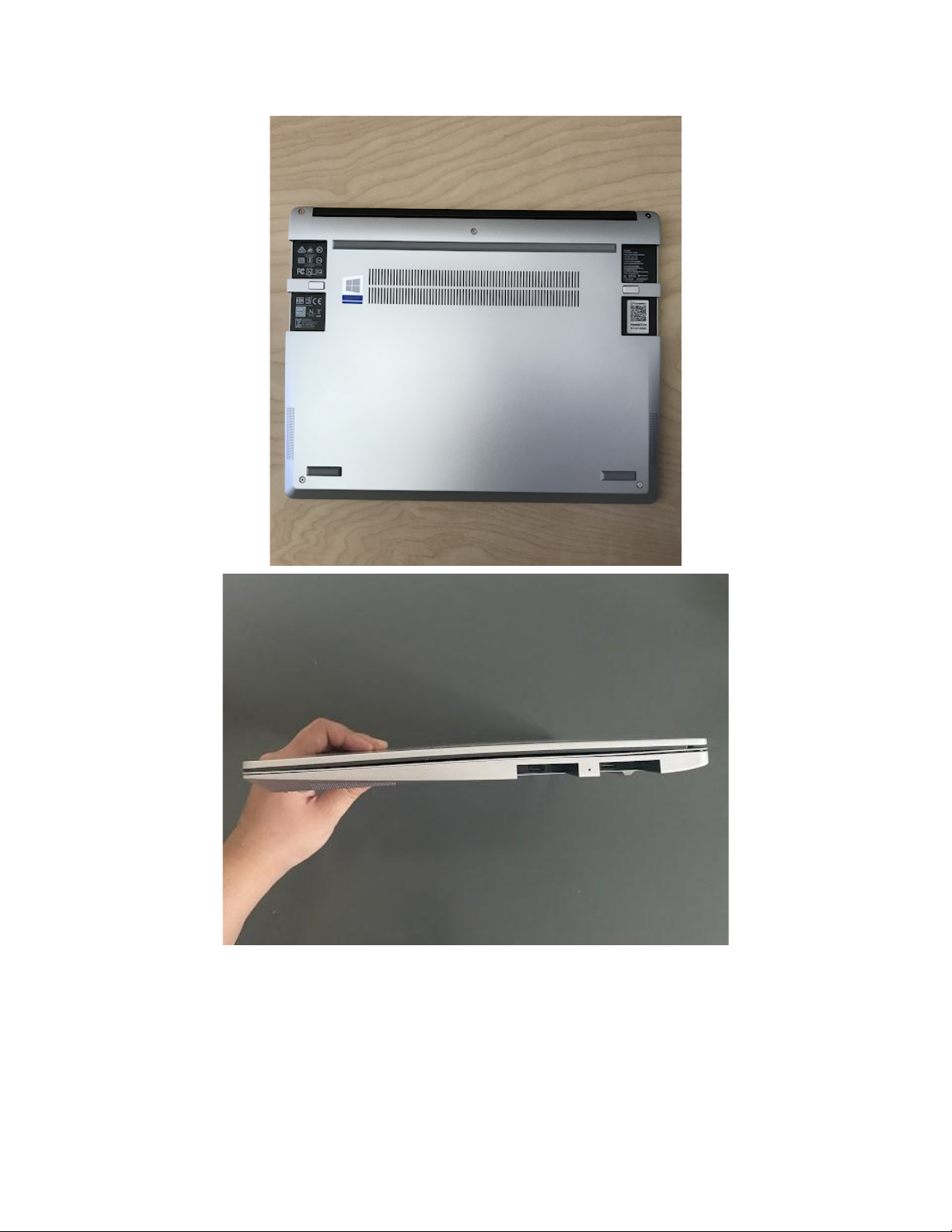

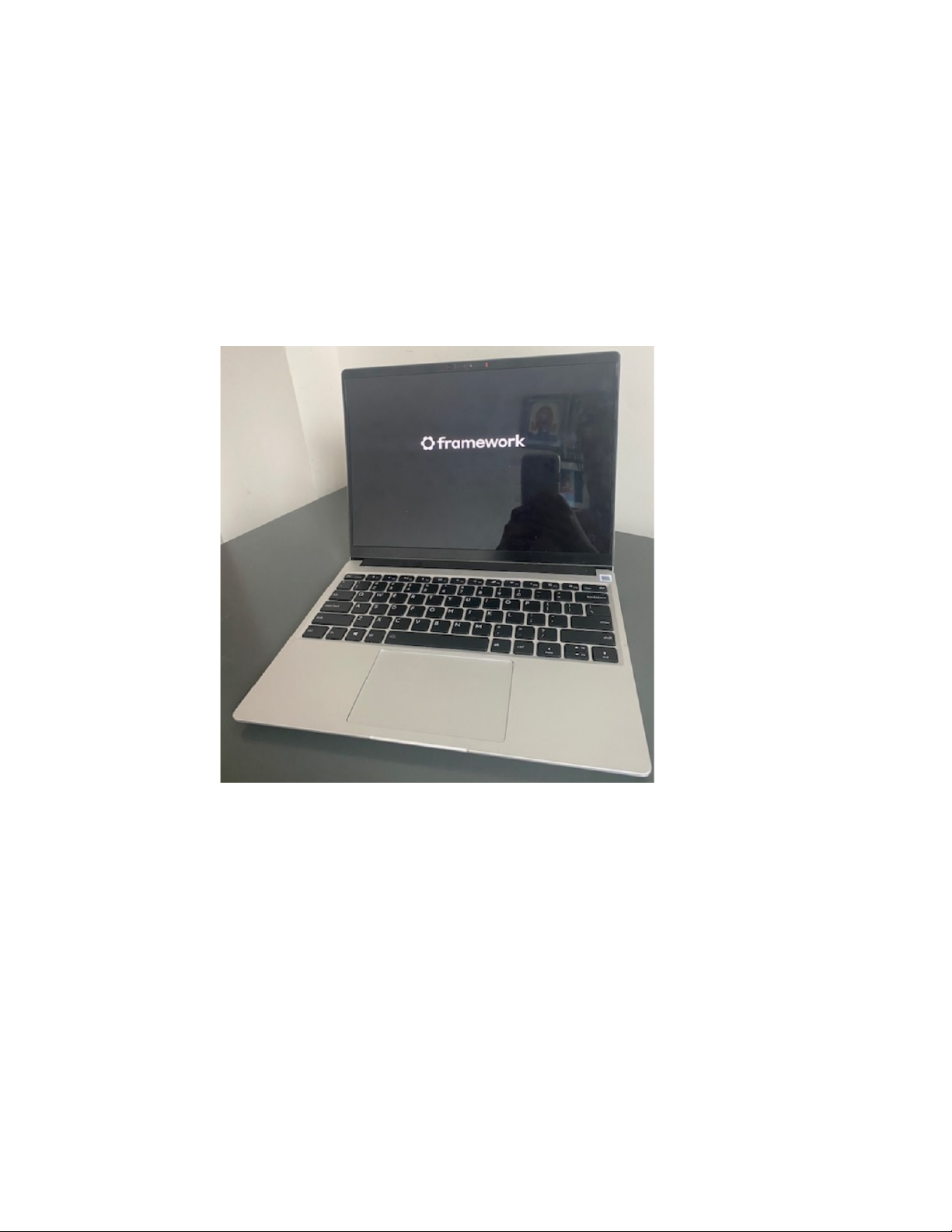

System Photos

Laptop Overview
Note: 1. Microphone 2. Camera 3. Finger Print Reader - A scanner used to identify a person's fingerprint for security
purposes. 4. Touchpad - The position of a user's fingers to a relative position 5. Type C - USB A 6. Type C - DP 7.
Type C - Micro SD 8. Type C - HDMI
Type C
Data Transfer Rate
480Mbps, 3.1Gbps, 20Gbps, 40Gbps
Display
Support Thunderbolt Display
Resolution
Up to 8K, 60Hz
When the laptop is in charging or discharging mode, one port is at 3A, while the other ports are 1.5/1.5/1.5A.
Important Safety and Handling Information
This section of the User Manual contains safety, handling, disposal, recycling, and regulatory information, as well as
the limited warranty for the Framework™ Laptop, including all current and future models of the FRANBP0000
series. Please read all safety information and operating instructions before using the Framework™ Laptop to avoid
injury or harm. For a downloadable version of the Framework™ Laptop support guide please visit the following
website.

https://frame.work/support
General Safety Guide
Read the following safety, operating, and warning instructions before you use Framework™ Laptop. Failing to do so
may cause injury.
WARNING: Choking Hazards
The Framework™ Laptop has small parts which may present a choking hazard to small children and pets. Keep the
Framework™ Laptop and its accessories away from small children.
WARNING: Rechargeable Lithium Ion Battery
Lithium polymer batteries are extremely hazardous and liable to cause serious injuries to persons or property. The
user accepts liability for the use of a lithium polymer battery. As the manufacturer and the distributor Framework
cannot ensure the battery is used correctly (charging, discharging, storage, etc.), Framework Computer Inc is not
liable for damages caused to persons or property by improperly used batteries.
In the event of battery leakage, avoid the liquid coming into contact with skin and eyes. In case of contact with the
skin, wash copiously with soap and water. In case of contact with the eyes, rinse copiously with cold water and
consult a doctor. If you notice a suspicious smell or noise, or observe smoke around the power adapter disconnect
it immediately.
Caution: The battery used in this device may present a risk of fire or chemical burn if mistreated. Do not
disassemble, heat above 45C (113F), or incinerate. Replace battery with model FRANBBAT01 or other
Framework-recommended batteries only. Use of another battery may present a risk of fire or explosion.
Do not use the Framework™ Laptop if its cover has been broken and the battery’s plastic or mylar cover has been
cracked or compromised in any way. Do not expose the battery to excessive physical shock. Do not expose the
Framework™ Laptop and its battery to heat or dispose of it in a fire. Do not put the battery in a microwave oven or
in a pressurized container. Do not attempt to dismantle, pierce, distort, or cut the battery and do not attempt to
repair the battery. Keep away from children.
Caution: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to
the battery disposal instructions below.
WARNING: Coin Cell Battery
This products coin-cell battery may contain perchlorate and may require special handling when recycled or
disposed of. For more information, see www.dtsc.ca.gov/hazardouswaste/perchlorate.Do not ingest battery,
Chemical Burn Hazard. The Framework™ Laptop contains coin/button cell batteries. If the coin/button cell battery
is swallowed it can cause severe internal burns and can lead to death. Keep new and used batteries away from
children. After the internal parts have been installed, remember to replace all covers securely. If the coin/button
cell battery is not secure in the holder, stop using the product and keep away from children. If you think the
batteries may have been swallowed or placed inside any part of the body, seek immediate attention.

Note: If you replace a battery that uses the wrong type, there may be an explosion. Please follow the battery
disposal instructions below to dispose of the old battery.
WARNING: Button Battery
Button batteries for this product may contain perchlorates and may require special treatment during recovery or
disposal. For more information, see www.dtsc.ca.gov/hazardouswaste/perchlorate.
WARNING: ESD Shock
The Framework™ Laptop includes internal components that are sensitive to ESD. Improper use may result in
electrostatic shock to the user or minor to severe damage to the product. Please visit our support page for more
information in regards to operating and repairing the Framework™ Laptop properly to avoid ESD issues.
WARNING: Hearing Damage
To prevent possible hearing damage, do not listen at high volume levels for long periods.
WARNING: Prop 65
WARNING: This product can expose you to DINP (Di-iso-nonyl Phthalate) material, which is known to the
State of California to cause birth defects or other reproductive harm. For more information go to
www.P65Warnings.ca.gov.
Operating Guide: Temperature, Storage, Use, and Replacement
Operate and store the Framework™ Laptop in a place where the temperature is between 5C -35C (41F - 95F)
(operating) -25C- 45C (-13F - 113F) (storage). Low or high-temperature conditions might temporarily shorten
battery life or cause the Framework™ Laptop to temporarily stop working properly.
This equipment is not suitable for use in locations where children are likely to be present
Do not place the portable computer directly on the user's lap and exposed skin. Avoid using your portable
computer with the base resting directly on the skin. The surface temperature may rise during normal operation.
Sustained contact with exposed skin may cause discomfort or burn.

Do not operate the Framework™ Laptop without all of the removable components installed. Operation must
include all components.
Please follow the below safety instructions in order to safely replace all of the Framework™ Laptops
interchangeable components.
1. Remove your laptop from all power sources by unplugging your AC adapter from your power outlet
2. Turn your computer off
3. Wait until your laptop is completely cool to the touch to open or remove any internal components (This
can take anywhere from 5 - 30 minutes).
Caution - if you do not wait for the laptop to cool down you may risk the chance of encountering hot
components which may result in a potential burn risk.
Powering Framework™ Laptop Back On
1. Before restarting the Framework™ Laptop users must ensure that all screws are in place and tightened
both internally and externally. The user must also ensure that all of the interchangeable components
must be in their original locations. Note. Please pay particular attention that the C cover is aligned and
all screws are tightened.
2. For instructions on the reassembly of the Framework™ Laptop - please refer to the replacement
instructions in the reverse order.
Operating Guide: Charging
Examine the power adapter regularly for damage to the cord, plug, enclosure, or other parts. Never use a damaged
power adapter cord. Use only certified power adapter cords for charging. Misuse can cause electrical shock.
Never charge a leaky battery or one that has been damaged. Do not use the Framework™ Laptop to charge any
other battery than the compatible rechargeable battery.
Do not cover your product while the battery is charging. Recharge the battery at a temperature of between 5C -35C
(41F - 95F) (operating).
Do not use the Framework™ Laptop if its cover has been broken and the battery’s plastic or mylar cover has been
cracked or compromised in any way.
The socket-outlet shall be installed near the equipment and shall be easily accessible.
Framework Computer Inc Limited Warranty
By using your Framework Computer Inc ("Framework") product, you agree to be bound by the terms of the
Framework Limited Warranty ("Warranty") at http://frame.work/support/warranty
If you do not agree to the terms of the Warranty, please return the Product within the return period stated in
Framework's Terms of Sale.

Framework™ Laptop Technical and Certification Information
Laptop Technical Information
Component
Base
Performance
Professional
Model
FRANBP0000
FRANBP0000
FRANBP0000
Processor I/Os
Intel® Core Processor
i5-1135G7 (8M Cache,
up to 4.20 GHz)
Intel® Core Processor
i7-1165G7 (12M Cache,
up to 4.70 GHz)
Intel® Core Processor
i7-1185G7 (12M Cache,
up to 4.80 GHz)
Graphics
Iris Xe Graphics
Iris Xe Graphics
Iris Xe Graphics
Memory
8GB DDR4-3200
(1x8GB)
16GB DDR4-3200
(2x8GB)
32GB DDR4-3200
(2x16GB)
Storage
256GB NVMe SSD
512GB NVMe SSD
1TB NVMe SSD
Connectivity
WiFi 6, Bluetooth 5.2
WiFi 6, Bluetooth 5.2
WiFi 6 with vPro,
Bluetooth 5.2
OS
Windows 10 Home
Windows 10 Home
Windows 10 Pro
Display
13.5” 2256x1504
13.5” 2256x1504
13.5” 2256x1504
Battery
55Wh
55Wh
55Wh
Ports
4x User-selectable
Expansion Cards
4x User-selectable
Expansion Cards
4x User-selectable
Expansion Cards
Camera
1080p 60fps
1080p 60fps
1080p 60fps
Biometrics
Fingerprint Reader
Fingerprint Reader
Fingerprint Reader
Dimensions
296.63mm x 228.98mm
x 15.85mm
296.63mm x 228.98mm
x 15.85mm
296.63mm x 228.98mm
x 15.85mm
Weight
1.3kg
1.3kg
1.3kg
Power Adapter
60W USB-C
60W USB-C
60W USB-C
Warranty
1 Year Limited
1 Year Limited
1 Year Limited
Laptop Certification Information

PASS/FAIL
EU
CE
PASS/FAIL
United States
FCC
PASS/FAIL
RCM
PASS/FAIL
Japan
VCCI
PASS/FAIL
EN301489
PASS/FAIL
EN62311
PASS/FAIL
Aus/NZ
Aus/NZ MEPS
PASS/FAIL
Australia/NZ
CTICK
PASS/FAIL
South Korea
MSIP
PASS/FAIL
South Korea
KCC
EMC Declarations of Conformity
EMC Emissions Class refers to one of the following use environments:
EMC Class B products are intended for use in residential/domestic environments but may also be used in
non-residential/non-domestic environments.
PASS/FAIL
USA
FCC WLAN body SAR
PASS/FAIL
USA
WLAN TCB review
PASS/FAIL
USA
WLAN C2PC RSE
PASS/FAIL
CANADA
WLAN FCB review
PASS/FAIL
CANADA
WWAN FCB review
PASS/FAIL
MEXICO
IFETEL
PASS/FAIL
GERMANY
RED/TEC review
PASS/FAIL
JAPAN
MIC
PASS/FAIL
AUSTRALIA
AS 4268
PASS/FAIL
AUSTRALIA
ACMA
PASS/FAIL
TAIWAN
(Is this NCC?) Conducted power + WWAN
submission
PASS/FAIL
NEW ZEALAND
ACMA
PASS/FAIL
SINGAPORE
iMDA

RF Classification
RF OUTPUT
Model
Number:
Max Output Power:
dBuA/m
CLASSIFICATION
LAPTOP
FRANBP0000
System
MAINBOARD
FRANFG0000
Peripheral
KEYBOARD
FRANBK0000
Peripheral
TOUCHPAD
Peripheral
CAMERA
Peripheral
SPEAKER
Peripheral
DISPLAY
Peripheral
EXPANSION CARD_HDMI
Peripheral
EXPANSION CARD_USBC
Peripheral
EXPANSION CARD_USBA
Peripheral
EXPANSION CARD_SSD
Peripheral
EXPANSION CARD_MICRO SD
Peripheral
NOTE: All of the items categorized as peripheral have been certified as Unintentional Radiators and comply with 47
CFR § 15. Transmit Frequency: BLE 4.0 (2402MHz – 2480MHz) Wireless Charging (125kHz) Maximum RF Output Power
of (Framework/Model Number): 0±1dBm
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
Environmental Certification
PASS/FAIL
USA
ENERGY STAR
PASS/FAIL
USA
CEC MEPS
PASS/FAIL
USA
CEC BCS/ DOE BCS/ NRCan BCS
PASS/FAIL
Canada
*NRCan BCS
PASS/FAIL
Mexico
ErP lot3 or 6/26
PASS/FAIL
South Korea
e-standby (KES)
PASS/FAIL
AUS/NZ
AUS/NZ MEPS

PASS/FAIL
Taiwan
GREEN MARK
Safety Certification
PASS/FAIL
Global
CB
PASS/FAIL
USA
NRTL/UL
PASS/FAIL
Mexico
NOM
PASS/FAIL
Germany
GS Mark
PASS/FAIL
South Korea
KC
PASS/FAIL
Taiwan
BMSI
Framework™ Laptop Declaration of Conformity
This product has been determined to be compliant with the applicable standards, regulations, and directives for
the countries where the product is marketed. The product is affixed with regulatory marking and text as necessary
for the country/agency. All certifications pertain to Model Number: FRANBP0000
European Union
Hereby, Framework Computer Inc declares that Framework Laptop , FRANBP0000 is in compliance with the essential
requirements and other relevant provisions of Radio Equipment Directives: 2014/53/EU, RoHS Directive 2011/65/EU, Ecodesign
Directive 2009/125/EC
The following Safety and Health standards have been applied:
Article 3.1a: EN IEC 62368-1:2020+A11:2020 and EN 50566:2017
Article 3.1a: EN 301 489-1 V2.2.3 and EN 301 489-17 V 3.2.4
Other Tests: IEC 60950-1, European Norm EN 60950-1, EMC - CISPR 32/CISPR 35, EN55032/55035, Regulation (EC) No.
1275/2008, EN 50564:2011, IEC 62301:2011, EN50581:2012, IEC 63000:2018, REACH
The EC Declaration of Conformity can be referenced at the below link: https://frame.work/support
United States

FCC ID: 2AZR6_FRANBBAT16
This device complies with FCC CFR Title 47, Part 15, Subpart B, Class B of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference.
Canada
IC ID:27217_FRANBBAT16
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Mexico
Fábrica: Compal Electronics Inc. Pingzhen
Planta de producción: No. 8-1 & No. 8, Nandong Rd., Phingzhen Dist., Taoyuan City 324, Taiwan
Modelo:
FRANBP0000
Voltaje de alimentación:
110-240 VAC
Frecuencia:
50-60hz
Consumo de corriente de entrada:
1.5A
Consumo de corriente de salida:
3A
Voltaje de salida:
5V-20V
Taiwan
BSMI

Accessory Technical and Certification Information
Power Cord Technical Information
Laptop Model Number
FRANBP0000
Adapter Model Number
FRANCEPH0F, FRANCEPH0Q,
FRANCEPH0Z, FRANCEPH0T,
FRANCEPH0G
Input Voltage
110-240 VAC

Output Voltage
5V-20V
PPS support
Input Current (Maximum)
1.5A
Input Frequency
50-60hz
Rated Output Current (Maximum)
3A
Maximum Power
60W
Up to 65W also acceptable
No load power
<0.15W
CoC Tier 2
Protocol
USB PD 3.0
Output current
3A
Output receptacle
USB-C
Input receptacle
IEC C6
non-polarized
AC cable length
1.0m
Switcher
INN3379C-H302
Or other high efficiency switcher
PD Controller
WT6635P
Or other USB-PD 3.0 PPS controller
Dimensions
<61x61x27mm
Keeping square X/Y when reducing
dimensions
Operating Lifetime
5 years
25C ambient, 80% load
Power Cord Certification Information
PASS
USA, CANADA
UL+CB
via UL
1. UL 60950-1, 2nd Edition ,CAN/CSA C22.2 No. 60950-1-07, 2nd Edition
2. UL 62368-1, 2nd Edition, CAN/CSA C22.2 No. 62368-1-14, 2nd Edition
3. IEC 60950-1:2005 (Second Edition) + Am 1:2009 + Am 2:2013
4. IEC 62368-1:2014 (Second Edition)
PASS
USA, CANADA
FCC +
ICES
1. 47 CFR FCC Part 15, Subpart B, Class B
2. ICES-003,Issue 6, Class B
PASS
MEXICO
NOM
1. NOM-001
2. NOM-029
PASS
USA
NRCAN,
CEC,
DOE
1. US DOE: Office of Energy Efficiency and Renewable Energy 10 CFR Parts
429 and 430
2. US CEC: California Code of Regulations, Title 20, Division 2, Chapter 4,
Article 4. Appliance Efficiency Regulations, Sections 1601 through 1609
PASS
EUROPE
NRCAN
1. Amendment 14 to the Energy Efficiency Regulations for External Power
Supplies in the Canada Gazette, Part II
PASS
Australia
1. Quebec: O.C.1394-2018 in GAZETTE OFFICIELLE DU QUEBEC, December
12, 2018, Vol. 150, No.50
PASS
Australia/NEW ZEALAND
GEMS
1. AS/NZS4665.1-2005+A1:2009
2. AS/NZS4665.2-2005+A1:2009
PASS
Australia
GEMS
1. EU COMMISSION REGULATION(EU) 2019/1782 of 1 October 2019

PASS
Australia
1. EU: Code of Conduct on Energy Efficiency of External Power Supplies
Version 5
PASS
UK,Germany,France,Italy,Spain,
Netherland,Belgium,Austria.Irel
and.Sweden,Poland,Switzerlan
d,Denmark,Norway,Finland,Cze
ch,Bulgaria,Croatia,Hungary,Ro
mania,Slovakia,Slovenia
CE EMC
1. EN 55032:2015+AC:2016, Class B +EN
2. 55024:2010 +A1:2015 + EN55035:2017+EN 301489-1
PASS
CE LVD
(CB)
1. EN 62368-1:2014 + A11:2017
PASS
Australia/NEW ZEALAND
1. AS/NZS CISPR 32
2. AS/NZS 62368.1
PASS
Taiwan
BSMI
1. CNS13438(95年版)
2. CNS14336-1(99年版)
3. CNS15663(102年版)
PASS
Singapore
PSB
1. IEC 62368-1:2014 (Second Edition)
PASS
South Korea
KCC+KC
＋
K-MEPS
via KTC
1. K60950-1
2. KN32,KN35
Framework’s products are provided with the power cord and user documentation suitable for the intended
country of delivery. Products that are relocated to other countries should use nationally certified power cords and
plugs to ensure safe operation of the product. Contact Framework to determine if alternate power cords or user
documentation in other languages is available for your market.
Battery Technical Information
Framework Model Number
Description
Type
Battery Weight (Kg)
FRANBB0000
55Wh
Rechargeable Lithium Ion
<10Kg
Battery Certification Information
PASS
Global
UN38.8
1. UN Recommendations on transport of
dangerous goods. Manual of tests and Criteria
ST/SG/AC.10/11/Rev. 6/Amend.1 38.3
PASS
Global
UL2054
USR, CNR - UL2054+UL/CSA62368
PASS
Global
UL1642
USR – UL 1642 Investigation for Secondary, lithium-ion
cell
PASS
Global
PI965
1. IATA Dangerous Goods Regulation (61st
Edition)
2. IATA Dangerous Goods Regulation (62nd
Edition)
3. IMO International Maritime Dangerous Goods
Code (2018)

PASS
EU
Battery Directive
EU directive 2006/66/EC and its amendment
PASS
USA
REACH
Regulation (EC) No 1907/2006
PASS
Taiwan
BSMI
CNS 15364 (102)
PASS
Canada
CB-IEC
1. IEC 62133-2:2017
2. IEC 62368-1:2014
PASS
CTIA-IEE1625
Has this been Completed?
PASS
UL1642
UL2054
PASS
ROHS + HF
1. 2011/65/EU
2. (EU) 2015/863
3. RoHS Directive 2011/65/EU with amendment
(EU) 2015/863
4. IEC 62321-3-1:2013
5. EN 14582:2016
PASS
Korea
KC
KC62133-2(2020-07)
PASS
Japan
PSE
Has this been completed?
PASS
Electromagnetic Compatibility
Directive (EMC) 2014/30/EU.
1. EN 55032:2015 + A11:2020
2. EN 55035:2017
3. EN 55024:2010 +A1:2015
PASS
Australia
RCM
4. EN 55032:2015
5. A11:2020
Expansion Card Technical Information
HDMI
SSD 250G
SSD 1T
MICRO SD
USB-A
USB-C
Expansion Card Certification Information- Needs to be updated per Bizlinks test results
Status:
Region
Test
Test Specification
PASS
Example: USA
BSMI

PASS
PASS
PASS
DATASHEET RESPONSIBLE PARTY NAME AND ADDRESS
Responsible Party
Address:
Website
Framework Computer Inc
1870 Odgen Dr, Burlingame, CA
94010, USA, [phone]
https://frame.work
End of Life Product Disposal
At the end of this product’s life, do not dispose of this product in your general household waste. Instead, in order to
prevent possible harm to the environment or human health from uncontrolled waste disposal, please dispose of
this product separately in accordance with your local laws and regulations.
For more information on the separate collection systems for waste electrical and electronic equipment that are
available for consumers near your home free of charge, please contact your local municipality. You can also contact
the retailer from which you purchased your Framework <Product Name> as they may have recycling services or
may be part of a specific recycling program.
If disposed of properly, this product will be treated in an environmentally sound manner at a licensed recycling
plant and its components will be recovered, recycled or reused in the most efficient manner in compliance with the
requirements of the Directive on Waste Electrical and Electronic Equipment (2012/19/EU) of 14 February, 2014 (as
subsequently amended or replaced) (“2012/19/EU”).
Battery Disposal
Damaged or unusable batteries must be disposed of in a container specially reserved for this purpose. When
disposing of the battery, follow appropriate local guidelines and regulations. For further information, contact your
local solid waste authority.
WEEE

The trash can symbol on the Framework Laptop or on its packaging indicates that it must not be disposed of with
your other household waste, pursuant to 2012/19/EU. Instead, it is your responsibility to dispose of your waste
equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic
equipment. The separate collection and recycling of your waste equipment at the time of disposal will help to
conserve natural resources and ensure that it is recycled in a manner that protects human health and the
environment. For more information about where you can drop off your waste equipment for recycling, please
contact your local city office, your household waste disposal service, or the shop where you purchased the product.
Use of Logos and Trademarks
Bluetooth
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such
marks by Framework is under license.
Copyright
Copyright © 2021 Framework Computer Inc. All Rights Reserved.
The total or even partial reproduction, transmission or storage of this guide in any form or by any process whatsoever
(electronic, mechanical, photocopy, recording, or otherwise) is strictly prohibited without prior consent from Framework
Computer Inc.
Registered Trademarks
All trademarks mentioned in this guide are the property of their respective owners.
