Freespirit 920 S EKG User manual

USER'S MANUAL
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Serial
Number
Decal
Model No. 831.30681
Serial No.
www.sears.ca
Visit our website at
If you are MISSING PARTS or
require INFORMATION on how
to operate this product, call
1
-
888
-
936
-
ICON
(1-888-936-4266).
To schedule REPAIR SERVICE
or to purchase parts,
call SEARS toll-free at:
1-800-4-MY-HOME®
(1-800-469-4663)
24 hours a day, 7 days week.

2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
HOW TO OPERATE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
1. Read all instructions in this manual before
using the exercise cycle.
2. It is the responsibility of the owner to ensure
that all users of the exercise cycle are ade-
quately informed of all precautions. Use the
exercise cycle only as described in this manual.
3. Use the exercise cycle indoors on a level sur-
face. Keep the exercise cycle away from
moisture and dust. Place a mat under the
exercise cycle to protect the floor.
4. Inspect and properly tighten all parts regular-
ly. Replace any worn parts immediately.
5. Keep children under the age of 12 and pets
away from the exercise cycle at all times.
6. Wear appropriate clothing when exercising;
do not wear loose clothing that could become
caught on the exercise cycle. Always wear
athletic shoes for foot protection.
7. The exercise cycle should not be used by
persons weighing more than 115 kg (250 lbs.).
8. Always keep your back straight when using
the exercise cycle; do not arch your back.
9. If you feel pain or dizziness while exercising,
stop immediately and cool down.
10.The exercise cycle does not have a freewheel;
the pedals will continue to move until the fly-
wheel stops.
11.The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
12.The exercise cycle is intended for home use
only. Do not use the exercise cycle in
a commercial, rental, or institutional setting.
WARNING:Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. SEARS assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
IMPORTANT PRECAUTIONS
WARNING:To reduce the risk of serious injury, read the following important precau-
tions before using the exercise cycle.

3
Congratulations for selecting the new FreeSpirit®920
S EKG exercise cycle. Cycling is one of the most
effective exercises for increasing cardiovascular fit-
ness, building endurance, and toning the entire body.
The FreeSpirit®920 S EKG offers an impressive array
of features to let you enjoy this healthful exercise in
the convenience and privacy of your home.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
after reading this manual, please call our manufac-
ture’s Customer Service Department toll-free at
1-888-936-4266, Monday through Friday 8h00 until
18h30 eastern time (excluding holidays). To help us
assist you, please note the product model number and
serial number before calling. The model number is
831.30681. The serial number can be found on a
decal attached to the exercise cycle (see the front
cover of this manual).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Water Bottle Holder*
*No water bottle
is included
Handgrip Pulse Sensor
REAR
FRONT
Seat
Adjustment Knob Adjustment Knob
Pedal/Strap
Wheel
Console
Bookrack
Handlebar
Adjustment Knob
LEFT SIDE
BEFORE YOU BEGIN

4
ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench and Phillips screw-
driver .
Use the part drawings below to identify the small parts used in assembly. The number in parenthesis below
each drawing refers to the key number of the part, from the PART LIST on page 22. The second number refers
to the quantity needed for assembly. Note: Some small parts may have been pre-attached for shipping. If a
part is not in the parts bag, check to see if it has been pre-attached.
M10 x 112mm Carriage Bolt (65)–4
M4 x 16mm
Screw (66)–1 M10 x 27mm Button
Screw (51)–3
M8 Nylon
Locknut (10)–4 M10 Black Nylon Locknut (63)–4 M8 Split Washer (70)–4 M10 Black Split Washer (50)–3
M6 x 25.4mm Button
Screw (33)–1

5
1. Identify the Front Stabilizer (2), which has Wheels (30)
on the ends. While another person lifts the front of the
Frame (1) slightly, attach the Front Stabilizer to the
Frame with two M10 x 112mm Carriage Bolts (65) and
two M10 Black Nylon Locknuts (63). Make sure that
the Front Stabilizer is turned so the Wheels are not
touching the floor.
2
63
30
30
65
1
1
2. While another person lifts the back of the Frame (1)
slightly, attach the Rear Stabilizer (3) to the Frame with
two M10 x 112mm Carriage Bolts (65) and two M10
Black Nylon Locknuts (63).
65
3
1
3
13
28
36
Slot Rod
35
33
1
3. While another person holds the Upright (13) in the
position shown, connect the Upper Wire Harness (36)
to the Lower Wire Harness (35). Carefully pull the
upper end of the Upper Wire Harness to remove
any slack from the Wire Harnesses; make sure that
the connectors do not catch on the indicated rod.
Turn the indicated Adjustment Knob (28) counterclock-
wise two or three turns to loosen it. Next, pull the Knob,
insert the Upright (13) into the Frame (1), and then
release the Knob. Be careful to avoid pinching the
Wire Harnesses (35, 36). Move the Upright up and
down slightly until the pin on the Knob snaps into
one of the holes in the Upright. Then, turn the Knob
clockwise until it is tight.
Tighten the M6 x 25.4mm Button Screw (33) into the
Frame (1) and into the slot in the side of the Upright
(13).
263
63
4. The Console (16) requires four 1,5 V (D) batteries (not
included); alkaline batteries are recommended. Press
the tab on the battery cover, and lift off the battery
cover. Insert four batteries into the battery compart-
ment. Make sure that the batteries are oriented as
shown by the markings inside the battery compart-
ment. Reattach the battery cover.
16
Tab
Batteries
Battery
Cover
4
Be careful to
avoid pinching
the Wire
Harnesses.

6
6. While another person holds the Console (16) in the
position shown, connect the wire harness on the
Console to the Upper Wire Harness (36). Insert the
excess wire harness into the Upright (13).
Attach the Console (16) to the Upright (13) with three
M10 x 27mm Button Screws (51) and three M10 Black
Split Washers (50). Be careful to avoid pinching the
wire harnesses.
Snap the bookrack onto the Console (16) where shown.
7. Turn the indicated Adjustment Knob (28) counterclock-
wise two or three turns to loosen it. Next, pull the Knob,
insert the Seat Post (5) into the Frame (1), and then
release the Knob. Move the Seat Post up and down
slightly until the pin on the Knob snaps into one of
the holes in the Seat Post. Then, turn the Knob clock-
wise until it is tight.
8. Attach the Seat (12) to the Seat Bracket (6) with four
M8 Nylon Locknuts (10) and four M8 Split Washers
(70). Note: The Nylon Locknuts and the Split Washers
may be pre-attached to the underside of the Seat.
Turn the Seat Adjustment Knob (9) counterclockwise
two or three turns to loosen it. Next, pull the Knob, slide
the Seat Bracket (6) into the top of the Seat Post (5),
and then release the Knob. Move the Seat Bracket
forward and backward slightly until the pin on the
Knob snaps into one of the holes in the Seat
Bracket. Then, turn the Knob clockwise until it is tight.
1
5
28
5. Connect the wire harness on the Handgrip Pulse
Sensor (15) to the indicated wire harness on the
Console (16). Insert both wire harnesses into the open-
ing in the bottom of the Console. Then, insert the metal
tube on the Handgrip Pulse Sensor into the opening in
the bottom of the console. Be careful not to pinch
the wire harnesses.
Refer to the inset drawing. Tighten an M4 x 16mm
Screw (66) into the indicated bracket on the Console
(16) and into the metal tube on the Handgrip Pulse
Sensor (15).
15
16
5
7
5
10
70
6
12
70
10
9
8
Metal Tube
15
16
66
Bracket
6
16
36 51
51
13
Wire Harness
Bookrack
50
50
51
Be careful
to avoid
pinching
the Wire
Harnesses.

7
10. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is
completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.

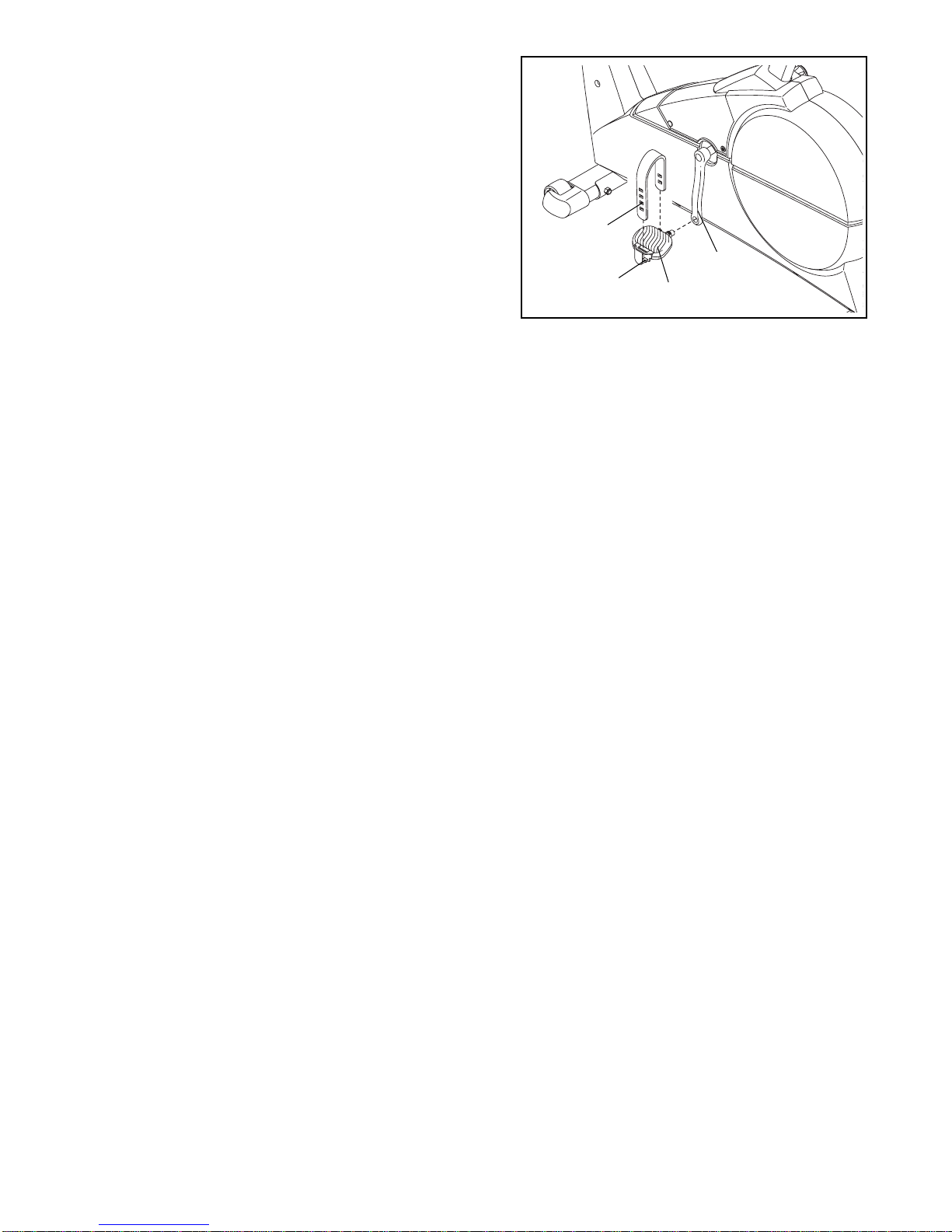

9. Identify the Left Pedal (24), which is marked with an
“L.” Using an adjustable wrench, firmly tighten the
Left Pedal counterclockwise into the Left Crank Arm
(42). Tighten the Right Pedal (not shown) clockwise
into the Right Crank Arm. Important: Tighten both
Pedals as firmly as possible. After using the
exercise cycle for one week, retighten the
Pedals. For best performance, the Pedals must
be kept tightened.
Adjust the Left Pedal Strap (25) to the desired posi-
tion, and press the end of the Pedal Strap onto the
tab on the Left Pedal (24). Adjust the Right Pedal
Strap (not shown) in the same way.
9
24
42
25
Tab

INSTALLING THE RECEIVER FOR THE OPTIONAL CHEST PULSE SENSOR
If you purchase the optional chest pulse sensor (refer to page 18), follow the steps below to install the receiver
and the short jumper wire included with the chest pulse sensor.
1. Remove the two short screws and the two long screws
from the back of the Console (16). Lift off the front of
the Console.
2. Plug the short jumper wire (A) into the indicated jack on
the Console (16). Connect the other end of the short
jumper wire to the wire on the receiver (B). Note: Any
other wires included with the chest pulse sensor can be
discarded.
Next, peel the paper off the adhesive pad on the back
of the receiver (B). Orient the receiver as shown, and
press it onto the Console (16) in the indicated location.
Refer to step 1 above. Reattach the front of the
Console (16) with the short and long screws. Make
sure that no wires are pinched.
8
B
16
Jack
16
Short
Screws
Long
Screws
Lift
Here
1
A
Cylinder
2

9
HOW TO OPERATE THE EXERCISE CYCLE
HOW TO ADJUST THE SEAT POST
For effective exer-
cise, the seat
should be at the
proper height. As
you pedal, there
should be a slight
bend in your knees
when the pedals
are in the lowest

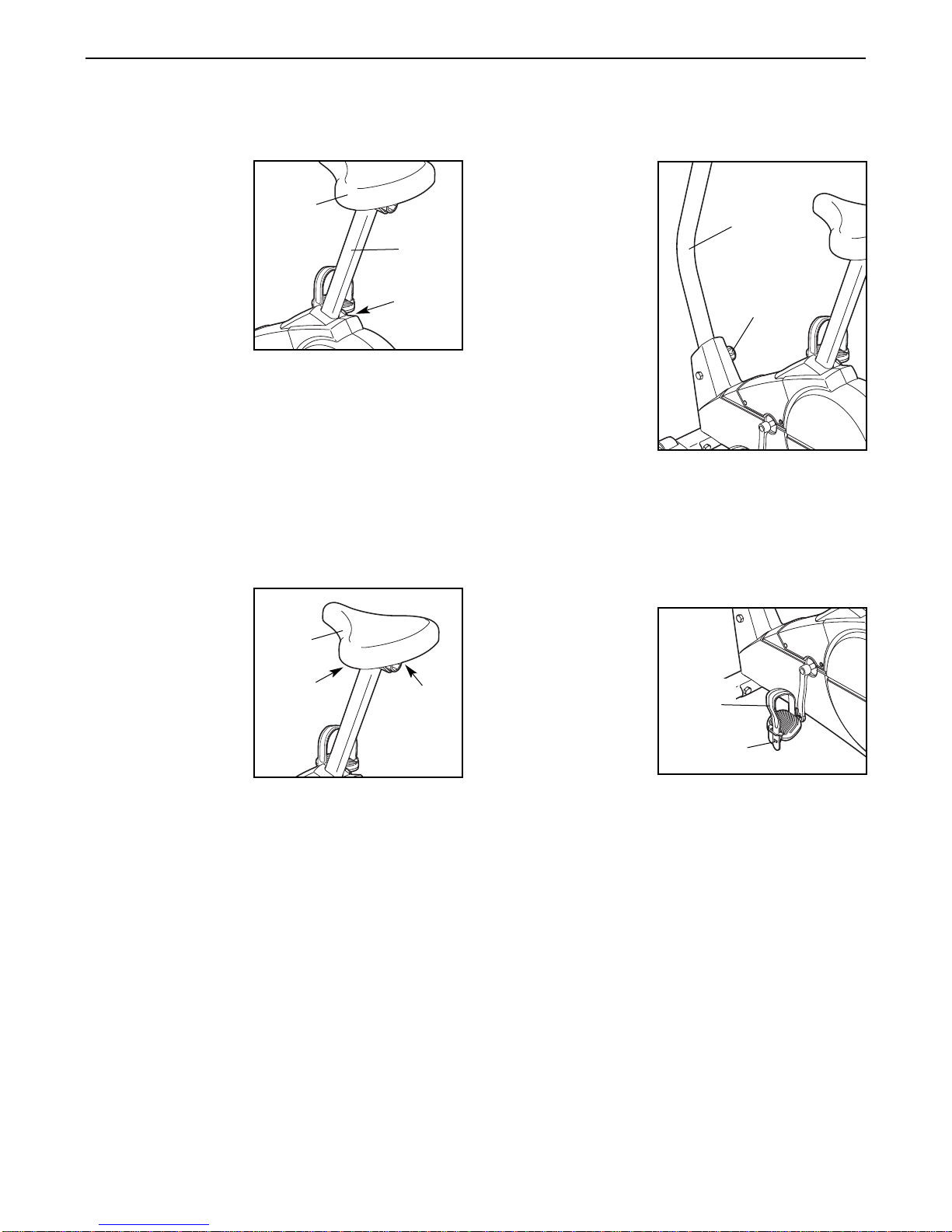

position. To adjust
the height of the
seat, first turn the
indicated knob counterclockwise two or three turns to
loosen it (if the knob is not loosened enough, it may
scratch the seat post). Next, pull the knob, slide the
seat post to the desired height, and then release the
knob. Move the seat post up and down slightly until
the pin on the knob snaps into one of the holes in
the seat post. Then, turn the knob clockwise until it is
tight.
HOW TO ADJUST THE SEAT
The seat can be
adjusted to the
position that is the
most comfortable
for you. Before
adjusting the seat,
dismount the
exercise cycle; do
not adjust the
seat while you are
sitting on it. To
adjust the seat, first
turn the indicated knob counterclockwise two or three
turns to loosen it (if the knob is not loosened enough, it
may scratch the seat bracket). Next, pull the knob,
slide the seat to the desired position, and then release
the knob. Move the seat bracket forward and back-
ward slightly until the pin on the knob snaps into
one of the holes in the seat bracket. Then, turn the
knob clockwise until it is tight.
HOW TO ADJUST THE UPRIGHT
The upright can be
adjusted to the
height that is the
most comfortable for
you. To adjust the
upright, first turn the
indicated knob
counterclockwise
two or three turns to
loosen it (if the knob
is not loosened
enough, it may
scratch the upright).
Next, pull the knob,
slide the upright to
the desired height,
and then release
the knob. Move the upright up and down slightly
until the pin on the knob snaps into one of the
holes in the upright. Then, turn the knob clockwise
until it is tight.
HOW TO ADJUST THE PEDAL STRAPS
To adjust the pedal
straps, first pull the
ends of the straps
off the tabs on the
pedals. Adjust the
straps to the
desired position,
and press the ends
of the straps back
onto the tabs.
Pedal
Strap
Tab
Upright
Knob
Seat
Post
Knob
Seat
Seat
Bracket
Seat
Knob

10
FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more enjoyable and
effective. When the manual mode of the console is
selected, the resistance of the crosstrainer can be
adjusted with a touch of a button. As you exercise, the
console will provide continuous exercise feedback.
You can even measure your heart rate using the built-
in handgrip pulse sensor. (For information about an
optional chest pulse sensor, refer to page 18.)
The console also offers eight Smart workout programs.
Each program automatically changes the resistance of
the crosstrainer and prompts you to increase or
decrease your pace as it guides you through an effec-
tive workout.

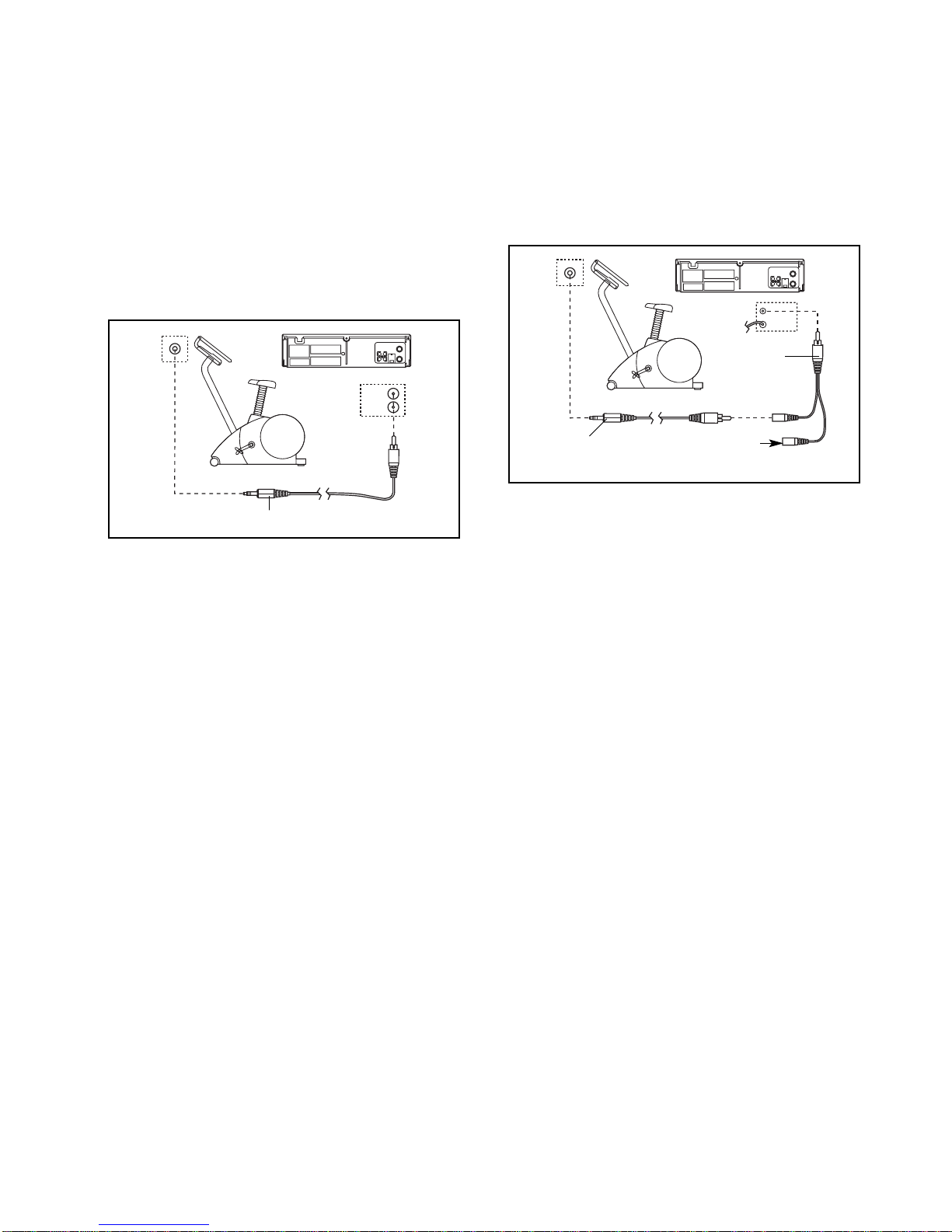

The console also features new iFIT.com interactive
technology. IFIT.com technology is like having a per-
sonal trainer right in your home. Using a stereo audio

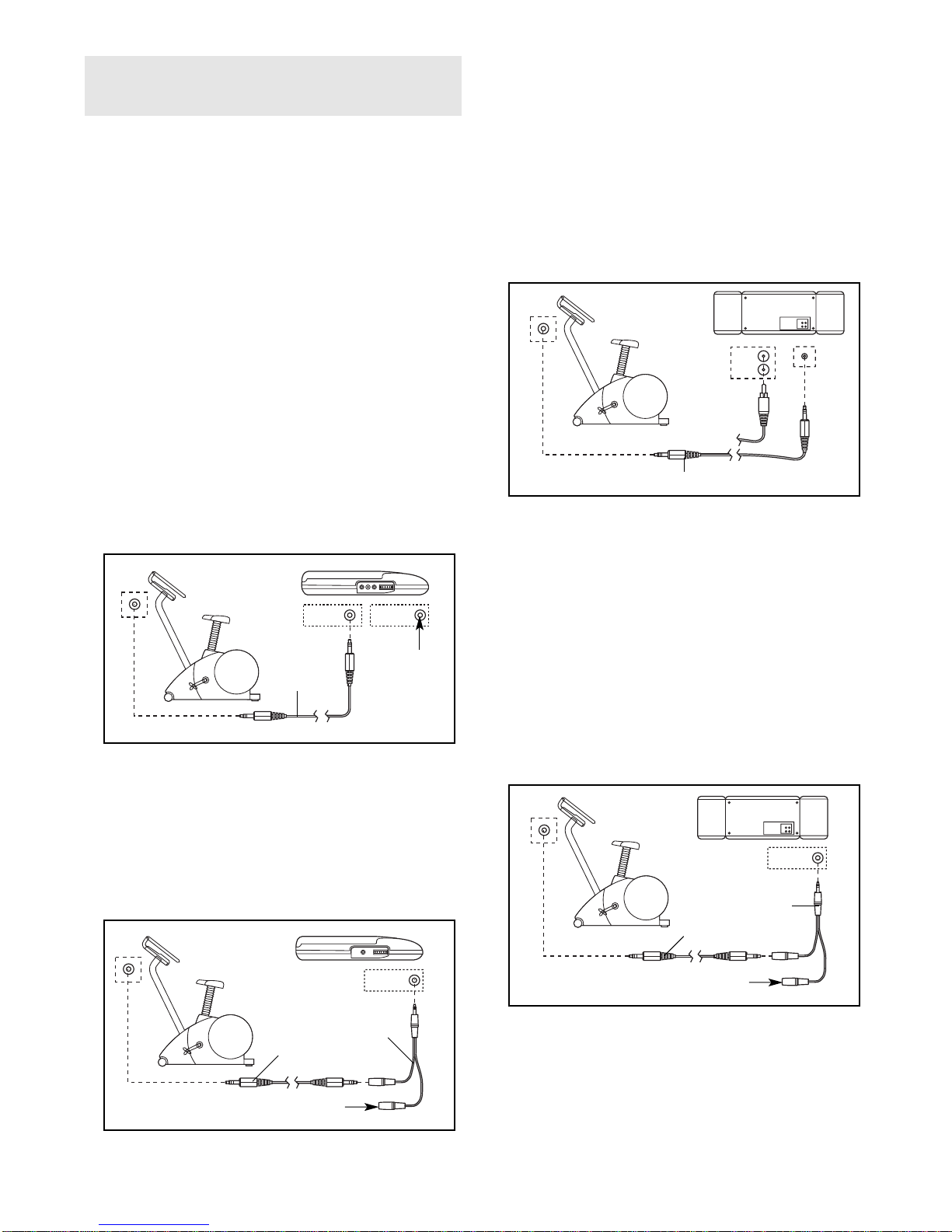

cable (available at electronics stores), you can connect
the crosstrainer to your home stereo, portable stereo,
or computer and play special iFIT.com CD programs
(CD’s are available separately). IFIT.com CD programs
automatically control the resistance of the crosstrainer
and prompt you to vary your pace as a personal train-
er coaches you through every step of your workout.
High-energy music provides added motivation. Each
CD features two programs designed by certified per-
sonal trainers.
In addition, you can connect the crosstrainer to your
VCR and TV and play iFIT.com video programs (video-
cassettes are available separately). Video programs
offer the same benefits as iFIT.com CD programs, but
add the excitement of working out with a class and an
instructor.
With the crosstrainer connected to your computer, you
can also go to our new Web site at www.iFIT.com and
access audio programs and video programs directly
from the internet.
To purchase iFIT.com CD’s and videocassettes,
call toll-free 1-888-936-4266.
E
GH
F
K
I
J
A B C D

11
CONSOLE DESCRIPTION
Refer to the drawing on page 10. Note: If there is a
thin sheet of clear plastic on the face of the con-
sole, remove it.
A. Exercise feedback display—This display features
seven modes that give you instant exercise feed-
back: your current speed, the elapsed time (or the
time remaining in a Smart program), the distance
that you have pedaled, the resistance level, the
approximate numbers of calories and fat calories
you have burned (see Fat Burning on page 19),
and your heart rate (when you use the handgrip
pulse sensor or the optional chest pulse sensor). If
the scan mode is selected, the display will change
from one mode to the next every six seconds. Or,
you can select a single mode for continuous display.
Note: The console can show speed and distance
in either miles or kilometers. To change the unit
of measurement, hold down the On/Reset button
for six seconds. The mode indicators (see E
below) will show which unit of measurement is
selected. When the batteries are replaced, it may
be necessary to reselect the desired unit of mea-
surement.
B. Increase and decrease arrows—During Smart pro-
grams and iFIT.com programs, these arrows will
prompt you to increase or decrease your pace to
match the target pace.
C. Manual mode/program indicators—When a Smart
program is selected, the upper right corner of the
display will show a 1, 2, 3, 4, 5, 6, 7, or 8, depend-
ing on which Smart program is selected. When the
iFIT.com mode is selected, the upper right corner
will show the letters IF. When the manual mode is
selected, the upper right corner will be blank.
D. Program profiles—These profiles show how the
resistance of the crosstrainer and the target pace
will change during Smart programs. For example,
profile number 6 shows that during Smart program
6, the resistance will gradually increase during the
first half of the program, and then gradually
decrease during the last half; the target pace will
alternately increase and decrease throughout the
program.
E. Feedback mode indicators—These indicators show
which feedback mode (scan, speed, time, distance,
resistance level, calories, fat calories, or heart rate)
is currently shown. Note: When the distance is
shown, the word Miles or the letters Kms will
appear; when your speed is shown, the letters MPH
or Km/H will appear.
F. Pace indicators—When the manual mode is select-
ed, only the left pace indicator will appear. This indi-
cator shows your exercise pace. As you increase or
decrease your pace, the indicator will increase or
decrease in height. When a Smart program or the
iFIT.com mode is selected, both pace indicators will
appear. The left indicator will show your actual
exercise pace, and the right indicator will show the
current target pace. During the program, the target
pace will periodically change; as the right indicator
changes in height, simply adjust your pace so that
both indicators are at the same height. Important:
The target pace is a goal pace. Your actual pace
may be slower than the target pace, especially
during the first few months of your exercise
program. Make sure to exercise at a pace that is
comfortable for you.
G. On/Reset button—When the console is off, pressing
this button will turn on the display. When the console
is on, pressing this button will reset the display.
This button is also used to select the unit of mea-
surement for speed and distance (see A at the left).
H. Display Mode button—This button is used to select
the feedback modes. The modes will be selected in
the following order: scan, speed, time, distance,
resistance level, calories, fat calories, and heart
rate (when the handgrip pulse sensor or the option-
al chest pulse sensor is used).
I. + and – buttons—These buttons control the resis-
tance of the crosstrainer. There are ten resistance
levels; level 10 is the most challenging.
J. Program button—This button is used to select the
manual mode and Smart programs.
K. IFIT.com button—This button is used to select the
iFIT.com mode. The indicator on the button will light
when the iFIT.com mode is selected.
To use the manual mode of the console, refer to
page 12. To use a Smart program, refer to page 13.
To use iFIT.com CD’s or videos, refer to page 17. To
use a program directly from our Web site, refer to
page 18.

12
Turn on the console.
Note: The console requires four “D” batteries (not
included). If you have not installed batteries, refer
to step 9 on page 7 and install batteries.
To turn on the console, press the On/Reset button
or begin pedaling.
Select the manual mode.
Each time the
console is
turned on, the
manual mode
will be select-
ed. If a Smart
program or the
iFIT.com mode
has been selected, select the manual mode by
pressing the Program button repeatedly until the
upper right corner of the display is blank.
Begin exercising and adjust the resistance of
the crosstrainer.
As you exercise, adjust the resistance of the
crosstrainer as desired by pressing the + and –
buttons. There are ten resistance levels; level 10
is the most challenging. Note: After the buttons
are pressed, it will take a few seconds for the
selected setting to be reached.
Follow your progress with the feedback modes
and the left bar graph.
When the con-
sole is turned
on, the scan
mode will be
selected. As
you exercise,
the display will
show your cur-
rent speed, the elapsed time, the distance that
you have pedaled, the current resistance level,
and the approximate numbers of calories and fat
calories you have burned (see Fat Burning on
page 19). In addition, your heart rate will be
shown when you use the handgrip pulse sensor
(refer to step 5 at the right) or the optional chest
pulse sensor (refer to page 18). Note: Each time
the resistance level changes, the console will
show the resistance level for six seconds. When
a Smart program is selected, the display will
show the time remaining in the program instead
of the elapsed time.
In addition, the left pace indicator will appear in the
display to show your exercise pace. As you
increase or decrease your pace, the indicator will
increase or decrease in height.
If desired, you can select a single feedback mode
for continuous display. Press the Display Mode
button repeatedly until only the MPH (or Km/H),
Time, Miles (or Kms), Resist., Cals., or Fat Cals.
indicator appears in the display. Make sure that
the Scan indicator does not appear.
Measure your heart rate if desired.
Note: If you wear the optional chest pulse
sensor (see page 18) and hold the handgrip
pulse sensor at the same time, the console
may not display your heart rate accurately.
If there are thin
sheets of plas-
tic on the metal
contacts on the
handgrip pulse
sensor, peel off
the plastic. To
use the handgrip
pulse sensor,
place your hands on the metal contacts. Your
palms must be on the upper contacts and your
fingers must be touching the lower contacts.
Avoid moving your hands. When your pulse is
detected, the heart-shaped indicator in the dis-
play will flash each time your heart beats. After a
moment, two dashes (– –) will appear and then
your heart rate will be shown.
For the most accurate heart rate reading, continue
to hold the handgrips for about 15 seconds. Note:
When you first hold the handgrips, the display will
show your heart rate continuously for 15 sec-
onds. The display will then show your heart rate
along with the other feedback modes.
When you are finished exercising, the console
will automatically turn off.
If the pedals are not moved and the console but-
tons are not pressed for a few minutes, the con-
sole will automatically turn off to conserve
the batteries.
6
5
4
3
2
1
HOW TO USE THE MANUAL MODE
This corner
should be blank
Metal
Contacts

13
Turn on the console.
Refer to step 1 on page 12.
Select one of the eight Smart programs.
Each time the
console is turned
on, the manual
mode will be
selected. To
select a Smart
program, press
the Program but-
ton repeatedly until the number 1, 2, 3, 4, 5, 6, 7,
or 8 appears in the upper right corner of the dis-
play.
The profiles on the right side of the console show
how the resistance of the crosstrainer and the tar-
get pace will change during the Smart programs.
For example, profile number 6 shows that during
Smart program 6, the resistance will gradually
increase during the first half of the program, and
then gradually decrease during the last half; the
target pace will alternately increase and decrease
throughout the program.
Start the program.
To start the program, simply begin exercising.
Each Smart program consists of either twenty or
thirty, one-minute periods. One resistance setting
and one pace setting are programmed for each
period. (The same resistance setting and/or pace
setting may be programmed for consecutive peri-
ods.)
During the program, the resistance of the
crosstrainer will automatically change as shown
by the applicable profile on the console. If the cur-
rent resistance level is too high or too low, you
can change the resistance level by pressing the +
and – buttons. However, when the current period
of the program is completed, the resistance level
will automatically change if a different resistance
setting is programmed for the next period.

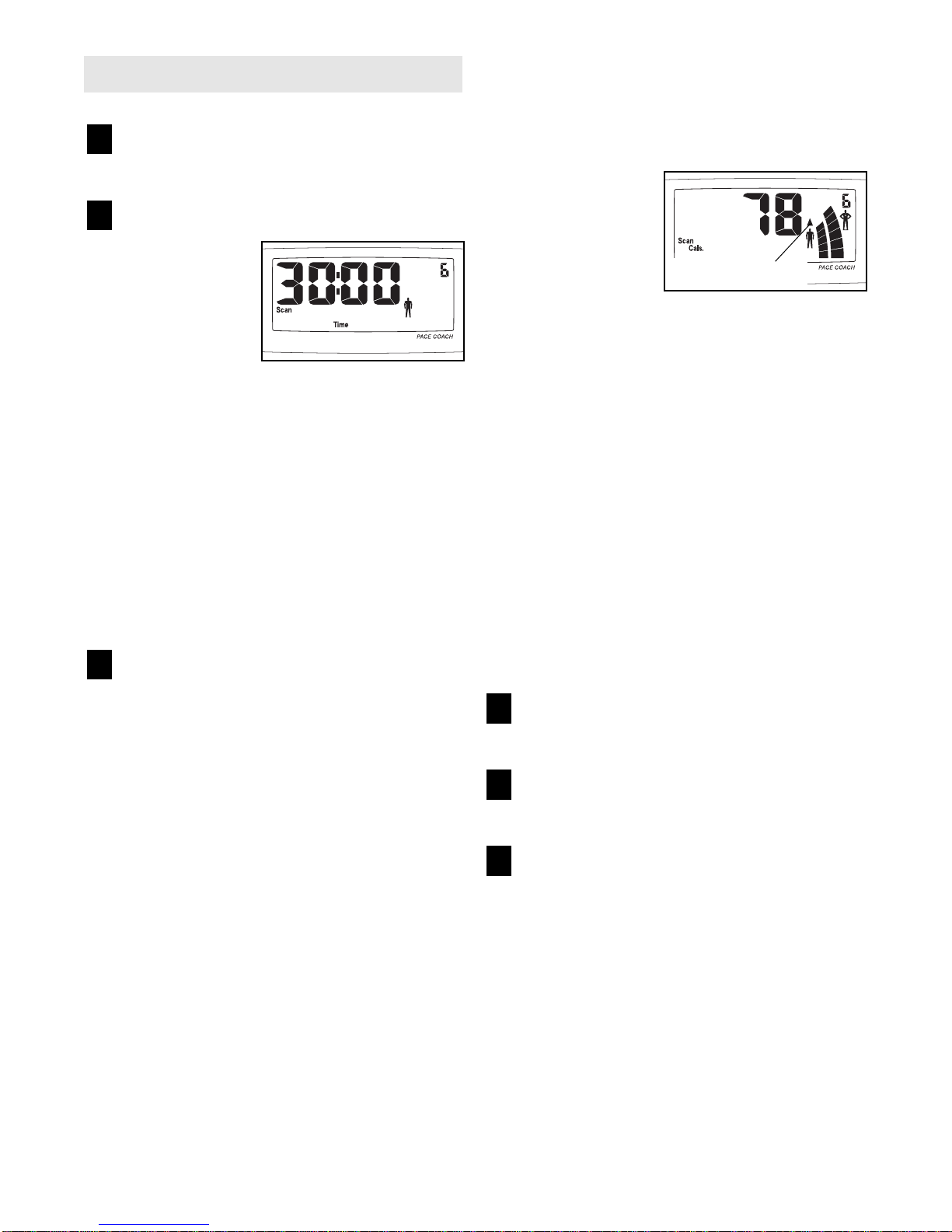

The target pace
settings for the
program will be
shown by the
right pace indica-
tor in the display.
(The left indicator
will show your
actual exercise pace.) As the right indicator
changes in height during the program, simply
adjust your pace so that both indicators are at the
same height. If your pace is slower than the cur-
rent target pace, the increase arrow will appear in
the display to prompt you to increase your pace; if
your pace is faster than the target pace, the
decrease arrow will appear. Important: The tar-
get pace settings for the program are intended
only to provide a goal. Your actual pace may
be slower than the target pace settings, espe-
cially during the first few months of your exer-
cise program. Make sure to exercise at a pace
that is comfortable for you.
During the program, the display will show the time
remaining in the program. If you continue exercis-
ing after the program is completed, the display
will continue to show your exercise feedback.
Follow your progress with the feedback modes.
Refer to step 4 on page 12.
Measure your heart rate if desired.
See step 5 on page 12.
When you are finished exercising, the console
will automatically turn off.
Refer to step 6 on page 12.
6
5
4
3
2
1
HOW TO USE A SMART PROGRAM
Increase Arrow

14
HOW TO CONNECT YOUR CD PLAYER, VCR,
OR COMPUTER
To use iFIT.com CD’s, the crosstrainer must be con-
nected to your portable CD player, portable stereo,
home stereo, or computer with CD player. See pages
14 to 16 for connecting instructions. To use iFIT.com
videocassettes, the crosstrainer must be connected
to your VCR. See page 16 for connecting instructions.
To use iFIT.com programs directly from our Web
site, the crosstrainer must be connected to your home
computer. See page 15 for connecting instructions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT
and PHONES jacks, see instruction A below. If
your CD player has only one jack, see instruction B.
A. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your CD player.
Plug your headphones into the PHONES jack.
B. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your CD player. Plug your headphones into the
other side of the Y-adapter.
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
1/8” LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the AUDIO OUT jack on your stereo.
B. Refer to the drawing above. Plug one end of a 1/8”
to 1/8” stereo audio cable (available at electronics
stores) into the jack beneath the console. Plug the
other end of the cable into the LINE OUT jack on
your stereo.
C. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your stereo. Plug your headphones into the
other side of the Y-adapter.
LINE OUT
PHONES LINE OUT
PHONES
Audio
Cable Head-
phones
A
PHONES
PHONES
Audio
Cable
1/8”
Y-adapter
Headphones
B
AUDIO OUT
RIGHT
LEFT
LINE OUT
Audio Cable
A/B
PHONES
Audio
Cable
C
1/8”
Y-adapter
Headphones

15
HOW TO CONNECT YOUR HOME STEREO
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
A. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your stereo.
B. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack beneath
the console. Plug the other end of the cable into an
RCA Y-adapter (available at electronics stores).
Next, remove the wire that is currently plugged into
the LINE OUT jack on your stereo and plug the wire
into the unused side of the Y-adapter. Plug the Y-
adapter into the LINE OUT jack on your stereo.
HOW TO CONNECT YOUR COMPUTER
Note: If your computer has a 1/8” LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the LINE OUT jack on your computer.
B. Plug one end of a 1/8” to 1/8” stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into a 1/8” Y-adapter (available at electronics
stores). Plug the Y-adapter into the PHONES jack
on your computer. Plug your headphones or speak-
ers into the other side of the Y-adapter.
CD
VCR
Amp
LINE OUT
LINE OUT
Audio Cable
A
CD
VCR
Amp
LINE OUT
Audio
Cable
RCA
Y-adapter
Wire removed from
LINE OUT jack
B
LINE OUT
Audio
Cable
A
PHONES
Audio Cable
B
1/8”
Y-adapter
Headphones/Speakers

16
HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 15.
A. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into the AUDIO OUT jack on your VCR.
B. Plug one end of a 1/8” to RCA stereo audio cable
(available at electronics stores) into the jack
beneath the console. Plug the other end of the
cable into an RCA Y-adapter (available at electron-
ics stores). Next, remove the wire that is currently
plugged into the AUDIO OUT jack on your VCR
and plug the wire into the unused side of the Y-
adapter. Plug the Y-adapter into the AUDIO OUT
jack on your VCR.
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT.IN
RF OUT
IN
OUT
CH
34
Audio Cable
A
VIDEO AUDIO
ANT.IN
RF OUT
IN
OUT
CH
34
B
Wire removed from
AUDIO OUT jack
RCA
Y-adapter
Audio
Cable

17
To use iFIT.com CD’s or videocassettes, the
crosstrainer must be connected to your portable CD
player, portable stereo, home stereo, computer with
CD player, or VCR. See HOW TO CONNECT YOUR
CD PLAYER, VCR, OR COMPUTER on page 14. To
purchase iFIT.com CD’s and videocassettes, call
toll-free 1-888-936-4266.
Follow the steps below to use an iFIT.com CD or
video program.
Turn on the console.
Refer to step 1 on page 12.

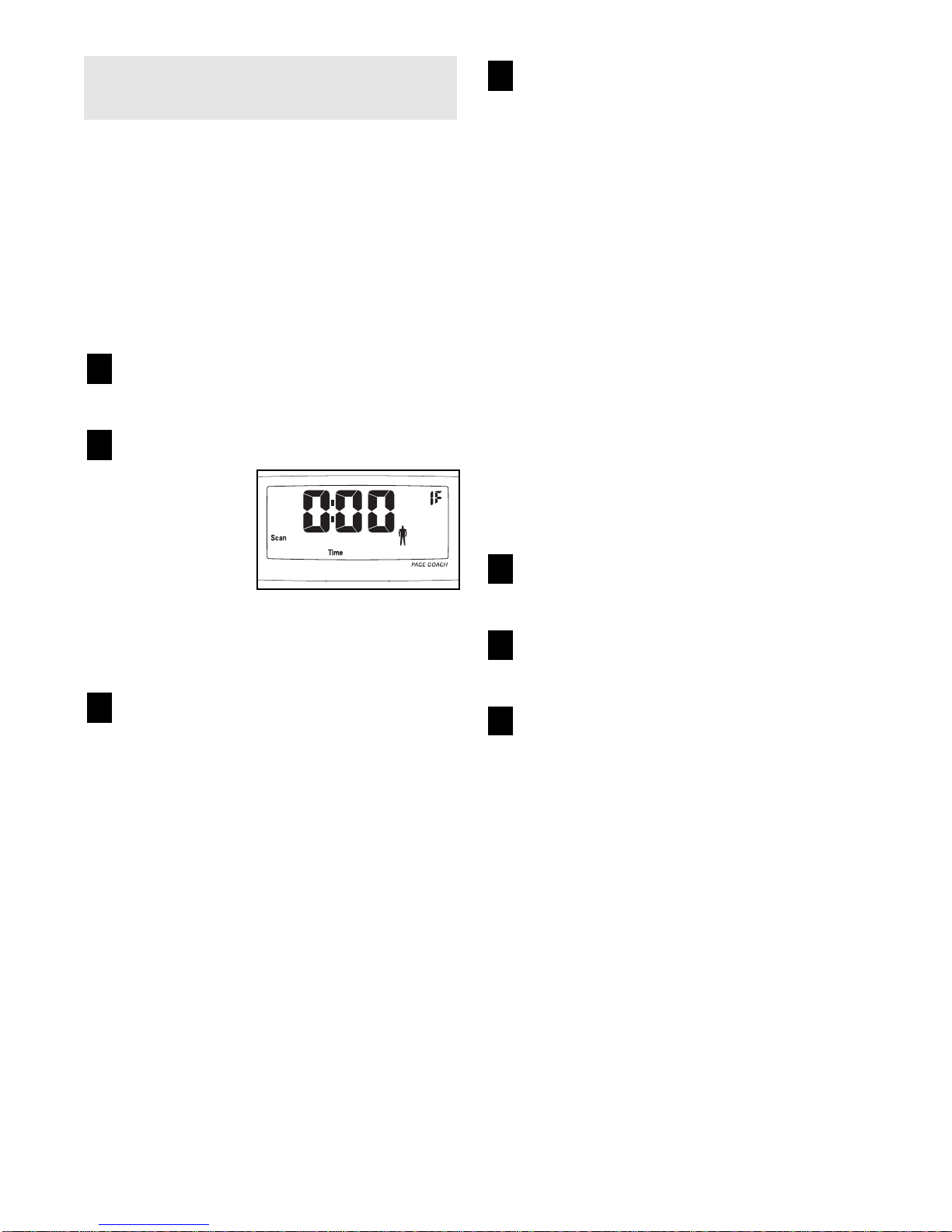

Select the iFIT.com mode.
Each time the
console is
turned on, the
manual mode
will be selected.
To select the
iFIT.com mode,
press the
iFIT.com button. The indicator on the button will
light and the letters IF will appear in the upper
right corner of the display.
Insert the iFIT.com CD or videocassette.
If you are using an iFIT.com CD, insert the CD
into your CD player. If you are using an iFIT.com
videocassette, insert the videocassette into your
VCR.
Press the play button on your CD player or
VCR.
A moment after the play button is pressed, your
personal trainer will begin guiding you through
your workout. Simply follow your personal trainer’s
instructions.
The program will function in almost the same way
as a Smart program (refer to step 3 on page 13).
However, an electronic “chirping” sound will alert
you when the resistance and/or the target pace is
about to change.
Note: If the resistance and/or the target pace
does not change when a “chirp” is heard:
• Make sure that the indicator on the iFIT.com
button is lit.
• Adjust the volume of your CD player or VCR.
If the volume is too high or too low, the con-
sole may not detect the program signals.
• Make sure that the audio cable is properly
connected and that it is fully plugged in.
Follow your progress with the feedback modes.
Refer to step 4 on page 12.
Measure your heart rate if desired.
Refer to step 5 on page 12.
When you are finished exercising, the console
will automatically turn off.
Refer to step 6 on page 12.
7
6
5
4
3
2
1
HOW TO USE IFIT.COM CD AND VIDEO
PROGRAMS

18
HOW TO USE PROGRAMS DIRECTLY FROM
OUR WEB SITE
Our Web site at www.iFIT.com allows you to play
iFIT.com audio and video programs directly from the
internet. To use programs from our Web site, the
crosstrainer must be connected to your home comput-
er. See HOW TO CONNECT YOUR COMPUTER on
page 15. In addition, you must have an internet con-
nection and an internet service provider. A list of spe-
cific system requirements will be found on our Web
site.
Follow the steps below to use a program from our
Web site.
Turn on the console.
Refer to step 1 on page 12.
Select the iFIT.com mode.
Each time the
console is
turned on, the
manual mode
will be selected.
To select the
iFIT.com mode,
press the
iFIT.com button. The indicator on the button will
light and the letters IF will appear in the upper
right corner of the display.
Go to your computer and start an internet
connection.
Start your Web browser, if necessary, and go
to our Web site at www.iFIT.com.
Follow the desired links on our Web site to
select a program.
Read and follow the on-line instructions for using
a program.
Follow the on-line instructions to start the
program.
When you start the program, an on-screen count-
down will begin.
Return to the crosstrainer and begin exercising.
When the on-screen countdown ends, the pro-
gram will begin. The program will function in
almost the same way as a Smart program (refer to
step 3 on page 13). However, an electronic “chirp-
ing” sound will alert you when the resistance
and/or the target pace is about to change.
Follow your progress with the feedback modes.
Refer to step 4 on page 12.
Measure your heart rate if desired.
Refer to step 5 on page 12.
When you are finished exercising, the console
will automatically turn off.
Refer to step 6 on page 12.
THE OPTIONAL CHEST PULSE SENSOR
The optional chest pulse sensor provides hands-free
operation and continuously monitors your heart rate
during your workouts on the recumbent cycle. To pur-
chase the optional chest pulse sensor, call toll-
free 1-800-469-4663.
10
9
8
7
6
5
4
3
2
1

19
Inspect and tighten all parts of the exercise cycle reg-
ularly. Replace any worn parts immediately.
To clean the exercise cycle, use a damp cloth and a
small amount of mild soap. Important: To avoid
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
BATTERY REPLACEMENT
If the console display becomes dim, the batteries
should be replaced; most console problems are the
result of low batteries. Refer to assembly step 4 on
page 5 for replacement instructions. Note: The con-
sole requires four 1,5 V (D) batteries.
HOW TO LEVEL THE EXERCISE CYCLE
After the exer-
cise cycle has
been moved to
the location
where it will be
used, make sure
that both ends of
front stabilizer
are touching the
floor. If the exer-
cise cycle rocks
slightly during use, turn one or both of the leveling
feet under the front stabilizer until the rocking motion
is eliminated.
HANDGRIP PULSE SENSOR TROUBLESHOOTING
• Avoid moving your hands while using the handgrip
pulse sensor. Excessive movement may interfere
with heart rate readings.
• Do not hold the metal contacts too tightly; doing so
may interfere with heart rate readings.
• For the most accurate heart rate reading, hold the
metal contacts for about 15 seconds.
• For optimal performance of the handgrip pulse sen-
sor, keep the metal contacts clean. The contacts
can be cleaned with a soft cloth—never use alcohol,
abrasives, or chemicals.
HOW TO MOVE THE EXERCISE CYCLE
To move the exercise cycle, first stand in front of the
exercise cycle, hold the handlebars, and place one
foot on the front stabilizer. Pull the handlebars until
the exercise cycle can be moved on the front wheels.
Carefully move the exercise cycle to the desired loca-
tion and then lower it.
MAINTENANCE AND TROUBLESHOOTING
Handlebars
Place
Foot
Here
Leveling
Foot

20
CONDITIONING GUIDELINES
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your

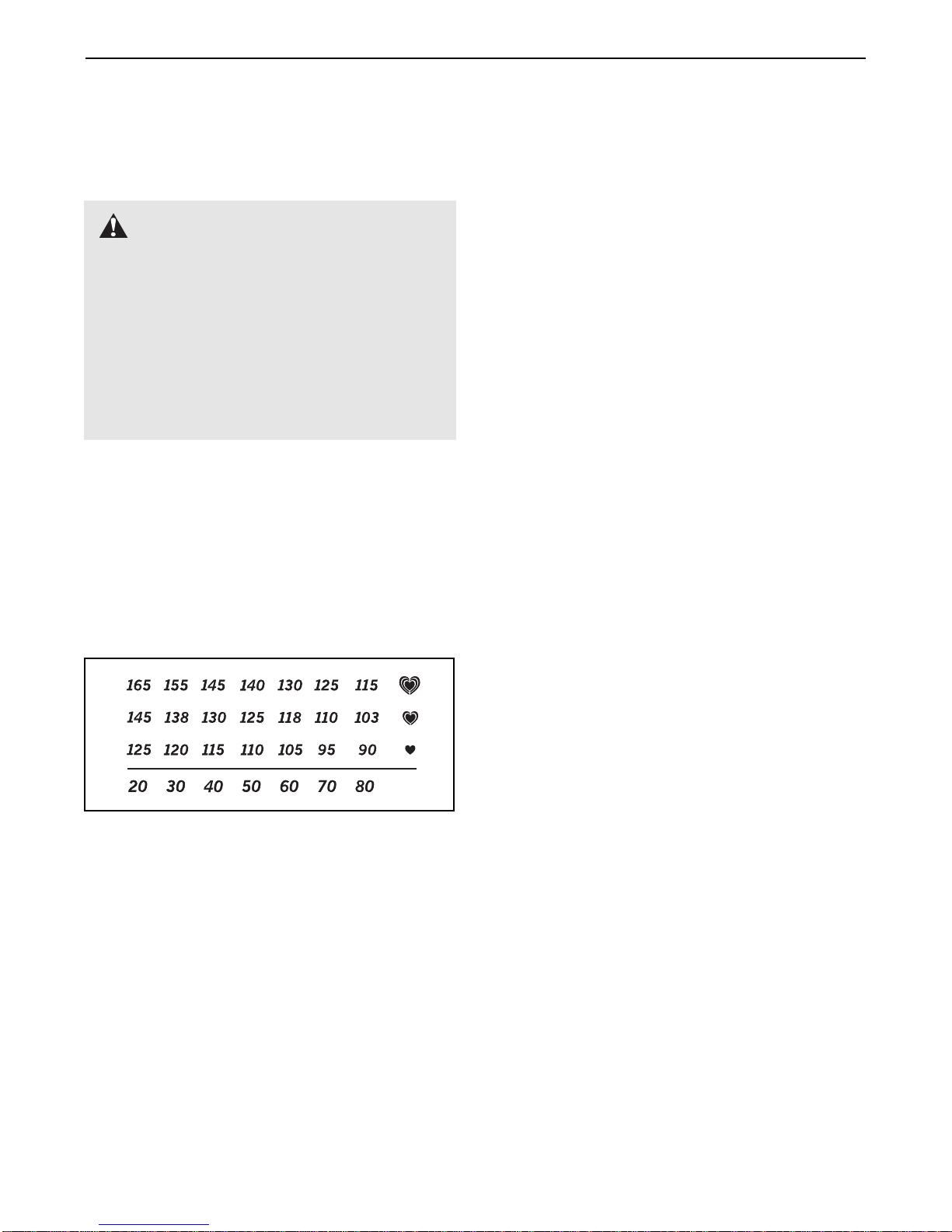

heart rate as a guide. The chart below shows recom-
mended heart rates for fat burning, maximum fat
burning, and cardiovascular (aerobic) exercise.
To find the proper heart rate for you, first find your age
at the bottom line of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age. The three numbers are your “training
zone.” The lowest number is the recommended heart
rate for fat burning; the middle number is the recom-
mended heart rate for maximum fat burning; the high-
est number is the recommended heart rate for aerobic
exercise.
Fat Burning
To burn fat effectively, you must exercise at a relative-
ly low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for ener-
gy. Only after the first few minutes of exercise does
your body begin to use stored fat calories for energy.
If your goal is to burn fat, adjust the intensity of your
exercise until your heart rate is near the lowest num-
ber in your training zone as you exercise. For maxi-
mum fat burning, adjust the intensity of your exercise
until your heart rate is near the middle number in your
training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be “aerobic.” Aerobic exer-
cise is activity that requires large amounts of oxygen
for prolonged periods of time. This increases the
demand on the heart to pump blood to the muscles,
and on the lungs to oxygenate the blood. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise. A proper warm-up increases your
body temperature, heart rate, and circulation in prepa-
ration for exercise.
Training zone exercise, consisting of 20 to 30 min-
utes of exercising with your heart rate in your training
zone. (During the first few weeks of your exercise pro-
gram, do not keep your heart rate in your training
zone for longer than 20 minutes.)
A cool-down, with 5 to 10 minutes of stretching. This
will increase the flexibility of your muscles and will
help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three work-
outs each week, with at least one day of rest between
workouts. After a few months of regular exercise, you
may complete up to five workouts each week, if
desired. Remember, the key to success is make exer-
cise a regular and enjoyable part of your everyday life.
WARNING:Before beginning
this or any exercise program, consult your
physician. This is especially important for
persons over the age of 35 or persons with
pre-existing health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determin-
ing heart rate trends in general.
