Freetime ROCKFORD RB4050A User manual

Check all packaging before discarding.
Be sure all parts identified in the assembly manual
are included.
Don't assemble if parts are missing.
If you are missing parts or have questions please
contact our toll free line at 1-888-620-6088.
FREETIME FUN
1830 E. FABYAN PKWY.
BATAVIA, IL 60510
WWW.FREETIMEFUN.COM
BEST IN GAMES, SAUNAS,
POOL AND PATIO
ROCKFORD
7' POOL TABLE WITH TABLE TENNIS TOP
RB4050A

2
Thank you for purchasing this product. If you experience any issues during assembly or use of this
product, please don't hesitate to contact Customer Service at 1-888-620-6088 for immediate assistance.
ASSEMBLY TIPS
IMPORTANT! PLEASE READ THESE ASSEMBLY INSTRUCTIONS IN ENTIRETY BEFORE ASSEMBLING
YOUR PRODUCT.
Estimated Assembly Time: 1 hour 30 minutes.
1. Find a clean, level surface to begin the assembly of your game table. Assembly will require two adults. You
may want to carefully cut the four corners of the box so that the bottom of the box can be used as your
work surface.
2. Remove all of the contents from the box and verify that you have all of the parts shown on the Parts List
before you begin assembly. Note: Some parts are pre-installed or pre-assembled.
3. When installing parts that have more than one screw or bolt, hand tighten all screws or bolts in
place before nal tightening with screwdriver or wrench.
4. Electric screwdrivers may be helpful during assembly; however, please set a low torque and use extreme
caution because screws may be stripped if overtightened, resulting in damaged parts.
THIS PRODUCT IS INTENDED FOR INDOOR USE ONLY.
DO NOT DRAG THE TABLE WHEN MOVING IT AS THIS MAY CAUSE DAMAGE TO THE LEGS.
HARDWARE PACK RB3010A - H
XRB12042
ACCESSORIES
18 19 20 43 44
24 25 26 27 38 30
5⁄16"x 6" Bolt (4) 5⁄16"Washer (4) 1⁄4" x 13⁄4" Bolt (36) 1⁄4" Washer (36) 1⁄8" x 3⁄4" Screw (4) Allen Wrench (1)
Cue Chalk
XRB12039 (2)
58" Cue Stick
XRB12040 (2)
Triangle
XRB12009 (1)
Table Spot
XRB12056 (2)
9" Table Brush
XRB12057 (1)
12 13 14 15 16 17
Table Tennis Ball
XRM17016 (2)
Table Tennis Racket
XRB12034 (2)
Table Tennis Net
XRB12035 (1)
Table Tennis Net Post
XRB12036 (2)
Rail Brush
XRB12011 (1)
Billiard Ball Set
XRB12008 (1)

3
Adjustable Levelers
#4
#4
#6
#2
#10
#3
#3
#7
#1
#8b
#14
#15
#11
#9
#8a
#5

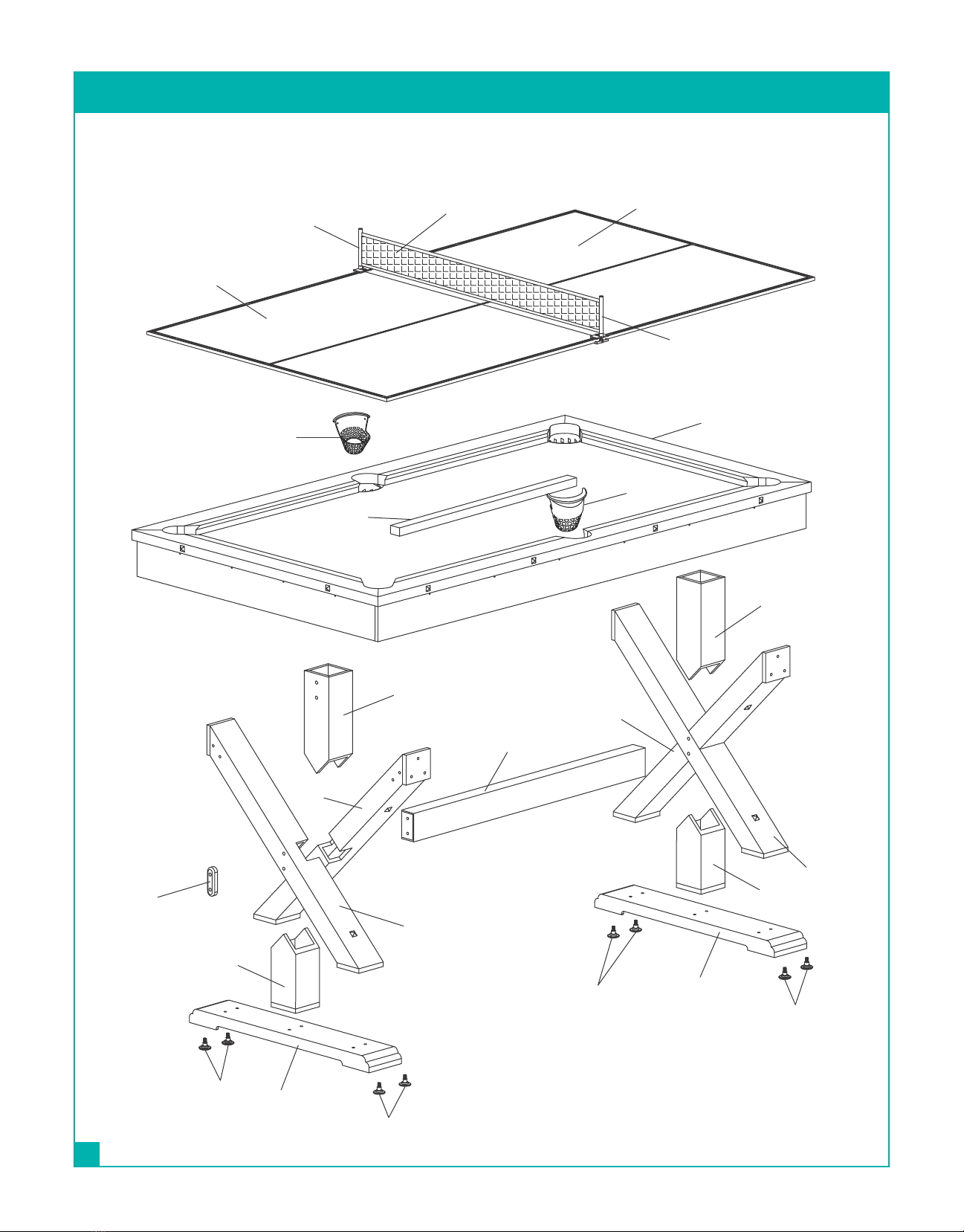

TABLE PARTS
1 2 3 4 5
6 7 8 9 10
11 22 23 42
ROCKFORD 7' POOL TABLE WITH TABLE TENNIS TOP
Table Cabinet
XRB12421 (1)
Left Leg Crosspiece
XRB12422 (2)
Right Leg Crosspiece
XRB12423 (2)
Leg Base
XRB12424 (2)
Cross Beam
XRB12425 (1)
Lower Leg Support
XRB12426 (2)
Upper Leg Support
XRB12427 (2)
Table Tennis Top
XRB12428 (2)
Table Tennis Top
Support Board
XRB12030 (1)
Connection Block
XRB12429 (2)
Leg Leveler
XRB12032 (8)
EVA Top Protection Pad
XRB12041 (6)
Top Alignment Pin
Pre-Installed
XRB12062 (3)
Side Pocket
XRB12055 (2)
PARTS LIST

4
ROCKFORD 7' POOL TABLE WITH TABLE TENNIS TOP
#8b
#8a
#14
#15
#15
#42
#42
#9
#1
#7
#3
#3
#6
#7
#6
#
10
#4
#11
#11
#4
#11
#11
#2
#2
#5

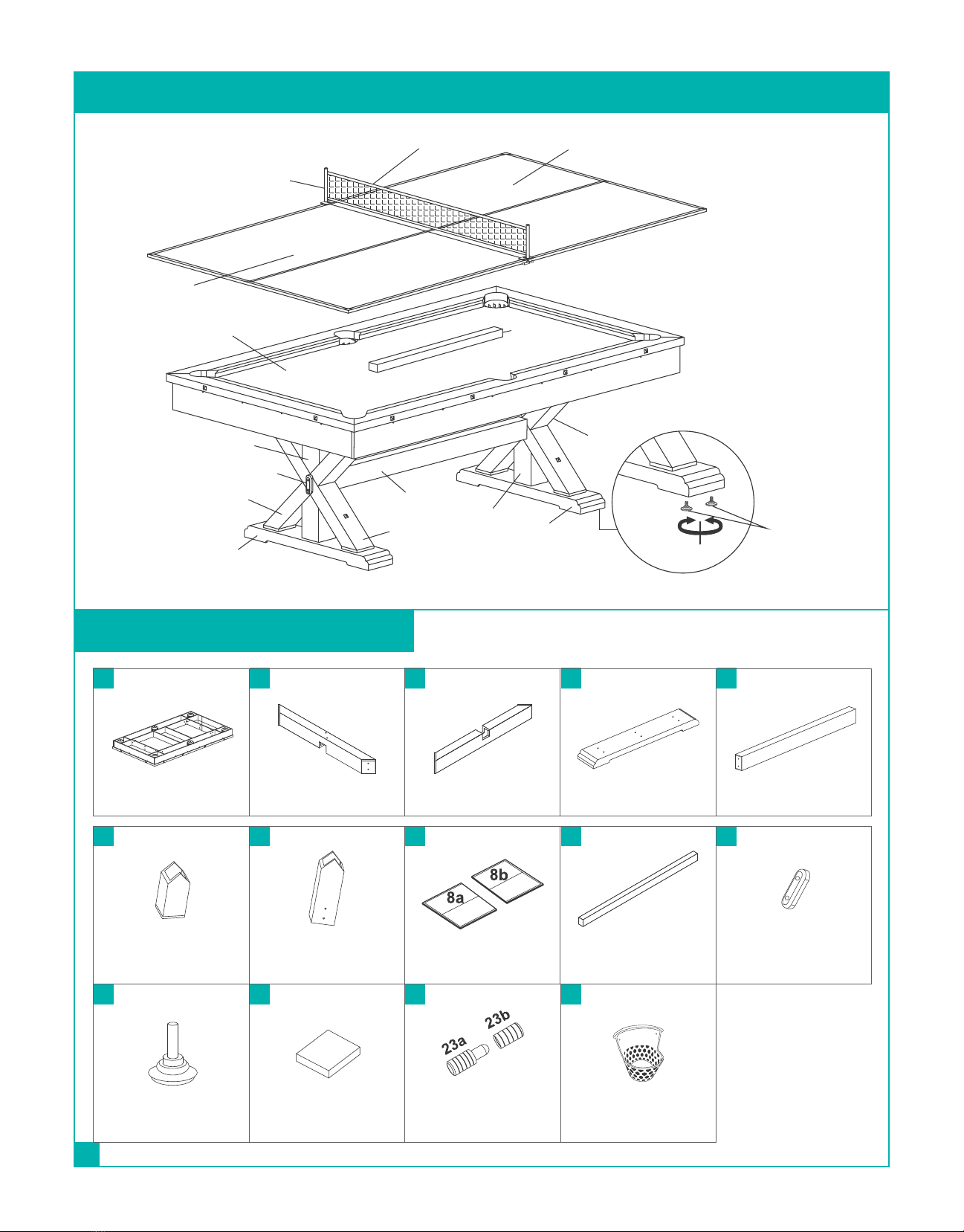

PRE-ASSEMBLED PARTS REFERENCE DIAGRAM

5
#4
#6
#27
#26
#3
#2
*2 Screw Holes
*3 Screw Holes
#27
#26
#27
#26
*2 Screw Holes
*3 Screw Holes

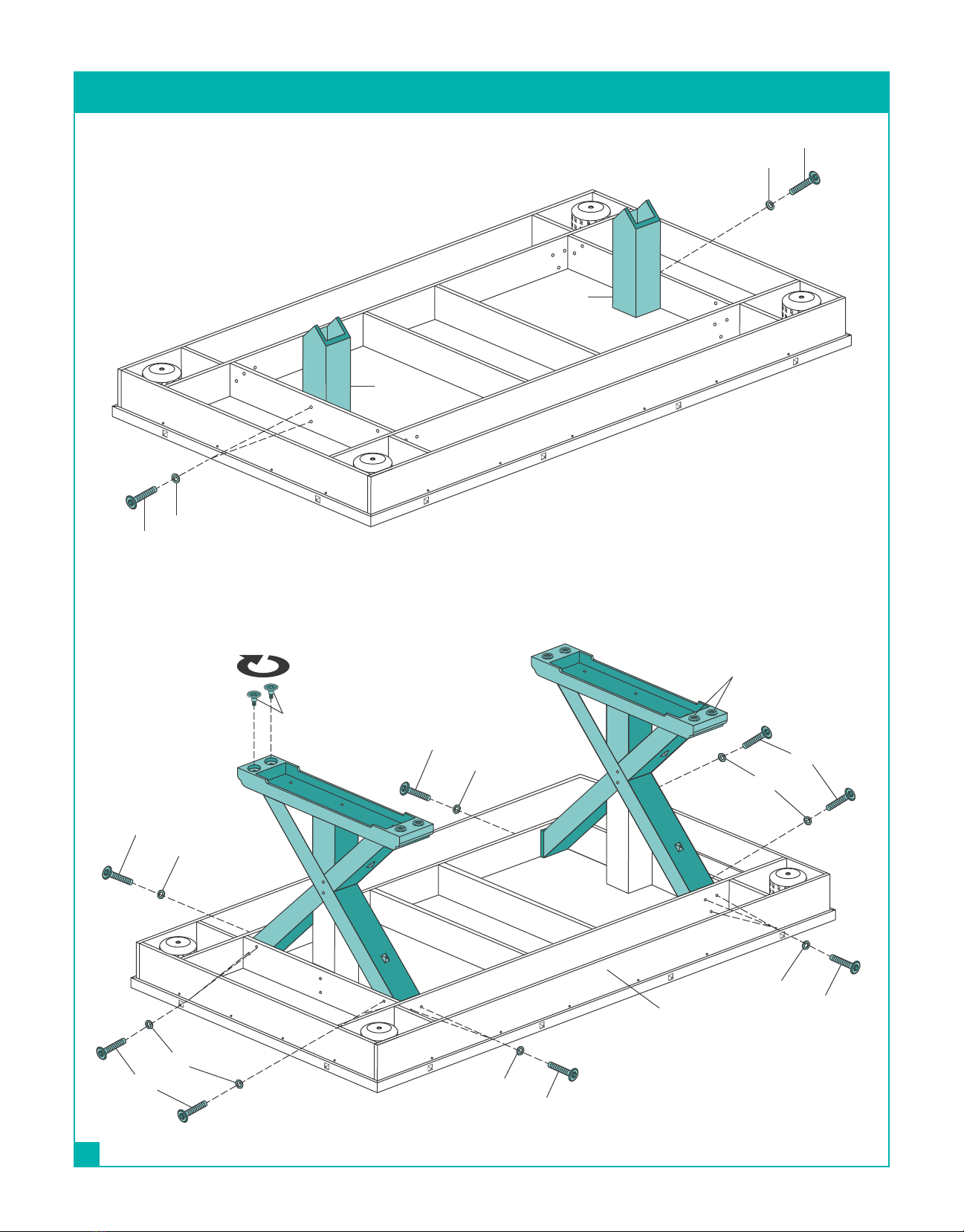

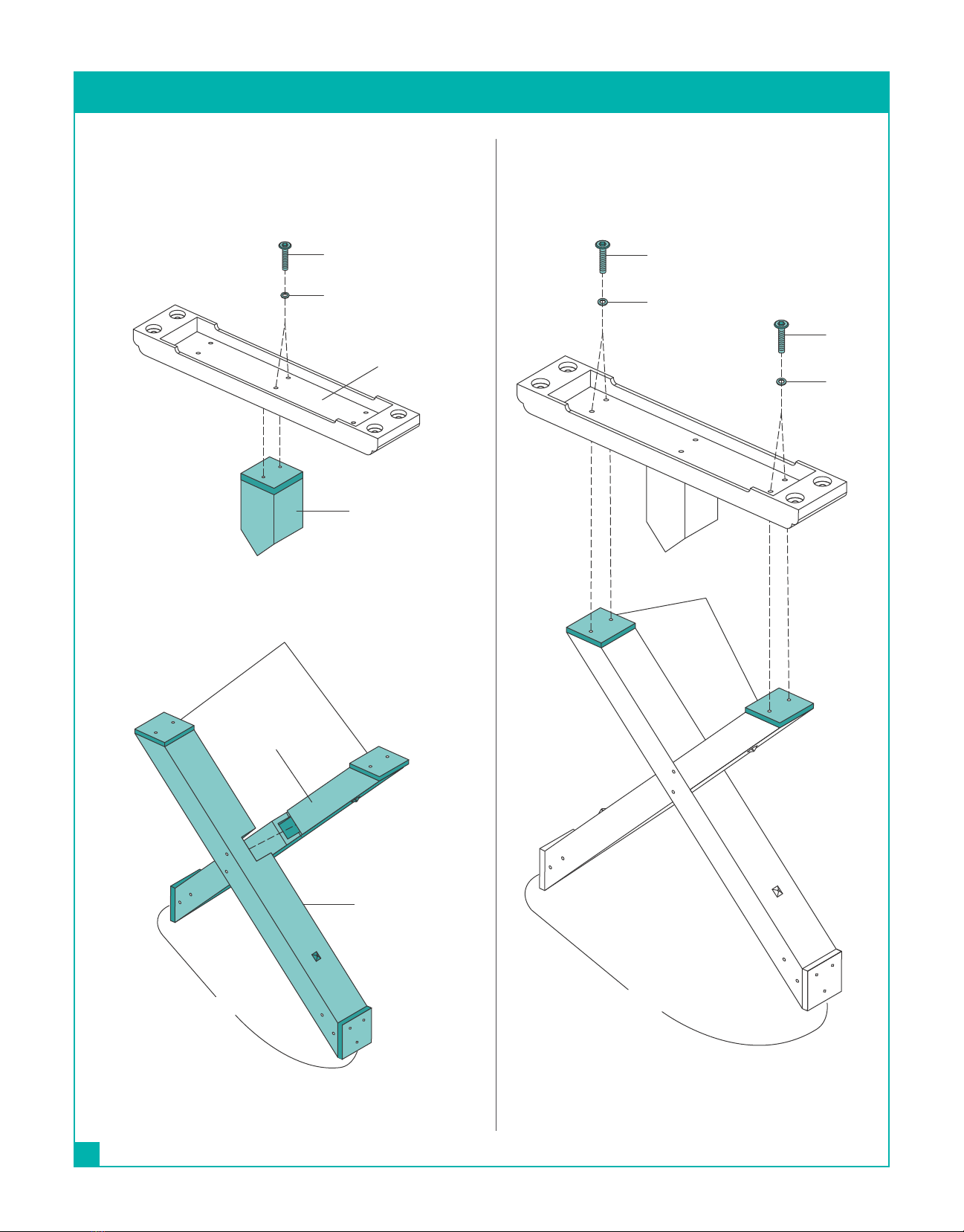

ROCKFORD 7' POOL TABLE WITH TABLE TENNIS TOP ASSEMBLY INSTRUCTIONS
STEP 1 STEP 2
Repeat this process for both table leg assemblies.

6
#27
#26
#27
#26
#7
#7
#27
#26
#27 #26
#27
#26
#27
#26
#27
#26
#11
#11
#1
#27
#26
STEP 3
STEP 4
ROCKFORD 7' POOL TABLE WITH TABLE TENNIS TOP ASSEMBLY INSTRUCTIONS

7
#5
#24
#25
#10
DO NOT LEAN THE
TABLE ON ITS LEGS!
HOLD TABLE CORNER CABINET DO NOT HOLD THE LEGS

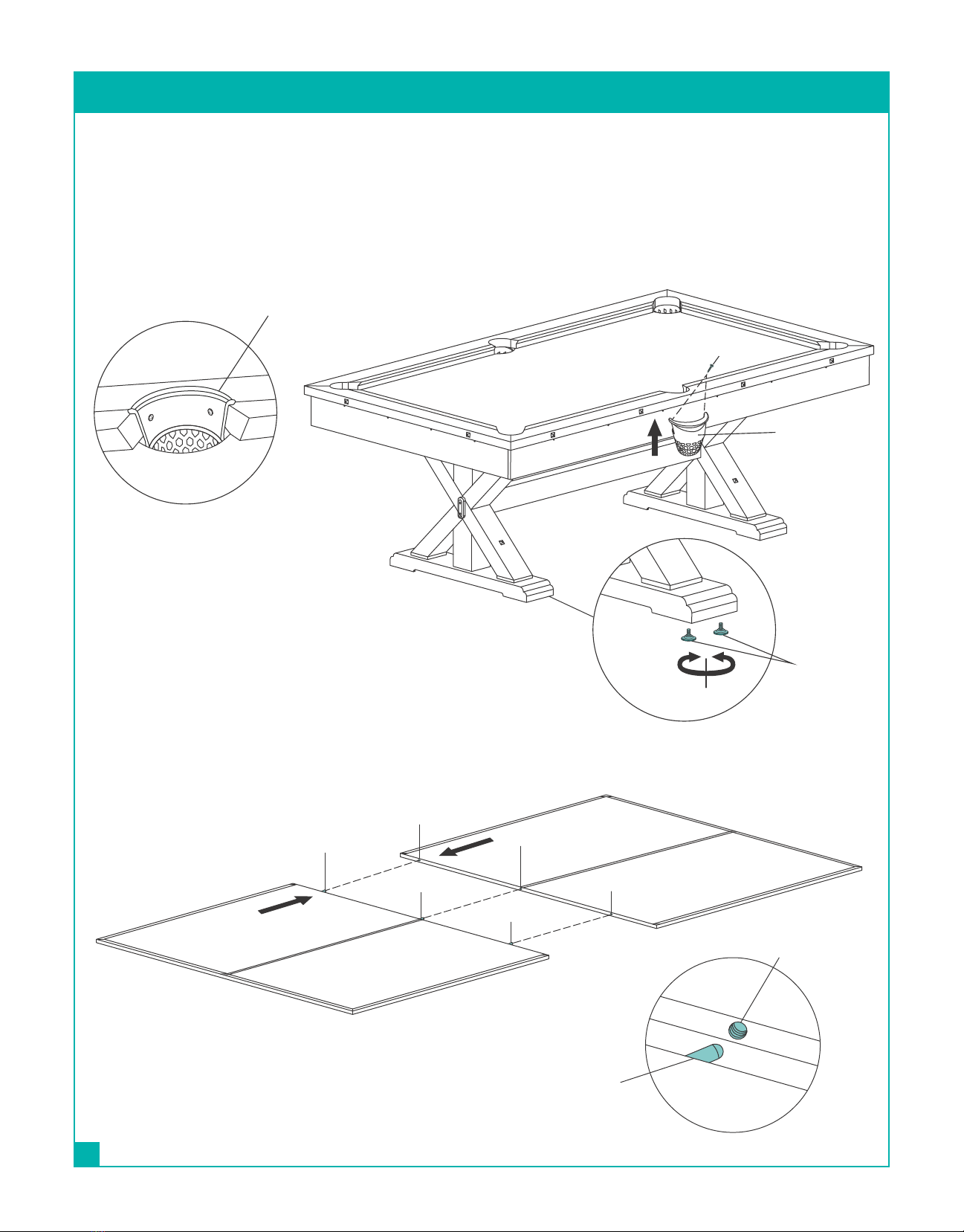

STEP 5
STEP 6
CAUTION: THE TABLE IS HEAVY; IT IS RECOMMENDED THAT FOUR STRONG ADULTS ASSIST IN FLIPPING
TABLE OVER TO THE UPRIGHT POSITION AS SHOWN BELOW.
Firmly grasp the table
at each cabinet corner
area
Carefully rotate the table
to the upright position by
grasping table top
Position the table in its desired location
and level the table to the oor by adjusting
the leg levelers
ROCKFORD 7' POOL TABLE WITH TABLE TENNIS TOP ASSEMBLY INSTRUCTIONS

8
#38
#42
Adjustable Levelers
#11
#42
STEP 7
STEP 8
(Pre-installed)
#23b
#23a
#23b
#23b
#23b
#23a
#23a
#8a
#8b
#23a
Insert #42 pocket from the underside into the side pocket cutout area, align the pocket with the top rail and
secure with two #38 screws.
CAUTION: USE LOW TORQUE DO NOT OVERTIGHTEN AS THIS WILL STRIP THE HOLES.
ROCKFORD 7' POOL TABLE WITH TABLE TENNIS TOP ASSEMBLY INSTRUCTIONS

9
STEP 9
YOU MAY ALSO WANT
UNIVERSAL POOL TABLE COVER
Will t 7’ and 8’ tables. Our lightweight, deluxe cover protects your
pool table from fading, spills, dust, and dirt. Oversized for complete
coverage. Made from breathable dust proof fabric, the cover has
durable double stitched seams and weighted corners to ensure it
stays put. 106” L x 64” W. 1-Year Warranty.
Item# Description Price
RB9210 Universal Pool Table Cover $19.95
ROCKFORD 7' POOL TABLE WITH TABLE TENNIS TOP ASSEMBLY INSTRUCTIONS
EVA Top Protection Pads - Optional
(See Suggested Placement Above)
Adjustable Levelers
#11
#9
#22
#22
#22
#22
#22
#22
#22
#8b
#8a
#14
#15a
#15b
#15c

10
