FREEWAY MT500-24T Assembly instructions
INTRODUCTION
Thank you for purchasing Freeway Med-Tech’s Battery Powered Medical Grade AIO Monitor/PC. With a 24-
inch display and optional integrated batteries, the AIO Monitor/PC offers optimal combinations of performance
and power savings. With fully-integrated point-of-care modules within an elegant, space-saving design, the AIO
Monitor/PC is the optimum solution to enhance workow and service.
Please take a few moments to review the contents of this document to ensure that the setup and startup
proceed smoothly. The AIO Monitor/PC is ready for use, out of the box, in its default conguration when
powered by the power source provided. The following documentation offers guidance on the hardware
elements and features of the monitor. Please refer to your device provider for information pertaining to the
software operating system or software applications.
The MT500-24T supports VESA standard (100x100mm) mounting brackets and arms. Attach the bracket or
the arm to the back of MT500-24T, then use screws (4 x M8x12mm) to x the VESA bracket or arm.
BASIC
OPERATION
GUIDE
MT500 -24T
Battery powered All-in-one Monitor/PC
Package contents
1 MT500-24T Battery
Powered 24in Touch
Screen AIO Monitor/PC
1-3 MT202 Li-ion batteries
(qty dependant on
order spec)
1 Medical Grade AC-DC
power adapter with
orange curly power cord
1 Basic Operation Guide
BASIC FEATURES
The AIO Monitor/PC integrates a bright 24in display with a high performance system, USB ports,
and integrated options such as capacitive touch, hot-swappable batteries, and smart card reader for a
comprehensive point-of-healthcare solution.
Powering ON and OFF
If your AIO Monitor/PC comes with the battery packs, please open the battery slot caps and then put in the
battery packs one by one. If not, please use the AC-DC adapter with the AIO Monitor/PC for the power
supply. To activate the AIO Monitor/PC, push and quickly release the Power Button and the display will
come on in a few seconds. To put in Standby mode, push and quickly release the Power Button. To turn off
for extended storage, power off the device safely using any software function that “shuts down computer”
provided in the software operating system.
PRECAUTIONS
• Always exercise care when operating and handling
the AIO Monitor/PC.
• Never disassemble any portion of the enclosure,
as this will void any product warranty on the AIO
Monitor/PC.
• Do not use any AC/DC adapter other than the
one provided with the device or a replacement
acquired from the manufacturer.
• In the unlikely event that smoke, abnormal noise or
strange odour is present, immediately power down
the AIO Monitor/PC and disconnect all power
sources. Please report the problem to your device
provider immediately.
Power/Battery LED Status
• Blue indicates the battery is 25% to 100% charged
• Blinking blue indicates the battery is charging
• Orange indicates that the battery is between 11% to25%
• Blinking Orange indicates that the battery is below 10%
Wireless Networking
Wireless LAN
The AIO Monitor/PC is often delivered with an embedded (user-inaccessible) 802.11ax WLAN adapter
equipped with a hidden custom antenna.
• Through the support of typical WLAN adapters, the AIO Monitor/PC should be able to detect all 802.11
access points in the vicinity for you to select the access point of your choice for connection.
• The SSID and WEP/WPA/WPA2 (if enabled) parameters on the AIO Monitor/PC and the access points
have to match. The SSID is case-sensitive and it is recommended that you enable WEP/WPA/WPA2
encryption (or advanced alternatives) for secure access.
• When WEP/WPA/WPA2 is enabled, you may need to consult your network administrator or your
networking equipment literature to properly congure associated settings such as Authentication mode, etc.
• Refer to the access point operating manuals for setting up the 802.11 access points.
Bluetooth
The AIO Monitor/PC features a built-in Bluetooth adapter that operates on the Microsoft Windows Bluetooth
protocol. The Bluetooth conguration application is invoked from the System Tray or from the Control
Panel. Follow the instructions and options provided within the application to congure and invoke Bluetooth
connectivity with the corresponding peripherals.
CLEANING THE MT500-24T AIO PC
You can clean the MT500-24T as often as required. All health care institutions will have a recommended
minimum frequency for routine cleaning of various items within their facility. This may be weekly, daily or after
each use depending on the risk involved.
The screen
• An antibacterial cleaning solution (70% alcohol) that is non-abrasive can be used to clean the touch screen.
• Cleaning with a micro-ber cloth is recommended.
• Please spread the solution onto the cloth and then clean the touch screen.
• It is recommended to wipe the screen in a top to bottom motion and nish across the bottom to minimise
streaking and to prevent excess moisture running down off the bezel.
The anti-microbial enclosure
• Use a soft/non-abrasive cloth moistened with cleaning solution (70% alcohol) to clean the enclosure.
• To prevent scratching the anti-microbial coating, please wipe gently.
IMPORTANT NOTES
1. The battery packs (optional) shipped with your
device may be low in power - please use the AC-DC
adapter with the AIO Monitor/PC when setting up
the device for the rst time to fully charge the battery
packs. You may charge the battery packs with them
attached to the AIO Monitor/PC or with the optional
battery charger kit.
2. When the battery packs are charging, the blue-
coloured Battery LED should blink slowly. If plugging
in the AC-DC adapter does not trigger this blinking
activity and the LED stays dark, the battery pack(s)
may have been drained substantially. Try unplugging/
plugging in the AC-DC adapter to the AIO Monitor/
PC a few times to activate the charging process.
3. To conserve power, use (push and quick release)
the Power Button to put the device in “Standby”
mode while not in use. Pushing briey on the same
button will wake up the system within seconds.
4. Avoid using the Power Button (“hold 4+ seconds”
feature) to turn off the device—this form of
hardware shutdown is intended to be a means of
recovery from device lockups, and not as normal
operation.
5. If connecting an external monitor to the AIO
Monitor/PC (via HDMI port), you must power the
AIO Monitor/PC with the provided AC-DC power
adapter.
freewaymedtech.com MT500-24T Basic operation guide
Battery status LEDs
Battery packs (optional)
FRONT REAR
100x100 VESA mounting
F
TOUCH
SCREEN
I/O PORTS
The MT500-24T AIO Monitor/PC has a comprehensive set of I/O ports. The following ports are located
along the lower rear edge of the unit.
v1.0 0322freewaymedtech.com
Caution: Disposal of a battery into re or a hot oven, or mechanically crushing or
cutting of a battery, that can result in an explosion. Leaving a battery in an extremely
high temperature surrounding environment that can result in an explosion or the
leakage of ammable liquid or gas.
A C G
JH I JLK
EB D
*The AIO enclosure may look
different to production models.
ADC-in GUSB 3.0
BDC-out (optional) HPower button
CEthernet port (RJ45) IFunction buttons
DCOM Ports JStereo speaker
EHDMI (1.4a) KReading light on/off button
FUSB 2.0 LLED reading light

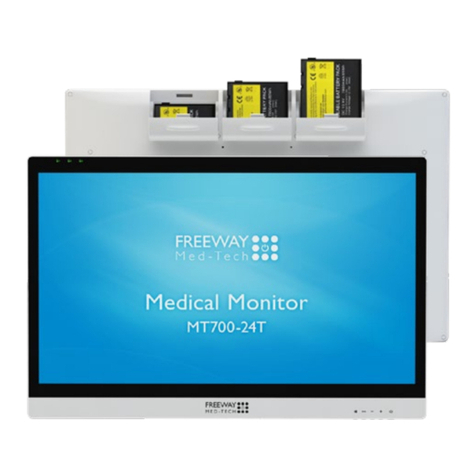

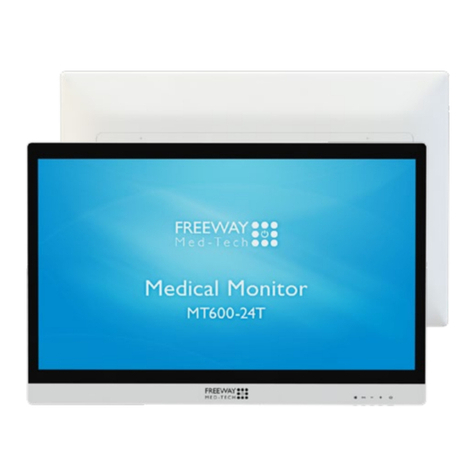

Other FREEWAY Monitor manuals
