Frenzel Video Goggles - Research
REF: UFRP0100BEU

USER MANUAL


INTRODUCTION

Thank you for purchasing the μFrenzel® Video Goggles - Research.

The μFrenzel® Video Goggles - Research are designed for daily         
research activities. This reusable research device allows precise,       
real-time visualization of eye movements in complete darkness.

This manual contains several important health and safety       
considerations, as well as important usage instructions.

Please read the latest version of this manual thoroughly before         
using this device. You can find the latest version of this manual in            
the μFrenzel site at www.ufrenzel.com.


INTENDED USE

The μFrenzel® Video Goggles - Research are intended       
EXCLUSIVELY:
●for research;
●for adults.


KEY FEATURES




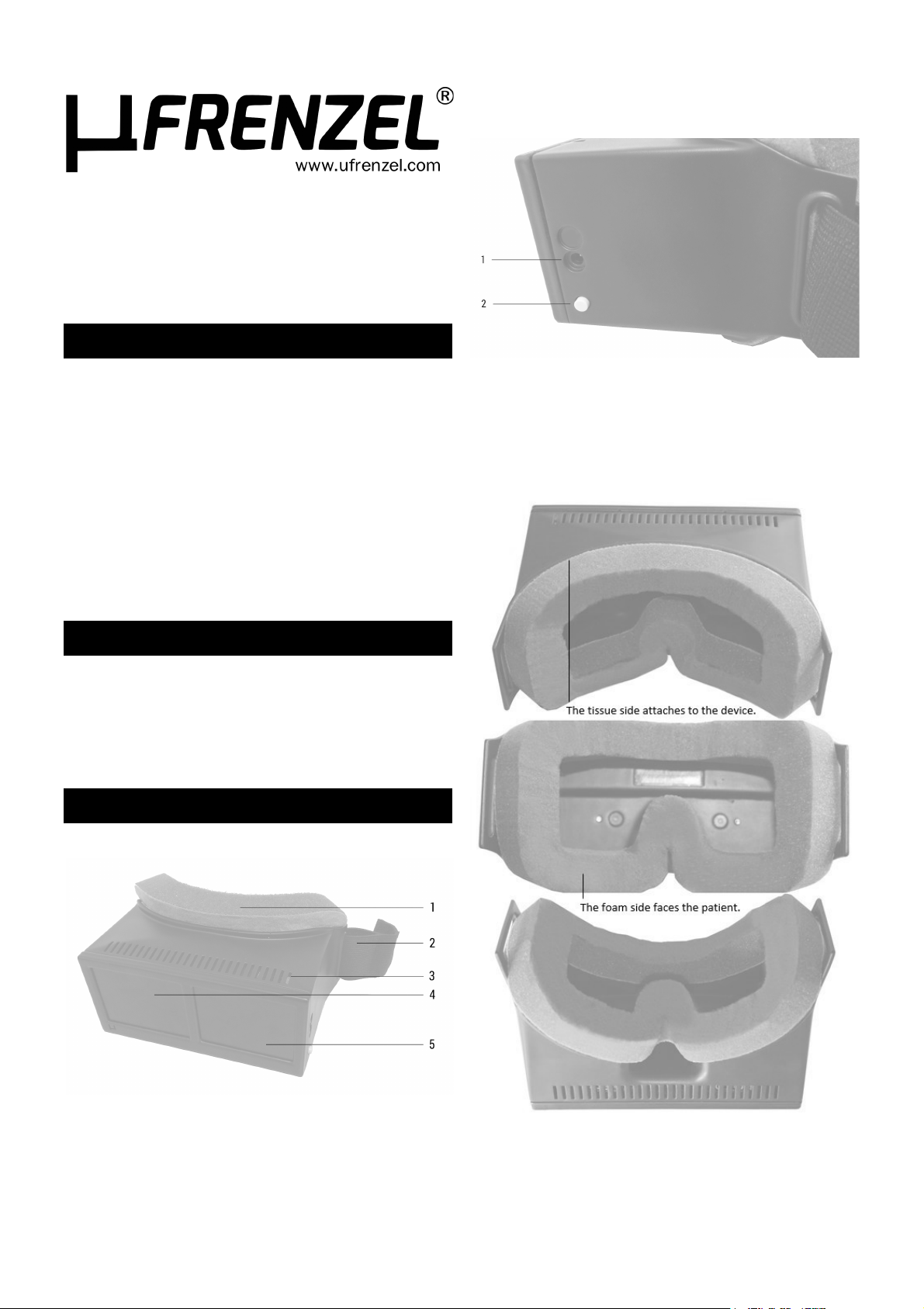

Figure A - Frenzel video goggles (front).

A.1 - Single use disposable comfort Foam Pad
A.2 - Fixation strap
A.3 - Status LED
A.4 - Right LCD Screen
A.5 - Left LCD Screen





Figure B - Frenzel video goggles (side).

B.1 - 3.5mm/1.5mm 5V DC Charger Input
B.2 - ON/OFF switch



Figure C - Frenzel video goggles with comfort foam pad.





Page 1
© 2018 μRoboptics®. All Rights Reserved.
BOX CONTENTS

This package contains the following items:
●Frenzel research video goggles;
●Fixation strap;
●USB power adapter (EU mains);
●USB power cable;
●Single use disposable comfort foam pads (x4);
●User manual.


HOW TO OPERATE THE DEVICE

Before the first use:
1. Remove the device from the protection plastic bag;
2. Use the ON/OFF switch (B.2) to turn OFF the device         
(outer position). The Status LED (A.3) turns off;
3. Connect the USB power cable to the device (B.1);
4. Connect the USB power cable to the USB power adapter;
5. Plug the USB power adapter to a wall plug. The Status          
LED (A.3) turns solid red;
6. Leave the device charging until full charge. The Status        
LED (A.3) turns solid blue.

Charging:
1. Use the ON/OFF switch (B.2) to turn OFF the device         
(outer position). The Status LED (A.3) turns off;
2. Connect the USB power cable to the device (B.1);
3. Connect the USB power cable to the USB power adapter;
4. Plug the USB power adapter to a wall plug. The Status          
LED (A.3) turns solid red;
5. Leave the device charging. At full charge the Status LED         
(A.3) turns solid blue.
Note: It’s recommended to put the device charging after each use.

Operating:
1. Before each use, carefully clean the device with a tissue         
embedded in alcohol based or other cleaning solution       
compatible with the application. Use the cleaning      
solution with care and moderation to prevent damage to        
the electronics (e.g. LCDs, cameras, LEDs, etc.);
2. Remove any residues on the device with a clean tissue;
3. Replace the single use disposable comfort foam pad       
(A.1) as attach it as shown in Figure C;
4. Use the ON/OFF switch (B.2) to turn ON the device (inner          
position). The Status LED (A.3) turns solid red;
5. Loosen the fixation strap (A.2), place the device on the         
user’s head and tighten the fixation strap again;
6. Adjust the device to correctly to observe both patient’s        
eyes;
7. Use the device for the intended purpose;
8. Loosen the fixation strap (A.2) and remove the device        
from the user’s head;
9. Use the ON/OFF switch (B.2) to turn off the device (outer          
position). The Status LED (A.3) turns unlit;
10. Remove the single use disposable comfort foam pad       
(A.1).
Note: For safety, this device cannot be operated while charging.










TECHNICAL SPECIFICATIONS

Features:
Reusable device
Built in dual 3.5’’ TFT LCD display
Integrated lithium-ion battery (non-replaceable)
Latency under 30ms
5V DC connector
Fixation strap
Single use disposable comfort foam pads

Dimensions:
Height x Width x Depth
72 x 160 x 105 mm

Weight
450g

Power:
5V DC power input
3.3V DC 3400mAh lithium-ion battery
Autonomy: ~30 min
Full charge: ~120 min

Environment:
Operation: 0ºC to 45ºC
Storage/Transport: -20ºC to 50ºC
Humidity Range: <90%RH

Status LED states:
Solid Red: Device is ON - battery level normal
Blinking Red: Device is ON - battery level low
Solid Red: While charging - battery charging
Solid Blue: While charging - battery charged
Solid Purple: While charging - battery charging (critical      
low level, battery overheated or may be depleted)


SAFETY AND CARE INSTRUCTIONS

Please take into account these safety instructions while using and         
operating your goggles:

●This device is intended for research only;
●This device is intended for adults only;
●This device is intended for non-intrusive visualization of       
the eyes only, and is intended to be used on a person’s           
head and for this function only;
●This device isolates the eyes in such a way that visible          
light does not reach them, and as such the person is in           
complete darkness. To prevent falls and other      
darkness-related accidents, do not operate alone;
●Use only the supplied USB power adapter and USB power         
cable for charging this device.












Page 2
© 2018 μRoboptics®. All Rights Reserved.
To maximize the lifetime of this product, please follow these care          
instructions:

●When not in use, store the unit in a cool and dry place, away             
from direct sunlight;
●Do not immerse or splash the unit with water. If it comes in            
contact with water, dry immediately with a soft cloth;
●Use a soft microfiber cloth to clean the device;
●This device contains a non-replaceable battery. Do not       
replace the battery on your own. If the battery is depleted,          
contact μRoboptics after-sale service;
●Do not open the plastic casing. Doing so voids the product’s          
warranty and may cause damage;
●Do not subject the unit to excessive force, shock, dust,         
temperature changes or humidity. Such treatment may result       
in shortening the unit’s life span, and even in malfunctions         
or in completely breaking the unit;
●This unit contains no user-serviceable parts;
●Protect the environment: if you no longer need this unit,         
please deposit it at an appropriate disposal location.

HOW THE DEVICE WORKS

This reusable device isolates the eyes in such a way that visible           
light is not able to reach them. In front of the eyes there are two              
infrared cameras, one for each eye, that capture and transmit the          
video to the two LCD panels at the front of the unit.

APPLICATIONS

This device allows precise, real-time visualization of eye       
movements in complete darkness.

For research use only. For adult use only.


ABOUT MANUFACTURER

For information about the manufacturer, please visit μRoboptics®       
website (www.roboptics.pt) and learn more about the company,       
provided services and products.

For specific information about the μFrenzel® Video Goggles -        
Research, please visit the product’s website (www.ufrenzel.com).

To contact our Customer Care, please email to info@ufrenzel.com.

WARRANTY

Without prejudice to any applicable statutory warranty, μRoboptics       
warrants that the μFrenzel® Video Goggles - Research will be free          
of any defects in material or manufacture for 6 months from the           
initial date of purchase upon presentation of proof of purchase to          
the retailer or μRoboptics (receipt or invoice).

During the contractual warranty period, any defective product       
should be returned in its original packaging to the retailer’s or          
μRoboptics after-sale service. After inspection of the product,       
μRoboptics will, at its sole discretion, either repair or replace the          
defective part or product, excluding any other indemnification of        
any nature.

μRoboptics warranty does not cover:
●accessories and consumables;
●defects due to damage caused by an accidental fall;
●defects due to non-intended use of the product, use of         
non-original accessories or other misuses;
●defects caused by actions of the end-user;
●defects caused by any reason other than a defect in         
material or manufacture;
●the gradual power loss of the μFrenzel® Video Goggles -         
Research rechargeable battery over time, which does not       
constitute as a defect in the material or manufacture.

If upon execution of technical tests, a product is considered non          
defective, μRoboptics reserves the right to return such product to         
the sender at the sender’s cost and charge a fee for the performed            
technical tests.

Upon expiration of μRoboptics warranty or if the defect is not          
covered by the warranty, any defective product can be returned to          
μRoboptics after-sales service in order to be repaired or for a          
defective part to be replaced at the sender’s costs. Repair will only           
be carried out after acceptance of the corresponding quotation.


DISPOSAL OF THIS PRODUCT AT THE END OF ITS LIFE

At the end of this product’s life, please do not dispose of this            
product in your general household waste. Instead, in order to         
prevent possible harm to the environment or human health from         
uncontrolled waste disposal, please dispose of this product       
separately in accordance with your local laws and regulation. For         
more information on the separate collection systems for waste        
electrical and electronic equipment that are available for       
consumers, near your home, free of charge, please contact your         
local municipality authority. You can also contact the retailer from         
which you purchased your μFrenzel® video goggles – he might         
have put in place recycling services or he may be part of a specific             
recycling scheme.

This product will be then treated in an environmentally sound         
manner at a licensed recycling plant and its components will be          
recovered, recycled or reused in the most efficient manner, in         
accordance with the requirements of the Directive on Waste        
Electrical and Electronic Equipment (2002/96/EC) of 27 January       
2003 (as subsequently amended or replaced).


Page 3
© 2018 μRoboptics®. All Rights Reserved.



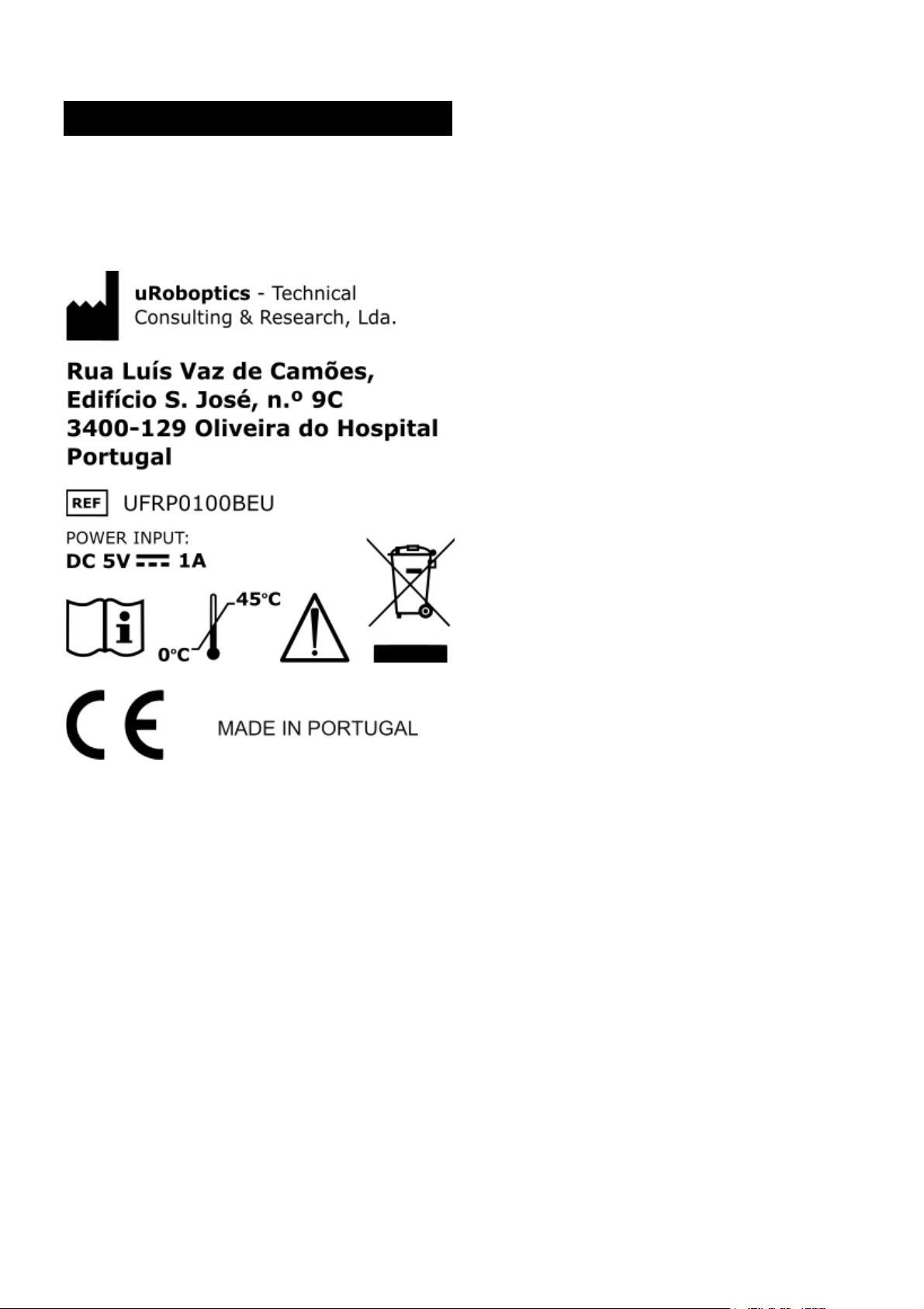

DECLARATION OF CONFORMITY CE

μRoboptics - Technical Consulting and Research, Lda., based in Rua         
Luís Vaz de Camões, Edifício S. José, n.º 9 C, 3400-129 Oliveira do            
Hospital, Portugal, declares under its sole responsibility that the        
product described in this user manual complies with the EU         
directive 768/2008/EC.





U18-71-001LMT
Version: 1.0
Date: 2018-10-23





 
Page 4
© 2018 μRoboptics®. All Rights Reserved.

This manual suits for next models

1

Other FRENZEL Accessories manuals

FRENZEL UFGP0100BEU User manual

FRENZEL

FRENZEL UFGP0100BEU User manual

FRENZEL UFG0100BEU User manual

FRENZEL

FRENZEL UFG0100BEU User manual

Popular Accessories manuals by other brands

Honeywell RTY Series installation instructions

Honeywell

Honeywell RTY Series installation instructions

netvox R72616A user manual

netvox

netvox R72616A user manual

VOLTCRAFT SL-10C operating instructions

VOLTCRAFT

VOLTCRAFT SL-10C operating instructions

Banner K30 Pro instruction manual

Banner

Banner K30 Pro instruction manual

Skywalker SURE SHOT SWGM1791.1 user manual

Skywalker

Skywalker SURE SHOT SWGM1791.1 user manual

Crivit CEK 29 A1 Operating instructions and safety instructions

Crivit

Crivit CEK 29 A1 Operating instructions and safety instructions

Panasonic EX-10 Series user manual

Panasonic

Panasonic EX-10 Series user manual

INTEGRA Metering AMFLO SONIC UFA-113 Mounting and operating instructions

INTEGRA Metering

INTEGRA Metering AMFLO SONIC UFA-113 Mounting and operating instructions

Takex PIR-T40NAM instruction manual

Takex

Takex PIR-T40NAM instruction manual

Hama 121955 operating instructions

Hama

Hama 121955 operating instructions

Tivoli Audio Fonico quick start guide

Tivoli Audio

Tivoli Audio Fonico quick start guide

Crow EDS-3000 Installation instructions and user guide

Crow

Crow EDS-3000 Installation instructions and user guide

MEFE CAT 673031 installation manual

MEFE

MEFE CAT 673031 installation manual

Somogyi Elektronic home AD10 instruction manual

Somogyi Elektronic

Somogyi Elektronic home AD10 instruction manual

KOB KOB 8160-1 Spec sheet

KOB

KOB KOB 8160-1 Spec sheet

SICK TiM781 operating instructions

SICK

SICK TiM781 operating instructions

Airmar WeatherStation 110WX Installation instruction supplement

Airmar

Airmar WeatherStation 110WX Installation instruction supplement

Elsner KNX AQS/TH-B-UP Series Installation and adjustment

Elsner

Elsner KNX AQS/TH-B-UP Series Installation and adjustment

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
