For your safety and correct usage before installing and first
using the appliance, read this user manual carefully, including
its hints and warnings. To avoid unnecessary mistakes and
accidents, it is important to make sure that all people using the
appliance are thoroughly familiar with its
operation and safety features. Save these instructions and be
sure that they remain with the appliance if it is moved or sold,
so that anyone using it throughout its life, will be properly
informed on its usage and safety notices.
For the safety of life and property, keep the precautions of
these user's instructions as the manufacturer is not
,
responsible for damages caused by omission.
Safety for children and otherswho are vulnerable people
According to EN standard
According to IEC standard
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
22

3
Keep all packaging away from children as there is risk of
suffocation.
If you are discarding the appliance, pull the plug out of the
socket, cut the connection cable (as close to the appliance
as you can) and remove the door to prevent children playing
from suffering an electric shock or from closing themselves
inside it.
If this appliance, featuring a magnetic door seals, is to
replace an older appliance having a spring lock (latch) on the
door or lid, be sure to make the spring lock unusable before
you discard the old appliance. This will prevent it from
becoming a death trap for a child.
General safety
WARNING —This appliance is intended to be used in
household and similar applications such as
-staff kitchen areas in shops, offices and other working
environments;
-farm houses and by clients in hotels, motels and other
residential type environments;
-bed and breakfast type environments;
-catering and similar non-retail applications.
WARNING — Do not store explosive substances such as
aerosol cans with a flammable propellant in this appliance.
WARNING — If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
WARNING — Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
WARNING — Do not use mechanical devices or other
means to accelerate the defrosting process, other than those
recommended by the manufacturer.
WARNING — Do not damage the refrigerant circuit.
WARNING — Do not use electrical appliances inside the
food storage compartments of the appliance, unless they are
of the type recommended by the manufacturer.
WARNING — Fill with potable water only.

4
WARNING — The refrigerant and insulation blowing gas are
flammable. When disposing of the appliance, do so only at
an authorized waste disposal centre. Do not expose to
flame.
WARNING —When positioning the appliance, ensure the
supply cord is not trapped or damaged.
WARNING —Do not locate multiple portable socket-outlets
or portable power supplies at the rear of the appliance.
Refrigerant
The refrigerant isobutene (R600a) is contained within the
refrigerant circuit of the appliance, a natural gas with a high
level of environmental compatibility, which is nevertheless
flammable. During transportation and installation of the
appliance, ensure that none of the components of the
refrigerant circuit becomes damaged.
The refrigerant (R600a) is flammable.
If the refrigerant circuit should be damaged:
-Avoid opening flames and sources of ignition.
-Thoroughly ventilate the room in which the appliance is
situated.
WARNING — Refrigerators contain refrigerant andgases in
the insulation. Refrigerant and gases must be disposed of
professionally as they may cause eye injuries or ignition.
Ensure that tubing of the refrigerant circuit is not damage
prior to proper disposal.
Replacing the illuminating lamps
WARNING—The illuminating lamps must not be replaced by
the user! If the illuminating lamps is damaged, contact the
customer helpline for assistance.
This warning is only for refrigerators that contain illuminating
lamps.
:
WARNING Risk of fire / flammable materials

5
Daily use
Do not store flammable gass or liquids in the appliance,
There is a risk of an explosion.
Do not operate any electrical appliances in the appliance
(e.g.electric ice cream makers,mixers etc.).
When unplugging always pull the plug from the mains
socket,do not pull on the cable.
Do not place hot items near the plastic components of this
appliance.
Electrical safety
1.The power cord must not be lengthened.
2. Make sure that the power plug is not crushed or damaged.
A crushed or damaged power plug may overheat and cause a
fire.
3. Make sure that you can access the main plug of the
appliance.
4. Do not pull the main cable.
5. If the power plug socket is loose, do not insert the power
plug. There is a risk of electric shock or fire.
6.You must not operate the appliance without the interior
lighting lamp cover.
7.The fridge is only applied with power supply of single phase
alternating current of 220~240V/50Hz. If fluctuation of voltage
in the district of user is so large that the voltage exceeds the
above scope, for safety sake, be sure to apply A.C. Automatic
voltage regulator of more than 350W to the fridge. The fridge
must employ a special power socket instead of common one
with other electric appliances. Its plug must match the socket
with ground wire.
It is dangerous to alter the specifications or modify this
product in any way.
Any damage to the cord may cause a shortcircuit, fire, and/or
electric shock.
This refrigerating appliance is not intended to be used
as a built-in appliance.

6
Do not place food products directly against the air outlet on
the rear wall.
Store pre-packed frozen food in accordance with the frozen
food manufacture’s instructions.
The appliances manufactures storage recommendations
should be strictly adhered to.Refer to relrelevant instructions
for storage.
Do not place carbonated or fizzy drinks in the freeze
compartment as it creates pressure on the container,which
may cause it to explode,resulting in damage to the
appliance.
Frozen food can cause frost burns if consumed straight from
the freezer compartment.
Do not place the appliance in direct sunlight.
Keep buring candles,lamps and other items with naked
flames away from the appliance so that do not set the
appliance on fire.
The appliance is intended for keeping food stuff and/or
beverages in normal household as explained in this
instruction booklet The appliance is heavy.Care should be
taken when moving it.
Do not remove nor touch items from the freezer
compartment if your hands are damp/wet,as this could cause
skin abrasions or frost/freezer burns.
Never use the base,drawers, doors etc. to stand on or as
supports.
Frozen food must not be refrozen once it has been thawed
out.
Do not consume ice popsicles or ice cubes straight from
the freezer as this can cause freezer burn to the mouth
and lips.
To avoid items falling and causing injury or damage to
the appliance, do not overload the door racks or put too
much food in the crisper drawers.
caution!
Care and cleaning

: Children aged from 3 to 8 years are allowed to load and
Adequate air circulation should be around the appliance,
lacking this leads to overheating. To achieve sufficient
ventilation, follow the instructions relevant to installation.
Wherever possible the back of the product should not be too
close to a wall to avoid touching or catching warm parts
(compressor, condenser) to prevent the risk of a fire, follow
the instructions relevant to installation.
The appliance must not be locate close to radiators or cookers.
Make sure that the mains plug is accessible after the
installation of the appliance.
Service
Any electrical work required to do the servicing of the
appliance should be carried out by qualified electrician or
competent person.
This product must be serviced by an authorized Service
Center, and only genuine spare parts must be used.
1)If the appliance is Frost Free.
2)If the appliance contains freezer compartment.
Installation Important!
For electrical connection carefully, follow the instructions
given in this manual.
Unpack the appliance and check if there are damages on it.
Do not connect the appliance if it is damaged. Report
possible damages immediately to the place you bought it. In
this case retain packing.
It is advisable to wait at least four hours before connecting
the appliance to allow the oil to flow back in the compressor.
Before maintenance, switch off the appliance and disconnect
the mains plug from the mains socket.
Do not clean the appliance with metal objects, steam
cleaner, ethereal oils, organic solvents or abrasive cleansers.
Do not use sharp objects to remove frost from the appliance.
Use a plastic scraper.
7
unload refrigerating appliances.(This clause applies only to the
EU region.)
Note

Installing your new appliance
Before using the appliance for the first
time, you should be aware of the
following tips.
Ventilation of appliance
In order to improve efficiency of
the cooling system and save
energy, it is necessary to maintain
good ventilation around the appliance
for the dissipation of heat. For this
reason, sufficient clear space should
be available around the refrigerator.
Suggest: It is advisable for there to
be 50-70mm of space from the back to
the wall, at least 100mm from its top,
at least 100mm from its side to the
wall and a clear space upfront to allow
the freezer door to open 130°and the
refrigerator door to open 115° See in
follow diagrams. Please refer to the
diagrams below.
Relevant information (mm)
This appliance performs well in the
climate class from SN to T. It may not
work properly if being left at a
temperature above or below the
indicated range for a long period.
Note:
Stand your appliance in a dry place
to avoid high moisture damage.
Keep the appliance out of direct
sunlight, rain or frost. Stand the
appliance away from heat sources
such as stoves, fires or heaters.
8
908 194 600 1048
W2
252
DD1
W1
130°
115°
D1
≥100
W
D
≥100
W2
50-70

adjusta e bottom f etbl e
adjusta e bottom f etbl e
Warning!
For proper installation, this refrigerator
must be placed on a level surface of
hard material that is the same height
as the rest of the flooring. This surface
should be strong enough to support a
fully loaded refrigerator.
The rollers, which are not castors,
should be only used for forward or
backward movement. Moving the
refrigerator sideways may damage
your floor and the rollers.

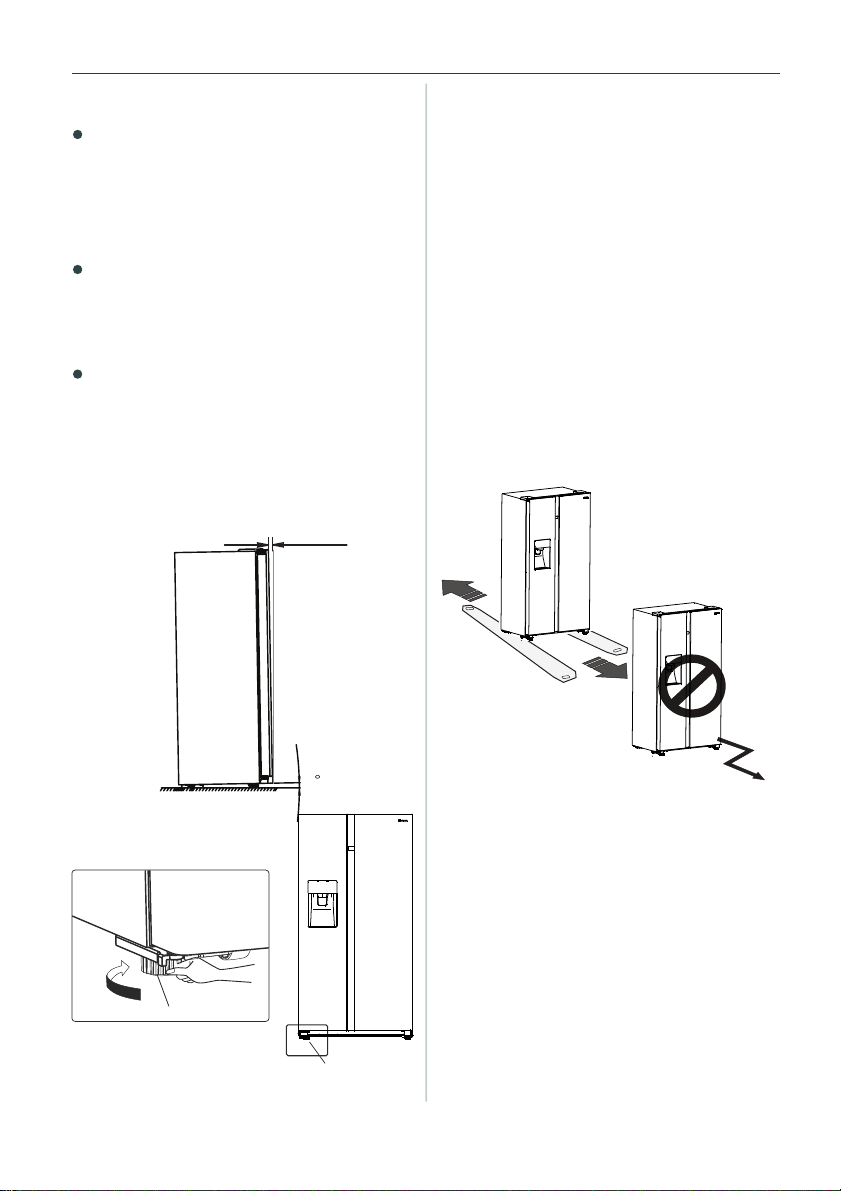

Leveling of appliance
For sufficient leveling and air
circulating in the lower rear section of
the appliance, the bottom feet may
need to be adjusted. Please use a
suitable spanner.
To allow the doors to self-close, tilt
back the top backwards at about
15mm or 0.5 by turning the°
adjustable feet.
Whenever you want to move the
appliance, remember to turn the feet
back up, so that the appliance can roll
freely. Reinstall the appliance when
relocating.
1.2
12mm
9

Description of the appliance
Note: Due to constant development of our products, your refrigerator may be
slightly different from this Instruction Manual, but its functions and usage
remain the same.

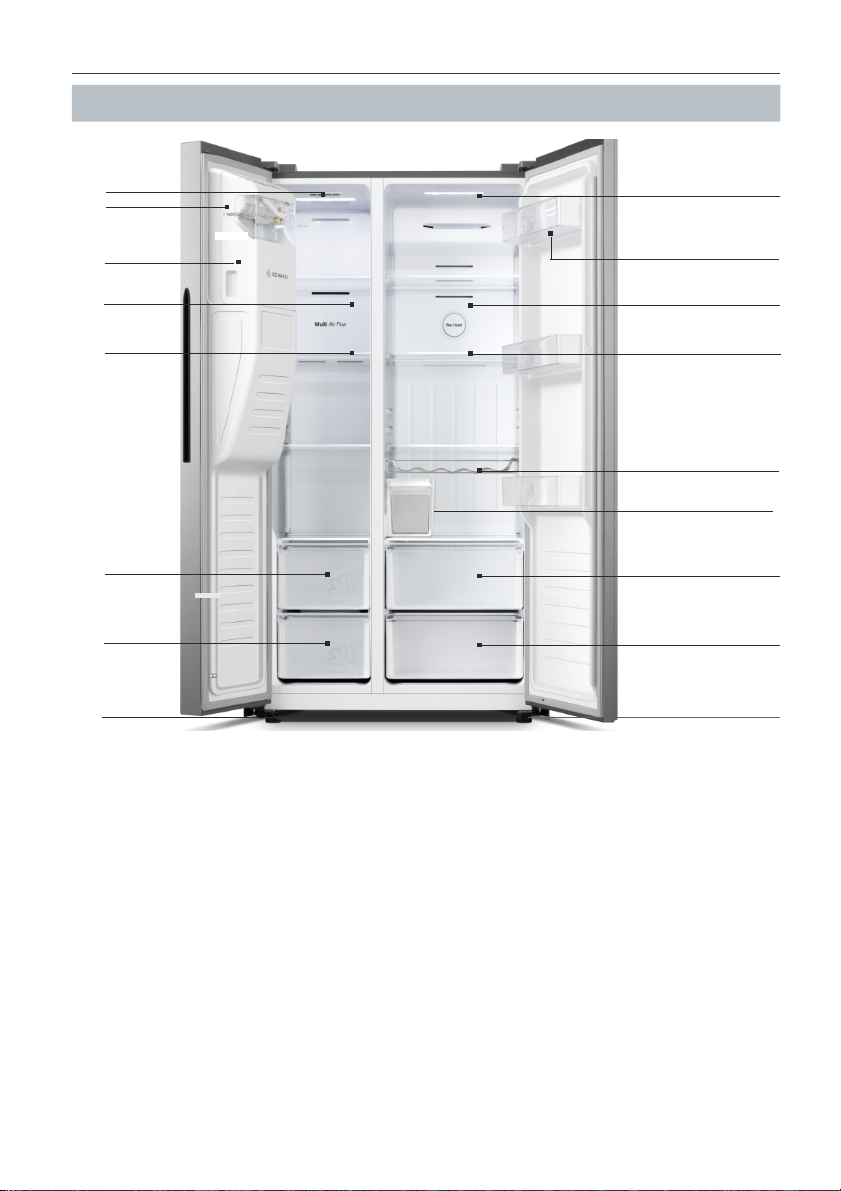

1. Freezer zone LED light
2. Ice-Maker Front Cover Assembly
3. Ice Bucket Assembly
4. Wind channel cover in freezer
5. Freezer shelf
6. Freezer upper drawer
7. Freezer lower drawer
8. Left adjustable bottom feet
9.Fridge zone LED light
10. Fridge door Rack
11. Wind channel cover in fridge
12. Fridge shelf
13.Bottle Rack
14.Water storage box part
15.Fridge upper drawer
16.Fridge lower drawer
17.Right adjustable bottom feet
10
8
9
14
10
12
13
15
16
17
7
6
5
1
2
3
41211
View of the appliance
Note:To get the best energy efficiency of this product, please place all shelves,drawers on
their original position as the illustration above.

Use your appliance according to the following control guidelines, your product
has a control panel as shown in the diagram below.
When the appliance is powered on for
the first time, the backlighting of the
icons on the display panel starts
working. If no buttons have been
touched and the doors are closed, the
backlighting will turn off after 60
seconds.
Caution!When you set a
temperature, you set an average
temperature for the whole refrigerator
cabinet. Temperatures inside each
compartment may vary from the
temperatures displayed on the panel,
depending on how much food you
store and where you place it. High or
low room temperature may also affect
the actual temperature inside the
appliance.
The control panel consists of two
areas about temperature, and one
area about different modes.
Display controls
11
Non Plumbing
NOTE:High temperature setting will
accelerate food waste.
For optimum food preservation,
we recommend that when you
start your refrigerator for the
first time, the temperature for
the refrigerator is set to 4°C ,
and the freezer to -18°C.

You can touch “Ice Off” button to
control the ice maker. When the Child
Lock is off, and the ice function is on,
you can touch the “Ice Off” icon to
close the ice maker, and the icon “ ”
will be illuminated. If you want to open
the ice maker, please touch the “Ice
Off”icon again, and the icon “ ” will
be off.
When the door of fridge or freezer is
open over 2 minutes, the door alarm
will come on. In case of alarm, “ ”
icon will be on and will be buzzing
sound. The buzzer will sound 3 times
per minute and will stop after 10
minutes. Also it can be stoped by
closing the door.
In case of alarm, “ ” icon will be on
and a buzzing sound will be heard.
Touch “Alarm”key to clear alarm then
the “ ” icon will turn off and the
buzzing will stop.
Press and hold “Alarm”for 3 seconds
to lock the all the Control Panel
including dispenser function. If
Control panel is locked, the icon “ ”
will be illuminated, and none of the
buttonsontheControl Panelwork.
OFF
“Child Lock and Door Alarm”
This button serves two purposes:
To unlock the Control Panel, please
press and hold “Alarm”for 3 seconds
again.
1.Child Lock
2.Door Alarm
To save energy, please avoid keeping
doors open for along time when
using refrigerator.
When Child Lock is off, and the doors
are open, you can turn alarm off by
touching “Alarm”.
“Ice Control”
This button controls the ice maker.
OFF
“Holiday”
If you are going to be away for a long
period of time such as a long holiday
or business trip, you can activate this
function by touching the “Holiday”
button, and the icon “ ” will be
illuminated.
When the holiday function is
activated, the temperature of the
fridge is automatically switched to
15℃and the freezer to -18℃to
minimize the energy consumption.
The fridge temperature seting
displays “ ” and the freezer—
compartment remains on.
When the holiday function is on, you
can switch off it by touching “Holiday”
again, and the icon “ ” will be off.
When the holiday function is on, the
ice maker will automatically turn off.
The refrigerator will retain the setting
when powered off.
Child Lock 3"
Note: Do not store any food in the
fridge during the “Holiday”time, or it
will quickly deteriorate.
Note: When the
close the ice maker not the dispenser.
“Ice Off”is on, it only
12

“Fridge temperature control”
You can touch the “Fridge”icon to
activate the mode to control the fridge
temperature. When you touch the
button continuously, the temperature
will be set the following sequence.in
If you want to decrease the time
needed to cool products in the Fridge,
please touch and hold this button for
3 seconds, the super cool icon “ ”
will be illuminated, the fridge
temperature setting displays 2℃.
Super cool automatically switches off
after 3 hours, and the refrigerator
temperature setting will revert back to
the previous setting.
When super cool function is on, you
can touch the “Fridge”to switch it off
and it will revert to previous
temperature setting. The fridge will
not retain the Super Cool function
when power off.
“Freezer temperature control”
You can touch the “Freezer”button to
activate the mode to control the
freezer temperature. When you press
the button continuously, the
temperature will be set thein
Super Cool 3"
Super Freeze 3"
Note: On the Super Cool function,
when you touch the “Holiday”or “Eco”
button, “Holiday”or “Eco”function will
be activated, and “Super Cool”mode
will be off.
Press and hold the “Freezer” button
for 3 seconds, the icon “ ”will be
illuminated, the freezer temperature
setting displays -24℃.
Super Freezer can quickly lower the
temperature and freeze your food
faster than usual. This can retain
more of the vitamins and nutrition in
fresh food and keep your food longer.
The super freeze option allows you to
freeze the maximum amount of
possible. We recommend that you let
the appliance operates at least 24
hours first. Super freeze automatically
switches off after 52 hours, and the
freezer temperature setting will revert
back to the previous setting.
When the super freeze function is on,
you can touch “Freezer” for to switch
off the Super Freeze function, and it
will revert to previous temperature
setting. And it will not retain the Super
Freeze function when power off.
Note: On the Super Freezer function,
when you touch the “Holiday” or “Eco”
button, “Holiday” or “Eco” function will
be activated, and “Super Freezer”
mode will be off.
“Dispenser control”
When the freezer door is opened or
the Child Lock is on, the dispenser will
not work.
The Ice Type button includes “Cubed”
and “Crushed” options.
following sequence.
13

When the refrigerator is powered
on, all the icons of the control panel
will light up for 3 seconds, and a
buzzer sounds. The Child Lock is off.
And the temperature setting reverts
back to the previous setting.
You can touch this button to turn
Energy Saver mode on and off .
When you turn Energy Save on, the
Energy Save icon “ ” lights.
If Energy Save is off
and the icon goes off.
The temperature of the fridge is
automatically switched to and the
℃6
freezer to -℃.17
If you need water, please touch the
“Water”button, and the water icon
“ ” will light up. The mode is then
set.
When you touch the Ice Type button,
the cubed or crushed ice mode which
you choose will be activated, and the
Cubed “ ” or Crushed “ ” ice icon
lights up.
“Energy Save”
Note!
The control panel will light up when
the door is open or you touch any
button.
The light will go off without touching
any button or the doors have been
closed for one minutes.
If you don’t need ice, turn the function
off to save on water and energy
consumption.(See Ice Off above.)
Note!
You can the "Cubed" or
"Crushed" to choose the toption
of Ice to be dispensed. You can touch
the "Water" to activate thebutton
water mode.
press
ype
14
“Water storage box Alarm”
If the water storage box part
is not correctly installed or not
installed, the water storage box
alarm will come on for reminding
users. You can clear the alarm
by holding "Eco" button for 3
seconds.
If water is not dispensed or
dispensing slowly you need to,
check whether the water storage
box part is correctly installed or not
and make sure there is enough
water in the water storage box .
When you touching the "water" button
for water, the water pump will start to
draw, there is little nosie when the
water pump working, it is normal.
Non Plumbing

This section tells you how to use most
of the useful features. We recommend
that you read through them carefully
before using the appliance.

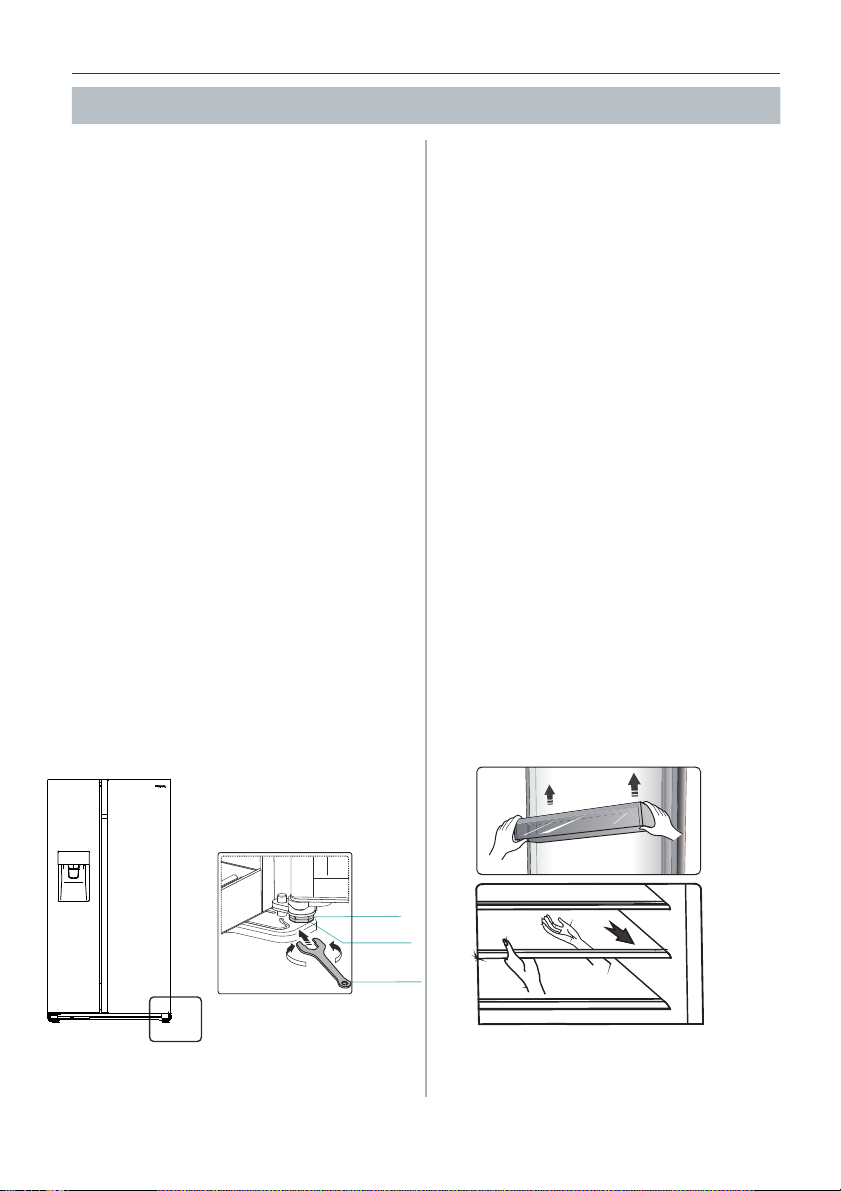

1. Adjust the door
When you found the doors are not at
the same level, you can use a
screwdriver to adjust the fridge door.
When the freezer door is higher than
the fridge door. First, you can use the
spanner to turn the bolt anticlockwise
on the lower hinge that can raise the
fridge door. Once in position use the
spanner to lock the nut.
When the freezer door is lower than
the fridge door. You should use the
spanner to turn the bolt clockwise to
make the fridge door go down. Once
in position lock in place.
2. Using your refrigerator compartment
The refrigerator compartment is
suitable for storage of vegetables and
fruit. Food inside should be packed to
store in order to avoid losing moisture
or flavor permeating into other foods.
Caution! Never close the refrigerator
door while the shelves, crisper and/or
telescopic slides are extended. It may
damage both them and the
refrigerator.
Glass shelves and Door racks
The refrigerator compartment is
provided with glass shelves
and several different door racks,
which are suitable for the storage of
eggs, canned liquid, bottled drinks
and packed food. They can be placed
a different heights according to your
need. But do not place too many
heavy things in racks. Before you lift
up the door shelf vertically, please
take the food out.
several
Note: The door racks and shelves
can be taken out to be cleaned.
②nut
①bolt
③spanner
Using your appliance
Only the fridge door can be adjusted.
15

,
,
position.
Note
16
Caution:
SODA,JUICE,MILK,ALCOHOL,
①Pull out the water storage box
②Lift the front small cover,and then
inpouring directly
③Refiting the water storage box on
the fridge shelf
It is for providing water for ice maker
and water dispenser. You can inpour-
ing water into the water storage box
by following steps:

Bottled or canned liquid are at risk of
exploding caused by volume
expansion and so should not be
stored in the freezer compartment.
4. Using the dispenser
You can choose the type of ice or
water by touching the “Cubed” or
“Crushed” or “Water” button.
When you choose ice type, push the
dispenser gently with your cup. Ice
will be released from the dispenser.
Make sure the cup is in line with the
dispenser, and the ice exactly fall into
the cup.
If you select Cubed Ice after using
the Crushed Ice feature, a small
amount of residual crushed ice might
fall into your cup.
Do not removing your
cup or glass from under the dispenser
after dispensing water or ice you
need. You should be wait for 2 or 3
seconds to prevent spills.
immediately
Do not pull the lever out as this could
damage or break the lever’s spring.
The dispensed water is cool, not icy
cold. When you want colder water with
ice, dispense ice to your glass first,
then fill with water from the dispenser.
Note:
SuperFreeze3
"
SuperCool3
"
FilterReset3
"
ChildLock3
"
SuperFreeze 3
"
SuperCool 3
"
FilterReset3
"
ChildLock 3
"
Do not dispense ice continually more
than one minute during normal use to
avoid the excessive temperature on
the ice crusher motor.
Drawers
.
3.
, , ,
Caution
17

5. Using the Ice Bucket

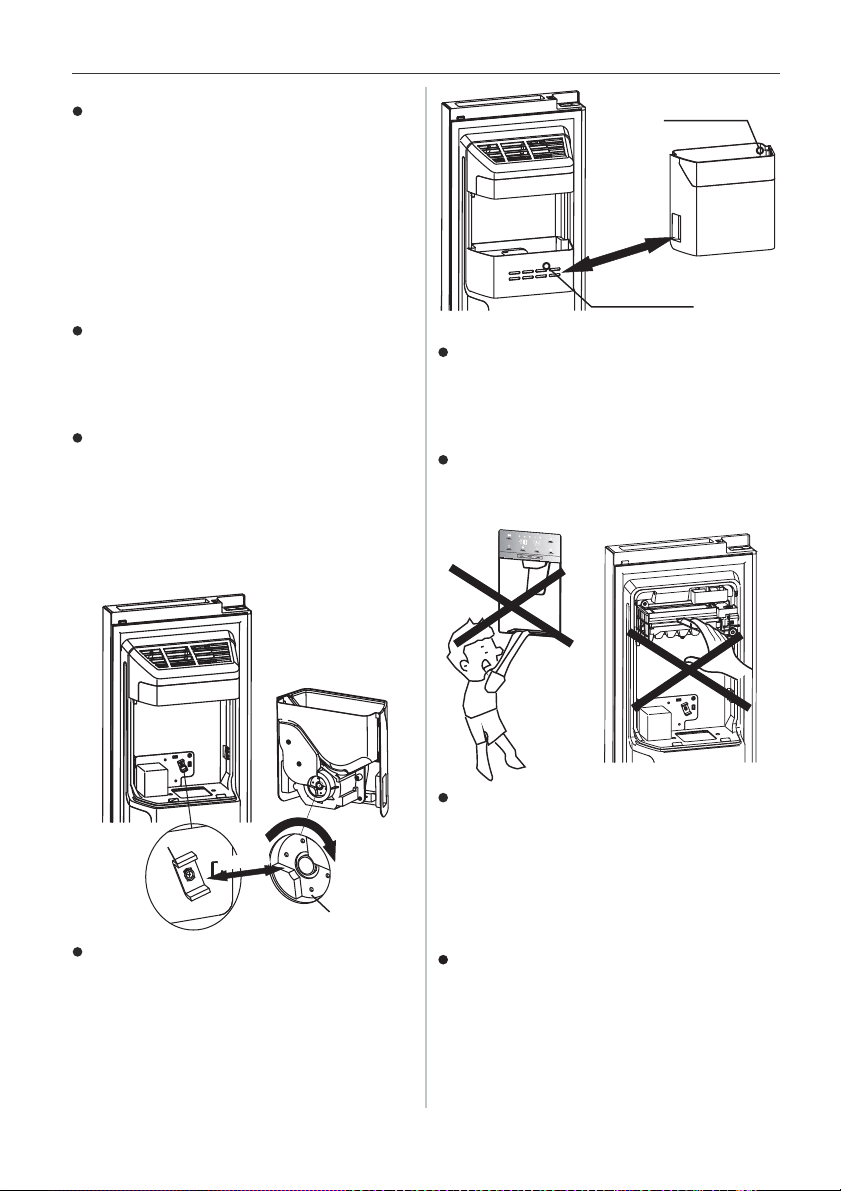

If you want to remove the Ice Bucket:
Please hold the handle as shown in
the figure below. Then lift up and pull
the Ice Bucket out slowly to prevent
damage.
Note!
When the ice maker dumps ice into
the bucket, any sounds you hear are
part of normal operation.
If you do not dispense ice for a
long periods of time, Ice may clump
in the Ice Bucket. If this occurs,
please remove all the ice and empty
the bucket.
If ice doesn’t come out, please
check for any ice stuck in the chute
and remove it. Or pull out the Ice
Bucket and check for any ice cubes
clump, then remove them.
Ice chute
Ice Maker Cover
Ice Bucket
①L the Ice Bucketift up
②Pull the Ice Bucket out slowly
Removing Steps:
B
B’
A
A’
When you put it back, please make
sure the two side(B&B’) of Ice Bucket
is wedged into the buckles(A&A’).
①
②
Installing Steps:
①
the two side(B&B’) of Ice Bucket
wedge into the buckles(A&A’).
②Pull the Ice Bucket down, and make
sure the Ice Bucket is held the bracket
firmly.
Push the Ice Bucket up, and make
①②
Pull out
A
B
A
B
Push up
18
If the refrigerator has been power-
off too long,the ice in the bucket will
melt ,and the water will flow out of the
refrigerator to the floor.To avoid
this,you should remove all the ice in
the bucket .

Warning!
Do not put your fingers, hands, or
any other unsuitable objects in the ice
chute or ice bucket. This can cause
personal injury or material damage.
Do not allow your children to hang
off the dispenser or pluck the ice
storage bin. This could cause injury.
If you want more space to store
foods, you can replace
the storage box. The “Ice Off”
should be set on to make sure that
the ice maker is off.
the Ice Bucket
with
To clean the Ice Bucket, wash with a
mild detergent, rinse well, and dry
thoroughly it. Do not use harsh or
abrasive cleaners or solvents.
Before replacing back the Ice
Bucket, please check the two couplers
are at a suitable angle to connect
correctly. If not, please turn the Ice
bucket coupler to the right angle to
match the motor coupler.
The first batch of ice cubes after
installation may be small, because air
has entered the water line. Any air will
be purged during normal use. If the
ice cubes is still small, please check
the water is circulated in line, or water
valve is opened large enough, or the
water is at a high pressure properly.
Do not use excessive force to open
or close the door, or the water may
spill out off the ice maker.
Ice Bucket
Storage Box
SuperFreeze3"Super Cool 3"Filter Reset 3"
ChildLock3"
19
Connect
Motor Coupler
Ice Bucket Coupler
There is a water line connection
between ice maker and water
storage box, don't disassemble
the whole water supply system by
yourself. It is recommended that
suitably qualified person to do this..

For hygienic reasons the appliance
(including exterior and interior
accessories) should be cleaned
regularly (at least every two months).
The appliance must not be connected
to the mains during cleaning. Danger
of electrical shock! Before cleaning
switch the appliance off and remove
the plug from the mains socket.

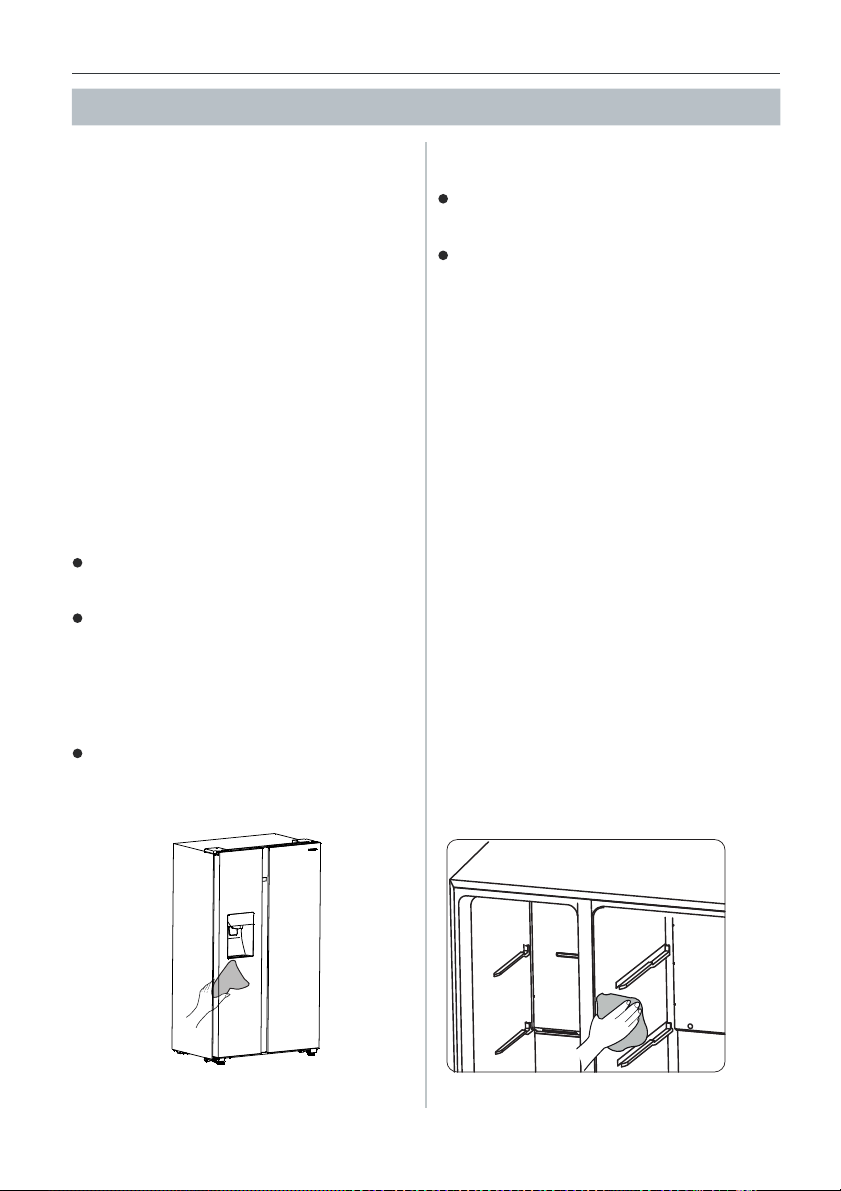

Exterior cleaning
To maintain good appearance of your
appliance, you should clean it
regularly.
Wipe the digital panel and display
panel with a clean, soft cloth.
Spray water onto the cleaning cloth
instead of spraying directly on the
surface of the appliance. This helps
ensure an even distribution of
moisture to the surface.
Clean the doors, handles and
cabinet surfaces with a mild detergent
and then wiped dry with a soft cloth.
Do not use sharp objects as they
are likely to scratch the surface.
Do not use Thinner, Car detergent,
Clorox, ethereal oil, abrasive
cleansers or organic solvent such as
Benzene for cleaning. They may
damage the surface of the appliance
and may cause fire.
Warning!
Warning!
Interior cleaning
You should clean the appliance
interior regularly. It will be easier to
clean when food stocks are low. You
can remove the drawers and shelves
for a more thorough clean. Wipe the
inside of the freezer with a weak
solution of bicarbonate of soda, and
then rinse with warm water using a
wrung-out sponge or cloth. Wipe
completely dry before replacing the
shelves and baskets.
Thoroughly dry all surfaces and
removable parts before putting them
back into place.
Cleaning and care
20
