Fridgemaster MBC54260F Technical manual

EN
DETAILED
INSTRUCTIONS FOR USE
OF UPRIGHT
REFRIGERATOR AND
FREEZER

2
837875
We thank you for the confidence you have shown by purchasing
our appliance which is designed to simplify your life. To make the use of the
product easier, we have supplied detailed instructions for use, and installation
instructions supplied on a separate sheet. The instructions should allow you to
learn about your new appliance as quickly as possible.
We wish you find a lot of pleasure in its use.
The appliance is intended solely for household use.
The refrigerator is intended for storing fresh food at temperatures above 0°C.
The freezer is intended for freezing fresh food and for long-term storage of
frozen food (up to one year, depending on the type of food).
Please visit our website where you can enter your appliance model number,
indicated on the rating plate or the warranty sheet, to find detailed description
of your appliance, tips on use, troubleshooting, service information, instructions
for use etc.
Important safety warning
General warnings and tips
i
Protecting the environment
!
Do not wash in the dishwasher

3
CONTENTS
837875
INTRODUCTION
APPLIANCE
DESCRIPTION
DEFROSTING
AND CLEANING
THE APPLIANCE
4 IMPORTANT NOTES AND PRECAUTIONS
4 BEFORE USING THE APPLIANCE FOR THE FIRST TIME
5 IMPORTANT SAFETY INSTRUCTIONS
8 IMPORTANT INFORMATION ON THE USE OF APPLIANCE
9 ENVIRONMENT PROTECTION
10 ADVICE FOR SAVING POWER WITH REFRIGERATION
APPLIANCES
11 INSTALLATION AND CONNECTION
13 APPLIANCE DESCRIPTION
14 OPERATING THE APPLIANCE
17 APPLIANCE INTERIOR EQUIPMENT
20 RECOMMENDED DISTRIBUTION OF FOOD IN THE
APPLIANCE
21 STORING FOOD IN THE REFRIGERATOR
26 FREEZING AND STORING FROZEN FOOD
26 Freezing procedure
27 Important warnings on freezing
27 Storing industrially frozen food
28 Frozen food storage time
28 Defrosting frozen food
29 DEFROSTING THE APPLIANCE
30 CLEANING THE APPLIANCE
31 TROUBLESHOOTING
33 INFORMATION ABOUT APPLIANCE NOISE
MISCELLANEOUS
STORING AND
FREEZING FOOD

4
IMPORTANT NOTES AND
PRECAUTIONS
Before connecting the appliance to the power mains, please
read carefully the instructions for use which describe the
appliance and its correct and safe use. The instructions
apply to several appliance types/models; thus, settings or
equipment may be described herein which is not available
in your appliance. We recommend saving this instruction
manual for future reference and attach it to the appliance if
it is sold in the future.
Check for any damage or irregularities on your appliance. If
you find your appliance is damaged, notify the retailer from
which you have purchased the appliance.
Before connecting the appliance to the power mains, let
the appliance rest in a vertical position for a minimum of 2
hours. This will reduce the possibility of operation faults due
to the effect of transport on the cooling system.
837875
BEFORE USING THE APPLIANCE FOR
THE FIRST TIME
i

5
837875
IMPORTANT SAFETY INSTRUCTIONS
!
The appliance must be connected to the power mains and
grounded in compliance with the effective standards and
regulations.
WARNING! Do not locate multiple portable socket-outlets
or portable power supplies at the rear of the appliance.
Before cleaning the appliance, unplug it from the power
mains (unplug the power cord from the wall outlet).
WARNING! If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
WARNING! When positioning the appliance, ensure the
supply cord is not trapped or damaged.
If LED lighting does not work, call a service technician. Do
not attempt a repair of the LED lighting yourself, as there is
danger of contact with high voltage!
WARNING! Do not use any electric devices inside the
appliance, except for those allowed by the manufacturer
of this refrigeration appliance.
WARNING! Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
WARNING! To avoid any hazard resulting from poor
stability of the appliance, make sure it is installed as
instructed.
!
!
!
WARNING! Risk of fire/flammable materials.

6
837875
Danger of frostbite
Never put frozen food in your mouth and avoid touching
frozen food as this may cause frostnip or frostbite.
Safety of children and vulnerable persons
The appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not
play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Cleaning and user maintenance shall not be made by
children without supervision.
Remove the packaging intended to protect the appliance
or particular parts during transport and keep it outside the
reach of children.
It presents danger of injury or suffocation.
For European markets only
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.

7
837875
Children aged from 3 to 8 years are allowed to load and
unload refrigerating appliances.
Warning regarding the refrigerant
The appliance contains a small amount of an
environmentally friendly yet flammable gas R600a. Make
sure that no parts of the cooling system are damaged. A
gas leak is not hazardous to the environment, but it could
cause eye injury or fire.
In case of a gas leak, ventilate the room thoroughly,
disconnect the appliance from the power mains, and call a
service technician.

8
837875
The appliance may not be used outdoors and it may not be
exposed to rain.
Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
If the appliance will be out of use for an extended period of
time, switch it off using the relevant button, and unplug it
from the power mains. Empty the appliance, defrost it, clean
it, and leave the door ajar.
In case of an error or power supply failure do not open the
freezer compartment unless the freezer has not operated
for over 16 hours. After this period, use the frozen food or
provide sufficient cooling (e.g. a replacement appliance).
WARNING! Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear of
obstruction.
i
IMPORTANT INFORMATION ON THE USE
OF APPLIANCE
WARNING! This appliance is intended to be used in
household and similar applications such as:
– staff kitchen areas in shops, offices and other working
environments;
- farm houses and by clients in hotels, motels and other
residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.

9
837875
The symbol on the product or its packaging indicates that the product
should not be treated as normal household waste. The product should be
taken to an authorized collection centre for waste electric and electronic
equipment processing. Correct disposal of the product will help prevent
any negative effects on the environment and health of people which could
occur in case of incorrect product removal. For detailed information on
removal and processing of the product, please contact the relevant municipal
body in charge of waste management, your waste disposal service, or the
store where you bought the product.
Packaging is made of environmentally friendly materials
that can be recycled, disposed of, or destroyed without any
hazard to the environment.
!Removing an obsolete appliance
To protect the environment, take the obsolete appliance to
an authorized home appliance collection centre.
Before doing so, do the following:
• disconnect the appliance from the power mains;
• do not allow children to play with the appliance.
ENVIRONMENT PROTECTION
WARNING! Do not damage the refrigerant circuit.
This will also prevent pollution.
i
Technical information on the appliance
Rating plate can be found in the appliance interior. It
indicates data on voltage, gross and net volume, type
and amount of refrigerant, and information on the climate
classes.
If the language on the rating plate is not the language of
your choice or the language of your country, replace it with
the one supplied.

10
ADVICE FOR SAVING POWER
WITH REFRIGERATION
APPLIANCES
i
837875
• Install the appliance as specified in the instruction manual.
• Do not open the door more often than necessary.
• Occasionally make sure air circulation underneath the appliance is
unobstructed.
• Condenser unit on the rear wall should be kept clean (see chapter Cleaning
the appliance).
• If the gasket is damaged or does not provide a perfect seal for any reason,
have it replaced as soon as possible.
• Store the food in tightly sealed containers or appropriate packaging.
• Before placing the food in the refrigerator, allow it to cool down to room
temperature.
• Defrost frozen food in the refrigerator compartment.
• To make use of the entire freezer compartment interior volume, remove
some of the drawers as described in the instruction manual.
• Defrost your conventional freezer when an approximately 3–5 millimetre
layer of frost or ice has built up on the refrigerated surfaces.
• Make sure the layout of shelves in the compartment is uniform and that
the food is placed so that the air can freely circulate in the appliance
interior (observe the recommended placement of food as described in the
instructions).
• In appliances with a fan, do not block the fan slots or vents.
• If you do not need the fan or the ionizer, switch them off to reduce power
consumption.

11
INSTALLATION AND
CONNECTION
837875
SELECTING THE ROOM
• Install the appliance in a dry and well ventilated room. The appliance will
operate correctly if the environment temperature is in the interval specified in
the table. The appliance class is indicated on the rating plate / label with the
basic information on the appliance.
Class Temperature Relative Humidity
SN (subnormal) from +10 °C to +32 °C
75%
N (normal) from +16 °C to +32 °C
ST (subtropical) from +16 °C to +38 °C
T (tropical) from +16 °C to +43 °C
• Do not place an appliance in a room where temperature can drop to
below 5 °C as this may cause abnormal appliance operation or failure!
i
• After the installation, the appliance mains plug should be accessible!
• Do not place the appliance near appliances or devices radiating heat, such as
a cooker, a stove, a radiator, water heater etc., and do not expose it to direct
sunlight. The appliance should stand at least 3 cm away from an electric or gas
cooker or at least 30 cm away from an oil or solid fuel stove. If the distance
between such source of heat and the appliance is smaller, use an insulating
panel.
Note: Place the appliance in a suciently large room. There should be at least
1 m3of space per 8 grams of refrigerant. Amount of refrigerant is indicated on
the rating plate in the appliance interior.
• There should be an opening or a vent of at least 200 cm2behind the
appliance, and the clearance between the appliance and any cabinet above it
should be at least 5 cm, to allow cooling of the condenser unit.
Note:
When installing the appliance side-by-side into kitchen cabinets, each appliance
should be integrated into a separate cabinet.
An anti-condensation service kit should be purchased, complete with a power
cord for connecting the kit to the power mains. An additional power socket is
required for connecting the anti-condensation service kit.
For safety reasons, the service kit may only be installed by an authorized
service technician!

12
The process of changing the appliance door opening and integrating the
appliance into a cabinet is described on a separate sheet supplied in the bag
with the instruction manual.
837875
CONNECTING THE APPLIANCE
• Connect the appliance to the power
mains using the power cord. The wall
outlet should be fitted with a ground
contact (safety socket). Nominal
voltage and frequency are indicated
on the rating plate/label with basic
information on the appliance.
• The appliance must be connected
to the power mains and grounded
in compliance with the eective
standards and regulations. The
appliance will withstand short-term
deviations from the nominal voltage,
but not more than +/- 6%.
CHANGING THE DOOR OPENING DIRECTION AND
INTEGRATING THE APPLIANCE INTO A CABINET

13
APPLIANCE DESCRIPTION
837875
A
B
1
3
4
5
6
8
2
7
9
10
A Refrigerator
1Control unit
2LED lighting
3Glass shelves
4Fruit and vegetables
drawer with humidity
control
5Low door shelves
6Bottle shelve
B Freezer
7Upper drawer
8Deep drawer
9Bottom drawer
10 Glass shelves
Appliance interior equipment may change according to the appliance model.

14
A Temperature setting and on/o knob
Use the dial to switch the appliance on or o , set the temperature, and control
the ECO and intensive freezing (freezer boost) function.
B Lighting on/o key
Lighting will switch on automatically when you open the refrigerator
compartment door, and it will switch o when you close it.
Switching on: To switch on: rotate the
A dial clockwise.
Switching off: Rotate the Adial in
the counter-clockwise direction until
the arrow is aligned with the symbol
(Warning: appliance will remain
powered, i.e. there will still be electric
current in the appliance.)
SWITCHING THE APPLIANCE ON/OFF
B
A
CONTROL UNIT 1
OPERATING THE APPLIANCE
837875

15

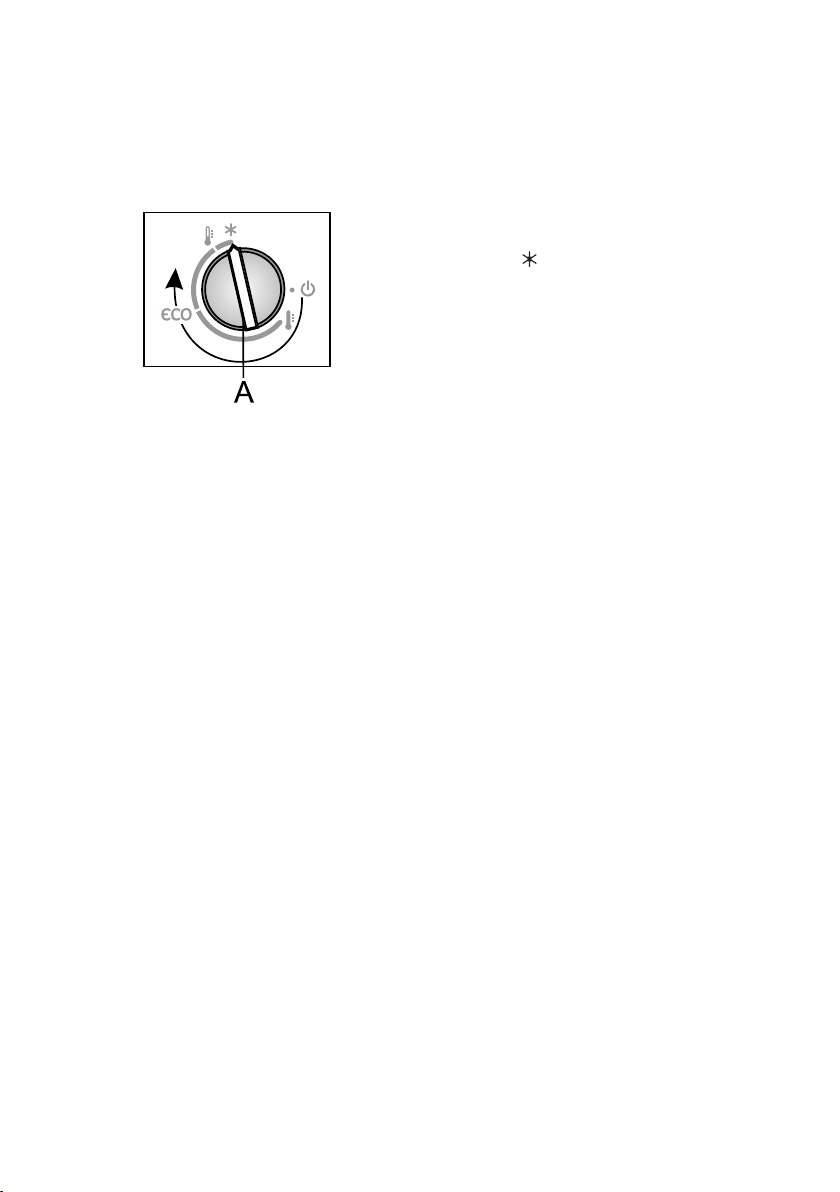

ADJUSTING THE TEMPERATURE IN THE APPLIANCE
• To set the desired temperature,
rotate the Adial in clockwise
direction.
• Recommended setting of the Adial
is on the eco position (see figure).
• A change in the environment
temperature will aect the
temperature in the appliance.
Adjust the setting with the Adial
accordingly. Positions towards the
mean a lower temperature in the
appliance (cooler). Settings towards
the mean a higher temperature
(warmer).
If the temperature of the room where
the appliance is installed is below 16 °C,
we recommend setting the A.
• After the appliance is switched on, it may take several hours for the set
temperature to be reached. Do not place any food into the refrigerator
before the temperature drops to the selected setting.
i
837875

16
INTENSIVE COOLING AND FREEZING
• We recommend using this setting before cleaning the appliance or 24 hours
before inserting a large amount of food. Activating this function will make sure
the food is cooled or frozen faster to retain vitamins, minerals, nutrients, and
flavour, and to extend its freshness.
• Switching on the intensive cooling
and freezing: Rotate the Adial to
position .
• When the intensive cooling/freezing
function is activated, the appliance
will operate with maximum power.
During this time, operation may be
somewhat louder.
• After the end of the intensive
cooling/freezing cycle, rotate the Adial back to the desired setting.
If the function is not deactivated manually, it will be deactivated automatically
after approximately two days. The temperature returns to the most recently set
value.
837875

17
APPLIANCE INTERIOR
EQUIPMENT
(* EQUIPMENT DEPENDS ON THE MODEL)
837875
SHELF
• Empty shelves can be distributed
as you see fit across the guides in
the refrigerator interior without
having to remove the shelf from the
refrigerator.
To only move the shelf to a dierent
height/guide, lift it at the front, hold
it at the back, and move it higher
or lower. To take the shelf from the
refrigerator, first lift it at the front
part, hold it at the back part, and pull
it out from the appliance.
Store quickly perishable food at
the back of the shelf where the
temperature is the lowest.

18
837875
FRUIT AND VEGETABLE BIN WITH
HUMIDITY CONTROL
• The bin at the bottom of the refrigerator is intended for storing fruit and
vegetables. It provides humidity and prevents the food from drying out. The
bin has integrated humidity regulator which allows setting the humidity level.
Slider position to the right: closed
vents, higher humidity in the bin
Slider position to the left: open vents,
lower humidity in the bin
If you observe droplets accumulating
below the glass shelf, open the vents
and wipe the shelf (see chapter
TROUBLESHOOTING).
• Pulling out the bin:
- Pull out the bin as far as it will go.
Then, lift the front part and pull it
out completely.

19
Interior side of the refrigerator door is
fitted with shelves intended for storing
cheese, butter, eggs, yoghurt, and
other smaller packages, tubes, cans
etc.
The height of the shelves is adjustable.
Simply lift the shelf from the groove
and place it to desired position.
Maximum load on each door shelf is
5kg.
837875
ADJUSTABLE DOOR SHELVES
INTERIOR SIDE OF THE REFRIGERATOR DOOR
The shelves mounted on the interior side of the refrigerator door are intended
for storing cheese, butter, eggs, yoghurt and other smaller packages, tubes,
cans, etc. There is a bottle shelf at the lower end of the door.

20
RECOMMENDED DISTRIBUTION
OF FOOD IN THE APPLIANCE
837875
Sections in the refrigerator compartment:
- Upper part: canned food, bread, wine, pastry etc.
- Middle part: dairy products, ready-made meals, desserts, soft drinks, beer,
cooked food, etc.
- Fruit and vegetable bin: fresh fruit, vegetables, salads, root vegetables,
potatoes, onions, garlic, tomatoes, sauerkraut, turnips etc.
PIZZA
PIZZA
Sections in the refrigerator
compartment door:
- upper/middle door bins: eggs,
butter, cheese etc.
- lower door bins: beverages, cans,
bottles etc.
Freezer sections:
- freezing, storing frozen food (see chapter Freezing and storing frozen food).
Do not store fruit (bananas,
pineapples, papaya, citruses) and
vegetables (zucchini, eggplant,
cucumbers, bell peppers,
tomatoes, and potatoes) sensitive
to low temperatures in the
refrigerator.
i
Do not store the following in the freezer: lettuce, eggs, apples, pears,
grapes, peaches, yoghurt, soured milk, sour cream, and mayonnaise.
i
