Fridgemaster MS91518FBS Operating instructions

MS91518FBS

Contents
Safety and warning information…........2
Installing your new appliance………....
Display controls…………………...…..11
Using your appliance……………........13
Helpful hints and tips………………
Cleaning and care……………………15
Disposal of the appliance…………
2
For your safety and correct usage before installing and first
using the appliance, read this user manual carefully, including
its hints and warnings. To avoid unnecessary mistakes and
accidents, it is important to make sure that all people using the
appliance are thoroughly familiar with its
operation and safety features. Save these instructions and be
sure that they remain with the appliance if it is moved or sold,
so that anyone using it throughout its life, will be properly
informed on its usage and safety notices.
For the safety of life and property, keep the precautions of
these user's instructions as the manufacturer is not
,
responsible for damages caused by omission.
Safety for children and otherswho are vulnerable people
According to EN standard
According to IEC standard
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
14
8
…17

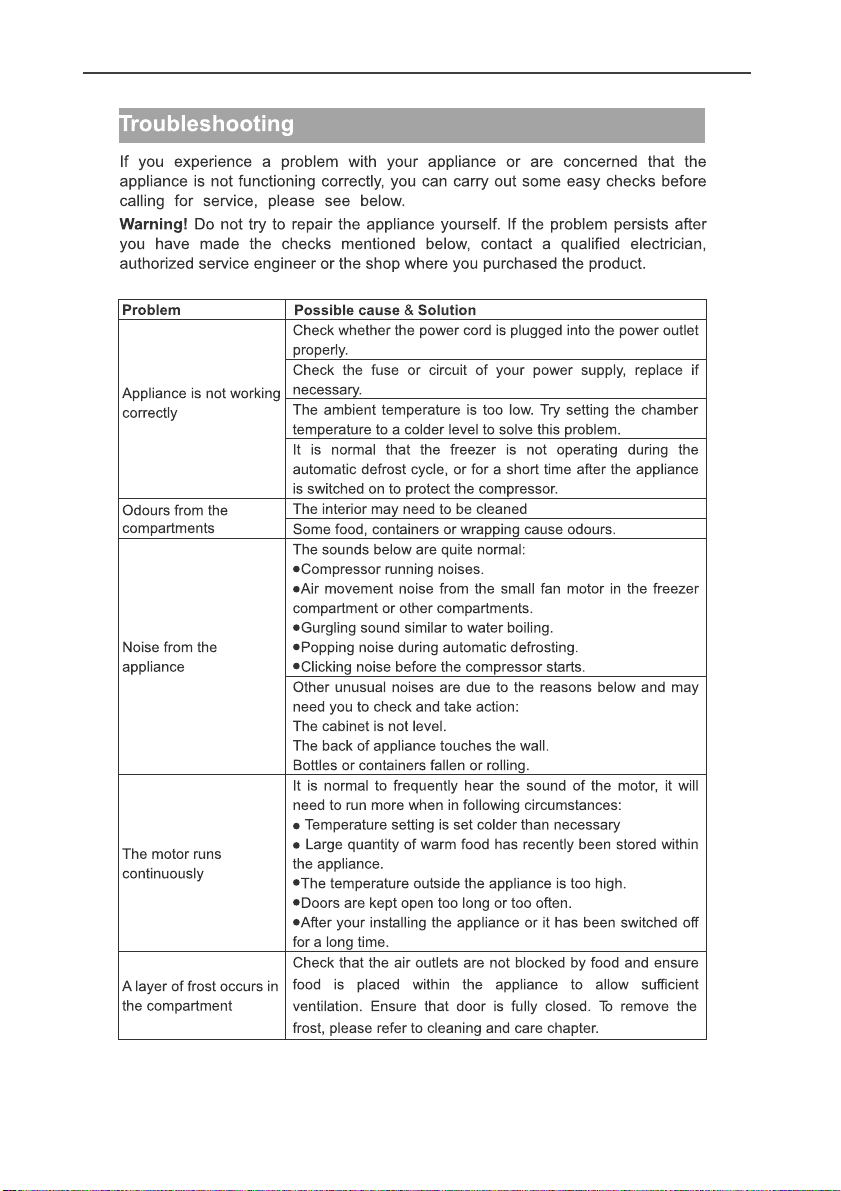

Troubleshooting……………………… 16
Description of the appliance….......… 
10

Keep all packaging away from children as there is risk of
suffocation.
If you are discarding the appliance, pull the plug out of the
socket, cut the connection cable (as close to the appliance
as you can) and remove the door to prevent children playing
from suffering an electric shock or from closing themselves
inside it.
If this appliance, featuring a magnetic door seals, is to
replace an older appliance having a spring lock (latch) on the
door or lid, be sure to make the spring lock unusable before
you discard the old appliance. This will prevent it from
becoming a death trap for a child.
General safety
WARNING —This appliance is intended to be used in
household and similar applications such as
-staff kitchen areas in shops, offices and other working
environments;
-farm houses and by clients in hotels, motels and other
residential type environments;
-bed and breakfast type environments;
-catering and similar non-retail applications.
WARNING — Do not store explosive substances such as
aerosol cans with a flammable propellant in this appliance.
WARNING — If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
WARNING — Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
WARNING — Do not use mechanical devices or other
means to accelerate the defrosting process, other than those
recommended by the manufacturer.
WARNING — Do not damage the refrigerant circuit.
WARNING — Do not use electrical appliances inside the
food storage compartments of the appliance, unless they are
of the type recommended by the manufacturer.
3

:
WARNING — The refrigerant and insulation blowing gas are
flammable. When disposing of the appliance, do so only at
an authorized waste disposal centre. Do not expose to
flame.
WARNING —When positioning the appliance, ensure the
supply cord is not trapped or damaged.
WARNING —Do not locate multiple portable socket-outlets
or portable power supplies at the rear of the appliance.
Refrigerant
The refrigerant isobutene (R600a) is contained within the
refrigerant circuit of the appliance, a natural gas with a high
level of environmental compatibility, which is nevertheless
flammable. During transportation and installation of the
appliance, ensure that none of the components of the
refrigerant circuit becomes damaged.
The refrigerant (R600a) is flammable.
WARNING
If the refrigerant circuit should be damaged:
-Avoid opening flames and sources of ignition.
-Thoroughly ventilate the room in which the appliance is
situated.
WARNING — Refrigerators contain refrigerant andgases in
the insulation. Refrigerant and gases must be disposed of
professionally as they may cause eye injuries or ignition.
Ensure that tubing of the refrigerant circuit is not damage
prior to proper disposal.
Replacing the illuminating lamps
WARNING—The illuminating lamps must not be replaced by
the user! If the illuminating lamps is damaged, contact the
customer helpline for assistance.
This warning is only for refrigerators that contain illuminating
lamps.
4
Risk of fire / flammable materials

Daily use
Do not store flammable gass or liquids in the appliance,
There is a risk of an explosion.
Do not operate any electrical appliances in the appliance
(e.g.electric ice cream makers,mixers etc.).
When unplugging always pull the plug from the mains
socket,do not pull on the cable.
Do not place hot items near the plastic components of this
appliance.
Electrical safety
1.The power cord must not be lengthened.
2. Make sure that the power plug is not crushed or damaged.
A crushed or damaged power plug may overheat and cause a
fire.
3. Make sure that you can access the main plug of the
appliance.
4. Do not pull the main cable.
5. If the power plug socket is loose, do not insert the power
plug. There is a risk of electric shock or fire.
6.You must not operate the appliance without the interior
lighting lamp cover.
7.The fridge is only applied with power supply of single phase
alternating current of 220~240V/50Hz. If fluctuation of voltage
in the district of user is so large that the voltage exceeds the
above scope, for safety sake, be sure to apply A.C. Automatic
voltage regulator of more than 350W to the fridge. The fridge
must employ a special power socket instead of common one
with other electric appliances. Its plug must match the socket
with ground wire.
It is dangerous to alter the specifications or modify this
product in any way.
Any damage to the cord may cause a shortcircuit, fire, and/or
electric shock.
5

Do not place food products directly against the air outlet on
the rear wall.
Store pre-packed frozen food in accordance with the frozen
food manufacture’s instructions.
The appliances manufactures storage recommendations
should be strictly adhered to.Refer to relrelevant instructions
for storage.
Do not place carbonated or fizzy drinks in the freeze
compartment as it creates pressure on the container,which
may cause it to explode,resulting in damage to the
appliance.
Frozen food can cause frost burns if consumed straight from
the freezer compartment.
Do not place the appliance in direct sunlight.
Keep buring candles,lamps and other items with naked
flames away from the appliance so that do not set the
appliance on fire.
The appliance is intended for keeping food stuff and/or
beverages in normal household as explained in this
instruction booklet The appliance is heavy.Care should be
taken when moving it.
Do not remove nor touch items from the freezer
compartment if your hands are damp/wet,as this could cause
skin abrasions or frost/freezer burns.
Never use the base,drawers, doors etc. to stand on or as
supports.
Frozen food must not be refrozen once it has been thawed
out.
Do not consume ice popsicles or ice cubes straight from
the freezer as this can cause freezer burn to the mouth
and lips.
To avoid items falling and causing injury or damage to
the appliance, do not overload the door racks or put too
much food in the crisper drawers.
caution!
Care and cleaning
6

Adequate air circulation should be around the appliance,
lacking this leads to overheating. To achieve sufficient
ventilation, follow the instructions relevant to installation.
Wherever possible the back of the product should not be too
close to a wall to avoid touching or catching warm parts
(compressor, condenser) to prevent the risk of a fire, follow
the instructions relevant to installation.
The appliance must not be locate close to radiators or cookers.
Make sure that the mains plug is accessible after the
installation of the appliance.
Service
Any electrical work required to do the servicing of the
appliance should be carried out by qualified electrician or
competent person.
This product must be serviced by an authorized Service
Center, and only genuine spare parts must be used.
1)If the appliance is Frost Free.
Installation Important!
For electrical connection carefully, follow the instructions
given in this manual.
Unpack the appliance and check if there are damages on it.
Do not connect the appliance if it is damaged. Report
possible damages immediately to the place you bought it. In
this case retain packing.
It is advisable to wait at least four hours before connecting
the appliance to allow the oil to flow back in the compressor.
Before maintenance, switch off the appliance and disconnect
the mains plug from the mains socket.
Do not clean the appliance with metal objects, steam
cleaner, ethereal oils, organic solvents or abrasive cleansers.
Do not use sharp objects to remove frost from the appliance.
Use a plastic scraper.
7
2)If the appliance contains freezer compartment.
Note: Children aged from 3 to 8 years are allowed to load and
unload refrigerating appliances.(This clause applies only to the
EU region.)

8
908 411.5 550 1096.5
This appliance performs well in
the climate class from SN to ST.It
may not work properly if being left
at a temperature above or below the
indicated range for a long period.
Note:
en 150 .
Please see the following diagrams.
w
°
50-70
lea
back to the
to be
150
150
。
。
50-70

0.5
adjusta e bottom f etbl e
adjusta e bottom f etbl e
Warning!
For proper installation, this
refrigerator must be placed on a
level surface of hard material that
is the same height as the rest of
the flooring. This surface should
be strong enough to support a fully
loaded refrigerator.
The rollers, which are not castors,
should be only used for forward or
backward movement. Moving the
refrigerator sideways may damage
your floor and the rollers.
9

1. Freezer zone LED light
4. Wind channel cover in freezer
3. Fre zer door s ale e
2. Freezer door ack
8. Left adjustable bottom feet
1 . bl e
8Right adjusta e bottom f et
1 . nne r in fresh
2Wind cha l cove
1 . Fres e
4h sh lf
1 . Fres e
5h door s al
1 . Egg tray
3
5. Freezer shelf
17 Fresh lower. drawer
10
11
17
2
3
8
4
13
5
1
7
9
13
14
9.Fresh zone LED light
（ ）inside
12
14
17
15
18
1 . Display panel 1 .
1Display panel
10.Fresh door rack
r
6
16
10

Display controls
1. Freezer
2. Fridge
3.Super Freeze
Super Freeze can rapidly
lower frozen temperature and
freeze you food substantially
faster than usual.
●
●
●
Press the middle part of button to
set the freezer temperature between -16°C
and -24°C to suit your desired temperature,
and the freezer temperature indicator will
display corresponding value according to the
following sequence.
-24°C-16°C
-18°C -20°C
Press the middle part of button
to set your desired fridge temperature
between 8 and 2 and the fridge
temperature indicator will display
corresponding value according to the
following sequence
,
.
°C °C
4
and the fridge door has no
open/close motion, the backlighting will turn off after 1minutes.
2
68
11

●
4.Super Cool
3
12

13
② nut
①bolt
③
screwdriver
When you the doors are not at thefind
same level, you can use the screwdriver
to adjust the door.
When the freezer door is upper than the
refrigerator door. First, you can use the
screwdriver to turn the bolt anticlockwise
on the lower hinge that can make the door
go up. Then use the screwdriver to lock
the nut .in place
1.Adjust the door
ck into the
position.
mes
bottles to break.
are
item
large volume of food .

14
Place foo
s suggested by
fresh
Should be wrapped in airtight foil
or plastic film wrap.
carefully
Cover or wrap food ,particulary
s
Energy saving tips
We recommend that you follow the tips
below to save energy
Try to avoid keeping the door open for
long periods in order to conserve
energy.
Ensure the appliance

as there is danger of
15
electrical shock
To replace the LED light ,the below steps
can be followed;
1.Unplug your appliance.
2.Remove light cover by pushing up and out.
3.Hold the LED cover with one hand and pull it
with the other hand while pressing the
connector latch.
4.Replace LED light and snap it correctiy in
place.

16

17
Correct Disposal of this product
This marking indicates that this product should not be disposed
with other household wastes throughout the EU. To prevent
possible harm to the environment or human health from uncontrolled
waste disposal, recycle it responsibly to promote the sustainable
reuse of material resources. To return your used device, please use
the return and collection systems or contact the retailer where the
product was purchased. They can take this product for environmental
safe recycling.
Doors can’t be closed

To avoid contamination of food, please respect the following instructions
Opening the door for long periods can cause a significant increase of the temperature
in the compartments of the appliance.
systems.
- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in
contact with or drip onto other food.
- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or
making icecream and making ice cubes.
- One-, two- and three-star compartments are not suitable for the freezing of fresh food.
-
- Clean regularly surfaces that can come in contact with food and accessible drainage
Order Compartments
TYPE
Target storage
temp.[℃]Appropriate food
1Fridge +2 +8
Eggs, cooked food, packaged food, fruits and
vegetables, dairy products, cakes, Drinks and
other foods which are not suitable for freezing.
2( Freezer***)*- ≤-18
Seafood (fish, shrimp, shellfish), freshwater
aquatic products and meat products
(recommended time is 3 months – nutrition
values and taste decrease with time), suitable
for frozen fresh food.
3***-Freezer ≤-18
Seafood (fish, shrimp, shellfish), freshwater
aquatic products and meat products
(recommended time is 3 months – nutrition
values and taste decrease with time). Not
suitable for freeing fresh food.
4**-Freezer ≤-12
Seafood (fish, shrimp, shellfish), freshwater
aquatic products and meat products
(recommended time is 2 months – nutrition
values and taste decrease with time). Not
suitable for freeing fresh food.
5*-Freezer ≤-6
Seafood (fish, shrimp, shellfish), freshwater
aquatic products and meat products
(recommended time is 1 month – nutrition
values and taste decrease with time). Not
suitable for freeing fresh food.
60-star -6 0
Fresh pork, beef, fish, chicken, some packaged
processed foods, etc. (Recommended to eat
within the same day, preferably not later than
3 days) .
Partially packed/wrapped up encapsulated
processed foods (non-freezable foods)
7Chill -2 +3
Fresh/frozen pork, beef, chicken, freshwater
aquatic products, etc.(7 days below 0 ℃ and
above 0 ℃ is recommended for consumption
within that day, preferably no more than 2 days).
Seafood (less than 0 for 15 days, it is not
recommended to store above 0 ℃)
18
~
~
~

19
8Fresh Food 0 +4
Fresh pork, beef, fish, chicken, cooked food, etc.
(Recommended to eat within the same day,
preferably no more than 3 days)
9Wine +5 +20
red wine,white wine,sparkling wine etc.
Water dispenser cleaning (special for water dispenser products):
- Clean water tanks if they have not been used for 48 h; flush the water system
connected to a water supply if water has not been drawn for 5 days.
- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean,
dry, and leave the door open to prevent mould developing within the appliance.
Note: please store different foods according to the compartments or target storage
temperature of your purchased products.
WARNING! Food needs to be packed in bags before putting into the refrigerator, and
liquids need to be packed in bottles or capped containers to avoid the problem that
the product design structure is not easy to clean.
~
~
0191 387 0804
