Frigidaire HV2730B User manual

A. SMOTHER FLAMES with a close-fitting lid, cookie sheet,
or metal tray, then turn off the burner. BE CAREFUL TO
PREVENT BURNS. If the flames do not go out immedi
ately,EVACUATEANDCALLTHEFIREDEPARTMENT.
B. NEVER PICK UP A FLAMING PAN - You may be burned.
C. DO NOT USE WATER, including wet dishcloths or towels
- a violent steam explosion will result.
D. Use an extinguisher ONLY if:
1.You know you have a Class ABC extinguisher, and you
already know how to operate it.
2.The fire is small and contained in the area where it
started.
3.The fire department is being called.
4.You can fight the fire with your back to an exit.
aBased on “Kitchen Firesafety Tips” published by NFPA.
12. This unit must be grounded
CAUTION
1. For general ventilating use only. Do not use to exhaust
hazardous or explosive materials and vapors.
2. Toavoidmotorbearingdamageandnoisyand/orunbalanced
impellers, keep drywall spray, construction dust, etc. off
power unit.
3. Clean filters and grease-laden surfaces frequently.
4. Do not repair or replace any part of this appliance unless
specifically recommended in this manual. All other servicing
should be done by a qualified technician.
5. Pleaseread specification labelon product for further informa-
tion and requirements.
READ AND SAVE THESE INSTRUCTIONS
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Usethisunitonlyinthemannerintendedbythemanufacturer.
Ifyouhavequestions,contactthemanufacturerattheaddress
or telephone number in the warranty.
2. Before servicing or cleaning unit, switch power off at service
panel and lock the service disconnecting means to prevent
powerfrom being switched on accidentally.When the service
disconnecting means cannot be locked, securely fasten a
prominentwarningdevice,suchasatag,totheservice panel.
3. Installation work and electrical wiring must be done by a
qualified person(s) in accordance with all applicable codes
and standards, including fire-rated construction codes and
standards.
4. Sufficientair is needed for propercombustionandexhausting
of gases through the flue (chimney) of fuel-burning equip-
ment to prevent backdrafting manufacturer's guideline and
safetystandards such asthosepublishedbytheNational Fire
Protection Association (NFPA), and the American Society for
Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage
electrical wiring and other hidden utilities.
6. Do not use this unit with an additional speed control device.
7. Ducted fans must always be vented to the outdoors.
8. To reduce the risk of fire, use only metal ductwork.
9. Do not install this product with the activating switch directly
behind a burner or element. Minimum distance between the
switch and the edge of the burner should be 4 inches.
10.Loose-fitting or hanging clothing should never be worn when
operating this appliance. They may be ignited by burners/
elements on cooktop.
11.Children should not be left alone or unattended in the area
where this appliance is in use.
12.When flaming foods, turn the blower OFF. An operating
blower may spread the flames.
TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
1. Never leave surface units unattended at high settings.
Boilovers cause smoking and greasy spillovers that may
ignite. Heat oils slowly on low or medium settings.
2. Always turn hood ON when cooking at high heat or when
cooking flaming foods.
3. Clean ventilating fans frequently. Grease should not be
allowed to accumulate on fan or filter.
4. Use proper pan size. Always use cookware appropriate for
the size of the surface element.
TO REDUCE THE RISK OF INJURY TO PERSONS IN THE
EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE
FOLLOWINGa:
WARNING
INSTALLER: Save this manual for Electrical Inspector and Homeowner to use.
HOMEOWNER: Use and Care Information on Page 5.
AIR
VENT
COUNTER
TOP
BLOWER
BOX
CHIMNEY TOP
3-1/4" X 10"
DUCT CONNECTOR
120 VAC
GOUNDED
OUTLET
COOK TOP
GEAR
MOTOR
COVER

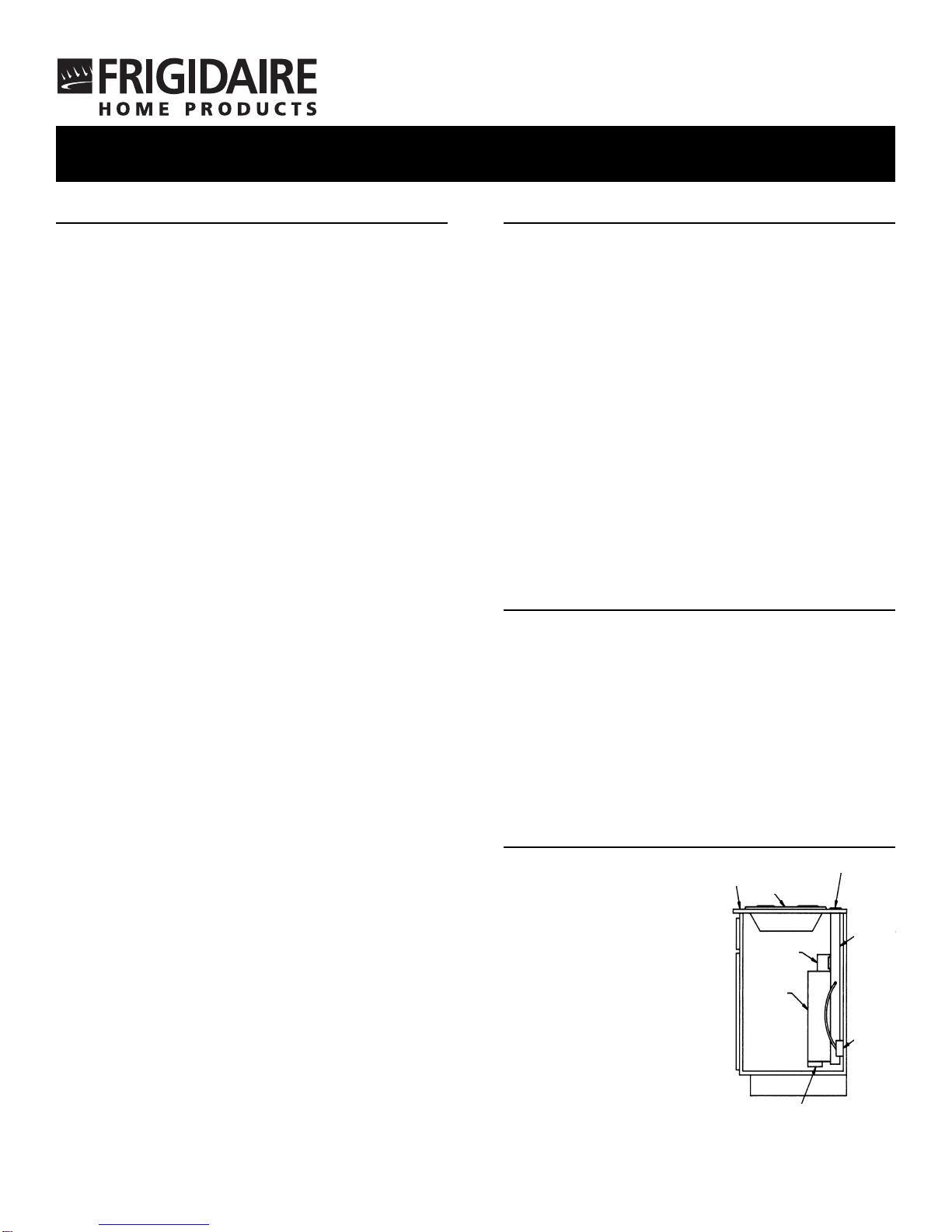

TYPICAL INSTALLATION
MODELS HV2730B & HV2736B
DOWNDRAFT BLOWER SYSTEM
PLANNING
Thisdowndraft blower system is
designed to be used to exhaust
airborne contaminants when
cooking with a variety of gas or
electric cooktops. It can be
mounted in island, peninsula, or
conventional wall locations.
This unit can be easily installed
following these basic steps:
•Cut out the countertop
opening.
•Mount the unit in the
cabinet.
•Connect the ductwork
and electrical.
•Install the cooktop.

PLANNING - (continued)
Note: The high level of air flow of this appliance may affect the
gas flame on some types of gas cooktops. This is NORMAL and
will cause no harm, but can be corrected by lowering the speed
of the blower.
3. The system will operate most efficiently when the ductwork
does not exceed 40 feet of equivalent duct. The chart, above,
shows equivalent feet of elbows and transitions. The number
of feet of straight duct plus the equivalent feet of transitions
and/or elbows to be used should equal 40 feet or less.
NOTE: The equivalent feet of various roof and wall caps has
been taken into consideration. Do not include them in this
calculation.
PLAN THE WIRING
1. The downdraft blower system draws 4 AMPS and requires a
120 VAC, 60 Hz circuit.
2. The unit has a 2 ft. long power cord with a 3-pronged plug.
Plantoprovideagroundedoutletinalocationwhichwillallow
the unit’s power cord to reach. (Note: If the Model 2730 is
beinginstalledina30"widecabinetortheModel2736isbeing
installedina36"wide cabinet, the outletcannotbelocatedon
the back wall of cabinet.) Outlet may also be wall-mounted,
with access hole in cabinet.
RIGHT
DISCHARGE
DOWN
DISCHARGE
(as shipped)
LEFT
DISCHARGE
EQUALS 6 FT. OF
STRAIGHT DUCT
6" ROUND
ELBOW 3-1/4" X 10"
TO 6" RD.
TRANSITION
3-1/4" X 10"
90OELBOW
EQUALS 8
FT. OF
STRAIGHT DUCT
EQUALS 2
FT. OF
STRAIGHT DUCT
TAKE MEASUREMENTS
1. Refer to the cooktop installation instructions for dimensions
of cooktop, countertop cut-out, and cabinet requirements.
The Model 2730 will fit in most 30" wide cabinets and the
Model 2736 will fit in most 36" wide cabinets. However, it is
recommended that oversized cabinets be used for easier
installation.
2. Cooktopdepthcanvarygreatlyfromonetoanother.Thismay
cause the fit of these two appliances to be rather tight.
Pay special attention to the areas of potential interference
highlighted above. A countertop with (A) a raised lip and/or (B) a
backsplash may not allow enough flat countertop for a proper
installation. Note that 2" of flat countertop is required behind
cooktop and that 1-3/4" is necessary between the back edge of
the cooktop and the inside of cabinet back.
SPECIFICATIONS
VOLTS AMPS CFM DUCT
120 4.0 500 3-1/4 X 10
PLAN THE DUCTWORK
1. This downdraft blower system is designed for use with 3-1/4"
x 10" ductwork (can be transitioned to 6" round). Three
different discharge directions are available with side-to-side
adjustment for accurate alignment of ductwork.
2. For best performance: Choose the ducting option which
allows the shortest length of ductwork and a minimum
number of elbows and transitions. Check location of floor
joists, wall studs, electrical wiring or plumbing for possible
interference. NOTE: The unit is shipped with the 3-1/4" x 10"
discharge facing DOWN. See “CHANGING BLOWER DI-
RECTION” on page 3, if necessary.
2

PREPARATION
CHANGING BLOWER DISCHARGE (Optional)
The blower is shipped with its discharge facing DOWN. Follow
these steps ONLY if:
•thepositionof the blower discharge needs to be moved so
ductwork does not interfere with floor joists, plumbing or
wiring below.
•itisnecessarytorotatetheblowerdischargetotheRIGHT
or LEFT.
CUT COUNTERTOP OPENING
1. Lay out and cut the cooktop cut-out far enough FORWARD
so downdraft will fit behind it.
2. Set cooktop in place and slide it as far forward as possible.
Center and square it with edges of countertop.
3. Place the plastic template against the back flange of the
cooktop and center it. Trace around template to mark the
downdraft opening.
4. Remove cooktop from countertop.
5. Cut downdraft opening. Be careful not to chip edges of
countertop.
MOUNT THE UNIT
Place the unit on its back on a table or work surface.
DOWN DISCHARGE - MOVING BLOWER LEFT OR RIGHT
1. Set downdraft into opening. Extend leveling brackets to floor
of cabinet so downdraft sits straight. (Note: Leveling brackets
can be removed and re-attached in other positions. Bottom
flange may have to face inward in tight cabinet installations.)
2. Secure the downdraft to the countertop as follows: Hold the
downdraft against the back of countertop cut-out and tighten-
ing the 2 mounting screws (one on each end of unit) on
underside of countertop. Use a wood shim between screw
and underside of granite countertops.
3. Screw leveling brackets to bottom of cabinet. Tighten screws
holding leveling bracket to unit on each side.
LEVELING BRACKET -
FLANGE FACING IN
LEVELING BRACKET -
FLANGE FACING OUT
MOUNTING SCREWS
1. Remove the 4 nuts and 2 clamp channels.
2. Carefully lift blower and disconnect motor plug if necessary.
Reposition blower and RECONNECT MOTOR PLUG.
3. Use supplied cover plate to close open space (if any).
4. Replace clamp channels and use nuts to secure the blower
in its new position.
5. Use sheet metal screws through bottom flange to secure
bottom of blower.
COVER PLATE
CLAMP
CHANNEL
NUT BLOWER
MOTOR
PLUG
SHEET
METAL
SCREW
LEFT OR RIGHT DISCHARGE
CLAMP
CHANNEL
NUTS
SHEET
METAL
SCREW
BOTTOM
FLANGE
BLOWER
1. Loosen the 4 nuts and 2 clamp channels.
2. Slide blower to desired position.
3. Use supplied cover plate to close open space (if any).
4. Tighten nuts to secure top of blower and use sheet metal
screws through bottom flange to secure bottom of blower.
3

INSTALL DUCTWORK
CAUTION- BEFORECUTTINGHOLEINCABINETFORDUCT-
WORK: Check for interference with floor joists, wall studs,
electrical wiring or plumbing.
1. Cut hole in cabinet as well as holes in wall or floor as
necessary.
2. Mounttherooforwallcapandwork back towards thecabinet,
attaching all ductwork, elbows and transitions as previously
planned.Tapeall ductwork connections to make them secure
and air tight.
3. Connect ductwork (and transition, if required) to downdraft. If
necessary, LOOSEN nuts and screws that hold the blower in
place, and slide blower left or right to meet ductwork. Re-
tighten screws and nuts.
Note: A 3-1/4" x 10" collar is provided for installers who prefer to
rivetthe ductworktotheunit.Thiswill allowblowertoberemoved
and replaced easily in service situations without disturbing
ductwork.
INSTALL ELECTRICAL WIRING
1. Mount a standard wiring box, with 3-pronged receptacle,
insidethecabinet. Make surethedowndraft’s power cordcan
easily reach it.
2. Run appropriate power cable into cabinet and connect it to
receptacle.
3. Plug the downdraft’s power cord into the outlet.
WIRING DIAGRAM
INSTALL COOKTOP
1. Align the cooktop with the downdraft and fasten cooktop in
place.
Note:Accuratealignmentofcooktop anddowndraftisnecessary
to ensure that there is no interference when air vent is raised and
lowered. There should be a gap of 1/32"-1/16" between the back
of the cooktop and the front of the downdraft cover.
ADJUSTMENT
The downdraft is factory-adjusted for proper operation. How-
ever, shipping and handling may affect the position of the
activating switch.
To adjust position of activating switch:
WARNING: To avoid possible electrical
shock, personal injury or death -
Disconnect electrical power.
1. If downdraft is plugged into electrical outlet, unplug it.
2. Lift air vent straight up and cock it slightly so it remains in the
UP position.
6" RD.
ELBOW &
DUCTWORK
3-1/4" X 10"
TO 6" RD.
TRANSITION
ç BLOWER è
COLLAR
SCREWS
3. Remove switch cover from right end of air vent.
4. Loosen the 2 screws holding the switch bracket in place.
Positionswitch bracketso that activating switch justcomes in
contact with underside of switch membrane. Tighten screws.
5. Replace switch cover, gently lower air vent into chimney, and
plug in power cord. Re-connect electrical power and check
operation.
SWITCH
COVER
SCREWS
SWITCH
MEMBRANE
SWITCH
BRACKET
4

USE AND CARE - (Continued)
5
USE AND CARE
Alwaysturn thedowndraft bloweron beforeyou begincooking to
establish an air flow in the kitchen. Let the blower run for a few
minutes to clean the air after you turn the cooktop off. This will
keep the whole kitchen cleaner and brighter.
TurnthedowndraftblowerONbypressingdownontheactivating
switch. The air vent will rise.
CONTROLS
The blower can be turned ON or OFF and its speed can be
adjusted with the recessed knob on the right side of the air vent.
Note: For most convenient operation, set the blower to your
favorite speed. The blower will come on to this speed whenever
the activating switch is pressed and the air vent rises.
Turn the downdraft blower OFF by pressing the activating switch
again. The air vent will go down and the blower will shut OFF.
KNOB
WARNING: Always disconnect electric
power supply before cleaning unit.
Useamilddetergent suitable for paintedsurfaces.DONOT USE
ABRASIVE CLOTH, STEEL WOOL PADS, OR SCOURING
POWDERS. Vacuum blower to clean. Do not immerse blower in
water.
Wash the 2 aluminum grease filters in a mild detergent solution
or a dishwasher. Remove them from the air vent by grasping the
tab at the top of each filter.
Note: The filters are different sizes. Be sure to replace them as
removed, (wider one on the left), with tabs UP.
CLEANING
SERVICING
It may be necessary to remove the downdraft blower system
from the cabinet in order to service components such as the
blower motor or air vent mechanism.
Disconnectpower tothe cooktopand removeit first.Reverse the
steps under “MOUNT THE UNIT” to remove the downdraft from
the cabinet.
Service parts are available from your dealer or from Frigidaire
Company Customer Relations Department, P.O. Box 7181,
Dublin, OH 43071.
WARNING: Always disconnect electric
power supply before servicing unit.

99041984L
FRIGIDAIRE RANGE WARRANTY
Your Frigidaire product is protected by this warranty
FULL ONE-YEAR
WARRANTY
LIMITED WARRANTY
(Applicable to the
State of Alaska)
WARRANTY
PERIOD
One year from original
purchase date.
Time period listed above.
FRIGIDAIRE, THROUGH ITS AUTHORIZED
SERVICERS, WILL:
Pay all costs for repairing or replacing any parts of this
appliance which prove to be defective in materials or
workmanship.
All of the provisions of the full warranty above and the
exclusions listed below apply.
THE CONSUMER WILL BE
RESPONSIBLE FOR:
Costs of service calls that are listed under NORMAL
RESPONSIBILITIES OF THE CONSUMER.*
Costs of the technician's travel to the home and any
costs for pick up and delivery of the appliance
required because of service.
This warranty applies only to products in ordinary household use, and the consumer is responsible for the items listed
below:
1. Proper use of the appliance in accordance with instructions provided with the product.
2. Proper installation by an authorized servicer in accordance with instructions provided with the appliance and in accordance
with all local plumbing, electrical and/or gas codes.
3. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose connections
or defects in house wiring.
4. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are not
a part of the appliance when it was shipped from the factory.
5. Damages to finish after installation.
6. Replacement of light bulbs and/or fluorescent tubes (on models with these features).
This warranty does not cover the following:
1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM
ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or
exclusion may not apply to you.
2. Service calls which do not involve malfunction or defects in workmanship or material, or for appliances not in ordinary
household use. The consumer shall pay for such service calls.
3. Damages caused by services performed by persons other than authorized Frigidaire servicers; use of parts other than
Frigidaire Home Products Genuine Renewal Parts; obtained from persons other than such servicers; or external causes such
as abuse, misuse, inadequate power supply or acts of God.
4. Products with original serial numbers that have been removed or altered and cannot be readily determined.
Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on the bill establishes the warranty period
should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. This written warranty
gives you specific legal rights. You may also have other rights that vary from state to state. Service under this warranty must be
obtained by following these steps, in order:
1. Contact Frigidaire Home Products Consumer Services or an authorized Frigidaire servicer.
2. If there is a question as to where to obtain service, call or write our Consumer Relations Department at:
Frigidaire Home Products Consumer Relations
P.O. Box 212378
Augusta, Georgia 30917-2378
[phone]
Product features or specifications as described or illustrated are subject to change without notice. All warranties are made by
White Consolidated Industries, Inc. This warranty applies only in the 50 states of the U.S.A. and Puerto Rico.
Your appliance is warranted by Frigidaire Home Products, a division of White Consolidated Industries, Inc. We authorize no person to change or add to
any of our obligations under this warranty. Our obligations for service and parts under this warranty must be performed by Frigidaire Home Products
Consumer Services or an authorized Frigidaire servicer.
*NORMAL
RESPONSIBILITIES
OF THE CONSUMER
EXCLUSIONS
IF YOU NEED
SERVICE
