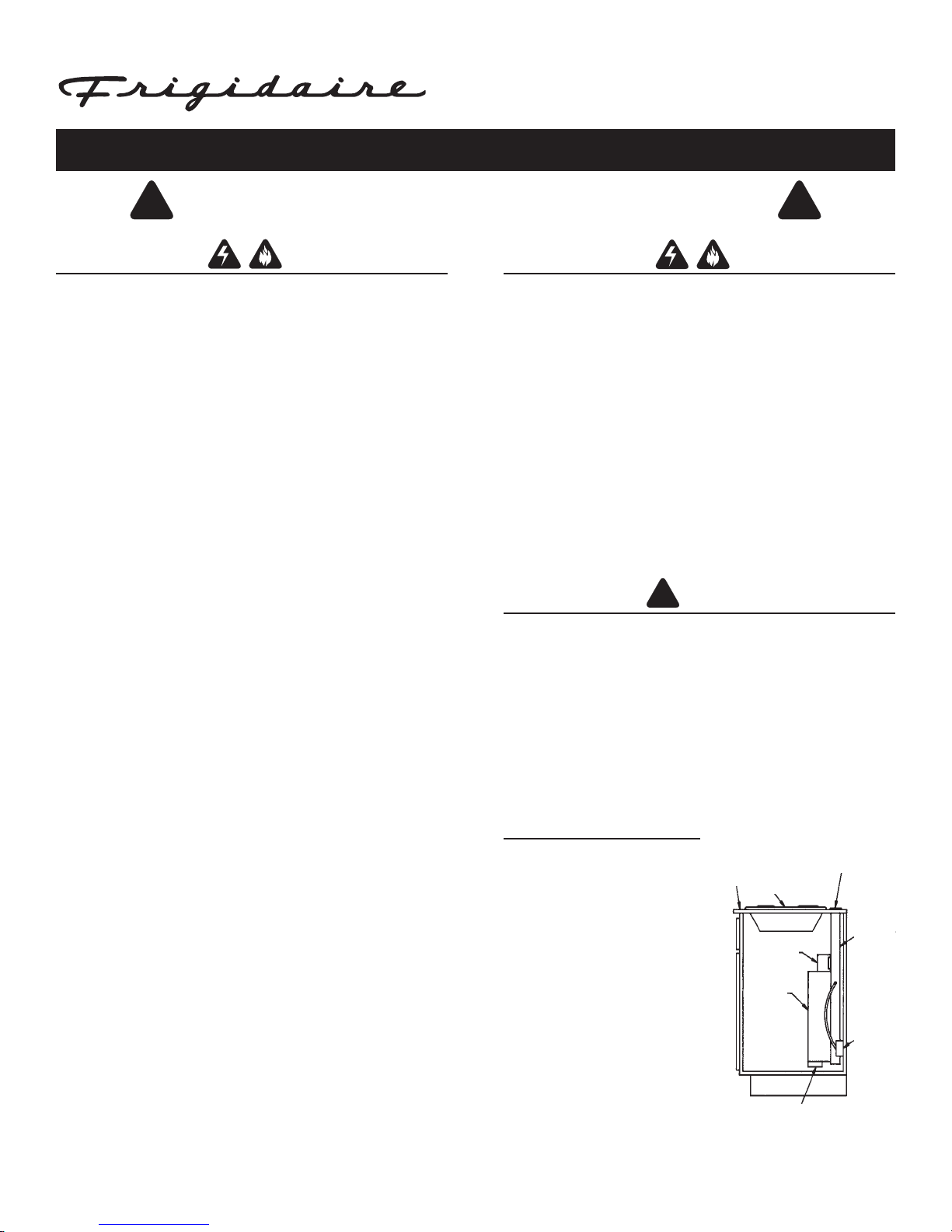

Frigidaire Pl30dd User manual

MODELS PL30DD & PL36DD

DOWNDRAFT BLOWER SYSTEM

READ AND SAVE THESE INSTRUCTIONS

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR

INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Usethisunitonlyinthemannerintendedbythemanufacturer.

Ifyouhavequestions,contactthemanufacturerattheaddress

or telephone number in the warranty.

2. Before servicing or cleaning unit, switch power off at service

panel and lock the service disconnecting means to prevent

powerfrom being switched onaccidentally. When the service

disconnecting means cannot be locked, securely fasten a

prominentwarningdevice,suchasatag,to theservicepanel.

3. Installation work and electrical wiring must be done by a

qualified person(s) in accordance with all applicable codes

and standards, including fire-rated construction codes and

standards.

4. Sufficientair isneededforpropercombustionand exhausting

ofgasesthroughthe flue (chimney) of fuelburningequipment

to prevent backdrafting. Follow the heating equipment

manufacturer’s guideline and safety standards such as those

publishedbytheNationalFireProtectionAssociation(NFPA),

and the American Society for Heating, Refrigeration and Air

Conditioning Engineers (ASHRAE), and the local code au-

thorities.

5. When cutting or drilling into wall or ceiling, do not damage

electrical wiring and other hidden utilities.

6. Do not use this range hood with an additional speed control

device.

7. Ducted fans must always be vented to the outdoors.

8. To reduce the risk of fire, use only metal ductwork.

9. Do not install this product with the activating switch directly

behind a burner or element. Minimum distance between the

switch and the edge of the burner should be 4 inches.

10.Loose-fitting or hanging clothing should never be worn when

operating this appliance. They may be ignited by burners/

elements on cooktop.

11.Children should not be left alone or unattended in the area

where this appliance is in use.

12.Whenflamingfoods,turntheblowerOFF.Anoperatingblower

may spread the flames.

13. This unit must be grounded.

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

1. Neverleavesurface unitsunattendedathighsettings.Boilovers

cause smoking and greasy spillovers that may ignite. Heat

oils slowly on low or medium settings.

2. Always turn hood ON when cooking at high heat or when

cooking flaming foods.

3. Cleanventilatingfansfrequently. Greaseshouldnotbeallowed

to accumulate on fan or filter.

4. Use proper pan size. Always use cookware appropriate for

the size of the surface element.

WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE

EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE

FOLLOWINGa:

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet,

or metal tray, then turn off the burner. BE CAREFUL TO

PREVENT BURNS. If the flames do not go out immedi

ately,EVACUATEAND CALL THEFIREDEPARTMENT.

2. NEVER PICK UP A FLAMING PAN - You may be burned.

3. DO NOT USE WATER, including wet dishcloths or towels

- a violent steam explosion will result.

4. Use an extinguisher ONLY if:

A. YouknowyouhaveaClassABCextinguisher,andyou

already know how to operate it.

B. The fire is small and contained in the area where it

started.

C. The fire department is being called.

D. You can fight the fire with your back to an exit.

aBased on “Kitchen Firesafety Tips” published by NFPA.

INSTALLER: Save this manual for Electrical Inspector and Homeowner to use.

HOMEOWNER: Use and Care Information on Page 5.

AIR

VENT

COUNTER

TOP

BLOWER

BOX

CHIMNEY TOP

3-1/4" X 10"

DUCT CONNECTOR

COOK TOP

GEAR

MOTOR

COVER

TYPICAL INSTALLATION

120 VAC

GROUNDED

OUTLET

PLANNING

This downdraft blower system is

designed to be used to exhaust

airborne contaminants when

cooking with a variety of gas or

electric cooktops. It can be

mounted in island, peninsula, or

conventional wall locations.

This unit can be easily installed

following these basic steps:

•Cut out the countertop

opening.

•Mount the unit in the

cabinet.

•Connect the ductwork

and electrical.

•Install the cooktop.

INTENDED FOR DOMESTIC COOKING ONLY

CAUTION

1. For general ventilating use only. Do not use to exhaust

hazardous or explosive materials and vapors.

2. Toavoidmotorbearingdamageandnoisyand/orunbalanced

impellers,keepdrywallspray,constructiondust,etc.offpower

unit.

3. Clean filters and grease-laden surfaces frequently.

4. Do not repair or replace any part of this appliance unless

specifically recommended in this manual. All other servicing

should be done by a qualified technician.

5. Pleasereadspecification label on productfor further informa-

tion and requirements.

PLANNING - (continued)

RIGHT

DISCHARGE

DOWN

DISCHARGE

(as shipped)

LEFT

DISCHARGE

EQUALS 6 FT. OF

STRAIGHT DUCT

6" ROUND

ELBOW 3-1/4" X 10"

TO 6" RD.

TRANSITION

3-1/4" X 10"

90OELBOW

EQUALS 8

FT. OF

STRAIGHT DUCT

EQUALS 2

FT. OF

STRAIGHT DUCT

Pay special attention to the areas of potential interference high-

lighted above. A countertop with (A) a raised lip and/or (B) a

backsplash may not allow enough flat countertop for a proper

installation. Note that 2" of flat countertop is required behind

cooktopandthat1-3/4"isnecessarybetweenthebackedgeofthe

cooktop and the inside of cabinet back.

SPECIFICATIONS

VOLTS AMPS CFM DUCT

120 4.0 500 3-1/4 X 10

TAKE MEASUREMENTS

1. Refer to the cooktop installation instructions for dimensions of

cooktop, countertop cut-out, and cabinet requirements. The

Model PL30DD will fit in most 30" wide cabinets and the Model

PL36DD will fit in most 36" wide cabinets. However, it is

recommendedthatoversizedcabinetsbeusedforeasierinstal-

lation.

2. Cooktop depth can vary greatly from one to another. This may

cause the fit of these two appliances to be rather tight.

Note: Thehighlevelofairflowofthisappliancemayaffect the gas

flame on some types of gas cooktops. This is NORMAL and will

cause no harm, but can be corrected by lowering the speed of the

blower.

PLAN THE DUCTWORK

1. This downdraft blower system is designed for use with 3-1/4"

x 10" ductwork (can be transitioned to 6" round). Three

different discharge directions are available with side-to-side

adjustment for accurate alignment of ductwork.

2. Forbestperformance:Choosetheductingoptionwhichallows

the shortest length of ductwork and a minimum number of

elbows and transitions. Check location of floor joists, wall

studs, electrical wiring or plumbing for possible interference.

NOTE: The unit is shipped with the 3-1/4" x 10" discharge

facing DOWN. See “CHANGING BLOWER DIRECTION” on

page 3, if necessary.

3. The system will operate most efficiently when the ductwork

does not exceed 40 feet of equivalent duct. The chart, above,

shows equivalent feet of elbows and transitions. The number

of feet of straight duct plus the equivalent feet of transitions

and/or elbows to be used should equal 40 feet or less.

NOTE: The equivalent feet of various roof and wall caps has

been taken into consideration. Do not include them in this

calculation.

PLAN THE WIRING

1. The downdraft blower system draws 4 AMPS and requires a

120 VAC, 60 Hz circuit.

2. Theunithasa2ft.longpowercordwitha3-prongedplug.Plan

to provide a grounded outlet in a location which will allow the

unit’spowercordtoreach.(Note:IftheModelPL30DDisbeing

installed in a 30" wide cabinet or the Model PL36DD is being

installedina36"widecabinet,theoutletcannotbelocatedon

the back wall of cabinet.) Outlet may also be wall-mounted,

with access hole in cabinet.

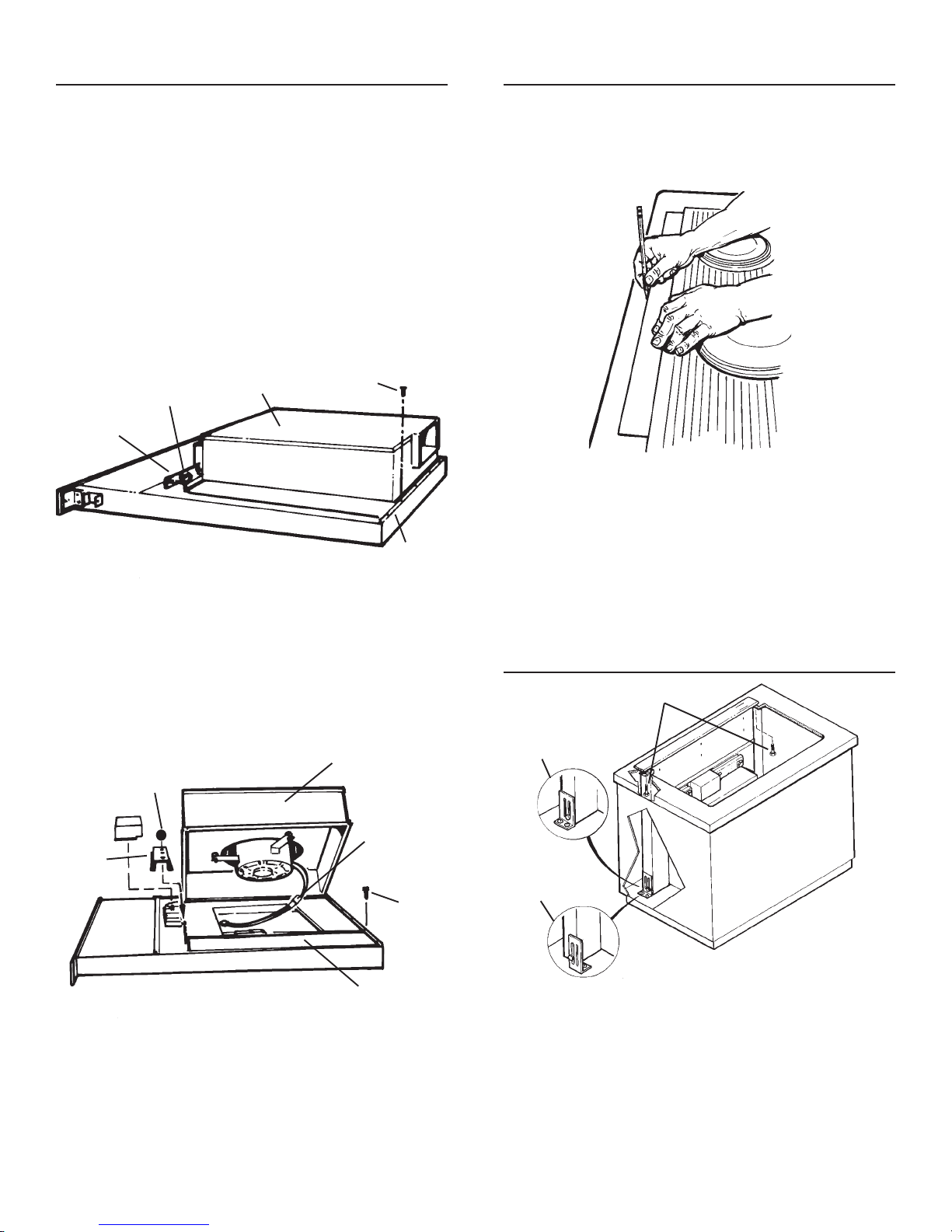

LEVELING BRACKET -

FLANGE FACING IN

LEVELING BRACKET -

FLANGE FACING OUT

MOUNTING SCREWS

COVER PLATE

CLAMP

CHANNEL

NUT BLOWER

MOTOR

PLUG

SHEET

METAL

SCREW

CLAMP

CHANNEL

NUTS

SHEET

METAL

SCREW

BOTTOM

FLANGE

BLOWER

PREPARATION

CHANGING BLOWER DISCHARGE (Optional)

The blower is shipped with its discharge facing DOWN. Follow

these steps ONLY if:

•the position of the blower discharge needs to be moved

so ductwork does not interfere with floor joists, plumb

ing or wiring below.

•it is necessary to rotate the blower discharge to the

RIGHT or LEFT.

Place the unit on its back on a table or work surface.

DOWN DISCHARGE - MOVING BLOWER LEFT OR RIGHT

1. Loosen the 4 nuts and 2 clamp channels.

2. Slide blower to desired position.

3. Use supplied cover plate to close open space (if any).

4. Tightenwingnutstosecuretopofblowerand usesheetmetal

screws through bottom flange to secure bottom of blower.

1. Remove the 4 nuts and 2 clamp channels.

2. Carefully lift blower and disconnect motor plug if necessary.

Reposition blower and RECONNECT MOTOR PLUG.

3. Use supplied cover plate to close open space (if any).

4. Replaceclampchannelsand use nuts tosecurethe blower in

its new position.

5. Use sheet metal screws through bottom flange to secure

bottom of blower.

CUT COUNTERTOP OPENING

1. Layoutandcutthecooktopcut-outfarenoughFORWARDso

downdraft will fit behind it.

2. Set cooktop in place and slide it as far forward as possible.

Center and square it with edges of countertop.

3. Place the plastic template against the back flange of the

cooktop and center it. Trace around template to mark the

downdraft opening.

4. Remove cooktop from countertop.

5. Cut downdraft opening. Be careful not to chip edges of

countertop.

MOUNT THE UNIT

1. Set downdraft into opening. Extend leveling brackets to floor

of cabinet so downdraft sits straight. (Note: Leveling brackets

can be removed and re-attached in other positions. Bottom

flange may have to face inward in tight cabinet installations.)

2. Secure the downdraft to the countertop as follows: Hold the

downdraft against the back of countertop cut-out and tighten-

ing the 2 mounting screws (one on each end of unit) on

undersideofcountertop.Useawoodshimbetweenscrewand

underside of granite countertops.

3. Screw leveling brackets to bottom of cabinet. Tighten screws

holding leveling bracket to unit on each side.

LEFT OR RIGHT DISCHARGE

6" RD.

ELBOW &

DUCT-

WORK

3-1/4" X 10"

TO 6" RD.

TRANSITION

BLOWER

COLLAR

SCREWS

SWITCH

COVER

SCREWS

SWITCH

MEMBRANE

SWITCH

BRACKET

INSTALL DUCTWORK

CAUTION-BEFORECUTTINGHOLEINCABINETFORDUCT-

WORK:Checkforinterferencewithfloorjoists,wallstuds,electri-

cal wiring or plumbing.

1. Cut hole in cabinet as well as holes in wall or floor as

necessary.

2. Mounttherooforwallcap andworkbacktowards thecabinet,

attaching all ductwork, elbows and transitions as previously

planned.Tapeall ductworkconnectionstomakethem secure

and air tight.

3. Connect ductwork (and transition, if required) to downdraft. If

necessary, LOOSEN nuts and screws that hold the blower in

place, and slide blower left or right to meet ductwork. Re-

tighten screws and nuts.

Note: A 3-1/4" x 10" collar is provided for installers who prefer to

rivetthe ductworktotheunit.Thiswillallow blowertoberemoved

and replaced easily in service situations without disturbing duct-

work.

INSTALL ELECTRICAL WIRING

1. Mount a standard wiring box, with 3-pronged receptacle,

insidethecabinet.Make sure the downdraft’s power cord can

easily reach it.

2. Run appropriate power cable into cabinet and connect it to

receptacle.

3. Plug the downdraft’s power cord into the outlet.

WIRING DIAGRAM

INSTALL COOKTOP

1. Align the cooktop with the downdraft and fasten cooktop in

place.

Note:Accuratealignmentofcooktopanddowndraftisnecessary

to ensure that there is no interference when air vent is raised and

lowered. There should be a gap of 1/32"-1/16" between the back

of the cooktop and the front of the downdraft cover.

ADJUSTMENT

Thedowndraft isfactory-adjustedforproper operation.However,

shipping and handling may affect the position of the activating

switch.

To adjust position of activating switch:

WARNING: To avoid possible electrical

shock, personal injury or death -

Disconnect electrical power.

1. If downdraft is plugged into electrical outlet, unplug it.

2. Lift air vent straight up and cock it slightly so it remains in the

UP position.

3. Remove switch cover from right end of air vent.

4. Loosen the 2 screws holding the switch bracket in place.

Positionswitch bracket sothat activating switch just comes in

contact with underside of switch membrane. Tighten screws.

5. Replace switch cover, gently lower air vent into chimney, and

plug in power cord. Re-connect electrical power and check

operation.

➡

USE AND CARE - (Continued)

KNOB

CLEANING

SERVICING

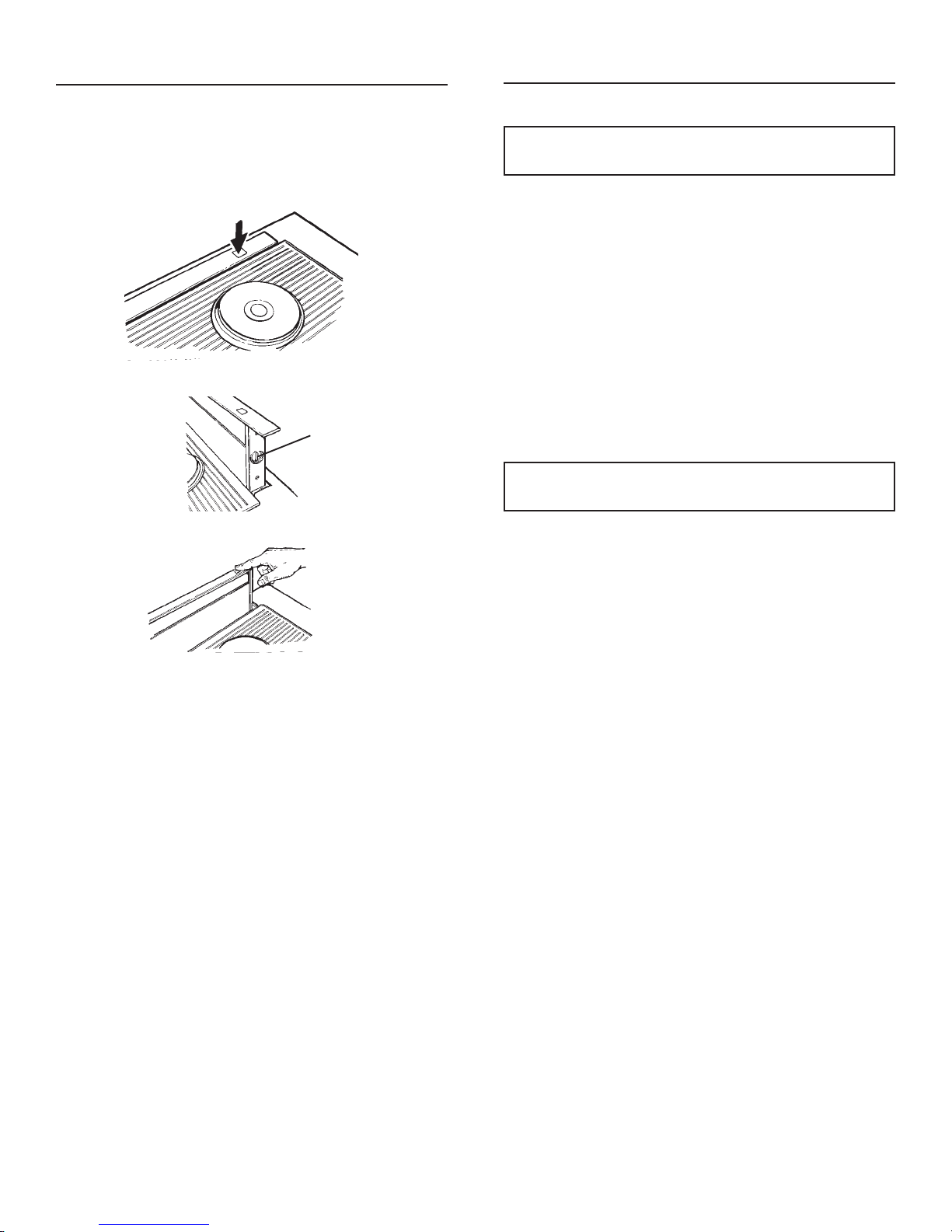

USE AND CARE

Alwaysturn the downdraft blower on before you begincooking to

establish an air flow in the kitchen. Let the blower run for a few

minutes to clean the air after you turn the cooktop off. This will

keep the whole kitchen cleaner and brighter.

CONTROLS

TurnthedowndraftblowerONbypressingdownontheactivating

switch. The air vent will rise.

The blower can be turned ON or OFF and its speed can be

adjusted with the recessed knob on the right side of the air vent.

Turn the downdraft blower OFF by pressing the activating switch

again. The air vent will go down and the blower will shut OFF.

Note: For most convenient operation, set the blower to your

favorite speed. The blower will come on to this speed whenever

the activating switch is pressed and the air vent rises.

WARNING: Always disconnect electric

power supply before cleaning unit.

Useamilddetergentsuitableforpaintedsurfaces.DONOTUSE

ABRASIVE CLOTH, STEEL WOOL PADS, OR SCOURING

POWDERS. Vacuum blower to clean. Do not immerse blower in

water.

Washthe2aluminumgreasefiltersinamilddetergentsolutionor

adishwasher. Removethemfromtheair ventbygraspingthe tab

at the top of each filter.

Note: The filters are different sizes. Be sure to replace them as

removed, (wider one on the left), with tabs UP.

WARNING: Always disconnect electric

power supply before servicing unit.

Itmaybenecessarytoremovethedowndraftblowersystemfrom

the cabinet in order to service components such as the blower

motor or air vent mechanism.

Disconnectpower to the cooktop and remove it first.Reverse the

steps under “MOUNT THE UNIT” to remove the downdraft from

the cabinet.

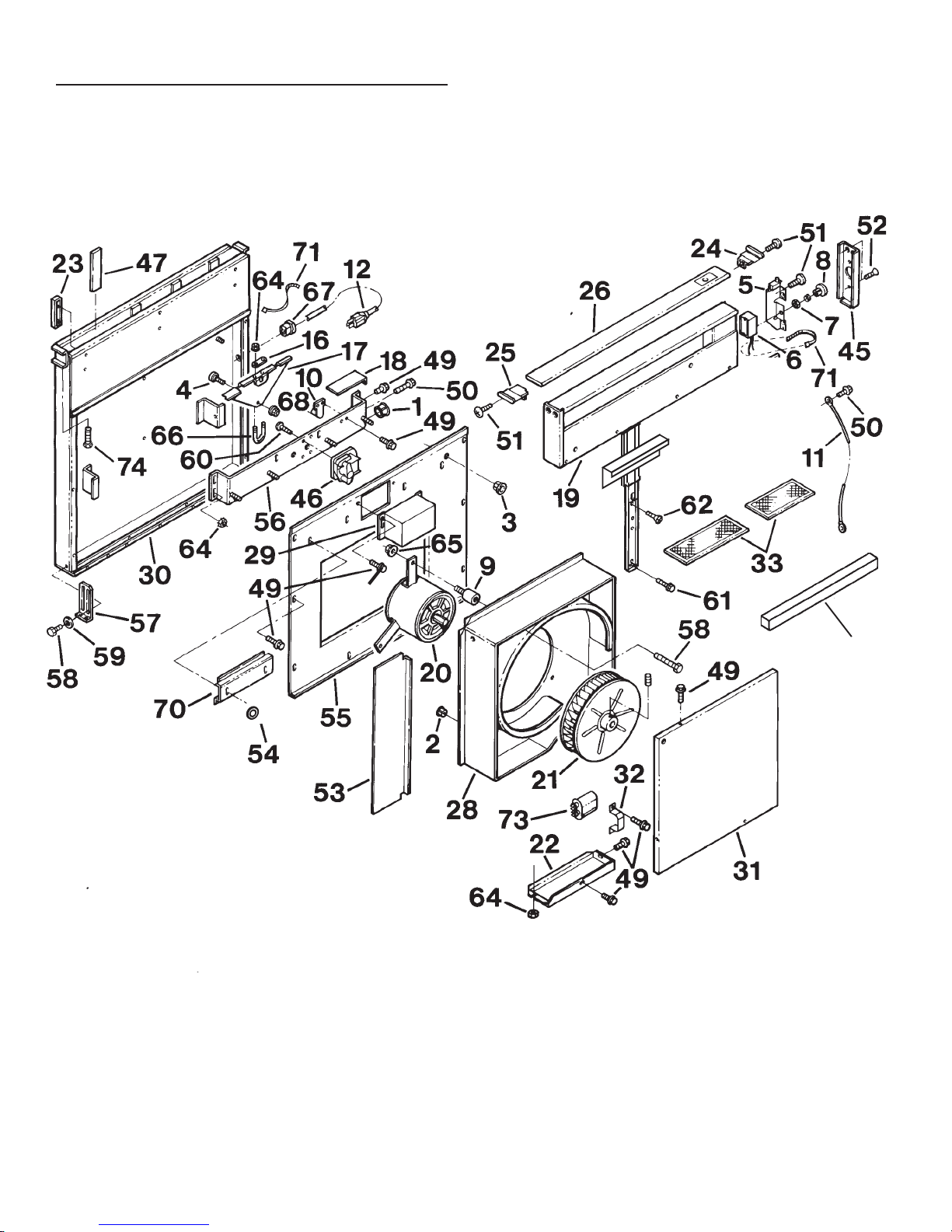

SERVICE PARTS

Models PL30DD & PL36DD

Downdraft Blower System

OPTIONAL TOP COVER KITS

*Standard Hardware - May be purchased locally.

**Service Assembly - Contains numerous parts.

MODEL NO. DESCRIPTION

HT2730B 30" Black

HT2736B 36" Black

HT2730W 30" White

HT2736W 36" White

KEY NO. DESCRIPTION QTY.

1 Bushing, 7/8" 1

2 Bushing, Split Heyco, 5/8" 1

3 Bushing, Heyco, 1/2" 1

4 Roller 1

5 Switch Assembly, Up/Down 1

6 Wire Harness, Speed Control 1

7 Nut, 3/8-32 1

8 Knob 1

9 Motor Insolator 3

10 Lower Switch Bracket Assembly 1

11 Green Ground Wire 1

12 Wire Harness 1

16 Back-up Plate 1

17 Crank 1

18 Switch Cover 1

19 Chimney Assembly with Slide 1

20 Motor (with Capacitor-Key No. 73) 1

21 Blower Wheel 1

22 Scroll Box Extension 1

23 Spacer 3

24 Top Bracket Assembly, Right 1

25 Top Bracket Assembly, Left 1

26 Top, Stainless 1

28 Scroll Box Assembly 1

29 Gear Motor Cover 1

30 Air Box Assembly 1

31 Scroll Box Cover 1

32 Capacitor Strap 1

33 Filter Kit (contains 2 filters) 1

45 End Cap 1

46 Gearmotor 1

47 Slide Strip 4

49 Screw, #8-18 x .375 SLT HX WS HD 19

50 Screw, #10-32 x .500 HX WS BDRH 2

51 Screw, #8-18 x .375 SR PH TRH 6

52 Screw, #8-18 x .500 No. 5 PH Trim 2

53 Cover, Air Box Opening 1

54 Nut, #10-24 4

55 Air Box Cover 1

56 Gearmotor Bracket Assembly 1

57 Leg Support 2

58 Screw, 1/4-20 x 5/16 5

59 Washer, 1/4 2

60 Screw, #8-32 x 1/2 PH HD MS 4

61 Screw, #10-24 x 3/8 SH WH LOCK 1

62 Screw, #10-24 x 3/8 PH FL HD LD 1

64 Nut, 10-24 HEX KEPS 7

65 Nut, 1/4-20 WHIZ LOCK 3

66 U-Bolt, 10-24 1

67 Strain Relief 1

68 Nut, Hex Flange 1

70 Wire Channel Clamp 2

71 Wire Tie 3

73 Capacitor 1

74 Screw, 1/4-20 x 1.250 HEX HD 2

75 #8-18 x .250 PH TR HD BPT 2

84 Seal - Foam 1

** Blower Assembly, Complete (Includes Key Nos.2, 9,

20, 21, 22, 28, 31, 32, 49, 58, 64, 65, & 73)

** Chimney Assembly, Complete

(Includes Key Nos. 5, 8, 19, 45, 51, 52, & 71)

SERVICE PARTS

Models PL30DD & PL36DD

Downdraft Blower System

This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside the USA or

Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased "as-is" are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances

not in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc.,

which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs,

handles, or other cosmetic parts.

11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip

charges, or mileage expense for service calls to remote areas, including the state of Alaska.

12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,

cabinets, walls, etc.

13. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine

Electrolux parts or parts obtained from persons other than authorized service companies; or external causes

such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT

REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING

WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE

YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX

SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE

AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY

OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR

LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF

IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS

WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS

THAT VARY FROM STATE TO STATE.

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period

should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.

Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below.

Your appliance is covered by a one year limited warranty. For one year from your original date of purchase,

Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective

in materials or workmanship when such appliance is installed, used, and maintained in accordance with the

provided instructions.

This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances North

America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux

authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty

must be performed by Electrolux or an authorized service company. Product features or specifications as described or illustrated

are subject to change without notice.

USA

1.800.944.9044

Electrolux Major Appliances

North America

P.O. Box 212378

Augusta, GA 30907

Canada

1.800.668.4606

Electrolux Canada Corp.

5855 Terry Fox Way

Mississauga, Ontario, Canada

L5V 3E4

Exclusions

If You Need

Service

Major Appliance Warranty Information

99043820A

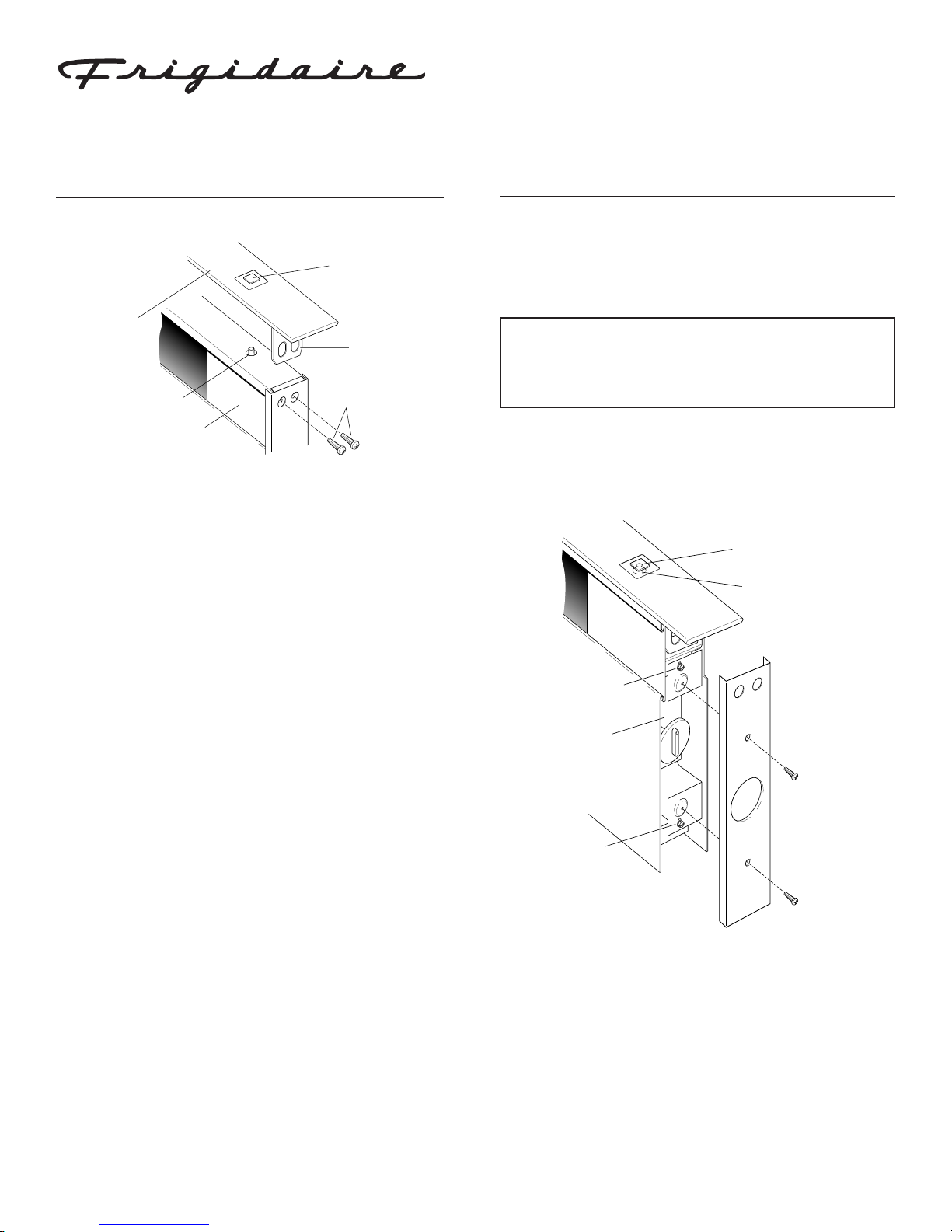

DOWNDRAFTTOPCOVERASSEMBLY

ADJUSTMENT

The downdraft is factory-adjusted for proper operation. How-

ever, shipping and handling may affect the position of the

activating switch.

To adjust position of activating switch:

INSTALLATION

WARNING: To avoid possible electri-

cal shock, personal injury or death -

Disconnect electrical power.

1. Pressactivating switch to raisechimney. NOTE: If electri-

cal power supply is not connected, lift chimney manually

and cock it slightly to keep it in position. Remove four (4)

screws and remove existing top cover.

2. Slide legs on top cover into ends of chimney as shown.

Make sure switch membrane is above activating switch.

Fasten with four (4) screws provided.

TOP

COVER

ACTIVATING

SWITCH

CHIMNEY

LEG

2 MOUNTING

SCREWS

EACH SIDE

SWITCH

MEMBRANE

SWITCH

COVER

SWITCH

MEMBRANE

SWITCH

BRACKET

ADJUSTING

SCREW

ADJUSTING

SCREW

ACTIVATING

SWITCH

3. Remove switch cover from right end of air vent.

4. Loosen the 2 screws holding the switch bracket in place.

Positionswitchbracketsothatactivatingswitchjustcomes

in contact with underside of switch membrane. Tighten

screws.

5. Replace switch cover, gently lower air vent into chimney,

and plug in power cord. Re-connect electrical power and

check operation.

1. If downdraft is plugged into electrical outlet, unplug it.

2. Liftairventstraightupandcockitslightlysoitremainsinthe

UP position.
