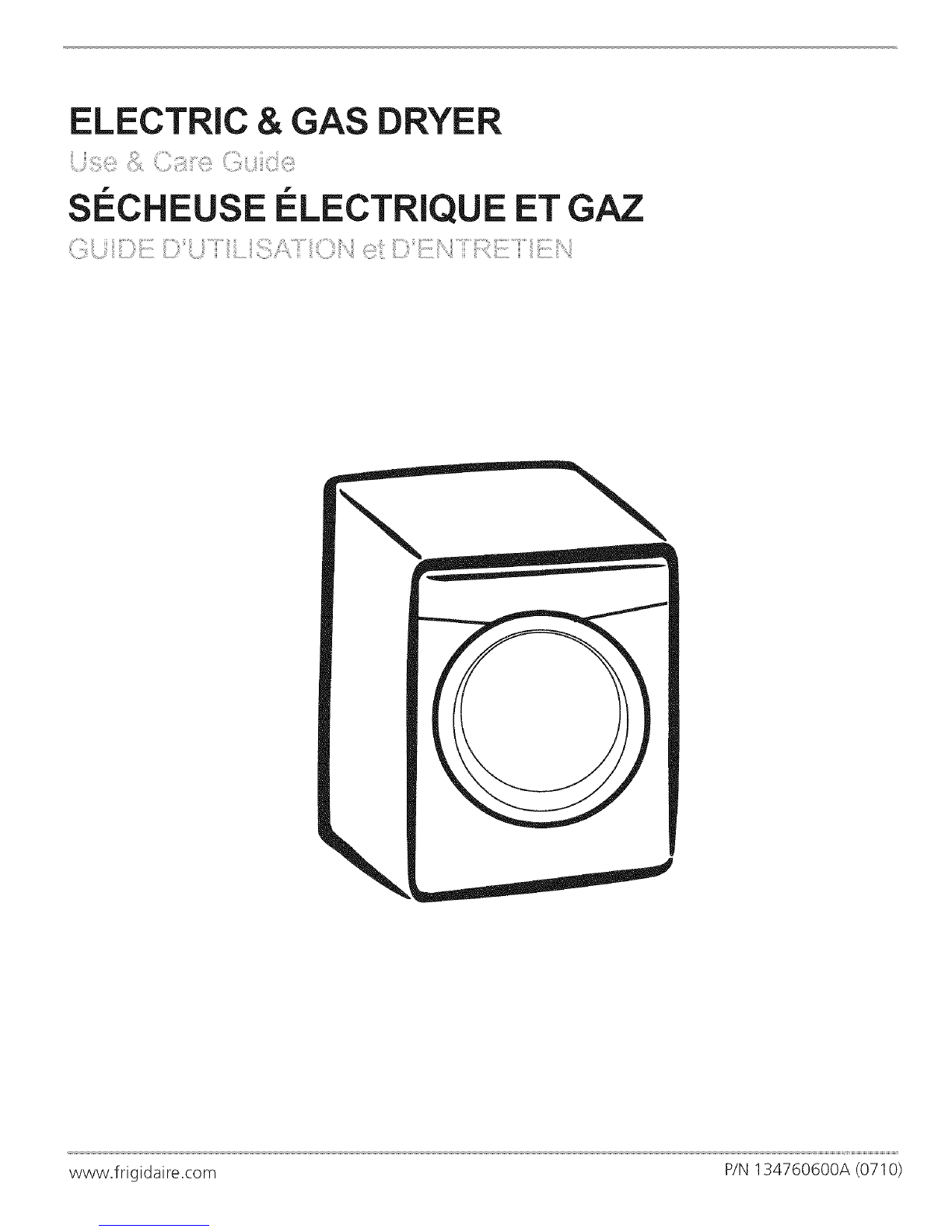

Frigidaire AEQ6500CFS0 User manual

ELECTRIC & GAS
f f
SECHEUSE ELECTRIQUE ET GAZ
www.frigidaire.com P/N 134760600A (0710)

Table ot Contents
Product registration ...................................................................................................................................... 2
Important Safety Instructions ............................................................................................................................ 2-4
Drying Procedures................................................................................................................................................ 4
Features................................................................................................................................................................. 5
Care and Cleaning ............................................................................................................................................. 5-6
Common Drying Problems.................................................................................................................................. 6
Avoid Service Checklist ........................................................................................................................................ 7
Warranty ................................................................................................................................................................ 8
Francais ........................................................................................................................................................... 9-16
Product Record
The symbol _on the product or on its packaging indicates that this product may not be treated as household waste. Instead
it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Byensuring this
product isdisposed of correctly, you will help prevent potential negative consequences for the environment and human health,
which could otherwise be caused by inappropriate waste handling of this product. Formore detailed information about recycling
of this product, pleasecontact your local city office, your household waste disposal serviceor the shop where you purchased the
product.
Read and Save These instructions
Record Your Model and Serial Numbers
The model and serial numbers of your dryer are found on the dryer
serial plate located of the left side of the door opening. Record and
retain these numbers.
Noter les numeros de module et de s_rie
Model Number
Serial Number
Purchase Date
Pedestal
Read all instructions before using this appliance. This
book contains valuable information about:
®Operation
® Care
® Service
Keep it in a safe place.
This Use and Care Guide provides general operating
instructions for your dryer. It also contains information
about features for several other models. Your dryer may
not have every feature included.
Usethe dryer only asinstructed in this Use& Care Guide
and the Operating Instructions included with your
dryer.
A pedestal accessory, Model No. APWD15W (White), APWD15GB (Glacier Blue), APWD15P (Platinum) and APWD15E
(Black), specifically designed for this washer may be used when elevating the washer for ease of use. Failureto useaccessories
certified by the manufacturer could result in personal injury, property damage or damage to the washer.
j_
Important Safety instructions
Your safety and the safety of others is very important.
We have provided many important safety messages in the Use and Care Guide, Operating Instructions, Installation Instructions
and on your appliance. Always read and obey all safety messages.
V_ This isthe safety alert symbol. This symbol alerts you to hazards that can kill or hurt you or others. All safety messageswill
be preceded by the safety alert symbol and the word "DANGER" or "WARNING". Thesewords mean:
You will be killed or seriously injured if you don't follow instructions.
You can be killed or seriously injured if you don't follow instructions.
AII safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen
if the instructions are not followed.
Foryour safety, the information in this manual must be followed to minimize the risk of fire or explosion or to
prevent property damage, personal injury or loss of life.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not useany phone in your building.
• Clear the room, building or area of all occupants.
• Immediately call your gassupplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
2

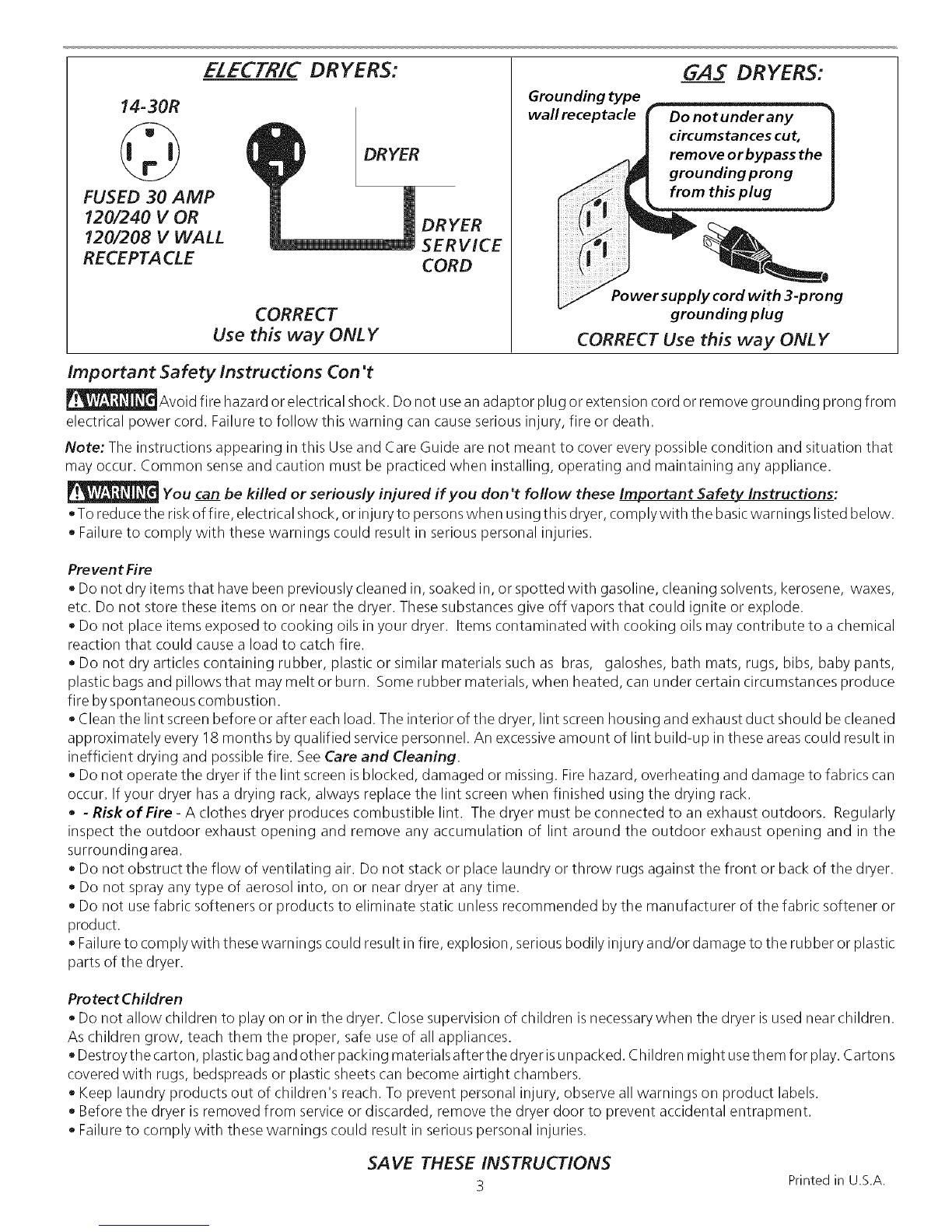

EZECTR/C DRYERS:
14-30R
©
FUSED 30 AMP
120/240 V OR
120/208 V WALL
RECEPTACLE
DRYER
DR YER
SERVICE
CORD
Grounding type
wall receptacle
GAS DRYERS:
Do notunderany
circumstances cut,
remove or bypass the
grounding prong
from this plug
Power supply cord with 3-prong
CORRECT grounding plug
Use this way ONL Y CORRECT Use this way ONL Y
Important Safety Instructions Con't
_Avoid fire hazard or electrical shock. Do not usean adaptor plug or extension cord or remove grounding prong from
electrical power cord. Failure to follow this warning can cause serious injury, fire or death.
Note; The instructions appearing in this Use and Care Guide are not meant to cover every possible condition and situation that
may occur. Common senseand caution must be practiced when installing, operating and maintaining any appliance.
You can be killed or seriously injured if you don't follow these Important Safety Instructions:
• To reduce the riskof fire, electrical shock, or injury to persons when using this dryer, complywith the basic warnings listed below.
Failure to comply with these warnings could result in serious personal injuries.
Prevent fire
• Do not dry items that have been previously cleaned in, soaked in, or spotted with gasoline, cleaning solvents, kerosene, waxes,
etc. Do not store these items on or near the dryer. These substances give off vapors that could ignite or explode.
Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical
reaction that could cause a load to catch fire.
Do not dry articles containing rubber, plastic or similar materials such as bras, galoshes, bath mats, rugs, bibs, baby pants,
plastic bags and pillows that may melt or burn. Some rubber materials, when heated, can under certain circumstances produce
fire byspontaneous combustion.
Clean the lint screen before or after each load. The interior of the dryer, lint screen housing and exhaust duct should becleaned
approximately every 18 months by qualified service personnel. An excessiveamount of lint build-up in these areascould result in
inefficient drying and possible fire. SeeCare and Cleaning.
Do not operate the dryer if the lint screen isblocked, damaged or missing. Firehazard, overheating and damage to fabrics can
occur. If your dryer has a drying rack, always replace the lint screen when finished using the drying rack.
-RiskofFire - A clothes dryer produces combustible lint. The dryer must be connected to an exhaust outdoors. Regularly
inspect the outdoor exhaust opening and remove any accumulation of lint around the outdoor exhaust opening and in the
surrounding area.
Do not obstruct the flow of ventilating air. Do not stack or place laundry or throw rugs against the front or back of the dryer.
Do not spray any type of aerosol into, on or near dryer at any time.
Do not usefabric softeners or products to eliminate static unless recommended bythe manufacturer of the fabric softener or
product.
Failureto comply with these warnings could result in fire, explosion, serious bodily injury and/or damage to the rubber or plastic
parts of the dryer.
Pro tect Children
Do not allow children to play on or in the dryer. Close supervision of children isnecessarywhen the dryer isused near children.
As children grow, teach them the proper, safe use of all appliances.
Destroythe carton, plastic bag and other packing materials after the dryer isunpacked. Children might usethem for play. Cartons
covered with rugs, bedspreads or plastic sheets can become airtight chambers.
Keep laundry products out of children's reach. To prevent personal injury, observe all warnings on product labels.
Before the dryer isremoved from service or discarded, remove the dryer door to prevent accidental entrapment.
Failureto comply with these warnings could result in serious personal injuries.
SAVE THESE INSTRUCTIONS
3 Printedin U.S.A.

Imp ortan t Safe ty Ins tru ctio ns Con 't
Preventlnjury
• Toprevent shock hazard and assurestability during operation, the dryer must beinstalled and electrically grounded bya qualified
service person in accordance with local codes. Installation instructions are packed in the dryer for the installer's reference. Refer
to INSTALLATIONINSTRUCTIONSfor detailed grounding procedures. If the dryer ismoved to a new location, haveit checked and
reinstalled by a qualified service person.
Toprevent personal injury or damageto the dryer, the electrical power cord of agasdryermust beplugged into a properly grounded
and polarized 3-prong outlet. The third grounding prong must never be removed. Never ground the dryer to a gas pipe.
Do not use an extension cord or an adaptor plug.
ALWAYS disconnect the dryer from the electrical supply before attempting any serviceor cleaning. Failureto do so can result
in electrical shock or injury.
Do not use any type spray cleanser when cleaning dryer interior. Hazardous fumes or electrical shock could occur.
To prevent inju % do not reach into the dryer ifthe drum ismoving. Wait until the dryer hasstopped completely before reaching
into the drum.
To prevent injury and damage to the dryer:
AIIrepairsandservidngmustbeperformedbyanauthorizedservicerunless specifically recommended inthis Owner's
Guide. Use only authorized factory parts.
Do not tam per with controls.
Do not install or store the dryer where it will be exposed to the weather.
A thermal limiter switch automatically turns off the motor in the unlikely event of an overheated situation (electric dryers only).
A servicetechnician must replace the thermal limiter switch after correcting the fault.
Failure to comply with these warnings could result in serious personal injuries.
Drying Procedures • Follow the guidelines below for preparing the load for drying.
Readthe Operating Instructions for operating your specific model.
Always read and follow fabric care labels and laundry product labels.
To reduce the risk of fire, electrical shock, or injury to persons, read
Important Safety Instructions before operating this dryer.
"\.i "4'
Follow fabric care label instructions.
Place small items in a mesh bag.
Fill dr 1/3 to 1/2 full.
1. Prepare items for drying.
Dry items of similar fabric, weight and construction in the same load.
Separate dark items from light-colored items. Separate items that shed lint
from those that attract lint. If an item sheds lint, turn it inside out.
Besurebuckles, buttons and trim are heatproof and won't damagethe drum
finish. Close zippers, fasten hooks and Velcro®-Iike fasteners. Tiestrings and
sashesto prevent snagging and tangling.
If possible, turn pockets inside out for even drying.
Check for stains which may not have been removed in washing. Dryer heat
may permanently set some stains. Repeat stain removal process before
drying.
Placesmall items in a mesh bag to prevent tangling and for easy removal.
2. Check that lint screen is clean and in place.
3. Load the dryer.
The average load will fill the drum I/3 to 1/2full. Items need room to tumble
freely for even drying and lesswrinkling. Do not overload dryer.
When drying large items, dry only 2 or 3 at atime. Fillout the load with small
and medium sized items.
Fordelicate or very small loads, add 2 lint-free towels for better drying, less
wrinkling, and to prevent grease stains caused byfabric softener sheets.
Do not overdry items. Overdrying cancausewrinkling, shrinkage, harshness,
and a build-up of static electricity, which can produce more lint.
If desired, add a dryer fabric softener sheet.
4. Close the dryer door and select the cycle, temperature, dryness level and
options desired. See Operating Instructions for your specific model
information.
5. Press START to begin the cycle.
To add or remove itemswhen the dryer isrunning oper_the door. The dryer
will stop when the door isopened. Allow the drum to come to a complete
stop before reaching inside.
Close the door and press Start to resume the cycle.
6. When the cycle ends, remove items immediately and hang or fold.
4

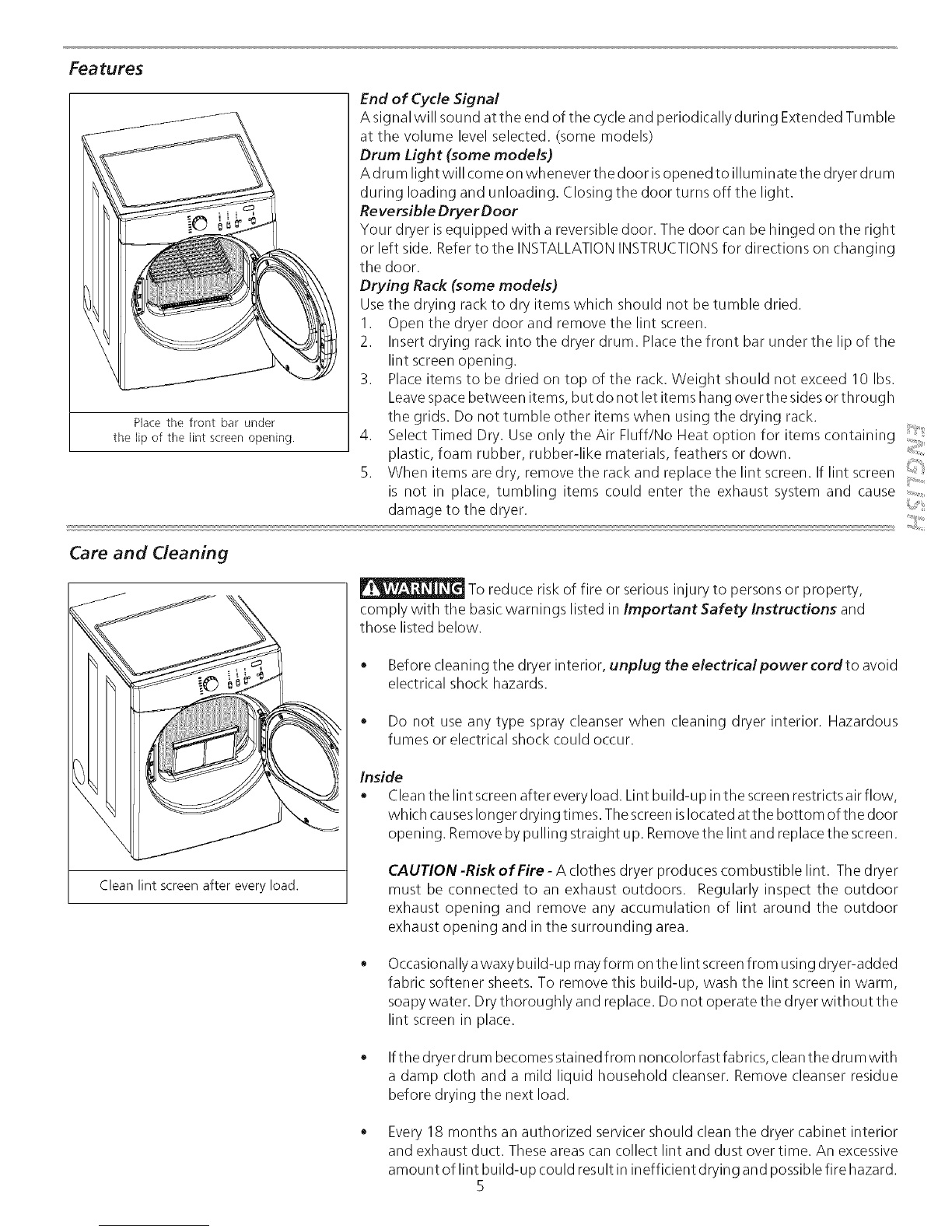

Place the front bar under
the lip of the lint screen opening.
End of Cycle Signal
A signal will sound atthe end of the cycle and periodically during Extended Tumble
at the volume level selected. (some models)
Drum Light (some models)
A drum light will come on whenever the door isopened to illuminate the dryer drum
during loading and unloading. Closing the door turns off the light.
Reversible DryerDoor
Your dryer isequipped with a reversible door. The door can be hinged on the right
or left side. Referto the INSTALLATIONINSTRUCTIONSfor directions on changing
the door.
Drying Rack (some models)
Use the drying rack to dry items which should not be tumble dried.
I. Open the dryer door and remove the lint screen.
2. Insert drying rack into the dryer drum. Placethe front bar under the lip of the
lint screen opening.
3. Place items to be dried on top of the rack. Weight should not exceed 10 Ibs.
Leavespace between items, but do not let items hang overthe sides or through
the grids. Do not tumble other items when using the drying rack.
4. Select Timed Dry. Use only the Air Fluff/No Heat option for items containing
plastic, foam rubber, rubber-like materials, feathers or down.
5. When items are dry, remove the rack and replace the lint screen. If lint screen
is not in place, tumbling items could enter the exhaust system and cause
damage to the dryer.
Fea tures
Care and Cleaning
Clean lint screen after every load.
To reduce risk of fire or serious injury to persons or property,
comply with the basicwarnings listed in Important Safety Instructions and
those listed below.
Before cleaning the dryer interior, unplug the electrical power cord to avoid
electrical shock hazards.
Do not use any type spray cleanser when cleaning dryer interior. Hazardous
fumes or electrical shock could occur.
Inside
• Clean the lint screen after everyload. Lint build-up inthe screen restricts air flow,
which causeslonger drying times. Thescreen islocated atthe bottom of the door
opening. Removeby pulling straight up. Removethe lint and replace the screen.
CAUTION-Risk of Fire- A clothes dryer produces combustible lint. The dryer
must be connected to an exhaust outdoors. Regularly inspect the outdoor
exhaust opening and remove any accumulation of lint around the outdoor
exhaust opening and in the surrounding area.
Occasionally awaxy build-up may form on the lint screenfrom using dryer-added
fabric softener sheets. To remove this build-up, wash the lint screen in warm,
soapy water. Dry thoroughly and replace. Do not operate the dryer without the
lint screen in place.
• Ifthe dryer drum becomes stained from noncolorfast fabrics, cleanthe drum with
a damp cloth and a mild liquid household cleanser. Remove cleanser residue
before drying the next load.
Every 18 months an authorized servicer should clean the dryer cabinet interior
and exhaust duct. These areas can collect lint and dust over time. An excessive
amount of lint build-up could result in inefficient drying and possiblefire hazard.
5

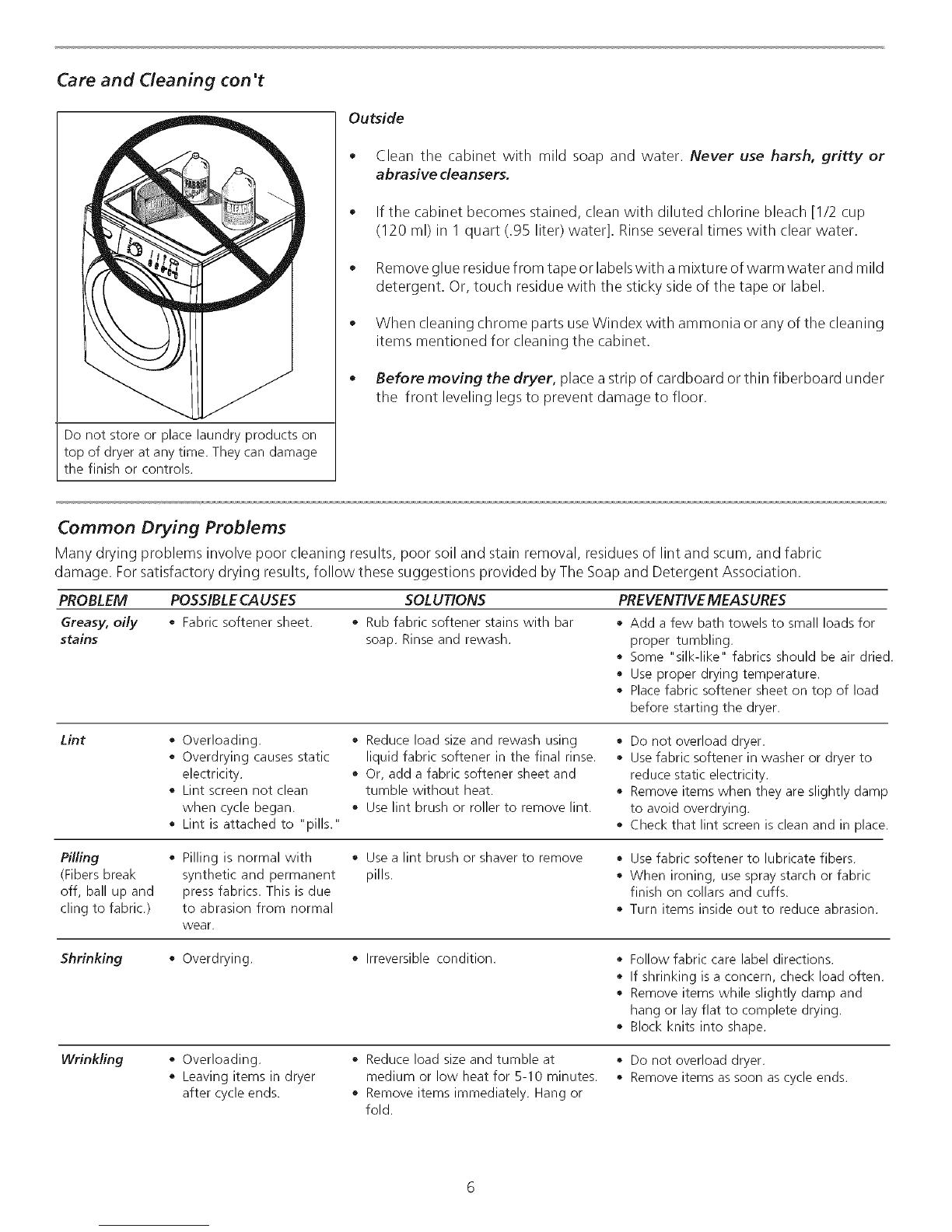

Care and Cleaning con't
Do not store or place laundry products on
top of dryer at any time. They can damage
the finish or controls.
Outside
• Clean the cabinet with mild soap and water. Never use harsh, gritty or
abrasive cleansers.
If the cabinet becomes stained, clean with diluted chlorine bleach [1/2 cup
(120 ml) in 1 quart (.95 liter) water]. Rinse several times with clear water.
Removeglue residue from tape or labelswith a mixture of warm water and mild
detergent. Or, touch residue with the sticky side of the tape or label.
When cleaning chrome parts useWindex with ammonia or any of the cleaning
items mentioned for cleaning the cabinet.
Before moving the dryer, place a strip of cardboard or thin fiberboard under
the front leveling legsto prevent damage to floor.
Common Drying Problems
Many drying problems involve poor cleaning results, poor soil and stain removal, residues of lint and scum, and fabric
damage. Forsatisfactory drying results, follow these suggestions provided by The Soap and Detergent Association.
PROBLEM
Greasy, oily
stains
POSSIBLE CA USES
e Fabric softener sheet. SOL UTIONS o Rub fabric softener stains with bar
soap. Rinse and rewash.
PREVENTIVE MEASURES
o Add a few bath towels to small loads for
proper tumbling.
Some "silk-like" fabrics should be air dried.
Use proper drying temperature.
o Place fabric softener sheet on top of load
before starting the dryer.
Lint Overloading.
e Overdrying causes static
electricity.
• Lint screen not clean
when cycle began.
Lint is attached to "pills."
o Reduce load size and rewash using
liquid fabric softener in the final rinse.
Or, add a fabric softener sheet and
tumble without heat.
o Use lint brush or roller to remove lint.
Do not overload dryer.
o Use fabric softener in washer or dryer to
reduce static electricity.
Remove items when they are slightly damp
to avoid overdrying.
o Check that lint screen is clean and in place.
Pilling
(Fibers break
off, ball up and
cling to fabric.)
Pilling is normal with
synthetic and permanent
press fabrics. This is due
to abrasion from normal
wear,
Use a lint brush or shaver to remove
pills. o Use fabric softener to lubricate fibers.
o When ironing, use spray starch or fabric
finish on collars and cuffs.
Turn items inside out to reduce abrasion.
Shrinking Overdrying. o Irreversible condition. Follow fabric care label directions,
If shrinking is a concern, check load often,
Remove items while slightly damp and
hang or lay flat to complete drying.
o Block knits into shape.
Wrinkling Overloading,
• Leaving items in dryer
after cycle ends.
o Reduce load size and tumble at
medium or low heat for 5-10 minutes.
o Remove items immediately. Hang or
fold.
Do not overload dryer.
Remove items as soon as cycle ends.

Avoid Service Before calling for service, reviewthis list. It may save both time and expense. The list includes
Checklist common occurrences that are not the resuIt of defective workmanship or materials in th isdryer.
OCCURRENCE POSSIBLE CAUSE SOLUTION
Dryer does not start. Electrical power cord is not securely Make sure the plug fits tightly in wall outlet.
plugged in or plug may be loose.
House fuse blown or circuit breaker Reset circuit breaker or replace fuse.
tripped. Make sure electrical line is not overloaded and the
dryer is on a separate circuit.
Thermal limiter tripped. Call authorized service person for replacement.
Dryerrunsbutwon'theat. There are 2 house fuses in the dryer Replace fuse.
circuit. If 1of the 2 fuses is blown, the
drum may turn but the heater will not
operate.
Gas supply valve is not open (gas Check to make sure supply valve is open. See
models). INSTALLATION INSTRUCTIONS for procedure.
Dryer does not have anough air supply See INSTALLATION INSTRUCTIONS.
to support the burner flame (gas models).
LP gas supply tank is empty or there has Refill or replace tank.
been a utility interruption of natural gas i
(gas models). Dryer should heat when utility service is restored.
Make sure all lint has been removed from the dryer lint
screen before starting each cycle.
Drying cycle takes too long,
outside of the dryer feels too
hot or smells hot.
Lint screen is clogged with lint.
Exhaust duct requirements have not
been met, Exhaust duct must be at least 4 inches in diameter and
made of rigid or flexible metal.
When in place, the duct must have no more than two
90° bends and must not exceed length listed in
INSTALLATION INSTRUCTIONS.
Electric dryer is connected to a 208 volt Drying time will be 20% longer than drying on a 240
circuit, volt circuit.
Drying procedures have not been SeeDrying Procedures.
followed.
Outside exhaust hood or exhaust duct Clean out any obstruction.
may be clogged or restricted.
High humidity. Use a dehumidifier near the dryer.
Excessive wrinkling. Dryer is overloaded. Do not overload. See Drying Procedures.
Items left in dryer too long. Remove items as soon as cycle ends.
Insufficient sorting of items. SeeDrying Procedures.
Drying temperature too high. Follow fabric care label instructions.
Scratching or chipping of the
drum finish. Foreign objects such as coins, pins, clips
or buttons are inside the dryer.
Permanently attached items such as belt
buckles, zippers and fasteners may be
hitting the inside of the drum.
Always remove foreign objects from pockets before
laundering. Remove objects from drum and restart
dryer.
It may be necessary to baste a scrap of material
securely around ornaments before drying to prevent
scratching and damage to the dryer.
Drum damage caused by foreign objects or permanently
attached items is not covered by the warranty.

Your appliance is covered by a one year limited warranty. For one year from your original date of
purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to
be defective in materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions.
Exclusions This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc.,which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,
cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE
LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR.
ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS
PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN
LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE
DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO
YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER
RIGHTS THAT VARY FROM STATE TO STATE.
If You Need Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period
Service should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service under this warranty must be obtained by contacting Electrolux at the addresses or phone
numbers below.
This warranty only applies in the USA and Canada. tn the USA, your appliance is warranted by Electrolux Major Appliances
North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada
Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and
parts under this warranty must be performed by Electrolux or an authorized service company. Product features or
specifications as described or illustrated are subject to change without notice.
USA
1.800.944.9044
EIectrolux Major Appliances
North America
RO. Box 212378
Augusta, GA 30907
Electrolux
Canada
1.800.668.4606
ElectroIux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
