Frigidaire FASE7073NW0 User manual

allation
TABLE OF CONTENTS
Important Safety Instructions Reversing Door
Installation Requirements Accessories ..
Installed Dryer Dimensions
Installation Instructions
(POLL)
VOOLZPrZ

IMPORTANT SAFETY INSTRUCTIONS
4 WARNING
For your safety the information in this manual must be followed to minimize the risk of fire or explosion or to prevent
property damage, personal injury or loss of life. Do not store or use gasoline or other flammable vapors and liquids in
the vicinity of this or any other appliance.
4 WARNING - RISK OF FIRE
Read all of the following instructions before installing and using this appliance:
« Destroy the carton and plastic bags after the dryer is unpacked. Children might use them for play. Cartons covered
with rugs, bedspreads, or plastic sheets can become airtight chambers causing suffocation. Place all materials in a
garbage container or make materials inaccessible to children.
e Clothes dryer installation and service must be performed by a qualified installer, service agency or the gas supplier.
* Install the clothes dryer according to the manufacturer’s instructions and local codes.
e The electrical service to the dryer must conform with local codes and ordinances and the latest edition of the Na-
tional Electrical Code, ANSI/NFPA 70, or in Canada, the Canadian electrical code C22.1 part 1.
e The gas service to the dryer must conform with local codes and ordinances and the latest edition of the National
Fuel Gas Code ANSI Z223.1, or in Canada, CAN/ACG B149.1-2000. An individual manual shut-off valve must be
installed within 6 ft (1.83 m) of the dryer in accordance with the National Fuel Gas Code, ANSI Z223.1/NFPA 54.
* The dryer is designed under ANSI Z 21.5.1 or ANSI/UL 2158 - CAN/CSA C22.2 No. 112 (latest editions) for HOME
USE only. This dryer is not recommended for commercial applications such as restaurants, beauty salons, etc.
* Do not install a clothes dryer with flexible plastic venting material. Flexible venting materials are known to collapse,
be easily crushed and trap lint. These conditions will obstruct clothes dryer airflow and increase the risk of fire.
* The instructions in this manual and all other literature included with this dryer are not meant to cover every pos-
sible condition and situation that may occur. Good safe practice and caution MUST be applied when installing,
operating and maintaining any appliance.
WHAT TO DO IF YOU SMELL GAS:
* Do not try to light any appliance. A CAUTION
* Do not touch any electrical switch; do not use any phone in EXCESSIVE WEIGHT HAZARD
your building. To avoid back or other injury, have more than
¢ Clear the room, building or area of all occupants. one person move or lift the appliance.
« Immediately call your gas supplier from a neighbor’s phone. . .
Follow the gas supplier’s instructions. Save these instructions for
e If you cannot reach your gas supplier, call the fire department. future reference.
Pre-Installation Requirements
Tools and materials needed for installation:
« Adjustable pliers * Carpenter’s level * Gas line shutoff valve (gas dryer)
* Phillips, straight, & square bit « External vent hood « % NPT union flare adapters (x2)
screwdrivers @ 4-inch (102 mm), rigid metal or and flexible gas supply line (gas
* Adjustable wrench semi-rigid metal exhaust duct work dryer)
e Pipe wrench for gas supply (gas e 3-wire or 4-wire 240 volt cord kit « Metal foil tape (not duct tape)
dryer) (electric dryer)
« LP-resistant thread tape (for natu- » 4 in. (102 mm) clamp
ral gas or LP supply, gas dryer)
2

IMPORTANT SAFETY INSTRUCTIONS
4y WARNING
Please read all instructions before using this dryer.
Recognize safety symbols, words and
labels
Safety items throughout this manual are labeled with
a WARNING or CAUTION based on the risk type as
described below:
Definitions
& This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury
or death.
4y DANGER
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious
injury.
4y WARNING
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury.
4 CAUTION
CAUTION indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
injury.
=a IMPORTANT
IMPORTANT indicates installation, operation or
maintenance information which is important but not
hazard-related.
4 Installation Checklist
Exhaust Venting
) Free-flowing, clear of lint buildup
Q) 4 inch (102 mm) rigid or semi-rigid ducting of
minimal length and turns
Q) NO foil or plastic venting material
Q) Approved vent hood exhausted to outdoors
Leveling
Q) Dryer is level, side-to-side and front-to-back
Q) Cabinet is setting solid on all corners
Gas Supply (Gas Dryer)
€) Manual shutoff valve present in supply
C) All connections sealed with approved sealer
and wrench tight
C) Conversion kit for LP system
) Gas supply turned on
2 No leaks present at all connections -
check with soapy water, NEVER check with
flame
240v Electric Supply (Electric Dryer)
&) Approved NEMA 10-30R or 14-30R service
cord with all screws tight on terminal block
©) Approved strain relief installed
) Terminal access cover installed before initial
operation
Door Reversal
Q) Follow detailed instructions in this guide
Q) Test hinge and latch for function
Electrical Power
C) House power turned on
Q) Dryer plugged in
Final Checks
Q) Installation Instructions and Use and
Care Guide read thoroughly
{) Door latches and drum tumbies when cycle
starts
) Registration card sent in

INSTALLATION REQUIREMENTS
& NOTE
Because of potentially inconsistent voltage capabilities, the use of this dryer with power created by gas powered
generators, solar powered generators, wind powered generators or any other generator other than the local utility
company is not recommended.
Electrical requirements for electric dryer
CIRCUIT - Individual 30 amp. branch circuit fused with 30 amp. time delay fuses or circuit breakers. Use separately
fused circuits for washer and dryer. DO NOT operate a washer and a dryer on the same circuit.
POWER SUPPLY - 3-wire or 4-wire, 240 volt, single phase, 60 Hz, Alternating Current.
~2 IMPORTANT
This dryer is internally grounded to neutral unless it was manufactured for sale in Canada.
Only a 4-conductor cord shall be used when the appliance is installed in a location where grounding through
the neutral conductor is prohibited. Grounding through the neutral link is prohibited for: (1) new branch circuit
installations, (2) mobile homes, (3) recreational vehicles, and (4) areas where local codes do not permit grounding
through the neutral.
OUTLET RECEPTACLE - NEMA 10-30R or NEMA 14-30R receptacle to be located so the power supply cord is accessible
when the dryer is in the installed position.
GROUNDING CONNECTION - See “Grounding requirements” in Electrical Installation section.
3-WIRE POWER SUPPLY CORD KIT (not supplied)
3-wire receptacle
| (NEMA type 10-30R)
The dryer MUST employ a 3-conductor power
supply cord NEMA 10-30 type SRDT rated at 240
volt AC minimum, 30 amp, with 3 open end spade
lug connectors with upturned ends or closed
loop connectors and marked for use with clothes
dryers. For 3-wire cord connection instructions see
ELECTRICAL CONNECTIONS FOR A 3-WIRE SYSTEM.
4-WIRE POWER SUPPLY CORD KIT (not supplied)
4-wire receptacle
(NEMA type 14-30R)
The dryer MUST employ a 4-conductor power supply
cord NEMA 14-30 type SRDT or ST (as required) rated
at 240 volt AC minimum, 30 amp, with 4 open end
spade lug connectors with upturned ends or closed
loop connectors and marked for use with clothes
dryers. For 4-wire cord connection instructions see
ELECTRICAL CONNECTIONS FOR A 4-WIRE SYSTEM.
L NOTE
Dryers manufactured for sale in Canada have factory-
installed, 4-wire power supply cord (NEMA 14-30R).

Electrical requirements for gas dryer
CIRCUIT - Individual, properly polarized and grounded
15 amp. branch circuit fused with 15 amp. time delay
fuse or circuit breaker.
POWER SUPPLY - 2-wire, with ground, 120 volt, single
phase, 60 Hz, Alternating Current.
POWER SUPPLY CORD - The dryer is equipped with a 120
volt 3-wire power cord.

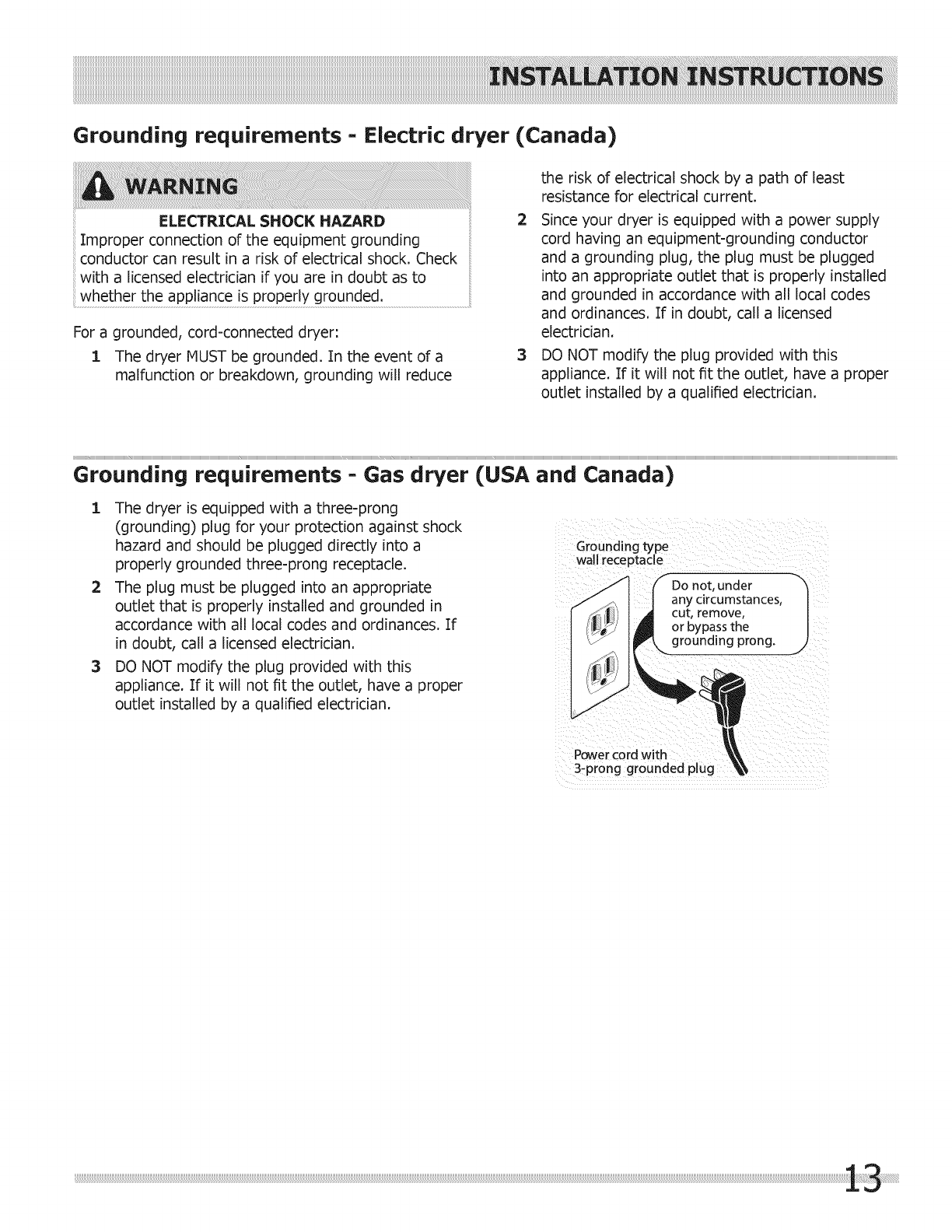

GROUNDING CONNECTION - See “Grounding
requirements” in Electrical Installation section.
INSTALLATION REQUIREMENTS
Grounding type
wall receptacle
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
Power-cord with
3-prong grounded plug
Gas supply requirements
44 WARNING
EXPLOSION HAZARD
Uncoated copper tubing will corrode when subjected
to natural gas, causing gas leaks. Use ONLY black iron,
stainless steel, or plastic-coated brass piping for gas
supply.
1 Installation MUST conform with local codes, or in
the absence of local codes, with the National Fuel
Gas Code, ANSI 2223.1 (latest edition).
2 The gas supply line should be 1/2 inch (1.27 cm)
pipe.
3 If codes allow, flexible metal tubing may be used
to connect your dryer to the gas supply line. The
tubing MUST be constructed of stainless steel or
plastic-coated brass.
4 The gas supply line MUST have an individual
shutoff valve installed in accordance with the
Bi49.1, Natural Gas and Propane Installation Code.
5 A 1/8 inch (0.32 cm) N.PT. plugged tapping,
accessible for test gauge connection, MUST be
installed immediately upstream of the gas supply
connection to the dryer.
6 The dryer MUST be disconnected from the gas
supply piping system during any pressure testing
of the gas supply piping system at test pressures in
excess of 1/2 psig (3.45 kPa).
7 The dryer MUST be isolated from the gas supply
piping system during any pressure testing of the
gas supply piping system at test pressures equal to
or less than 1/2 psig (3.45 kPa).
8 Connections for the gas supply must comply with
the Standard for Connectors for Gas Appliances,
ANSI 221.24.

INSTALLATION REQUIREMENTS
Exhaust system requirements
Use only 4 inch (102 mm) diameter rigid or flexible metal
duct and approved vent hood which has a swing-out
damper(s) that open when the dryer is in operation.
When the dryer stops, the dampers automatically close to
prevent drafts and the entrance of insects and rodents.
To avoid restricting the outlet, maintain a minimum of 12
inches (30.5 cm) clearance between the vent hood and
the ground or any other obstruction.
44 WARNING
FIRE HAZARD
Failure to follow these instructions can create excessive
drying times and fire hazards.
The following are specific requirements for
proper and safe operation of your dryer.
fy WARNING
FIRE HAZARD
Do not install a clothes dryer with flexible plastic or
metal foil venting materials. Flexible venting materials
are known to collapse, be easily crushed and trap lint.
These conditions will obstruct clothes dryer airflow and
increase the risk of fire.
If your present system is made up of plastic duct or
metal foil duct, replace it with a rigid or semi-rigid metal
duct. Also, ensure the present duct is free of any lint prior
to installing dryer duct.

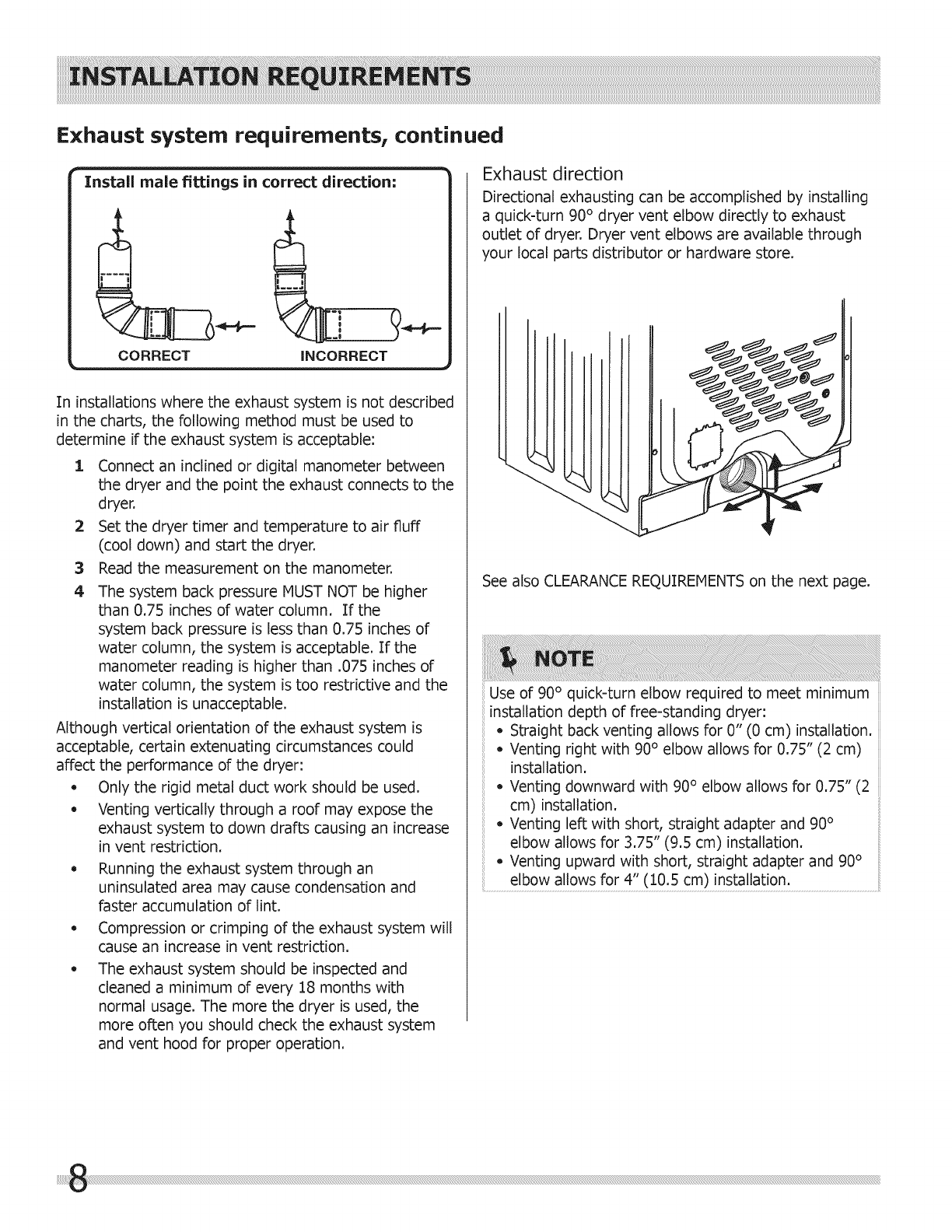

INSTALLATION REQUIREMENTS
Exhaust system requirements, continued
4 WARNING
FIRE HAZARD
A clothes dryer must be exhausted outdoors. Do not
exhaust dryer into a chimney, a wall, a ceiling, an attic,
a crawl space or any concealed space of a building. A
clothes dryer produces combustibie lint. If the dryer is
not exhausted outdoors, some fine lint will be expelled
into the laundry area. An accumulation of lint in any
area of the home can create a health and fire hazard.
4 WARNING
FIRE HAZARD
Exceeding the length of duct pipe or number of elbows
allowed in the “MAXIMUM LENGTH” charts can cause
an accumulation of lint in the exhaust system. Plugging
the system could create a fire hazard, as well as
increase drying times.
The dryer must be connected to an exhaust outdoors.
Regularly inspect the outdoor exhaust opening and
remove any accumulation of lint around the outdoor
exhaust opening and in the surrounding area.
fy WARNING
FIRE HAZARD
« Do not allow combustible materials (for example:
clothing, draperies/curtains, paper) to come in
contact with exhaust system. The dryer MUST NOT
be exhausted into a chimney, a wail, a ceiling,
or any concealed space of a building which can
accumulate lint, resulting in a fire hazard.
« Do not screen the exhaust ends of the vent system,
or use any screws, rivets or other fasteners that
extend into the duct to assemble the exhaust
system. Lint can become caught in the screen, on
the screws or rivets, clogging the duct work and
creating a fire hazard as well as increasing drying
times. Use an approved vent hood to terminate the
duct outdoors, and seal all joints with metal foil duct
tape. All male duct pipe fittings MUST be installed
downstream with the flow of air.
MAXIMUM LENGTH
> of 4” (102mm) Rigid Metal Duct
5 VENT HOOD TYPE
8 (Preferred)
2.
wo
©
o
5
SE
3 —p-|
w
4" 2.5”
(102mm) louvered (6.35cem)
0 64 ft. (19.5 m) 48 ft. (14.6 m)
1 52 ft. (15.9 m) 40 ft. (12.2 m)
2 44 ft. (13.5 m) 32 ft. (9.8m)
3 36 ft. (11 m) 24 ft. (7.3 m)
4 28 ft. (9.5 m) 16 ft. (4.9 m)
FIRE HAZARD
e Do not install flexible plastic or flexible foil venting
material.
« Tf installing semi-rigid venting, do not exceed 8 ft.
(2.4 m) duct length.

INSTALLATION REQUIREMENTS
Exhaust system requirements, continued
! Install male fittings in correct direction:
EN
CORRECT
INCORRECT
te
In installations where the exhaust system is not described
in the charts, the following method must be used to
determine if the exhaust system is acceptable:
1 Connect an inclined or digital manometer between
the dryer and the point the exhaust connects to the
dryer.
2 Set the dryer timer and temperature to air fluff
(cool down) and start the dryer.
3 Read the measurement on the manometer.
4 The system back pressure MUST NOT be higher
than 0.75 inches of water column. If the
system back pressure is less than 0.75 inches of
water column, the system is acceptable. If the
manometer reading is higher than .075 inches of
water column, the system is too restrictive and the
installation is unacceptable.
Although vertical orientation of the exhaust system is
acceptable, certain extenuating circumstances could
affect the performance of the dryer:
e Only the rigid metal duct work should be used.
« Venting vertically through a roof may expose the
exhaust system to down drafts causing an increase
in vent restriction.
« Running the exhaust system through an
uninsulated area may cause condensation and
faster accumulation of lint.
« Compression or crimping of the exhaust system will
cause an increase in vent restriction.
« The exhaust system should be inspected and
cleaned a minimum of every 18 months with
normal usage. The more the dryer is used, the
more often you should check the exhaust system
and vent hood for proper operation.
Exhaust direction
Directional exhausting can be accomplished by installing
a quick-turn 90° dryer vent elbow directly to exhaust
outlet of dryer. Dryer vent elbows are available through
your local parts distributor or hardware store.
See also CLEARANCE REQUIREMENTS on the next page.
& NOTE
Use of 90° quick-turn elbow required to meet minimum
installation depth of free-standing dryer:
« Straight back venting allows for 0” (0 crm) installation.
« Venting right with 90° elbow allows for 0.75” (2 cm)
installation.
« Venting downward with 90° elbow allows for 0.75” (2
cm) installation.
* Venting left with short, straight adapter and 90°
elbow allows for 3.75” (9.5 cm) installation.
« Venting upward with short, straight adapter and 90°
elbow allows for 4” (10.5 cm) installation.

INSTALLATION REQUIREMENTS
Manufactured or mobile home installation
1 Installation MUST conform to current Manufactured
Home Construction & Safety Standard, Title 24
CFR, Part 32-80 (formerly the Federal Standard
for Mobile Home Construction and Safety, Title 24,
HUD Part 280) or Standard CAN/CSAZ240 MH.
2 Dryer MUST be exhausted outside (outdoors, not
beneath the mobile home) using metal ducting
that will not support combustion. Metal ducting
must be 4 inches (10.16 cm) in diameter with no
obstructions. Rigid metal duct is preferred.
3 If dryer is exhausted through the floor and area
beneath the mobile home is enclosed, the exhaust
system MUST terminate outside the enclosure with
the termination securely fastened to the mobile
home structure.
Refer to previous sections in this guide for other
important exhaust venting system requirements.
When installing a gas dryer into a mobile home, a
provision must be made for outside make up air.
This provision is to be not less than twice the area
of the dryer exhaust outlet.
Installer MUST anchor this (1) dryer or (2) dryer
mounted on pedestal to the floor with approved
Mobile Home Installation Kit - P/N 137067200.
Clearance requirements
4 WARNING
EXPLOSION HAZARD
Do not install the dryer where gasoline or other
flammables are kept or stored. If the dryer is installed
in a garage, it must be a minimum of 18 inches (45.7
cm) above the floor. Failure to do so can result in
death, explosion, fire or burns.
=a IMPORTANT
DO NOT INSTALL YOUR DRYER:
i
2
In an area exposed to dripping water or outside
weather conditions.
In an area where it will come in contact with
curtains, drapes, or anything that will obstruct
the flow of combustion and ventilation air.
On carpet. Floor MUST be solid with a maximum
Slope of 1 inch (2.54 cm).

INSTALLATION REQUIREMENTS
Clearance requirements, continued
Installation in a Recess or Closet
1 A dryer instalied in a bedroom, bathroom, recess or
closet, MUST be exhausted outdoors.
2 No other fuel burning appliance shall be installed in
the same closet as the gas dryer.
3 Your dryer needs the space around it for proper
ventilation.
DO NOT install your dryer in a closet with a solid door.
4 Closet door ventilation required: A minimum
of 120 square inches (774.2 cm) of opening,
equally divided at the top and bottom of the
door, is required. Openings should be located 3
inches (7.6 cm) from bottom and top of door.
Openings are required to be unobstructed when a
door is installed. A louvered door with equivalent
air openings for the full length of the door is
acceptable.
oy
60 sq. in.
(887.1cm2)
10
MINIMUM INSTALLATION CLEARANCES ~- Inches (cm)
SIDES REAR TOP FRONT
Alcove | 0” (0 cm) (0” (0 cm)* 0” (0 cm) n/a
Under- | ,, " ”
Counter 0” (0 cm) }0” (0 cm)* 0” (0 cm) n/a
Closet | 0” (0 cm) j0” (0 cm)* 0” (0 crm) } 1” (2.54 cm)
* Dryer must be vented straight back to achieve
0” (0 cm) rear instailation.
v
scone
(2.54cm) te

INSTALLED DIMENSIONS
51.4” (131cm) >
to
clear
open
door
nm
30.3"
(77)
tO
<
27.0"
>
to front of closed door (68.5cm)
a aA
— — —
O
30.0" electrical
5 supply on
(91.5cm)
rear
of
unit
51.25”
(130cm)
“ft centerline
owe height for
gas supply rear vent
freestand dryer pipe on rear
on floor of gas unit 3.7"
floor
line
LJ
v
t
(9.5m)
ee a ery cafe amt om oo coe eee eee are see ee
(4cm) CS >
dryer
mounted
on
”
optional pedestal 16.9" 19.0
(43cm) (48cm)
floor
line
v { {
* To obtain these minimal depth dimensions, dryer must be vented straight back. Using a quick-turn 90° a
elbow (right or down on freestanding dryer) adds approximately 0.75 in. (2.0 cm) to installation depth. (9.5em) é‘ 43,50" +
Upward venting of exhaust on pedestal-mounted or freestanding dryer adds approximately 4 in. (10.2 cm) to ,
(34.5cm)
installation depth. Leftward venting on pedestal-mounted or freestanding dryer adds approximately 3.75 in. to center of rear vent
(8.5 cm) to installation depth. Downward venting of exhaust on pedestal-mounted dryer adds approximately
2.25 in. (5.7 cm) to installation depth.
legemmne
51.4”
(13cm)
>
to
clear
open
door
é
30.3”
(77em)*
_
.
-
to
front
of
closed
door
“@
27.0
pe
(68.5cm)
r |
electrical
71.5"
supply
on
(182cem)
rear
of
unit
water
supply
connection
on
rear
of
unit?
N
centerline
height
for
gas
suPPIY
rear
vent
pipe on
rear
Kd
of
gas
unit
ty
A
a
S
power cord on
rear of unit?
drain hose on
rear of uni?
* To obtain these minimal depth dimensions, dryer must be vented straight back. Using a quick-turn 90° elbow (right) adds approximately 0.75 in. (2 cm) to installation depth. Upward venting of exhaust on stacked
dryer adds approximately 4 in. (10.2 cm) to installation depth. Downward venting of exhaust on stacked dryer adds approximately 2.25 in. (6.5 cm) to installation depth. Leftward venting of exhaust on stacked dryer
adds approximately 3.75 in. (9.5 cm) to installation depth.
tHot and cold inlet hose length approximately 43 inches (109cm)
2Power supply cord length approximately 60 inches (152.5cm).
3Drain hose length approximately 52 inches (132cm). 1 1

INSTALLATION INSTRUCTIONS
Electrical installation
The following are specific requirements for proper and
safe electrical installation of your dryer. Failure to follow
these instructions can create electrical shock and/or a fire
hazard.
fy WARNING
ELECTRICAL SHOCK HAZARD
e This appliance MUST be properly grounded.
Electrical shock can result if the dryer is not properly
grounded. Follow the instructions in this manual for
proper grounding.
¢ Do not use an extension cord with this dryer. Some
extension cords are not designed to withstand the
amounts of electrical current this dryer utilizes
and can melt, creating electrical shock and/
or fire hazard. Locate the dryer within reach of
the receptacle for the length power cord to be
purchased, allowing some slack in the cord. Refer to
the pre-installation requirements in this manual for
the proper power cord to be purchased.
4y WARNING
ELECTRICAL SHOCK HAZARD
« A U.L.-approved strain relief must be installed onto
power cord. If the strain relief is not attached, the
cord can be pulled out of the dryer and can be cut
by any movement of the cord, resulting in electrical
shock.
« Do not use an aluminum wired receptacle with a
copper wired power cord and plug (or vice versa).
A chemical reaction occurs between copper and
aluminum and can cause electrical shorts. The
proper wiring and receptacle is a copper wired
power cord with a copper wired receptacle.
& NOTE
Dryers operating on 208 volt power supply will have
longer drying times than dryers operating on 240 volt
power supply.
Grounding requirements - Electric dryer (USA)
4 WARNING
ELECTRICAL SHOCK HAZARD
Improper connection of the equipment grounding
conductor can result in a risk of electrical shock. Check
with a licensed electrician if you are in doubt as to
whether the appliance is properly grounded.
For a grounded, cord-connected dryer:
i The dryer MUST be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of electrical shock by a path of least
resistance for electrical current.
2 After you purchase and install a 3 wire or 4 wire
power supply cord having an equipment-grounding
conductor and a grounding plug that matches your
12
wiring system, the plug MUST be plugged into
an appropriate, copper wired receptacle that is
properly installed and grounded in accordance with
all local codes and ordinances. If in doubt, call a
licensed electrician.
3 DO NOT modify the plug you've installed on this
appliance. If it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
For a permanently connected dryer:
i The dryer MUST be connected to a grounded
metal, permanent wiring system; or an equipment
grounding conductor must be run with the circuit
conductors and connected to the equipment-
grounding terminal or lead on the appliance.

INSTALLATION INSTRUCTIONS
Grounding requirements - Electric dryer (Canada)
&& WARNING
ELECTRICAL SHOCK HAZARD
Improper connection of the equipment grounding
conductor can result in a risk of electrical shock. Check
with a licensed electrician if you are in doubt as to
whether the appliance is properly grounded.
For a grounded, cord-connected dryer:
i The dryer MUST be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of electrical shock by a path of least
resistance for electrical current.
Since your dryer is equipped with a power supply
cord having an equipment-grounding conductor
and a grounding plug, the plug must be plugged
into an appropriate outlet that is properly installed
and grounded in accordance with all local codes
and ordinances. If in doubt, call a licensed
electrician.
DO NOT modify the plug provided with this
appliance. If it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
Grounding requirements - Gas dryer (USA and Canada)
1 The dryer is equipped with a three-prong
(grounding) plug for your protection against shock
hazard and should be plugged directly into a
properly grounded three-prong receptacle.
2 The plug must be plugged into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances. If
in doubt, call a licensed electrician.
3 DO NOT modify the plug provided with this
appliance. If it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
Grounding type
wall receptacle
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
Power cord with \
3-prong grounded plug
£3

INSTALLATION INSTRUCTIONS
Gas connection
i Remove the shipping cap from gas pipe at the rear
of the dryer.
2 IMPORTANT
DO NOT connect the dryer to L.P. gas service without
converting the gas valve. An L.P. conversion kit must be
installed by a qualified gas technician.
2 Connect a 1/2 inch (1.27 cm) I.D. semi-rigid or
approved pipe from gas supply line to the 3/8 inch
(0.96 cm) pipe located on the back of the dryer.
Use a 1/2 inch to 3/8 inch (1.27 cm to 0.96 cm)
reducer for the connection. Apply an approved
thread sealer that is resistant to the corrosive
action of liquefied gases on all pipe connections.
Manual GAS FLOW
Shutoff Flare nt Flare
Valve Union Union
Xe Nigple
Open
inlet Pipe on
Back of Dryer
Flexible
Connector
All connections must be wrench-tightened
=a IMPORTANT
The supply line must be equipped with an approved
manual shutoff valve. This valve should be located in
the same room as the dryer and should be in a location
that allows ease of opening and closing. Do not biock
access to the gas shutoff valve.
3 Open the shutoff valve in the gas supply line to
allow gas to flow through the pipe. Wait a few
minutes for gas to move through the gas line.
Shutoff Valve - %
Open position
\. vA
4 Check for gas system leaks with a manometer. If a
manometer is not available, test all connections by
brushing on a soapy water solution.
44 WARNING
EXPLOSION HAZARD
NEVER test for gas leaks with an open flame.
14

INSTALLATION INSTRUCTIONS
Water connection (Steam Model only)
WATER SUPPLY REQUIREMENTS
Cold water faucet MUST be installed within 42 inches
(107 cm) of your dryer’s water inlet. The faucet MUST be
3/4 inch (1.9 cm) with threading for laundry hose con-
nection. Water pressure MUST be between 30 and 120
psi. Your water department can advise you of your water
pressure.
1 Turn off COLD water supply to washer.
2 Remove COLD inlet hose from COLD water supply
and inspect for rubber washer. Replace washer if it
is torn or worn out.
RUBBER WASHER
MUST BE PRESENT
AND UNDAMAGED
COLD INLET HOSE
TO WASHER
Nee a
3 Momentarily turn on COLD supply and run some
water into a bucket or container to clear any
contaminants in the line.
4 Remove hose kit from dryer drum and inspect hose
couplings for proper placement of rubber washers.
co ~\
RUBBER WASHERS
MUST BE PRESENT
15

INSTALLATION INSTRUCTIONS
Water connection, continued (Steam Model only)
5 If your installation has room for the COLD water
supply to accept the “Y” connector directly, thread
the “Y” connector to the COLD water supply and
snug it by hand; then tighten it another 2/3 turn
with pliers.
4 NOTE
If you were able to install the “Y” connector directly to
the COLD water supply, please skip to step 8.
6 If there is not room to install the “Y” connector
directly, thread a short extension hose on to the
COLD water supply and snug it by hand; then
tighten it another 2/3 turn with pliers.
& NOTE
Short extension available from your local hardware
supplier. Extension hose must meet qualifications for
use in laundry installation.
7 Thread the “Y” connector to the short extension
hose and snug it by hand; then tighten it another
2/3 turn with pliers.
8 Connect the COLD inlet hose for the washer to the
“Y” connector and snug it by hand; then tighten it
another 2/3 turn with pliers.
9 Connect the straight end of the long hose from the
kit to the other outlet on the “Y” connector and
snug it by hand. Connect the hose’s 90° coupling to
the brass water inlet on the back of the dryer and
snug it by hand. Tighten each connection of the
dryer inlet hose another 2/3 turn with pliers.
10 Turn on the water and check for leaks at all
connections.
16
DIRECT CONNECTION |
OR WITH EXTENSION*
WATER INLET
ON DRYER
COLD WATER SUPPLY
HOSE TO WASHER
*Laundry hose extension not included with dryer.

INSTALLATION INSTRUCTIONS
Electrical connection (non-Canada) - 3 wire cord
3-wire receptacle
(NEMA type 10-30R)
44 WARNING
ELECTRICAL SHOCK HAZARD
Failure to disconnect power source before servicing
could result in personal injury or even death.
1 Turn off power supply to outlet.
2 Remove the screw securing the terminal biock
access cover in the lower corner on the back of the
dryer.
3 Install a UL-approved strain relief according to the
power cord/strain relief manufacturer’s instructions
in the power cord entry hole below the access
panel. At this time, the strain relief should be
loosely in place.
4 Thread an UNPLUGGED, UL-approved, 30 amp.
power cord, NEMA 10-30 type SRDT, through the
strain relief.
5 Attach the power cord neutral (center wire)
conductor to the SILVER colored center terminal on
the terminal block. Tighten the screw securely.
6 Attach the remaining two power cord outer
conductors to the outer, BRASS colored terminals
on the terminal block. Tighten both screws
securely.
4y WARNING
ELECTRICAL SHOCK HAZARD
Do not make a sharp bend or crimp wiring/conductor at
connections.
7 Follow manufacturer’s guidelines for firmly securing
the strain relief and power cord.
8 Reinstall the terminal block cover.
2 IMPORTANT
If moving dryer from a 4-wire system and installing it
in a 3-wire system, move the internal ground from the
center terminal back to the GREEN screw next to the
terminal block.
30 AMP
NEMA 16-30
Neutral
(center wire)
=e
> a a fo a we a 2 2
screw
°
Line 2
(BRASS terminal)
Neutral
(SILVER terminal)
Line 1
(BRASS terminal)
Internal ground
(GREEN screw)
Install
UL-approved
strain relief here
Terminal screw
recovery slot
4 NOTE
If a terminal screw falls during cord installation, it can
be retrieved in the terminal screw recovery slot below
the access panel.
DO NOT remove
internal ground in
a 3-wire systemil
Neutral
17

INSTALLATION INSTRUCTIONS
Electrical connection (non-Canada) - 4 wire cord
4-wire receptacle
(NEMA type 14-30R)
44 WARNING
ELECTRICAL SHOCK HAZARD
Failure to disconnect power source before servicing
could result in personal injury or even death.
1 Turn off power supply to outlet.
2 Remove the screw securing the terminal biock
access cover in the lower corner on the back of the
dryer.
3 Install a UL-approved strain relief according to the
power cord/strain relief manufacturer’s instructions
in the power cord entry hole below the access
panel. At this time, the strain relief should be
loosely in place.
4 Thread an UNPLUGGED, UL-approved, 30 amp.
power cord, NEMA 14-30 type ST or SRDT, through
the strain relief.
5 Disconnect the internal (BLACK) dryer harness
ground wire from the (GREEN) ground screw next
to the terminal block.
6 Attach the ground (GREEN) power cord wire to the
cabinet with the ground (GREEN) screw. Tighten
the screw securely.
7 Move the internal dryer harness ground (BLACK)
wire to the terminal block and attach it along with
the neutral (WHITE) power cord wire conductor
to the center, SILVER colored terminal on the
terminal block. Tighten the screw securely.
8 Attach the RED and BLACK power cord conductors
to the outer, BRASS colored terminals on the
terminal block. Tighten both screws securely.
44 WARNING
ELECTRICAL SHOCK HAZARD
Do not make a sharp bend or crimp wiring/conductor at
connections.
Neutral
(WHITE wire)
30 AMP
7 NEMA 14-30
Ground
Oo (GREEN wire)
gd
screw
Line 2
(BRASS terminal)
Neutral
(SILVER terminal)
Line 1
(BRASS terminal)
Internal ground
(GREEN screw)
9 Follow manufacturer’s guidelines for firmly securing
the strain relief and power cord.
10 Reinstall the terminal block cover.
18
Install
UL-approved
strain relief here
Terminal screw
recovery slot
L NOTE
If a terminal screw falis during cord installation, it can
be retrieved in the terminal screw recovery slot below
the access panel.
Neutral
terminal
Move internal ground (WHITE)
wire to neutral (SILVER)
terminal for 4-wire system. >
WHITE
neutral wire
GREEN
ground screw
ground wire :
power wire
BLACK or
RED power wire

General installation
i
Connect the exhaust duct to the outside exhaust
system (see pages 6 through 8). Use of a 4” (102
mm) clamp (item A) is recommended to connect
the dryer to the exhaust vent system. Use metal
foil tape to seal all other joints.
Carefully slide the dryer to its final position. Adjust
one or more of the legs until the dryer is resting
solidly on all four legs. Place a level on top of the
dryer. The dryer MUST be level and resting solidly
on all four legs. Rock alternating corners to check
for stability. Remove and discard door tape.
=a IMPORTANT
Be sure the power is off at a circuit breaker/fuse box
before plugging the power cord into an outlet.
3
4
5
Plug the power cord into a grounded outlet.
Turn on the power at the circuit breaker/fuse box.
Read the Use & Care Guide provided with the dryer.
It contains valuable and helpful information that
will save you time and money.
If you have any questions during initial operation,
please review the “Avoid Service Checklist” in your
Use & Care Guide before calling for service.
Place these instructions in a location near the dryer
for future reference.
L NOTE
A wiring diagram and technical data sheet are located
inside the dryer console.
Grounding type
wall receptacle
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
Power.cord with
3-prong grounded plug
INSTALLATION INSTRUCTIONS
Ss
£9

REVERSING DOOR
Removing the door
1 Protect flat work surface, such as top of dryer or 4 Gently place dryer door face down on flat, covered
floor near dryer, with a soft cloth or towel. work surface.
2 Open dryer door and remove the two hinge screws. 5 Locate the 5 indented head screws (no. 1-5) in
Remove lower screw first, then upper screw. the small, circular recesses (at 11, 1, 4, 6, and 8
o'clock positions) of the inner door. Remove and
save these 5 screws.
3 Supporting door with both hands, squarely lift door
and hingé upward approximately 3/8” (10 mm) so
“T” post on back of hinge can slide out through “T”
slot on front panel.
“T” SLOT IN
FRONT PANEL
“T” POST ON
DOOR HINGE
=a IMPORTANT
Do not attempt to remove the 2 “tamper-resistant”
screws that hold the inner glass in place.
6 Locate the 2 pan head screws (no. 6-7) on the
inner door nearest the metal strike and center of
hinge (9 and 3 o’clock positions). Remove and save
these 2 screws.
7 Separate inner door assembly from outer door
assembly.
20
