Frigidaire FGFU19F6QF Instruction sheet

Place and center
image here.
frigidaire.com
Product Dimensions
Signature Features
More Easy-To-Use Features
18.6 Cu. Ft. Built-In FGFU19F6QF
All Freezer
Soft Freeze™ Zone
A bin that remains slightly warmer than
the freezer interior for convenient storage
of soft freeze items such as ice cream.
SpaceWise® Adjustable Shelving
Adjustable shelf allows you to customize
your freezer so you can fit different size
items as your needs change.
Automatic Alerts
Refrigerator alerts you if the door is left
open or if temperature rises so you don’t
have to worry about your food going bad.
Bright LED Lighting
Our bright lighting makes it easy to see
what’s inside.
Available in:
Optional Trim Kits
Single Louvered Trim Kit (TRIMKITEZ1)
For single All-Refrigerator installation.
Includes louvered top grille and vented,
louvered toe kick, 2-9/16" H leveling
system and side / top trim pieces.
Double Louvered Trim Kit (TRIMKITEZ2)
For All-Freezer / All-Refrigerator side-
by-side installation. Includes full-width,
louvered top grille and vented, louvered
toe kick, two 2-9/16" H leveling systems,
side / top trim pieces and hardware to tie
the units together.
Height (Including Door) 71-3/8"
Width 32"
Depth (Including Door) 26-1/2"
Shown with companion, All-Refrigerator model FGRU19F6QF and optional coordinated Double Louvered Trim Kit (TRIMKITEZ2).
Express-Select® Controls
Easily check the status and select
options with the touch of a button.
SpaceWise® Storage Baskets
Two full-width storage baskets keep
things organized and slide out for
easy access.
Smudge-Proof™ Stainless Steel
Reduces fingerprints and smudges so
it’s easy to clean.
Built with American Pride
Appliances that are high-performing,
more accessible, and more innovative
than ever — designed, built, and
engineered in the U.S.A.
Stainless
(F)

Specifications
subject to change.
Accessories information available
on the web at frigidaire.com
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FGFU19F6QF 18.6 Cu. Ft.
All Freezer
FGFU19F6Q 09/14 © 2014 Electrolux Home Products, Inc.
Features
Door Design
Door Handle Design
Cabinet Finish
Door Hinge Covers
Automatic Door Closer
Leveling System / Leveling Legs
Controls
Controls
Location of Controls
Temperature Display C° / F°
Lock / Light
Temp Failure Alerts (Audible & Duration)
Door Ajar Alert (Audible)
Power Failure Alert (Duration)
Freezer Features
Refrigerator Shelves
Ice Maker
Ice Bin
Full-Width Mid-Level Basket
Full-Width Bottom Basket
Full-Width Gallon Door Bin
Half-Width Liter Bin
Tilt-Out Wire Shelf
Soft Freeze™ Zone
Lighting
Optional Accessories
Single Louvered Trim Kit
Double Louvered Trim Kit
Specifications
Total Capacity (Cu. Ft.)
Shelf Area (Sq. Ft.)
Annual Energy (kWH)
Annual Energy Cost (.12 / kWH)
Power Supply Connection Location
Water Inlet Location
Voltage Rating
Connected Load (kW rating) @ 115 Volts1
Amps @ 115 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
Smudge-Proof™
Stainless Steel
Stainless Steel
Grey
Hidden
Yes
Yes / 4
Express-Select®
Inside Cabinet, on Top
Yes
Yes / Yes
Yes
Yes
Yes
2 SpaceWise®
Adjustable Glass
Yes
Yes
1 Wire
1 Wire
1 Clear
4 Clear
Yes
LED Plug-In
PN # TRIMKITEZ1
PN # TRIMKITEZ2
18.6
20
593
$71
Right Bottom Rear
Left Bottom Rear
115V / 60Hz / 20A
0.55
5
20
255 Lbs.
1An electrical supply with grounded three-prong receptacle is required.
The power supply circuit must be installed in accordance with current
edition of National Electrical Code (NFPA 70) and local codes &
ordinances.
All Freezer (18.6 Cu. Ft.)
Professional
NOTE: For planning purposes only. Always consult local and national electric and plumbing codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Overall Exterior Dimensions
A - Height (Incl. Door)
B - Width
C - Depth (Incl. Door)
Depth with Door Open 90˚
71-3/8"
32"
26-1/2"
57-1/4"
Built-In Cutout Dimensions
Single Unit without Trim Kit –
A - Height
B - Width
C - Depth
Single Unit with Trim Kit &
Leveling System –
A - Height
B - Width
C - Depth
72"
33"
25-1/4" min.1
75" or 79"
33"
25-1/4" min.1
Built-In Cutout Dimensions
Double Unit2without Trim Kit –
A - Height
B - Width
C - Depth
Double Unit2with Trim Kit &
Leveling System –
A - Height
B - Width
C - Depth
72"
66"
25-1/4" min.1
75" or 79"
66"
25-1/4" min.1
1
Minimum depth from face of cabinet side panels and requires recessed electrical outlet.
2
Side-by-Side

Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FGFU19F6QF 18.6 Cu. Ft.
All Freezer
FGFU19F6Q 09/14 © 2014 Electrolux Home Products, Inc.

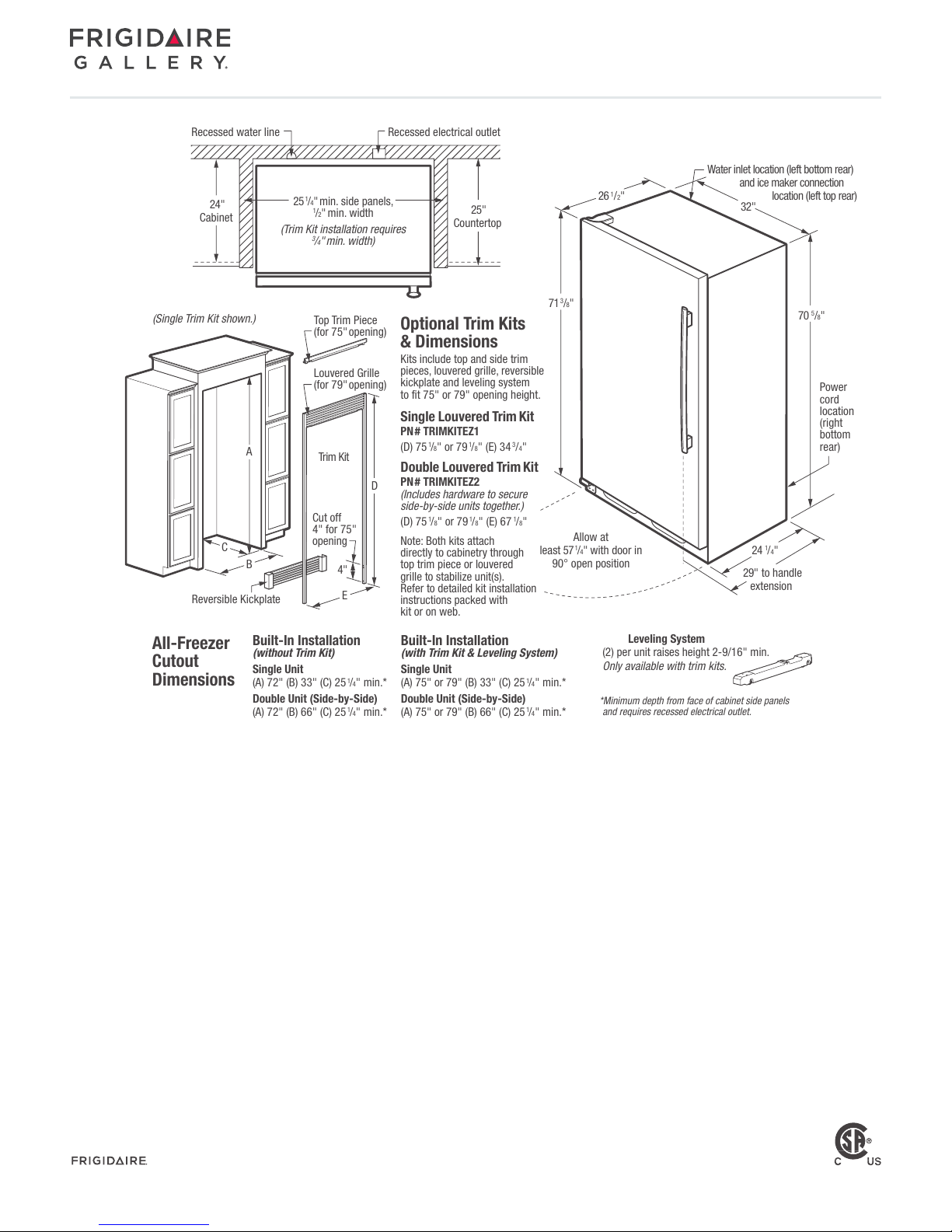

All Freezer (18.6 Cu. Ft.) with ice maker
Professional
Louvered Grille
(for 79" opening)
(Single Trim Kit shown.)
B
C
A
Cut off
4" for 75"
opening
Top Trim Piece
(for 75"
opening)
Trim Kit
E
D
4"
Reversible Kickplate
Leveling System
(2) per unit raises height 2-9/16" min.
Only available with trim kits.
*Minimum depth from face of cabinet side panels
and requires recessed electrical outlet.
Built-In Installation
(without Trim Kit)
Single Unit
(A) 72" (B) 33" (C) 251
/4" min.*
Double Unit (Side-by-Side)
(A) 72" (B) 66" (C) 251
/4" min.*
Built-In Installation
(with Trim Kit & Leveling System)
Single Unit
(A) 75" or 79" (B) 33" (C) 251
/4" min.*
Double Unit (Side-by-Side)
(A) 75" or 79" (B) 66" (C) 251
/4" min.*
All-Freezer
Cutout
Dimensions
Optional Trim Kits
& Dimensions
Kits include top and side trim
pieces, louvered grille, reversible
kickplate and leveling system
to fit 75" or 79" opening height.
Single Louvered Trim Kit
PN # TRIMKITEZ1
(D) 751
/8" or 79 1 /8" (E) 34
3/4"
Double Louvered Trim Kit
PN # TRIMKITEZ2
(Includes hardware to secure
side-by-side units together.)
(D) 751 /8" or 791 /8" (E) 67
1
/8"
Note: Both kits attach
directly to cabinetry through
top trim piece or louvered
grille to stabilize unit(s).
Refer to detailed kit installation
instructions packed with
kit or on web.
Allow at
least 57
1
/4" with door in
90°open position
71
3/8"
24 1
/4"
29" to handle
extension
Power
cord
location
(right
bottom
rear)
70 5/8"
26 1/2"32"
Wat
er inlet location (left bottom rear)
and ice maker connection
location (left top rear)
Recessed electrical outlet
25"
Countertop
24"
Cabinet
25
1
/4" min. side panels,
1
/2" min. width
(Trim Kit installation requires
3
/4" min. width)
Recessed water line
• Freezer must be placed on level surface of hard material, same height
as flooring. Surface must support approximately 800 lbs. when fully
loaded. Unit equipped with 4-point leveling.
“Built-In Look” Specifications
• Minimum opening of 72" H x 33" W x 25-1/4" D required for single-
unit “Built-In Look” installation; 66" W required for double-unit
installation. (72" H to be measured from finished floor to underside
of soffit or overhead cabinet.)
• Remove all wall / floor molding prior to built-in installation.
Optional Trim Kit Specifications
• If optional Single or Double Louvered Trim Kit is to be used, different
cutout dimensions are required. Kit can be adapted to fit either 75"
or 79" opening height. (Refer to cutout dimensions on this page and
detailed Louvered Trim Kit installation instructions included with kit or
on web.)
• Remove all wall / floor molding prior to built-in installation.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
• Single Louvered Trim Kit – (PN # TRIMKITEZ1).
• Double Louvered Trim Kit – (PN # TRIMKITEZ2).
Built-In All-Freezer Specifications
• Product Shipping Weight – 255 Lbs.
• An electrical supply with grounded three-prong receptacle is required.
The power supply circuit must be installed in accordance with current
edition of National Electrical Code (NFPA 70) and local codes &
ordinances.
• Voltage Rating – 115V / 60 Hz / 20 Amps
• Connected Load (kW Rating) @ 115 Volts = 0.55 kW
• Amps @ 115 Volts = 5 Amps
• Always consult local and national electric & plumbing codes.
• Water line for ice maker can enter opening through floor or rear wall
Copper tubing recommended between cold water line and water
connection location. Water line tubing recommended is 48" minimum
length by 1/4" diameter. Installation of easily accessible shutoff valve in
water line required.
• Minimum 25-1/4" depth requires recessed electrical outlet and copper
water line.
• To allow for ease of installation, tape excess power cord to back of unit.
• To allow for ease of moving out side-by-side units after installation, 84"
minimum length of coiled copper tubing recommended.
• When installing freezer adjacent to wall, cabinet or other appliance
that extends beyond front edge of unit, 20" minimum clearance
recommended to allow for optimum 140° door swing, providing
complete drawer / crisper access and removal. (Absolute 4" minimum
clearance will ONLY allow for 90° door swing which will provide limited
drawer / crisper access with restricted removal.)

Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_ARAF FR 01/14 © 2014 Electrolux Home Products, Inc.
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Top
General Installation Guidelines
with All Refrigerator or All Freezer
