FREEZER
Model numbers
FFC15C4AW0
FFC20C4AW0
FFC25C4AW0
©2001 White Consolidated Industries, Inc.
All rights reserved
FACTORY PARTS CATALOG
FREEZER

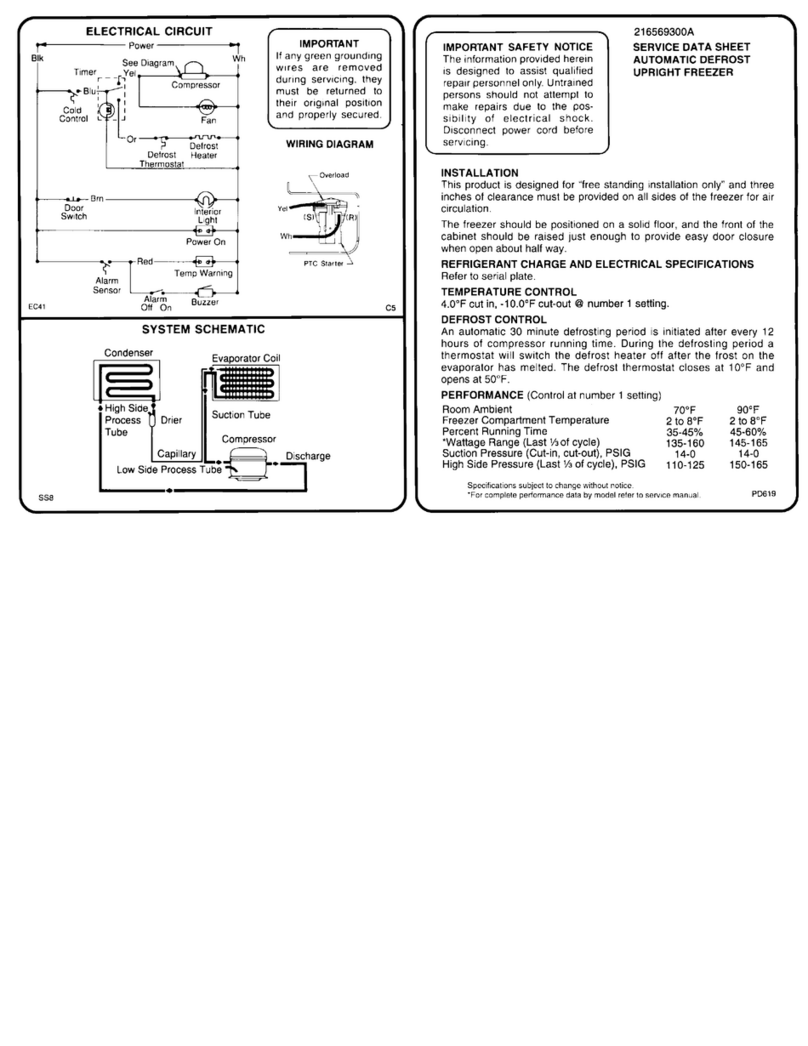

WIRING DIAGRAM - # 216803900 / 216804000
OWNER’S GUIDE - # 216802800
SERVICE DATA SHEET - #216803900 / 216804000
PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FFC15C4AW0 FFC15C4AW 134A white 115
FFC20C4AW0 FFC20C4AW 134A white 115
FFC25C4AW0 FFC25C4AW 134A white 115
MARKET
North America
Publication No.
5995357273
010808
-EN/SERVICE /GS
365
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O BOX 212378, AUGUSTA , GA 30917
10/01
2
Publication No FFC15/20/25C4AW0
5995357273
DOOR
# = Fast-moving Parts 3 10/01
* = Non-Illustrated Parts
FFC15/20/25C4AW0 Publication No.
5995357273
DOOR
A = FFC15C4A (FFC15C4AW0)
B = FFC20C4A (FFC20C4AW0)
C = FFC25C4A (FFC25C4AW0)
POS. NO PART NO DESCRIPTION
1 216481201 A - - Gasket-door,white
1 216481401 - B - Gasket-door,white
1 216469301 - - C Gasket-door,white
2 # 5303925107 A B C Lock Assy
5 # 216702900 A B C Key,lock
9 216686904 A - - Panel-inner door,frzr
9 216059604 - B - Panel-inner lid,white
9 216072604 - - C Panel-inner lid,white
10 216141101 A B C Plug button,white
11 216129920 A - - Lid,white
11 216130113 - B - Lid,white
11 216032414 - - C Lid,white
12A 216816801 A B C Nameplate
14 # 216472300 A - - Switch-light plunger
15 # 216608600 A - - Lamp,light bulb ,40 W ,120 V
16 216684000 A - - Socket-light/lamp
18 216446600 A B C Handle
23 5308002706 A B C Light-signal,amber
27 5303212828 A B C Clip,panel
34 216160400 A - - Shield-light
36 5306599968 A - - Plate,backup ,light switch
40 5309948647 A B C Fastener,handle
46 08037851 A B C Screw,PH type AB ,8-32x1/2 , wiring harness
47 216819900 A - - Harness-lid/defrost
47 216823700 - B C Harness-lid/defrost
56 216694200 A B C Sealing cap
* 5303925098 A B C Insulation
10/01
4
Publication No FFC15/20/25C4AW0
5995357273
CABINET
# = Fast-moving Parts 5 10/01
* = Non-Illustrated Parts
FFC15/20/25C4AW0 Publication No.
5995357273
A = FFC15C4A (FFC15C4AW0)
B = FFC20C4A (FFC20C4AW0)
C = FFC25C4A (FFC25C4AW0)
POS. NO PART NO DESCRIPTION
1 5303208488 A B C Latch-door
1A 216080800 A B C Support,lock
3 216502600 A B C Plug-drain,interior ,interior
4 216073905 A B C Plug-drain,exterior
6 216111000 A - - Breaker,hinge side
6 216111200 - B - Breaker,hinge side
6 216111400 - - C Breaker-hinge side,white
7 216111600 A - - Breaker,lock side
7 216111800 - B - Breaker,lock side
7 216112000 - - C Breaker-lock side,white
11 216110800 A B C Breaker,white ,ends
18 216707200 A B C Knob-control cold
21 # 216714600 A B C Control-temperature
27 216629600 A B C Screw-hinge
28 216035200 A - - Hinge
28 216035300 - B - Hinge
28 216035400 - - C Hinge
30 216110700 A B C Breaker,white ,corners
59 216080300 A B C Basket
75 216034301 A B C Panel-access,white
* 216802800 A B C Owners guide
* 5303305324 A B C Paint,touch-up ,white
CABINET
10/01
6
Publication No FFC15/20/25C4AW0
5995357273
SYSTEM
# = Fast-moving Parts 7 10/01
* = Non-Illustrated Parts
FFC15/20/25C4AW0 Publication No.
5995357273
SYSTEM
A = FFC15C4A (FFC15C4AW0)
B = FFC20C4A (FFC20C4AW0)
C = FFC25C4A (FFC25C4AW0)
POS. NO PART NO DESCRIPTION
1 # 5303925238 A - - Condenser
1 # 5303280307 - B - Condenser
1 # 5303925320 - - C Condenser
4 216634500 A B C Drier-filter
5 216806900 A B C Harness-main
22 216056400 A B C Clip-spring mtg
27 5308002681 A B C Grommet,compressor
28 5303212615 A B C Support-compressor
29 # 216784300 A - - Compressor,w/o electricals
29 # 216784600 - B - Compressor,w/o electricals
29 # 216784700 - - C Compressor,w/o electricals
30 216649313 A - - Controller
30 216649315 - B - Controller
30 216649300 - - C Controller-regulator LP
32 216649200 A - - Clip,controller
32 216649100 - B C Clamp,elec cont mtg ,compressor
42 216232700 A B C Washer-flat
47 216629600 A B C Screw-hinge
55 # 216787800 A - - Capacitor-run
55 # 218909901 - B C Capacitor-run,220 VAC ,15 microfarad
85 216533500 A - - Wire,ground
86 216036600 A B C Screw,rwhd (gx-ca) ,8-32 x ½
* 5303298960 - B C Spacer-tube,.75"
* 5303212614 A B C Clip-harness
