Frigidaire FEB30T6DBC Instruction Manual

FEB30T6D.eps CGLEB27T9DSC.eps BUFEB30T6DSB.eps BLFEB30T6DSB.eps
DFEB30S5DSA.eps 318046121.eps
UPPER
OVENLOWE
R
OVEN
Low er OvenUpper Oven
Cl
ock
Keep
warm
Controls
Clear
/Of
f
Bake
tim e
Start
time
Oven
light
Timer
On/Off
STAR T
Broil
BakeSpeed
clean
Speed
bake
Clea n
Speed Bak e Ovens
Keep
warm
Controls
Clear
/Of
f
Bake
time
Start
time
Oven
light
STAR T
Broi
l
BakeSpeed
cl
ean
Speed
bake
Clean
Product No. FEB30T6DBC FEB30T6DQC FEB30T6DSC
37054381E4063 37054381E4043 37054381E4013
Series 30" double 30" double 30" double
Color black bisque white
Market North America North America North America

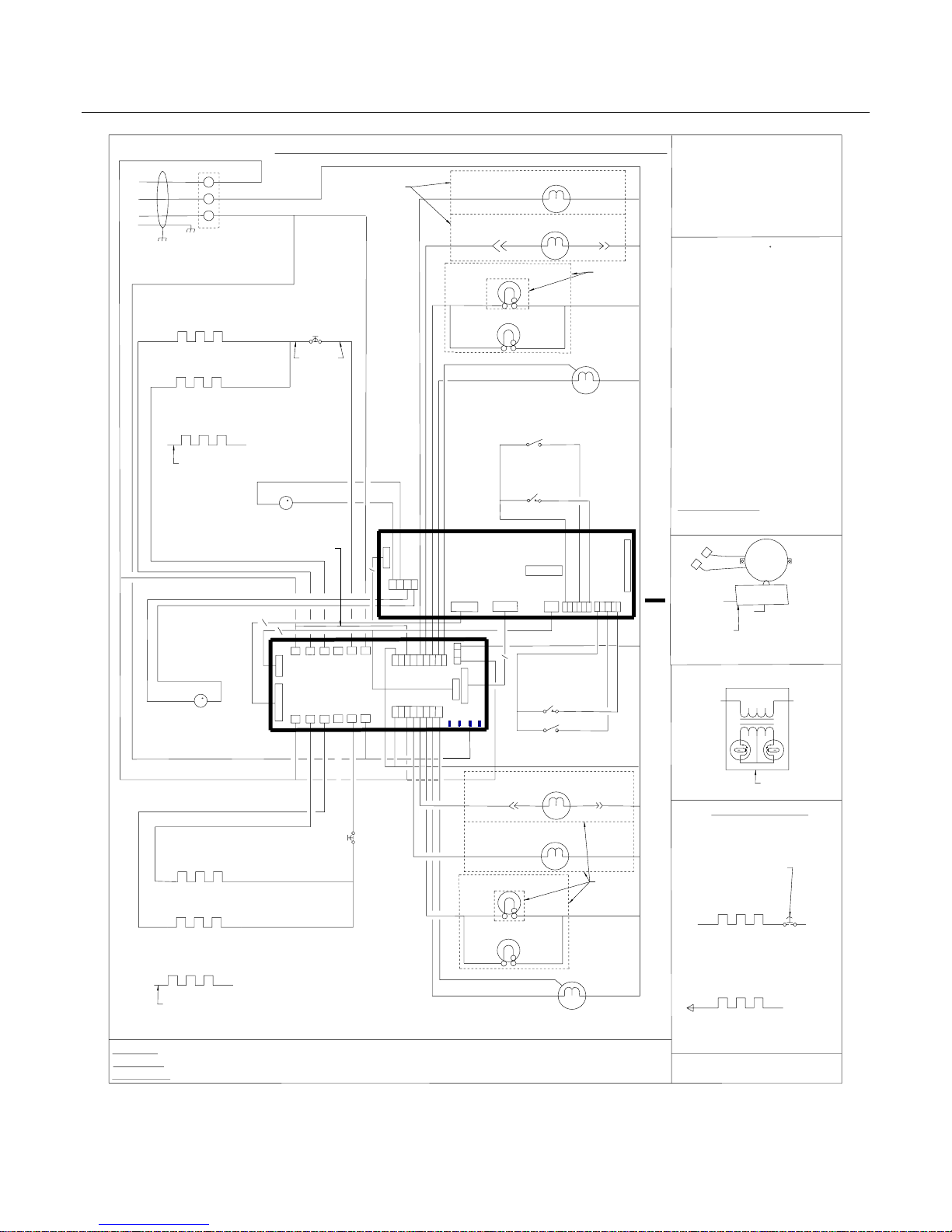

Wiring Diagram 318046121 318046121 318046121
Owner's Guide 318200924 318200924 318200924
Installation Instructions 318201514 318201514 318201514
Service Data Sheet 318047306 318047306 318047306
Timer Guide 318200137 318200137 318200137
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995459400
06/01/24
(EN/SERVICE/ECL)
377

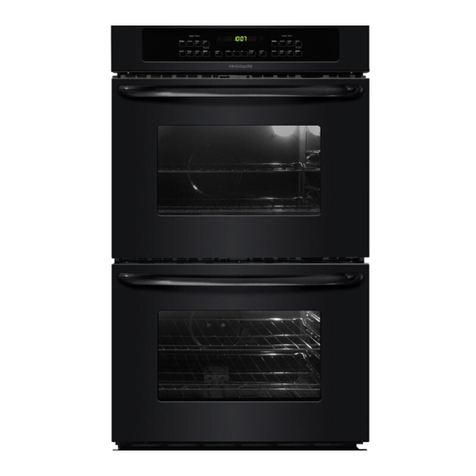

DOUBLE ELECTRIC
WALL OVEN
Model No.
FEB30T6D
Copyright ©2006 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995459400 FEB30T6D
01/06 2
CONTROL PANEL

FEB30T6D Publication No: 5995459400
# Functional Parts 3 01/06
* Non-Illustrated Parts
CONTROL PANEL
Model Index: AFEB30T6D (FEB30T6DSC)
BFEB30T6D (FEB30T6DBC)
CFEB30T6D (FEB30T6DQC)
POS. NO PART NO. DESCRIPTION
2A 318257300 A B C Shield, oven top
2B 318260100 A B C Cover, box
19 318342903 A - - Control Panel Assembly, glass, white, w/touch pad
19 318342905 - B - Control Panel Assembly, glass, black, w/touch pad
19 318342904 - - C Control Panel Assembly, glass, bisque, w/touch pad
20 # 316443804 A B C Control, electronic, ES610W2, dual oven
97 316443902 A B C Board, relay, dual oven
* 318231751 A B C Harness, wiring, control-relay
* 5303211311 A B C Screw, 8 x 0.500

Publication No: 5995459400 FEB30T6D
01/06 4
UPPER OVEN

FEB30T6D Publication No: 5995459400
# Functional Parts 5 01/06
* Non-Illustrated Parts
UPPER OVEN
Model Index: AFEB30T6D (FEB30T6DSC)
BFEB30T6D (FEB30T6DBC)
CFEB30T6D (FEB30T6DQC)
POS. NO PART NO. DESCRIPTION
1 318259202 A B C Back, main
2 318258902 A B C Shield, insulation, upper
6 318262502 A B C Rack, oven
9 5303317977 A B C Pan, broiler
10 5303317976 A B C Insert, broiler pan
12 # 318089917 A B C Switch, light
14 318224000 A B C Receptacle, oven light
14* 318268099 A B C Insulation, oven light
15 5303013071 A B C Bulb/Lamp, light
16 3201911 A B C Cover, oven light, glass
17 5304400195 A B C Retainer, light cover
29 318147411 A B C Bumper, (2)
37 # 316217002 A B C Probe, oven temp
41 5303310526 A B C Cover, hinge cutout
* 5303325980 A B C Screw, 10-32 x 0.437
54 318222400 A B C Housing, oven light
58A 318285055 A B C Insulation, oven wrapper
58B 318285056 A B C Insulation, oven back
58D 318285058 A B C Insulation, 1/2" thick, 43 x 9.5
59 318072560 A B C Duct, oven vent
59A 318261600 A B C Bracket, vent tube
66 # 318255600 A B C Element, broil, 2750W
67 # 318255401 A B C Element, bake, 3400W
68 5304403015 A B C Support, hanger, (2), broil element
70 318259100 A B C Shield, insulation, sides, (2)
71 318260007 A B C Panel, rear box
76 318056217 A B C Front, oven
80 5303320846 A B C Plate, oven mtg
81 318192400 A B C Spring, oven
82 318258707 A B C Shield, insulation, lower
83 318261404 A B C Liner, oven assy
86 5303310524 A B C Receptacle, hinge
89 # 318261211 A B C Motor, latch assy
* # 318231750 A B C Harness, wiring, main, latch
* # 318199744 A B C Wiring Harness, latch, BAS
* # 318199746 A B C Wiring Harness, latch, NO BAS
99 318252800 A B C Support, side
* 5303300265 A B C Screw, 8-18 X 1/2, (2)
107 318219401 A B C Cover, fan
108# 318073018 A B C Motor, blower
* 08016432 A B C Screw, truss head, 8-18 x 0.375
108A 318251300 A B C Bracket, fan support
109 316136400 A B C Blade, fan
111 316136600 A B C Nut, fan retainer
119# 318004900 A B C Switch, thermal
125# 316415800 A B C Motor, fan
125* 5303316994 A B C Insulation, 3.81 x 3.13
126 318142100 A B C Washer, motor, RH, convection

Publication No: 5995459400 FEB30T6D
01/06 6
UPPER OVEN

FEB30T6D Publication No: 5995459400
# Functional Parts 7 01/06
* Non-Illustrated Parts
UPPER OVEN
Model Index: AFEB30T6D (FEB30T6DSC)
BFEB30T6D (FEB30T6DBC)
CFEB30T6D (FEB30T6DQC)
POS. NO PART NO. DESCRIPTION
127 318317100 A B C Adapter Assembly, vent tube, w/converter
131 318272900 A B C Box, vent
132 318003000 A B C Plate, shield
142 318123910 A B C Deflector
143 318172904 A B C Support, wire
163 318014111 A B C Spacer
185 318014700 A B C Spacer, oven shield, (4)
219# 318003614 A B C Thermostat, safety
263 316136500 A B C Washer, flat
264 318257701 A B C Trim, oven, black, front
272 318249401 A B C Tube, protector
310 5304440067 A B C Cabinet Mounting Kit
311 318246010 A B C Bracket, cabinet mtg, (2)
311* 5304438005 A B C Screw, 6 x 1, black
312 318246702 A B C Tool, cabinet bracket, RH
312 318246703 A B C Tool, cabinet bracket, LH
* 3201861 A B C Screw, 6 x 0.375, (4)
* 5303211311 A B C Screw, 8 x 0.500
* 5303323277 A B C Screw, 8-18 X 13/32
* 5304436875 A B C Screw, 8-18 X 1/2, black

Publication No: 5995459400 FEB30T6D
01/06 8
LOWER OVEN

FEB30T6D Publication No: 5995459400
# Functional Parts 9 01/06
* Non-Illustrated Parts
LOWER OVEN
Model Index: AFEB30T6D (FEB30T6DSC)
BFEB30T6D (FEB30T6DBC)
CFEB30T6D (FEB30T6DQC)
POS. NO PART NO. DESCRIPTION
1 318259202 A B C Back, main
2 318258902 A B C Shield, insulation, upper
6 318262502 A B C Rack, oven
12 # 318089917 A B C Switch, light
14 318224000 A B C Receptacle, oven light
14* 318268099 A B C Insulation, oven light
15 5303013071 A B C Bulb/Lamp, light
16 3201911 A B C Cover, oven light, glass
17 5304400195 A B C Retainer, light cover
29 318147411 A B C Bumper, (2)
37 # 316217002 A B C Probe, oven temp
41 5303310526 A B C Cover, hinge cutout
* 5303325980 A B C Screw, 10-32 x 0.437
54 318222400 A B C Housing, oven light
56 318259912 A - - Trim, side filler, white, RH
56 318259914 - B - Trim, side filler, black, RH
56 318259916 - - C Trim, side filler, bisque, RH
56A 318259913 A - - Trim, side filler, white, LH
56A 318259915 - B - Trim, side filler, black, LH
56A 318259917 - - C Trim, side filler, bisque, LH
58A 318285055 A B C Insulation, oven wrapper
58B 318285056 A B C Insulation, oven back
58D 318285058 A B C Insulation, 1/2" thick, 43 x 9.5
59 318072560 A B C Duct, oven vent
59A 318261600 A B C Bracket, vent tube
62 316056000 A B C Terminal Block
62* 5303323139 A B C Screw, 10-24 x 0.906
62* 5303323144 A B C Nut, 10-32
66 # 318255600 A B C Element, broil, 2750W
67 # 318255401 A B C Element, bake, 3400W
68 5304403015 A B C Support, hanger, (2), broil element
70 318259100 A B C Shield, insulation, sides, (2)
71 318260007 A B C Panel, rear box
71* 318340200 A B C Bracket, insul. panel
76 318056217 A B C Front, oven
80 5303320846 A B C Plate, oven mtg
81 318192400 A B C Spring, oven
82 318258707 A B C Shield, insulation, lower
83 318261404 A B C Liner, oven assy
86 5303310524 A B C Receptacle, hinge
87 318260600 A B C Bracket, cable mtg.
89 # 318261211 A B C Motor, latch assy
* # 318231750 A B C Harness, wiring, main, latch
* # 318199744 A B C Wiring Harness, latch, BAS
* # 318199746 A B C Wiring Harness, latch, NO BAS
90 318259700 A - - Trim, oven front, white, bottom
90 318259701 - B - Trim, oven front, black, bottom
90 318259702 - - C Trim, oven front, bisque, bottom

Publication No: 5995459400 FEB30T6D
01/06 10
LOWER OVEN
