Thank you for choosing Frigidaire.
This Use and Care Guide is part of our commitment to
customer satisfaction and product quality throughout the
service life of your new appliance. We view your purchase
as the beginning of a relationship. To ensure our ability to
continue serving you, please use this page to record
important product information.
Need Help?
Visit the Frigidaire web site at www.frigidaire.com
Before you call for service, there are a few things you can
do to help us serve you better.
Read this Use & Care Manual
This manual contains instructions to help you use and
maintain your range properly.
If You Received a Damaged Range...
Immediately contact the dealer (or builder) that sold you the
range.
Save Time and Money
Check the section title “Before You Call”. This section helps
step you through some common problems that might occur.
If you do need service, help is only a phone call away. Call
Frigidaire Customer Services at 1-800-944-9044.
Product Registration
Registering your product with Frigidaire enhances our
ability to serve you. Register online at www.frigidaire.com
or by dropping your Product Registration Card in the mail.
Serial Plate Location
The serial plate is located on top of the range’s lower front
panel, and can be clearly viewed when door is open.
Record model & serial numbers here
Purchase Date
Frigidaire model number
Frigidaire serial number
Fig. 1 Model, serial number location
PRODUCT RECORD AND REGISTRATION
Questions?
For toll-free telephone support in the U.S. and Canada call
1-800-944-9044
For online support and Internet production information visit
www.frigidaire.com.

3
Read all instructions before using this appliance.
This manual contains important safety symbols
and instructions. Please pay attention to these
symbols and follow all instructions given.
Do not attempt to install or operate your appliance
until you have read the safety precautions in this
manual. Safety items throughout this manual are
labeled with a WARNING or CAUTION statement
based on the risk type.
Warnings and important instructions appearing in
this guide are not meant to cover all possible
conditions and situations that may occur.
Common sense, caution, and care must be
exercisedwithinstalling, maintaining, or operating
your appliance.
DEFINITION
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all
safety messages that follow this symbol to avoid
possible injury or death.
Indicates a potentially hazardous situation
which, if not avoided, may result in death or
serious injury.
Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injury.
Indicates installation, operation, maintenance,
or valuable information that is not hazard
related.
WARNING
CAUTION
IMPORTANT
Indicates a short, informal reference –
something written down to assist the memory or
for future reference.
If the information in this manual is
not followed exactly, a fire or explosion may
result causing property damage, personal
injury or death.
FOR YOUR SAFETY: Do not store or use
gasoline or other flammable vapors and
liquids in the vicinity of this or any other appli-
ance.
WHAT TO DO IF YOU SMELL GAS:
•Do not try to light any appliance.
•Do not touch any electrical switch; do not
use any phone in your building.
•Immediately call your gas supplier from a
neighbor's phone. Follow the gas
supplier's instructions.
•If you cannot reach your gas supplier, call
the fire department.
•Installation and service must be
performed by a qualified installer, servicer
or the gas supplier.
NOTE
IMPORTANT SAFETY INSTRUCTIONS

4
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT INSTRUCTIONS FOR
UNPACKING AND INSTALLATION
IMPORTANT - Read and follow the below instruc-
tions and precautions for unpacking, installing, and
servicing your appliance:
•Remove all tape and packaging before using the
appliance. Destroy the carton and plastic bags
after unpacking the appliance. Never allow
children to play with packaging material. Do not
remove the wiring label and other literature
attached to the appliance. Do not remove model/
serial number plate.
•Cold temperatures can damage the electronic
control. When using this appliance for the first
time, or when the appliance has not been used for
an extended period of time, be sure the appliance
has been in temperatures above 32ºF (0ºC) for at
least 3 hours before turning on the power to the
appliance.
•Never modify or alter the construction of the
appliance by removing the leveling legs, panels,
wire covers, anti-tip brackets/screws, or any other
part of the appliance.
•Be sure to have an appropriate foam-type fire
extinguisher available, visible, and easily acces-
sible located near the appliance.
WARNING
Tip Over Hazard
Range
leveling leg Anti-tip
bracket
• A child or adult can tip the
range and be killed.
• Verify the anti-tip device has
been installed to floor or wall.
• Ensure the anti-tip device is re-engaged to floor
or wall when the range is moved.
• Do not operate the range without the anti-tip
device in place and engaged.
• Failure to follow these instructions can result in
death or serious burns to children and adults.
To check if the anti-tip bracket is installed properly, use
both arms to grasp the rear edge of the range back.
Carefully attept to tilt range forward. When properly
installed, the range should not tilt forward.
Refer to the anti-tip bracket installation instructions
supplied with your range for proper installation.
Air curtain or other overhead range hoods which
operate that operate by blowing a downward air flow
onto a range or cooktop, shall not be used in
conjunction with gas ranges or cooktops other than
when the range or cooktop and hood have been
designed, tested, and listed by an independent test
laboratory for use in combination with each other.
WARNING

5
IMPORTANT SAFETY INSTRUCTIONS
GROUNDING INSTRUCTIONS
Proper Installation—Be sure your appliance is
properly installed and grounded by a qualified techni-
cian. In the United States, install in accordance with
the National Fuel Gas Code ANSI Z223.1/NPFA No.
54, latest edition and National Electrical Code NFPA
No. 70 latest edition, and local electrical code require-
ments. In Canada, install in accordance with CAN/
CGA B149.1 and CAN/CGA B149.2 and CSA
Standard C22.1, Canadian Electrical code, Part 1-
latest editions and local electrical code requirements.
Install only per installation instructions provided in the
literature package for this appliance.
For personal safety, this appliance must be properly
grounded. For maximum safety, the power cord must
be securely connected to an electrical outlet or
junction box that is the correct voltage, is correctly
polarized and properly grounded, and protected by a
circuit breaker in accordance with local codes.
It is the personal responsibility of the consumer to
have the appropriate outlet or junction box with the
correct, properly grounded wall receptacle installed by
a qualified electrician. It is the responsibility and obli-
gation of the consumer to contact a qualified installer
to assure that the electrical installation is adequate
and is in conformance with all local codes and ordi-
nances.
Conversion to (L.P.) Gas
This appliance allows for conversion to Liquefied
Petroleum (L.P.) Gas. If L.P. conversion is needed,
contact your local L.P. Gas provider for assistance.
See the installation instructions packaged with this
appliance for complete installation and grounding
instructions.
Avoid fire hazard or electrical shock. Failure to
follow this warning may cause serious injury, fire, or
death.
Avoid fire hazard or electrical shock. Do not use an
adapter plug, use an extension cord, or remove
grounding prong from the power cord. Failure to
follow this warning may cause serious injury, fire, or
death.
WARNING
Personal injury or death from electrical shock may
occur if the conversion to L.P. gas is not made by a
qualified installer or electrician. Any additions,
changes or conversions required in order for this
appliance to satisfactorily meet the application
needs must be made by a qualified technician.
240V grounded
wall receptacle
Power supply
cord with 4-prong
grounding plug
WARNING

6
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT INSTRUCTIONS FOR USING THE
APPLIANCE
Storage In or On Appliance—Flammable materials
should not be stored in an oven or microwave, near
surface burners or elements, or in the storage or
warmer drawer (if equipped). This includes paper,
plastic, and cloth items, such as cookbooks, plastic
ware, and towels, as well as flammable liquids. Do
not store explosives, such as aerosol cans, on or
near the appliance.
•Do not leave children alone - Children should not
be left alone or unattended in the area where
appliance is in use. They should never be
allowed to sit or stand on any part of the appli-
ance, including the storage drawer, lower broiler
drawer, warmer drawer, or lower double oven.
•Do not store items of interest to children in the
cabinets above the appliance or on the back-
guards of ranges. Children climbing on or near
the appliance to reach items could be seriously
injured.
•Do not allow children to climb or play around the
appliance. The weight of a child on an open over
door may cause the appliance to tip, resulting in
serious burns or other injury. An open drawer
when hot may cause burns.
•Stepping, leaning, or sitting on the door or
drawers of this appliance can result in serious
injuries and also cause damage to the appliance.
•Never cover any slots, holes, or passages in the
oven bottom or cover an entire oven rack with
any materials, such as aluminum foil or after-
market oven liners. Aluminum foil and other
liners may trap heat, causing a fire hazard.
•Do not use oven or warmer drawer (if equipped)
for storage.
•Never use your appliance as a space heater to
heat or warm the room. Doing so may result in
carbon monoxide poisoning and overheating of
the appliance.
WARNING
•When heating fat or grease, watch it closely.
Grease may catch fire if it becomes too hot.
•Do not use water or flour on grease fires.
Smother fire or flame or use dry chemical or
foam-type extinguisher. Cover the fire with a pan
lid or use baking soda.
•Use dry potholders. Moist or damp potholders on
hot surfaces may result in burns from steam. Do
not let potholders touch hot cooking areas. Do
not use towels or other bulky cloths.
•Do not heat unopened food containers - Build-up
of pressure may cause container to burst and
result in injury.
•Wear proper apparel - Loose-fitting or hanging
garments should never be worn while using the
appliance. Do not let clothing or other flammable
materials contact hot surfaces.
•Do not touch surface burners or elements, areas
near these burners or elements, interior surfaces
of the oven, or the warmer drawer (if equipped).
Surface burners and elements may be hot even
though they appear cool. Areas near surface
burners and elements may become hot enough
to cause burns. During and after use, do not
touch, or let clothing or other flammable
materials touch these areas until they are cool.
These areas may include the cooktop, surfaces
facing the cooktop, oven vent areas, oven door,
and oven window.
•Do not attempt to operate the appliance during a
power failure. If the power fails, always turn off
the appliance. If the appliance is not turned off
and the power resumes, electric surface
elements may resume operation when power is
restored. Once the power resumes, reset the
clock and the oven function.
•
CAUTION

7
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT INSTRUCTIONS FOR USING
YOUR GAS COOKTOP
Know which knob or key controls each surface heating
area. Place cookware with food on the cooking area
before turning it on. Turn the cooking area off before
removing the cookware.
Use proper pan size. This appliance is equipped with
one or more surface units of different sizes. Select
cookware with flat bottoms that match the surface unit
heating element. The use of undersized cookware
may expose a portion of the flame to direct contact
and may result in the ignition of clothing or other
items. Using the proper cookware on the cooking
areas will improve efficiency.
Always turn knob to the full LITE position when igniting
top burners. Visually check that burner has lit. Then
adjust the flame so it does not extend beyond the
edge of the utensil.
To reduce the risk of burns, ignition of flammable
materials, and spillage due to unintentional contact
with the utensil, the handle of the utensil should be
positioned so that it is turned inward, and does not
extend over adjacent surface burners
Never leave surface burners unattended at high heat
settings — Boil overs cause smoking and greasy spill
overs that may ignite, or a pan that has boiled dry may
melt.
Glazed cooking utensils — Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for cook top service without
breaking due to the sudden change in temperature.
Check the manufacturer’s recommendations for cook
top use.
When you are flaming foods under a ventilating hood,
turn the fan on.
IMPORTANT INSTRUCTIONS FOR USING
YOUR OVEN
•Protective liners—Do not use aluminum foil, after-
market oven liners, or any other materials or
devices to line oven bottom, oven racks, or any
other part of the appliance. Only use aluminum as
recommended for baking, such as lining cookware
or as a cover placed on food. Any other use of
protective liners or aluminum foil may result in a
risk of electric shock or fire or a short circuit.
•Use care when opening oven door, lower oven
door, or warmer drawer (some models). Stand to
the side of the appliance when opening the door of
a hot oven. Let hot air or steam escape before you
remove or replace food in the oven.
•Keep oven vent ducts unobstructed. Touching
surfaces in this area when the oven is on may
cause severe burns. Do not place plastic or heat-
sensitive items on or near the oven vent. These
items can melt or ignite.
•Placement of oven racks - Always place oven
racks in desired location while oven is cool. If rack
must be moved while oven is hot, do not let
potholder contact hot burner or element in oven.
Use potholders and graspthe rack with both hands
to reposition. Remove all cookware and utensils
before moving the rack.
•Do not use a broiler pan without its insert. Broiler
pans and inserts allow dripping fat to drain away
from the high heat of the broiler. Do not cover the
broiler insert with aluminum foil; exposed fat and
grease could ignite.
•Do not cook food on the oven bottom. Always cook
in proper cookware and always use the oven
racks.
Use Proper Flame Size — Adjust flame size so it
does not extend beyond the edge of the utensil. The
use of undersized utensils will expose a portion of
the burner flame to direct contact and may result in
ignition of clothing. Proper relationship of utensil to
flame will also improve efficiency.
CAUTION

8
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT INSTRUCTIONS FOR CLEANING
YOUR APPLIANCE
Clean the appliance regularly to keep all parts free of
grease that could catch fire. Do not allow grease to
accumulate. Greasy deposits in the fan could catch
fire.
Always follow the manufacturer’s recommended direc-
tions for use of kitchen cleaners and aerosols. Be
aware that excess residue from cleaners and aerosols
may ignite causing damage and injury.
Clean ventilating hoods frequently - Grease should not
be allowed to accumulate on hood or filter. Follow the
manufacturer’s instructions for cleaning vent hoods.
IMPORTANT INSTRUCTIONS FOR SELF
CLEANING OVENS
•Do not clean the oven door gasket. The door
gasket is essential for a good seal. Care should be
taken not to rub, damage, or move the gasket.
•Do not use oven cleaners. No commercial oven
cleaner or oven liner protective coating of any kind
should be used in or around any part of the appli-
ance.
•Use the self clean cycle to clean only the parts
listed in this manual.
•Before using self clean, remove the broiler pan,
any food, utensils, and cookware from the oven,
storage drawer or warming drawer (if equipped).
Remove oven racks unless otherwise instructed.
•Some birds are extremely sensitive to the fumes
given off during the self clean cycle of any oven.
Move birds to another well-ventilated room.
IMPORTANT INSTRUCTIONS FOR SERVICE
AND MAINTENANCE
•Do not repair or replace any part of the appliance
unless specifically recommended in the manuals.
All other servicing should be done only by a
qualified technician. This reduces the risk of
personal injury and damage to the appliance.
•Always contact your dealer, distributor, service
agent, or manufacturer about problems or condi-
tions you do not understand.
•Ask your dealer to recommend a qualified techni-
cian and an authorized repair service. Know how
to disconnect the power to the appliance at the
circuit breaker or fuse box in case of an emer-
gency.
•Remove the oven door from any unused oven if it
is to be stored or discarded.
•Do not touch a hot oven light bulb with a damp
cloth. Doing so could cause the bulb to break.
Handle halogen lights (if equipped) with paper
towels or soft gloves. Disconnect the appliance or
shut off the power to the appliance before
removing and replacing the bulb.
Important Safety Notice - The California Safe
Drinking Water and Toxic Enforcement Act requires
the governor of California to publish a list of
substances known to cause cancer, birth defects, or
other reproductive harms, and requires businesses to
warn customers of potential exposures to such
substances.
•Before manually cleaning any part of the appli-
ance, be sure all controls are turned off and the
appliance is cool. Cleaning a hot appliance can
cause burns.
CAUTION

9
Burner Caps and Burner Grates Assembly
To prevent flare-ups use the cooktop with all burner caps
properly installed.
Placement of burner caps:
•Place a burner cap on each burner head, matching the
cap size to the head size.
•The cap for each burner has an inner locating ring
which centers the cap correctly on the burner head. Be
sure that all the burner caps and burner heads are
correctly placed before using your appliance.
•If the burner cap is not assembled properly, the burner
will not light.
•Make sure each burner cap is properly aligned and
level.
•Turn the burner on to determine if it will light. If the
burner does not light, contact the installer. Do not
service the sealed burner yourself.
ATTENTION: Do not slide the burner caps on the cooktop,
doing so can damage the surface.
BEFORE SETTING SURFACE CONTROLS
Burner Cap
Burner Head
Correct Burner Cap
Placement
Incorrect Burner Cap
Placement
Burner Cap Lip

10
BEFORE SETTING SURFACE CONTROLS
Installing Burner Grates
Do not use surface burners without burner caps and grates
properly installed. Missing pieces or improper installation
may lead to spills, burns, or damage to your range and
cookware.
Make sure the burner grates are properly placed on the
cooktop before using the surface burners. The grates are
designed to rest inside the recess on the cooktop.
To install burner grates, place grates flat-side down and
align into the cooktop recess. Grates should rest flush
against each other and against the sides of the recess (See
Figure 2).
Cookware Material Types
The most popular materials available are:
•Aluminum - Excellent heat conductor. Some types of
food will cause it to darken (Anodized aluminum
cookware resists staining and pitting).
•Copper - Excellent heat conductor but discolors easily.
•Stainless - Slow heat conductor with uneven cooking
results. Is durable, easy to clean and resists staining.
•Cast Iron - A slow heat conductor; however, it will retain
heat very well. Cooks evenly once cooking temperature
is reached.
•Porcelain - enamel on metal - Heating characteristics
will vary depending on base material.
•Glass - Slow heat conductor.
Using Proper Cookware
Important: For best cooking results, cookware should have
flat bottoms that rest level on the burner grate. Before using
cookware, check for flatness by rotating a ruler across the
bottom of the cookware (Figure 3).
Please note: The size and type of utensil used and the
amount and type of food being cooked will influence the
burner flame setting needed for best cooking results.
Figure 2: How to properly place burner grates
Figure 3: Check for flat bottom cookware
Figure 4: Cookware recommendations
CORRECT
• Flat bottom and straight
sides.
• Tight fitting lids.
• Weight of handle does
not tilt pan. Pan is well
balanced.
• Pan sizes match the
amount of food to be
prepared.
• Made of material that
conducts heat well.
• Easy to clean.
INCORRECT
• Curved and warped pan
bottoms.
• Pan overhangs unit by
more than 1” (2.5 cm).
• Heavy handle tilts pan.
• Flame extends beyond unit.

11
SETTING SURFACE BURNERS
Setting Surface Controls
Your gas appliance may be equipped with different sized
surface burners. The ability to heat food quicker and in
larger volumes increases as the burner size increases. It is
important to select cookware that is suitable for the amount
and type of food being prepared.
•The smaller simmer burner (5k) is best suited for
simmering delicate sauces, etc.
•Use middle oval burner (10k), left rear burner (9.5k), or
left front burner (15k) for most cooking needs.
•The larger power burner at the front right (18k) is
recommended for bringing large quantities of liquid to
temperature and when preparing larger quantities of
food. To set surface burners:
1. Place cooking utensil on center of surface burner grate.
Be sure the cooking utensil sits stable on the burner
grate.
2. Push the desired surface control knob in and turn coun-
terclockwise out of the OFF position.
3. Release the surface control knob and rotate to the LITE
position. Visually check that the burner is lit.
4. Once the burner has a flame, push the control knob in
and turn counterclockwise to the desired flame size.
Use the control knob markings and adjust the flame as
needed.
•Do not cook with the surface control knob left in the
LITE position. The electronic ignitor will continue to
spark if the control knob setting remains in the LITE
position.
•When setting any surface control knob to the LITE
position, all electronic surface ignitors will spark at the
same time. However, only the surface burner you are
setting will ignite.
•Never place or straddle a cooking utensil over two
different surface cooking areas at the same time. This
can cause uneven heating results.
•In the event of an electrical power outage, the surface
burners can be lit manually. Use caution when lighting
surface burners manually. To light a surface burner,
hold a lit match to the burner head, then slowly turn
the surface control knob to LITE. After burner lights
push in and turn knob to desired setting.
•When operating the oven, it is possible for residual
heat from the oven to build-up and over time to even-
tually transfer to the surface control knobs located
directly above the oven door.
•Never extend the flame beyond the outer edge of the
utensil. A higher flame simply wastes heat and
energy, and increases the risk of being burned by the
gas flame.
IMPORTANT
•Do not place flammable items such as plastic salt and
pepper shakers, spoon holders or plastic wrappings
on the cooktop when it is in use. These items could
melt or ignite. Potholders, towels or wooden spoons
could catch fire if placed too close to the range
cooktop.
•Do not place aluminum foil, or any material that can
melt on the range cooktop. If these items melt they
may permanently damage the cooktop surface.

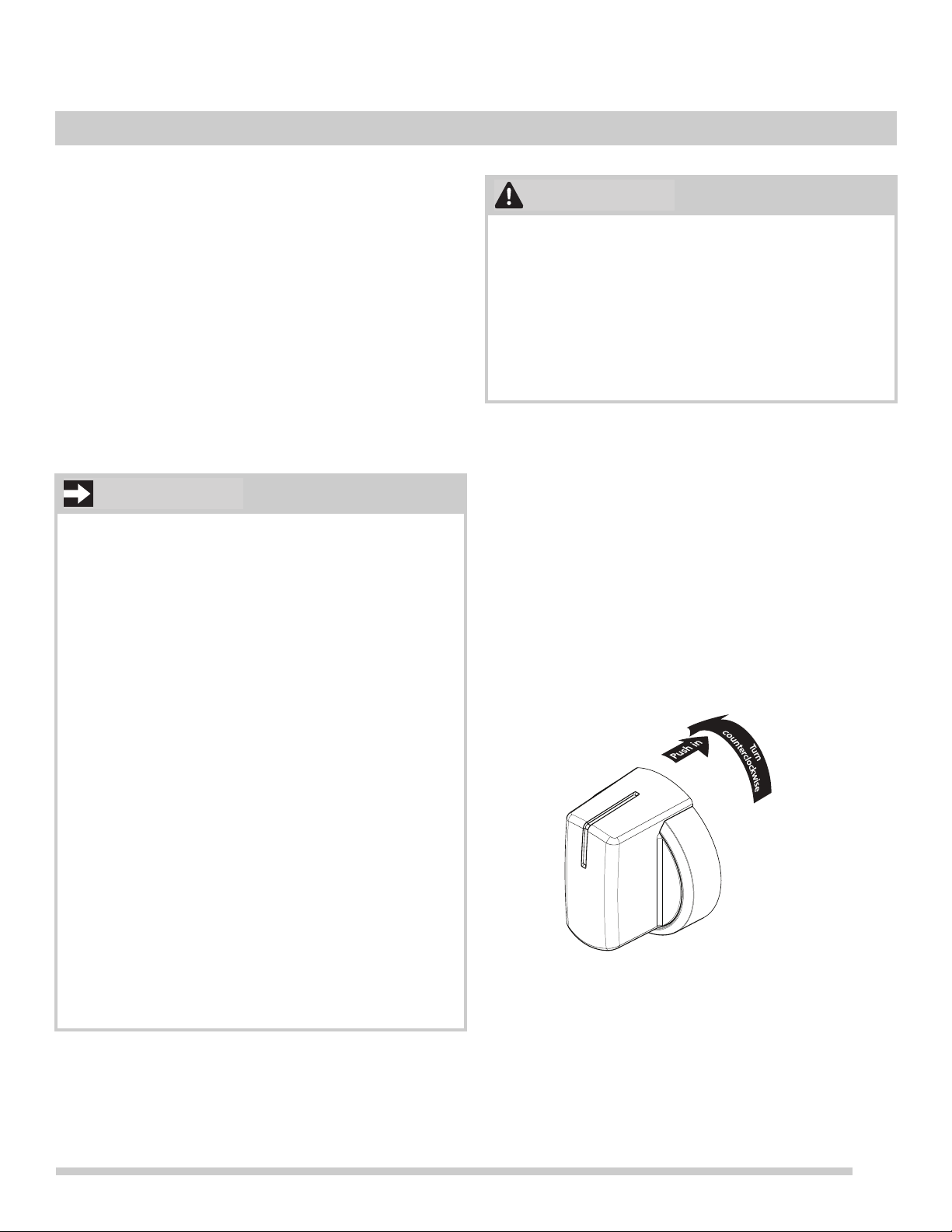

Figure 5: Setting single burner
CAUTION
OFF
LITE
6
5
SETTING SURFACE BURNERS

12
SETTING SURFACE BURNERS
Setting proper surface burner flame size
For most cooking: Start on the highest control setting and
then turn to a lower one to complete the process. Use the
recommendations below as a guide for determining proper
flame size for various typesof cooking. The size and type of
utensil used and the amount of food being cooked will
influence the setting needed.
Home Canning
Be sure to read and observe all the following points when
home canning with your appliance.
Check with the United States Department of Agriculture
(USDA) website and be sure to read all the information they
have available as well as follow their recommendations for
home canning procedures.
•Use only quality flat bottom canners when home
canning. Use a straight-edge to check canner bottom.
•When home canning, use only a completely flat bottom
canner with no ridges that radiate from the bottom
center.
•Be sure the diameter of the canner does not exceed 1
inch beyond the grate.
•Start with hot tap water to bring water to boil more
quickly.
•Use the highest heat setting when first bringing the
water to a boil.
•Once boiling is achieved, reduce heat to lowest
possible setting to maintain that boil.
IMPORTANT! Never place or straddle a cooking utensil
over two different surface cooking areas heating at the
same time. This can cause uneven heating results.
Flame Size Type of Cooking
High Flame •Start most foods
•Bring water to a boil
•Pan broiling
Medium Flame •Maintain slow boil
•Thicken sauces and
gravies
•Steaming foods
Low Flame •Keep foods cooking,
poaching and stewing
Figure 6: Gas flame adjustment
Settings based on using medium weight metal or
aluminum pans. Settings may vary using other types of
pans.
The color of the flame is key to proper burner adjustment.
A good flame is clear, blue, and hardly visible in a well lit
room.
Each cone of the flame should be steady and sharp.
Clean burner if flame is yellow-orange.
IncorrectCorrect
NOTE

13
BEFORE SETTING OVEN CONTROLS
Oven Vent Location
The oven vent is located under the controls. When the oven
is in use, hot air passes through this vent for proper air
circulation and provides good baking results in the upper
oven. Steam or moisture may appear near the oven vent.
This is normal. Do not block this vent.
Cooling Fan: The fan may continue to run for a while even
after the oven has been turned off; this is normal.
Installing Ladder Racks
1. Place the ladder racks hook side up into the support
brackets located on the sides of the oven (Figure 8).
2. Place oven racks into desired positions.
Note: To aid installation and movement of racks, apply a
thin layer of cooking oil to the sides of the oven racks that
contact the ladder supports.
Protective liners — Do not line the oven walls, racks,
bottom or any other parts of the range with aluminum foil.
Doing so will alter heat distribution, produce poor baking
results, and may cause permanent damage to the oven
interior. During self clean temperatures the oven will be hot
enough to melt foil. Use aluminum foil only as recom-
mended in this manual. Improper installation or use of these
liners may result in risk of electric shock or fire.
Oven Racks
Your appliance is equipped with flat handle oven racks and
can be placed in most oven rack positions.
Arranging, Removing, and Replacing Oven Racks
IMPORTANT! Remove all oven racks, rack ladders, and
any other accessories from the oven before starting a self
clean cycle.
•To arrange - Always arrange the oven racks when the
oven is cool (prior to operating the oven).
•To remove - pull the oven rack straight forward until it
reaches the stop position. Lift up front of oven rack
slightly and slide out.
•To replace - place the oven rack on the rack guides on
the oven walls. Tilt the front of the rack upward slightly
and slide the oven rack back into place.
•For ease of removal, racks should not be placed in
adjacent rack positions.
IMPORTANT!
To prevent possible damage to the oven, do not attempt to
close the oven door until all oven racks are fully positioned
inside the oven cavity.

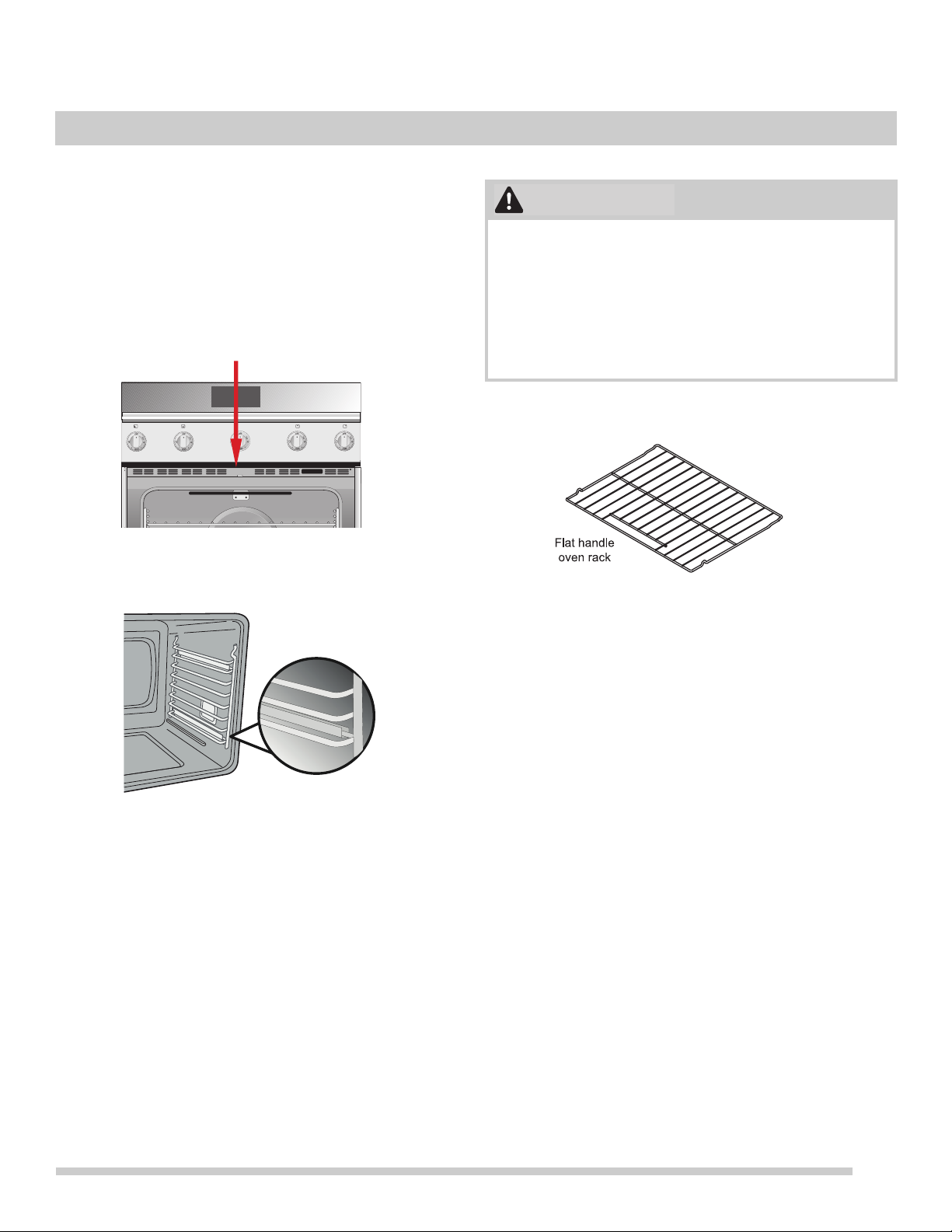

Figure 7: Oven vent location
Figure 8: Ladder rack supports
oven vent
•Always use potholders or oven mitts when removing
food or adjusting the oven racks. Wait until the oven
has completely cooled if possible. Oven racks may be
very hot and may cause burns. Remove all oven
racks and rack ladders before starting a self clean
cycle. Clean oven racks according to the instructions
provided in the Care and Cleaning section this
manual.
CAUTION
BEFORE SETTING OVEN CONTROLS

14
OVEN CONTROLS

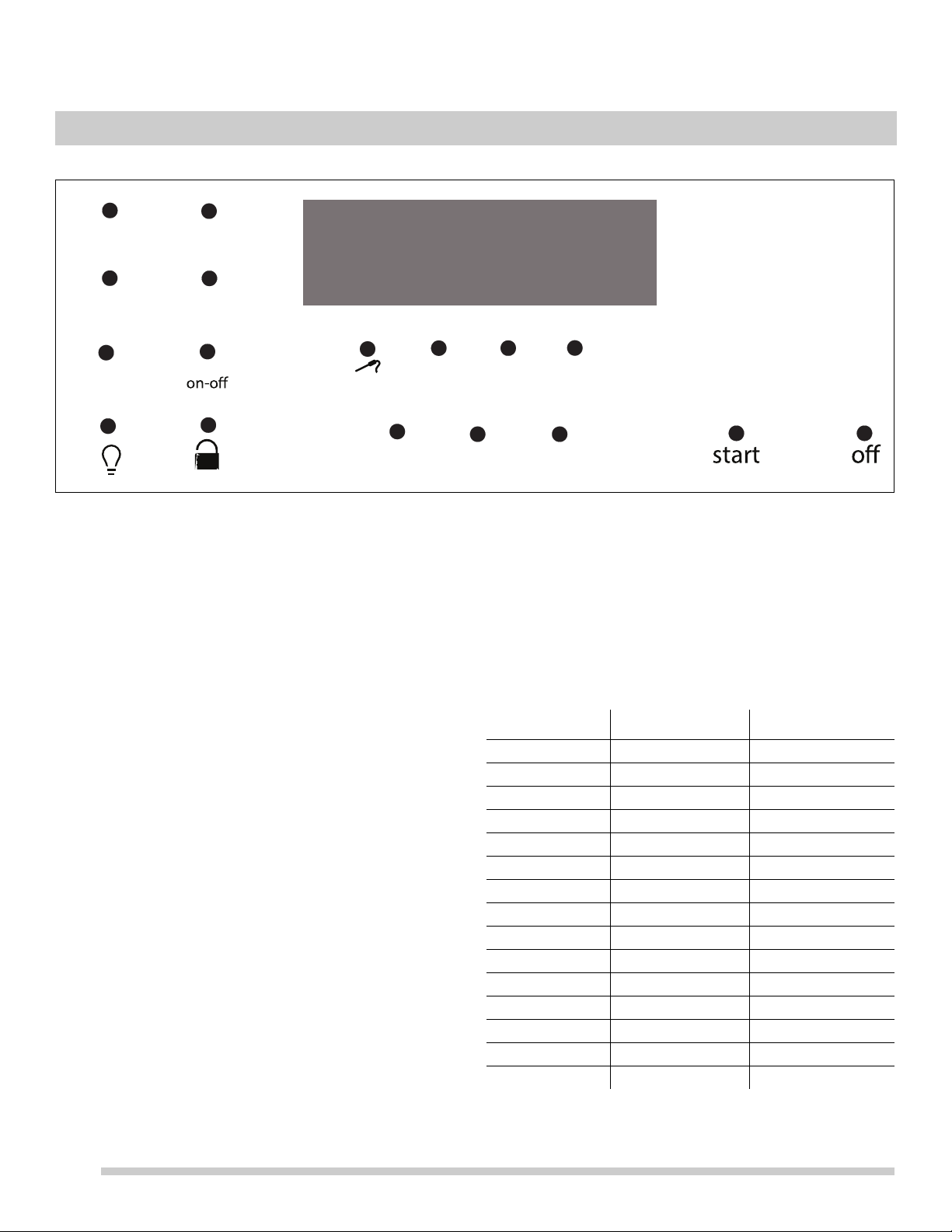

1. Self Clean - Use to select 2, 3, or 4 hr Self-Clean cycle.
2. Add a Minute - Use to add one minute to the timer. This
works with the kitchen timer and does not affect any
cook time or start time functions.
3. Delay Start - Use with Bake, Convection Bake,
Convection Convert, and Self Clean functions to
program a delayed start time.
4. Bake Time - Use to set a specific amount of time
needed for cooking. Automatically cancels cooking
process at end of set time.
5. Set Clock - Use to set time of day.
6. Timer on/off - Use to set and cancel the timer.
7. Light - Use to turn internal oven light on and off.
8. Lock - Use to lock oven door and oven controls. Will not
affect operation of surface burners.
9. Probe - Use to cook meat and poultry to the perfect
internal temperature automatically.
10. Quick preheat - Use to quickly raise oven to preheat
temperature for baking on one rack.
11. Keep Warm - Maintains low heat to keep food warm at
serving temperature.
12. Convect Convert - Converts regular bake temperature
to allow for convection baking.
13. Bake - Use to start a normal Bake function.
14. Convect - Use to toggle between convection bake,
convection roast, and convection broil.
15. Broil - Use to select Broil function.
16. Start - Use to start oven functions.
17. Off - Use to cancel any oven function previously
entered except clock and timer.
Minimum and maximum settings
All of the features listed have minimum and maximum time
and temperature settings that may be entered into the
control. An entry acceptance beep will sound each time a
key is touched. An entry error tone (three short beeps) will
sound if the entry of the temperature or time is below the
minimum allowable setting or above the maximum setting
for the cooking feature.
456
789
0
123
timerset
clock
delay
start
bake
time
add
a min
bake broilconvect
quick
preheat
convect
convert
probe keep
warm
self
clean
12
34
56
78
910 11 12
13 14 15 16 17
Feature Min. Temp or Time Max. Temp or Time
Bake 170°F (77°C) 550°F (288°C)
Broil 400°F (205°C) 550°F (288°C)
Quick Preheat 170°F (77°C) 550°F (288°C)
Convect Broil 400°F (205°C) 550°F (288°C)
Convect Roast 170°F (77°C) 550°F (288°C)
Convect Bake 170°F (77°C) 550°F (288°C)
Self Clean 2 Hours 4 Hours
Keep Warm 170°F (77°C) 3 Hours
Bake Time 1 Minute 5:59
Delay Time 12 Hr. 1:00 12:59
Delay Time 24 Hr. 0:00 23:59
Probe 140°F(60°C) 210°F(99°C)
Timer 1 minute 11 hrs. 59 mins.
Clock 12 Hr. 1:00 12:59
Clock 24 Hr. 0:00 23:59
OVEN CONTROLS

15
OVEN CONTROLS
Setting the Clock
When the appliance is first powered up, 12:00 will flash in
the display (Figure 9). The time of day must first be set
before operating the oven.
To set clock to 1:30:
1. Press set clock.
2. Enter 130using numeric keypad.
3. Press start.
Note: The clock cannot be changed when a Bake Time,
Self Clean, Delay Start, or cooking feature is active.
Setting 12 Hour or 24 Hour display mode
The clock display mode allows you to select 12 hr or 24 hr
modes. The factory pre-set clock display mode is 12 hours.
To set 12 hr or 24 hr display mode:
1. Press and hold set clock for 6 seconds.
2. Press self clean to toggle between 12 Hr day or 24 Hr
day display modes (Figure 10).
3. Press start to accept the choice.
Setting Timer
The minute timer allows you to track your cooking times
without interfering with the cooking process. The timer may
be set from a minimum time of 1 minute to a maximum of 11
hours and 59 minutes.
To set timer for 5 minutes:
1. Press Timer ON/OFF.
2. Enter 5 using numeric keypad.
3. Press START to start the timer. When set time ends,
END will show in the display and the control will sound a
beep three times every 30 seconds until Timer ON/OFF
key is pressed.
To cancel the timer when active, press Timer ON/OFF
again.
Important note:
•The timer does not start or stop the cooking process. It
serves as an extra minute timer that will beep when the
set time has run out. The timer may be used alone or
while using any of the other oven functions.
•When timer is set for more than 1 hour it will display
hours and minutes until 1 hour remains. When less than
1 hour remains, the display counts down in minutes and
seconds. With less than 1 minute remaining, only
seconds will display.
•If the timer is active during a cooking process, the timer
will show in the display. To view the status of any other
active oven function, press the key of the cooking
function once and it will appear in the display for a few
seconds.
Add a Minute
Use the Add 1 Minute feature to set additional minutes to
the timer. Each press of the key will add 1 additional minute.
If Add 1 Minute is pressed when the timer is not active, the
timer will activate and begin counting down from 1 minute.
To add 2 minutes to the timer:
Press Add 1 Minute twice.
Figure 9: 12:00 in display before setting clock
Figure 10: 12 Hr day and 24 Hr day settings

16
OVEN CONTROLS
Changing between continuous bake setting or 6 hour
energy saving
The oven control has a factory preset built-in 6 Hour Energy
Saving feature that will turn off the oven if the oven is left on
for more than 6 hours. The control may be programmed to
override this feature to bake continuously.
To change between continuous bake or 6 hour energy
saving feature:
1. Press and hold Timer ON/OFF for 6 seconds
2. Press self clean to toggle between 6 Hour OFF or Stay
On feature (Figure 11).
3. Press START to accept choice.
Changing temperature display from Fahrenheit to
Celsius
The electronic oven control is set to display °F when shipped from
the factory. The display may be changed to show either °F or ºC
oven temperatures.
To change temperature display mode from °F to °C or from °C
to °F:
1. Press and hold Broil for 6 seconds.
2. Once F (or C) appears in the display, press self clean to
toggle between Fahrenheit and Celsius temperature display
modes (Figure 12).
3. Press start to accept the choice.
Important note:
The oven temperature display cannot be changed during the
cooking process or if a Delay Start has been set or Self Clean is
active.
Setting Silent or Audible Control mode
Silent mode allows the oven control to operate without
audible tones. The control may be programmed for silent
operation and later reset to operate with all the normal
audible tones.
To set for silent or audible mode:
1. Press and hold Delay Start for 6 seconds.
2. Press the self clean key to toggle betweenbEEP On or
bEEP OFF (Figure 13).
3. Press START to accept the choice.
Setting Oven Lockout
To activate the oven lockout features:
1. Be sure oven door is completely closed.
2. Press and hold the lock key for 3 seconds. The motor
driven door latch mechanism will begin locking the oven
door automatically. Do not open the oven door. Allow
about 15 seconds for the oven door to completely lock.
Once door is locked, the word DOOR with a lock icon
will appear in the display.
To cancel the oven lockout feature:
1. Press and hold the lock key for 3 seconds. The motor
door latch will begin unlocking the oven door automati-
cally. Do not open the oven door. Allow about 15
seconds for the oven door to completely unlock.
2. When the word DOOR with a lock icon no longer
displays, the oven door may be opened, and the oven
control keypad will be available for use.
Important note:
•To avoid damage to the oven door latching mechanism,
do not attempt to open or close the oven door whenever
the word DOOR with a lock icon is displayed.
•If a control key is pressed when oven lockout is active,
the control will triple beep indicating the key action is
not available when the oven lockout feature is active.
Figure 11: 6 hr energy saving (L) and continuous setting (R)
Figure 12: Display showing Fahrenheit and Celsius
Figure 13: Display showing audible and silent operation

17
OVEN CONTROLS
Operating Oven Lights
The interior oven lights will automatically turn on when the
oven door is opened. Oven lights will not operate during a
self clean cycle.
Press to turn the interior oven lights on and off
whenever the oven door is closed.
The interior oven lights are located on the side walls of the
oven interior and are covered with a glass shield. The glass
shield protects the bulb from high temperatures and should
always be in place whenever the oven is in use.
Important: Do not keep oven lights on for an extended
period of time while baking. It may cause food to be
overdone.
To replace the interior oven light, see “Replacing Oven
Lights” on page 37.
Quick Preheat
Quick Preheat is available for your convenience for baking
on one rack and can be programmed for temperatures
between 170F and 550F. Follow the recipe or package
directions for food preparation time and temperature. When
quick preheat is complete, a reminder tone will sound and
food should be placed in the oven. During quick preheat
function, the bake and convection elements will cycle on
and off. Depending on your preference for doneness and
type of pan used, cooking times may vary. Watch food
closely.
Important:
•Always place in center of the oven on rack position 5
(Figure 15) and place the food as shown in Figure 14.
•For best results when baking batter and dough-based
items such as cakes, cookies and pastries, use convec-
tion bake function and place food in oven when the
reminder tone sounds.
•For crispy crust on pizza use Bake function and place
food in oven when reminder tone sounds.
To set the preheat temperature for 350°F:
1. Arrange the interior oven racks.
2. Press quick preheat. 350 will appear in the display.
3. Press start.
4. 350 and PREHEAT will be displayed while the oven is
preheating.
5. Press off when baking is complete or to cancel the
preheat feature.
To change preheat temperature while oven is
preheating (ex: changing from 350°F to 425°F):
1. Press quick preheat. 350 will appear in the display.
2. Enter the new preheat temperature. Press 4 2 5.
3. Press start. 425 will show in the display.
4. When baking is complete, press off.
Always use pot holders or oven mitts when using the
oven. When cooking the oven interior, oven racks, and
cooktop will become very hot which can cause burns.
CAUTION
Figure 14: Single rack baking pan position
Figure 15: Oven rack position (5)
at handle
oven rack
5

18
OVEN CONTROLS
Setting Bake
Use the bake feature whenever the recipe calls for baking
using normal temperatures. A reminder tone will sound indi-
cating when the set bake temperature is reached and to
place the food in the oven. When the oven is preheating,
the convection fan will be on and will turn off once the set
temperature is reached. The oven will cycle on and off while
baking to maintain the set temperature and the bake
element icon in the display will reflect the cycling of the
bake element.
Important: The Bake function is best for baking cakes.
Bake may be set for any oven temperature between 170°F (77°C)
to 550°F (288°C).
Baking tips
•For pastries and breads, use the convection bake
function for best results when using multiple racks
“Convection Bake” on page 19.
•Allow at least 2 inches (5 cm) of space between
bakeware for proper air circulation.
•Fully preheat the oven before cooking items like
cookies, biscuits, and breads.
•When using any single rack, use rack position 5 so that
the food is in the center of the oven.
•For best results when baking cakes using two oven
racks, use the regular bake function and place racks in
positions 3 and 7 (Figure 16) and place pans as shown
in Figure 17.
•For best results when baking two racks of cookies, use
convection bake and place racks in positions 2 and 7.
•Dark or dull pans absorb more heat than shiny
bakeware, resulting in dark or overbrowning of foods. It
may be necessary to reduce the oven temperature or
cook time to prevent overbrowning of some foods. Dark
pans are recommended for pies. Shiny pans are recom-
mended for cakes, cookies, and muffins.
•Glass cookware is a slow heat conductor. May require
reducing oven temperature.
•Do not open oven door often. Opening the door will
reduce the temperature in the oven and may increase
cooking time.
To set Bake for oven temperature of 425°F:
1. Press Bake.
2. Enter 425using numeric keypad.
3. Press start.
4. To cancel Bake at any time, press off.
The oven will bake no longer than 6 hours. If you wish to
bake for a longer period, see “Changing between contin-
uous bake setting or 6 hour energy saving” on page 16 for
detailed information.
Always use pot holders or oven mitts when using the
oven. When cooking the oven interior, oven racks, and
cooktop will become very hot which can cause burns.

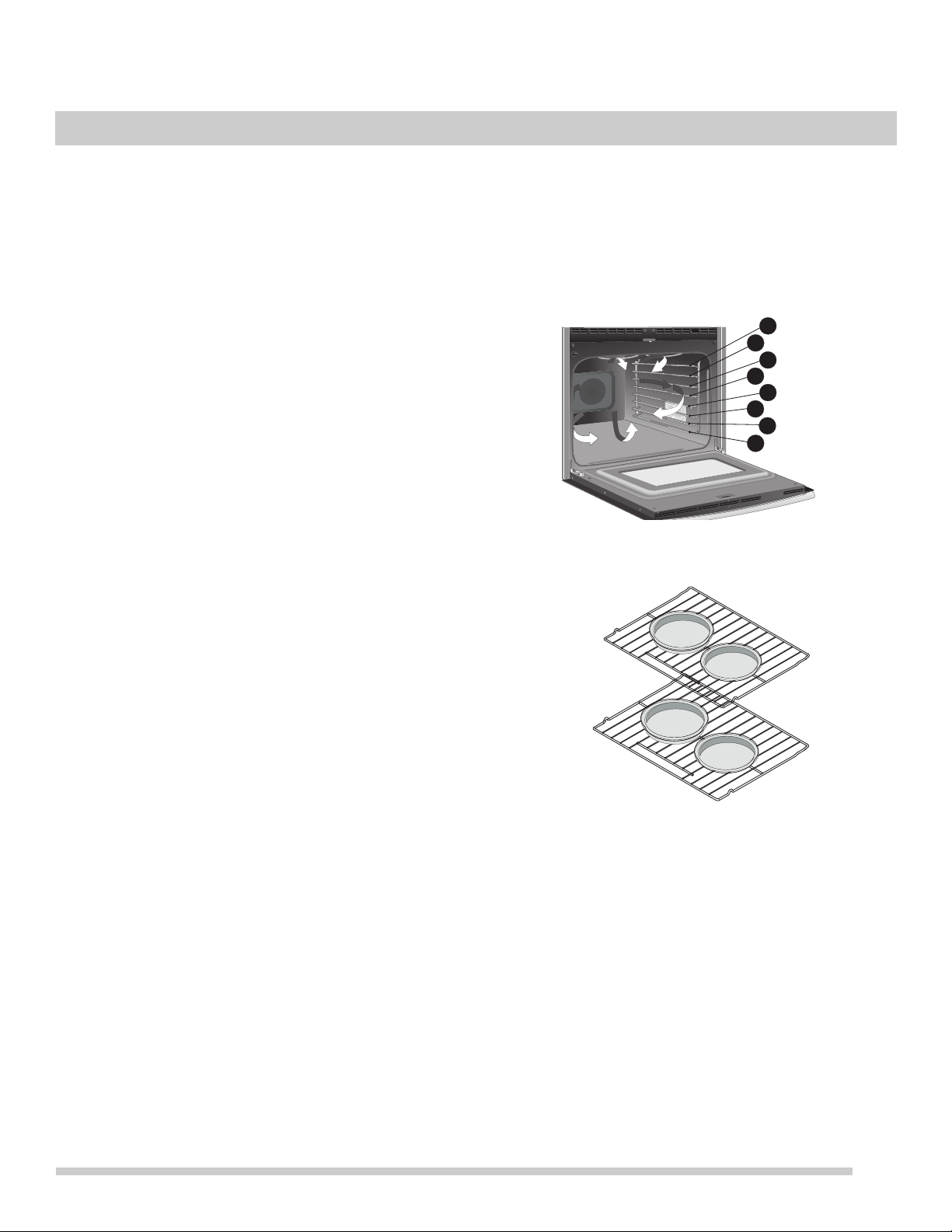

Figure 16: Oven rack positions
Figure 17: Baking on multiple levels
CAUTION
1
2
3
4
5
6
7
8

19
OVEN CONTROLS
Convection Bake
Convection functions use a fan to circulate oven heat
continuously around the oven. This improved heat distribu-
tion allows for fast, even cooking and browning results.
Breads and pastry brown more evenly. Convect Bake may
be set for any oven temperature between 170°F (77°C) and
550°F (288°C).
Benefits of convection cooking include:
•Multiple rack baking.
Baking tips
•For pastries and breads, use the convection bake
function for best results when using multiple racks.
•Fully preheat the oven before cooking items like
cookies, biscuits, and breads.
•When using any single rack, use rack position 5 so that
the food is in the center of the oven.
•When using two oven racks, place in positions 2 and 7
(Figure 18) and place bakeware as shown in Figure 19.
•When cooking with three oven racks, place racks on
positions 2, 5, and 8.
•Dark or dull bakeware absorbs more heat than shiny
bakeware. It may be necessary to reduce oven
temperature and cook time to prevent overbrowning of
some foods. Shiny bakeware is recommended for
cakes, cookies, and muffins.
•Glass cookware is a slow heat conductor. May require
reducing oven temperature.
•Use pans or cookware with low sides. This allows the
air to circulate around food evenly.
•Unless the recipe is written for convection cooking,
reduce oven temperature 25°F from recipe’s
recommended oven temperature. Follow the remainder
of the recipe’s instructions using the minimum
recommended cook time.
•Do not open oven door often. Opening the door will
reduce the temperature in the oven and may increase
cooking time.
To set Convection Bake with a default oven set temper-
ature of 350°F:
1. Press Convect key once. Conv Bake and 350° will
appear in the display.
2. Press START.
To cancel Convection Bake at any time, press off.
Important notes:
•If the oven door is opened when convection bake is
active, the convection fan will stop rotating until the
oven door is closed.
•When using convection bake, cook time reductions may
vary depending on the amount and type of food being
cooked.
Figure 18: Air movement using convection
Figure 19: Baking on multiple levels
1
2
3
4
5
6
7
8

20
OVEN CONTROLS
Setting Bake Time
Use bake time to set the amount of time needed for baking.
The oven will turn on immediately and stop automatically
after the set Bake Time ends.
To program oven to bake with oven default temperature
of 350°F and to shut-off after 30 minutes. Press bake
time.
1. Enter 3 0 using numeric keypad.
3. Press start to accept.
4. Press bake.
5. Press start.
When the programmed bake time ends:
End will appear in the display window, and the oven will
shut-off automatically (Figure 20). The oven control will
beep three times every 30 seconds as a reminder until Off
is pressed.
Important note:
•The bake time feature may be set with bake, convection
bake, and convection roast. Bake time or delay start will
not operate with the broil function.
•The maximum time setting is 11 hours and 59 minutes
unless oven is set for continuous cooking.
To change the oven temperature or bake time after bak-
ing has started:
1. Press bake (for oven temperature) or bake time.
2. Press numeric keys to enter new temperature or bake
time.
3. Press start to accept change.
Setting Delay Start
Delay Start sets a delayed starting time to oven cooking or
cleaning functions. Prior to setting a delay start, be sure the
time of day is set correctly.
To program oven for a Delay Start beginning at 5:30, to
shut-off automatically after 50 minutes and for baking
at 375°F:
1. Press bake time.
2. Enter 5 0 using numeric keypad.
3. Press START to accept.
4. Press Delay Start.
5. Enter 530using numeric keypad.
6. Press START to accept.
7. Press Bake.
8. Enter 375using numeric keypad.
9. Press START.
When the programmed bake time ends: End will appear
in the display window, and the oven will shut off automati-
cally. The oven control will beep three times every 30
seconds as a reminder until the Off key is pressed.
Important note:
Delay Start may be set using a 24 hr clock. To set clock for
24 Hr operation, See “Setting 12 Hour or 24 Hour display
mode” on page 15 for more information. The Delay Start
feature may be used with Convection Bake, Convection
Roast, Convection Convert, Bake, Slow Cook, and Self
Clean functions. Delay Start or Bake Time will not operate
with the Broil functions.
Food Poisoning Hazard. Do not let food sit for more than
one hour before or after cooking. Doing so can result in
food poisoning or sickness.
Figure 20: Display showing cooking has ended
WARNING
Always use pot holders or oven mitts when using the
oven. When cooking the oven interior, oven racks, and
cooktop will become very hot which can cause burns.
CAUTION
