FACTORY PARTS CATALOG
GAS RANGE
P.O. Box 212378
Augusta, Georgia 30917
PRODUCT NO. BASE MODEL NO. COLOR MARKET
FGF335CGSD FGF335CG WHITE/WHITE USA
FGF335CGSE FGF335CG WHITE/WHITE USA
FGF335CGSF FGF335CG WHITE/WHITE USA
FGF335CGTD FGF335CG ALMOND/ALMOND USA
FGF335CGTE FGF335CG ALMOND/ALMOND USA
FGF335CGTF FGF335CG ALMOND/ALMOND USA
Publication No.
5995320735
990409
-EN/SERVICE /VLM
369
WIRING DIAGRAM # - 316002152
OWNER’S GUIDE # - 316000279 & 316000291
INSTALLATION GUIDE # - 316105808 GAS - RANGE
FGF335CG

04/99 2
Publication number
5995320735 FGF335CGSD, SE, SF, FGF335CGTD, TE, TF
CAUTION: Use the part number on all orders, not the position number.

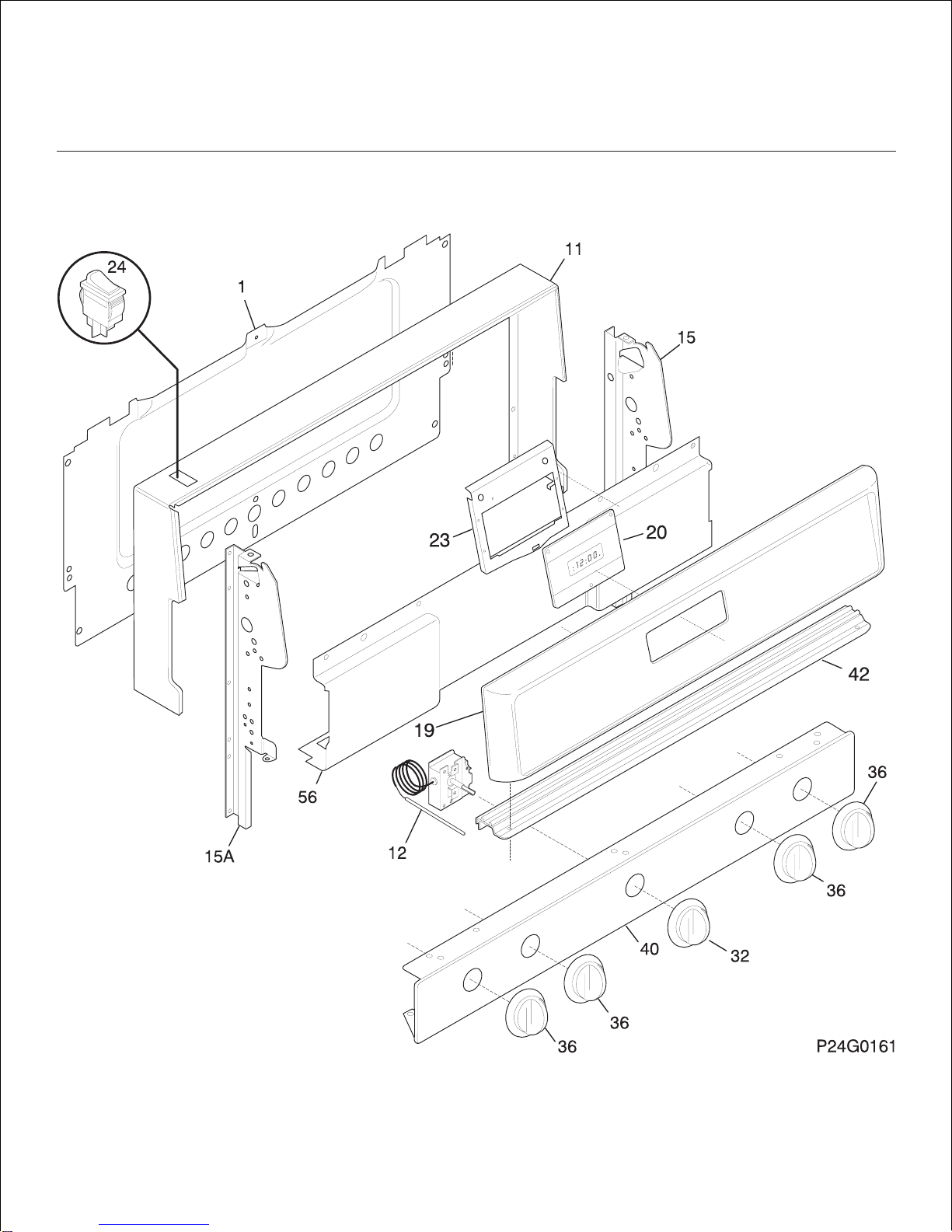

BACKGUARD

# - Fast Moving Parts
* - Non Illustrated Parts 3 6/98
Publication number
FGF335CGSD, SE, SF, FGF335CGTD, TE, TF 5995320735
CAUTION: Use the part number on all orders, not the position number.
BACKGUARD
A = FGF335CG (FGF335CGSD)
B = FGF335CG (FGF335CGSE)
C = FGF335CG (FGF335CGSF)
D = FGF335CG (FGF335CGTD)
E = FGF335CG (FGF335CGTE)
F = FGF335CG (FGF335CGTF)
POS. NO PART NO DESCRIPTION
* 316000279 A B - D E - Owner’s Manual
* 316000291 - - C - - F Owner’s Guide
* 316021108 A B C D E F Screw,cup pt ,#8-18 x 3/8 ,hinge ,
ind lght brkt,manifold pnl
* 316021110 A B C D E F Screw-8-18x1/2 Tr Sqd black
* 316112500 A B C D E F Template, Anti-tip bracket
1 316028701 A B C D E F Shield-backguard, rear wall
11 316083722 A B C - - - Trim-wrapper gas white w/hole,textured ,
white
11 316083723 ---DEF Trim-wrapper gas almond w/hole,almond
12 # 316032404 A B C D E F Thermostat
15 316023108 A B C D E F Support-backguard,RH
15A 316023109 A B C D E F Support-backguard,LH
19 316100532 A B C - - - Panel-control, white
19 316100533 ---DEF Panel-control, almond
20* 316098001 A B ---- Overlay-clock, white
20* 316098003 ---DE- Overlay-clock, almond
20* 316098008 - - C - - - Overlay-clock, white
20* 316098009 -----F Overlay-clock, almond
20# 316113300 A B - D E - Clock-timer
20# 316120500 - - C - - F Clock-timer
23 316033204 A B C D E F Bracket-timer
24# 316005607 A B C - - - Switch-rocker,oven light ,white
24 # 316005608 ---DEF Switch-rocker,oven light ,almond
32 316109509 A B C - - - Knob-thermostat,white
32 316109510 ---DEF Knob thermostat
36 316109503 A B C - - - Knob-top valve,white
36 316109504 ---DEF Knob-top valve, almond
40 316086832 A B C - - - Panel-manifold,white
40 316086833 ---DEF Panel-manifold,almond
42 316055200 A B C D E F Trim-vent
56 316074907 A B C D E F Deflector-flue, black

04/99 4
Publication number
5995320735 FGF335CGSD, SE, SF, FGF335CGTD, TE, TF
CAUTION: Use the part number on all orders, not the position number.

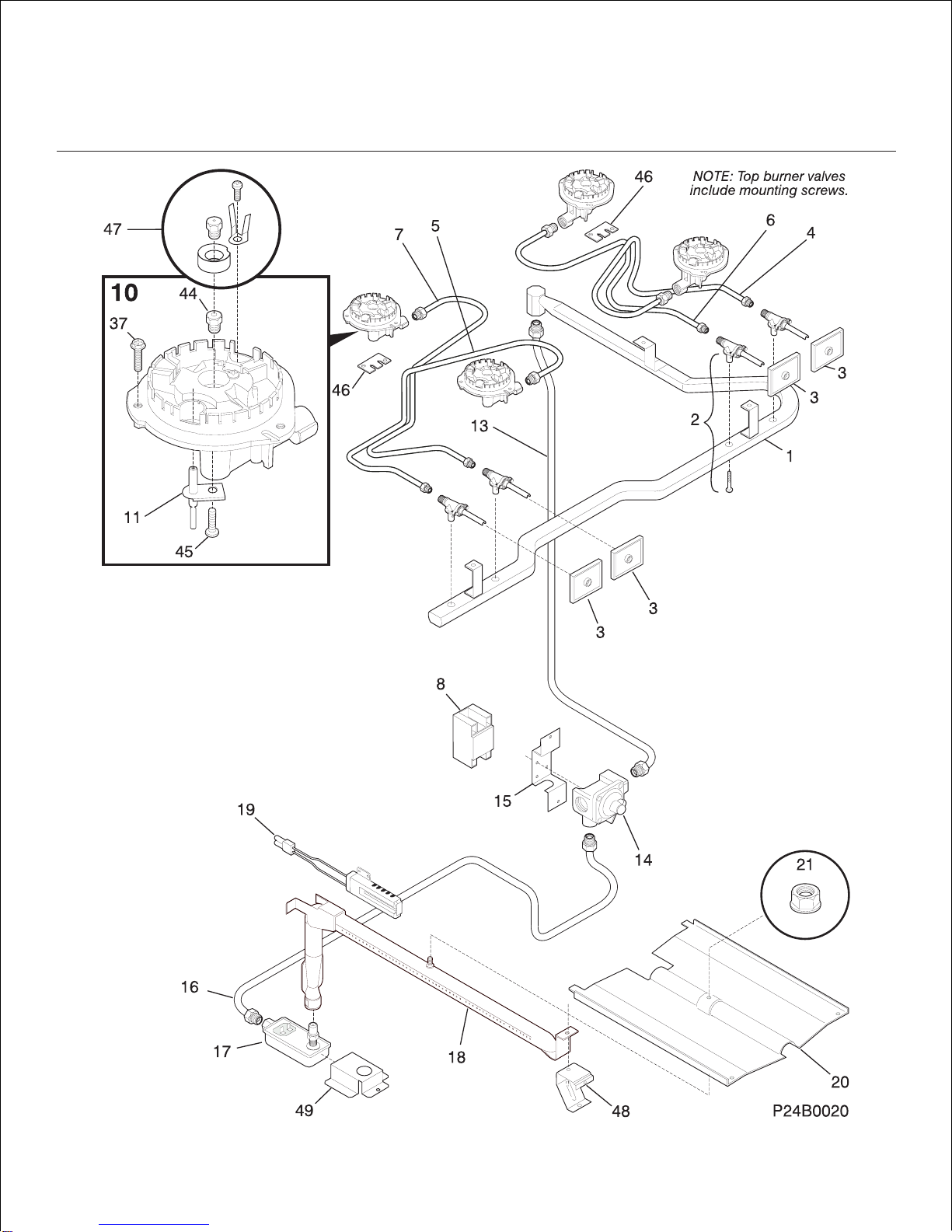

BURNER

# - Fast Moving Parts
* - Non Illustrated Parts 5 04/99
Publication number
FGF335CGSD, SE, SF, FGF335CGTD, TE, TF 5995320735
CAUTION: Use the part number on all orders, not the position number.
A = FGF335CG (FGF335CGSD)
B = FGF335CG (FGF335CGSE)
C = FGF335CG (FGF335CGSF)
D = FGF335CG (FGF335CGTD)
E = FGF335CG (FGF335CGTE)
F = FGF335CG (FGF335CGTF)
POS. NO PART NO DESCRIPTION
* 5303271648 A B C D E F Screw, wafer hd sq dr , 8-18AB x 1/2
1 316113801 A B C D E F Manifold-pipe
2 # 5303935130 A B C D E F Valve-top burner
2* 316048200 A B C D E F Screw-,hex washer head ,1/4-20 x 0.31 ,
w/gasket
3 # 316103600 A B C D E F Switch-ignitor,(4)
4 # 316059612 A B C D E F Tube-burner,red ,RF
5 # 316059613 A B C D E F Tube-burner,green ,LF
6 # 316059614 A B C D E F Tube-burner,nat. ,RR
7 # 316059615 A B C D E F Tube-burner,black ,LR
8 # 5303280394 A B C D E F Spark Module
8* 5303289034 A B C D E F Harness-wiring, module/igniter
10 # 5303935025 A B C D E F Burner Assy-top,sealed ,small ,9000 BTU
11 316011200 A B C D E F Ignitor-top burner,(4) ,w/mtg bracket
13 # 316065005 A B C D E F Tube,aluminum ,rgltr to manf ,
with fittings
14 # 316091706 A B C D E F Regulator-pressure
14* 316021104 A B C D E F Screw-regulator/brkt, hex , 8-18 x 3/8 ,
nick, 3
15 316091600 A B C D E F Bracket-regulator
16 # 316065006 A B C D E F Tube-valve to rgltr,3/8
17 # 3203459 A B C D E F Valve-safety
18 # 3131439 A B C D E F Burner-oven
19 # 5303935066 A B C D E F Ignitor-oven
20 3203265 A B C D E F Baffle-oven burner
21 5303013272 A B C D E F Nut, hex head sems
37 316069301 A B C D E F Screw-burner mtg
44 5303210090 A B C D E F Orifice-top burner,small
45 316011100 A B C D E F Screw-ignitor mtg,self-tapping ,M3x5.8
46 316074700 A B C D E F Plate-burner tube
47 # 5303286386 A B C D E F LP Conversion Kit
48 3018603 A B C D E F Bracket-support,oven burner
49 3131438 A B C D E F Bracket,safety valve
BURNER

04/99 6
Publication number
5995320735 FGF335CGSD, SE, SF, FGF335CGTD, TE, TF
CAUTION: Use the part number on all orders, not the position number.

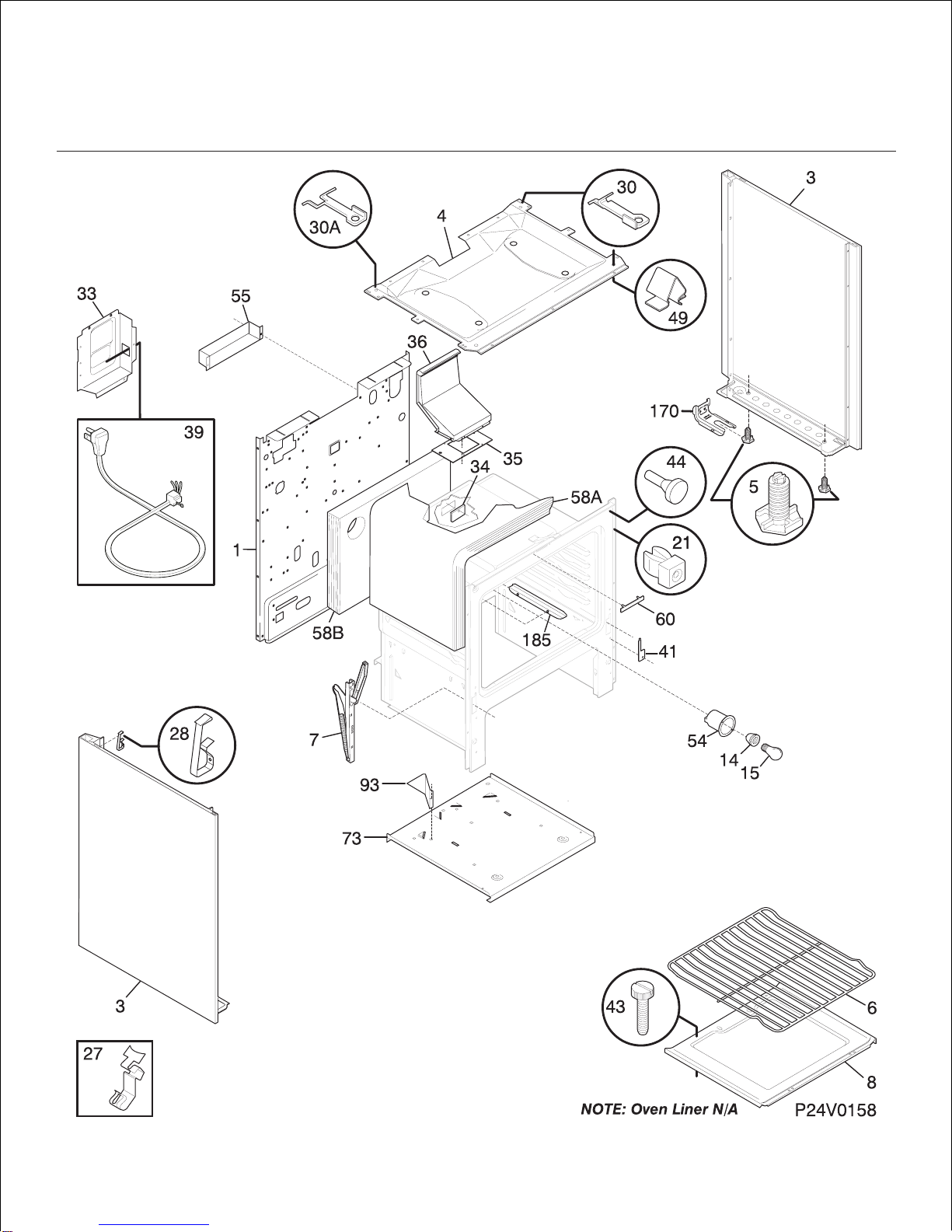

BODY

# - Fast Moving Parts
* - Non Illustrated Parts 7 04/99
Publication number
FGF335CGSD, SE, SF, FGF335CGTD, TE, TF 5995320735
CAUTION: Use the part number on all orders, not the position number.
BODY
A = FGF335CG (FGF335CGSD)
B = FGF335CG (FGF335CGSE)
C = FGF335CG (FGF335CGSF)
D = FGF335CG (FGF335CGTD)
E = FGF335CG (FGF335CGTE)
F = FGF335CG (FGF335CGTF)
POS. NO PART NO DESCRIPTION
* 316021108 A B C D E F Screw,cup pt ,#8-18 x 3/8 ,hinge ,
ind lght brkt,manifold pnl
1 316029412 A B C D E F Back-main
3 316081034 A B C - - - Panel-bodyside, white ,RH
3 316081035 A B C - - - Panel-bodyside, white , LH
3 316081036 ---DEF Panel-bodyside,almond ,RH
3 316081037 ---DEF Panel-bodyside,almond ,LH
4 316011914 A B C D E F Burner Box
5 316107300 A B C D E F Screw-leveling
6 316067902 A B C D E F Rack-oven
7 316007001 A B C D E F Hinge-oven door,(2)
8 5303212540 A B C D E F Panel-oven bottom
8* 316064600 A B C D E F Support-oven bottom
14 316116400 A B C D E F Socket-light
15 5303013071 A B C D E F Light Bulb/Lamp
21 3014099 A B C D E F Spacer-bodyside, (8)
27 5303284616 A B C D E F Clip-thermo bulb
28 3011813 A B C D E F Clip-wire, bodyside
30 316059200 A B C D E F Bracket-main top,RH
30A 316059201 A B C D E F Bracket-main top,LH
33 316055601 A B C D E F Shield-spark module
34 3018607 A B C D E F Cover Plate
35 316116600 A B C D E F Gasket-flue
36 5303273108 A B C D E F Flue
39 3202006 A B C D E F Cord-electric power
41 3131570 A B C D E F Cover-hinge cutout
43 3131732 A B C D E F Screw-oven bottom, 8-18 x 1.438
49 3051124 A B C D E F Clip-spring mtg
54 5303271606 A B C D E F Housing-oven light
55 5303289358 A B C D E F Shield-flue
58A 3017142 A B C D E F Insulation,oven wrapper
58B 3203541 A B C D E F Insulation,oven back
60 5303015372 A B C D E F Cover-oven front
73 316109902 A B C D E F Base-low broil
93 316110000 A B C D E F Shield,metal ,galvanized ,ignitor
170 316107200 A B C D E F Anti-tip bracket
170* 316116000 A B C D E F Screw-Anti tip, 1.75" concrete
185 316112900 A B C D E F Shield-thermo bulb

04/99 8
Publication number
5995320735 FGF335CGSD, FGF335CGTD
CAUTION: Use the part number on all orders, not the position number.

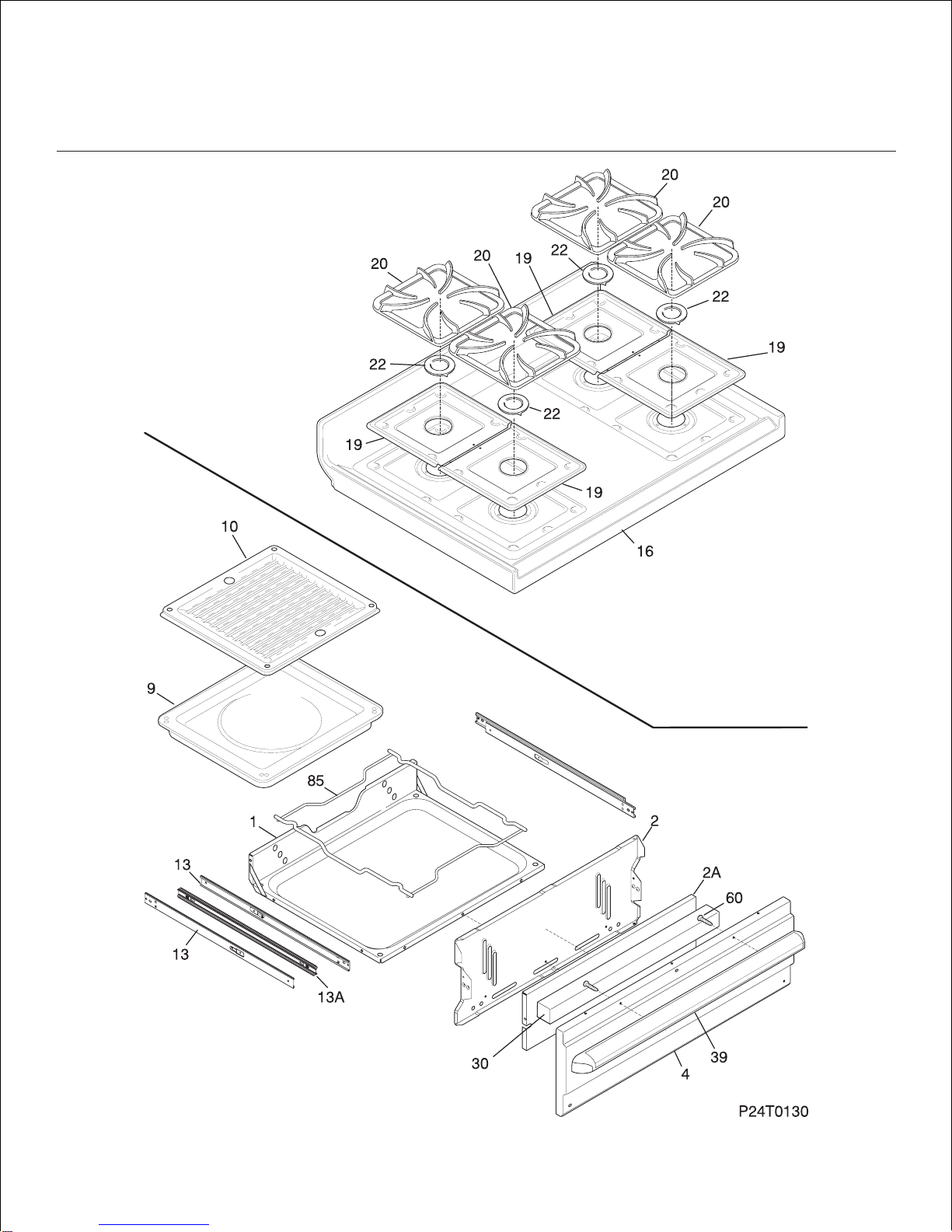

TOP/DRAWER

# - Fast Moving Parts
* - Non Illustrated Parts 9 04/99
Publication number
FGF335CGSD, FGF335CGTD 5995320735
CAUTION: Use the part number on all orders, not the position number.
TOP/DRAWER
A = FGF335CG (FGF335CGSD)
D = FGF335CG (FGF335CGTD)
POS. NO PART NO DESCRIPTION
* 316021120 ------ Screw, 8-18 x 5/8 ,SHOULDER SQDR ,(2)
* 316021108 A - - D - - Screw,cup pt ,#8-18 x 3/8 ,hinge ,
ind lght brkt,manifold pnl
* 316021110 A - - D - - Screw-8-18x1/2 Tr Sqd black
* 316021112 A ----- Screw-8-18x1/2 Tr Sqd White
* 316021113 ---D-- Screw-8-18x1/2 Tr Sqd Almond
* 5303280311 A - - D - - Screw, waf hd sdr , 10-32 x 5/16 , (2)
1 316110201 A - - D - - Carriage, broiler
2 316110101 A - - D - - Liner-low broil
2A 316110800 A - - D - - Shield-broiler
4 316056201 A ----- Panel-drawer,white
4 316056202 ---D-- Panel-drawer,almond
9 316073800 A - - D - - Pan-broiler
10 3205234 A - - D - - Insert-broiler pan
13 316111500 A - - D - - Glide-drawer,outer
13A 316111600 A - - D - - Glide-drawer,inner
13B 316111501 A - - D - - Glide low broil outer
16 5303301546 A ----- Main Top,white
16 5303301547 ---D-- Main Top,almond
19 # 316011409 A ----- Pan-burner,gray ,(4)
19 # 316011410 ---D-- Pan-burner,almond ,(4)
20 # 316085304 A - - D - - Grate,(4)
22 316122101 A - - D - - Cap-burner,gray ,(4)
30 316111400 A - - D - - Insulation,broiler drawer
39 316026106 A ----- Handle-drawer,white
39 316026107 ---D-- Handle-drawer,almond
60 316021105 A - - D - - Screw, hex, 8-18 x 0.375,
85 316115600 A - - D - - Rack-Low Broil

04/99 10
Publication number
5995320735 FGF335CGSD, SE, SF, FGF335CGTD, TE, TF
CAUTION: Use the part number on all orders, not the position number.
TOP/DRAWER

# - Fast Moving Parts
* - Non Illustrated Parts 11 04/99
Publication number
FGF335CGSD, SE, SF, FGF335CGTD, TE, TF 5995320735
CAUTION: Use the part number on all orders, not the position number.
B = FGF335CG (FGF335CGSE)
C = FGF335CG (FGF335CGSF)
E = FGF335CG (FGF335CGTE)
F = FGF335CG (FGF335CGTF)
POS. NO PART NO DESCRIPTION
* 316021120 - B C - E F Screw, 8-18 x 5/8 ,SHOULDER SQDR ,(2)
* 316021108 - B C - E F Screw,cup pt ,#8-18 x 3/8 ,hinge ,
ind lght brkt,manifold pnl
* 316021110 - B C - E F Screw-8-18x1/2 Tr Sqd black
* 316021112 - B C - - - Screw-8-18x1/2 Tr Sqd White
* 316021113 ----EF Screw-8-18x1/2 Tr Sqd Almond
* 5303280311 - B C - E F Screw, waf hd sdr , 10-32 x 5/16 , (2)
1 316110201 - B C - E F Carriage, broiler
2 316110101 - B C - E F Liner-low broil
2A 316110800 - B C - E F Shield-broiler
4 316056201 - B C - - - Panel-drawer,white
4 316056202 ----EF Panel-drawer,almond
9 316073800 - B C - E F Pan-broiler
10 3205234 - B C - E F Insert-broiler pan
13 316111502 - B C - E F Glide-Low Broil, Inner
13A 316111600 - B C - E F Glide-drawer,inner
13B 316111501 - B C - E F Glide low broil outer
16 5303301546 - B C - - - Main Top,white
16 5303301547 ----EF Main Top,almond
19 # 316011409 - B C - - - Pan-burner,gray ,(4)
19 # 316011410 ----EF Pan-burner,almond ,(4)
20 # 316085304 - B C - E F Grate,(4)
22 316122101 - B C - E F Cap-burner,gray ,(4)
30 316111400 - B C - E F Insulation,broiler drawer
39 316026106 - B C - - - Handle-drawer,white
39 316026107 ----EF Handle-drawer,almond
60 316021105 - B C - E F Screw, hex, 8-18 x 0.375,
85 316115600 - B C - E F Rack-Low Broil
TOP/DRAWER

04/99 12
Publication number
5995320735 FGF335CGSD, SE, SF, FGF335CGTD, TE, TF
CAUTION: Use the part number on all orders, not the position number.

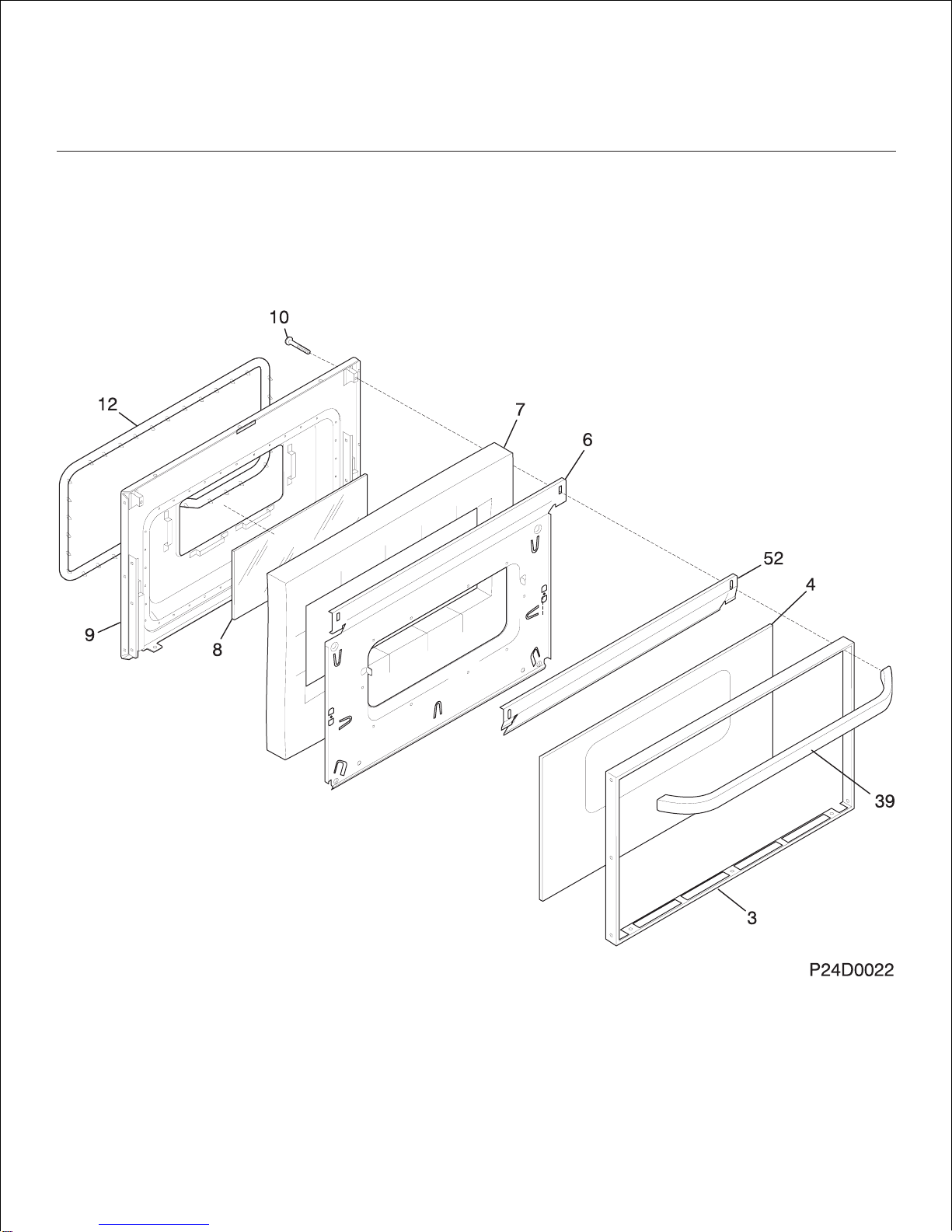

DOOR

# - Fast Moving Parts
* - Non Illustrated Parts 13 04/99
Publication number
FGF335CGSD, SE, SF, FGF335CGTD, TE, TF 5995320735
CAUTION: Use the part number on all orders, not the position number.
DOOR
B = FGF335CG (FGF335CGSE)
C = FGF335CG (FGF335CGSF)
D = FGF335CG (FGF335CGTD)
E = FGF335CG (FGF335CGTE)
F = FGF335CG (FGF335CGTF)
POS. NO PART NO DESCRIPTION
* 316021110 A B C D E F Screw-8-18x1/2 Tr Sqd black
* 5303212671 A B C - - - Screw,cr pan hd sems ,8-32BP x 1.00
* 5303271648 A B C D E F Screw, wafer hd sq dr , 8-18AB x 1/2
* 5303280311 A B C D E F Screw, waf hd sdr , 10-32 x 5/16 , (2)
3 316067803 ---DEF Trim-oven door,almond
3 316067804 A B C - - - Trim-oven door,white
4 316089004 ---DEF Glass-oven door,almond ,outer
4 316089005 A B C - - - Glass-oven door,white ,outer
6 316088403 A B C D E F Shield-wool
7 316076401 A B C - - - Insulation,oven door
8 316088600 A B C D E F Glass-oven door,inner
9 316066610 A B C D E F Liner-oven door
10 5303280308 A B C D E F Screw-handle mtg,wafer head ,10-24T x 2
12 5303202011 A B C D E F Seal-oven door,non self-clean
39 316091115 A B C - - - Handle-door,white ,oven
39 316091116 ---DEF Handle-door,almond ,oven
39* 316008401 A B C D E F Washer,3/4 x 1/4 ,steel
52 316081301 A B C - - - Shield-oven door,white ,top
52 316081302 ---DEF Shield-oven door,almond ,top

04/99 14
Publication number
5995320735 FGF335CGSD, SE, SF, FGF335CGTD, TE, TF
CAUTION: Use the part number on all orders, not the position number.
WIRING DIAGRAM
