Frigidaire Gallery FGES3045K F User manual

frigidaire.com
30" Electric
Slide-In Ranges
FGES3045K F/ W/ B
Signature Features
Eortless Performance
Auto Shut-O
Quick Clean Options
Eortless™ Convection Conversion
Power Broil ( 3,400W )
Performance-Driven Style
Real Stainless Steel
Even Baking Technology
Smoothtop Ceramic Glass Cooking Surface
SpaceWise™ Design
Fits-More™ Cooktop
Keep Warm Zone ( 100W )
SpaceWise™ Expandable Element –
6" to 9" ( 1600W / 3000W )
Storage Drawer
One-Touch Options
Chicken Nuggets
Keep Warm
More Easy-To-Use Features
Delay Start
Hidden Bake
Extra-Large Window
A.D.A. Compliant*
Sabbath Mode (Star-K® Certified)
Capacities
4.2 Cu. Ft. Oven Capacity
Overall Exterior Dimensions
Height 36-5/8"
Width 30"
Depth 28-5/16"
Available in:
* When properly installed, meets the appliance standards
in the American with Disabilities Act and the Architectural
Barriers Act Accessibility Guidelines as published by the
United States Access Board on June 23, 2004.
1 Based on single rack cooking performance, not set
temperature, using Quick Preheat.
White
(W)
Black
(B)
Stainless
(F)
Quick Preheat
Preheat in less than six minutes.1
True Convection
Multi-rack baking is faster and more
even with True Convection.
Express-Select™ Controls
Easily go from warm to boil.
Quick Boil
Boils water faster with our
3,000-watt element.

30" Electric Slide-In Range
Gallery
FRIGIDAIRE®
USA
•
250 Bobby Jones Expressway
•
Martinez, GA 30907
•
1-800-FRIGIDAIRE •frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FGES3045K 05/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
Specifications
subject to change.

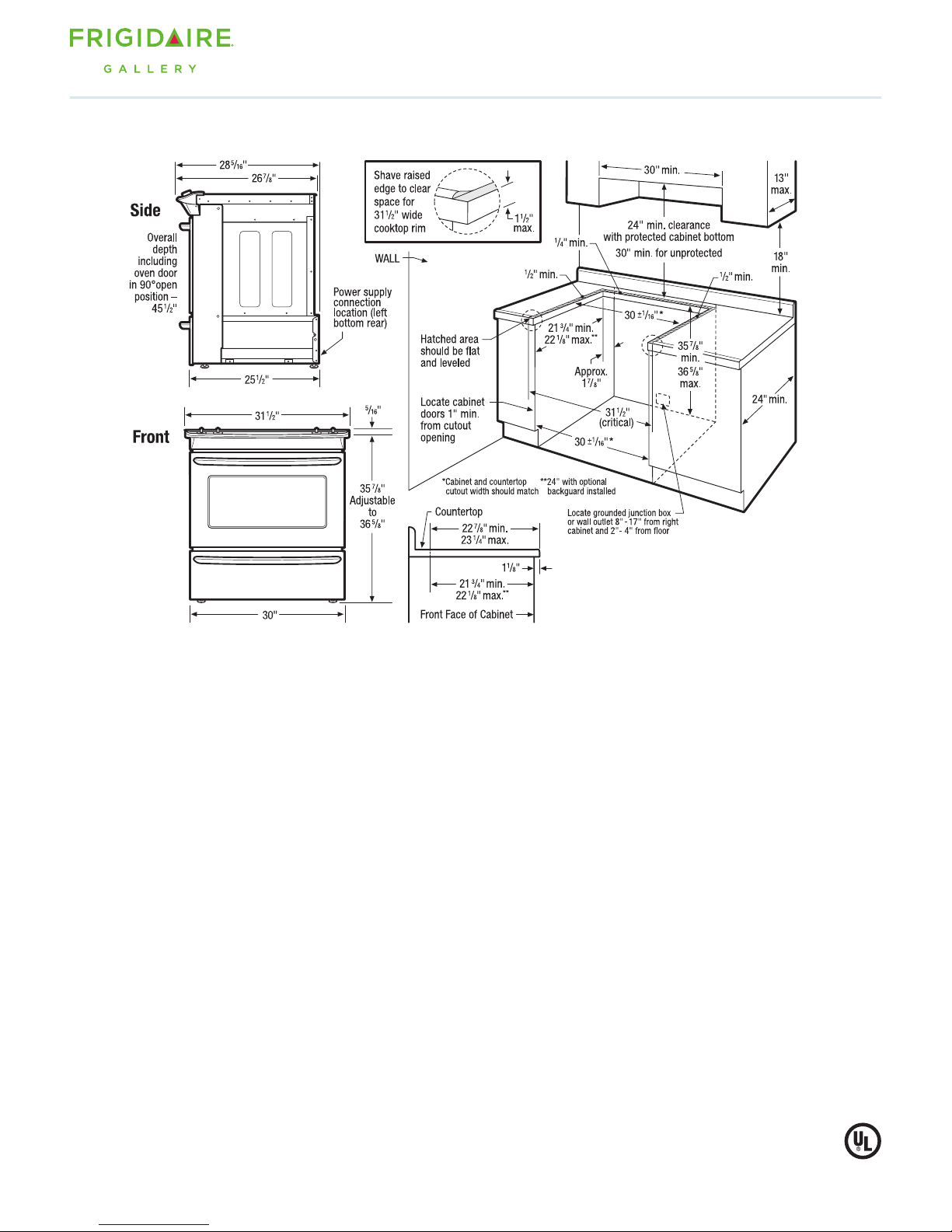

Slide-In Range Specifications
•Product Shipping Weight (approx.) – 240 Lbs.
•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt,
60 Hertz, fused on both sides of line with ground. (If local code
permits, range may be connected by hard-wiring or by means
of power supply cord kit.)
•Connected Load (kW Rating) @ 240 / 208 Volts = 12.4 / 9.4 kW
•Amps @ 240 / 208 Volts = 52 / 44 Amps
•Recommended Circuit Breaker – 50 Amps (40 Amps minimum)
•Always consult local and national electric codes.
•Countertop MUST be level in all directions and adjustable range
height at least 1/16" greater than tallest cabinet height, to ensure
metal rangetop flange will fit properly on countertop edge.
•When installing optional Backguard Kit, cutout depth of 21-3/4"
minimum / 22-1/8" maximum needs increased to 24".
•Overhead cabinetry should not exceed a 13" maximum depth.
•Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
•Allow 24" minimum clearance between rangetop and bottom of cabinet
when bottom of wood or metal cabinet is protected by not less than
1/4" flame-retardant millboard covered with not less than No. 28 MGS
sheet steel, 0.015" stainless steel, 0.024" aluminum or 0.020" copper.
Allow 30" minimum clearance when cabinet is unprotected.
•To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
Countertop Preparation
For detailed preparation instructions, refer to installation guide
on the web.
•Flat square-finish (flat) countertop requires no preparation since
rangetop flange lays directly on countertop edge.
•Formed front-edged countertops require front molded edge to
be shaved flat 3/4" from each front corner of opening.
•Tile countertops may need cut back 3/4" from each front corner
of opening and /or rounded edge flattened.
•For existing cutout width greater than 30-1/16" reduce the 3/4"
overlap dimension or for cutout width of 29", replace actual side
trim panels with smaller side trim panels, available with optional
Side Trim Kit (refer to detailed kit installation instructions).
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
•Rear Filler Kit: Stainless Steel – (PN # 901193-901S),
White – (PN # 901193-9011), Black – (PN # 901193-9010).
•Side Panel Kit: Stainless Steel – (PN # 903074-901S),
White – (PN # 903074-9011), Black – (PN # 903074-9010).
•Backguard Kit: Stainless Steel – (PN # 903046-901S),
White – (PN # 903046-9011), Black – (PN # 903046-9010).
•Side Trim Kit: Stainless Steel – (PN # 903075-901S),
White – (PN # 903075-9011), Black – (PN # 903075-9010).
Slide-In Ranges
