Frigidaire FGHT1846Q F Parts list manual

Place and center
image here.
frigidaire.com
More Easy-To-Use Features
Product Dimensions
Signature Features
Top Mount Refrigerators
Smudge-Proof™ Stainless Steel2
Resists fingerprints and smudges so it’s
easy to clean.
ENERGY STAR®-Qualified
Maximize your energy and dollar savings
with ENERGY STAR®-Qualified Appliances.
Ice-Ready
Our refrigerator is ice-ready so you have
the flexibility to easily add an ice maker
later if you decide you want one.
Full-Width Adjustable
Storage Drawer
Conveniently located in the fresh
food compartment for easy access to
sandwich foods.
Garage-Ready
Our top freezer offers the flexibility to
work in your home or in your garage.
It’s built to handle extreme temperature
conditions.
A.D.A. - Compliant 3
With accessible shelving, and controls
that are positioned within arm’s reach and
allow one-hand operation, our top-freezer
refrigerator is A.D.A.- Compliant.
ENERGY STAR®
Available in:
1Image shown may not be representative of actual
Custom-Flex™ Door accessories included with model.
2Select models only.
3When properly installed, this model is A.D.A.-qualified
based on the United States Access Board’s A.D.A./
A.B.A. Accessibility Guidelines and the Department of
Justice’s 2010 A.D.A. Standards for Accessible Design.
Height 66-1/8"
(Including Hinges & Rollers)
Width 30"
Depth (Including Door) 29-7/8"
18 Cu. Ft. Top Mount FGHT1846Q F / P / E
Stainless
(F)
Pearl
(P)
Ebony
(E)
Over 100 Ways to Organize
Our SpaceWise® Organization System
offers 100 ways to organize with the
Custom-Flex™ Door and the Store-
More™ Slide-Under, Flip-Up Shelf.1
Bright LED Lighting
Find food faster with bright LED lighting.
Store-More™ Slide-Under,
Flip-Up Shelf
Make room for taller items like milk, juice
and soda. The shelf offers 3 different ways
to organize – it flips up, slides under the
back half of the shelf, or can remain pulled
out like a traditional shelf.
Custom-Flex™ Door Bins
& Accessories
The Custom-Flex™ Door comes with
4 different bins and accessories so you
can customize your door. It includes
the dairy bin, and a large, medium
and small bin.

Specifications
subject to change.
Accessories information available
on the web at frigidaire.com
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
Top Mount Refrigerators
FGHT1846Q 10/14 © 2014 Electrolux Home Products, Inc.
FGHT1846Q F / P / E 18 Cu. Ft.
Top Mount Refrigerators
Frigidaire Gallery
Features
Door Design
Door Handle Design
Cabinet Finish (Textured)
Door Stops
Door Hinge Covers
Door Reverse Option
Rollers – Front / Rear
Sound Package
Toe Grille
Garage-Ready
Refrigerator Features
Custom-Flex™ Door
Interior Lighting
Refrigerator Shelves
Deli Drawer
Store-More™ Crisper Drawers
Humidity Controls
Dairy Compartment
Fixed Door Bins
Custom-Flex™ Door Accessories
Door Racks
Non-Slip Bin Liner
Freezer Features
Door Bins
Door Racks
Freezer Shelves
Factory Ice Maker w/ Large Ice Bin
Lighting
Certifications
ENERGY STAR®
A.D.A. - Compliant1
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 120 Volts2
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
UltraSoft™
Stainless Steel (F),
Color-Coordinated (P / E)
Black (F),
Color-Coordinated (P / E)
Yes
Black (F),
Color-Coordinated (P / E)
Yes
Adjustable / Yes
Black (F),
Color-Coordinated (P / E)
Yes
Yes
LED
1 Store-More™ Slide-Under,
Flip-Up
1 Full-Width Clear
2 Clear
2
1 Full-Width White
1 - Small, 1 - Medium, 1 - Large
and 1 - Dairy Bin
2 Full-Width Clear
1 Full-Width Glass
Optional (PN # IM116)
LED
Yes
Yes
18.1
14.1
4.0
Right Bottom Rear
Bottom Right
120V / 60Hz / 15A
0.72
6.0
15
205 Lbs.
1When properly installed, this model is A.D.A.-qualified based on the
United States Access Board’s A.D.A./A.B.A. Accessibility Guidelines and
the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.
2For use on adequately wired 120V, dedicated circuit having 2-wire service
with a separate ground wire. Appliance must be grounded for safe
operation.
NOTE: For planning purposes only. Always
consult local and national electric and
plumbing codes. Refer to Product
Installation Guide for detailed installation
instructions on the web at frigidaire.com.
Optional Accessories
Custom-Flex™ Mini Bin
Custom-Flex™ Small Bin
Custom-Flex™ Medium Bin
Custom-Flex™ Large Bin
Custom-Flex™ Dairy Bin
Custom-Flex™ Can Dispenser
Part Number
5304496497
5304496498
5304496499
5304496500
5304496501
5304496503
Product Dimensions
A - Height (Incl. Hinges & Rollers)
B - Width
C - Depth (Incl. Door)
Depth with Door Open 90˚
66-1/8"
30"
29-7/8"
58-1/2"

Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
Top Mount Refrigerators
FGHT1846Q 10/14 © 2014 Electrolux Home Products, Inc.
Top Mount Refrigerator Specifications
• Product Shipping Weight (approx.) – 205 Lbs.
• An electrical supply with grounded three-prong receptacle is
required. The power supply circuit must be installed in accordance
with current edition of National Electrical Code (NFPA 70) and
local codes & ordinances.
• Voltage Rating – 120V / 60 Hz / 15 Amps
• Connected Load (kW Rating) @ 120 Volts = 0.72 kW
• Amps @ 120 Volts = 6.0 Amps
• Always consult local and national electric & plumbing codes.
• Floor should be level surface of hard material, capable of supporting
fully loaded refrigerator.
• Minimum 3/8" clearance required for sides and top of refrigerator
with 1" clearance at rear to allow for ease of installation, proper air
circulation, and plumbing / electrical connections.
• When installing refrigerator adjacent to wall, cabinet or other
appliance that extends beyond front edge of unit, 20" minimum
clearance recommended to allow for optimum 140° door swing,
providing complete crisper access and removal. (Absolute 3"
minimum clearance will ONLY allow for 90° door swing which
will provide limited crisper access with restricted removal.)
• To ensure optimum performance, do not install in areas where
temperature drops below 55° F or rises above 110° F and
avoid installing in direct sunlight or close proximity to range,
dishwasher or other heat source.
• For proper ventilation, front grille MUST remain unobstructed.
• Recess electrical outlet when possible.
• Optional Ice Maker Kit (PN # IM116) available for installation in
ice maker-ready models only.
• Water recess on rear wall recommended to prevent water line damage.
• Water Pressure – Cold water line must provide between 30 and 100
pounds per square inch (psi).
• Copper tubing with 1/4" O.D. recommended for water supply line
with length equal to distance from rear of unit to household water
supply line plus 7 additional feet. Optional Water Supply Installation
Kits available.
• Adjustable front rollers to assist with door alignment.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Optional Accessories
• Ice Maker Kit – (PN # IM116).
FGHT1846Q F / P / E 18 Cu. Ft.
Top Mount Refrigerator - 15 Cu. Ft.

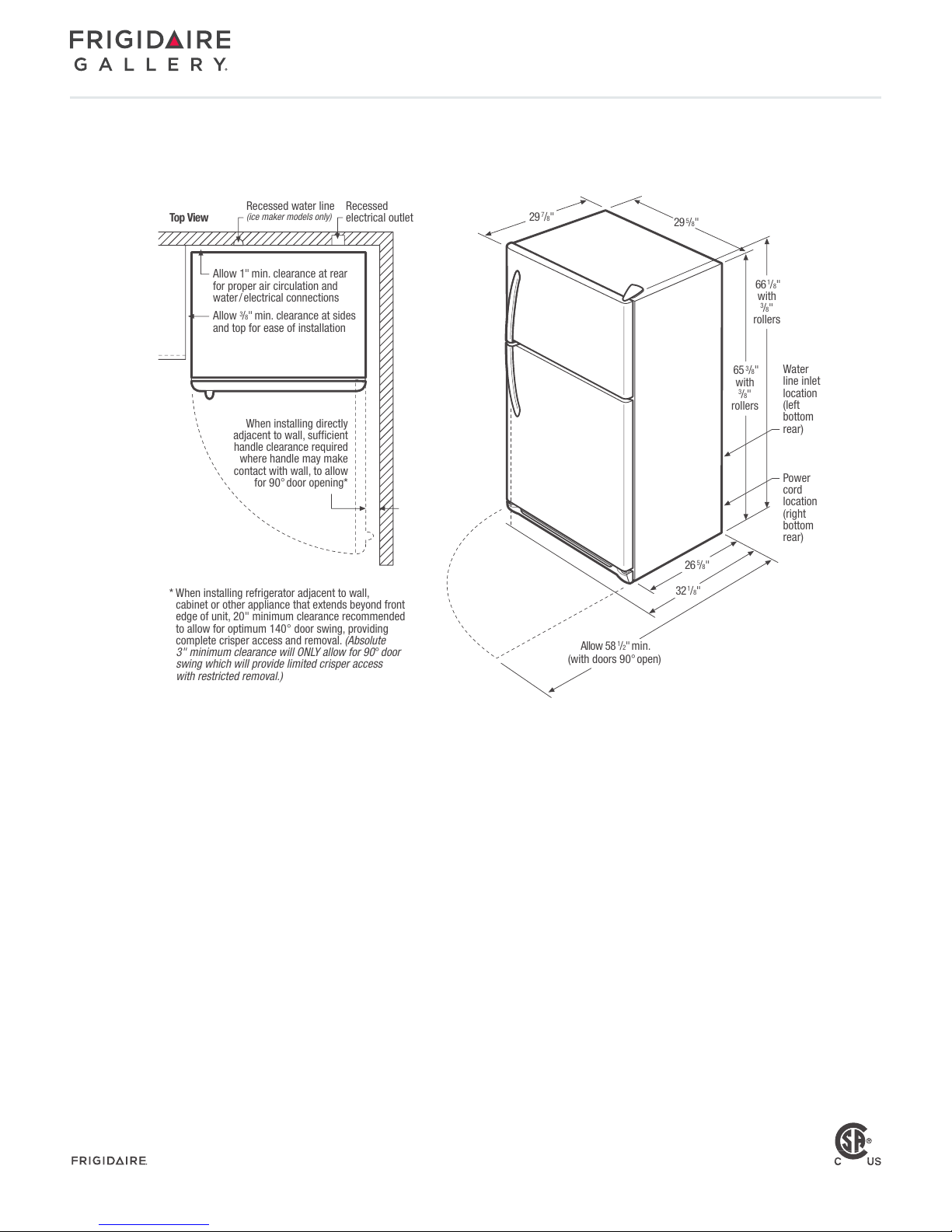

Baseline
Top View
Allow 1" min. clearance at rear
for proper air circulation and
water
/ electrical connections
Allow 3
/8" min. clearance at sides
and top for ease of installation
Recessed water line
(ice maker models only)
Recessed
electrical outlet
* When installing refrigerator adjacent to wall,
cabinet or other appliance that extends beyond front
edge of unit, 20" minimum clearance recommended
to allow for optimum 140°door swing, providing
complete crisper access and removal. (Absolute
3" minimum clearance will ONLY allow for 90°
door
swing which will provide limited crisper access
with restricted removal.)
When installing directly
adjacent to wall, sufficient
handle clearance required
where handle may make
contact with wall, to allow
for 90°door opening*
29
5/8"
Power
cord
location
(right
bottom
rear)
Water
line inlet
location
(left
bottom
rear)
Allow 58
1
/2" min.
(with doors 90°
open)
29
7/8"
26
5/8"
32
1/8"
66
1/8"
with
3/8"
rollers
65 3/8"
with
3/8"
rollers
