Signature Features
26 Cu. Ft. Standard-Depth
Largest Crisper Drawers1
Store more in our largest capacity
crisper drawers.
PureAir Ultra® Filters
Keeps the air cleaner and fresher.
Real Stainless Steel
Real stainless steel with a protective
coating that reduces fingerprints and
smudges so it’s easy to clean.
SpaceWise®
Organization System
Our SpaceWise® organization system
makes it easy to keep food organized
and easy to find when you need it.
Product Dimensions
Height 69-3/8"
(Including Hinges & Rollers)
Width (Doors) 36"
Depth (Including Door) 33"
More Easy-To-Use Features
SpillSafe® Shelves
Designed to keep spills contained, making
cleanup a breeze.
Express-Select™ Controls
Easily select options with the touch of
a button.
Energy Saver Plus Technology2
Our refrigerator will automatically go into
an energy-saving mode if not opened for
24 hours.
PureSource 3® Water Filter
Quiet Pack
Cool Zone™ Drawer
Gallon Door Storage
Full Freezer Basket
ENERGY STAR® Maximum Eciency3
Sabbath Mode (Star-K® Certified)
Available in:
1As compared to other side-by-side models.
2If this refrigerator door is not opened for 24 hours
AND the refrigerator system is set to the 12-hour
defrost cycle, then the system automatically goes
to a 96-hour compressor run time defrost cycle to
conserve electricity.
3Exceeds minimum ENERGY STAR® standard by at
least 30%.
Side-by-Side Refrigerator
FGUS2645L F
Stainless
(F)

Specifications
subject to change.

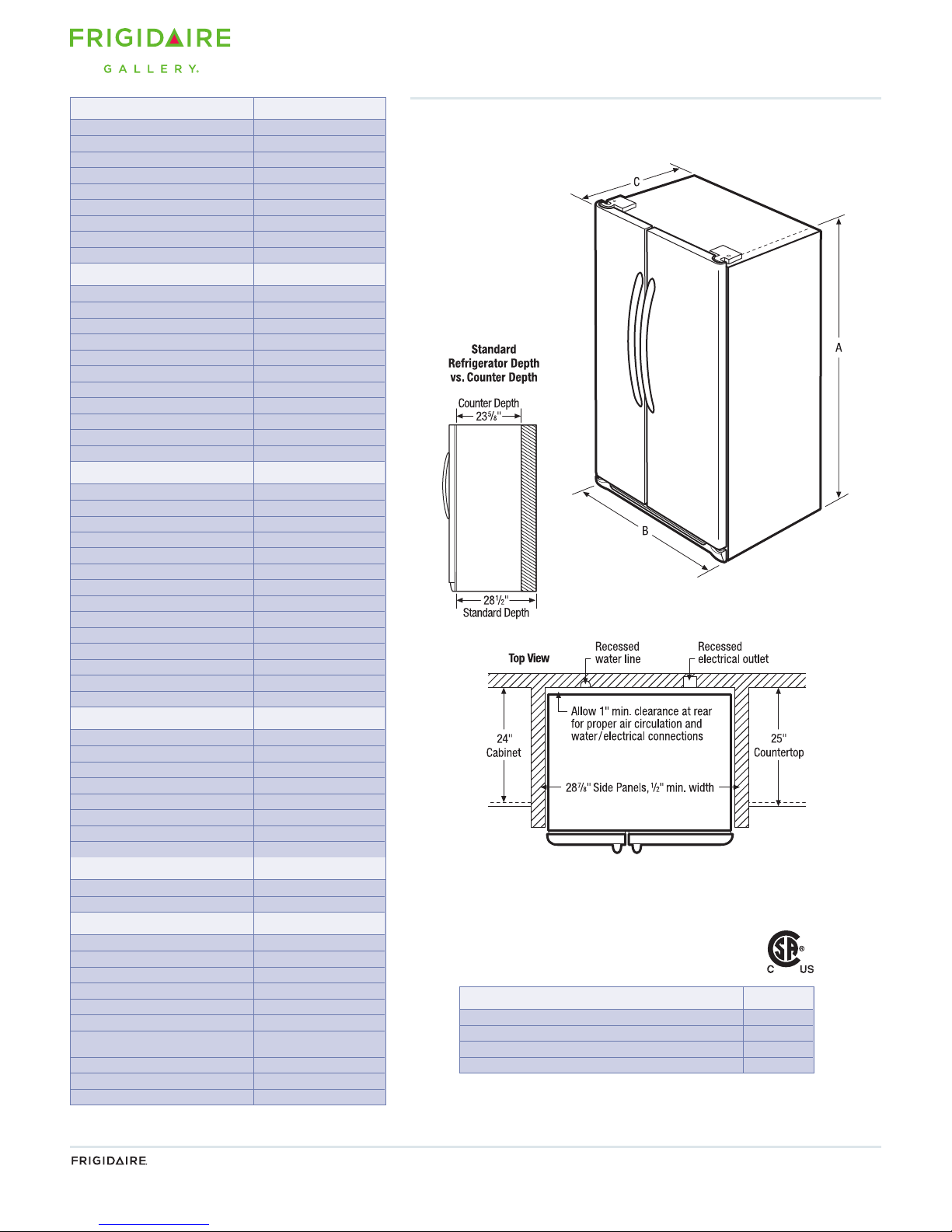

Overall Exterior Dimensions
A - Height (Incl. Hinges and Rollers)
B - Cabinet Width / Door Width
C - Depth (Incl. Door)
Depth with Door Open 90˚
69-3/8"
35-5/8" / 36"
33"
49-7/8"
NOTE: For planning purposes only. Always consult local and national
electric and plumbing codes. Refer to Product Installation Guide for
detailed installation instructions on the web at frigidaire.com.
1Exceeds minimum ENERGY STAR® standard by at least 30%.
2For use on adequately wired 120V, dedicated circuit having 2-wire service with a
separate ground wire. Appliance must be grounded for safe operation.
Features
Door Design
Door Handle Design
Cabinet Finish
Door Stops / Door Closers
Door Hinge Covers
Rollers – Front / Rear
Energy Saver Plus Technology
Water Filter Location
Sound Package
Dispenser
Controls
Dispenser Design
Number of Dispenser Buttons
Crushed Ice / Cube Ice / Chilled Water
Ice Option
Freeze Option
Display On / O Option
Lock / Light
Temp / Door Ajar / Power Failure Alerts
Water Filter Change Indicator Light
Air Filter Change Indicator Light
Refrigerator Features
Interior Lighting
Water Filter Type
Air Filter Type
Fixed Shelves
Sliding Shelves
Cool Zone™ Drawer
Wine / Can Rack
Upper Crisper / Lower Crisper
Humidity Controls
Dairy Compartment
Fixed Door Bins
Adjustable Door Bins
Non-Slip Bin Liner / Bottle Retainers
Condiment Bin
Freezer Features
Door Bins / Tilt-Out Wire Door Bins
Fixed Shelves
Full Extension Baskets
Full Freezer Baskets
Half Freezer Baskets
Ice Cream Shelf / Pizza Shelf
SpaceSaver™ Shelf
Lighting
Certifications
ENERGY STAR® Maximum Eciency1
Sabbath Mode (Star-K® Certified)
Specifications
Total Capacity (Cu. Ft.)
Refrigerator Capacity (Cu. Ft.)
Freezer Capacity (Cu. Ft.)
Power Supply Connection Location
Water Inlet Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 120 Volts2
Amps @ 120 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
Accessories information available
on the web at frigidaire.com
Standard-Depth SxS Refrigerators
Frigidaire Gallery
Soft-Arc
Stainless Steel
Grey
Yes / Yes
Hidden
Adjustable / Yes
Yes
Top Right Rear
Quiet Pack
Express-Select™
Tall, Single Paddle
6
Yes / Yes / Yes
Yes
Yes / Yes
Yes
Standard
PureSource 3®
PureAir Ultra®
2 SpillSafe®
1 SpillSafe®
1 Stacked
1 Clear / 1 Clear
2
1 Clear
2 Two-Liter Clear
2 One-Gallon Clear
4 White / No
1 Flip-Out / 2 Wire
1 Plastic
No / Yes
Yes
Yes
Yes
26
16.5
9.5
Right Bottom Rear
Left Bottom Rear
120V / 60Hz / 15 or 20A
1.02
8.5
15
300 Lbs.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FGUS2645L 11/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
Side-by-Side Refrigerator
FGUS2645L F 26 Cu. Ft. Standard-Depth

Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_SSR FR 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
