Frigidaire FRS20WRH User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRS20WRHD3 FRS20WRH R134a almond 115
FRS20WRHD4 FRS20WRH R134a almond 115
FRS20WRHW3 FRS20WRH R134a white 115
FRS20WRHW4 FRS20WRH R134a white 115
MARKET
North America
Publication No.
5995327466
990908
-EN/SERVICE/KB
357
SIDE BY SIDE
REFRIGERATOR
Model No.
FRS20WRH
©1999 White Consolidated Industries, Inc.
All rights reserved
FACTORY PARTS CATALOG
SIDE BY SIDE
REFRIGERATOR
WIRING DIAGRAM - # 218875901
OWNER’S GUIDE - # 218954200
SERVICE DATA SHEET - # 218905000
101 Masters Blvd.
Anderson, SC 29624

09/99 2
Publication No. FRS20WRH
5995327466
FREEZER DOOR

# = Fast-moving Parts 3 09/99
* = Non-Illustrated Parts
FRS20WRH Publication No.
5995327466
FREEZER DOOR
A = FRS20WRH (FRS20WRHD3)
B = FRS20WRH (FRS20WRHD4)
C = FRS20WRH (FRS20WRHW3)
D = FRS20WRH (FRS20WRHW4)
POS. NO PART NO DESCRIPTION
1 # 215734311 A B C D Gasket-frzr door,white ,magnetic
5 5303288950 A B C D Support-door rack,RH/LH
6 5303323484 A B C D Support-door rack,white ,LH
6A 5303323485 A B C D Support-door rack,white ,RH
8 218807003 A B C D Rack-door,w/end caps
8A 215474048 A B C D Rack-door
9 218748601 A B C D Panel-inner door,frzr
11 5303918092 A B - - Panel-frzr door,almond ,w/insulation
11 5303918090 - - C D Panel-frzr door,white ,w/insulation
13 5303289522 A B C D Door Stop
18 218762704 A B - - Handle-door,almond
18 218762701 - - C D Handle-door,white
21 218886801 A B C D Screw-8-32 X 1/2 #10 Truss ca, 8 32 x 1/2 #10
21A 218578600 A B C D Screw-door stop mtg,phl truss hd, 10-16 x 3/4
22A 215615300 A B C D Bushing-door,bronze
23 5303001020 A B C D Screw,cr flat head ,8-32D x 1/2
37 215867074 A B - - Trim-handle,almond ,upper, w/band,and snap lock
37 215867055 - - C D Trim-handle,white ,upper ,w/band and snap lock
37A 215867073 A B - - Trim-handle,almond ,lower, w/band,and snap locks
37A 215867053 - - C D Trim-handle,white ,lower ,w/band and snap lock
37A* 215782300 A B C D • Lock-handle trim,snap-in
37A* 218676001 A B C D • Band-decorative,chrome ,handle trim
47 218922901 A B C D Wiring Harness,frzr door
58 218781100 A B C D Screw,pan head ,8-18 x 0.625
68 218020600 A B C D Chute-ice
140 218922801 A B C D Elbow-water tube
141 218929601 A B C D Tool-Push Connector
* 215598900 A B C D Washer-flat,.691x1x.05,zinc, I&W hinge brkt
* 5303917276 A B C D Insulation-door,fiberglass ,(bulk)

09/99 4
Publication No. FRS20WRH
5995327466

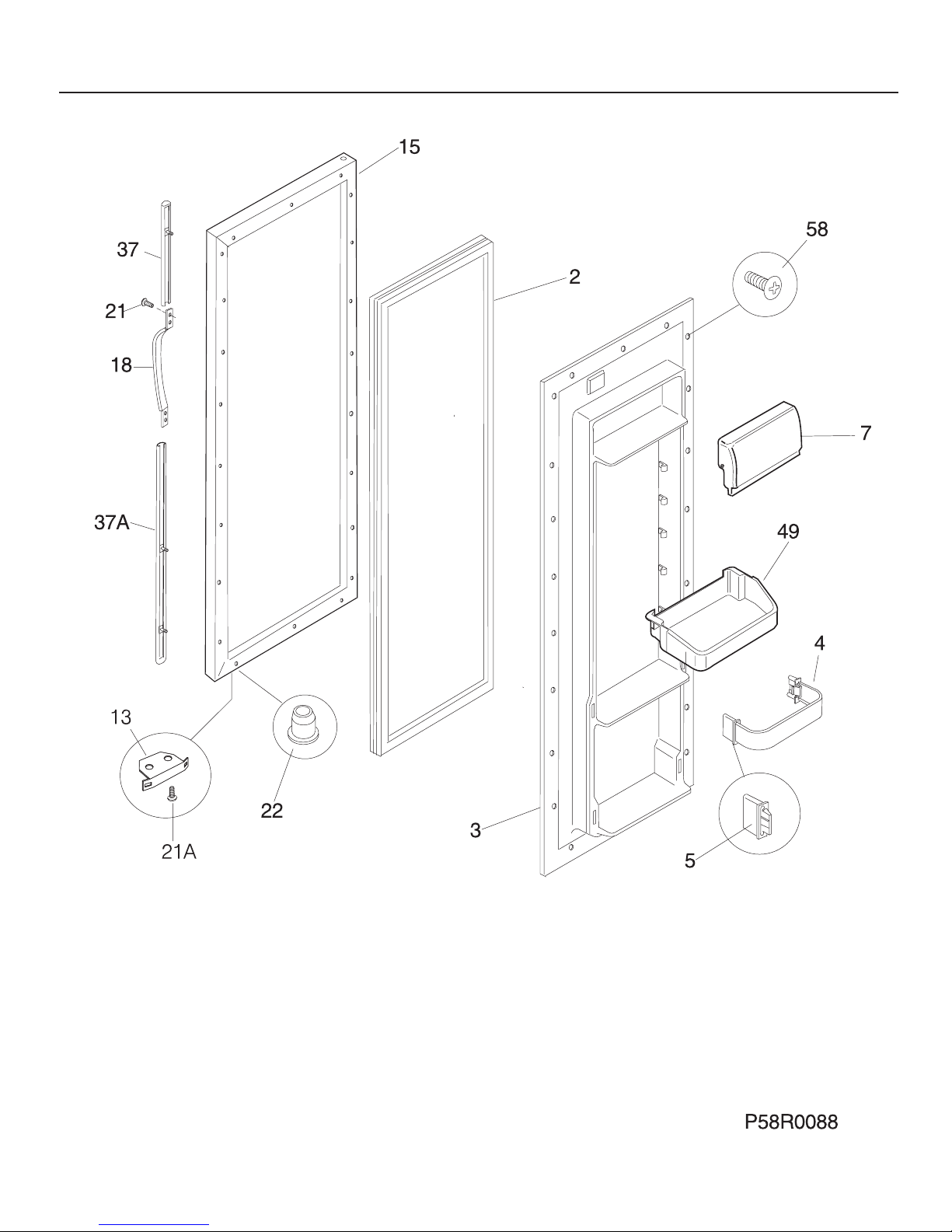

REFRIGERATOR DOOR

# = Fast-moving Parts 5 09/99
* = Non-Illustrated Parts
FRS20WRH Publication No.
5995327466
A = FRS20WRH (FRS20WRHD3)
B = FRS20WRH (FRS20WRHD4)
C = FRS20WRH (FRS20WRHW3)
D = FRS20WRH (FRS20WRHW4)
POS. NO PART NO DESCRIPTION
2 # 215734312 A B C D Gasket-refr door,white ,magnetic
3 218749301 A B C D Panel-inner door,refr
4 218807001 A B C D Rack-door,refr
5 5303288950 A B C D Support-door rack,RH/LH
7 5303304569 A B C D Door-dairy,12.96" wide
13 5303289522 A B C D Door Stop
15 5303917894 A B - - Panel-refr door,almond ,w/foam insulatn
15 5303917893 - - C D Panel-refr door,white ,w/foam insulatn
18 218762704 A B - - Handle-door,almond
18 218762701 - - C D Handle-door,white
21 218886801 A B C D Screw-8-32 X 1/2 #10 Truss ca, 8 32 x 1/2 #10
21A 218578600 A B C D Screw-door stop mtg,phl truss hd, 10-16 x 3/4
22 5303289320 A B C D Bearing-hinge
37 215867074 A B - - Trim-handle,almond ,upper, w/band and snap lock
37 215867055 - - C D Trim-handle,white, upper, w/band and snap lock
37A 215867073 A B - - Trim-handle,almond, lower, w/band and snap lock
37A 215867053 - - C D Trim-handle,white ,lower ,w/band and snap lock
37A* 215782300 A B C D • Lock-handle trim,snap-in
37A* 218676001 A B C D • Band-decorative,chrome ,handle trim
49 215441502 A B C D Bin-door,gallon
58 218781100 A B C D Screw,pan head ,8-18 x 0.625
* 5303917276 A B C D Insulation-door,fiberglass ,(bulk)
REFRIGERATOR DOOR

09/99 6
Publication No. FRS20WRH
5995327466

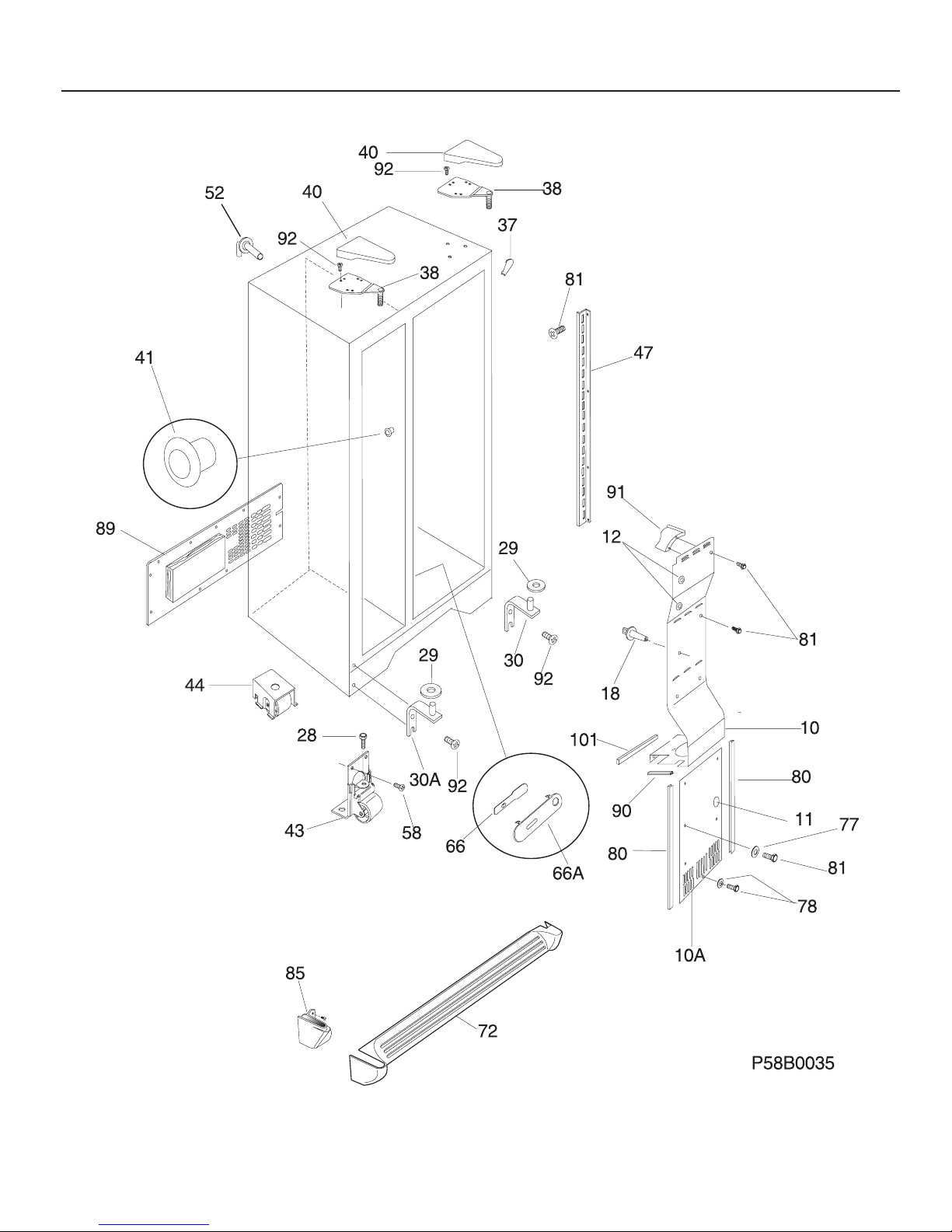

CABINET

# = Fast-moving Parts 7 09/99
* = Non-Illustrated Parts
FRS20WRH Publication No.
5995327466
A = FRS20WRH (FRS20WRHD3)
B = FRS20WRH (FRS20WRHD4)
C = FRS20WRH (FRS20WRHW3)
D = FRS20WRH (FRS20WRHW4)
POS. NO PART NO DESCRIPTION
10 218748901 A B C D Cover-air duct
10* 5308009617 A B C D Washer,ext tooth lock ,#10 ,grounding
10A 218751301 A B C D Cover-evap coil,lower
11 5303208309 A B C D Plug-hole,factory test
12 215230400 A B C D Plug-harness hole
18 5303289043 A B C D Support-air duct cvr,2.55" long
18* 5303289044 A B C D Support-air duct cvr,1.83" long
28 5303289062 A B C D Bolt-roller adj,hex head ,5/16-24 x 7/8
29 215314301 A B C D Washer,.40 x .75 x .06 ,nylon
29* 215598900 A B C D Washer-flat,.691x1x.05,zinc, I&W hinge brkt
29* 218871201 A B C D Washer,nylon ,0.363 ID w/nibs
30 5303289060 A B C D Bracket-lower hinge,RH ,w/hinge pin
30* 218730800 A B C D Tapping Plate,RH
30A 215009000 A B C D Bracket-lower hinge,LH ,w/hinge pin
30A* 218730700 A B C D Tapping Plate,LH
37 5303321082 A B - - Trim-cabinet corner,almond
37 5303321081 - - C D Trim-cabinet corner,white
38 218215221 A B - - Bracket-upper hinge,with closer ,almond, RH
38 218215223 A B - - Bracket-upper hinge,with closer ,almond, LH
38 218215213 - - C D Bracket-upper hinge,with closer ,white, RH
38 218215215 - - C D Bracket-upper hinge,with closer ,white, LH
40 5303318774 A B - - Cover-upper hinge,almond
40 5303318773 - - C D Cover-upper hinge,white
41 5303001609 A B C D Grommet,shelf/rod mtg ,RH
41* 5308009759 A B C D Grommet,shelf mtg ,LH
43 218615300 A B C D Roller Assy,front ,(2)
43* 5308017044 A B C D Screw-roller mtg,spcl ind hex hd, 5/16-18(23)x7/8
44 218738300 A B C D Roller Assy,rear ,(2)
47 218659500 A B C D Channel-shelf mtg,side ,(2)
52 215454600 A B C D Tube-water inlet
58 5308002748 A B C D Screw,hex wshr hd ,8-15A x 0.500, special
66 215050201 A B C D Damper-meat keeper
66A 218171301 A B C D Cover-meat kpr dmpr
72 218359614 A B - - Grille/Kickplate,almond
72 218359613 - - C D Grille/Kickplate,white
77 5303001216 A B C D Washer-nylon,3/16 x 5/8 OD
78 5303274237 A B C D Screw-bracket,hex wshr hd, 8-32CA x 0.500
80 218249802 A B C D Seal-coil cover,(2)
80* 218154003 A B C D Gasket-air duct cvr
81 5308016566 A B C D Screw,hex wshr hd ,8-15A x 0.625, low profile
85 218922703 A B - - Cover-lower hinge,almond
85 218922701 - - C D Cover-lower hinge,white
89 5303288947 A B C D Cover-machine compt
90 215022602 A B C D Seal-foam
90* 5303322647 A B C D Tape-foam
91 218769900 A B C D Deflector-air,air duct cover
92 5303001479 A B C D Screw-hinge mtg,hex hd ,1/4-20 x 0.875
101 215305701 A B C D Seal-foam
101* 218663103 A B C D Gasket-air duct cvr
* 218902101 A B C D Cap-protector, lower hinge
* 5303305325 A B - - Paint,touch-up ,almond
* 5303305324 - - C D Paint,touch-up ,white
* 5308016571 A B C D Plug-button,cab liner holes
CABINET

09/99 8
Publication No. FRS20WRH
5995327466
SHELVES

# = Fast-moving Parts 9 09/99
* = Non-Illustrated Parts
FRS20WRH Publication No.
5995327466
A = FRS20WRH (FRS20WRHD3)
B = FRS20WRH (FRS20WRHD4)
C = FRS20WRH (FRS20WRHW3)
D = FRS20WRH (FRS20WRHW4)
POS. NO PART NO DESCRIPTION
2 5303300707 A B C D Trim-basket
11 218298005 A B C D Shelf-freezer,sliding ,wire
11A 5304405989 A B C D Shelf-freezer
24 215919136 A B C D Frame-refr shelf,cantilever ,(3)
25A 218015301 A B C D Trim-storage pan cvr,snap-on ,front
25C 218015401 A B C D Trim-storage pan cvr,snap-on ,rear
26 5303288971 A B C D Pan-storage,upper
26A 5303288968 A B C D Pan-storage,lower
28 08013638 A B C D End Cap-shelf, protector, lower fzr shelf
29 215919413 A B C D Trim-refr shelf,front ,(3)
40 218498188 A B C D Glass-shelf,14.61" x 14.57" ,w/graphics
41 215919813 A B C D Trim-refr shelf,rear ,(3)
46 5304411658 A B C D Front-storage pan
47 218498189 A B C D Insert-pan cover,glass
47A 215723551 A B C D Insert-pan cover,14.61" x 17.32" ,glass
49 5303288957 A B C D Basket-sliding
51 5303288960 A B C D Hanger-basket,RH
52 215162501 A B C D Hanger-basket,LH,with/spring
57 5303271653 A B C D Ferrule-inner
81 5308016566 A B C D Screw,hex wshr hd ,8-15A x 0.625, low profile
96 215192600 A B C D Support-water tank
97 218942701 A B C D Water Tank
100A 218015501 A B C D Support-pan cover,LH
100B 218015601 A B C D Support-pan cover,RH
101 215005000 A B C D Screw,hex wshr hd ,8-18AB x 0.750, gusset/hanger
126 218867401 A B C D Channel,auger mtg ,LH
126 218867402 A B C D Channel,auger mtg ,RH
* 215328300 A B C D Clip-shelf
SHELVES

09/99 10
Publication No. FRS20WRH
5995327466

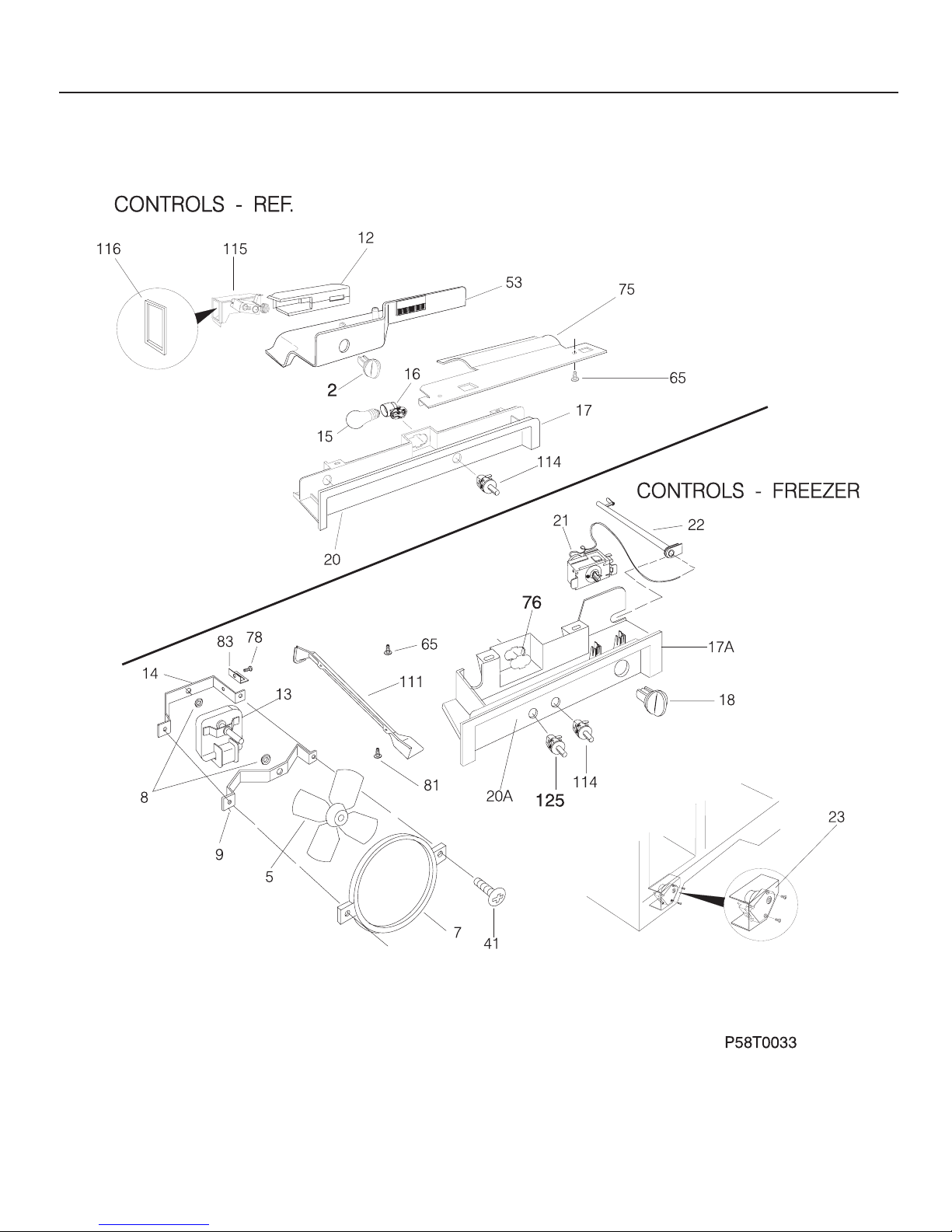

CONTROLS

# = Fast-moving Parts 11 09/99
* = Non-Illustrated Parts
FRS20WRH Publication No.
5995327466
A = FRS20WRH (FRS20WRHD3)
B = FRS20WRH (FRS20WRHD4)
C = FRS20WRH (FRS20WRHW3)
D = FRS20WRH (FRS20WRHW4)
POS. NO PART NO DESCRIPTION
2 215028605 A B C D Knob-damper control
5 # 5308000010 A B C D Fan Blade,red
7 5308000124 A B C D Ring-fan orifice
8 5300157666 A B C D Bushing-motor mtg,(2)
9 5303205118 A B C D Bracket-motor mtg,front
12 215809600 A B C D Diffuser-air
13 # 215426200 A B C D Motor-evap fan
13* 215474201 A B C D Washer,"slinger" ,nylon ,evap fan shaft
14 5303205119 A B C D Bracket-motor mtg,rear
15 5303001179 A B C D Light Bulb/Lamp,40 W
16 5303289050 A B C D Socket-light/lamp
17 5303296808 A B C D Control Box,refr
17A 5303321928 A B C D Control Box,frzr
17A* 215188300 A B C D Screw-control box mtg,hex hd, 8-15A x 1.000,refr/frzr
18 5303308568 A B C D Knob-temp control,frzr
20 5303325668 A B C D Label-control box,refr
20A 5303321926 A B C D Label-control box,frzr
21 # 5303300027 A B C D Control-temperature
22 5303319683 A B C D Housing-temp sensor,plastic
22* 218731102 A B C D Tube,insulator ,PVC ,white, on temp sensor
23 # 215846602 A B C D Timer-defrost
23* 215277000 A B C D Cover-defrost timer,top
23* 5303001259 A B C D Screw-timer mtg,pan hd ,6-20 x 0.438
23* 5303289058 A B C D Shield-defrost timr,btm
41 5308000039 A B C D Screw,hex wshr hd ,8-32CA x 0.500, serrated head
41* 5303209814 A B C D Nut,"U" type ,8-15(A) ,fan mtr mtg
53 215809505 A B C D Box-damper control
65 5303001361 A B C D Pin-mounting,push-in ,plastic
75 218465101 A B C D Shield-light,refr
76 218225800 A B C D Cover-light socket
78 5303274237 A B C D Screw-bracket,hex wshr hd, 8-32CA x 0.500
81 5308016566 A B C D Screw,hex wshr hd ,8-15A x 0.625, low profile
83 5308000107 A B C D Bracket-connector
111 5303289024 A B C D Wireway,frzr
114# 5303289051 A B C D Switch-light/lamp,white
115 215011503 A B C D Damper Assy,w/seal
116 215011400 A B C D Seal-damper,foam
125 215334201 A B C D Switch-auger kill,white
CONTROLS

09/99 12
Publication No. FRS20WRH
5995327466
SYSTEM

# = Fast-moving Parts 13 09/99
* = Non-Illustrated Parts
FRS20WRH Publication No.
5995327466
A = FRS20WRH (FRS20WRHD3)
B = FRS20WRH (FRS20WRHD4)
C = FRS20WRH (FRS20WRHW3)
D = FRS20WRH (FRS20WRHW4)
POS. NO PART NO DESCRIPTION
1 # 218787700 A B C D Condenser
1* 5303208866 A B C D Spacer-cond tube,black
1* 5303289026 A B C D Spacer-tube
2 5303289029 A B C D Clip-cond mtg,(4)
3 218679603 A B C D Block-evap coil,styrofoam ,(2)
4# 218944001 A B C D Drier-filter,R134a System
5 218646100 A - C - Wiring Harness,main
5 218959901 - B - D Wiring Harness,main
5* 215005200 A B C D Wiring Harness,refr controls
5* 218815101 A B C D Wiring Harness,frzr controls
6 218897101 A - C - Wiring Harness,machine compt
6 218960001 - B - D Wiring Harness,machine compt
7 215459201 A B C D Cord-electric power
8 218803400 A B C D Cover-wiring
13 # 215006701 A B C D Heat Exchanger,suction line
14 # 218169801 A B C D Heater-defrost
15 # 218691302 A B C D Evaporator,R134a System
15* 3206414 A B C D Tube-inlet
16 5308000110 A B C D Strap-evap/heater,aluminum ,(2)
17 5303289042 A B C D Insulator-evap
19 218631200 A B C D Tube,rubber
21 # 5316269001 A B C D Thermostat-defrost
22 218811100 A B C D Base-compressor mtg,(drain pan)
22* 3051070 A B C D Screw,hex washer head ,10-24 x 0.438, special
23 218513300 A B C D Grommet-compr mtg,(4)
25 218773500 A B C D Screw-compressor mtg,hex washer hd, 10Bx11/4
29 # 218894801 A B C D Compressor,R134a ,w/o electricals
30 # 218721105 A B C D Starter-PTC
32 218888601 A B C D Wire-bale
41 5308000039 A B C D Screw,hex wshr hd ,8-32CA x 0.500, serrated head
43 215174700 A B C D Clamp-service cord,strain relief, galv steel
43* 5303001199 A B C D Clamp-wiring harness,strain relief, galv steel
43* 5308000133 A B C D Clamp,nylon ,.75 OD tube
45 218769200 A B C D Screw,hx wshr hd spec ,#6-32 x .5
45* 5300141713 A B C D Screw,hex wshr hd ,8-32 x 0.625 ,spec
49 215506900 A B C D Bracket-evap mtg
54 5303289027 A B C D Rail-cabinet base,rear
54* 215732700 A B C D Screw,pan head ,10-12A x 0.50
54A 5303289311 A B C D Rail-compr support
54B 5303289292 A B C D Rail-cabinet base,front
55 # 218909902 A B C D Capacitor-run,180 VAC ,20 microfarad
55* 218897001 A B C D Screw,hex washer head ,8-32 x 1/4
56 218769300 A B C D Insert-compressor mtg
57 218247300 A B C D Clip-wiring harness
58 215004600 A B C D Screw-cond fan mtr,hx serr wshr hd, 8-36 x 7/16,(2)
59 5303289031 A B C D Shroud-cond fan mtr
60 # 215501901 A B C D Motor-condenser fan
61 5303289032 A B C D Blade-cond fan
61* 215004700 A B C D Nut,speed
61* 215004800 A B C D Grommet-silencer
62 215048201 A B C D Trough-drain,w/shield assy & #17 insulator
64 5303289063 A B C D Tube-drain
65 5303289301 A B C D Spacer-tube
70 5303289041 A B C D Bracket-evap/cvr mtg
81 5308016566 A B C D Screw,hex wshr hd ,8-15A x 0.625, low profile
* 5303917166 A B C D Hot Tube Repair Kit,Service
SYSTEM

09/99 14
Publication No. FRS20WRH
5995327466
DISPENSER

# = Fast-moving Parts 15 09/99
* = Non-Illustrated Parts
FRS20WRH Publication No.
5995327466
A = FRS20WRH (FRS20WRHD3)
B = FRS20WRH (FRS20WRHD4)
C = FRS20WRH (FRS20WRHW3)
D = FRS20WRH (FRS20WRHW4)
POS. NO PART NO DESCRIPTION
1 5318582501 A B C D Tube-water inlet, 93", plastic, cut-to-size
1* 218949201 A B C D Tube-water inlet, formed, plastic, dispenser
2 218505302 A B - - Deflector-ice disp,almond
2 218505301 - - C D Deflector-ice disp,white
3 # 215484300 A B C D Heater-door housing
4 218852402 A B - - Housing-dispenser,almond
4 218852401 - - C D Housing-dispenser,white
7 218284800 A B C D Switch-actuator,micro
8 218874901 A B C D Module-dispenser
10 218209800 A B C D Spring,dispenser door
12 218836202 A B - - Knob-selector,almond
12 218836201 - - C D Knob-selector,white
12A 218925402 A B - - Knob-selector,almond
12A 218925401 - - C D Knob-selector,white
12A* 218925501 A B C D Spring-knob
14 218416187 A B - - Label-module cover,almond
14 218416186 - - C D Label-module cover,white
15 218284900 A B C D Light Bulb/Lamp,4 W ,115 V
16 215284900 A B C D Socket-light/lamp
17 215794400 A B C D Screw,#6 x 1/4
17A 215840700 A B C D Screw,truss head ,6-20 x 3/8
17A* 215923400 A B C D Washer-flat
23 5303297845 A B - - Drip Tray,almond
23 5303297844 - - C D Drip Tray,white
24 218921302 A B - - Actuator,almond
24 218921301 - - C D Actuator,white
26 215503200 A B C D Screw,cr pan hd, 10-16 x 0.500, spec/hi-lo
27 218432600 A B C D Cam-slide
27A 218814901 A B C D Rocker-switch
28 218906202 A B - - Cover-module,almond
28 218906201 - - C D Cover-module,white
30 215753600 A B C D Door Assy-ice chute,w/gasket,insul
33 218870201 A B C D Heater-disp throat
35 # 218740002 A B C D Heat Motor,115 V
36 218835601 A B C D Cover-slctr switch,ice dispenser
38A# 218479900 A B C D Switch-micro,single pole ,double throw
39 218284600 A B C D Wire-ice door
40 218284500 A B C D Yoke-heat motor
41 215765400 A B C D Spring-actuator
43 215760300 A B C D Screw,#4 x 3/8
49 215794000 A B C D Bracket-heat motor
56 218434300 A B C D Screw-micro switch,pan head, 4-24 x 9/16
82 215296300 A B C D Screw,plask h/l ,#6 x 3/8
* 215781700 A B C D Clip-tube
* 218863107 A B C D Wiring Harness,disp

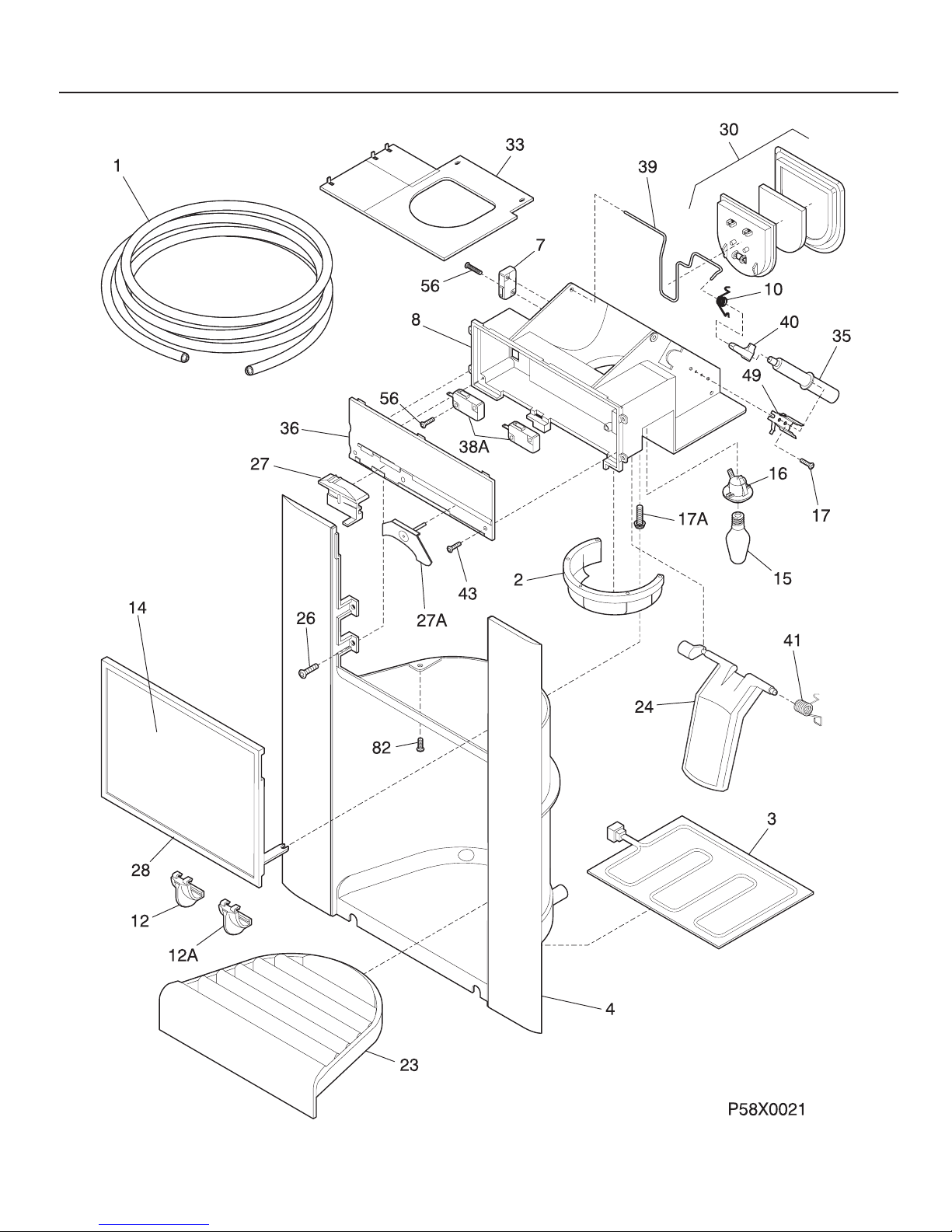

DISPENSER

09/99 16
Publication No. FRS20WRH
5995327466
ICE CONTAINER

# = Fast-moving Parts 17 09/99
* = Non-Illustrated Parts
FRS20WRH Publication No.
5995327466
A = FRS20WRH (FRS20WRHD3)
B = FRS20WRH (FRS20WRHD4)
C = FRS20WRH (FRS20WRHW3)
D = FRS20WRH (FRS20WRHW4)
POS. NO PART NO DESCRIPTION
2 5304404344 A B C D Auger-ice
3 5304404343 A B C D Cam-drive
4 218815300 A B C D Container-ice
6 5304404346 A B C D Drum-ice disp
7 218815400 A B C D Front-ice container
10 5304404337 A B C D Bar-drive
13 5304404359 A B C D Gate
15 5303001179 A B C D Light Bulb/Lamp,40 W
16 # 5303289050 A B C D Socket-light/lamp
17 5304404345 A B C D Drive Blade
18 # 218815702 A B C D Motor-auger
18* 5304407107 A B C D Wiring Harness,auger motor
20 5304407106 A B C D Cover-motor
21 215285100 A B C D Nut-drive
23 5304404347 A B C D Plate-front
25 5304404362 A B C D Screw
26 215503200 A B C D Screw,cr pan hd ,10-16 x 0.500, spec/hi-lo
33 5304404351 A B C D Spacer
34 5304404349 A B C D Spacer
39 5304404365 A B C D Screw
41 5304404358 A B C D Housing-crusher
44 218359200 A B C D Screw,pan head ,8-32 x 0.250
49 5304404329 A B C D Rail Assy
51 5304404336 A B C D Rotation Stop
54 5304404357 A B C D Nut-auger
55 5304404360 A B C D Washer
56 5304404361 A B C D E-ring
57 5304404363 A B C D Door-access
* 215781700 A B C D Clip-tube
* 218842801 A B C D Ice Container Assy
ICE CONTAINER

09/99 18
Publication No. FRS20WRH
5995327466
ICE MAKER

# = Fast-moving Parts 19 09/99
* = Non-Illustrated Parts
FRS20WRH Publication No.
5995327466
A = FRS20WRH (FRS20WRHD3)
B = FRS20WRH (FRS20WRHD4)
C = FRS20WRH (FRS20WRHW3)
D = FRS20WRH (FRS20WRHW4)
POS. NO PART NO DESCRIPTION
1 5318582501 A B C D Tube-water inlet, 93", plastic, cut-to-size
1* 218949201 A B C D Tube-water inlet, formed, plastic, dispenser
2 3206348 A B C D Spring,shut-off arm
3 3206299 A B C D Plate-I.D.
4 3206301 A B C D Gear
5 3206303 A B C D Plate-mounting
6 3206305 A B C D Screw-ground wire,8-32 x 1/4
7 # 3206306 A B C D Motor-ice maker
8 3206312 A B C D Spacer-holding sw
9 3206313 A B C D Cam
10 3206315 A B C D Clamp
11 # 3206319 A B C D Thermal Cutoff,icemaker ,complete assy
12 # 3206349 A B C D Wiring Harness,IM internal ,with plug
12 3206321 A B C D • Connector Plug,wiring harness
13 # 3206322 A B C D Thermostat Assy,ice maker
14 3206323 A B C D Screw-switch mtg,4-24 x 3/4, sw to support,(2)
15 # 3206324 A B C D Switch,(3)
16 3206326 A B C D Support
17 # 5303320545 A B C D Mold-ice maker,radius cube ,with heater
18 3206328 A B C D Ejector
19 3206330 A B C D Bearing & Inlet
20 3206331 A B C D Screw,8-18 x 0.375 ,(2)
21 3206332 A B C D Ice Stripper
22 3206333 A B C D Arm,shut-off
23 3206334 A B C D Screw-sup/mold body,8-18 x 1 ,(4)
24 3206335 A B C D Lever-arm
25 3206336 A B C D Screw-arm levr/sprt,8-18 x 9/16
26 3206337 A B C D Screw-thermo/sprt,4-24 x 3/8 ,(4)
27 3206338 A B C D Screw-sw&spcr/plate,4-40 x 1
28 3206339 A B C D Screw-timing stop,4-40 x 3/8
29 3206340 A B C D Screw-mtr & sw/plate,4-40 x 3/4
30 3206341 A B C D Screw-timing,8-32 x 1
31 3206342 A B C D Insulator
32 3206343 A B C D Plate-valve switch
33 3206344 A B C D Spring
34 3206345 A B C D Screw-mtg plate/sprt,8-18 x 7/16
35 3206346 A B C D Screw-gear/cam,6-20 x 0.437
36 3206347 A B C D Cover-ice maker,complete
37 5303320544 A B C D Data Sheet,ice maker
38 5303207445 A B C D Envelope-data sheet
44 5308000133 A B C D Clamp,nylon ,.75 OD tube
45 5303001343 A B C D Screw,hex wshr hd ,8-15A x 0.500 ,spec
46 5303001193 A B C D Clamp-inlet tube,metal
47 5308000205 A B C D Adapter-water sply,straight
51 215811600 A B C D Tube-fill
55 # 218720500 A B C D Valve-water,dual solenoid ,115 V
55* 215290100 A B C D Screw-solenoid valve,hx hd-slot wshr, 12-24 x 3/4
55* 218835800 A B C D Cap-water valve
59 5303001191 A B C D Sleeve-tube insert
60 5303207328 A B C D Screw,hex wshr hd ,8-15A x 1
61 218721500 A B C D Bracket-leveling,ice maker
62 218737900 A B C D Screw-IM brkt mtg,hex hd ,8-32 x 0.375
64 5303001549 A B C D Clamp-copper tube,steel
* 218699501 A B C D Icemaker,radius cube ,no instl parts
ICE MAKER

09/99 20
Publication No. FRS20WRH
5995327466
WIRING SCHEMATIC
