Frigidaire FRS26HF5A User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRS26HF5AB0 FRS26HF5A R134a black 115
FRS26HF5AQ0 FRS26HF5A R134a bisque 115
FRS26HF5AW0 FRS26HF5A R134a white 115
MARKET
North America
Publication No.
5995357604
010815
-EN/SERVICE/KHB
357
SIDE BY SIDE
REFRIGERATOR
Model No.
FRS26HF5A
©2001 White Consolidated Industries, Inc.
All rights reserved
WIRING DIAGRAM - # 240389604
OWNER’S GUIDE - # 240389302
SERVICE DATA SHEET - #240389604
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. BOX 212378, Augusta, GA 30917
FACTORY
PARTS CATALOG

08/01 2
Publication No. FRS26HF5A
5995357604
FREEZER DOOR

# = Fast-moving Parts 3 08/01
* = Non-Illustrated Parts
FRS26HF5A Publication No.
5995357604
FREEZER DOOR
A = FRS26HF5A (FRS26HF5AB0)
B = FRS26HF5A (FRS26HF5AQ0)
C = FRS26HF5A (FRS26HF5AW0)
POS. NO PART NO DESCRIPTION
1 # 240390606 A - - Gasket-frzr door,black ,magnetic
1 # 240390602 - B C Gasket-frzr door,white ,magnetic
4A 240334201 A B C Bin-door,frzr-upper
4B 240351601 A B C Bin-door
11 240451814 A - - Panel-frzr door,black ,complete assy
11 240451809 - B - Panel-frzr door,bisque ,complete assy
11 240451803 - - C Panel-frzr door,white ,complete assy
13A 240456906 A - - Door Stop,black ,frzr
13A 240456904 - B - Door Stop,bisque ,frzr
13A 240456902 - - C Door Stop,white ,frzr
18 240359108 A - - Handle-door,black
18 240359109 - B - Handle-door,bisque
18 240359106 - - C Handle-door
21A 218252200 A B C Screw,#8 truss hd ,10-32CA x 0.500
21C 218781100 A B C Screw,pan head ,8-18 x 0.625
22A 240328202 A B C Bearing-hinge,closer
22C 240328404 A - - Bearing-hinge,black ,upper
22C 240328402 - B C Bearing-hinge,upper
37 240359203 A - - Trim-handle,30.13" ,black ,lower
37 240359204 - B - Trim-handle,30.13" ,bisque ,lower
37 240359201 - - C Trim-handle,30.13" ,white ,lower
68 240467701 A B C Chute-ice
72 240421701 A B C Button-handle mtg,dovetail
73 218396700 A B C Block-handle mtg,dovetail
73A 240339101 A B C Clip-trim
74 215503200 A B C Screw,cr pan hd ,10-16 x 0.500
96 240345504 A - - Plug-foam hole,black
96 240345503 - B C Plug-foam hole,white
* 240323201 A B C Wiring Harness
* 240352101 A B C Connector-water,straight
* 5303918256 A B C Dispenser heater kit

08/01 4
Publication No. FRS26HF5A
5995357604
REFRIGERATOR DOOR

# = Fast-moving Parts 5 08/01
* = Non-Illustrated Parts
FRS26HF5A Publication No.
5995357604
A = FRS26HF5A (FRS26HF5AB0)
B = FRS26HF5A (FRS26HF5AQ0)
C = FRS26HF5A (FRS26HF5AW0)
POS. NO PART NO DESCRIPTION
2 # 240390605 A - - Gasket-refr door,black ,magnetic
2 # 240390601 - B C Gasket-refr door,white ,magnetic
4 240323001 A B C Bin-door,Pseudo ,bottom
7 240326203 A B C Door-dairy
13 240456905 A - - Door Stop,black ,ref
13 240456903 - B - Door Stop,bisque ,ref
13 240456901 - - C Door Stop,white ,ref
15 240451908 A - - Panel-refr door,black ,complete assy
15 240451904 - B - Panel-refr door,white ,complete assy
15 240451900 - - C Panel-refr door,white ,complete assy
18 240359103 A - - Handle-door,white
18 240359104 - B - Handle-door,bisque
18 240359101 - - C Handle-door
21A 218252200 A B C Screw,#8 truss hd ,10-32CA x 0.500
21C 218781100 A B C Screw,pan head ,8-18 x 0.625
22 240328201 A B C Bearing-hinge,closer
22B 240328403 A - - Bearing-hinge,upper
22B 240328401 - B C Bearing-hinge,upper
37 240359203 A - - Trim-handle,30.13" ,black ,lower
37 240359204 - B - Trim-handle,30.13" ,bisque ,lower
37 240359201 - - C Trim-handle,30.13" ,white ,lower
49 240356401 A B C Bin-door,gallon
72 240421701 A B C Button-handle mtg,dovetail
73 218396700 A B C Block-handle mtg,dovetail
73A 240339101 A B C Clip-trim
74 215503200 A B C Screw,cr pan hd ,10-16 x 0.500
96 240345504 A - - Plug-foam hole,black
96 240345503 - B C Plug-foam hole,white
REFRIGERATOR DOOR

08/01 6
Publication No. FRS26HF5A
5995357604
CABINET

# = Fast-moving Parts 7 08/01
* = Non-Illustrated Parts
FRS26HF5A Publication No.
5995357604
A = FRS26HF5A (FRS26HF5AB0)
B = FRS26HF5A (FRS26HF5AQ0)
C = FRS26HF5A (FRS26HF5AW0)
POS. NO PART NO DESCRIPTION
10 240435902 A B C Cover-air duct
10A 240475902 A B C Cover-evap coil,lower
11 5303208309 A B C Plug-hole,factory test
14 # 240413601 A B C Switch-light/lamp
14A# 215486600 A B C Switch-light/lamp
21C 218252200 A B C Screw,#8 truss hd ,10-32CA x 0.500
22 240457701 A B C Plate-door closer
23 240402701 A B C Screw-#10-32 x 1/4 flat hd
28 240335501 A B C Bolt-roller adj,hex wshr hd,1/4-20 x 4.020,(2),special
30 240419101 A B C Bracket-lower hinge, ref
30A 240419102 A B C Bracket-lower hinge
37 240337603 A - - Trim-cabinet corner,black
37 240337604 - B - Trim-cabinet corner,bisque ,(2)
37 240337601 - - C Trim-cabinet corner,white ,(2)
38 240327201 A B C Bracket-upper hinge
40 240327003 A - - Cover-upper hinge,black
40 240327002 - B - Cover-upper hinge,bisque
40 240327001 - - C Cover-hinge
41 240358701 A B C Grommet-shelf mtg,1.40" long
41* 240358801 A B C Grommet-shelf mtg,.875" long
42 240315301 A B C Screw-hinge mtg,hex head ,1/4-20 x 0.75
43 240335003 A B C Roller Assy,front ,(2)
45 241500301 A B C Screw,#8 18 x .500 ,(3)
47 240349401 A B C Channel-shelf mtg,side ,(2)
58 218749600 A B C Screw,#10 pan hd ,8-18 x .5
66 240470201 A B C Cover-damper
66A 240470301 A B C Damper-meat keeper
66B 240355901 A B C Insulation-damper
72 240324406 A - - Grille/Kickplate,black
72 240324404 - B - Grille/Kickplate,bisque
72 240324402 - - C Grille/Kickplate,white
81 5308016566 A B C Screw,hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B C Roller,compressor base ,rear ,(2)
83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 240326104 A B C Cover-access,w/ label
90 218249808 A B C Seal-coil cover
91 240380101 A B C Duct-ice maker
92 5303001479 A B C Screw-hinge mtg,hex hd ,1/4-20 x 0.875
100 240423701 A B C Support-crspr cover,(4)
100* 240350802 A B C Support-crspr cover,(4)
150 240368701 A B C Guide-control bulb
* 240396801 A B C Clamp,tube/wiring ,nylon ,black/natural
* 5303305345 A - - Paint,touch-up ,black
* 5304414035 - B - Paint,touch-up ,bisque
* 5303305324 - - C Paint,touch-up ,white
CABINET

08/01 8
Publication No. FRS26HF5A
5995357604
SHELVES

# = Fast-moving Parts 9 08/01
* = Non-Illustrated Parts
FRS26HF5A Publication No.
5995357604
A = FRS26HF5A (FRS26HF5AB0)
B = FRS26HF5A (FRS26HF5AQ0)
C = FRS26HF5A (FRS26HF5AW0)
POS. NO PART NO DESCRIPTION
2 240434602 A B C Trim-basket
11 240338802 A B C Shelf-freezer,flip-up
11A 240338704 A B C Shelf-freezer,fixed wire
11C 240324101 A B C Shelf-pizza
24 240355208 A B C Shelf-"Spill-Safe",fixed
24A 240355207 A B C Shelf-"Spill-Safe",cantilever, half width,fixed
24B 240350108 A B C Shelf-"Spill-Safe",cantilever ,sliding
25 240350701 A B C Cover-crisper pan,upper
25* 240362101 A B C Clip-slide,cover-crisper
25A 240350901 A B C Cover-crisper pan,lower
26 240351005 A B C Pan-crisper,upper
26* 240349801 A B C Clip-slide,pan-crisper
26A 240362201 A B C Control-humidity
27 240351205 A B C Pan-crisper,lower
39 240430706 A B C Trim-shelf,11.21" ,front
39A 240430702 A B C Trim-shelf,12.39" ,front
42 240356501 A B C Hanger-meat pan,RH
42A 240349701 A B C Hanger-meat pan,LH
42A* 240350001 A B C Spring-meat pan rail
42A* 240349901 A B C Block-meat pan rail,LH
42A* 240356702 A B C Seal-meat pan
47 240350633 A B C Insert-pan cover,glass
47A 240350603 A B C Insert-pan cover,glass
49 240338402 A B C Basket-sliding
49B 240338502 A B C Basket-sliding,upper ,half
51 240343001 A B C Hanger-basket,RH
52 240343101 A B C Hanger-basket,LH
54 240351901 A B C Plug-hanger,right hand
55 240352001 A B C Plug-hanger,left hand
62 240342805 A B C Pan-meat
81 5308016566 A B C Screw,hex washer head, 8-15A x 0.625, low profile
97 240453003 A B C Water Tank Assy,with tubes
100 240326302 A B C Cover-water tank
101 218493100 A B C Screw,hex washer head ,8-18AB x 1-3/4
123 215005100 A B C Screw-roller/hanger,8-10 x 0.438
126 218867401 A B C Channel,auger mtg ,LH
126 218867402 A B C Channel,auger mtg ,RH
SHELVES

08/01 10
Publication No. FRS26HF5A
5995357604

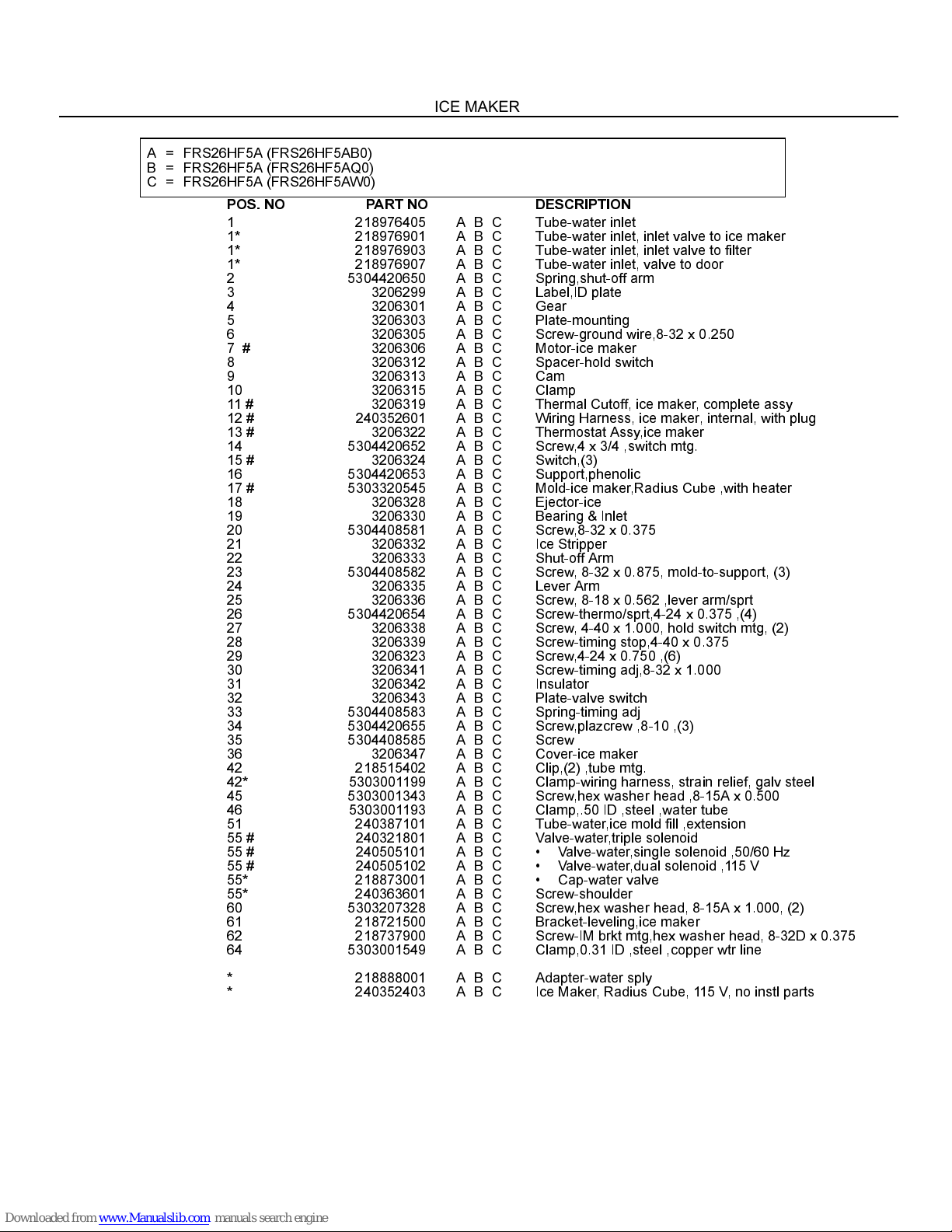

CONTROLS
