Frigidaire FRS3R3E User manual

N58L00001.eps N58FAAAAB4.eps N58RAAABB4.eps N58BAAAAA0.eps
N58SJCACA21.eps N58TAAAAA6.eps N58CAAAAA5.eps N58XDAAAA1.eps
N58YBAAAA6.eps N58I1151.eps W241708401.eps S241708401.eps
Product No. FRS3R3EW9
Series R134a
Color white
Volts 115
Wiring Diagram 241708401
Owner's Guide 241856000
Market North America
Energy Guide 241615410
Service Data Sheet 240389629
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995501722
07/10/08
(EN/SERVICE/RLF)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FRS3R3E
Copyright ©All rights reserved.

Publication No: 5995501722 FRS3R3EW9
10/07 2
FREEZER DOOR

FRS3R3EW9 Publication No: 5995501722
# Functional Parts 3 10/07
* Non-Illustrated Parts
FREEZER DOOR
POS. NO PART NO. DESCRIPTION
1 # 241786004 Gasket-frzr door, white, magnetic
4A 240367301 Bin-door, frzr-upper
4B 240359001 Bin-door
11 241668103 Door-frzr, white, complete assy
13A 240581902 Door Stop, white, frzr
18 218762701 Handle-door, white
21A 240598402 Screw, 10-32 x 1/2
21C 218781101 Screw, pan head, 8-18 x 0.625
22A 240328202 Bearing-hinge(frz), closer
22C 240328402 Bearing-hinge, natural, upper
37A 215870629 Trim-handle, 2.47", white, w/satin AL band
37A* 218676004 Band-decorative, satin aluminum, handle trim
68 241525101 Chute-ice
* 240451503 Screw, ind hex wshr hd, 8-32 x 0.375, trilobe
* 240552101 Harness-wiring, door
* 241806601 Connector-water, straight
* 5303918256 Dispenser heater kit

Publication No: 5995501722 FRS3R3EW9
10/07 4
REFRIGERATOR DOOR

FRS3R3EW9 Publication No: 5995501722
# Functional Parts 5 10/07
* Non-Illustrated Parts
REFRIGERATOR DOOR
POS. NO PART NO. DESCRIPTION
2 241786003 Gasket-refr door, white, magnetic
4 240363701 Bin-door, 2-liter
7 240338303 Door, dairy, clear
13 240581901 Door Stop, white, refr
15 240451911 Door-refr, white, complete assy
18 218762701 Handle-door, white
21A 240598402 Screw, 10-32 x 1/2
21C 218781101 Screw, pan head, 8-18 x 0.625
22 240328201 Bearing-hinge(ref), closer
22B 240328402 Bearing-hinge, natural, upper
37A 215870629 Trim-handle, 2.47", white, w/satin AL band
37A* 218676004 Band-decorative, satin aluminum, handle trim
49 240324501 Bin-door, gallon

Publication No: 5995501722 FRS3R3EW9
10/07 6
CABINET

FRS3R3EW9 Publication No: 5995501722
# Functional Parts 7 10/07
* Non-Illustrated Parts
CABINET
POS. NO PART NO. DESCRIPTION
10 240435911 Cover-air duct
10A 240475910 Cover-evap coil, lower
11 5303208309 Plug-hole, factory test
14 # 240505801 Switch, light/lamp
14A 241547901 Switch-light/lamp, frzr door
21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500
22 240457701 Plate-door closer
23 240402702 Screw-#10-32 x 1/4 flat hd
28 241708801 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603703 Bracket-lower hinge, ref
30A 241603704 Bracket-lower hinge
37 240337608 Trim-cabinet corner, white, (2)
38 240327207 Bracket-upper hinge
40 240327005 Cover-upper hinge, white
41 241550801 Grommet-shelf mtg, 1.40" long
41* 241550701 Grommet-shelf mtg, .96" long
42 240578902 Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 241709301 Roller Assy, adjustable, front, (2)
45 241500303 Screw, hex washer head, 8-18AB x 0.500
47 218659500 Channel-shelf mtg, side, (2)
58 218781101 Screw, pan head, 8-18 x 0.625
66B 240374301 Diffuser-air
66B* 240518802 Pin-push, push-in, plastic
72 240324401 Grille/Kickplate, white
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 Roller, compressor base, rear, (2)
83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733901 Cover-access, w/label
90 218249807 Seal-coil cover
91 240380101 Duct-ice maker
92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 Support, crisper cover, front, (4)
100* 240350802 Support, crisper cover, rear, (4)
150 240368701 Guide-control bulb
* 240479601 Plug, button, cab liner holes
* 240481601 Shim-lower hinge
* 5303321319 Paint, touch-up, white

Publication No: 5995501722 FRS3R3EW9
10/07 8

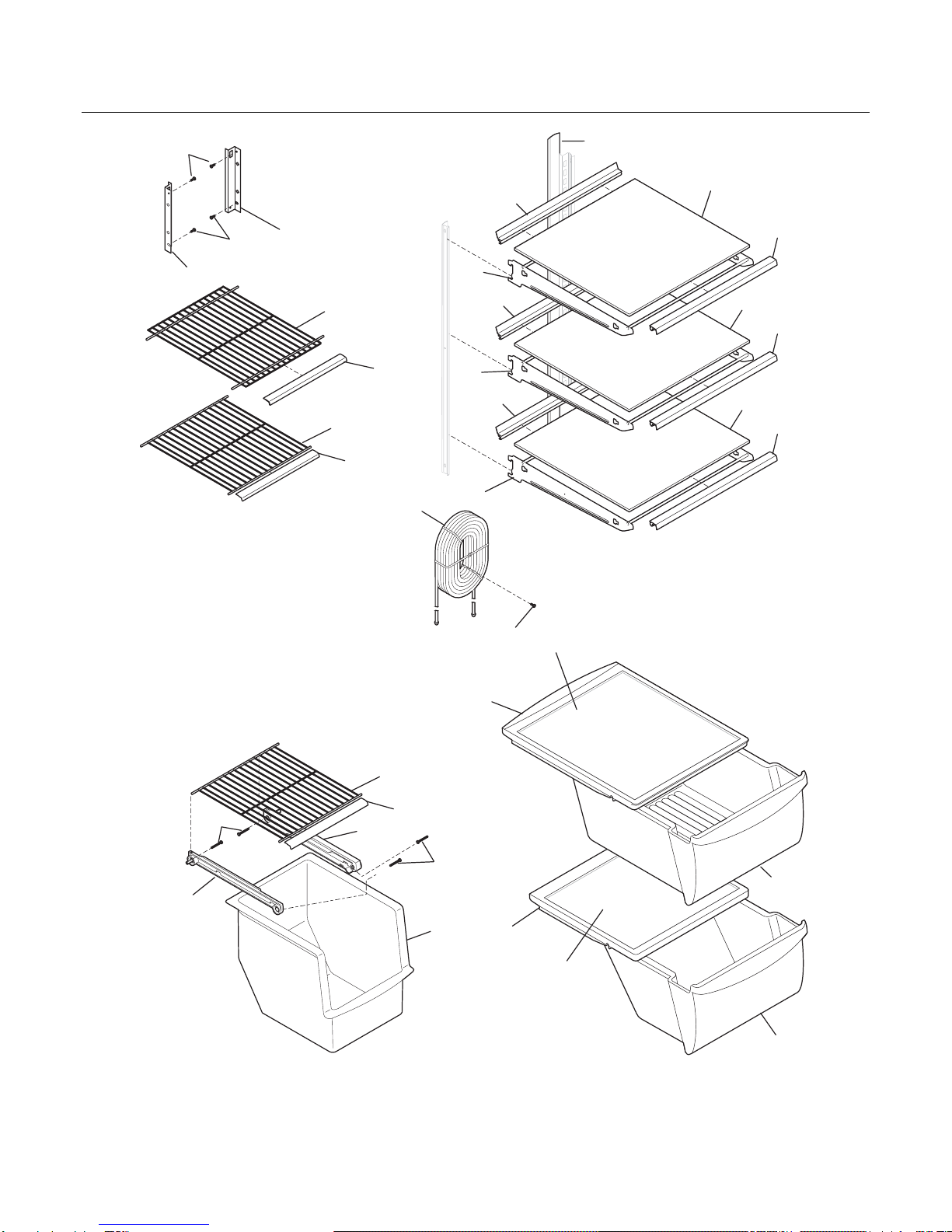

SHELVES
126
126
81
81
27
26
25A
25
47
47A
24
24
24
41
41
41
40
40
40
29
29
29
N58SJCACA21
97
81
11B
39B
11A
39B
140
101
52
11
39
51
101
49

FRS3R3EW9 Publication No: 5995501722
# Functional Parts 9 10/07
* Non-Illustrated Parts
SHELVES
POS. NO PART NO. DESCRIPTION
11 241657601 Shelf, flip up, wire
11A 241657501 Shelf, fixed, freezer
11B 241657503 Shelf, fixed upper, freezer
24 240373107 Frame-refr shelf, cantilever
25 240354502 Cover-crisper pan, upper
25A 240354602 Cover-crisper pan, lower
26 240354706 Pan-crisper, upper
27 240354806 Pan-crisper, lower
29 240357705 Trim-shelf, front
39 240430705 Trim-shelf, front
39B 240430701 Trim-shelf, front
40 240350622 Glass-shelf, refr shelf, (3)
41 240357805 Trim-shelf, rear
47 240350631 Insert-pan cover, glass
47A 240350614 Insert-pan cover, glass
49 240564301 Basket-sliding
51 240343002 Hanger-basket, RH
52 240343102 Hanger-basket, LH
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
97 240545308 Water Tank
101 218493101 Screw, hex washer head, 8-18AB x 1-3/4
126 241674401 Channel, auger mtg, LH
126 241674402 Channel, auger mtg, RH
140 240430501 Channel, wtr tube cover
* 241615410 Energy Guide

Publication No: 5995501722 FRS3R3EW9
10/07 10

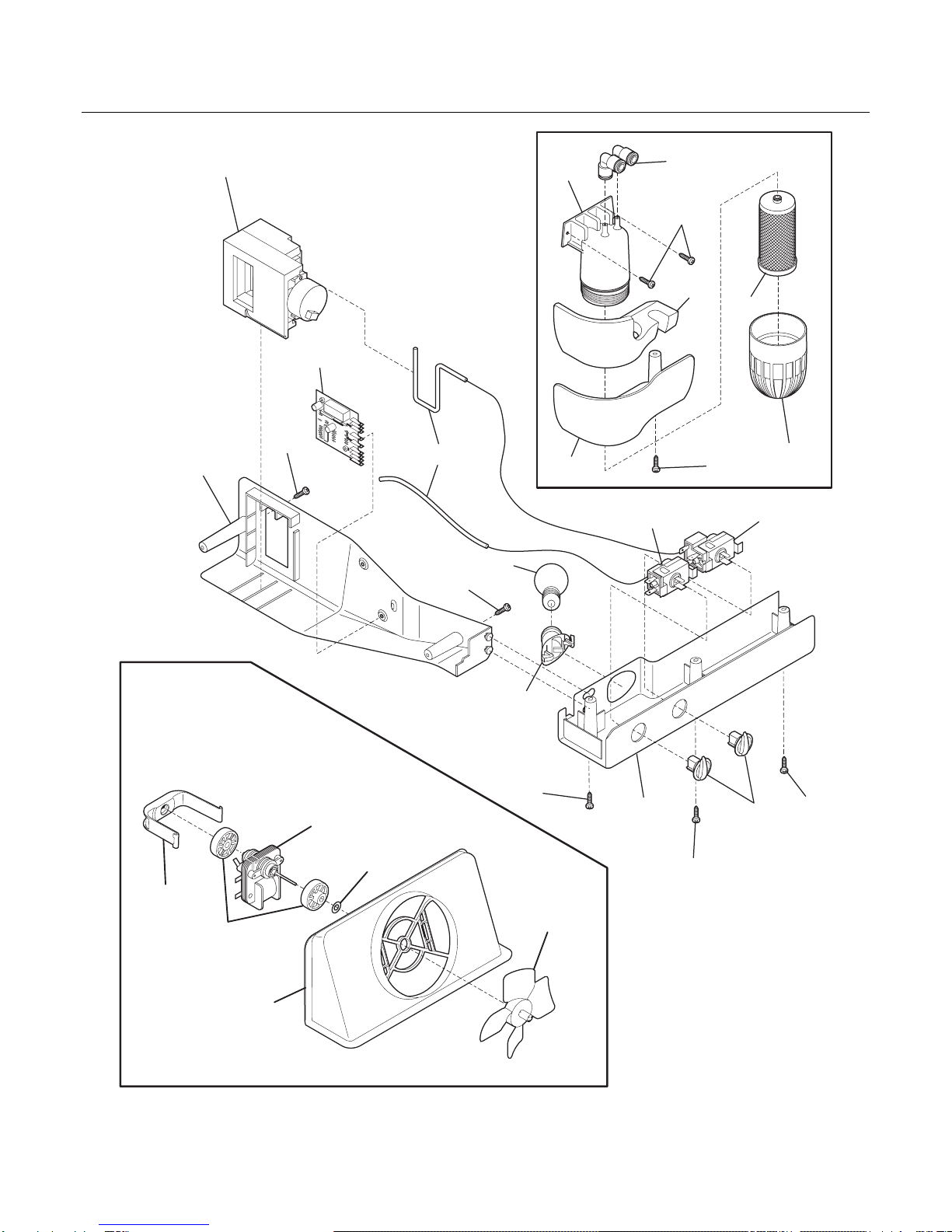

CONTROLS
140
139
81
138
137
81
151
150
115
23
22
53
81
101
15
16
21A 21
18
17
81
81
81
N58TAAAAA6
149
14
13
9
8
5

FRS3R3EW9 Publication No: 5995501722
# Functional Parts 11 10/07
* Non-Illustrated Parts
CONTROLS
POS. NO PART NO. DESCRIPTION
5 # 5308000010 Fan Blade, red, evaporator fan
8 215474201 Washer, "slinger", nylon, evap fan shaft
9 241563601 Bushing-motor mtg, (2)
13 240369702 Motor-evap fan
14 241517701 Clip, evap fan motor
15 241555401 Light Bulb
16 # 241513901 Socket-light
17 240374006 Box-control, front
17* 215188300 Screw-control box mtg, hex head, 8-15A x 1.000, refr/frzr
17*# 241735702 Harness-wiring, control box
18 240360801 Knob, temp control
21 # 241586501 Control-temperature
21A# 5304429602 Control-temperature, frzr section
22 218660704 Tube, insulator, plastic
23 # 241736601 Control-defrost, adaptive timer, PC board
23* 5304455649 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
53 240369501 Box-control
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
101 241637202 Screw, #8AB x 1 3/4"
115 241600905 Damper Assy, w/seal
137# 240389101 Filter, water, carbon canister, rear, with o'rings
137* 218710300 Wrench-filter
138 240434401 Cup-water filter
138* 218904301 O-ring, wtr filter cup
139 240434301 Housing-water filtr
140 240545201 Elbow-water tube
149 241563401 Shroud-fan orfice
149* 241528305 Seal, shroud
150 240394102 Insulation-water filter cover
151 240376002 Cover-water filter

Publication No: 5995501722 FRS3R3EW9
10/07 12
SYSTEM
N58CAAAAA5
62
70
45
45
1
34
34
83
44
41
82
83
82
22
23
23
30
32
55
4
25
6
25
29
26
45
16
15
14
3
57
84
85
21
60
59
61
58

FRS3R3EW9 Publication No: 5995501722
# Functional Parts 13 10/07
* Non-Illustrated Parts
SYSTEM
POS. NO PART NO. DESCRIPTION
1 240333602 Condenser
3 218679606 Block-evap coil, styrofoam, (2)
4 # 218944001 Drier-filter, R134a System
6 241586801 Harness-wiring, machine compt
6* # 241651601 Harness-wiring
6* # 241735702 Harness-wiring, control box
14 # 240316107 Heater-defrost
15 # 5303918286 Evaporator Kit
16 5308000110 Strap-evap/heater, aluminum, (2)
21 # 5303918214 Thermostat-defrost, kit
22 240330010 Base-compressor
22* 218252201 Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 Grommet-compr mtg, (4)
25 240491503 Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241697601 Pan-defrost
29 # 5303918353 Compressor Kit
30 # 241707709 Starter
32 241715901 Strap-cover
34 240405201 Grommet, rubber, black, cond tube/wire
41 240555002 Screw-#8-32 X 3/8
44 215174700 Clamp-service cord, strain relief, galv steel
45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
55 218909913 Capacitor, run, 220 VAC, 15 microfarad
57 240542601 Clip-wiring harness
58 218897004 Screw, hex washer head, 8-32 x 0.375
59 5304430246 Bracket-cond motor assy
59* 240346701 Tape-foam seal, shroud
59* 240359403 Screw-fan shroud, (2)
60 # 240525402 Motor, condensor fan
61 # 240524101 Fan Blade, galv steel, condenser fan
62 240429401 Trough-drain
70 218990801 Bracket-evap/cvr mtg
82 5304418225 Roller, compressor base, rear, (2)
83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 Tube-drain, lower
85 240346201 Tube-connector, suction
* # 5303918328 Heat Exchanger Kit, suction line, service
* 5303918222 Hot Tube Repair Kit, service

Publication No: 5995501722 FRS3R3EW9
10/07 14
ICE & WATER DISPENSER

FRS3R3EW9 Publication No: 5995501722
# Functional Parts 15 10/07
* Non-Illustrated Parts
ICE & WATER DISPENSER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube, water, door
1* 218976419 Tube-water inlet, valve to door
1* 218976420 Tube-water inlet, inlet valve, to filter
1* 218976915 Tube-water inlet, inlet valve, to filter
1* 240561701 Seal-water inlet, inlet valve, to ice maker
4 241679001 Cover-module, white
8 241680505 Module-dispenser
10 241688901 Spring-torsion
14 240570204 Label-module cover, white
15 241689401 Light Bulb
16 240548901 Socket-light
17 241679801 Screw
17A 241679901 Screw, switch mtg.
23 241649001 Drip Tray, white
24 241682001 Actuator-water, white
24A 241681901 Actuator-ice, white
30 241688401 Door Assy-ice chute
30A 241688501 Door center
30B 241688601 Insulation-door
30C 241688701 Door seal
35 241689301 Damper-rotary
38A# 241689101 Switch-micro, single pole, double throw
38A* 241679201 Harness-wiring
38C# 241679101 Switch
38C* 241686001 Harness-wiring
39 241688801 Pin-hinge
41 241689001 Spring-actuator
43 215296301 Screw, plask h/l, #6 x 3/8
56 241689201 Screw-micro switch, pan head
82 240363402 Screw-#8-18 X 1/2, #6 hd plask
87 241688302 Bearing Plate
87A 241688301 Bearing Plate
88 241686101 Shield-light
* 5303918256 Dispenser heater kit
* 218515403 Clip-grille

Publication No: 5995501722 FRS3R3EW9
10/07 16
ICE CONTAINER
45 4
45A
48
47
46
45B
45C
45D
50
18 20
15
16
44
44
44
51
26
26
26
26
10
26
44
44
44
49 7
N58YBAAAA6
57
3
2
23
39
39
6
17
53
52
37A 34
33
37B
34 33
37C
54
35A
35B
41
56
55
13
25
25
39

FRS3R3EW9 Publication No: 5995501722
# Functional Parts 17 10/07
* Non-Illustrated Parts
ICE CONTAINER
POS. NO PART NO. DESCRIPTION
2 241716101 Auger-ice
3 241685201 Cam-drive
4 241734001 Container-ice, bucket only
6 241685101 Drum-ice disp
7 241734201 Front-ice container
10 241726501 Bar-drive
13 241685301 Gate
15 241555401 Light Bulb
16 241559801 Socket-light
17 241684501 Drive Blade
18 # 241676201 Motor-auger
18*# 240352602 Wiring Harness, internal, wiring harness
18*# 241732001 Harness Wiring
20 241734802 Cover-motor
23 241684001 Plate-front
25 241690701 Screw, hex washer head, 8-32T x 0.375
26 215503205 Screw, cr pan hd, 10-16 x 0.500
33 241684801 Spacer
34 241689801 Spacer
35A 241684301 Fixed Blade, round
35B 241684201 Fixed Blade, square
37A 241684101 Blade, crusher #1
37B 241684102 Blade, crusher #2
37C 241684103 Blade, crusher #3
39 241690501 Screw
41 241685601 Housing-crusher
44 218359202 Screw, pan head, 8-32 x 0.250
45 # 241675701 Solenoid Assy, 115V
45A 241675901 Spring-solenoid
45B 241676001 E-Ring-solenoid
45C 241676101 Actuator-solenoid
45D# 241675801 Solenoid, 115V
46 241716002 Control Rod
47 241731801 Spring-control rod
48 241684602 Bracket-control rod
49 241734401 Rail Assy
50 241675601 Guide-solenoid
51 241676301 Rotation Stop
52 241684901 Spacer-fixed blades
53 241690402 Pin-spiral, fixed blades
54 241685001 Nut-auger
55 241690306 Washer
56 241690201 E-ring
57 241734101 Door-access
* 240507202 Deflector-ice container
* 241860803 Ice Container Assy, w/moving parts

Publication No: 5995501722 FRS3R3EW9
10/07 18
ICE MAKER

FRS3R3EW9 Publication No: 5995501722
# Functional Parts 19 10/07
* Non-Illustrated Parts
ICE MAKER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube, water, door
1* 218976419 Tube-water inlet, valve to door
1* 218976420 Tube-water inlet, inlet valve, to filter
1* 218976915 Tube-water inlet, inlet valve, to filter
1* 240561701 Seal-water inlet, inlet valve, to ice maker
2 5304456650 Spring-shutoff arm, ICE MAKER
3 5304456657 Nameplate
4 5304456658 Gear
5 5304456659 Plate-mounting
6 5304456691 Screw, M 3x20 #3, valve plate
7 # 5304445222 Motor-ice maker Svo
7* 5304445223 Spring Beam
8 5304456661 Spacer-hold switch
9 5304456662 Cam
10 5304456689 Washer, nylon
11 # 5304456663 Thermal Cutoff, ICE MAKER
12 5304456664 Harness-wiring
13 5304456665 Thermostat, ICE MAKER
14 5304456666 Screw, M 3x20 #2, (6)
15 # 5304456667 Switch-micro, (3)
15* 5304456688 Terminal
16 5304456668 Support
17 5304456669 Mold-ice maker, w/therm cut off
18 5304456670 Ejector-ice
18* 240352602 Wiring Harness, internal, wiring harness
19 5304456671 Bearing & Inlet, fill cup
20 5304455677 Screw, 8-32 x 3/8
21 5304456672 Ice Stripper
22 5304456673 Shut-off Arm
23 5304456674 Screw, M 4x25 #2, mold-to-support, (2)
24 5304456675 Lever Arm
25 5304456676 Screw, M 4x12.8 #2, lever arm/sprt
26 5304455680 Screw, plask, 4-14 x 3/8
27 5304456677 Screw, M 3x25 #3, hold switch mtg, (2)
28 5304456660 Screw, M 4x6 #2
29 5304456678 Screw, M 3x12 #3, (2)
30 5304456679 Screw-timing adj, M 4x25 #3
31 5304456680 Insulator
32 5304456681 Plate-valve switch
33 5304456682 Spring, timing adjust
34 5304456683 Screw, M 4x12 #2, (3)
35 5304456684 Screw
36 5304456685 Cover-ice maker
36* 5304456690 Label, on/off
42 218515403 Clip-grille
45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
51 241796401 Tube-water fill, extension
55 # 241734301 Valve-water, triple solenoid
55* 218709101 Screw, hex head, 10-32 x 0.500
55* 240363602 Screw-shoulder
55* 240542901 Cap-water valve

Publication No: 5995501722 FRS3R3EW9
10/07 20
ICE MAKER
