Frigidaire FRT18FR7E User manual

Product No. FRT18FR7EB7 FRT18FR7EQ7 FRT18FR7EW7
Series R134a R134a R134a
Color black bisque white
Volts 115 115 115
Wiring Diagram 240398801 240398801 240398801
Owner's Guide 240400113 240400113 240400113
Market North America North America North America
Energy Guide 241607582 241607582 241607582
Service Data Sheet 240379017 240379017 240379017
Installation Instructions 240568301 240568301 240568301
N05L00003.eps N05DCDBCA1.eps N05BAAABC5.eps N05SACAFH17.eps
N05CAAAAA18.eps 115-1.eps 240398801.eps 240398601.eps
u x Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995456448
05/12/14
(EN/SERVICE/WC)
390
TOP-MOUNT
REFRIGERATOR WITH
ICE-MAKER
Model No.
FRT18FR7E
Copyright ©2005 Home Pr oducts, Inc.
All rights reserved.

Publication No: 5995456448 FRT18FR7E
12/05 2
DOOR
14
14
48
48A
48B
10
22
22
11
12
22
22
22
13A
13
21C
21C
10
22
14
22
1
7
2
22
N05DCDBCA1
15
21 14B
21
14B
18
21
18A
49
49

FRT18FR7E Publication No: 5995456448
# Functional Parts 3 12/05
* Non-Illustrated Parts
DOOR
Model Index: AFRT18FR7E (FRT18FR7EB7)
BFRT18FR7E (FRT18FR7EQ7)
CFRT18FR7E (FRT18FR7EW7)
POS. NO PART NO. DESCRIPTION
1 240542121 A - - Gasket-frzr door, black, magnetic
1 240542115 - B C Gasket-frzr door, white, magnetic
2 240542124 A - - Gasket-refr door, black, magnetic
2 240542118 - B C Gasket-refr door, white, magnetic
7 240337703 A B C Door-dairy, w/o graphics, clear
10 240381303 A - - Plug-button, black, hinge brg hole
10 240381302 - B - Plug-button, bisque, hinge brg hole, (2)
10 240381301 - - C Plug-button, white, hinge brg hole, (2)
11 240409919 A - - Door, frzr, black
11 240409902 - B - Door-frzr, bisque, complete assy
11 240409901 - - C Door-frzr, white, complete assy
12 240416304 A - - Nameplate, black
12 240416303 - B - Label-nameplate, bisque
12 240416301 - - C Label-nameplate, white
13 240312405 A - - Door Stop, black, refr
13 240312407 - B - Door Stop, bisque, ref
13 240312403 - - C Door Stop, white, ref
13A 240312406 A - - Door Stop, black, frzr
13A 240312408 - B - Door Stop, bisque, frzr
13A 240312404 - - C Door Stop, white, frzr
14 240494003 A - - Plug-button, black
14 240494002 - B - Plug-button, bisque
14 240494001 - - C Plug-button, white
14B 240383603 A - - Plug-button, black, door handle
14B 240383602 - B - Plug-button, bisque, door handle
14B 240383601 - - C Plug-button, white, door handle
15 240410125 A - - Door, refr, black
15 240410002 - B - Door-refr, bisque, complete assy
15 240410001 - - C Door-refr, white, complete assy
18 240339203 A - - Handle-door, black, refr-LH/frzr-RH
18 240339204 - B - Handle-door, bisque, refr-LH/frzr-RH
18 240339201 - - C Handle-door, white, refr-LH/frzr-RH
18A 240339208 A - - Handle-door, black, refr-RH/frzr-LH
18A 240339209 - B - Handle-door, bisque, refr-RH/frzr-LH
18A 240339206 - - C Handle-door, white, refr-RH/frzr-LH
21 240383401 A B C Screw, truss hd quad, #10-16 x .500
21C 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500
22 240527102 A - - Bearing-hinge, black
22 240527101 - B C Bearing-hinge, natural color
48 240338101 A B C Bin-door, pseudo, bottom
48A 240337901 A B C Bin-door, refr
48B 240338001 A B C Bin-door, pseudo, gallon, refr
49 240495804 A B C Bin-door, pseudo, frzr

Publication No: 5995456448 FRT18FR7E
12/05 4

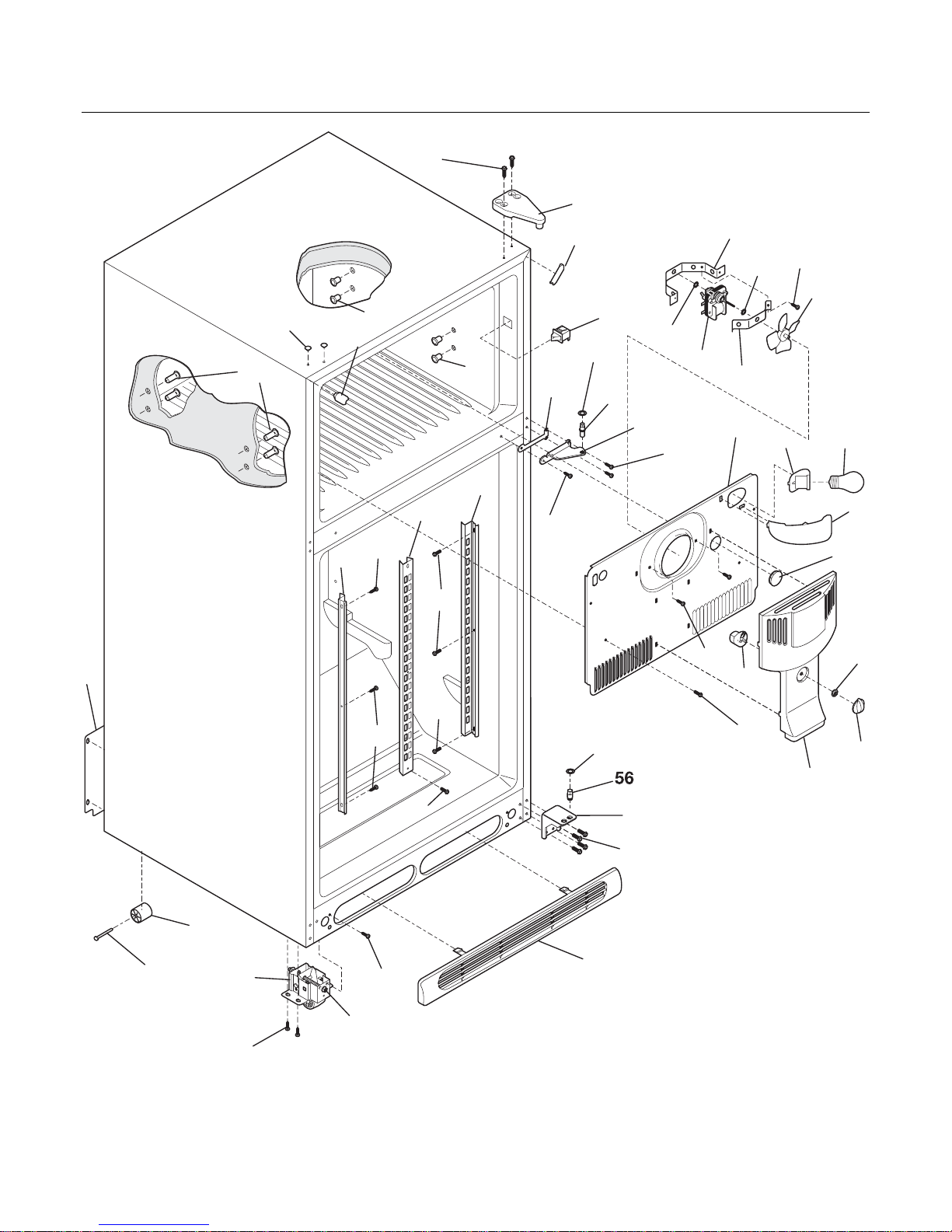

CABINET
49
49
49
49
49
47
47
48
114
83
82
89
11
10
81
58
92
38
37
37
13
5
58
35A 36
34
35
59
59
42
30
72
N05BAAABC5
43
28
21C
21C
41
41
22
41
8
8
9
14
34
15
16
74
1
4
2
3

FRT18FR7E Publication No: 5995456448
# Functional Parts 5 12/05
* Non-Illustrated Parts
CABINET
Model Index: AFRT18FR7E (FRT18FR7EB7)
BFRT18FR7E (FRT18FR7EQ7)
CFRT18FR7E (FRT18FR7EW7)
POS. NO PART NO. DESCRIPTION
1 241652301 A B C Cover-fan
2 240367001 A B C Knob-damper control
3 5303001028 A B C Nut, push-on
4 240367401 A B C Damper-fan cover
5 # 5308000010 A B C Fan Blade, red, evaporator fan
8 5300157666 A B C Bushing-motor mtg, (2)
9 5303292396 A B C Bracket-motor mtg, front
10 241652209 A B C Cover-evap coil
10* 240568601 A B C Seal-coil cover
10* 241537701 A B C Wiring Harness, freezer section, with light
11 5303208309 A B C Plug-hole, factory test
13 240369702 A B C Motor-evap fan
13* 215474201 A B C Washer, "slinger", nylon, evap fan shaft
13* 218931001 A B C Clamp-motor wiring, nylon, w/adhesive tape
14 5303292397 A B C Bracket-motor mtg, rear
14* 240433201 A B C Screw, hex washer head, 8-18 x 0.375
15 241560701 A B C Light Bulb
16 # 241513901 A B C Socket-light
21C 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500
22 215774918 A - - Plug-button, black, upr hinge holes
22 215774919 - B - Plug-button, bisque, upr hinge holes
22 215774901 - - C Plug-button, white, upr hinge holes
28 240335501 A B C Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 240314003 A - - Bracket-lower hinge, black
30 240314001 - B C Bracket-lower hinge, zinc
34 240311303 A B C Washer, hinge, nylon, (2)
35 240313803 A - - Bracket-ctr hinge, black
35 240313801 - B C Bracket-ctr hinge, zinc
35A 240336802 A B C Spacer-hinge, center
36 240516401 A B C Pin-center hinge
37 241611303 A - - Trim-cabinet corner, black, (2)
37 241611304 - B - Trim-cabinet corner, bisque, (2)
37 241611301 - - C Trim-cabinet corner, white, (2)
38 241622603 A - - Bracket-upper hinge, plastic, black
38 241622604 - B - Bracket-upper hinge, plastic, bisque
38 241622601 - - C Bracket-upper hinge, plastic, white
41 5308009759 A B C Grommet, shelf mtg, 1.25", LH, (4)
42 240578901 A B C Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335003 A B C Roller Assy, adjustable, front, (2)
47 218233300 A B C Channel-shelf mtg, side, (2)
48 5303292395 A B C Channel-shelf mtg, center
49 218362500 A B C Screw, hex washer head, 8-18AB x 1.250, spacer, (2)
56 240516501 A B C Pin-lower hinge
58 5303001343 A B C Screw, hex washer head, 8-15A x 0.500
59 240442703 A - - Screw-#10-32 X 3/4, black
59 240442701 - B C Screw-#10-32 X 3/4, zinc
72 240368207 A - - Grille/Kickplate, black
72 240368206 - B - Grille/Kickplate, bisque

Publication No: 5995456448 FRT18FR7E
12/05 6
CABINET
49
49
49
49
49
47
47
48
114
83
82
89
11
10
81
58
92
38
37
37
13
5
58
35A 36
34
35
59
59
42
30
72
N05BAAABC5
43
28
21C
21C
41
41
22
41
8
8
9
14
34
15
16
74
1
4
2
3

FRT18FR7E Publication No: 5995456448
# Functional Parts 7 12/05
* Non-Illustrated Parts
CABINET
Model Index: AFRT18FR7E (FRT18FR7EB7)
BFRT18FR7E (FRT18FR7EQ7)
CFRT18FR7E (FRT18FR7EW7)
POS. NO PART NO. DESCRIPTION
72 240368205 - - C Grille/Kickplate, white
74 240354301 A B C Shield-light, frzr
81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B C Roller, compressor base, rear, (2)
83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241574607 A B C Cover-access, w/label
89* 241500302 A B C Screw, hex washer head, 8-18AB x 0.625
92 241624301 A B C Screw-hinge mtg, hex head, 1/4-20 x 1.00
114# 241554901 A B C Switch-light/lamp
* 5303321321 A - - Paint, touch-up, black
* 5304414035 - B - Paint, touch-up, bisque
* 5303305324 - - C Paint, touch-up, white

Publication No: 5995456448 FRT18FR7E
12/05 8

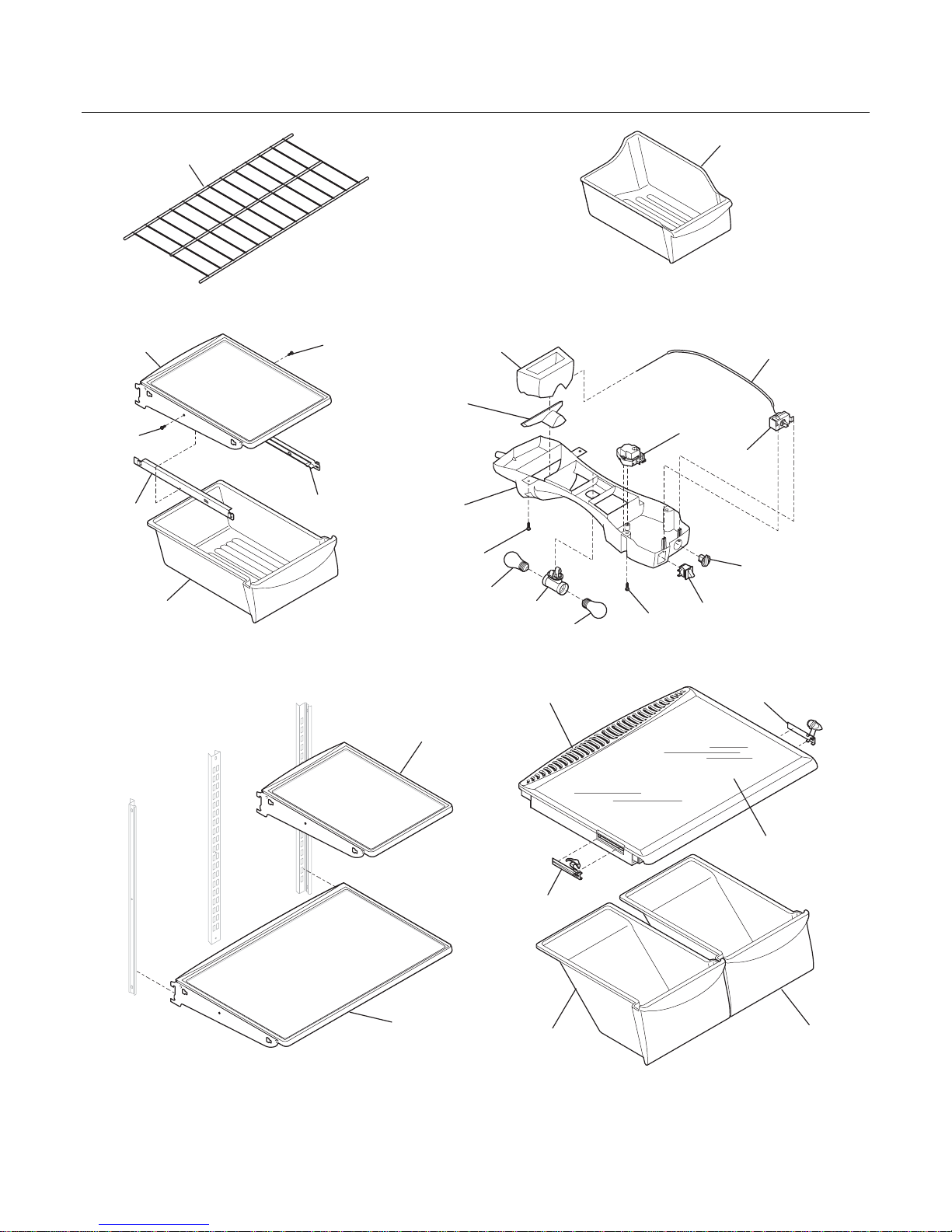

SHELVES
25 25B
25C
26
47
N05SACAFH17
26
11
31
24
42
42
123
123
81
81
23
21
22A
13
12
14
18
17
34
15
15
16
24B
24

FRT18FR7E Publication No: 5995456448
# Functional Parts 9 12/05
* Non-Illustrated Parts
SHELVES
Model Index: AFRT18FR7E (FRT18FR7EB7)
BFRT18FR7E (FRT18FR7EQ7)
CFRT18FR7E (FRT18FR7EW7)
POS. NO PART NO. DESCRIPTION
11 240358005 A B C Shelf, freezer, full-width, wire
12 241542001 A B C Diffuser, air, top
13 240362601 A B C Diffuser, air, bottom
14 # 241554901 A B C Switch-light/lamp
15 241555401 A B C Light Bulb
16 240364202 A B C Socket-light/lamp, dual
17 240352701 A B C Control Box
17* 240568607 A B C Seal
17*# 240388701 A B C Wiring Harness, control box
18 240360801 A B C Knob, temp control
21 5304421256 A B C Control, temperature
22A 240468201 A B C Tube, sensor sleeve, 31 inch, plastic, white
23 # 241621501 A B C Timer-defrost
23* 5303001259 A B C Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
24 241616602 A B C Shelf, fixed, Spill Safe
24B 240408804 A B C Shelf-"Spill-Safe", cantilever fixe
25 240364714 A B C Cover-crisper pan
25B 241613501 A B C Control-humidity, RH
25C 241613502 A B C Control-humidity, LH
26 240337107 A B C Pan-crisper, clear, (2), no graphics
31 240530810 A B C Pan, meat bin
34 240385201 A B C Container, ice bin
42 240356501 A B C Track, meat pan hanger, RH
42 240365401 A B C Track, meat pan hanger, LH
47 240350643 A B C Insert-pan cover, glass
81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
123 215005100 A B C Screw, hanger/rlr mtg, 8-10 x 0.438

Publication No: 5995456448 FRT18FR7E
12/05 10
SYSTEM
17 21
15
20
14
20
16
60
59
61
58
1
34
34
83
44
41
82
83
82
N05CAAAAA18
22
23
23
30
32
85
55
4
6
29
26
84
45
57
25
25

FRT18FR7E Publication No: 5995456448
# Functional Parts 11 12/05
* Non-Illustrated Parts
SYSTEM
Model Index: AFRT18FR7E (FRT18FR7EB7)
BFRT18FR7E (FRT18FR7EQ7)
CFRT18FR7E (FRT18FR7EW7)
POS. NO PART NO. DESCRIPTION
1 241665701 A B C Condenser, dynamic
4 # 218944001 A B C Drier-filter, R134a System
6 # 240496101 A B C Wiring Harness, machine compt, w/electric cord
6* 241537701 A B C Wiring Harness, freezer section, with light
6* # 240388701 A B C Wiring Harness, control box
14 # 240356214 A B C Heater-defrost
15 # 5303918274 A B C Evaporator Kit
16 5308000110 A B C Strap-evap/heater, aluminum, (2)
17 241551801 A B C Trough-drain
20 241551901 A B C Insulation Block
21 # 5303918202 A B C Thermostat-defrost, kit
22 241665501 A B C Base-compressor
22* 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 A B C Grommet-compr mtg, (4)
25 240491501 A B C Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF
26 240332608 A B C Pan-defrost drain
29 # 5303918299 A B C Compressor, w/electricals
30 # 241527802 A B C Starter
32 241544101 A B C Clamp, elec cont mtg, compressor, bale wire
34 240405201 A B C Grommet, rubber, black, cond tube/wire
41 240433202 A B C Screw, hex washer head, 8-18 x 5/16
44 5303001199 A B C Clamp-wiring harness, strain relief, galv steel
45 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
55 218909915 A B C Capacitor, run, 220 VAC, 15 microfarad
57 240542601 A B C Clip-wiring harness
58 218897002 A B C Screw, hex washer head, 8-32 x 0.375
59 5304430246 A B C Bracket-cond motor assy
59* 240346701 A B C Tape-foam seal, shroud
59* 240359401 A B C Screw-fan shroud, (2)
60 # 240525402 A B C Motor, condensor fan
61 # 240524101 A B C Fan Blade, galv steel, condenser fan
82 5304418225 A B C Roller, compressor base, rear, (2)
83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 240500801 A B C Tube-drain, rubber, lower
85 240553501 A B C Tube-connector, suction
* 5303918263 A B C Heat Exchanger Kit, suction line
* 5303918222 A B C Hot Tube Repair Kit, service

Publication No: 5995456448 FRT18FR7E
12/05 12

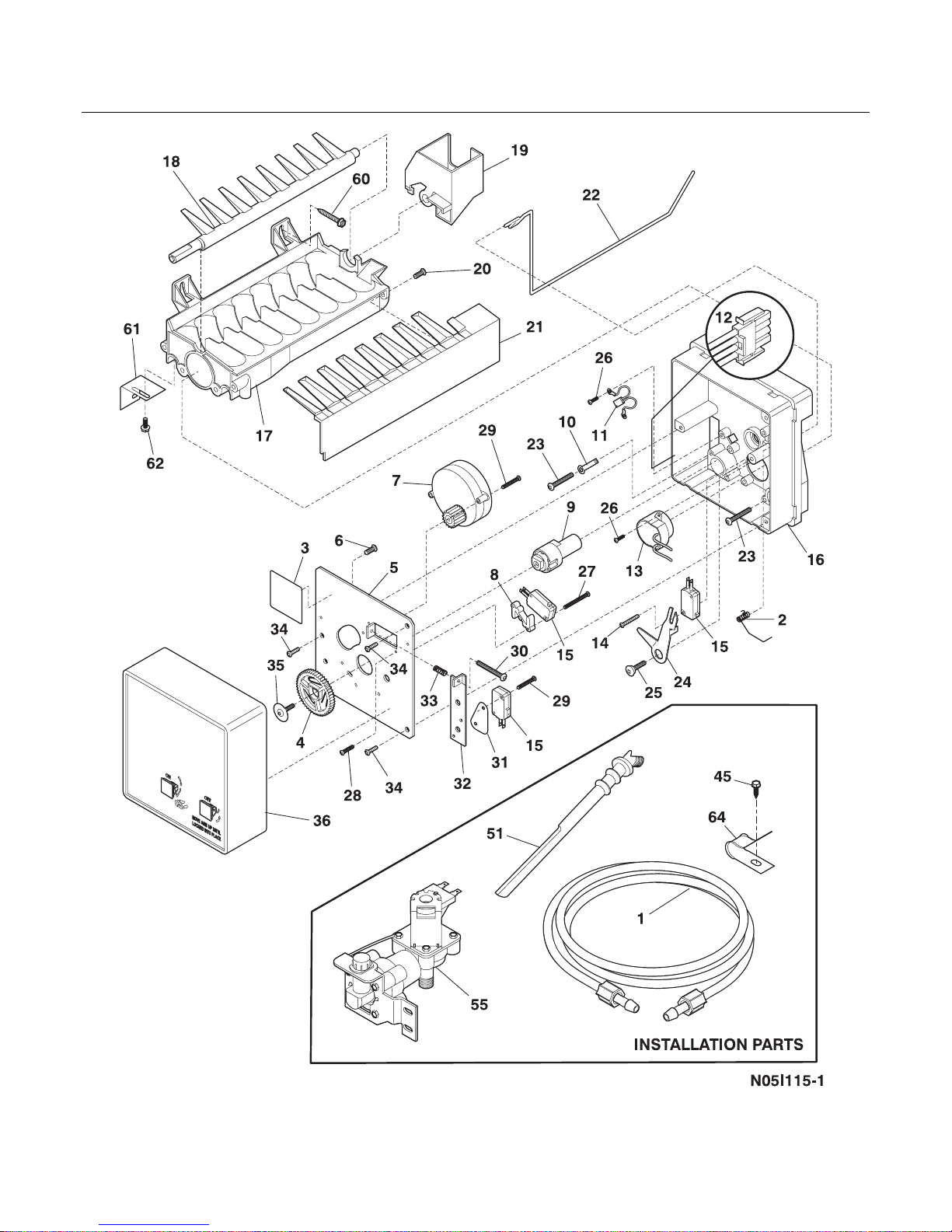

ICE MAKER

FRT18FR7E Publication No: 5995456448
# Functional Parts 13 12/05
* Non-Illustrated Parts
ICE MAKER
Model Index: AFRT18FR7E (FRT18FR7EB7)
BFRT18FR7E (FRT18FR7EQ7)
CFRT18FR7E (FRT18FR7EW7)
POS. NO PART NO. DESCRIPTION
1 218976901 A B C Tube-water inlet, inlet valve, to ice maker
1* 240561701 A B C Seal-water inlet, inlet valve, to ice maker
2 5304420650 A B C Spring, shut-off arm
3 3206299 A B C Label, ID plate
4 3206301 A B C Gear
5 3206303 A B C Plate-mounting
6 3206305 A B C Screw-ground wire, 8-32 x 0.250
7 # 3206306 A B C Motor-ice maker
8 3206312 A B C Spacer-hold switch
9 3206313 A B C Cam
10 3206315 A B C Clamp
11 3206319 A B C Thermal Cutoff, ICE MAKER, complete assy
12 # 5304420651 A B C Wiring Harness, ICE MAKER, internal, with plug
12* 218843800 A B C Screw, hex wshr hd, 8-15A x 0.500
13 3206322 A B C Thermostat Assy, ICE MAKER
14 5304420652 A B C Screw, 4 x 0.750, switch mtg.
15 # 3206324 A B C Switch, (3)
16 5304420653 A B C Support, phenolic
17 # 5303320545 A B C Mold-ice maker, Radius Cube, with heater
18 3206328 A B C Ejector-ice
19 3206330 A B C Bearing & Inlet
20 5304408581 A B C Screw, 8-32 x 0.375
21 3206332 A B C Ice Stripper
22 3206333 A B C Shut-off Arm
23 5304408582 A B C Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 A B C Lever Arm
25 3206336 A B C Screw, 8-18 x 0.562, lever arm/sprt
26 5304420654 A B C Screw-thermo/sprt, 4-24 x 0.375, (4)
27 3206338 A B C Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 A B C Screw-timing stop, 4-40 x 0.375
29 3206323 A B C Screw, 4-24 x 0.750, (6)
30 3206341 A B C Screw-timing adj, 8-32 x 1.000
31 3206342 A B C Insulator
32 3206343 A B C Plate-valve switch
33 5304408583 A B C Spring-timing adj
34 5304420655 A B C Screw, plazscrew, 8-10, (3)
35 5304408585 A B C Screw
36 3206347 A B C Cover-ice maker
45 5303001343 A B C Screw, hex washer head, 8-15A x 0.500
51 241523501 A B C Tube-water, ice mold fill, extension
55 # 240519601 A B C Valve-water, single solenoid, 60 Hz, 105/120 V
60 218362500 A B C Screw, hex washer head, 8-18AB x 1.250, spacer, (2)
61 218721500 A B C Bracket-leveling, ICE MAKER
62 218737900 A B C Screw-IM brkt mtg, hex washer head, 8-32D x 0.375
64 5303001549 A B C Clamp, 0.31 ID, steel, copper wtr line
* 218888001 A B C Adapter-water supply, nut & sleeve, compression ftg
* 240352409 A B C Ice Maker, Radius Cube, 115 V, no instl parts

Publication No: 5995456448 FRT18FR7E
12/05 14
WIRING SCHEMATIC

FRT18FR7E Publication No: 5995456448
# Functional Parts 15 12/05
* Non-Illustrated Parts
WIRING DIAGRAM
