Frigidaire FRS3R3E User manual

Product No. FRS3R3EW2
Series R134a
Color white
Volts 115
Wiring Diagram 241526901
Owner's Guide 241695301
Market North America
Energy Guide 241615410
Service Data Sheet 240389616
N58L00001.eps N58FAAAAB4.eps N58RAAABB4.eps N58BAAAAA0.eps
N58SJCACA21.eps N58TAAAAA6.eps N58CAAAAA5.eps N58XDAAAA1.eps
N58YBAAAA0.eps N58I1151.eps W241526901A.eps S241526901A.eps
u x Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995467619
06/06/07
(EN/SERVICE/RLF)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FRS3R3E
Copyright ©2006 Home Pr oducts, Inc.
All rights reserved.

Publication No: 5995467619 FRS3R3EW2
06/06 2

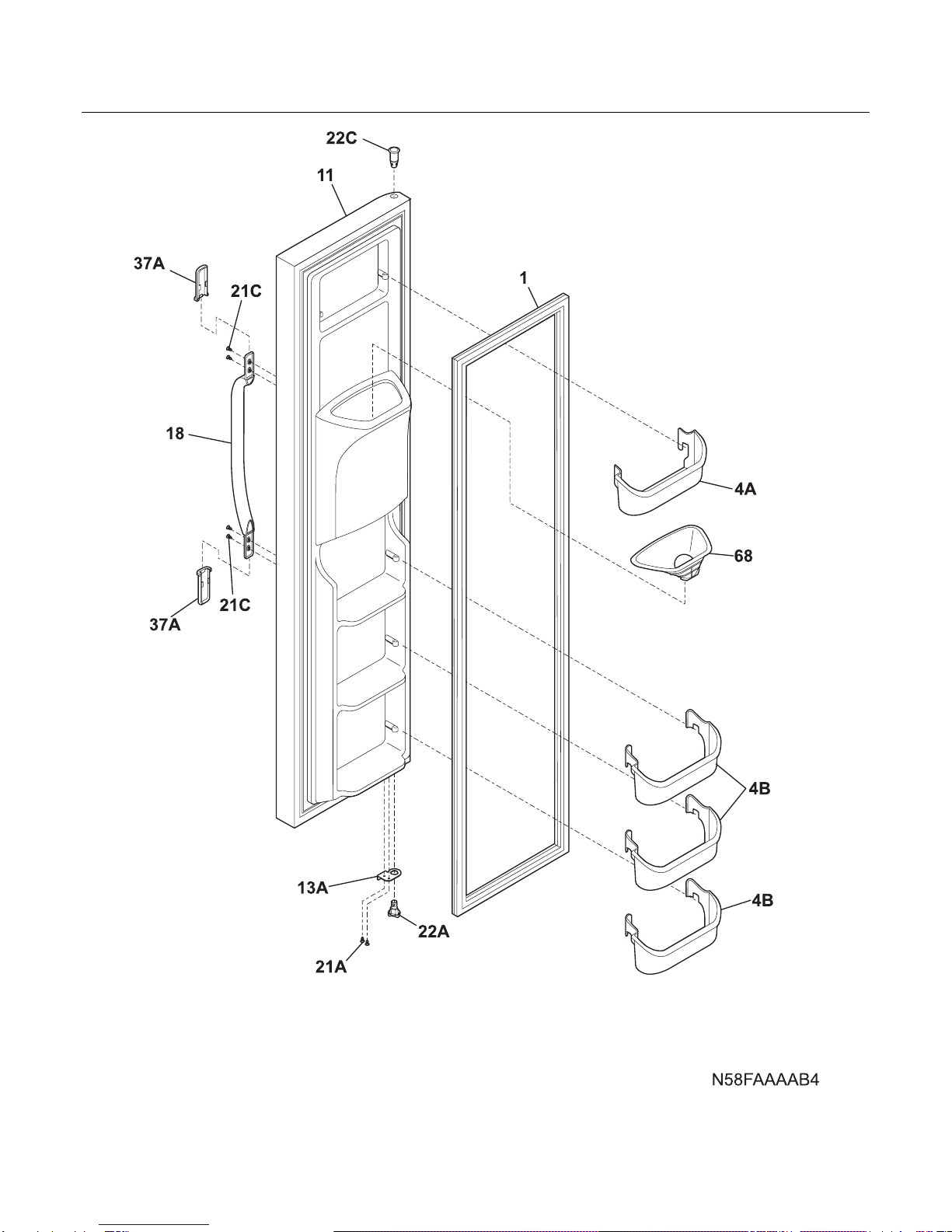

FREEZER DOOR

FRS3R3EW2 Publication No: 5995467619
# Functional Parts 3 06/06
* Non-Illustrated Parts
FREEZER DOOR
POS. NO PART NO. DESCRIPTION
1 # 241674804 Gasket-frzr door, white, magnetic
4A 240367301 Bin-door, frzr-upper
4B 240359001 Bin-door
11 241668103 Door-frzr, white, complete assy
13A 240581902 Door Stop, white, frzr
18 218762701 Handle-door, white
21A 240598402 Screw, 10-32 x 1/2
21C 218781101 Screw, pan head, 8-18 x 0.625
22A 240328202 Bearing-hinge(frz), closer
22C 240328402 Bearing-hinge, natural, upper
37A 215870629 Trim-handle, 2.47", white, w/satin AL band
37A* 218676004 Band-decorative, satin aluminum, handle trim
68 241525101 Chute-ice
* 240352102 Connector-water, straight
* 240552101 Harness-wiring, door
* 5303918256 Dispenser heater kit

Publication No: 5995467619 FRS3R3EW2
06/06 4
REFRIGERATOR DOOR

FRS3R3EW2 Publication No: 5995467619
# Functional Parts 5 06/06
* Non-Illustrated Parts
REFRIGERATOR DOOR
POS. NO PART NO. DESCRIPTION
2 # 241674803 Gasket-refr door, white, magnetic
4 240363701 Bin-door, 2-liter
7 240338303 Door, dairy, clear
13 240581901 Door Stop, white, refr
15 240451911 Door-refr, white, complete assy
18 218762701 Handle-door, white
21A 240598402 Screw, 10-32 x 1/2
21C 218781101 Screw, pan head, 8-18 x 0.625
22 240328201 Bearing-hinge(ref), closer
22B 240328402 Bearing-hinge, natural, upper
37A 215870629 Trim-handle, 2.47", white, w/satin AL band
37A* 218676004 Band-decorative, satin aluminum, handle trim
49 240324501 Bin-door, gallon

Publication No: 5995467619 FRS3R3EW2
06/06 6
CABINET

FRS3R3EW2 Publication No: 5995467619
# Functional Parts 7 06/06
* Non-Illustrated Parts
CABINET
POS. NO PART NO. DESCRIPTION
10 240435911 Cover-air duct
10A 240475910 Cover-evap coil, lower
11 5303208309 Plug-hole, factory test
14 # 240505801 Switch, light/lamp
14A 241547901 Switch-light/lamp, frzr door
21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500
22 240457701 Plate-door closer
23 240402702 Screw-#10-32 x 1/4 flat hd
28 240335502 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603703 Bracket-lower hinge, ref
30A 241603704 Bracket-lower hinge
37 240337601 Trim-cabinet corner, white, (2)
38 240327207 Bracket-upper hinge
40 240327005 Cover-upper hinge, white
41 241550801 Grommet-shelf mtg, 1.40" long
41* 241550701 Grommet-shelf mtg, .96" long
42 240578902 Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335005 Roller Assy, adjustable, front, (2)
45 241500303 Screw, hex washer head, 8-18AB x 0.500
47 218659500 Channel-shelf mtg, side, (2)
58 218781101 Screw, pan head, 8-18 x 0.625
66B 240374301 Diffuser-air
66B* 240518802 Pin-push, push-in, plastic
72 240324401 Grille/Kickplate, white
81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 Roller, compressor base, rear, (2)
83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241574601 Cover access
90 218249807 Seal-coil cover
91 240380101 Duct-ice maker
92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 Support, crisper cover, front, (4)
100* 240350802 Support, crisper cover, rear, (4)
150 240368701 Guide-control bulb
* 240396801 Clamp, tube/wiring, nylon, black/natural
* 240479601 Plug, button, cab liner holes
* 240481601 Shim-lower hinge
* 5303321319 Paint, touch-up, white

Publication No: 5995467619 FRS3R3EW2
06/06 8
SHELVES
126
126
81
81
27
26
25A
25
47
47A
24
24
24
41
41
41
40
40
40
29
29
29
N58SJCACA21
97
81
11B
39B
11A
39B
140
101
52
11
39
51
101
49

FRS3R3EW2 Publication No: 5995467619
# Functional Parts 9 06/06
* Non-Illustrated Parts
SHELVES
POS. NO PART NO. DESCRIPTION
11 241657601 Shelf, flip up, wire
11A 241657501 Shelf, fixed, freezer
11B 241657503 Shelf, fixed upper, freezer
24 240373107 Frame-refr shelf, cantilever
25 240354502 Cover-crisper pan, upper
25A 240354602 Cover-crisper pan, lower
26 240354706 Pan-crisper, upper
27 240354806 Pan-crisper, lower
29 240357705 Trim-shelf, front
39 240430705 Trim-shelf, front
39B 240430701 Trim-shelf, front
40 240350622 Glass-shelf, refr shelf, (3)
41 240357805 Trim-shelf, rear
47 240350631 Insert-pan cover, glass
47A 240350614 Insert-pan cover, glass
49 240564301 Basket-sliding
51 240343002 Hanger-basket, RH
52 240343102 Hanger-basket, LH
81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
97 240545302 Water Tank Assy, coiled tubing, rear filter
101 218493101 Screw, hex washer head, 8-18AB x 1-3/4
126 241674401 Channel, auger mtg, LH
126 241674402 Channel, auger mtg, RH
140 240430501 Channel, wtr tube cover

Publication No: 5995467619 FRS3R3EW2
06/06 10

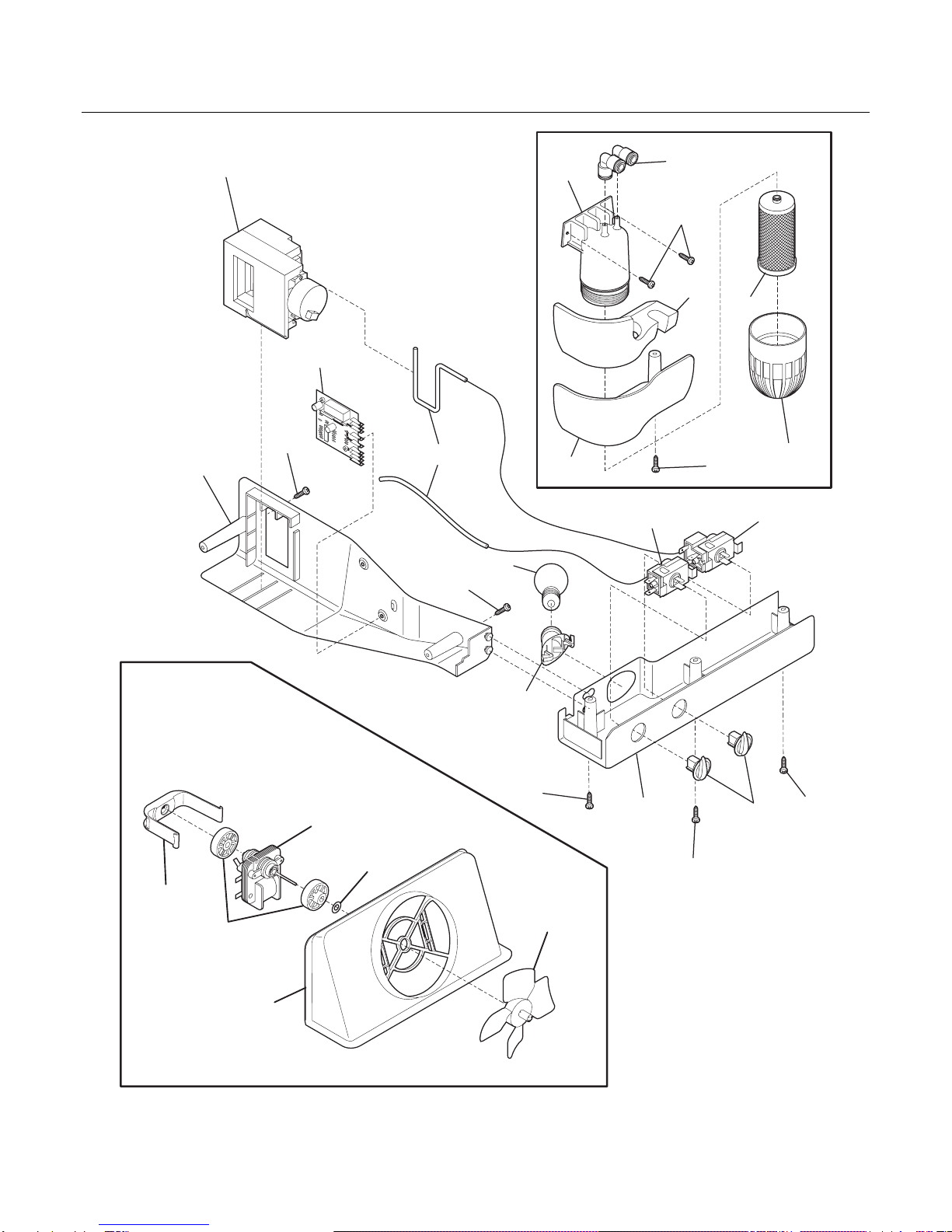

CONTROLS
140
139
81
138
137
81
151
150
115
23
22
53
81
101
15
16
21A 21
18
17
81
81
81
N58TAAAAA6
149
14
13
9
8
5

FRS3R3EW2 Publication No: 5995467619
# Functional Parts 11 06/06
* Non-Illustrated Parts
CONTROLS
POS. NO PART NO. DESCRIPTION
5 # 5308000010 Fan Blade, red, evaporator fan
8 215474201 Washer, "slinger", nylon, evap fan shaft
9 241563601 Bushing-motor mtg, (2)
13 240369702 Motor-evap fan
14 241517701 Clip, evap fan motor
15 241555401 Light Bulb
16 # 241513901 Socket-light
17 240374006 Box-control, front
17* 215188300 Screw-control box mtg, hex head, 8-15A x 1.000, refr/frzr
17* 241537802 Harness-wiring, control box
18 240360801 Knob, temp control
21 # 241586501 Control-temperature
21A 5304421067 Control-temperature, frzr section
22 218660702 Tube-insulator
23 # 241508001 Control-defrost, adaptive timer, PC board
23* 5303001259 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
53 240369501 Box-control
81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
101 241637202 Screw, #8AB x 1 3/4"
115 241600902 Damper Assy, w/seal
137# 240389101 Filter, water, carbon canister, rear, with o'rings
137* 218710300 Wrench-filter
138 240434401 Cup-water filter
138* 218904301 O-ring, wtr filter cup
139 240434301 Housing-water filtr
140 240545201 Elbow-water tube
149 241563401 Shroud-fan orfice
149* 241528305 Seal, shroud
150 240394102 Insulation-water filter cover
151 240376002 Cover-water filter

Publication No: 5995467619 FRS3R3EW2
06/06 12

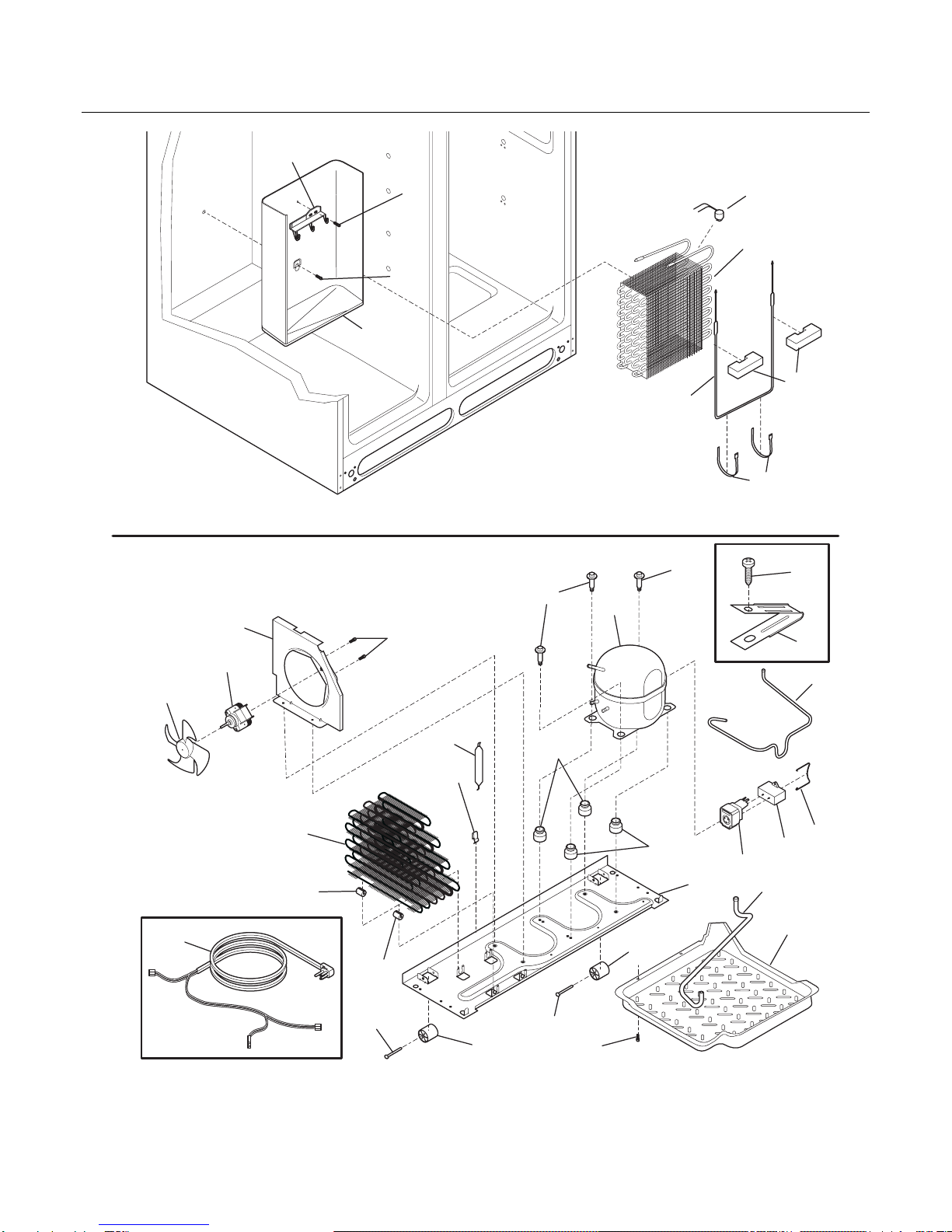

SYSTEM
N58CAAAAA5
62
70
45
45
1
34
34
83
44
41
82
83
82
22
23
23
30
32
55
4
25
6
25
29
26
45
16
15
14
3
57
84
85
21
60
59
61
58

FRS3R3EW2 Publication No: 5995467619
# Functional Parts 13 06/06
* Non-Illustrated Parts
SYSTEM
POS. NO PART NO. DESCRIPTION
1 240333602 Condenser
3 218679606 Block-evap coil, styrofoam, (2)
4 # 218944001 Drier-filter, R134a System
6 241586801 Harness-wiring, machine compt
6* 241537802 Harness-wiring, control box
6* 241651601 Harness-wiring
14 # 240316107 Heater-defrost
15 # 5303918286 Evaporator Kit
16 5308000110 Strap-evap/heater, aluminum, (2)
21 # 5303918214 Thermostat-defrost, kit
22 240330007 Base-compressor mtg
22* 218252200 Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 Grommet-compr mtg, (4)
25 240491503 Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241637401 Pan-defrost
29 # 5303918316 Compressor, w/electricals
30 # 241524605 Starter
32 218973501 Clamp, elec cont mtg, compressor
34 240405201 Grommet, rubber, black, cond tube/wire
41 240555002 Screw-#8-32 X 3/8
44 215174700 Clamp-service cord, strain relief, galv steel
45 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
55 218909913 Capacitor, run, 220 VAC, 15 microfarad
57 240542601 Clip-wiring harness
58 218897004 Screw, hex washer head, 8-32 x 0.375
59 5304430246 Bracket-cond motor assy
59* 240346701 Tape-foam seal, shroud
59* 240359403 Screw-fan shroud, (2)
60 # 240525402 Motor, condensor fan
61 # 240524101 Fan Blade, galv steel, condenser fan
62 240429401 Trough-drain
70 218990801 Bracket-evap/cvr mtg
82 5304418225 Roller, compressor base, rear, (2)
83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 Tube-drain, lower
85 240346201 Tube-connector, suction
* # 5303918328 Heat Exchanger Kit, suction line, service
* 5303918222 Hot Tube Repair Kit, service

Publication No: 5995467619 FRS3R3EW2
06/06 14
ICE & WATER DISPENSER

FRS3R3EW2 Publication No: 5995467619
# Functional Parts 15 06/06
* Non-Illustrated Parts
ICE & WATER DISPENSER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube-water-DOOR
1* 218976901 Tube-water inlet, inlet valve, to ice maker
1* 218976904 Tube-water inlet, valve to filter
1* 218976907 Tube-water inlet, valve to door
1* 240561701 Seal-water inlet, inlet valve, to ice maker
4 5304433188 Cover-module, white
8 5304422030 Module-dispenser
10 5304426649 Spring-torsion
14 240570204 Label-module cover, white
15 5304421616 Light Bulb
16 240548901 Socket-light
17 5304421619 Screw
17A 5304433185 Screw, switch mtg.
23 241649001 Drip Tray, white
24 5304421825 Actuator-water, white
24A 5304421826 Actuator-ice, white
30 5304421628 Door Assy-ice chute
30A 5304421624 Door center
30B 5304421625 Insulation-door
30C 5304421629 Door seal
35 5304421620 Damper-rotary
38A# 5304421617 Switch-micro, single pole, double throw
38A* 5304430839 Harness-wiring
38C 5304436275 Switch
38C* 5304430837 Harness-wiring
39 5304421627 Pin-hinge
41 5304421829 Spring-actuator
43 215296300 Screw, plask h/l, #6 x 3/8
56 5304421830 Screw-micro switch, pan head
82 240363402 Screw-#8-18 X 1/2, #6 hd plask
87 5304421622 Bearing Plate
87A 5304421621 Bearing Plate
88 5304421615 Shield-light
* 218515403 Clip-grille
* 5303918256 Dispenser heater kit

Publication No: 5995467619 FRS3R3EW2
06/06 16
ICE CONTAINER

FRS3R3EW2 Publication No: 5995467619
# Functional Parts 17 06/06
* Non-Illustrated Parts
ICE CONTAINER
POS. NO PART NO. DESCRIPTION
2 5304428402 Auger-ice
3 5304404343 Cam-drive
4 218815300 Container-ice, bucket only
6 5304404346 Drum-ice disp
7 218815400 Front-ice container
10 241624801 Bar-drive
13 5304404359 Gate
15 241555401 Light Bulb
16 241559801 Socket-light
17 5304404345 Drive Blade
18 # 5304447433 Motor-auger
18*# 240352601 Wiring Harness, internal, with plug
20 5304404332 Cover-motor
21 215285100 Nut-drive
23 5304404347 Plate-front
25 5304404362 Screw, hex washer head, 8-32T x 0.375
26 5304455680 Screw, plask, 4-14 x 3/8
33 5304404351 Spacer
34 5304404349 Spacer
35A 5304404353 Fixed Blade, round
35B 5304404352 Fixed Blade, square
37A 5304404348 Blade, crusher #1
37B 5304404350 Blade, crusher #2
37C 5304404356 Blade, crusher #3
39 5304404365 Screw
41 5304404358 Housing-crusher
44 218359200 Screw, pan head, 8-32 x 0.250
45 # 5304404333 Solenoid Assy
45A 5304406816 Spring-solenoid
45B 5304406817 E-Ring-solenoid
45C 5304406818 Actuator-solenoid
45D 5304406819 Solenoid
46 5304404341 Control Rod
47 5304404342 Spring-control rod
48 5304404340 Bracket-control rod
48* 5304404364 Screw-bracket
49 5304404880 Rail Assy
50 5304404334 Guide-solenoid
51 5304404336 Rotation Stop
52 5304404354 Spacer-fixed blades
53 5304404355 Pin-spiral, fixed blades
54 5304404357 Nut-auger
55 5304404360 Washer
56 5304404361 E-ring
57 5304404363 Door-access
58 5304404331 Screw-solenoid
* 240323813 Ice Container Assy, w/moving parts
* 240507202 Deflector-ice container

Publication No: 5995467619 FRS3R3EW2
06/06 18

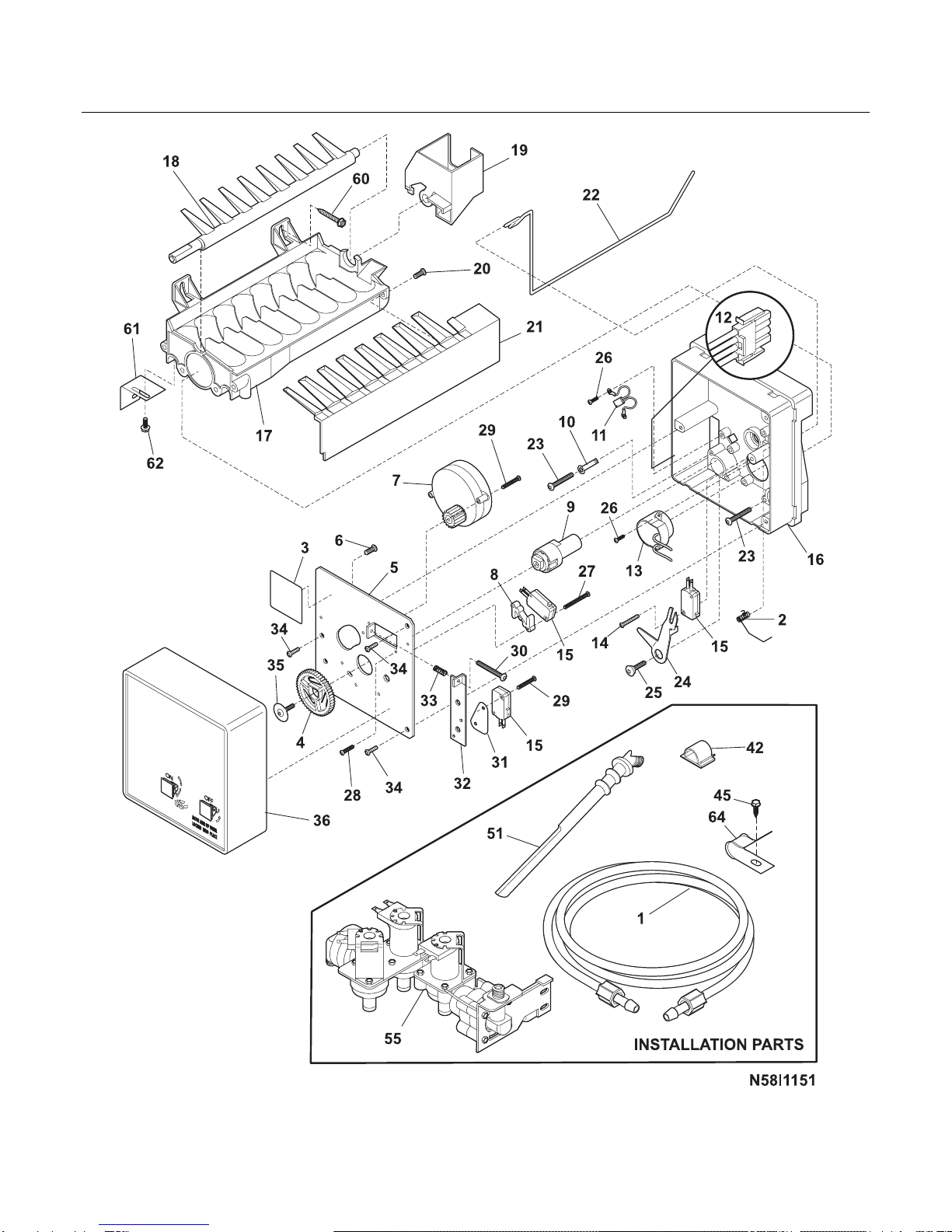

ICE MAKER

FRS3R3EW2 Publication No: 5995467619
# Functional Parts 19 06/06
* Non-Illustrated Parts
ICE MAKER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube-water-DOOR
1* 218976901 Tube-water inlet, inlet valve, to ice maker
1* 218976904 Tube-water inlet, valve to filter
1* 218976907 Tube-water inlet, valve to door
1* 240561701 Seal-water inlet, inlet valve, to ice maker
2 5304456650 Spring-shutoff arm, ICE MAKER
3 5304456657 Nameplate
4 5304456658 Gear
5 5304456659 Plate-mounting
6 5304456691 Screw, M 3x20 #3, valve plate
7 5304445222 Motor-ice maker Svo
7* 5304445223 Spring Beam
8 5304456661 Spacer-hold switch
9 5304456662 Cam
10 5304456689 Holder-thermostat
11 # 5304456663 Thermal Cutoff, ICE MAKER
12 5304456664 Harness-wiring
13 5304456665 Thermostat, ICE MAKER
14 5304456666 Screw, M 3x20 #2, (6)
15 # 5304456667 Switch-micro, (3)
15* 5304456688 Terminal
16 5304456668 Support
17 # 5304456669 Mold-ice maker, w/therm cut off
18 5304456670 Ejector-ice
19 5304456671 Bearing & Inlet, fill cup
20 5304455677 Screw, 8-32 x 3/8
21 5304456672 Ice Stripper
22 5304456673 Shut-off Arm
23 5304456674 Screw, M 4x25 #2, mold-to-support, (2)
24 5304456675 Lever Arm
25 5304456676 Screw, M 4x12.8 #2, lever arm/sprt
26 5304420654 Screw-thermo/sprt, 4-24 x 0.375, (4)
27 5304456677 Screw, M 3x25 #3, hold switch mtg, (2)
28 5304456660 Screw, M 4x6 #2
29 5304456678 Screw, M 3x12 #3, (2)
30 5304456679 Screw-timing adj, M 4x25 #3
31 5304456680 Insulator
32 5304456681 Plate-valve switch
33 5304456682 Spring, shut-off arm
34 5304456683 Screw, M 4x12 #2, (3)
35 5304456684 Screw
36 5304456685 Cover-ice maker
36* 5304456690 Label, on/off
42 218515402 Clip, (2), tube mtg.
45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
51 241523501 Tube-water, ice mold fill, extension
55 # 240531101 Valve-water, triple solenoid
55* 218709101 Screw, hex head, 10-32 x 0.500
55* 240363602 Screw-shoulder
55* 240542901 Cap-water valve
60 5303207328 Screw, hex washer head, 8-15A x 1.000, (2)

Publication No: 5995467619 FRS3R3EW2
06/06 20
ICE MAKER
