Frigidaire FRS20ZSH User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRS20ZSHB0 FRS20ZSH PRO-GALLERY black/stainless 115
MARKET
North America
Publication No.
5995323937
990528
-EN/SERVICE/KB
357
SIDE BY SIDE
REFRIGERATOR
Model No.
FRS20ZSH
©1999 White Consolidated Industries, Inc.
All rights reserved
FACTORY PARTS CATALOG
SIDE BY SIDE
REFRIGERATOR
WIRING DIAGRAM - # 218875901
OWNER’S GUIDE - # 218910000
SERVICE DATA SHEET - # 218909400
101 Masters Blvd.
Anderson, SC 29624

05/99 2
Publication No. FRS20ZSH
5995323937
FREEZER DOOR

# = Fast-moving Parts 3 05/99
* = Non-Illustrated Parts
FRS20ZSH Publication No.
5995323937
FREEZER DOOR
POS. NO PART NO DESCRIPTION
1 # 215734321 Gasket-frzr door,black ,magnetic
5 5303288950 Support-door rack,RH/LH
6 5303323484 Support-door rack,white ,LH
6A 5303323485 Support-door rack,white ,RH
8 218807017 Rack-door,w/end caps
8A 215474047 Rack-door
9 218748601 Panel-inner door,frzr
11 218619097 Panel-frzr door,stainless steel, w/foam insulatn
13 5303289522 Door Stop
18 218756501 Handle-door,stainless steel, with insert
21 218709100 Screw-handle mtg,hex head, 10-32 x 0.500
21A 218578600 Screw-door stop mtg,phl truss hd, 10-16 x 3/4
22A 215615300 Bushing-door,bronze
23 5303001020 Screw,cr flat head ,8-32D x 1/2
47 218896201 Harness-wiring,frzr door
58 218781100 Screw,pan head ,8-18 x 0.625
68 218020600 Chute-ice
140 218518700 Elbow-water tube
* 215598900 Washer-flat, .691x1x.05, zinc, I&W hinge brkt
* 218789501 Heater-lower flange
* 218490900 Cleaner,stainless steel
* 5303917276 Insulation-door,fiberglass, (bulk)

05/99 4
Publication No. FRS20ZSH
5995323937
REFRIGERATOR DOOR

# = Fast-moving Parts 5 05/99
* = Non-Illustrated Parts
FRS20ZSH Publication No.
5995323937
POS. NO PART NO DESCRIPTION
2 # 215734322 Gasket-refr door,black ,magnetic
3 218749301 Panel-inner door,refr
4 218807016 Rack-door,(2)
5 5303288950 Support-door rack,RH/LH
7 5303308347 Door-dairy,12.96" wide
12 218395401 Nameplate,black
13 5303289522 Door Stop
15 218618962 Panel-refr door,stainless steel, w/foam insulatn
18 218756501 Handle-door,stainless steel, with insert
21 218709100 Screw-handle mtg, hex head, 10-32 x 0.500
21A 218578600 Screw-door stop mtg,phl truss hd, 10-16 x 3/4
22 5303289320 Bearing-hinge
26 215817806 Tray-egg
49 218592305 Bin-door,gallon ,with trim
58 218781100 Screw,pan head ,8-18 x 0.625
* 218490900 Cleaner,stainless steel
* 5303917276 Insulation-door,fiberglass ,(bulk)
REFRIGERATOR DOOR

05/99 6
Publication No. FRS20ZSH
5995323937
CABINET

# = Fast-moving Parts 7 05/99
* = Non-Illustrated Parts
FRS20ZSH Publication No.
5995323937
POS. NO PART NO DESCRIPTION
10 218748901 Cover-air duct
10* 5308009617 Washer,ext tooth lock ,#10 ,grounding
10A 218751301 Cover-evap coil,lower
11 5303208309 Plug-hole,factory test
12 215230400 Plug-harness hole
18 5303289043 Support-air duct cvr,2.55" long
18* 5303289044 Support-air duct cvr,1.83" long
28 5303289062 Bolt-roller adj,hex head ,5/16-24 x 7/8
29 215314301 Washer,.40 x .75 x .06 ,nylon
29 215598900 Washer-flat,.691x1x.05,zinc, I&W hinge brkt
29* 218871201 Washer,nylon ,0.363 ID w/nibs
30 5303289060 Bracket-lower hinge,RH ,w/hinge pin
30* 218730800 Tapping Plate,RH
30A 215009000 Bracket-lower hinge,LH ,w/hinge pin
30A* 218730700 Tapping Plate,LH
37 5303321083 Trim-cabinet corner,black
38 218215214 Bracket-upper hinge,with closer ,black, RH
38 218215216 Bracket-upper hinge,with closer ,black, LH
40 5303323268 Cover-upper hinge,black
41 5303001609 Grommet,shelf/rod mtg ,RH
41* 5308009759 Grommet,shelf mtg ,LH
43 218615300 Roller Assy,front ,(2)
43* 5308017044 Screw-roller mtg,spcl ind hex hd, 5/16-18(23)x7/8
44 218738300 Roller Assy,rear ,(2)
47 218659500 Channel-shelf mtg,side ,(2)
52 215454600 Tube-water inlet
58 5308002748 Screw,hex wshr hd ,8-15A x 0.500, special
66 215050201 Damper-meat keeper
66A 218171301 Cover-meat kpr dmpr
72 218359615 Grille/Kickplate,black
77 5303001216 Washer-nylon,3/16 x 5/8 OD
78 5303274237 Screw-bracket,hex wshr hd, 8-32CA x 0.500
80 218249802 Seal-coil cover,(2)
81 5308016566 Screw,hex wshr hd ,8-15A x 0.625, low profile
85 218359805 Cover-lower hinge,black
89 215741407 Cover-machine compt,w/caution label
90 215022602 Seal-foam
90* 218154003 Gasket-air duct cvr
90* 5303322647 Tape-foam
91 218769900 Deflector-air,air duct cover
92 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875, (6)
101 218663103 Gasket-air duct cvr
* 218515401 Clip-grille
* 218902101 Cap-protector, lower hinge
* 5303305345 Paint,touch-up ,black
CABINET

05/99 8
Publication No. FRS20ZSH
5995323937

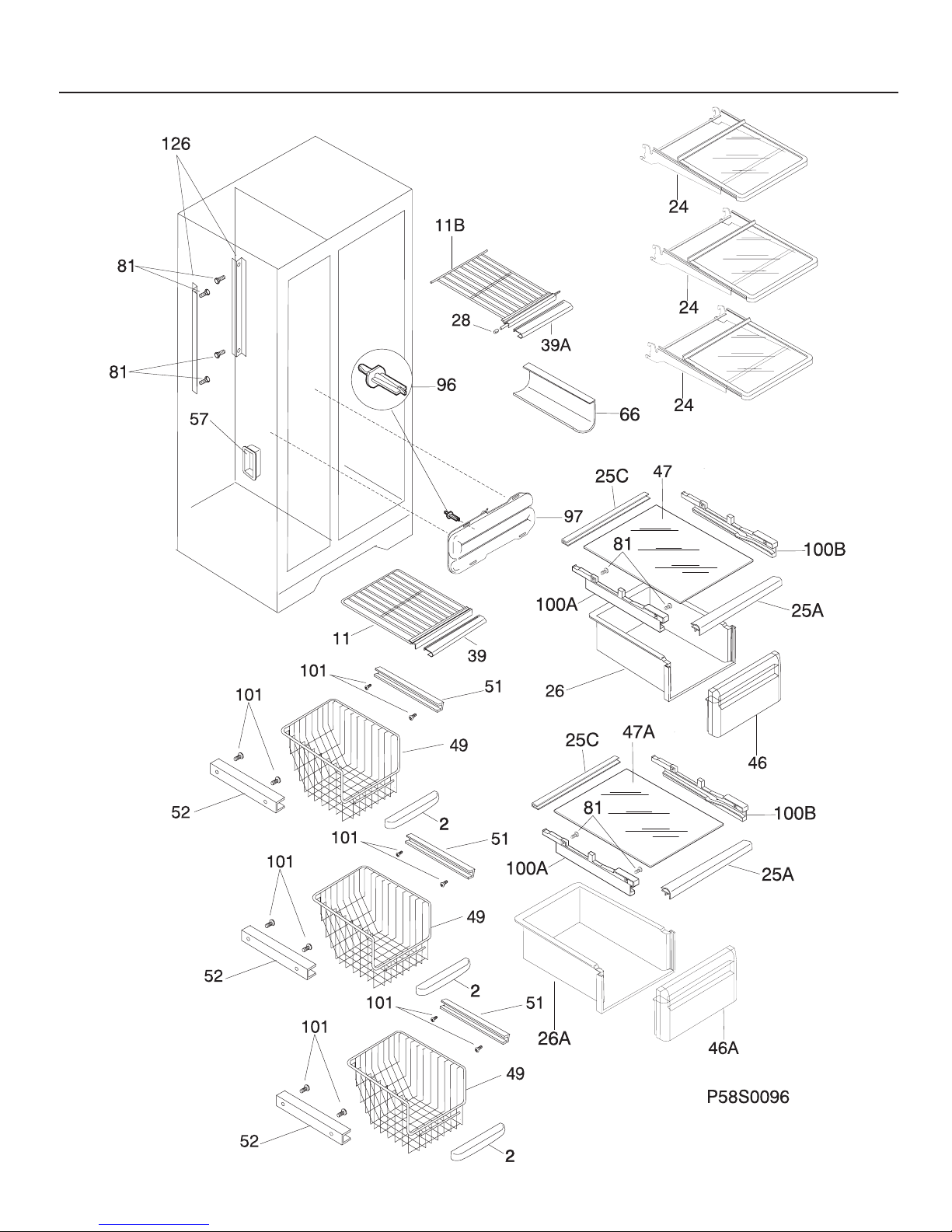

SHELVES

# = Fast-moving Parts 9 05/99
* = Non-Illustrated Parts
FRS20ZSH Publication No.
5995323937
POS. NO PART NO DESCRIPTION
2 5303300707 Trim-basket
11 218298005 Shelf-freezer,sliding ,wire
11* 218159700 Spacer-shelf
11B 5304405990 Shelf-freezer,fixed wire
24 218746001 Shelf-"Spill-Safe",sliding ,(3)
25A 218015301 Trim-storage pan cvr,snap-on ,front
25C 218015401 Trim-storage pan cvr,snap-on ,rear
26 5303306579 Pan-storage,upper
26A 5303288968 Pan-storage,lower
28 08013638 End Cap-shelf, protector, lower fzr shelf
39 215217562 Trim-frzr shelf
39A 215217563 Trim-frzr shelf
46 218278301 Front-storage pan,upper
46A 218278302 Front-storage pan,lower
47 218498118 Insert-pan cover,glass ,w/graphics
47A 215723551 Insert-pan cover,glass ,clear ,lower
49 5303288957 Basket-sliding
51 5303288960 Hanger-basket,RH
52 215162501 Hanger-basket,LH,with/spring
57 5303271653 Ferrule-inner
66 5304402116 Rack-wine, optional accessory
81 5308016566 Screw,hex wshr hd ,8-15A x 0.625, low profile
96 215192600 Support-water tank
97 218871301 Water Tank
100A 218015501 Support-pan cover,LH
100B 218015601 Support-pan cover,RH
101 215005000 Screw,hex wshr hd ,8-18AB x 0.750, gusset/hanger
126 218867401 Channel,auger mtg ,LH
126 218867402 Channel,auger mtg ,RH
* 215328300 Clip-shelf
SHELVES

05/99 10
Publication No. FRS20ZSH
5995323937

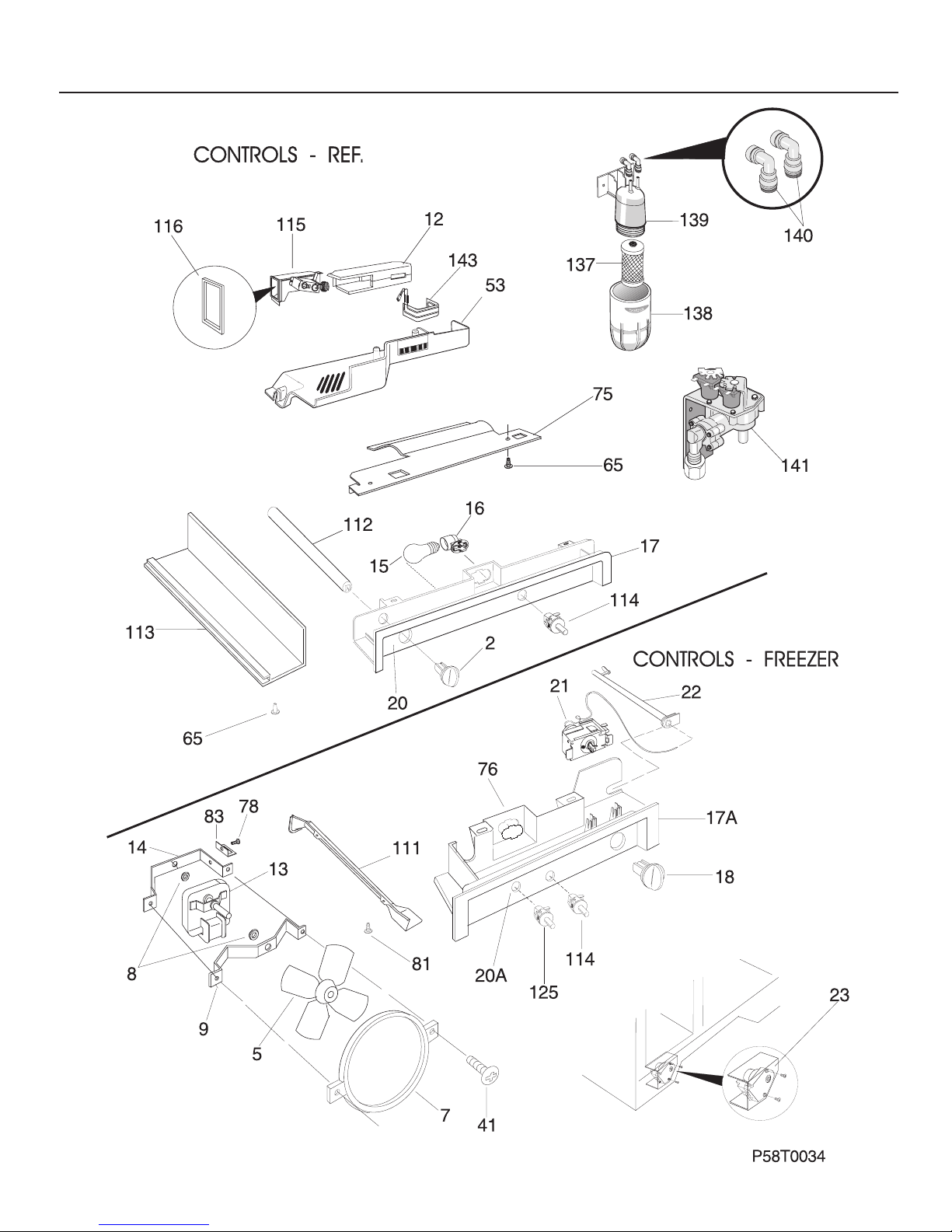

CONTROLS

# = Fast-moving Parts 11 05/99
* = Non-Illustrated Parts
FRS20ZSH Publication No.
5995323937
POS. NO PART NO DESCRIPTION
2 5303307883 Knob-damper control,white/teal line
5 # 5308000010 Fan Blade,red
7 5308000124 Ring-fan orifice
8 5300157666 Bushing-motor mtg,(2)
9 5303205118 Bracket-motor mtg,front
12 215809600 Diffuser-air
13 # 218718402 Motor-evap fan
13* 215474201 Washer,"slinger" ,nylon ,evap fan shaft
14 5303205119 Bracket-motor mtg,rear
15 5303001179 Light Bulb/Lamp,40 W
16 # 5303289050 Socket-light/lamp
17 218468702 Control Box,refr ,w/light tunnel
17A 5303321928 Control Box,frzr
17A* 215188300 Screw-control box mtg,hex head, 8-15A x 1.000, refr/frzr
18 5303307882 Knob-temp control
20 5303321927 Label-control box,refr
20A 5303322426 Label-control box,frzr
21 # 5303300027 Control-temperature
22 5303319683 Housing-temp sensor,plastic
22* 218731102 Tube,insulator ,PVC ,white, on temp sensor
23 # 215846602 Timer-defrost
23* 215277000 Cover-defrost timer,top
23* 5303001259 Screw-timer mtg,pan hd ,6-20 x 0.438
23* 5303289058 Shield-defrost timr,btm
41 5308000039 Screw,hex wshr hd ,8-32CA x 0.500, serrated head
41* 5303209814 Nut,"U" type ,8-15(A) ,fan mtr mtg
53 215809511 Box-damper control
65 5303001361 Pin-mounting,push-in ,plastic
75 218465101 Shield-light,refr
76 218225800 Cover-light socket
78 5303274237 Screw-bracket,hex wshr hd, 8-32CA x 0.500
81 5308016566 Screw,hex wshr hd ,8-15A x 0.625, low profile
83 5308000107 Bracket-connector
111 5303289024 Wireway,frzr
112 215277101 Rod-damper extn
113 5303289047 Cover-dmpr rod ext
114# 5303289051 Switch-light/lamp,white
115 215011503 Damper Assy,w/seal
116 215011400 Seal-damper,foam
125# 215334201 Switch-auger kill,white
137 218904602 Filter-water,carbon ,with o’ ring
138 218893301 Cup-water filter
139 218893201 Housing-wtr filter
140 218518700 Elbow-water tube
141 218832401 Valve-water,dual solenoid ,115 V ,w/nut
* 215290100 Screw-solenoid valve,hx hd-slot wshr, 12-24 x 3/4
143 218696700 Heater-water filter
CONTROLS

05/99 12
Publication No. FRS20ZSH
5995323937
SYSTEM

# = Fast-moving Parts 13 05/99
* = Non-Illustrated Parts
FRS20ZSH Publication No.
5995323937
POS. NO PART NO DESCRIPTION
1 218787700 Condenser
1* 5303208866 Spacer-cond tube,black
1* 5303289026 Spacer-tube
2 5303289029 Clip-cond mtg,(4)
3 218679603 Block-evap coil,styrofoam ,(2)
4 # 218541000 Drier-filter,R134a System
5 218646100 Harness-wiring,main
5* 215005200 Harness-wiring,refr controls
5* 218646000 Harness-wiring,filter heater
5* 218815101 Harness-wiring,frzr controls
6 218925201 Harness-wiring,machine compt
7 215459201 Cord-electric power
8 218803400 Cover-wiring
8* 218754500 Screw,hex hd ser wshr ,#8-18 x 3/8
13 # 215006701 Heat Exchanger,suction line
14 # 218169801 Heater-defrost
15 # 218691302 Evaporator,R134a System
15* 3206414 Tube-inlet
16 5308000110 Strap-evap/heater,aluminum ,(2)
17 5303289042 Insulator-evap
19 218631200 Tube,rubber
21 # 5316269001 Thermostat-defrost
22 218811100 Base-compressor mtg,(drain pan)
23 218513300 Grommet-compr mtg,(4)
25 218773500 Screw-compressor mtg,hex washer head, 10Bx11/4
29 218374515 Compressor,R134a ,w/o electricals
30 # 218721101 Starter/Overload Assy
32 218740800 Wire-bale
41 5308000039 Screw,hex wshr hd ,8-32CA x 0.500, serrated head
43 215174700 Clamp-service cord, strain relief, galv steel
43 5303001199 Clamp-wiring harness,strain relief, galv steel
44 5308000133 Clamp,nylon ,.75 OD tube
45 5303001343 Screw,hex wshr hd ,8-15A x .5 ,spec
49 215506900 Bracket-evap mtg
54 5303289027 Rail-cabinet base,rear
54* 215732700 Screw,pan head ,10-12A x 0.50
54A 5303289311 Rail-compr support
54B 5303289292 Rail-cabinet base,front
55 218909901 Capacitor-run,220 VAC ,15 microfarad
56 218769300 Insert-compressor mtg
57 218247300 Clip-wiring harness
58 215004600 Screw-cond fan mtr,hx serr wshr hd, 8-36 x 7/16,(2)
59 5303289031 Shroud-cond fan mtr
60 # 215501800 Motor-condenser fan
61 5303289032 Blade-cond fan
61* 215004700 Nut,speed
61* 215223700 Grommet-silencer
62 215048201 Trough-drain,w/shield assy & #17 insulator
64 5303289063 Tube-drain
65 5303289301 Spacer-tube
70 5303289041 Bracket-evap/cvr mtg
81 5308016566 Screw,hex wshr hd ,8-15A x 0.625, low profile
SYSTEM

05/99 14
Publication No. FRS20ZSH
5995323937

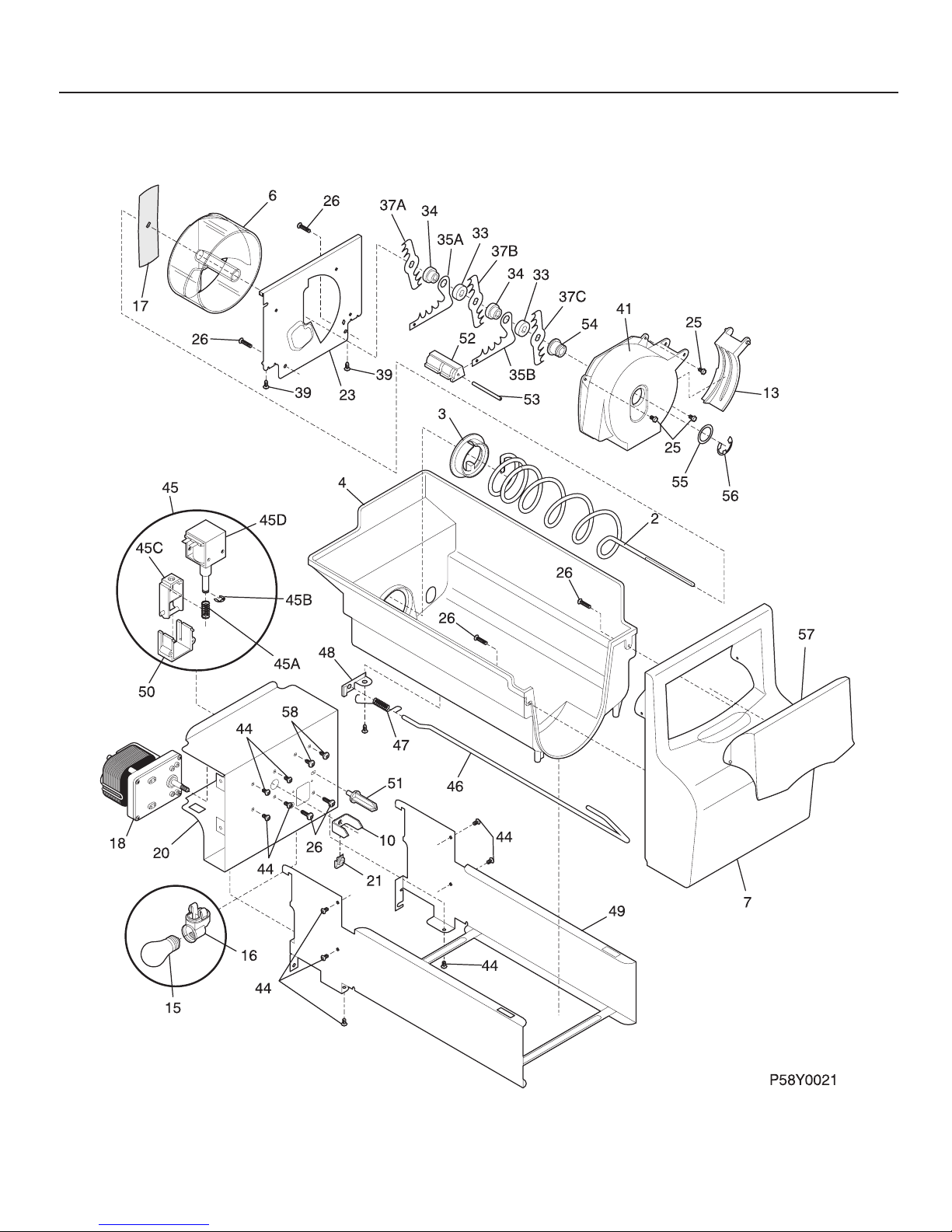

DISPENSER

# = Fast-moving Parts 15 05/99
* = Non-Illustrated Parts
FRS20ZSH Publication No.
5995323937
POS. NO PART NO DESCRIPTION
1 5318582501 Tube-water inlet,93" ,plastic, cut-to-size
1* 215294101 Tube-water inlet,formed ,plastic, dispenser
1* 218832302 Tube-water inlet,inlet valve ,to filter
1* 218859901 Tube-water inlet,inlet valve ,to filter
2 218505303 Deflector-ice disp,black
3 # 215484300 Heater-door housing
4 218852403 Housing-dispenser,black
7 218284800 Switch-actuator,micro
8 218874901 Module-dispenser
10 218209800 Spring,dispenser door
14 218903715 Label-module cover,black
15 218284900 Light Bulb/Lamp,4 W ,115 V
16 215284900 Socket-light/lamp
17 215794400 Screw,#6 x 1/4
17A 215840700 Screw,truss head ,6-20 x 3/8
17A* 215923400 Washer-flat
23 5303299660 Drip Tray,black
24 218921303 Actuator-dispenser,black
26 215503200 Screw,cr pan hd ,10-16 x 0.500, spec/hi-lo
28 218891403 Cover-selector,black
30 215753600 Door Assy-ice chute,w/gasket,insul
33 218870201 Heater-disp throat
35 218740004 Heat Motor,115 V
36 218891301 Cover-module
38 # 218906601 PC Board-power
38C 218881801 PC Board-control
39 218284600 Wire-ice door
40 218284500 Yoke-heat motor
41 215917800 Spring-actuator
43 215760300 Screw,#4 x 3/8
49 215794000 Bracket-heat motor
56 218434300 Screw-micro switch,pan head, 4-24 x 9/16
82 215296300 Screw,plask h/l ,#6 x 3/8
83 5304412136 Fuse,7A ,125v
DISPENSER

05/99 16
Publication No. FRS20ZSH
5995323937
ICE CONTAINER

# = Fast-moving Parts 17 05/99
* = Non-Illustrated Parts
FRS20ZSH Publication No.
5995323937
POS. NO PART NO DESCRIPTION
2 5304404344 Auger-ice
3 5304404343 Cam-drive
4 218815300 Container-ice
6 5304404346 Drum-ice disp
7 218815400 Front-ice container
10 5304404337 Bar-drive
13 5304404359 Gate
15 5303001179 Light Bulb/Lamp,40 W
16 # 5303289050 Socket-light/lamp
17 5304404345 Drive Blade
18 # 5304404330 Motor-auger
18* 5304404335 Harness-wiring,auger motor
20 5304404881 Cover-motor
21 215285100 Nut-drive
23 5304404347 Plate-front
25 5304404362 Screw
26 215503200 Screw,cr pan hd ,10-16 x 0.500, spec/hi-lo
33 5304404351 Spacer
34 5304404349 Spacer
35A 5304404353 Fixed Blade,round
35B 5304404352 Fixed Blade,square
37A 5304404348 Blade-crusher,#1
37B 5304404350 Blade-crusher,#2
37C 5304404356 Blade-crusher,#3
39 5304404365 Screw
41 5304404358 Housing-crusher
44 218359200 Screw,pan head ,8-32 x .25
45 # 5304404333 Solenoid Assy
45A 5304406816 Spring-solenoid
45B 5304406817 E-Ring-solenoid
45C 5304406818 Actuator-solenoid
45D 5304406819 Solenoid
46 5304404341 Control Rod
47 5304404342 Spring-control rod
48 5304404340 Bracket-control rod
48* 5304404364 Screw-bracket
49 5304404880 Rail Assy
50 5304404334 Guide-solenoid
51 5304404336 Rotation Stop
52 5304404354 Spacer-fixed blades
53 5304404355 Pin-spiral,fixed blades
54 5304404357 Nut-auger
55 5304404360 Washer
56 5304404361 E-ring
57 5304404363 Door-access
58 5304404331 Screw-solenoid
* 215781700 Clip-tube
* 218842802 Ice Container Assy
ICE CONTAINER

05/99 18
Publication No. FRS20ZSH
5995323937
ICE MAKER

# = Fast-moving Parts 19 05/99
* = Non-Illustrated Parts
FRS20ZSH Publication No.
5995323937
POS. NO PART NO DESCRIPTION
1 5318582501 Tube-water inlet,93" ,plastic, cut-to-size
1* 215294101 Tube-water inlet,formed ,plastic, dispenser
1* 218832302 Tube-water inlet,inlet valve ,to filter
1* 218859901 Tube-water inlet,inlet valve ,to filter
2 3206348 Spring,shut-off arm
3 3206299 Plate-I.D.
4 3206301 Gear
5 3206303 Plate-mounting
6 3206305 Screw-ground wire,8-32 x 1/4
7 # 3206306 Motor-ice maker
8 3206312 Spacer-holding sw
9 3206313 Cam
10 3206315 Clamp
11 # 3206319 Thermal Cutoff,icemaker ,complete assy
12 3206321 Connector Plug,wiring harness
12 # 3206349 Harness-wiring,IM internal ,with plug
13 # 3206322 Thermostat Assy,ice maker
14 3206323 Screw-switch mtg,4-24 x ¾, sw to support,(2)
15 # 3206324 Switch,(3)
16 3206326 Support
17 # 5303320545 Mold-ice maker,radius cube ,with heater
18 3206328 Ejector
19 3206330 Bearing & Inlet
20 3206331 Screw,8-18 x 0.375 ,(2)
21 3206332 Ice Stripper
22 3206333 Arm,shut-off
23 3206334 Screw-sup/mold body,8-18 x 1 ,(4)
24 3206335 Lever-arm
25 3206336 Screw-arm levr/sprt,8-18 x 9/16
26 3206337 Screw-thermo/sprt,4-24 x 3/8 ,(4)
27 3206338 Screw-sw&spcr/plate,4-40 x 1
28 3206339 Screw-timing stop,4-40 x 3/8
29 3206340 Screw-mtr & sw/plate,4-40 x 3/4
30 3206341 Screw-timing,8-32 x 1
31 3206342 Insulator
32 3206343 Plate-valve switch
33 3206344 Spring
34 3206345 Screw-mtg plate/sprt,8-18 x 7/16
35 3206346 Screw-gear/cam,6-20 x 0.437
36 3206347 Cover-ice maker,complete
37 5303320544 Data Sheet,ice maker
38 5303207445 Envelope-data sheet
44 5308000133 Clamp,nylon ,.75 OD tube
45 5303001343 Screw,hex wshr hd ,8-15A x .5 ,spec
46 5303001193 Clamp-inlet tube,metal
51 215811600 Tube-fill
55# 218859701 Valve-water,single solenoid ,115 V, w/nut
55* 218873001 Cap-water valve
59 5303001191 Sleeve-tube insert
60 5303207328 Screw,hex wshr hd ,8-15A x 1
61 218721500 Bracket-leveling,ice maker
62 215230500 Screw-bracket mtg,pan head, 8-32T x 0.375
64 5303001549 Clamp-copper tube,steel
141 218832401 Valve-water,dual solenoid ,115 V ,w/nut
* 215290100 Screw-solenoid valve,hx hd-slot wshr, 12-24 x 3/4
* 218699501 Icemaker,*
ICE MAKER

05/99 20
Publication No. FRS20ZSH
5995323937
WIRING SCHEMATIC
