Frigidaire FRS3R5E User manual

Product No. FRS3R5EMBD FRS3R5ESB4
Series R134a R134a
Color silver mist stainless
Volts 115 115
Wiring Diagram 241708401 241708401
Owner's Guide 241856000 241856000
Market North America North America
Energy Guide 241585988 241615439
Service Data Sheet 240389629 240389629
N58L00001.eps N58FCCBBB2.eps N58RCCBBB11.eps N58BAAAAA0.eps
N58SJCAAB15.eps N58TAAAAA7.eps N58CAAAAA5.eps N58XDAAAA1.eps
N58YBAAAA4.eps N58I1151.eps W241708401.eps S241708401.eps
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995513818
08/05/09
(EN/SERVICE/KHB)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FRS3R5E
Copyright ©All rights reserved.

Publication No: 5995513818 FRS3R5E
05/08 2
FREEZER DOOR
21C
21
21
21
21C
21C
21
74
74
74
72
72
73
73
73
18
37
22C
11
1
4A
68
4B
4B
13A
22A
21A
N58FCCBBB2

FRS3R5E Publication No: 5995513818
# Functional Parts 3 05/08
* Non-Illustrated Parts
FREEZER DOOR
Model Index: AFRS3R5E (FRS3R5EMBD)
BFRS3R5E (FRS3R5ESB4)
POS. NO PART NO. DESCRIPTION
1 241786008 A B Gasket-frzr door, black, magnetic
4A 240367301 A B Bin-door, frzr-upper
4B 240359001 A B Bin-door
11 241668506 A - Door-frzr, silver mist, complete assy
11 241668186 - B Door-frzr, stainless, complete assy
13A 240581906 A B Door Stop, black, frzr
18 241934305 A B Handle-door, black
21 218781101 A B Screw, pan head, 8-18 x 0.625
21A 240598402 A B Screw, 10-32 x 1/2
21C 240521304 A B Screw, #8-18 x 3/4
22A 240328204 A B Bearing-hinge(frz), black, closer
22C 240328404 A B Bearing-hinge, black, upper
37 241927002 A B Trim-door handle, black, bottom
68 241525101 A B Chute-ice
72 240421701 A B Button-handle mtg, dovetail
73 218396700 A B Block-handle mtg, dovetail
74 215503204 A B Screw, cr pan hd, 10-16
* 240552101 A B Harness-wiring, door
* 241806601 A B Connector-water, straight
* 218490901 - B Cleaner, stainless steel
* 5303918256 A B Dispenser heater kit

Publication No: 5995513818 FRS3R5E
05/08 4

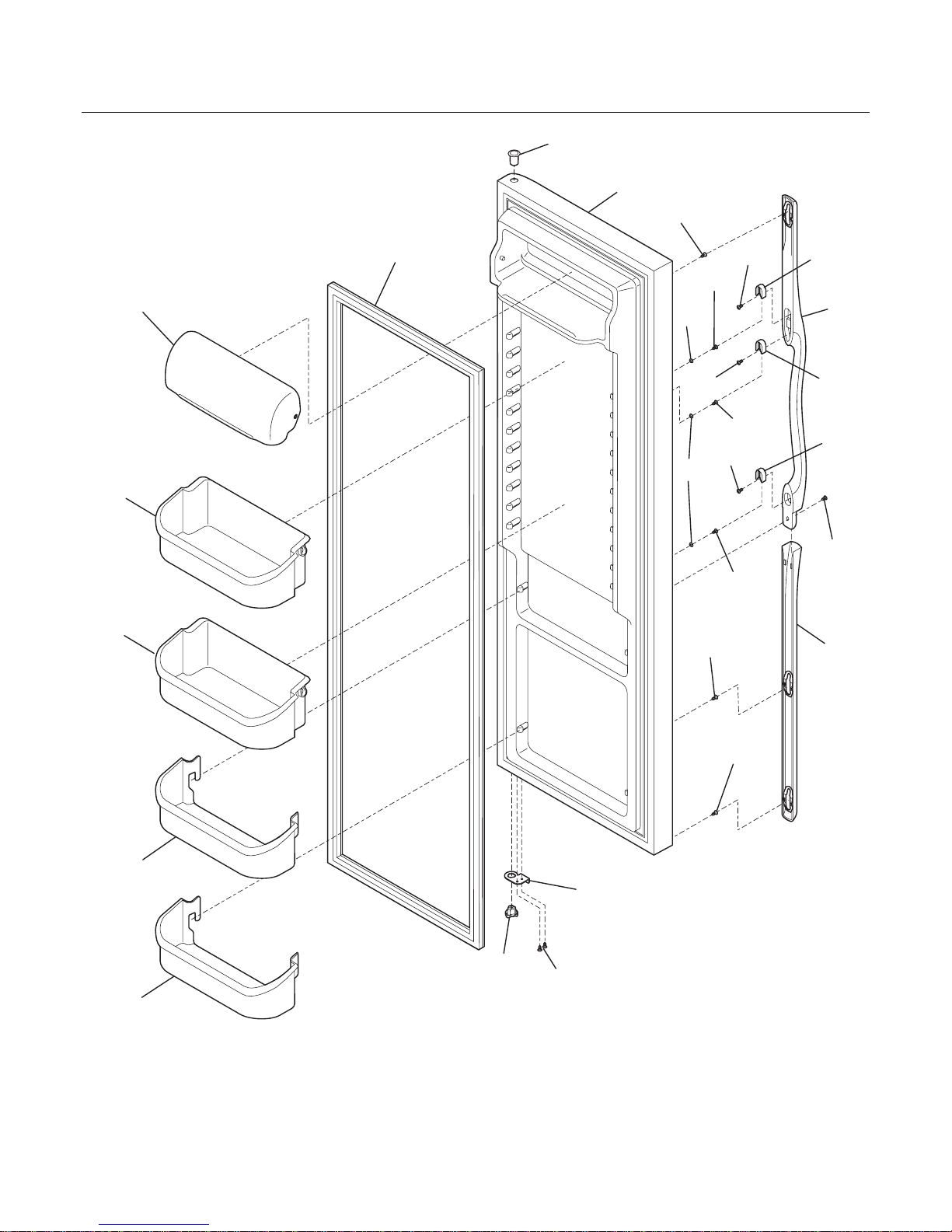

REFRIGERATOR DOOR
21C
21
21
21
21C
21C
21
74
74
74
21A
22
13
72
72
73
73
73
18
37
15
22B
2
7
49
49
4
4
N58RCCBBB11

FRS3R5E Publication No: 5995513818
# Functional Parts 5 05/08
* Non-Illustrated Parts
REFRIGERATOR DOOR
Model Index: AFRS3R5E (FRS3R5EMBD)
BFRS3R5E (FRS3R5ESB4)
POS. NO PART NO. DESCRIPTION
2 241786007 A B Gasket-refr door, black, magnetic
4 240363701 A B Bin-door, 2-liter
7 240338303 A B Door, dairy, clear
13 240581905 A B Door Stop, black, ref
15 241534554 A - Door-refr, silver mist, complete assy
15 241534529 - B Door-refr, stainless, complete assy
18 241934302 A B Handle-door, black
21 218781101 A B Screw, pan head, 8-18 x 0.625
21A 240598402 A B Screw, 10-32 x 1/2
21C 240521304 A B Screw, #8-18 x 3/4
22 240328203 A B Bearing-hinge, black, closer
22B 240328404 A B Bearing-hinge, black, upper
37 241927002 A B Trim-door handle, black, bottom
49 240324501 A B Bin-door, gallon
72 240421701 A B Button-handle mtg, dovetail
73 218396700 A B Block-handle mtg, dovetail
74 215503204 A B Screw, cr pan hd, 10-16
* 218490901 - B Cleaner, stainless steel

Publication No: 5995513818 FRS3R5E
05/08 6
CABINET

FRS3R5E Publication No: 5995513818
# Functional Parts 7 05/08
* Non-Illustrated Parts
CABINET
Model Index: AFRS3R5E (FRS3R5EMBD)
BFRS3R5E (FRS3R5ESB4)
POS. NO PART NO. DESCRIPTION
10 240435911 A B Cover-air duct
10A 240475910 A B Cover-evap coil, lower
11 5303208309 A B Plug-hole, factory test
14 # 240505801 A B Switch, light/lamp
14A 241547901 A B Switch-light/lamp, frzr door
21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 A B Plate-door closer
23 240402702 A B Screw-#10-32 x 1/4 flat hd
28 240335502 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603703 A B Bracket-lower hinge, ref
30A 241603704 A B Bracket-lower hinge
37 240337610 A B Trim-cabinet corner, black, (2)
38 240327207 A B Bracket-upper hinge
40 240327007 A B Cover-upper hinge, black
41 241550801 A B Grommet-shelf mtg, 1.40" long
41* 241550701 A B Grommet-shelf mtg, .96" long
42 240578902 A B Screw, hex head, 1/4-20 x 5/8
43 240335006 A B Roller Assy, front, (2)
45 241500303 A B Screw, hex washer head, 8-18AB x 0.500
47 218659500 A B Channel-shelf mtg, side, (2)
58 218781101 A B Screw, pan head, 8-18 x 0.625
66B 240374301 A B Diffuser-air
66B* 240518802 A B Pin-push, push-in, plastic
72 240324405 A B Grille/Kickplate, black
81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B Roller, compressor base, rear, (2)
83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733901 A B Cover-access, w/label
90 218249807 A B Seal-coil cover
91 240380101 A B Duct-ice maker
92 241710601 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 A B Support, crisper cover, front, (4)
100* 240350802 A B Support, crisper cover, rear, (4)
150 240368701 A B Guide-control bulb
* 240396801 A B Clamp, tube/wiring, nylon, black/natural
* 240479601 A B Plug, button, cab liner holes
* 5303321321 A B Paint, touch-up, black

Publication No: 5995513818 FRS3R5E
05/08 8

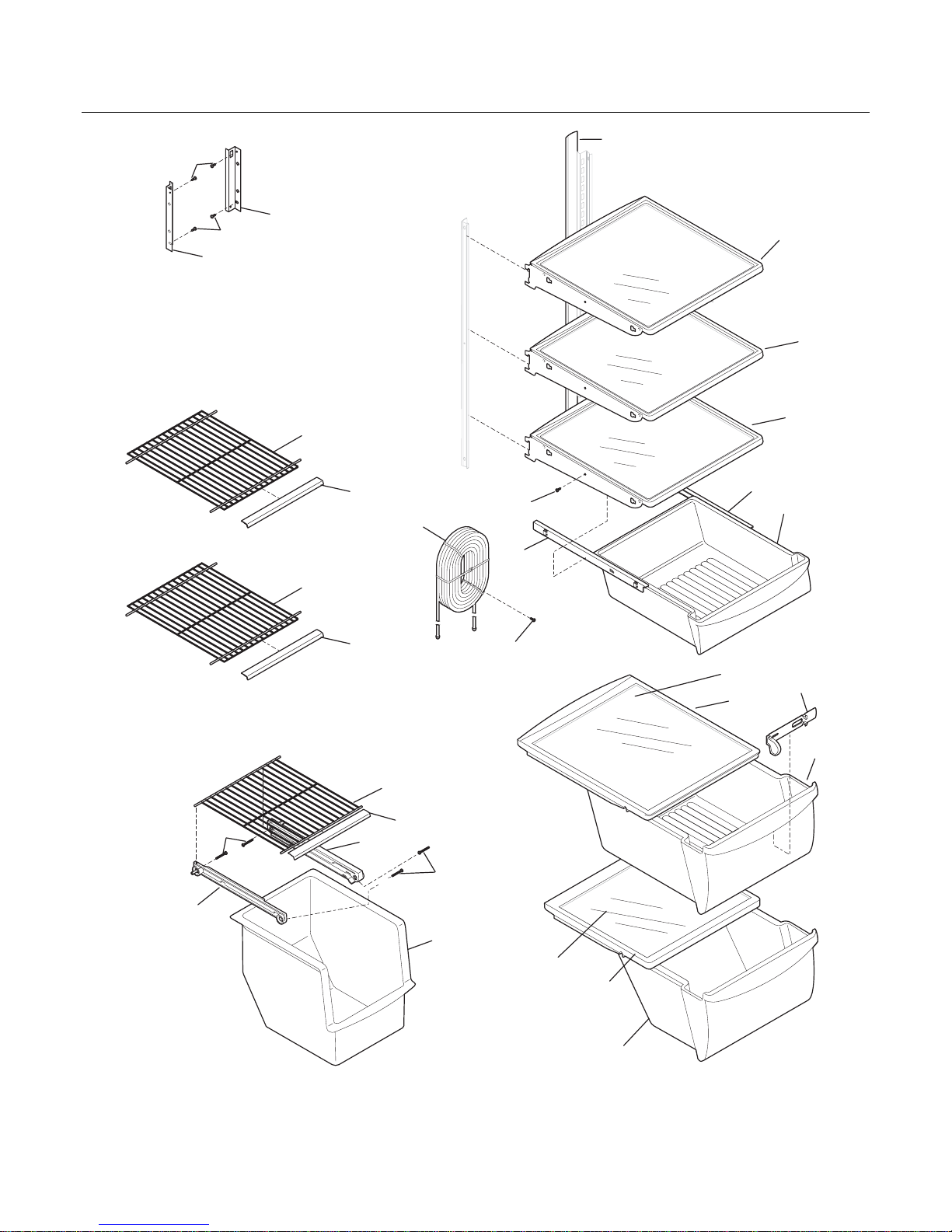

SHELVES
N58SJCAAB15
11B
11A
126
81
81
126
39B
39B
97
21
24
24
24
42
62
123
42
51
25
26
47
25A
27
47A
52
101
101
49
11
39
26A
140

FRS3R5E Publication No: 5995513818
# Functional Parts 9 05/08
* Non-Illustrated Parts
SHELVES
Model Index: AFRS3R5E (FRS3R5EMBD)
BFRS3R5E (FRS3R5ESB4)
POS. NO PART NO. DESCRIPTION
11 241657601 A B Shelf, flip up, wire
11A 241657501 A B Shelf, fixed, freezer
11B 241657503 A B Shelf, fixed upper, freezer
21 5304455658 A B Screw, hx wshr hd sems, 8-15A x 0.625
24 240355211 A B Shelf-"Spill-Safe", fixed
25 240354502 A B Cover-crisper pan, upper
25* 240362101 A B Clip-slide, cover-crisper
25A 240354602 A B Cover-crisper pan, lower
26 240354705 A B Pan-crisper, upper
26* 240349801 A B Clip-slide, pan-crisper
26A 240351101 A B Control-humidity
27 240354807 A B Pan-crisper, lower
39 240430705 A B Trim-shelf, front
39B 240430701 A B Trim-shelf, front
42 240356501 A B Track, meat pan hanger, RH
42 240365401 A B Track, meat pan hanger, LH
47 240350635 A B Insert-pan cover, glass
47A 240350614 A B Insert-pan cover, glass
49 240564301 A B Basket-sliding
51 240343002 A B Hanger-basket, RH
52 240343102 A B Hanger-basket, LH
62 240355506 A B Pan-meat
81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
97 240545308 A B Water Tank
101 218493101 A B Screw, hex washer head, 8-18AB x 1-3/4
123 215005101 A B Screw, hanger/rlr mtg, 8-10 x 7/16
126 241674401 A B Channel, auger mtg, LH
126 241674402 A B Channel, auger mtg, RH
140 240430501 A B Channel, wtr tube cover
* 240389629 A B Service Data Sheet
* 241585988 A - Energy Guide
* 241615439 - B Energy Guide

Publication No: 5995513818 FRS3R5E
05/08 10

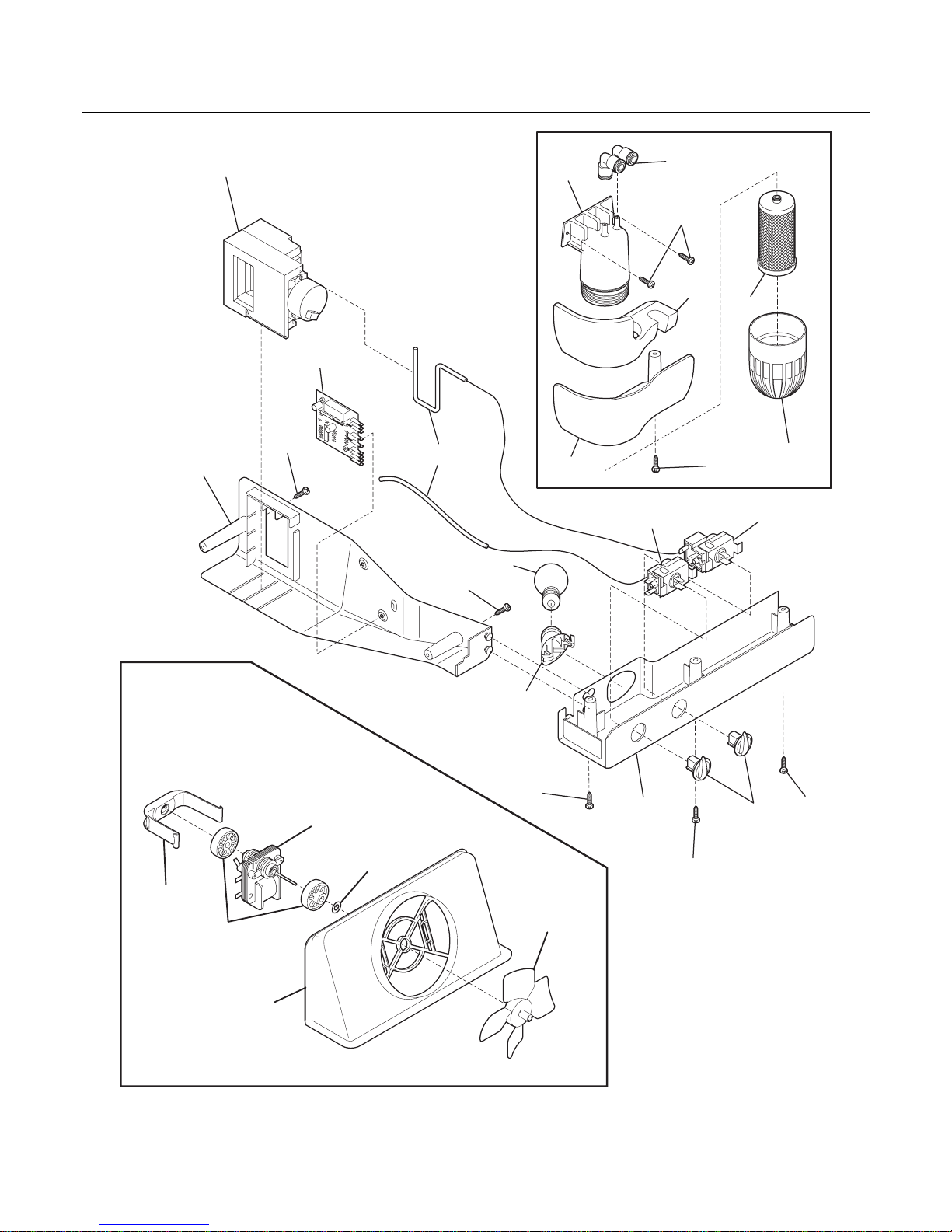

CONTROLS
140
139
45
138
137
81
151
150
115
23
22
53
81
101
15
16
21A 21
18
17
81
81
81
N58TAAAAA7
149
14
13
9
8
5

FRS3R5E Publication No: 5995513818
# Functional Parts 11 05/08
* Non-Illustrated Parts
CONTROLS
Model Index: AFRS3R5E (FRS3R5EMBD)
BFRS3R5E (FRS3R5ESB4)
POS. NO PART NO. DESCRIPTION
5 # 5308000010 A B Fan Blade, red, evaporator fan
8 215474201 A B Washer, "slinger", nylon, evap fan shaft
9 241563601 A B Bushing-motor mtg, (2)
13 240369702 A B Motor-evap fan
14 241517701 A B Clip, evap fan motor
15 241555401 A B Light Bulb
16 # 241513901 A B Socket-light
17 240374006 A B Box-control, front
17*# 241735702 A B Harness-wiring, control box
18 240360801 A B Knob, temp control
21 # 241586501 A B Control-temperature
21A# 5304429602 A B Control-temperature, frzr section
22 218660704 A B Tube, insulator, plastic
23 # 241736601 A B Control-defrost, adaptive timer, PC board
23* 5304455649 A B Screw, pan hd, 6-20 x 0.438
45 241500303 A B Screw, hex washer head, 8-18AB x 0.500
53 240369501 A B Box-control
81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
101 241637202 A B Screw, #8AB x 1 3/4"
115 241600905 A B Damper Assy, w/seal
137 240389101 A B Filter, water, carbon canister, rear, with o'rings
137* 218710300 A B Wrench-filter
138 240434401 A B Cup-water filter
138* 218904301 A B O-ring, wtr filter cup
139 240434301 A B Housing-water filtr
140 240545201 A B Elbow-water tube
149 241563401 A B Shroud-fan orfice
149* 241528305 A B Seal, shroud
150 240394102 A B Insulation-water filter cover
151 240376002 A B Cover-water filter
* 3205266 A B Edge Protector, wiring harness

Publication No: 5995513818 FRS3R5E
05/08 12

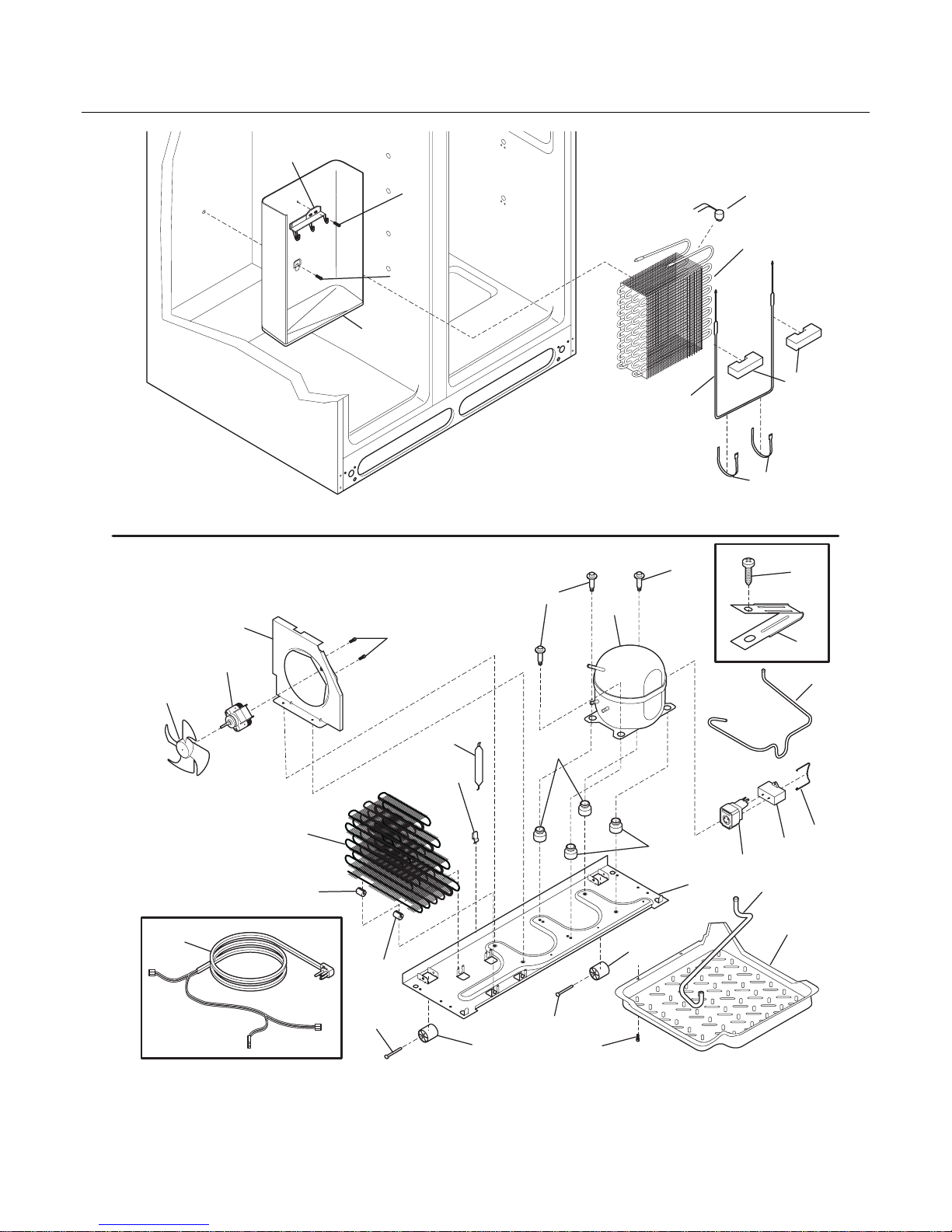

SYSTEM
N58CAAAAA5
62
70
45
45
1
34
34
83
44
41
82
83
82
22
23
23
30
32
55
4
25
6
25
29
26
45
16
15
14
3
57
84
85
21
60
59
61
58

FRS3R5E Publication No: 5995513818
# Functional Parts 13 05/08
* Non-Illustrated Parts
SYSTEM
Model Index: AFRS3R5E (FRS3R5EMBD)
BFRS3R5E (FRS3R5ESB4)
POS. NO PART NO. DESCRIPTION
1 240333602 A B Condenser
3 218679606 A B Block-evap coil, styrofoam, (2)
4 # 218944001 A B Drier-filter, R134a System
6 241586801 A B Harness-wiring, machine compt
6* 241651601 A B Harness-wiring, evaporator
6* 241735702 A B Harness-wiring, control box
14 # 240316107 A B Heater-defrost
15 # 5303918286 A B Evaporator Kit
16 5308000110 A B Strap-evap/heater, aluminum, (2)
21 # 5303918214 A B Thermostat-defrost, kit
22 240330010 A B Base-compressor
22* 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 A B Grommet-compr mtg, (4)
25 240491503 A B Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241697601 A B Pan-defrost
29 # 5303918353 A B Compressor Kit
30 # 241707709 A B Starter
32 241715901 A B Strap-cover
34 240405201 A B Grommet, rubber, black, cond tube/wire
41 240555002 A B Screw-#8-32 X 3/8
44 215174700 A B Clamp-service cord, strain relief, galv steel
45 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
55 218909913 A B Capacitor, run, 220 VAC, 15 microfarad
57 240542601 A B Clip-wiring harness
58 218897004 A B Screw, hex washer head, 8-32 x 0.375
59 241681101 A B Shroud-cond fan
59* 240346701 A B Tape-foam seal, shroud
59* 240359403 A B Screw-fan shroud, (2)
60 # 241696602 A B Motor-condenser fan
61 # 240524101 A B Fan Blade, galv steel, condenser fan
62 240429401 A B Trough-drain
70 218990801 A B Bracket-evap/cvr mtg
82 5304418225 A B Roller, compressor base, rear, (2)
83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 A B Tube-drain, lower
85 241844801 A B Tube-connector, suction
* # 5303918328 A B Heat Exchanger Kit, suction line, service
* 5303918222 A B Hot Tube Repair Kit, service

Publication No: 5995513818 FRS3R5E
05/08 14
ICE & WATER DISPENSER

FRS3R5E Publication No: 5995513818
# Functional Parts 15 05/08
* Non-Illustrated Parts
ICE & WATER DISPENSER
Model Index: AFRS3R5E (FRS3R5EMBD)
BFRS3R5E (FRS3R5ESB4)
POS. NO PART NO. DESCRIPTION
1 218976409 A B Tube, water, door
1* 218976901 A B Tube, water inlet, valve to IM
1* 218976904 A B Tube-water inlet, valve to filter
1* 218976907 A B Tube-water inlet, valve to door
1* 240561701 A B Seal-water inlet, inlet valve, to ice maker
4 241679003 A B Cover-module, black
8 241680507 A B Module-dispenser
10 241688901 A B Spring-torsion
14 240570206 A B Label-module cover, black
15 241689401 A B Light Bulb
16 240548901 A B Socket-light
17 241679801 A B Screw
17A 241679901 A B Screw, switch mtg.
23 241649003 A B Drip Tray, black
24 241682003 A B Actuator-water, black
24A 241681903 A B Actuator-ice, black
30 241688401 A B Door Assy-ice chute
30A 241688501 A B Door center
30B 241688601 A B Insulation-door
30C 241688701 A B Door seal
35 241689301 A B Damper-rotary
38A# 241689101 A B Switch-micro, single pole, double throw
38A* 241679201 A B Harness-wiring
38C 241679101 A B Switch
38C* 241686001 A B Harness-wiring
39 241688801 A B Pin-hinge
41 241689001 A B Spring-actuator
43 215296301 A B Screw, plask h/l, #6 x 3/8
56 241689201 A B Screw-micro switch, pan head
82 240363402 A B Screw-#8-18 X 1/2, #6 hd plask
87 241688302 A B Bearing Plate
87A 241688301 A B Bearing Plate
88 241686101 A B Shield-light
* 218515403 A B Clip-grille
* 5303918256 A B Dispenser heater kit

Publication No: 5995513818 FRS3R5E
05/08 16
ICE CONTAINER
45 4
45A
48
47
46
45B
45C
45D
50
18 20
15
16
44
44
44
51
26
26
26
26
10
26
43
43
43
49 7
N58YBAAAA4
57
3
2
23
39
39
6
17
53
52
37A 34
33
37B
34 33
37C
54
35A
35B
41
56
55
13
25
25
39

FRS3R5E Publication No: 5995513818
# Functional Parts 17 05/08
* Non-Illustrated Parts
ICE CONTAINER
Model Index: AFRS3R5E (FRS3R5EMBD)
BFRS3R5E (FRS3R5ESB4)
POS. NO PART NO. DESCRIPTION
2 241716101 A B Auger-ice
3 241685201 A B Cam-drive
4 241734001 A B Container-ice, bucket only
6 241685101 A B Drum-ice disp
7 241734201 A B Front-ice container
10 241624801 A B Bar-drive
13 241685301 A B Gate
15 241555401 A B Light Bulb
16 241559801 A B Socket-light
17 241684501 A B Drive Blade
18 # 241676202 A B Motor-auger, 115V
18*# 240352601 A B Wiring Harness, internal, with plug
20 241734802 A B Cover-motor
23 241684001 A B Plate-front
25 241690701 A B Screw, hex washer head, 8-32T x 0.375
26 215503205 A B Screw, cr pan hd, 10-16 x 0.500
33 241684801 A B Spacer
34 241689801 A B Spacer
35A 241684301 A B Fixed Blade, round
35B 241684201 A B Fixed Blade, square
37A 241684101 A B Blade, crusher #1
37B 241684102 A B Blade, crusher #2
37C 241684103 A B Blade, crusher #3
39 241690501 A B Screw
41 241685601 A B Housing-crusher
43 215296301 A B Screw, plask h/l, #6 x 3/8
44 218359202 A B Screw, pan head, 8-32 x 0.250
45 # 241675701 A B Solenoid Assy, 115V
45A 241675901 A B Spring-solenoid
45B 241676001 A B E-Ring-solenoid
45C 241676101 A B Actuator-solenoid
45D# 241675801 A B Solenoid, 115V
46 241716002 A B Control Rod
47 241731801 A B Spring-control rod
48 241684602 A B Bracket-control rod
49 241734401 A B Rail Assy
50 241675601 A B Guide-solenoid
51 241676301 A B Rotation Stop
52 241684901 A B Spacer-fixed blades
53 241690402 A B Pin-spiral, fixed blades
54 241685001 A B Nut-auger
55 241690306 A B Washer
56 241690201 A B E-ring
57 241734101 A B Door-access
* 240507202 A B Deflector-ice container
* 241860803 A B Ice Container Assy, w/moving parts

Publication No: 5995513818 FRS3R5E
05/08 18
ICE MAKER

FRS3R5E Publication No: 5995513818
# Functional Parts 19 05/08
* Non-Illustrated Parts
ICE MAKER
Model Index: AFRS3R5E (FRS3R5EMBD)
BFRS3R5E (FRS3R5ESB4)
POS. NO PART NO. DESCRIPTION
1 218976409 A B Tube, water, door
1* 218976901 A B Tube, water inlet, valve to IM
1* 218976904 A B Tube-water inlet, valve to filter
1* 218976907 A B Tube-water inlet, valve to door
1* 240561701 A B Seal-water inlet, inlet valve, to ice maker
2 5304456650 A B Spring-shutoff arm, ice maker
3 5304456657 A B Nameplate
4 5304456658 A B Gear
5 5304456659 A B Plate-mounting
6 5304456691 A B Screw, M 3x20 #3, valve plate
7 # 5304445222 A B Motor-ice maker Svo
7* 5304445223 A B Spring Beam
8 5304456661 A B Spacer-hold switch
9 5304456662 A B Cam
10 5304456689 A B Washer, nylon
11 # 5304456663 A B Thermal Cutoff, ice maker, complete assy
12 5304456664 A B Harness-wiring
13 5304456665 A B Thermostat, ice maker
14 5304456666 A B Screw, M 3x20 #2, (6)
15 # 5304456667 A B Switch-micro, (3)
15* 5304456688 A B Terminal
16 5304456668 A B Support
17 5304456669 A B Mold-ice maker, w/therm cut off
18 5304456670 A B Ejector-ice
18*# 240352601 A B Wiring Harness, internal, with plug
19 5304456671 A B Bearing & Inlet, fill cup
20 5304455677 A B Screw, 8-32 x 3/8
21 5304456672 A B Ice Stripper
22 5304456673 A B Shut-off Arm
23 5304456674 A B Screw, M 4x25 #2, mold-to-support, (2)
24 5304456675 A B Lever Arm
25 5304456676 A B Screw, M 4x12.8 #2, lever arm/sprt
26 5304455680 A B Screw, plask, 4-14 x 3/8
27 5304456677 A B Screw, M 3x25 #3, hold switch mtg, (2)
28 5304456660 A B Screw, M 4x6 #2
29 5304456678 A B Screw, M 3x12 #3, (2)
30 5304456679 A B Screw-timing adj, M 4x25 #3
31 5304456680 A B Insulator
32 5304456681 A B Plate-valve switch
33 5304456682 A B Spring, timing adjust
34 5304456683 A B Screw, M 4x12 #2, (3)
35 5304456684 A B Screw
36 5304456685 A B Cover-ice maker
36* 5304456690 A B Label, ID plate
42 218515403 A B Clip-grille
45 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
51 241523501 A B Tube-water, ice mold fill, extension
55 # 240531101 A B Valve-water, triple solenoid
55* 218709101 A B Screw, hex head, 10-32 x 0.500

Publication No: 5995513818 FRS3R5E
05/08 20
ICE MAKER
