Frigidaire FRS6HR4H User manual

N58L00002.eps N58FAAAAB4.eps N58RAAABB4.eps N58BAAAAA0.eps
N58SJCACB21.eps N58TAAAAA7.eps N58CAAAAC10.eps N58XDAAAA1.eps
N58YBAAAA5.eps N58I1151.eps W241708401.eps S241708401.eps
Product No. FRS6HR4HB2 FRS6HR4HW2
Series R134a R134a
Color black white
Volts 115 115
Wiring Diagram 241708401 241708401
Owner's Guide 241695301 241695301
Market North America North America
Energy Guide 241649298 241649298
Service Data Sheet 240389629 240389629
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995493052
07/06/18
(EN/SERVICE/DCS)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FRS6HR4H
Copyright ©All rights reserved.

Publication No: 5995493052 FRS6HR4H
06/07 2
FREEZER DOOR

FRS6HR4H Publication No: 5995493052
# Functional Parts 3 06/07
* Non-Illustrated Parts
FREEZER DOOR
Model Index: AFRS6HR4H (FRS6HR4HB2)
BFRS6HR4H (FRS6HR4HW2)
POS. NO PART NO. DESCRIPTION
1 # 241674806 A - Gasket-frzr door, black, magnetic
1 # 241674802 - B Gasket-frzr door, white, magnetic
4A 240334201 A B Bin-door, frzr-upper
4B 240351601 A B Bin-door
11 241615175 A - Door-frzr, black, complete assy
11 241668111 - B Door-frzr, white, complete assy
13A 240581906 A - Door Stop, black, frzr
13A 240581902 - B Door Stop, white, frzr
18 218762703 A - Handle-door, black
18 218762701 - B Handle-door, white
21A 240598402 A B Screw, 10-32 x 1/2
21C 218781101 A B Screw, pan head, 8-18 x 0.625
22A 240328204 A - Bearing-hinge(frz), black, closer
22A 240328202 - B Bearing-hinge(frz), closer
22C 240328404 A - Bearing-hinge, black, upper
22C 240328402 - B Bearing-hinge, natural, upper
37A 215870636 A - Trim-handle, 2.47", black, w/satin AL band
37A 215870629 - B Trim-handle, 2.47", white, w/satin AL band
68 241525101 A B Chute-ice
* 240552101 A B Harness-wiring, door
* 240451503 A B Screw, ind hex wshr hd, 8-32 x 0.375, trilobe
* 241806601 A B Connector-water, straight
* 5303918256 A B Dispenser heater kit

Publication No: 5995493052 FRS6HR4H
06/07 4
REFRIGERATOR DOOR

FRS6HR4H Publication No: 5995493052
# Functional Parts 5 06/07
* Non-Illustrated Parts
REFRIGERATOR DOOR
Model Index: AFRS6HR4H (FRS6HR4HB2)
BFRS6HR4H (FRS6HR4HW2)
POS. NO PART NO. DESCRIPTION
2 # 241674805 A - Gasket-refr door, black, magnetic
2 # 241674801 - B Gasket-refr door, white, magnetic
4 240323001 A B Bin-door, pseudo, bottom
7 240326203 A B Door-dairy
13 240581905 A - Door Stop, black, ref
13 240581901 - B Door Stop, white, refr
15 241629345 A - Door-refr, black, complete assy
15 240451902 - B Door-refr, white, complete assy
18 218762703 A - Handle-door, black
18 218762701 - B Handle-door, white
21A 240598402 A B Screw, 10-32 x 1/2
21C 218781101 A B Screw, pan head, 8-18 x 0.625
22 240328203 A - Bearing-hinge, black, closer
22 240328201 - B Bearing-hinge(ref), closer
22B 240328404 A - Bearing-hinge, black, upper
22B 240328402 - B Bearing-hinge, natural, upper
37A 215870636 A - Trim-handle, 2.47", black, w/satin AL band
37A 215870629 - B Trim-handle, 2.47", white, w/satin AL band
49 240356401 A B Bin-door, gallon

Publication No: 5995493052 FRS6HR4H
06/07 6
CABINET

FRS6HR4H Publication No: 5995493052
# Functional Parts 7 06/07
* Non-Illustrated Parts
CABINET
Model Index: AFRS6HR4H (FRS6HR4HB2)
BFRS6HR4H (FRS6HR4HW2)
POS. NO PART NO. DESCRIPTION
10 240435912 A B Cover-air duct
10A 240475911 A B Cover-evap coil, lower
11 5303208309 A B Plug-hole, factory test
14 240505801 A B Switch, light/lamp
14A 241547901 A B Switch-light/lamp, frzr door
21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 A - Plate-door closer
22 240457701 - B Plate-door closer
23 240402702 A B Screw-#10-32 x 1/4 flat hd
28 241708801 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603703 A B Bracket-lower hinge, ref
30A 241603704 A B Bracket-lower hinge
37 240337610 A - Trim-cabinet corner, black, (2)
37 240337608 - B Trim-cabinet corner, white, (2)
38 240327207 A B Bracket-upper hinge
40 240327007 A - Cover-upper hinge, black
40 240327005 - B Cover-upper hinge, white
41 241550801 A B Grommet-shelf mtg, 1.40" long
41* 241550701 A B Grommet-shelf mtg, .96" long
42 240578902 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 241709301 A B Roller Assy, adjustable, front, (2)
45 241500303 A B Screw, hex washer head, 8-18AB x 0.500
47 218659500 A B Channel-shelf mtg, side, (2)
58 218781101 A B Screw, pan head, 8-18 x 0.625
66B 240374301 A B Diffuser-air
66B* 240518802 A B Pin-push, push-in, plastic
72 240324411 A - Grille/Kickplate, black
72 240324409 - B Grille/Kickplate, white
81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B Roller, compressor base, rear, (2)
83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733902 A B Cover-access, w/label
90 218249808 A B Seal-coil cover
91 240380101 A B Duct-ice maker
92 241710601 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 A B Support, crisper cover, front, (4)
100* 240350802 A B Support, crisper cover, rear, (4)
150 240368701 A B Guide-control bulb
* 240396801 A B Clamp, tube/wiring, nylon, black/natural
* 240479601 A B Plug, button, cab liner holes
* 5303321321 A - Paint, touch-up, black
* 5303321319 - B Paint, touch-up, white

Publication No: 5995493052 FRS6HR4H
06/07 8

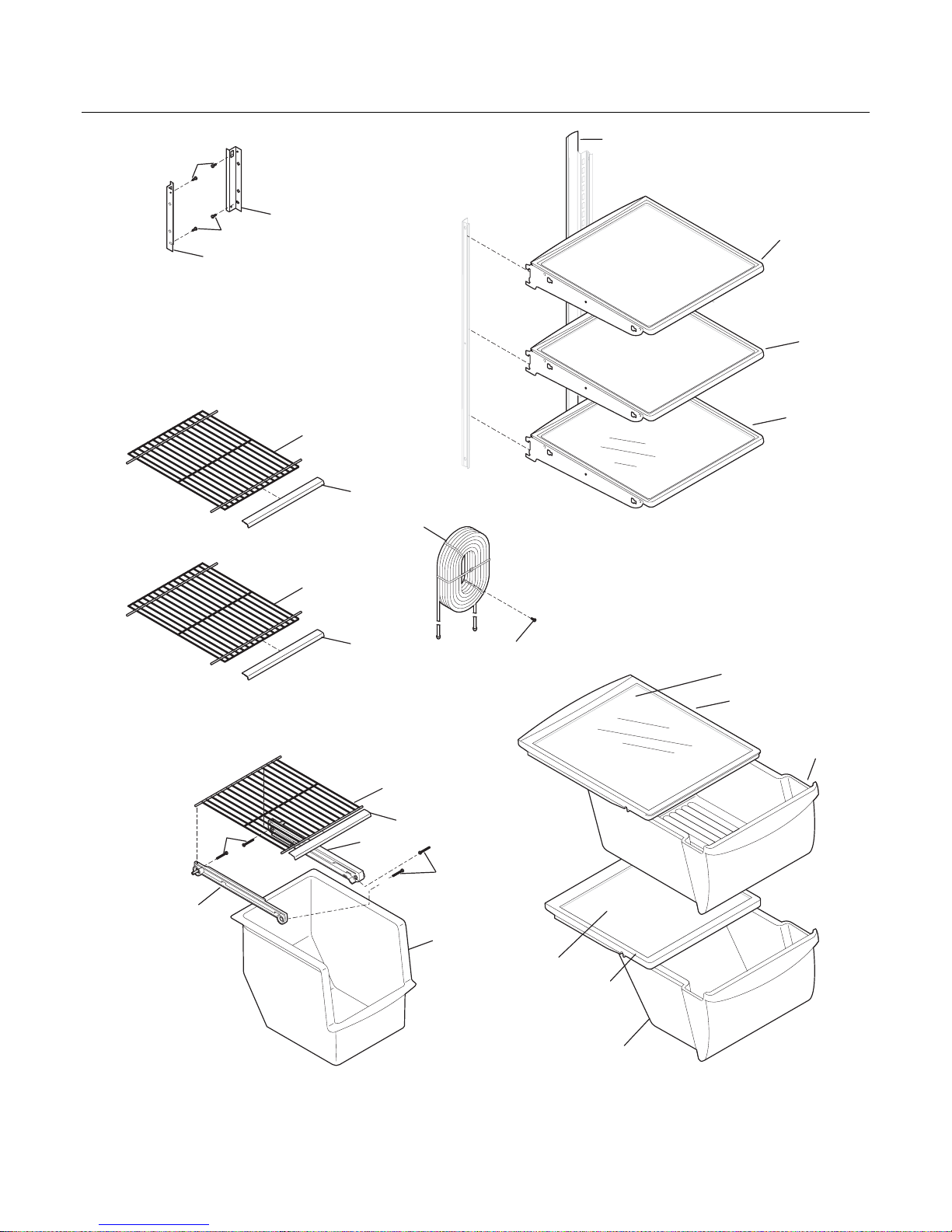

SHELVES
N58SJCACB21
11B
11A
126
81
81
126
39B
39B
97
21
24
24
24
51
25
26
47
25A
27
47A
52
101
101
49
11
39
140

FRS6HR4H Publication No: 5995493052
# Functional Parts 9 06/07
* Non-Illustrated Parts
SHELVES
Model Index: AFRS6HR4H (FRS6HR4HB2)
BFRS6HR4H (FRS6HR4HW2)
POS. NO PART NO. DESCRIPTION
11 241657602 A B Shelf, flip up, wire
11A 241657502 A B Shelf, fixed, freezer
11B 241657504 A B Shelf, fixed, upper, freezer
21 5304455658 A B Screw, hx wshr hd sems, 8-15A x 0.625
24 240355208 A B Shelf-"Spill-Safe", fixed
25 240350702 A B Cover-crisper pan, upper
25* 240362101 A B Clip-slide, cover-crisper
25A 240350902 A B Cover-crisper pan, lower
26 240351007 A B Pan-crisper, upper
26* 240349801 A B Clip-slide, pan-crisper
27 240351207 A B Pan-crisper, lower
39 240430706 A B Trim-shelf, 11.21", front
39B 240430702 A B Trim-shelf, 12.39", front
47 240350649 A B Insert-pan cover, glass
47A 240350603 A B Insert-pan cover, glass
49 240564401 A B Basket-sliding
51 240343002 A B Hanger-basket, RH
52 240343102 A B Hanger-basket, LH
81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
97 240545308 A B Water Tank
101 218493101 A B Screw, hex washer head, 8-18AB x 1-3/4
126 241674401 A B Channel, auger mtg, LH
126 241674402 A B Channel, auger mtg, RH
140 240430501 A B Channel, wtr tube cover
* 241649298 A B Label, ENERGY GUIDE

Publication No: 5995493052 FRS6HR4H
06/07 10
CONTROLS
140
139
45
138
137
81
151
150
115
23
22
53
81
101
15
16
21A 21
18
17
81
81
81
N58TAAAAA7
149
14
13
9
8
5

FRS6HR4H Publication No: 5995493052
# Functional Parts 11 06/07
* Non-Illustrated Parts
CONTROLS
Model Index: AFRS6HR4H (FRS6HR4HB2)
BFRS6HR4H (FRS6HR4HW2)
POS. NO PART NO. DESCRIPTION
5 # 5308000010 A B Fan Blade, red, evaporator fan
8 215474201 A B Washer, "slinger", nylon, evap fan shaft
9 241563601 A B Bushing-motor mtg, (2)
13 240369702 A B Motor-evap fan
14 241517701 A B Clip, evap fan motor
15 241555401 A B Light Bulb
16 # 241513901 A B Socket-light
17 240383301 A B Box-control, front
17* 241735702 A B Harness-wiring, control box
18 240360801 A B Knob, temp control
21 # 241586501 A B Control-temperature
21A 5304421067 A B Control-temperature, frzr section
22 218660704 A B Tube, insulator, plastic
23 # 241736601 A B Control-defrost, adaptive timer, PC board
23* 5304455649 A B Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
45 241500303 A B Screw, hex washer head, 8-18AB x 0.500
53 240369501 A B Box-control
81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
101 241637202 A B Screw, #8AB x 1 3/4"
115 241600905 A B Damper Assy, w/seal
137# 240389102 A B Filter, water, carbon canister, rear, with o'rings
137* 218710300 A B Wrench-filter
138 240434401 A B Cup-water filter
138* 218904301 A B O-ring, wtr filter cup
139 240434301 A B Housing-water filtr
140 240545201 A B Elbow-water tube
149 241563501 A B Shroud-fan orfice
149* 241528306 A B Seal, shroud
150 240394102 A B Insulation-water filter cover
151 240376002 A B Cover-water filter

Publication No: 5995493052 FRS6HR4H
06/07 12
SYSTEM
85
84
83
83
82
82
70
62
61
60
59B
59B
59A
59A
59A
59
58
57
55
45
45
44
41
34
34
32
30
29
26
N58CAAAAC10
25
25
23
23
22
21
16
15
14
6
4
3
1
86

FRS6HR4H Publication No: 5995493052
# Functional Parts 13 06/07
* Non-Illustrated Parts
SYSTEM
Model Index: AFRS6HR4H (FRS6HR4HB2)
BFRS6HR4H (FRS6HR4HW2)
POS. NO PART NO. DESCRIPTION
1 240333603 A B Condenser
3 218679607 A B Block-evap coil, styrofoam, (2)
4 # 218944001 A B Drier-filter, R134a System
6 # 241586801 A B Harness-wiring, machine compt
6* # 241651601 A B Harness-wiring
6* # 241735702 A B Harness-wiring, control box
14 # 240316107 A B Heater-defrost
15 # 5303918284 A B Evaporator Kit
16 5308000110 A B Strap-evap/heater, aluminum, (2)
21 5303918214 A B Thermostat-defrost, kit
22 240330011 A B Base-compressor mtg
22* 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500
23 241659701 A B Grommet, compressor
25 240491503 A B Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241697601 A B Pan-defrost
29 # 5303918329 A B Compressor, kit, w/electricals
30 # 241707701 A B Starter, PTC
32 241650901 A B Clamp, elec cont mtg, compressor
34 240405201 A B Grommet, rubber, black, cond tube/wire
41 240555002 A B Screw-#8-32 X 3/8
44 215174700 A B Clamp-service cord, strain relief, galv steel
45 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
55 218909913 A B Capacitor, run, 220 VAC, 15 microfarad
57 240542601 A B Clip-wiring harness
58 240433203 A B Screw, hex washer head, 8-18 x 3/8
59 240315502 A B Shroud-cond fan
59* 240346701 A B Tape-foam seal, shroud
59* 240359403 A B Screw-fan shroud, (2)
59A 240346501 A B Bracket-support, cond mtr, (3)
59B 240346601 A B Grommet-bracket, (3)
60 241584301 A B Motor-condenser fan
61 241639501 A B Blade-condenser fan
62 240429402 A B Trough-drain
70 218990801 A B Bracket-evap/cvr mtg
82 5304418225 A B Roller, compressor base, rear, (2)
83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 A B Tube-drain, lower
85 241719501 A B Tube-connector, suction
86 240409302 A B Spacer-cond tube, black
* 5303918222 A B Hot Tube Repair Kit, service
* # 5303918328 A B Heat Exchanger Kit, suction line, service

Publication No: 5995493052 FRS6HR4H
06/07 14
ICE & WATER DISPENSER

FRS6HR4H Publication No: 5995493052
# Functional Parts 15 06/07
* Non-Illustrated Parts
ICE & WATER DISPENSER
Model Index: AFRS6HR4H (FRS6HR4HB2)
BFRS6HR4H (FRS6HR4HW2)
POS. NO PART NO. DESCRIPTION
1 218976409 A B Tube, water, door
1* 218976419 A B Tube-water inlet, valve to door
1* 218976420 A B Tube-water inlet, inlet valve, to filter
1* 218976915 A B Tube-water inlet, inlet valve, to filter
1* 240561701 A B Seal-water inlet, inlet valve, to ice maker
4 241679003 A - Cover-module, black
4 241679001 - B Cover-module, white
8 241680507 A - Module-dispenser
8 241680505 - B Module-dispenser
10 241688901 A B Spring-torsion
14 240570206 A - Label-module cover, black
14 240570204 - B Label-module cover, white
15 241689401 A B Light Bulb
16 240548901 A B Socket-light
17 241679801 A B Screw
17A 241679901 A B Screw, switch mtg.
23 241649003 A - Drip Tray, black
23 241649001 - B Drip Tray, white
24 241682003 A - Actuator-water, black
24 241682001 - B Actuator-water, white
24A 241681903 A - Actuator-ice, black
24A 241681901 - B Actuator-ice, white
30 241688401 A B Door Assy-ice chute
30A 241688501 A B Door center
30B 241688601 A B Insulation-door
30C 241688701 A B Door seal
35 241689301 A B Damper-rotary
38A# 241689101 A B Switch-micro, single pole, double throw
38A* 241679201 A B Harness-wiring
38C# 241679101 A B Switch
38C* 241686001 A B Harness-wiring
39 241688801 A B Pin-hinge
41 241689001 A B Spring-actuator
43 215296301 A B Screw, plask h/l, #6 x 3/8
56 241689201 A B Screw-micro switch, pan head
82 240363402 A B Screw-#8-18 X 1/2, #6 hd plask
87 241688302 A B Bearing Plate
87A 241688301 A B Bearing Plate
88 241686101 A B Shield-light
* 218515403 A B Clip-grille
* 5303918256 A B Dispenser heater kit

Publication No: 5995493052 FRS6HR4H
06/07 16
ICE CONTAINER
45 4
45A
48
47
46
45B
45C
45D
50
18 20
15
16
44
44
43
51
26
26
26
26
10
26
43
43
43
49 7
N58YBAAAA5
57
3
2
23
39
39
6
17
53
52
37A 34
33
37B
34 33
37C
54
35A
35B
41
56
55
13
25
25
39

FRS6HR4H Publication No: 5995493052
# Functional Parts 17 06/07
* Non-Illustrated Parts
ICE CONTAINER
Model Index: AFRS6HR4H (FRS6HR4HB2)
BFRS6HR4H (FRS6HR4HW2)
POS. NO PART NO. DESCRIPTION
2 241716101 A B Auger-ice
3 241685201 A B Cam-drive
4 241734001 A B Container-ice, bucket only
6 241685101 A B Drum-ice disp
7 241734201 A B Front-ice container
10 241726501 A B Bar-drive
13 241685301 A B Gate
15 241555401 A B Light Bulb
16 241559801 A B Socket-light
17 241684501 A B Drive Blade
18 # 241676202 A B Motor-auger, 115V
18* 240352602 A B Harness-wiring, icmkr/container
20 241734802 A B Cover-motor
23 241684001 A B Plate-front
25 241690701 A B Screw, hex washer head, 8-32T x 0.375
26 215503205 A B Screw, cr pan hd, 10-16 x 0.500
33 241684801 A B Spacer
34 241689801 A B Spacer
35A 241684301 A B Fixed Blade, round
35B 241684201 A B Fixed Blade, square
37A 241684101 A B Blade, crusher #1
37B 241684102 A B Blade, crusher #2
37C 241684103 A B Blade, crusher #3
39 241690501 A B Screw
41 241685601 A B Housing-crusher
43 215005101 A B Screw, hanger/rlr mtg, 8-10 x 7/16
44 218359202 A B Screw, pan head, 8-32 x 0.250
45 # 241675701 A B Solenoid Assy, 115V
45A 241675901 A B Spring-solenoid
45B 241676001 A B E-Ring-solenoid
45C 241676101 A B Actuator-solenoid
45D# 241675801 A B Solenoid, 115V
46 241716002 A B Control Rod
47 241731801 A B Spring-control rod
48 241684602 A B Bracket-control rod
49 241734501 A B Rail Assy
50 241675601 A B Guide-solenoid
51 241676301 A B Rotation Stop
52 241684901 A B Spacer-fixed blades
53 241690402 A B Pin-spiral, fixed blades
54 241685001 A B Nut-auger
55 241690301 A B Washer
56 241690201 A B E-ring
57 241734101 A B Door-access
* 240323813 A B Ice Container Assy, w/moving parts
* 240507202 A B Deflector-ice container

Publication No: 5995493052 FRS6HR4H
06/07 18
ICE MAKER

FRS6HR4H Publication No: 5995493052
# Functional Parts 19 06/07
* Non-Illustrated Parts
ICE MAKER
Model Index: AFRS6HR4H (FRS6HR4HB2)
BFRS6HR4H (FRS6HR4HW2)
POS. NO PART NO. DESCRIPTION
1 218976409 A B Tube, water, door
1* 218976419 A B Tube-water inlet, valve to door
1* 218976420 A B Tube-water inlet, inlet valve, to filter
1* 218976915 A B Tube-water inlet, inlet valve, to filter
1* 240561701 A B Seal-water inlet, inlet valve, to ice maker
2 5304456650 A B Spring-shutoff arm, ICE MAKER
3 5304456657 A B Nameplate
4 5304456658 A B Gear
5 5304456659 A B Plate-mounting
6 5304456691 A B Screw, M 3x20 #3, valve plate
7 # 5304445222 A B Motor-ice maker Svo
7* 5304445223 A B Spring Beam
8 5304456661 A B Spacer-hold switch
9 5304456662 A B Cam
10 5304456689 A B Retainer
11 # 5304456663 A B Thermal Cutoff, ICE MAKER
12 5304456664 A B Harness-wiring
13 5304456665 A B Thermostat, ICE MAKER
14 5304455676 A B Screw, plask, 4x14x3/4
15 # 5304456667 A B Switch-micro, (3)
16 5304456668 A B Support
17 5304456669 A B Mold-ice maker, w/therm cut off
18 5304456670 A B Ejector-ice
18* 240352602 A B Harness-wiring, icmkr/container
19 5304456671 A B Bearing & Inlet, fill cup
20 5304455677 A B Screw, 8-32 x 3/8
21 5304456672 A B Ice Stripper
22 5304456673 A B Shut-off Arm
23 5304456674 A B Screw, M 4x25 #2, mold-to-support, (2)
24 5304456675 A B Lever Arm
25 5304456676 A B Screw, M 4x12.8 #2, lever arm/sprt
26 5304455680 A B Screw, plask, 4-14 x 3/8
27 5304456677 A B Screw, M 3x25 #3, hold switch mtg, (2)
28 5304456660 A B Screw, M 4x6 #2
29 5304456678 A B Screw, M 3x12 #3, (2)
30 5304456679 A B Screw-timing adj, M 4x25 #3
31 5304456680 A B Insulator
32 5304456681 A B Plate-valve switch
33 5304456682 A B Spring, shut-off arm
34 5304456683 A B Screw, M 4x12 #2, (3)
35 5304456684 A B Screw
36 5304456685 A B Cover-ice maker
36* 5304456690 A B Label, on/off
42 218515403 A B Clip-grille
45 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
51 241796401 A B Tube-water fill, extension
55 # 241734301 A B Valve-water, triple solenoid
55* 218709101 A B Screw, hex head, 10-32 x 0.500
55* 240363602 A B Screw-shoulder

Publication No: 5995493052 FRS6HR4H
06/07 20
ICE MAKER
