Frigidaire FRT21IQRJ User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLT
FRT21IQRJD1 FRT21IQRJ R134a almond/RH 115
FRT21IQRJW1 FRT21IQRJ R134a white/RH 115
FRT21IQRJY1 FRT21IQRJ R134a white/LH 115
FRT21IQRJZ1 FRT21IQRJ R134a almond/LH 115
Publication No.
5995351094
010313
-EN/SERVICE /DJH
357
REFRIGERATOR
Model No.
FRT21IQRJ
©2001 White Consolidated Industries, Inc.
All rights reserved
FACTORY PARTS CATALOG
REFRIGERATOR
WIRING DIAGRAM - #193832
OWNERS GUIDE - # 218989102
SERVICE DATA SHEET - # 218755000
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. Box 212378, Augusta, GA 30917

03/01
Publication No. FRT21IQRJ
5995351094
DOOR

# = Fast-moving Parts 3 03/01
* = Non-Illustrated Parts
FRT21IQRJ Publication No.
5995351094
DOOR
A = FRT21IQRJ (FRT21IQRJD1)
B = FRT21IQRJ (FRT21IQRJW1)
C = FRT21IQRJ (FRT21IQRJY1)
D = FRT21IQRJ (FRT21IQRJZ1)
POS. NO PART NO DESCRIPTION
1 # 215608913 A B C D Gasket-frzr door,white ,magnetic
2 # 218730609 A B C D Gasket-refr door,white ,magnetic
3 215393201 A B C D Panel-inner door,refr
4 218763644 A B C D Rack-door,23.09" x 2.04"
4A 218763643 A B C D Rack-door,22.51" x 2.04"
4B 218763642 A B C D Rack-door,9.24" x 2.04"
5 218758601 A B C D Support-door rack,RH/LH
5A 218809701 A B C D Support-door rack,LH
5B 218809801 A B C D Support-door rack,RH
7 5303304569 A B C D Door-dairy,12.96" wide ,clear ,no graphics
8 218763645 A B C D Rack-door,23.47" x 2.04" ,(2)
9 215530301 A B C D Panel-inner door,frzr
10 5303001308 A - C - Plug-button,almond,hinge brg hole
10 5308000134 - B - D Plug-button,white ,hinge brg hole
11 5303917827 A - - - Panel-frzr door,almond ,w/insulation
11 5303917826 - B - - Panel-frzr door,white ,w/insulation
11 5303918176 - - C - Panel-ext frzr door,almond ,w/foam insulatn
11 5303918175 ---D Panel-ext frzr door,white ,w/foam insulatn
12 218917602 A - C - Label-nameplate,almond
12 218917601 - B - D Label-nameplate,white
13 218800300 A B C D Door Stop,plated
13A 218249002 A - C - Door Stop,almond ,frzr section
13A 218249001 - B - D Door Stop,white ,frzr section
14 218915702 A - C - Plug-button,almond
14 218915701 - B - D Plug-button,white
14B 218074002 A - C - Plug-button,almond ,refr door front ,lower
14B 218074001 - B - D Plug-button,white ,refr door front ,1 ,lower
15 5303917829 A - - - Panel-refr door,almond ,w/insul & brace
15 5303917828 - B - - Panel-refr door,white ,w/insul & brace
15 5303918178 - - C - Panel-ext refr door,almond , w/foam insulatn
15 5303918177 ---D Panel-ext refr door,white ,w/foam insulatn
18 218668002 A - C - Handle-door,almond
18 218668001 - B - D Handle-door,white
21C 218252200 A B C D Screw,#8 truss hd ,10-32CA x 0.500
22 218519300 A B C D Bearing-hinge
37 218811622 A - C - Trim-handle,almond ,upper ,w/chrome band,& snap-on
37 218811621 - B - D Trim-handle,white ,upper ,w/chrome band
37A 218811614 A - C - Trim-handle,almond ,lower ,w/chrome band,& snap-on loc
37A 218811613 - B - D Trim-handle,white ,lower ,w/chrome band
37A* 218906701 A B C D Lock-handle trim,stick-on
37A* 215782300 A B C D Lock-handle trim,snap-in
37A* 218676004 A B C D Band-decorative,satinaluminum ,handle trim
58 218781100 A B C D Screw,pan head ,8-18 x 0.625
* 5303917276 A B C D Insulation-door,fiberglass ,(bulk)

03/01
Publication No. FRT21IQRJ
5995351094

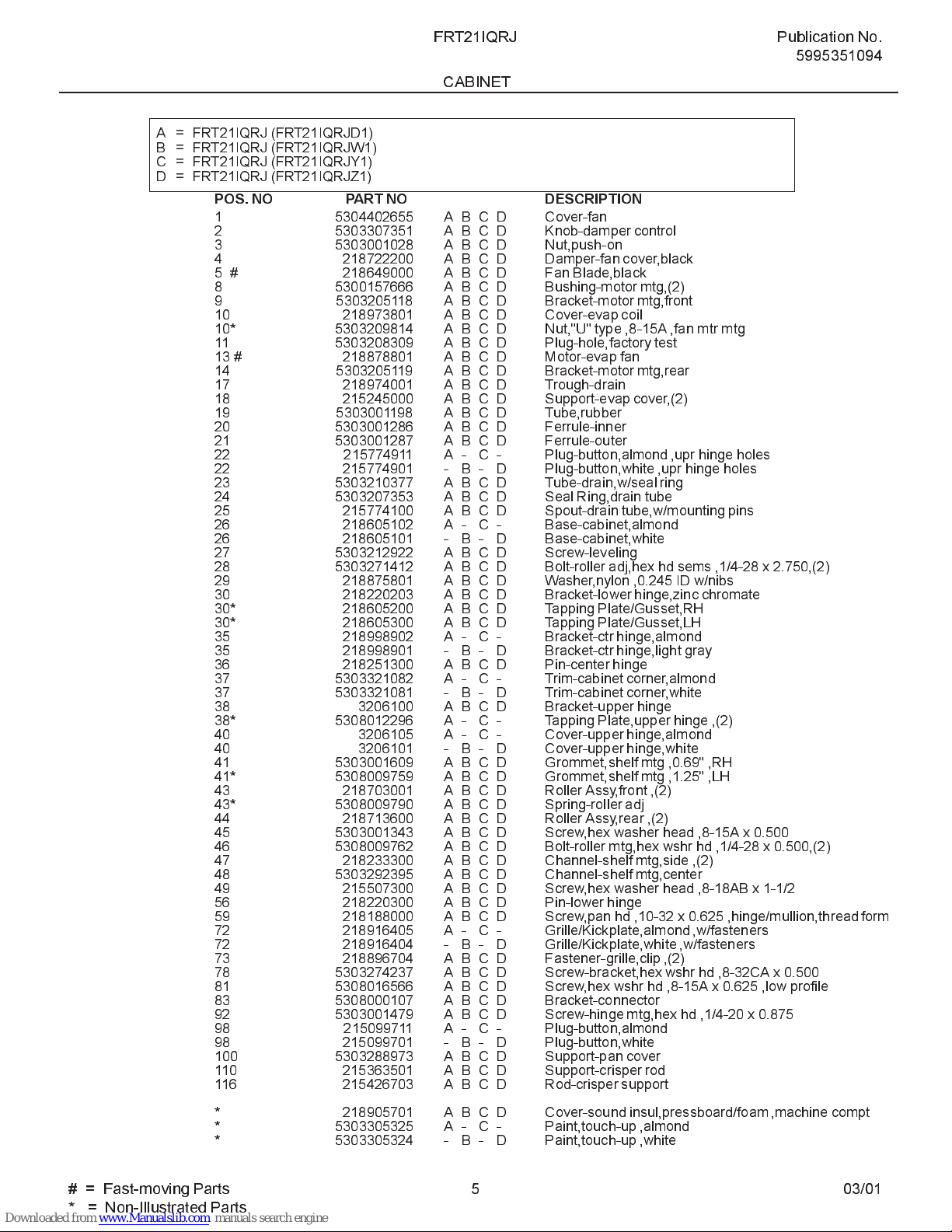

CABINET

# = Fast-moving Parts 5 03/01
* = Non-Illustrated Parts
FRT21IQRJ Publication No.
5995351094
A = FRT21IQRJ (FRT21IQRJD1)
B = FRT21IQRJ (FRT21IQRJW1)
C = FRT21IQRJ (FRT21IQRJY1)
D = FRT21IQRJ (FRT21IQRJZ1)
POS. NO PART NO DESCRIPTION
1 5304402655 A B C D Cover-fan
2 5303307351 A B C D Knob-damper control
3 5303001028 A B C D Nut,push-on
4 218722200 A B C D Damper-fan cover,black
5 # 218649000 A B C D Fan Blade,black
8 5300157666 A B C D Bushing-motor mtg,(2)
9 5303205118 A B C D Bracket-motor mtg,front
10 218973801 A B C D Cover-evap coil
10* 5303209814 A B C D Nut,"U" type ,8-15A ,fan mtr mtg
11 5303208309 A B C D Plug-hole,factory test
13 # 218878801 A B C D Motor-evap fan
14 5303205119 A B C D Bracket-motor mtg,rear
17 218974001 A B C D Trough-drain
18 215245000 A B C D Support-evap cover,(2)
19 5303001198 A B C D Tube,rubber
20 5303001286 A B C D Ferrule-inner
21 5303001287 A B C D Ferrule-outer
22 215774911 A - C - Plug-button,almond ,upr hinge holes
22 215774901 - B - D Plug-button,white ,upr hinge holes
23 5303210377 A B C D Tube-drain,w/seal ring
24 5303207353 A B C D Seal Ring,drain tube
25 215774100 A B C D Spout-drain tube,w/mounting pins
26 218605102 A - C - Base-cabinet,almond
26 218605101 - B - D Base-cabinet,white
27 5303212922 A B C D Screw-leveling
28 5303271412 A B C D Bolt-roller adj,hex hd sems ,1/4-28 x 2.750,(2)
29 218875801 A B C D Washer,nylon ,0.245 ID w/nibs
30 218220203 A B C D Bracket-lower hinge,zinc chromate
30* 218605200 A B C D Tapping Plate/Gusset,RH
30* 218605300 A B C D Tapping Plate/Gusset,LH
35 218998902 A - C - Bracket-ctr hinge,almond
35 218998901 - B - D Bracket-ctr hinge,light gray
36 218251300 A B C D Pin-center hinge
37 5303321082 A - C - Trim-cabinet corner,almond
37 5303321081 - B - D Trim-cabinet corner,white
38 3206100 A B C D Bracket-upper hinge
38* 5308012296 A - C - Tapping Plate,upper hinge ,(2)
40 3206105 A - C - Cover-upper hinge,almond
40 3206101 - B - D Cover-upper hinge,white
41 5303001609 A B C D Grommet,shelf mtg ,0.69" ,RH
41* 5308009759 A B C D Grommet,shelf mtg ,1.25" ,LH
43 218703001 A B C D Roller Assy,front ,(2)
43* 5308009790 A B C D Spring-roller adj
44 218713600 A B C D Roller Assy,rear ,(2)
45 5303001343 A B C D Screw,hex washer head ,8-15A x 0.500
46 5308009762 A B C D Bolt-roller mtg,hex wshr hd ,1/4-28 x 0.500,(2)
47 218233300 A B C D Channel-shelf mtg,side ,(2)
48 5303292395 A B C D Channel-shelf mtg,center
49 215507300 A B C D Screw,hex washer head ,8-18AB x 1-1/2
56 218220300 A B C D Pin-lower hinge
59 218188000 A B C D Screw,pan hd ,10-32 x 0.625 ,hinge/mullion,threadform
72 218916405 A - C - Grille/Kickplate,almond,w/fasteners
72 218916404 - B - D Grille/Kickplate,white,w/fasteners
73 218896704 A B C D Fastener-grille,clip,(2)
78 5303274237 A B C D Screw-bracket,hex wshr hd ,8-32CA x 0.500
81 5308016566 A B C D Screw,hex wshr hd ,8-15A x 0.625 ,low profile
83 5308000107 A B C D Bracket-connector
92 5303001479 A B C D Screw-hinge mtg,hex hd ,1/4-20 x 0.875
98 215099711 A - C - Plug-button,almond
98 215099701 - B - D Plug-button,white
100 5303288973 A B C D Support-pan cover
110 215363501 A B C D Support-crisper rod
116 215426703 A B C D Rod-crisper support
* 218905701 A B C D Cover-sound insul,pressboard/foam,machine compt
* 5303305325 A - C - Paint,touch-up ,almond
* 5303305324 - B - D Paint,touch-up ,white
CABINET

03/01
Publication No. FRT21IQRJ
5995351094
SHELVES

# = Fast-moving Parts 7 03/01
* = Non-Illustrated Parts
FRT21IQRJ Publication No.
5995351094
SHELVES
A = FRT21IQRJ (FRT21IQRJD1)
B = FRT21IQRJ (FRT21IQRJW1)
C = FRT21IQRJ (FRT21IQRJY1)
D = FRT21IQRJ (FRT21IQRJZ1)
POS. NO PART NO DESCRIPTION
1 218651901 A - C - Mullion,almond
1 218651900 - B - D Mullion,white
5 # 218781002 A B C D Heater-mullion
6 218845602 A B C D Tapping Plate,mullion mtg ,(2)
7 218866101 A B C D Top Panel-refr
7* 5303001380 A B C D Screw,truss head ,8-10 x 1.625
8 218909706 A B C D Divider,styrofoam ,w/foil tape
8* # 218878600 A B C D Wiring Harness,control/divider
9 218865900 A B C D Bottom Panel-frzr
11 5303288243 A B C D Shelf-freezer,fixed/flat ,full width ,wire
11* 5303299664 A B C D Spacer-shelf
12 218730000 A B C D Deflector-air
13 218631001 A B C D Cover-air deflector
14 # 5309918806 A B C D Switch-light/lamp
15 # 5303001179 A B C D Light Bulb/Lamp,40 W
16A# 218906801 A B C D Socket-light/lamp
17 5304414816 A B C D Control Box
17* 5308016567 A B C D Nut-anchor
18 5303311079 A B C D Knob-temp control
19 # 5303286905 A B C D Switch-energy saver,rocker type
21 # 5304404260 A B C D Control-temperature
21* 5303001260 A B C D Screw-control mtg,pan hd ,6-32 x 0.250
22A 5303916855 A B C D Tube,sensor sleeve ,plastic ,clear
22B 218731104 A B C D Tube,PVC ,white ,@ air deflector ,insulator
23 # 215846606 A B C D Timer-defrost,60 Hz ,120 V ,10 hour/30 min
23* 5303001259 A B C D Screw-timer mtg,pan hd ,6-20 x 0.438 ,(2)
25 215363203 A B C D Cover-crisper pan,less insert
25A 5304412423 A B C D Trim-crisper cover
25B 5303301393 A B C D Control-humidity
26 215363301 A B C D Pan-crisper,tilt-out
28 3201150 A B C D End Cap-shelf,protector,frzr shelf
31 215742602 A B C D Pan-meat
34 5303212918 A B C D Container-ice
36 215919115 A B C D Frame-half shelf,cantilever
36A 215919173 A B C D Frame-half shelf,cantilever
37 215919411 A B C D Trim-half shelf,front
42 218971202 A B C D Hanger-meat pan,LH
42 218971302 A B C D Hanger-meat pan,RH
43 218498175 A B C D Glass-shelf,13.03"x 14.57"
44 215919811 A B C D Trim-glass shelf,13.07" ,rear
46 215412106 A B C D Front-crisper pan,(2)
47 218498178 A B C D Insert-pan cover,glass
59 218188000 A B C D Screw,pan hd ,10-32 x 0.625hng/mullion,threadforming
67 215357813 A B C D Front-meat pan
81 5308016566 A B C D Screw,hex wshr hd ,8-15A x 0.625 ,low profile
123 215005100 A B C D Screw-roller/hanger,8-10 x 0.438
145 218660800 A B C D Clip,plastic ,temp sensor mtg ,snap-in
* 3205266 A B C D Edge Protector,wiring harness

03/01
Publication No. FRT21IQRJ
5995351094
SYSTEM

# = Fast-moving Parts 9 03/01
* = Non-Illustrated Parts
FRT21IQRJ Publication No.
5995351094
SYSTEM
A = FRT21IQRJ (FRT21IQRJD1)
B = FRT21IQRJ (FRT21IQRJW1)
C = FRT21IQRJ (FRT21IQRJY1)
D = FRT21IQRJ (FRT21IQRJZ1)
POS. NO PART NO DESCRIPTION
1 # 218657100 A B C D Condenser
1* 5304406721 A B C D Spacer-cond tube,round ,5/8 OD x .81"lg
1* 5304406722 A B C D Spacer-tube,5/8 OD x 2" lg
2 5308000296 A B C D Bracket,condensermtg ,(4)
2* 5308009617 A B C D Washer,ext tooth lock ,#10 ,grounding
4 # 218944001 A B C D Drier-filter,R134a System
5 # 218878600 A B C D Wiring Harness,control/divider
6 # 215257001 A B C D Wiring Harness,compressor
7 # 5316254901 A B C D Cord-electric power
8 5303001197 A B C D Cover-wiring
8* 5308003607 A B C D Washer,#10 steel ,7/32 x 7/16 OD
13 # 215076408 A B C D Heat Exchanger,suction line
14 # 5304419040 A B C D Heater-defrost
15 # 218955701 A B C D Evaporator,bundy
16 5308000110 A B C D Strap-evap/heater,aluminum ,(2)
17 218973901 A B C D Insulator-evap,plastic
18 218998101 A B C D Block-evap coil,styrofoam insul ,RH
20 218821201 A B C D Insulation Block,LH
21 # 218969902 A B C D Thermostat-defrost
22 5308013663 A B C D Plate-compr mtg
23 218254500 A B C D Grommet-compr mtg,(4)
24 5308003633 A B C D Washer-compr mtg
25 5308003596 A B C D Clip-compressor mtg
26 215372500 A B C D Pan-defrost drain
26* 5308017610 A B C D Sound Tape,defrost pan
27 5303001348 A B C D Nut-lock,1/4-20 ,drain pan mtg
28 5303916001 A B C D Pan Retainer Kit,Service
29 # 218973601 A B C D Compressor,w/o electricals
30 # 218721108 A B C D Starter-PTC
32 218973501 A B C D Clamp,elec cont mtg ,compressor
41 5308000039 A B C D Screw,hex washer hd ,8-32CA x 0.500(7),serrated head
43 5303001199 A B C D Clamp-wiring harness,strain relief ,galv steel
43* 5308000133 A B C D Clamp,nylon ,.625 ID
44 218974101 A B C D Clamp,nylon ,1.00 OD tube
45 5303001343 A B C D Screw,hex washer head ,8-15A x 0.500
45* 5300141713 A B C D Screw,hex wshr hd ,8-32 x 0.625 ,spec
55 # 218909901 A B C D Capacitor-run,220 VAC ,15 microfarad
* 218905701 A B C D Cover-sound insul,pressboard/foam,machine compt
* # 5300189383 A B C D Hot Tube Repair Kit,Service

03/01
Publication No. FRT21IQRJ
5995351094
ICE MAKER

# = Fast-moving Parts 11 03/01
* = Non-Illustrated Parts
FRT21IQRJ Publication No.
5995351094
ICE MAKER
A = FRT21IQRJ (FRT21IQRJD1)
B = FRT21IQRJ (FRT21IQRJW1)
C = FRT21IQRJ (FRT21IQRJY1)
D = FRT21IQRJ (FRT21IQRJZ1)
POS. NO PART NO DESCRIPTION
1 5303015131 A B C D Tube-water,71" ,valve-to-IM
2 3206348 A B C D Spring,shut-off arm
3 3206299 A B C D Label,ID plate
4 3206301 A B C D Gear
5 3206303 A B C D Plate-mounting
6 3206305 A B C D Screw-ground wire,8-32 x 0.250
7 # 3206306 A B C D Motor-ice maker
8 3206312 A B C D Spacer-hold switch
9 3206313 A B C D Cam
10 3206315 A B C D Clamp
11 # 3206319 A B C D Thermal Cutoff,ice maker ,complete assy
12 # 3206349 A B C D Wiring Harness,ice maker ,internal ,with plug
12* 3206321 A B C D Connector Plug,wiring harness
13 # 3206322 A B C D Thermostat Assy,ice maker
15 # 3206324 A B C D Switch,(3)
16 3206326 A B C D Support,phenolic
17 # 5303320545 A B C D Mold-ice maker,Radius Cube ,with heater
18 3206328 A B C D Ejector-ice
19 3206330 A B C D Bearing & Inlet
20 5304408581 A B C D Screw,8-32 x 0.375
21 3206332 A B C D Ice Stripper
22 3206333 A B C D Shut-off Arm
23 5304408582 A B C D Screw,8-32 x 0.875 ,mold-to-support (3)
24 3206335 A B C D Lever Arm
25 3206336 A B C D Screw,8-18 x 0.562 ,lever arm/sprt
26 3206337 A B C D Screw-thermo/sprt,4-24x 0.375 ,(4)
27 3206338 A B C D Screw,4-40 x 1.000 ,hold switch mtg ,(2)
28 3206339 A B C D Screw-timing stop,4-40 x 0.375
29 3206323 A B C D Screw,4-24 x 0.750 ,(6)
30 3206341 A B C D Screw-timing adj,8-32 x 1.000
31 3206342 A B C D Insulator
32 3206343 A B C D Plate-valve switch
33 5304408583 A B C D Spring-timing adj
34 5304408584 A B C D Screw,plascrew ,#6 ,(3)
35 5304408585 A B C D Screw
36 3206347 A B C D Cover-ice maker
39 # 3206358 A B C D Wiring Harness,icemaker ,external
41 5308000039 A B C D Screw,hex washer hd ,8-32CA x.500 (7),serrated hd
42 5303001193 A B C D Clamp,.50 ID ,steel ,water tube
43 5303001199 A B C D Clamp-wiring harness,strain relief ,galv steel
44 5308000133 A B C D Clamp,nylon ,.625 ID
45 5303001343 A B C D Screw,hex washer head ,8-15A x 0.500
48 5308000200 A B C D Nut,7/16-20 ,nylon
49 5303001147 A B C D Plug-harness hole,(2)
52 218462000 A B C D Tube-water inlet
55 218907301 A B C D Valve-water,single solenoid ,50/60 Hz ,105/120 V
59 5303001191 A B C D Sleeve-tube insert
60 5303207328 A B C D Screw,hex washer head ,8-15A x 1.000 ,(2)
61 218721500 A B C D Bracket-leveling,icemaker
62 218737900 A B C D Screw-IM brkt mtg,hex washer head ,8-32D x 0.375
64 5303001549 A B C D Clamp,0.31 ID ,steel ,copper wtr line
* 218699501 A B C D Ice Maker,Radius Cube ,115 V ,no instl parts

03/01
Publication No. FRT21IQRJ
5995351094
WIRING SCHEMATIC

# = Fast-moving Parts 13 03/01
* = Non-Illustrated Parts
FRT21IQRJ Publication No.
5995351094
WIRING DIAGRAM
