Frigidaire FRT21TSGW2 User manual

P/N 218613700E (9809)
Versión en español ..................................... 2
Product Registration ................................... 2
Important Safety Instructions..................... 2
First Steps ................................................... 3
Energy Saving Ideas .................................. 4
Setting the Controls................................ 4
Temperatures ..................................... 4
Energy Saver Switch....................... 4
Moisture............................................... 4
Fresh Food Storage........................... 5-6
Care and Cleaning ............................. 6-7
Automatic Ice Maker ............................. 8
Reversible Door Instructions......... 9-11
Avoid Service Checklist............... 12-14
Normal Operating Sounds.................. 14
Warranty (United States) ...................15
Service Information (Canada) .......... 16
Warranty (Canada)..............................17

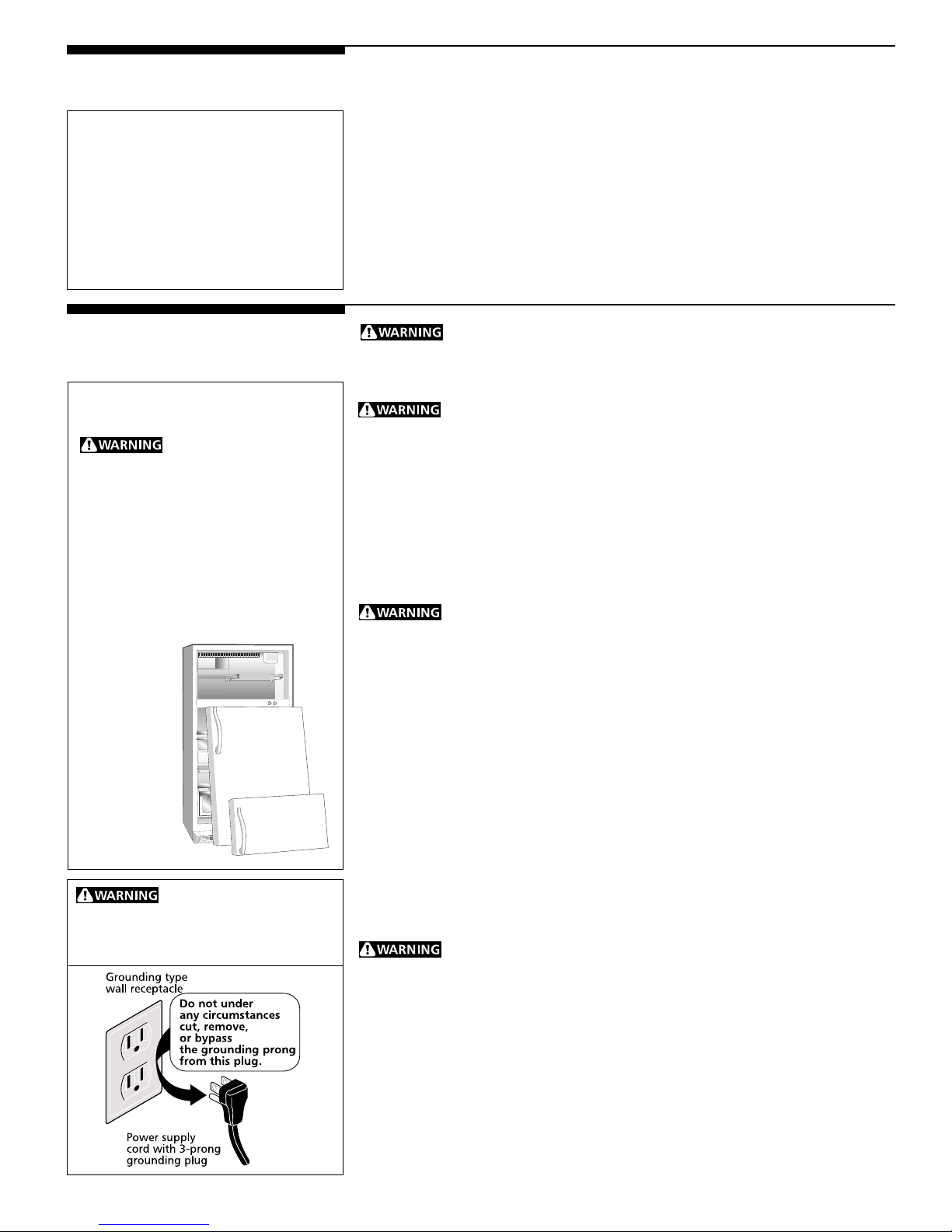

2
Product Registration Record Your Model and Serial Numbers
Recordthe ModelNo.andSerialNo.ofthisrefrigeratorinthespaceprovidedbelow.
These numbers are found on the serial plate located on the top left wall of the
refrigeratorcompartment.
Model No. __________________________________________________
Serial No. ___________________________________________________
Register Your Product
The self-addressed PRODUCT REGISTRATION CARD (shown left) should be filled in
completely,signedandreturnedtoFrigidaire,orinCanada,FrigidaireCanada.
For Your Safety
Child Safety
Important Safety
Instructions
Electrical Information
These guidelines must be followed to ensure that safety mechanisms in
the design of this refrigerator will operate properly.
Other Precautions
© 1998 White Consolidated Industries, Inc.
Allrightsreserved.
Donotstore orusegasolineorother flammablevaporsandliquidsin thevicinityof
thisoranyotherappliance.Readproductlabelsforflammabilityandotherwarnings.
• Destroycarton,plasticbags,andanyexteriorwrappingmaterialimmediately
aftertherefrigeratorisunpacked.Childrenshouldneverusetheseitemsfor
play.Cartonscoveredwithrugs,bedspreads, plasticsheetsorstretchwrapmay
become airtight chambers and can quickly cause suffocation.
• Removeallstaples from the carton. Staples can cause severe cutsanddestroy
finishesiftheycomeincontact withotherappliances orfurniture.
• Anempty,discardedicebox,refrigeratororfreezer is a very dangerous
attraction to children. Remove the door of any appliance that is not in use,
even if it is being discarded.
•The refrigerator must be plugged into its own 115 Volt, 60 Hz, AC only
electricaloutlet.The power cord of the appliance is equipped with a three-
prong grounding plug for your protection against shock hazards. It must be
pluggeddirectlyintoaproperlygroundedthree-prongreceptacle.Therecep-
taclemustbeinstalled in accordancewithlocalcodesand ordinances.Consult
a qualified electrician. DO NOT USE AN EXTENSION CORD OR AN ADAPTER
PLUG.
• Ifvoltagevaries by 10 percent or more, performance of yourrefrigeratormay
beaffected.Operating therefrigeratorwithinsufficient powercandamagethe
compressor. Such damage is not covered under your warranty. If you suspect
your voltage is high or low, consult your power company for testing.
• Topreventthe refrigeratorfrombeingturnedoff accidentally,donotplug the
unitintoanoutletcontrolledbyawallswitchorpullcord.
• Do not pinch, knot, or bend the power cord in any manner.
• Neverunplugthe refrigeratorbypullingonthepowercord. Alwaysgriptheplug
firmlyandpullstraightout fromthereceptacle.
• Toavoidelectricalshock,unplugthe refrigerator before cleaningandbefore
replacing a light bulb. Note: Turning the control to OFF turns off the
compressor,butdoes notdisconnectpowertothe lightbulborother electrical
components.
• Donotoperatetherefrigerator in the presence of explosive fumes.
•Ifyourrefrigerator hasanautomaticicemaker,avoidcontactwithmovingparts.
Avoid fire hazard or
electricshock. Do not use an extension
cord or an adapter plug. Do not remove
any prong from the power cord.
Proper Disposal of Your
Refrigerator/Freezer
Risk of child entrapment.
Child entrapment and suffocation are
not problems of the past. Junked or
abandonedrefrigeratorsorfreezersare
stilldangerous—eveniftheywillsitfor
"justafewdays."Ifyouaregettingridof
youroldrefrigeratororfreezer,please
followinstructionsbelowtohelpprevent
accidents.
BEFORE YOU THROW AWAY YOUR
OLD REFRIGERATOR/FREEZER:
Remove
doors.
Leave
shelvesin
place,so
children
may not
easilyclimb
inside.
Versión en español
Si desea obtener una copia en español
de este Manual del Usuario, sírvase
escribir la dirección que se incluye a
continuación.SolicitelaP/N218613800.
Spanish Owner's Guides
Frigidaire Home Products
P.O. Box 212378
Augusta, GA 30917

3
FirstSteps
1"
1"
1/2"
1/2"
3" AIR SPACE
Clearance
Properaircirculation andlevelingwill
ensureefficientoperation.
Sunken bolt (some models)
Exposed bolt (some models)
Before starting the refrigerator, follow these important first steps:
Location
• Choose a place that is near a grounded electrical outlet. DO NOT use an
extensioncord or an adapter plug.
• Ifpossible,placethe refrigeratoroutofdirect sunlight andawayfromthe
range,dishwasherorother heat sources.
• Therefrigeratormust be installed on a floor thatislevelandstrong enough
tosupportafullyloadedrefrigerator.
• Considerwatersupplyavailabilityformodelsequippedwithanautomatic
icemaker.
Installation
• Do not install the refrigerator where the temperature will drop below 60°F
(15°C)orriseabove110°F (43°C). The compressor will not be able to maintain
propertemperatures.
• Allow space around the unit for good air circulation. Leave a 1 inch (25 mm)
space behind and a 3 inch (75 mm) space above the refrigerator for adequate
circulation.
• In a recessed installation, allow an extra 1/2 inch (10-15 mm) on each side
foreaseofinstallation.
• Forbestcirculation,elevatethe unit1inch(25mm)fromthefloor,especially
iftheflooriscarpeted.
Door Opening
The doors should open to allow easy access to a counter when removing food.
• Do not position the refrigerator so you have to walk aroundthe refrigerator
doors.
• Reversethedoorsifnecessary.See"ReversibleDoorInstructions."
Leveling
Allfourcornersofrefrigeratormustrest firmly on asolidfloor. Somemodelsare
equippedwithadjustablescrew-typelevelers. Othersareequippedwithrollers. If
yourrefrigeratordid notcomewithrollers,theycanbe purchasedfromyourdealer.
•To adjust screw-type levelers (some models): Tip cabinet back slightly and
raiseadjustingboltsasneeded.
•To adjust the front rollers (some models): Use a screwdriver, 3/8" socket
wrenchornutdrivertoadjust rollersasshown.
RAISETHEFRONT of cabinet enough so doors will close freely when opened halfway.
Levelcabinetsidetoside.
Cleaning
• Wash the inside, all removable parts and the outside with mild detergent and
warm water. Wipe dry. DO NOT USE HARSH CLEANERS ON THESE
SURFACES.
• Do not use razor blades or other sharp instruments which can scratch the
appliance surface, when removing adhesive labels. Any glue left from the
tape or energy label can be removed with a mixture of warm water and mild
detergent,or,touchthe residue withthestickysideof tape alreadyremoved.
• DO NOT REMOVE THE SERIAL PLATE.

4
• Locatetherefrigeratorinthecoolestpartoftheroom,outofdirectsunlightand
awayfromheatingductsorregisters.Donotplacetherefrigeratornexttoheat-
producingappliancessuchasarange,ovenordishwasher.Ifthisisnotpossible,
a section of cabinetry or an added layer of insulation between the two
applianceswillhelptherefrigeratoroperatemoreefficiently.
• Leveltherefrigeratorsothedoorsclosetightly.
• RefertothisOwner'sGuideforthe suggested refrigerator settings.
• Periodiccleaningofthecondenserwillhelptherefrigeratorrunmoreefficiently.
See Outside in the "Care and Cleaning" section.
• Do not overcrowd the refrigerator or block cold air vents. Doing so causes the
refrigeratortorunlongeranduse more energy. Shelvesshouldnotbelinedwith
aluminum foil, wax paper or paper toweling. Liners interfere with cold air
circulation, making the refrigerator less efficient, which could cause food
spoilage.
• Cover foods and wipe containers dry before placing them in the refrigerator.
This cuts down on moisture build-up inside the unit.
• Organize the refrigerator to reduce door openings. Remove as many items as
needed at one time and close the door as soon as possible.
Setting the Controls
Energy Saving Ideas
Cool Down Period
Toensuresafefoodstorage, allowtherefrigerator tooperatewiththedoorsclosed
foratleast8 to 12 hoursbeforeloadingwithfood.
Refrigerator and Freezer Controls
• Tostartout,setcontroldialstothemidpointforatrialperiodof24hours.
Temperatures
• After 24 hours, adjust the controls as needed. Adjust temperatures one
numberata time. For colder temperatures, turn the dial toward COLDEST. For
warmertemperatures,turnthe dialtowardCOLD.Thetemperature will increase
ordecrease,butnot necessarily by1,2,or3 degrees.
An adjustment made to one compartment may require an adjustment to the other.
• Turning the refrigerator control will change the temperature in BOTH
compartments. If the refrigerator control is turned to OFF, cooling
stops in both compartments.
• Turningthefreezercontrolwillchangeonlythetemperatureinthefreezer
compartment.
To maintain temperatures, a fan circulates air in the refrigerator and freezer
compartments.Forgoodcirculation,donot block cold airventswithfooditems.
Energy Saver Switch (some models)
Ifyourrefrigeratorisequipped with an EnergySaverSwitch,keepitset on ENERGY
SAVER for lowest energy usage.
Moisture
Duringhumidweather,orifmoistureappears on the cabinet between thedoors,set
switch to REDUCE EXTERIOR MOISTURE. A heater will warm the surface and allow
moistureto evaporate.
G05C0066
eco
EnergySaver
G05C0065
RefrigeratorControl
FreezerControl

5
G05I0134
Fresh Food Storage
Tilt-OutCrisper(somemodels)
CantileverShelf
SlidingShelf
Shelf Adjustment
Refrigeratorshelvesareeasilyadjustabletosuitindividualneeds.Beforeadjusting
shelves,removeallfood.Theshippingclips,whichstabilizetheshelvesforshippingmay
beremovedand discarded.
Toadjustslidingshelves, removebypullingforwardtothe
stopposition,thenliftthefrontedgeupandpullout.Replace
onanypairofrailsbyreversingthisprocedure.
Toadjustcantilevershelves (shelvessupportedattherearof
therefrigerator),liftthebackoftheshelfupandout.Replace
shelfbyinsertinghooksatrearintowallbracket.Lowerand
lockintoposition.
Toadjustcombinationcantilever/slidingshelves, remove
shelfbyliftinghooksupandoutofrearwallbracket.Then
flexplasticcliptowardscenterofrefrigeratorandpullshelf
straightout.Replaceshelfbyslidingplasticclippastside
wallsupport. Thenlockhooksat rear intowallbracket.
Note: Plasticclipwillautomaticallyfitsecureagainstside
wall.
Spillsafe glassshelves(somemodels)catchandholdaccidentalspills. Insome
models,the Spillsafe shelvesslideoutforeasyaccesstofood andfastcleaning.
Theshelvesslideoutindependentlyofthecantileverbrackets.Justpullfrontofshelf
forward.Shelfcanbeextendedasfaras stopperwillallowand isnotremovablefrom
thecantileverbracket.
Door Storage
Doorbinsandshelvesareprovidedforconvenientstorageofjars,bottles,andcans.
Itemsusedoftenareavailableforquickselection.
Some models have adjustable door bins which can be moved to suit individual
needs.Tomovethe bins, remove byliftingstraightup.Place the bin inthedesired
positionandloweroversupports.
The Dairy compartment is warmer than the general food storage section and is
intendedforshorttermstorageofcheese,spreads,orbutter.
Crispers
TheCrispers,locatedunderthebottomrefrigeratorshelf, aredesignedfor storing
fruits,vegetables,andotherfreshproduce.Washitems in clear water and remove
excesswaterbeforeplacingintheCrispers.Itemswithstrongodorsorhighmoisture
should be wrapped before storing. In some models, the Crispers are drawers, in
others,theyaretilt-outbins.
The Humidity Control (some models with Crisper drawers) allows you to adjust the
humiditywithintheCrisper.Thiscanextendthelifeoffreshvegetableswhichkeep
best in high humidity. Leafy vegetables, however, keep best when stored with the
HumidityControlsetonHIGH,or in a drawerwithoutaHumidityControl.Thiskeeps
incoming air to a minimum and maintains maximum moisture content.
Deli Drawer (some models)
Some models are equipped with a Deli Drawer for storage of luncheon meats,
spreads,cheeses,andotherdeli items.
Meat Pan (some models)
Some models are equipped with a Meat Pan that can be positioned below any
refrigeratorshelf.Usethis panforshorttermstorage of bulkmeatitems.Ifmeats
are to be kept longer than 1 or 2 days, they should be frozen.
CombinationCantilever/SlidingShelfwith
PlasticClip
AdjustableHumidity Control
FRESH FRUITS & VEGETABLES
LOWER
FRUITS
HIGHER
HUMIDITY CONTROL
VEGETABLES
C
LIP
T
ALLY
Remove Shipping Clips

6
Meat Keeper (some models)
The temperature in the Meat Keeper drawer can be made colder than the rest of the
refrigeratorcompartmentbyadjustingtheChilledAirControl. Meatwillbepartially
frozen,andmaybekeptfreshlongerthanifstoredonarefrigeratorshelf.
BeforeplacingitemsinMeatKeeper,followthesestepstokeepmeatfresh.
1. Carefullyhandlemeatwithclean hands,andalwayskeepcompartmentclean.
2.Storemeatinitsoriginalwrapper. Ifnecessary,overwrapinplasticwrap,orfoilto
preventdrying. Wrapfishtightlytopreventodortransfertootherfoods.
3. Ifspoilageeveroccurs,disinfectthecompartmentwithliquidchlorinebleachfollowing
label directions. Then,rinsewithasolutionofbakingsoda,andwater. Rinsewithclear
water,anddry.
The Chilled Air Duct can also switch sides, should you wish to move the split
cantilevershelf.Tochangesides:
• Remove the Meat Keeper drawer and shelf. Grasp the air duct near top and
slide toward you until duct is free from grooves.
• Slideoffholecoveronoppositeside.Insertthelipof theairductingroovesof
new hole and slide back.
• Slideholecoveroveroriginalhole.
• Replaceshelfandinsertdrawer.
Fresh Food Storage
(continued)
ChilledAirControl
Shelves
Adjustingthe ChilledAirDuct
Hole Cover
Air Duct
Lower portion of
air duct slides up
or down.
Air Outlet Box
Hole cover and air duct
slide into grooves on
bottom of air outlet box.
Care and Cleaning
Damp objects stick to cold
metalsurfaces.Donot touch refriger-
ated surfaces with wet or damp hands.
Keepyourrefrigeratorandfreezercleantopreventodorbuild-up.Wipeupanyspills
immediately and clean both sections at least twice a year. Never use metallic
scouringpads,brushes,abrasivecleanersorstrongalkalinesolutionsonanysurface.
Do not wash any removable parts in a dishwasher.
Always unplug the power cord from the wall outlet before cleaning. Turning
thecontrol to OFF does not disconnect power to the controls,lightbulb,orother
electricalcomponents.
Inside
Washinsidesurfacesoftherefrigeratorandfreezerwithasolutionof2 tablespoons
baking soda in 1 quart warm water. Rinse and dry thoroughly. Be sure to wring
excess water out of sponge or cloth before cleaning around the controls,
lightbulb,orany electrical parts.
Washremovablepartssuchasshelvesanddrawers with baking soda solution or mild
detergent and warm water. DO NOT USE HARSH CLEANERS ON THESE SUR-
FACES.Rinseanddrythoroughly.Cleanthedoorgaskets with mild suds, rinse with
clearwater and wipe dry. Do not use razor blades orothersharpinstrumentswhich
canscratchthe appliancesurfacewhenremoving adhesivelabels.Anyglueleftfrom
the tape or energy label can be removed with a mixture of warm water and mild
detergent, or, touch the residue with the sticky side of tape already removed. DO
NOT REMOVE THE SERIAL PLATE.

7
Outside
Washthecabinetandhandleswithwarmwaterandmildliquiddetergent.Rinsewell
andwipe dry with a clean softcloth.
Whenmovingthe refrigerator,pullstraightout.Donotshift therefrigeratorfrom
sidetosideas this maytearorgougethefloor covering. Iftherefrigeratorhasan
automatic ice maker, be careful not to move the refrigerator beyond plumbing
connections.
Periodically clean the condenser (black tubes and wires on the back of the
refrigerator).Usinga vacuumwithitsdustingtoolattachment,vacuum thecoilsto
remove dust build-up. Do not allow lint or dust to accumulate on the coils.
Thedefrostwaterpan is locatedatthebottomrearof the refrigeratorontopofthe
compressor (shown left). The pan should be cleaned periodically. Wipe clean with
a damp cloth.
Replacing the Light Bulb
To replace the light bulb:
1. Unplugtherefrigerator.
2. Wearglovesasprotection against possiblebrokenglass.
3. Replace old bulb with an appliance bulb of the same wattage.
4. Remember to plug the refrigerator back in.
Vacation and Moving Tips
Shortvacations: Leavethe refrigeratoroperatingduringvacationsof1 to3weeks.
Useupallperishableitemsfromtherefrigeratorsection.Wrapand store other
itemsinthefreezer.Iftheunithasanautomaticicemaker,turnofftheicemaker.
Long vacations: Remove all food and ice if you will be gone 1 month or more. Turn
the control to OFF and disconnect the power. If the unit has an automatic ice
maker, turn off the ice maker and turn the water supply valve to the closed
position. Defrost and clean the interior thoroughly. Leave both doors open to
prevent odor and mold buildup. Block open if necessary.
Moving: When moving the refrigerator, follow these guidelines to prevent
damage:
• Remove all food and other items from both the refrigerator and freezer
compartments. Empty the ice storage bin. Defrost and clean the
interiorthoroughly.
• Ifahandtruckisusedin moving, load the refrigerator from theside.
• Turnfrontrollersasfarupaspossible(somemodels).Thiswillprotectthem
duringslidingor moving.
•Thecabinet should be well padded and handled with care. DO NOT DROP.
Care and Cleaning
(continued)
To avoid damage and help
therefrigeratorrunasefficientlyas
possible, clean the condenser
periodically.

8
Automatic Ice Maker Ifyourrefrigeratorhasanautomaticicemaker,itwillprovideacontinuoussupply
of ice for normal use. The automatic ice maker is an optional accessory which may
beinstalledinmostmodelsatanytime.Callyourlocaldealerforinstallation.
After the plumbing connections have been completed, the water supply valve must
be opened. Place the ice container under the ice maker, pushing it as far back as
possible. Lower the wire signal arm to its "down" or ON position. Because of new
plumbingconnections,thefirstproductionoficecubes may be discolored or have
an odd flavor. Throw the ice away until the cubes made are free of discoloration
andtaste. Remember,waterqualitydeterminesyouricequality. Itis
besttoconnectice maker to waterthatisNOTsoft. Softening chemicals can damage
icemaker. Ificemakerisconnectedtosoftwater,ensuresoftenerismaintained,and
workingproperly.
Tostoptheicemaker, lift the wire signal arm untilitclicksandlocksinthe"up"
orOFFposition.Theicemakerturnsoffautomaticallywhentheicecontainerisfull.
Ifyourmodel hasanadjustablefreezershelf, placetheshelfsothewiresignalarm
willhittheicewhentheicecontainerisfull.
Ice Maker Tips
1. Ice stored too long may develop an odd flavor. Empty the container and be sure
the wire signal arm is in its "down" or ON position. The ice maker will then
produce more ice.
2. Occasionallyshakethecontainertokeep ice separated.
3. Keepthewiresignalarm in its "up"orOFFpositionuntilthe refrigerator
is connected to the water supply or whenever water supply is turned off.
4. Certain sounds are normal when the ice maker is operating. They are:
Motor operation
Ice being loosened from the tray
Icebeing dropped into the container
Running water
Water valve opening and closing
For more information on these operations, see "Normal Operating Sounds."
5. Wash ice container in warm water with mild detergent. Rinse well and dry.
6. Stopthe ice maker when cleaning thefreezerorfor short vacations.
7. Iftheicemakerwillbeturnedoffforalongperiodoftime,turnthewatersupply
valvetotheclosedposition.

9
Yourrefrigeratorisequippedwithconvertibledoorhinges. Hinging of the door can
be changed to the opposite side any time you wish. An envelope containing extra
plasticholeplugsisincludedin some models. TurntherefrigeratorcontroltoOFF.
Remove all food, bottles, and other items from the door. Begin with freezer door.
Completely remove one door before beginning the other.
G05I0098
Reversible Door
Instructions
G05I0106 new
2. Open the freezer door enough to allow
ittobeliftedoffthecenterhinge.
5. Carefully remove the hole plugs from
the hinge holes in the center mullion and
topofcabinetandreinstallintheopposite
setofholes.
G05I0102 new
1. Snap off hinge cover at top of cabinet
(some models). With the freezer door
closed, remove the two screws attaching
upper hinge to cabinet. Lift the hinge up
and off. Be sure to save screws and
hinge for reassembly later.
G05I0099
G05I0063
Hinge Pin
Washer
Lower Hinge Bolts
or
4. Remove hinge pin, hinge, and the two
bolts attaching the lower hinge. Savethe
hinge, hinge pin, washer (some
models) and bolts for reassembly later.
G05I0103 new
3. Withthe refrigeratordoor closed,remove
center hinge pin. (Note the arrangement of
the upper and lower washers (some models)
on the hinge pin. The washers must be
assembled later in the same manner.) Open
refrigeratordoorenough toallowdoor to be
lifted off the lower hinge. Remove the two
screwsattaching thecenterhinge.Thethird
outermost screw under the center hinge
shouldbeleft inplace.Savehinge,pin, and
washers (some models) for reassembly
later.Reinstallscrewsinoriginalholes.
G05I0101 FreezerDoor
G05I0090
6. After the handles are removed (see
steps 7 and 8), remove door stop from
bottom of freezer and refrigerator door
andreinstallonoppositeside.
RefrigeratorDoor
™
G00S0141

10
G05I0111
G05I0118
RefrigeratorDoor
7. Reverse handles while doors are off. Remove the two screws
attaching the handle to the bottom of the freezer door. Remove
shorttrimpiecebysliding the trim straight upandoffofhandle
bracket. Remove the screw attaching the top of the handle to
door, and reinstall on other side, using the same holes as the
nameplate. To move nameplate to other side, remove the
magnetic nameplate from its frame, turn frame upside down and
installinoldhandleholes.Insertmagnetic nameplateintoframe.
Reattachhandletobottomof door.Slidethetrimpiecestraight
down onto handle bracket.
FreezerDoor
Reversible Door
Instructions (continued)
8. Trim Removal (Full-Length Trim models only)
Insomemodels,therefrigerator door has afulllengthtrim
piece which continues from the bottom of the handle to the
bottom of the door. The top of the trim attaches to the
handlebracket.An adhesive "trimlock"ispositionedabout
half-way down. The bottom of the trim is held in place by
eitheranadhesivetrimlock,oratrimlockwithtwoprongs
insertedintoaholeonthefaceofthedoor. Remove the trim
by gently pulling the trim lock areas out and away from the
door. When the trim is free from the door, slide the trim
straight down and away from the handle bracket.
For models with short handle trim, remove by sliding the
trim straight down and off of handle bracket.
To remove handles: Remove the three screws attaching
thehandletotherefrigeratordoor.Carefullyremovehole
plugs from corresponding holes on opposite side of doors
andreattachhandle.
Toreattachtrim:Slide both trim locks out of trim.Insert
the new adhesive trim locks contained in your literature
pack. NOTE: Trim lock must be removed and installed by
sliding OVER the two donut shaped areas. Install trim to
handlebyslidingupover bottom of handle. Carefully align
trim and press down at trim lock locations. Replace hole
plug on opposite side. Use rubbing alcohol to remove any
adhesiveresidue fromoldtrimlocklocation(s).
Formodelswith shorthandletrim,slidethetrimstraightup
ontohandlebracket.

11
Reversible Door
Instructions(continued)
9. Using a putty knife, remove the black
plastic plug (not shown) from front of
base and reinstall in the opposite set of
lower hinge holes. Assemble lower hinge
tocabinet.Install hinge pin in opposite
hinge hole from which it was removed.
Install the washer (some models) on the
lowerhingepinandinserthingebolts,but
donottighten.Hingeswillhavetoremain
looseagainstcabinetto aligndoor.
G05I0066
Hinge Pin
Washer
Lower Hinge
Bolts
or
G05I0105
11. Place original washer (some models)
overholeinrefrigeratordoorand line up
hole in center hinge. Insert hinge pin
through both holes. Place washer (some
models) on hinge pin, then position
freezer door on center hinge.
G05I0100
G05I0071
Bearing Plug
12. Remove plug from upper bearing of
doorandreinstallon oppositeside.
G05I0104 new
13. Assemble upper hinge to top of cabinet
and door. Use opposite set of holes. Do not
completelytighten screws.
Aligndoors sothereisaparallelgapbetween
doors. Adjust doors to cabinet so gaskets
seal but do not bind. Tighten upper and
lowerhingescrews.
Additional adjustment may be necessary
afterloadingthe doorshelves.Returnfood,
bottles,andotherarticlestodoors.Turnthe
refrigerator control on and to the
previous setting.
G05I0107
10. Turn center hinge upside down and
secure to cabinet as shown, using the
screwswhichareinthe new holes.Install
refrigerator door on lower hinge pin.
Align door with edge of cabinet. Hold the
dooron front of cabinet.

12
Beforecallingfor service,reviewthislist.Itmaysaveyoubothtime andexpense.
Thislistincludescommonoccurrencesthatarenottheresultofdefectiveworkman-
shipormaterialsinthisappliance.
Avoid Service Checklist
RUNNING OF REFRIGERATOR
OCCURRENCE
Refrigerator compressor does not run. Refrigeratorcontrol is off.Setrefrigerator control. SeeSettingtheControls.
Refrigeratorisindefrostcycle.Thisisnormalforafullyautomaticdefrostingrefrigerator.Thedefrost
cycleoccursperiodically, lastingabout20minutes.
Plugat walloutlet isdisconnected. Make sureplug istightly pushedintooutlet.
House fuse has blown or circuit breaker has tripped. Check and/or replace fuse with a 15 amp time-
delayfuse.Resetcircuitbreaker.
Power outage. Check house lights. Call local electric company.
Roomor outsideweatheris hot.Itisnormal fortherefrigerator toworklonger undertheseconditions.
Refrigerator has recently been disconnected for a period of time. It takes about 8-12 hours for the
refrigeratorto cooldown completely.
Automatic ice maker is operating (some models). Operation of the ice maker causes the refrigerator
torunslightlymore.
Doorsare openedtoo frequentlyor too long.Warm airentering therefrigeratorcauses itto runmore.
Open the doors less often.
Refrigerator or freezer door may be slightly open. Make sure refrigerator is level. Keep food and
containers from blocking door. See Occurrence section OPENING/CLOSING OF DOORS/DRAWERS.
Refrigeratorcontrol (found inrefrigeratorsection) issettoocold. Settherefrigeratorcontrol toa
warmersetting untiltherefrigerator temperatureissatisfactory. Allow24 hoursforthe temperature
tostabilize.Then, if thefreezertemperatureis not right,setthefreezercontrol toacoldersetting.
Refrigeratoror freezer gasketisdirty, worn,cracked,orpoorly fitted.Cleanorchange gasket.Leaks
indoor sealwill causerefrigeratorto runlonger inorder tomaintaindesired temperatures.
Thermostatiskeeping therefrigeratorata constanttemperature.Thisis normal.Refrigeratorgoeson
and off to keep temperature constant.
Freezercontrolissettoocold.Set the freezercontrolto a warmersetting until thefreezertemperature
issatisfactory.Allow24 hoursforthetemperatureto stabilize.
Refrigeratorcontrol issettoo cold.Set the refrigeratorcontrol toawarmer setting.Allow24 hours
fortemperatures tostabilize.Then, ifthefreezer temperature isnotright, setthefreezer controlto
acoldersetting.
Refrigeratorcontrol is settoocold. Seeabovesolution.
Doors are opened too frequently or too long. Warm air enters the refrigerator whenever the door is
opened. Open the door less often.
Door is open slightly. See Occurrence section OPENING/CLOSING OF DOORS/DRAWERS.
Condenser is dirty. Clean condenser. See "Outside" in Care and Cleaning.
Freezercontrolissettoowarm.Set the freezercontrolto a coldersetting until thefreezertemperature
issatisfactory.Allow24 hoursforthetemperatureto stabilize.
Refrigeratorcontrol is settoowarm. Refrigerator controlhassomeeffect onfreezertemperature.Set
therefrigeratorcontroltoacoldersetting.Allow24hours for thetemperatureto stabilize. Then,ifthe
freezer temperature is not right, set the freezer control to a warmer setting. Refer to Setting the
Controls.
SOLUTION
Refrigerator runs too much or too
long.
Refrigerator compressor goes on and
offfrequently.
Temperature in the freezer is too cold
and the refrigerator temperature is
satisfactory.
Temperature in the refrigerator is too
cold and the freezer temperature is
satisfactory.
Food stored in drawers freezes.
Temperature in the freezer or
refrigerator is too warm.
Temperature in the freezer is too warm.
Temperature in the refrigerator is too
warm and the freezer temperature is
satisfactory.
TEMPERATURES ARE TOO WARM
TEMPERATURES ARE TOO COLD

13
AUTOMATIC ICE MAKER (some models)
BRASS FITTING
SCREEN
INLET, WATER LINE
OUTLET TO ICE MAKER
Weatheris hotandhumid whichincreasesrate offrostbuildup andinternalsweating. Thisisnormal.
Door is slightly open. See Occurrence section OPENING/CLOSING OF DOORS/DRAWERS.
Door is opened too often or too long. Open the door less often.
Vegetables contain and give off moisture. It is not unusual to have moisture on the bottom side of
thecover.
Washed vegetables and fruits drain while in the drawer. Dry items before putting them into drawer.
Water collecting in bottom of drawer is normal.
Weather is humid. This is normal in humid weather. When humidity is lower, the moisture should
disappear. Set Energy Saver switch to the Reduce Exterior Moisture position.
Door is slightly open, causing cold air from inside the refrigerator to meet warm air from outside.
See Occurrence section OPENING/CLOSING OF DOORS/DRAWERS.
Icemaker wiresignalarm isin "up"orOFF position.Move wire signal arm to "down" or ON position.
Household water line valve is not open. Turn on household water line valve.
Watersupply valveinrefrigerator isbeing blockedbyforeign material.Unplugthe refrigeratorand
turn off water supply. Slide refrigerator out and locate where water is connected to the valve.
Unscrew the brass fitting and pull out the screen from inside the valve mesh. Clean the screen of
foreignmaterial. Replacescreenandbrass fittingandturn the watersupplyon; checkforleaks.Plug
inrefrigeratorandslideintoplace.
Freezer is not cold enough. See Occurrence section TEMPERATURES ARE TOO WARM.
Saddlevalve on coldwaterpipe isblockedorrestricted byforeignmaterial. Turnoffhouseholdwater
linevalve. Remove,cleanor replacevalve.
Ice maker is producing less ice than you expect. Ice maker should produce approximately
2 1/2 to 4 pounds of ice every 24 hours.
Freezer is not cold enough. See Occurrence section TEMPERATURES ARE TOO WARM.
Household water line valve is not completely open. Turn on household water line valve.
Watersupply valvein refrigeratoris beingblockedby foreignmaterial. SeeOccurrence, "Icemaker
is not making any ice" above.
Ice maker wire arm is being held down by an item in the freezer. Remove item and release arm.
Remove any ice cubes which are frozen together over arm.
Ice cubes are not being used frequently enough. Remove and shake ice bucket to separate cubes.
Icehaspickedupodororflavorfromstrongfoodstoredinrefrigeratororfreezer.Cover foods tightly.
Discardstale ice. Icemakerwill producefresh supply.
Water running to ice maker has poor taste or odor. Add filter to ice maker. Consult a water
purifying company.
Interior needs to be cleaned. Clean interior with sponge, warm water and baking soda.
Foodwith strongodoris inrefrigerator. Coverfoodtightly.
Door is not designed to swing shut automatically. Close door securely.
Door was closed too hard, causing other door to open slightly. Close both doors gently.
Refrigeratorisnotlevel.Itrocksonthefloorwhenitismovedslightly.Besurefloorislevelandsolid
andcan adequatelysupport refrigerator.Adjustrollers asneeded.
WATER/MOISTURE/FROST OUTSIDE REFRIGERATOR
Ice maker is not making enough ice.
Ice maker will not stop making ice.
Ice maker is not separating the cubes.
Ice has bad odor and taste.
Door(s) will not close.
OPENING/CLOSING OF DOORS/DRAWERS
Moisture collects on inside of refrigerator
walls.
Water collects on bottom side of drawer
cover.
Water collects in bottom of drawer.
Moisture forms on outside of refrigerator
or between doors.
Ice maker is not making any ice.
WATER/MOISTURE/FROST INSIDE REFRIGERATOR
ODORS IN REFRIGERATOR
OCCURRENCE SOLUTION

14
OPENING/CLOSING OF DOORS/DRAWERS
Drawers are difficult to move.
Floorisunevenorweak.Refrigeratorrocksonthefloorwhenitismovedslightly.Besurefloorislevel
andcanadequatelysupportrefrigerator. Contactcarpenter tocorrectsaggingorslopingfloor.
Refrigerator is touching the wall or cabinets. Be sure floor is level and can adequately support
refrigerator. Contactcarpenterto correctsaggingorslopingfloor.
Food is touching shelf on top of drawer. Keep less food in drawer.
Trackthat drawersslides onis dirty.Clean drawerand track.
Light bulb is burned out. See "Replacing the Light Bulb" in Care and Cleaning.
Lightswitch isstuck.Light switchislocated onthe ceilingofthe refrigeratorcompartmentnear
the temperature control box. Push in light switch to release.
No electriccurrent is reachingrefrigerator. See Occurrence section RUNNING OF
REFRIGERATOR.
LIGHT BULB IS NOT ON
EVAPORATOR
The flow of refrigerant through the
evaporator may create a boiling
or gurgling sound.
AUTOMATIC ICE MAKER *
Occasionally you will hear ice
cubes dropping into the ice bin.
COLD CONTROL & DEFROST TIMER
These parts can produce a snapping
sound when turning the refrigerator
on or off. The timer also produces
sounds similar to an electric clock.
INSULATION
Rigid foam insulation has excellent
insulating capabilities. It is very
energy efficient; however, it does
have a tendency to amplify sound.
EVAPORATOR FAN
You may hear air being forced
through the cabinet by the fan.
DEFROST HEATER
During defrost cycles, water dripping
onto the heater may cause a hissing
or sizzling sound. After defrosting, a
popping sound may occur.
WATER VALVE *
When the ice maker fills with
water, you will hear a buzzing
sound and water running.
COMPRESSOR
Modern, high efficiency compressors
operate much faster than older models.
The compressor may have a high-
pitched hum or pulsating sound.
* On models equipped with an Automatic Ice Maker.
Normal Operating
Sounds
SOLUTION
OCCURRENCE

15
THE CONSUMER WILL BE
RESPONSIBLE FOR:
Costs of service calls that are listed under NORMAL
RESPONSIBILITIES OF THE CONSUMER.*
Costs for pick up and delivery of the appliance
required because of service. Costs for labor, parts
and transportation other than with respect to the
cabinet liner or Sealed Refrigeration System.
Costs of the technician's travel to the home and any
costsfor pick upand delivery ofthe appliancerequired
because of service.
FRIGIDAIRE, THROUGH ITS AUTHORIZED
SERVICERS, WILL:
Pay all costs for repairing or replacing any parts of this
appliance which prove to be defective in materials or
workmanship.
Repair or replace any parts in the cabinet liner or Sealed
Refrigeration System (compressor, condenser, evaporator,
drier and tubing) which prove to be defective in materials
or workmanship.
All of the provisions of the full warranties above and the
exclusions listed below apply.
FULL ONE-YEAR
WARRANTY
LIMITED 2ND - 5TH
YEAR WARRANTY
(Cabinet Liner and
Sealed System)
LIMITED
WARRANTY
(Applicable to the
State of Alaska)
WARRANTY
PERIOD
One year from original
purchase date.
Second through fifth years
from original purchase
date.
Time periods listed above.
REFRIGERATOR WARRANTY (United States)
YourFrigidaireproductisprotectedbythiswarranty
This warranty applies only to products in ordinary household use, and the consumer is responsible for the
items listed below:
1. Proper use of the appliance in accordance with instructions provided with the product.
2. Proper installation by an authorized servicer in accordance with instructions provided with the appliance and in
accordance with all local plumbing, electrical and/or gas codes.
3. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose
connections or defects in house wiring.
4. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which
are not a part of the appliance when it was shipped from the factory.
5. Damages to finish after installation.
6. Replacement of light bulbs and/or fluorescent tubes (on models with these features).
This warranty does not cover the following:
1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING
FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.
Note: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation
or exclusion may not apply to you.
2. Service calls which do not involve malfunction or defects in workmanship or material, or for appliances not in ordinary
household use. The consumer shall pay for such service calls.
3. Damages caused by services performed by servicers other than Frigidaire or its authorized servicers; use of parts other
than genuine Frigidaire Home Products parts; obtained from persons other than such servicers; or external causes
such as abuse, misuse, inadequate power supply or acts of God.
4. Products with original serial numbers that have been removed or altered and cannot be readily determined.
Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on the bill establishes the warranty
period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. This
written warranty gives you specific legal rights. You may also have other rights that vary from state to state. Service under
this warranty must be obtained by contacting Frigidaire Home Products:
800•944•9044
Frigidaire Home Products
P.O.Box 212378
Augusta, GA 30917
Product features or specifications as described or illustrated are subject to change without notice. All warranties are made
by White Consolidated Industries, Inc. This warranty applies only in the 50 states of the U.S.A. and Puerto Rico.
*NORMAL
RESPONSIBILITIES
OF THE CONSUMER
EXCLUSIONS
IF YOU NEED
SERVICE
Your appliance is warranted by White Consolidated Industries, Inc. We authorize no person to change or add to any of our obligations under this
warranty. Our obligations for service and parts under this warranty must be performed by Frigidaire or an authorized Frigidaire servicer.

16
To avoid unnecessary cost and inconvenience, make a few simple checks before
calling for service. Common occurrences and their solutions can be found in the
AvoidService Checklist.Besureyouhavefollowedtheinstructionsinthismanual.
Ifyouareunabletolocatethecauseofaproblem,callforservice.Insistonfactory
service by an authorized FRIGIDAIRE PARTS AND SERVICE depot.
FRIGIDAIRE PARTS AND SERVICE
All Frigidaire appliances are backed by FRIGIDAIRE PARTS AND SERVICE, one of
Canada'slargestparts andservicenetworks.
TheFrigidairereputationmeansyoucan enjoycompleteprofessionalservicefrom
oneofourhundredsof trainedtechniciansacrossthecountry.AskyourFrigidaire
dealer for details about the Extended Service Plan offered by FRIGIDAIRE PARTS
ANDSERVICEtoallpurchasersofFrigidaireappliancesinCanada.
FRIGIDAIRE PARTS AND SERVICE
7075 Ordan Drive
Mississauga,Ontario
L5T 1K6
Place the name, address and telephone number of your service depot in the
spacesbelow.
Productand feature specificationsasdescribed or illustratedaresubject to
change without notice.
Service Information
(Canada)

17
WARRANTOR:
FrigidaireHomeProducts
7075 Ordan Drive
Mississauga,Ontario
L5T 1K6
WARRANTY PERIOD:
For two years after purchase by the original consumer/
owner:
Fortenyearsafter purchasebytheoriginalconsumer/owner:
Forserviceunderthiswarranty,contact yourlocaldealer/
retailer,authorizedFRIGIDAIRE PARTS AND SERVICE depot,
or:
FRIGIDAIRE HOME PRODUCTS
PARTS AND SERVICE
7075 Ordan Drive
Mississauga,Ontario
L5T 1K6
Tél.: [phone]
Fax: [phone]
WARRANTOR WILL THROUGH ITS AUTHORIZED SERVICE
DEPOT:
Paycosttorepairorreplaceanydefectiveparts(including
serviceandlabourcharge).
Paycost(includingservice and labourcharge)torepairor
replacedefectiveparts ofthesealedrefrigeration system
consisting of the compressor, evaporator, condenser,
interconnectingtubingdrierandrefrigerationcharge.
WARRANTY IN CANADA
REFRIGERATORS (FROST FREE)
WARRANTY APPLIES TO:
a) Productspurchased andinstalledinCanadaforpersonalsingle family household use.
b) Defects resultingorarisingout ofthemanufacturingprocess.
c) Productsbearinglegiblemanufacturer’s model and serial numbers.
d) Replacement partsonlyfortheremainderoftheoriginalwarranty.
WARRANTY DOES NOT APPLY TO:
a) Transportationdamage.
b) Supply and replacementofporcelain,fuses,glassand light bulbs.
c) Parts and service supplied or obtained from other than FRIGIDAIRE PARTS AND SERVICE or FRIGIDAIRE PARTS SERVICE
authorizeddepots.
d) Properinstallation,controlsettingandcareoffinish.
CONSUMER/OWNER RESPONSIBILITY:
a) To provide proof of the original date of purchase by means of a bill of sale or payment.
b) Supply and replacementofporcelain,fuses,glassand light bulbs.
c) To ensure proper power supply and connection of the appliance to same.
d) Properinstallation,controlsettingandcareoffinish.
Thiswarrantyis inadditiontoany statutorywarrantiescontainedin anyapplicablelegislation. Theterms andconditions
ofthiswarrantyare not intendedtoexcludeorlimityour rights underthosestatutes. Thewarrantorhoweverreserves the
right to charge transportation and travelling costs for distances in excess of 48kilometres (30 miles) from the nearest
FRIGIDAIRE PARTS AND SERVICE authorized service depot.
Thiswarrantyplus thestatutorywarrantiesmentionedaretheonlywarrantiesgiven totheconsumer/ownerfor thisproduct.

Notes
