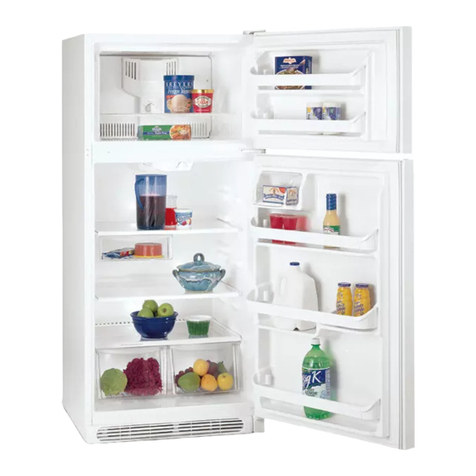

Frigidaire FRT21C5A User manual

Product No. FRT21C5AQA FRT21C5AQB FRT21C5AWA FRT21C5AWB
Series R134a R134a R134a R134a
Color bisque bisque white white
Volts 115 115 115 115
Wiring Diagram 240398801 240398801 240398801 240398801
Owner's Guide 240400111 240400111 240400111 240400111
Market North America North America North America North America
Energy Guide 218791400 218791400 218791400 218791400
Service Data Sheet 240379014 240379014 240379014 240379014
Installation Instructions 240568300 240568300 240568300 240568300
N05L00004.eps N05DBDCKA0.eps N05BBAABA6.eps N05SAAAEA13.eps
N05CABBAB10.eps 240398801.eps 240398601.eps
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378, Augusta, GA 30917
Publication No.
5995420592
04/11/02
(EN/SERVICE/WC)
390
TOP-MOUNT
REFRIGERATOR
Model No.
FRT21C5A
Copyright ©2004 Home Pr oducts, Inc.
All rights reserved.

Publication No: 5995420592 FRT21C5A
11/04 2
DOOR
10
22
22
11
12
73
74
21A
18A
21
22
14
22
22
13A
13
21C
21C
10
22 18A
14
22
1
2
22
15
73
74
21A
N05DBDCKA0
8
4
4
4B
7

FRT21C5A Publication No: 5995420592
# Functional Parts 3 11/04
* Non-Illustrated Parts
DOOR
Model Index: AFRT21C5A (FRT21C5AQA)
BFRT21C5A (FRT21C5AQB)
CFRT21C5A (FRT21C5AWA)
DFRT21C5A (FRT21C5AWB)
POS. NO PART NO. DESCRIPTION
1 # 240514607 A B C D Gasket, seal, white, frzr door, magnetic
2 # 240514608 A B C D Gasket, seal, white, refr door, magnetic
4 240534901 A B C D Rack-door
4B 240534701 A B C D Rack-door, 4B
7 240337703 A B C D Door-dairy, w/o graphics, clear
8 240534801 A B C D Rack-door
10 240381302 A B - - Plug-button, bisque, hinge brg hole, (2)
10 240381301 - - C D Plug-button, white, hinge brg hole, (2)
11 240450305 A B - - Door, frzr, bisque
11 240450301 - - C D Door, frzr, white
12 240415203 A B - - Label-nameplate, bisque
12 240415201 - - C D Label-nameplate, white
13 240312407 A B - - Door Stop, bisque, ref
13 240312403 - - C D Door Stop, white, ref
13A 240312408 A B - - Door Stop, bisque, frzr
13A 240312404 - - C D Door Stop, white, frzr
14 240494002 A B - - Plug-button, bisque
14 240494001 - - C D Plug-button, white
15 240450405 A B - - Door, refr, bisque
15 240450401 - - C D Door, refr, white
18A 218428119 A B - - Handle-door, bisque, w/block & screw
18A 218428101 - - C D Handle-door, white, w/block & screw
21 240383401 A B C D Screw, truss hd quad, #10-16 x .500
21A 240521301 A B C D Screw, #10-16 x 1/2
21C 218252200 A B C D Screw, #8 truss hd, 10-32CA x 0.500
22 240527101 A B C D Bearing-hinge, natural color
73 218396700 A B C D Block-handle mtg, dovetail
74 215503200 A B C D Screw, cr pan hd, 10-16 x 0.500

Publication No: 5995420592 FRT21C5A
11/04 4
CABINET

FRT21C5A Publication No: 5995420592
# Functional Parts 5 11/04
* Non-Illustrated Parts
CABINET
Model Index: AFRT21C5A (FRT21C5AQA)
BFRT21C5A (FRT21C5AQB)
CFRT21C5A (FRT21C5AWA)
DFRT21C5A (FRT21C5AWB)
POS. NO PART NO. DESCRIPTION
1 240355402 A B C D Cover-fan
2 240367001 A B C D Knob-damper control
3 5303001028 A B C D Nut, push-on
4 241523701 A B C D Damper-fan cover
5 5308000010 A B C D Fan Blade, red, evaporator fan
8 5300157666 A B C D Bushing-motor mtg, (2)
9 5303292396 A B C D Bracket-motor mtg, front
10 240313610 A B C D Cover-evap coil, w/o light
10* 240568606 A B C D Seal-coil cover
10*# 240524701 A B C D Wiring Harness, freezer section
11 5303208309 A B C D Plug-hole, factory test
12 240366801 A B C D Plug-ice maker harness, rectangular
12* 218843800 A B C D Screw, hex wshr hd, 8-15A x 0.500
12A 240374401 A B C D Plug-wtr inlet tube, round, 1"
12A* 241586701 A B C D Plug-foam-wtr-inlet, round
13 240369702 A B C D Motor-evap fan
13* 218931001 A B C D Clamp-motor wiring, nylon, w/adhesive tape
14 5303292397 A B C D Bracket-motor mtg, rear
14* 240433201 A B C D Screw, hex washer head, 8-18 x 0.375
18 240411901 A B C D Support-evap cover, (2)
21C 218252200 A B C D Screw, #8 truss hd, 10-32CA x 0.500
22 215774919 A B - - Plug-button, bisque, upr hinge holes
22 215774901 - - C D Plug-button, white, upr hinge holes
28 240335501 A B C D Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 240314004 A B - - Bracket-lower hinge, bisque
30 240314002 - - C D Bracket-lower hinge, white
34 240311303 A B C D Washer, hinge, nylon, (2)
35 240313804 A B - - Bracket-ctr hinge, bisque
35 240313802 - - C D Bracket-ctr hinge, white
35A 240336802 A B C D Spacer-hinge, center
36 240516401 A B C D Pin-center hinge
37 240337604 A B - - Trim-cabinet corner, bisque, (2)
37 240337601 - - C D Trim-cabinet corner, white, (2)
38 240313701 A B C D Bracket-upper hinge
40 240354403 A B - - Cover-upper hinge, bisque
40 240354401 - - C D Cover-upper hinge, white
41 5303001609 A B C D Grommet, shelf mtg, 0.69", RH
41* 5308009759 A B C D Grommet, shelf mtg, 1.25", LH
42 240578901 A B C D Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335003 A B C D Roller Assy, front, (2)
56 240516501 A B C D Pin-lower hinge
58 5303001343 A B C D Screw, hex washer head, 8-15A x 0.500
59 240442704 A B - - Screw-#10-32 X 3/4, bisque
59 240442702 - - C D Screw-#10-32 X 3/4, white
72 240368206 A B - - Grille/Kickplate, bisque
72 240368205 - - C D Grille/Kickplate, white
81 5308016566 A B C D Screw, hex washer head, 8-15A x 0.625, low profile

Publication No: 5995420592 FRT21C5A
11/04 6
CABINET

FRT21C5A Publication No: 5995420592
# Functional Parts 7 11/04
* Non-Illustrated Parts
CABINET
Model Index: AFRT21C5A (FRT21C5AQA)
BFRT21C5A (FRT21C5AQB)
CFRT21C5A (FRT21C5AWA)
DFRT21C5A (FRT21C5AWB)
POS. NO PART NO. DESCRIPTION
82 5304418225 A B C D Roller, compressor base, rear, (2)
83 5303316859 A B C D Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241574607 A B C D Cover-access, w/label
89* 241500301 A B C D Screw, hex washer head, 8-18AB x 0.500
92 216850900 A B C D Screw, hex washer hd, 1/4 x 7/8, hinge mtg
* 218990901 A B C D Clip-wire
* 240479601 A B C D Plug, button, cab liner holes, (2)
* 5304414035 A B - - Paint, touch-up, bisque
* 5303305324 - - C D Paint, touch-up, white

Publication No: 5995420592 FRT21C5A
11/04 8
SHELVES

FRT21C5A Publication No: 5995420592
# Functional Parts 9 11/04
* Non-Illustrated Parts
SHELVES
Model Index: AFRT21C5A (FRT21C5AQA)
BFRT21C5A (FRT21C5AQB)
CFRT21C5A (FRT21C5AWA)
DFRT21C5A (FRT21C5AWB)
POS. NO PART NO. DESCRIPTION
10 215667501 A B C D Tray, ice cube, plastic
11 240358003 A B C D Shelf, freezer, full-width, wire
12 240545901 A B C D Diffuser-air, top
13 240362601 A B C D Diffuser, air, bottom
13* 240392601 A B C D Seal-diffuser
14# 241554901 A B C D Switch-light/lamp
15 240436702 A B C D Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature
16 241500701 A B C D Socket-light/lamp
17 240368101 A B C D Control Box
17*# 240388701 A B C D Wiring Harness, control box
18 240360801 A B C D Knob, temp control
21 # 5304421256 A B C D Control, temperature
22A 5303916855 A B C D Tube, sensor sleeve, plastic, clear
23 # 240371001 A B C D Timer-defrost
23* 5303001259 A B C D Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
24 240360904 A B C D Shelf, sliding, wire
25 240364717 A B C D Cover-crisper pan
25B 240361202 A B C D Knob, humidity cont.
25C 240361301 A B C D Damper, humidity cont.
26 240343801 A B C D Pan-crisper, (2)
30 240361801 A B C D Cover, meat pan hanger, drop through
31 240530803 A B C D Pan-meat, w/o graphics, clear
47 240350609 A B C D Insert-pan cover, glass
81 5308016566 A B C D Screw, hex washer head, 8-15A x 0.625, low profile

Publication No: 5995420592 FRT21C5A
11/04 10
SYSTEM
30A
32
55
17
21
15
20
14
20
16
60
59
61
58
1
34
34
83
44
41
82
83
82
N05CABBAB10
22
23
23
85
4
6
29
26
56
45
57
25
25
30
31
8686

FRT21C5A Publication No: 5995420592
# Functional Parts 11 11/04
* Non-Illustrated Parts
SYSTEM
Model Index: AFRT21C5A (FRT21C5AQA)
BFRT21C5A (FRT21C5AQB)
CFRT21C5A (FRT21C5AWA)
DFRT21C5A (FRT21C5AWB)
POS. NO PART NO. DESCRIPTION
1 # 240444401 A B C D Condenser, dynamic
4 # 218944001 A B C D Drier-filter, R134a System
6* # 240496101 A - C - Wiring Harness, machine compt, w/electric cord
6 # 240581701 - B - D Harness-wiring, machine compt
6* # 240388701 A B C D Wiring Harness, control box
6* # 240524701 A B C D Wiring Harness, freezer section
14 # 5303918247 A B C D Defrost Heater Kit
15 # 5303918274 A B C D Evaporator Kit
16 5308000110 A B C D Strap-evap/heater, aluminum, (2)
17 241551801 A B C D Trough-drain
20 240518402 A B C D Insulation, evap block, foam, LH/RH
21 # 5303918202 A B C D Thermostat-defrost, kit
22 240330001 A B C D Plate-compr mtg
22* 218252200 A B C D Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 A B C D Grommet-compr mtg, (4)
25 240491501 A B C D Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF
26 240332602 A B C D Pan-defrost drain
29 # 5303918291 A - C - Compressor, w/electricals
29 # 5303918297 - B - D Compressor, w/electricals
30A 218721119 A - C - Starter, PTC
30 # 5304433579 - B - D Relay
31 # 5304433578 - B - D Overload Protector
32 218973501 A - C - Clamp, elec cont mtg, compressor
34 240405201 A B C D Grommet, rubber, black, cond tube/wire
41 240555001 A B C D Screw-#8-32 X 3/8
44 215174700 A B C D Clamp-service cord, strain relief, galv steel
45 5308016566 A B C D Screw, hex washer head, 8-15A x 0.625, low profile
55 218909913 A - C - Capacitor-run, 220 VAC, 15 microfarad
56 240582001 - B - D Cover-terminal
57 240542601 A B C D Clip-wiring harness
58 218897002 A B C D Screw, hex washer head, 8-32 x 0.375
59 5304430246 A B C D Bracket-cond motor assy
59* 240346701 A B C D Tape-foam seal, shroud
59* 240359401 A B C D Screw-fan shroud, (2)
60 # 240525401 A B C D Motor-condenser fan
61 # 240524101 A B C D Fan Blade, galv steel, condenser fan
82 5304418225 A B C D Roller, compressor base, rear, (2)
83 5303316859 A B C D Rivet, flat head, 1/4 OD x 1-3/4, roller pin
85 240346201 A - C - Tube-connector, suction
85 240493101 - B - D Tube-connector, suction
86 240409302 A B C D Spacer-cond tube, black
* # 5303918210 A B C D Heat Exchanger Kit, suction line
* # 5304421289 A B C D Hot Tube Repair Kit, Service

Publication No: 5995420592 FRT21C5A
11/04 12
WIRING SCHEMATIC

FRT21C5A Publication No: 5995420592
# Functional Parts 13 11/04
* Non-Illustrated Parts
WIRING DIAGRAM
