Frigidaire FRT21KS5A User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRT21KS5AQ0 FRT21KS5A R134a bisque 115
FRT21KS5AQ1 FRT21KS5A R134a bisque 115
FRT21KS5AW0 FRT21KS5A R134a white 115
FRT21KS5AW1 FRT21KS5A R134a white 115
MARKET
North America
Publication No.
5995352910
010425
-EN/SERVICE/KHB
357
TOP MOUNT
REFRIGERATOR
Model No.
FRT21KS5A
©2001 White Consolidated Industries, Inc.
All rights reserved
FACTORY
PARTS CATALOG
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. Box 212378, Augusta, GA 30917
WIRING DIAGRAM - # 240398801
OWNER’S GUIDE - # 240400102
SERVICE DATA SHEET - # 240379005

04/01 2
Publication No. FRT21KS5A
5995352910
DOOR

# = Fast-moving Parts 3 04/01
* = Non-Illustrated Parts
FRT21KS5A Publication No.
5995352910
A = FRT21KS5A (FRT21KS5AQ0)
B = FRT21KS5A (FRT21KS5AQ1)
C = FRT21KS5A (FRT21KS5AW0)
D = FRT21KS5A (FRT21KS5AW1)
POS. NO PART NO DESCRIPTION
1 # 240390702 A B C D Gasket-frzr door,white ,magnetic
2 # 240390701 A B C D Gasket-refr door,white ,magnetic
7 240337703 A B C D Door-dairy,w/o graphics ,clear
10 240381302 A B - - Plug-button,hinge brg hole ,bisque ,(2)
10 240381301 - - C D Plug-button,hinge brg hole ,white ,(2)
11 240450305 A B - - Door-frzr,bisque ,complete assy
11 240450301 - - C D Door-frzr,white ,complete assy
12 240415203 A B - - Label-nameplate,bisque
12 240415201 - - C D Label-nameplate,white
13 240312407 A B - - Door Stop,bisque ,ref
13 240312403 - - C D Door Stop,white ,ref
13A 240312408 A B - - Door Stop,bisque ,frzr
13A 240312404 - - C D Door Stop,white ,frzr
14 218915704 A B - - Plug-button,bisque
14 218915701 - - C D Plug-button,white
14A 240428302 A B - - Plug-button,screw type ,bisque
14A 240428301 - - C D Plug-button,screw type ,white
15 240450405 A B - - Door-refr,bisque ,complete assy
15 240450401 - - C D Door-refr,white ,complete assy
18 218668004 A B - - Handle-door,bisque
18 218668001 - - C D Handle-door,white
21 240383401 A B C D Screw,truss hd quad ,#10-16 x .500
21C 218252200 A B C D Screw,#8 truss hd ,10-32CA x 0.500
22 240311201 A B C D Bearing-hinge,natural color ,(8)
37 215870633 A B - - Trim-handle,2.47", bisque, w/satin AL band
37 215870629 - - C D Trim-handle,2.47", white, w/satin AL band
37* 218676004 A B C D Band-decorative, satin aluminum, handle trim
48 240338101 A B C D Bin-door,Pseudo ,bottom
48A 240337901 A B C D Bin-door,ref
48B 240338001 A B C D Bin-door,ref
49 240337801 A B C D Bin-door,frzr
96 240345503 A B C D Plug-foam hole,white
DOOR

04/01 4
Publication No. FRT21KS5A
5995352910

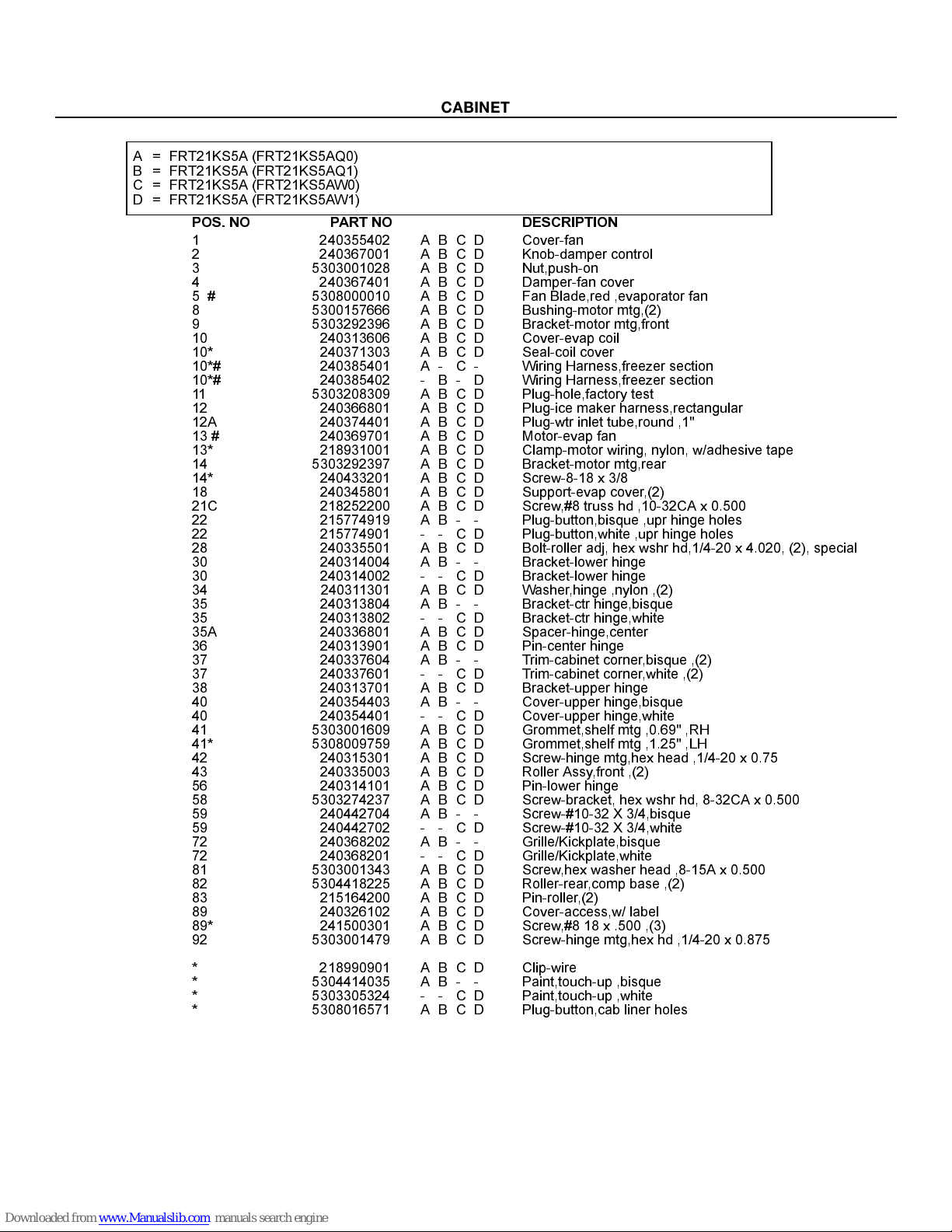

CABINET

# = Fast-moving Parts 5 04/01
* = Non-Illustrated Parts
FRT21KS5A Publication No.
5995352910
A = FRT21KS5A (FRT21KS5AQ0)
B = FRT21KS5A (FRT21KS5AQ1)
C = FRT21KS5A (FRT21KS5AW0)
D = FRT21KS5A (FRT21KS5AW1)
POS. NO PART NO DESCRIPTION
1 240355402 A B C D Cover-fan
2 240367001 A B C D Knob-damper control
3 5303001028 A B C D Nut,push-on
4 240367401 A B C D Damper-fan cover
5 # 5308000010 A B C D Fan Blade,red ,evaporator fan
8 5300157666 A B C D Bushing-motor mtg,(2)
9 5303292396 A B C D Bracket-motor mtg,front
10 240313606 A B C D Cover-evap coil
10* 240371303 A B C D Seal-coil cover
10*# 240385401 A - C - Wiring Harness,freezer section
10*# 240385402 - B - D Wiring Harness,freezer section
11 5303208309 A B C D Plug-hole,factory test
12 240366801 A B C D Plug-ice maker harness,rectangular
12A 240374401 A B C D Plug-wtr inlet tube,round ,1"
13 # 240369701 A B C D Motor-evap fan
13* 218931001 A B C D Clamp-motor wiring, nylon, w/adhesive tape
14 5303292397 A B C D Bracket-motor mtg,rear
14* 240433201 A B C D Screw-8-18 x 3/8
18 240345801 A B C D Support-evap cover,(2)
21C 218252200 A B C D Screw,#8 truss hd ,10-32CA x 0.500
22 215774919 A B - - Plug-button,bisque ,upr hinge holes
22 215774901 - - C D Plug-button,white ,upr hinge holes
28 240335501 A B C D Bolt-roller adj, hex wshr hd,1/4-20 x 4.020, (2), special
30 240314004 A B - - Bracket-lower hinge
30 240314002 - - C D Bracket-lower hinge
34 240311301 A B C D Washer,hinge ,nylon ,(2)
35 240313804 A B - - Bracket-ctr hinge,bisque
35 240313802 - - C D Bracket-ctr hinge,white
35A 240336801 A B C D Spacer-hinge,center
36 240313901 A B C D Pin-center hinge
37 240337604 A B - - Trim-cabinet corner,bisque ,(2)
37 240337601 - - C D Trim-cabinet corner,white ,(2)
38 240313701 A B C D Bracket-upper hinge
40 240354403 A B - - Cover-upper hinge,bisque
40 240354401 - - C D Cover-upper hinge,white
41 5303001609 A B C D Grommet,shelf mtg ,0.69" ,RH
41* 5308009759 A B C D Grommet,shelf mtg ,1.25" ,LH
42 240315301 A B C D Screw-hinge mtg,hex head ,1/4-20 x 0.75
43 240335003 A B C D Roller Assy,front ,(2)
56 240314101 A B C D Pin-lower hinge
58 5303274237 A B C D Screw-bracket, hex wshr hd, 8-32CA x 0.500
59 240442704 A B - - Screw-#10-32 X 3/4,bisque
59 240442702 - - C D Screw-#10-32 X 3/4,white
72 240368202 A B - - Grille/Kickplate,bisque
72 240368201 - - C D Grille/Kickplate,white
81 5303001343 A B C D Screw,hex washer head ,8-15A x 0.500
82 5304418225 A B C D Roller-rear,comp base ,(2)
83 215164200 A B C D Pin-roller,(2)
89 240326102 A B C D Cover-access,w/ label
89* 241500301 A B C D Screw,#8 18 x .500 ,(3)
92 5303001479 A B C D Screw-hinge mtg,hex hd ,1/4-20 x 0.875
* 218990901 A B C D Clip-wire
* 5304414035 A B - - Paint,touch-up ,bisque
* 5303305324 - - C D Paint,touch-up ,white
* 5308016571 A B C D Plug-button,cab liner holes
CABINET

04/01 6
Publication No. FRT21KS5A
5995352910
SHELVES

# = Fast-moving Parts 7 04/01
* = Non-Illustrated Parts
FRT21KS5A Publication No.
5995352910
A = FRT21KS5A (FRT21KS5AQ0)
B = FRT21KS5A (FRT21KS5AQ1)
C = FRT21KS5A (FRT21KS5AW0)
D = FRT21KS5A (FRT21KS5AW1)
POS. NO PART NO DESCRIPTION
10 215667501 A B C D Tray-ice,plastic
11 240358003 A B C D Shelf-freezer
11* 5303299664 A B C D Spacer-shelf
12 240380201 A - C - Diffuser-air,top
12 240380202 - B - D Diffuser-air,top
13 240362601 A B C D Diffuser-air,bottom
13* 240392601 A B C D Seal-diffuser
14 # 240413601 A B C D Switch-light/lamp
15 5303001179 A - C - Light Bulb/Lamp,40 W
15 240436701 - B - D Light Bulb/Lamp, A-15, 40 W, 120 V, miniature
16 241500701 A B C D Socket-light/lamp
17 240368101 A B C D Box-control
17*# 240388701 A B C D Wiring Harness,control box
18 240360801 A B C D Knob-control
21 5304418228 A - C - Control-temperature
21 # 5304421256 - B - D Control-temperature
22A 5303916855 A B C D Tube, sensor sleeve, plastic, clear
22B 218731105 A - C - Tube, PVC, white, @ air diffuser, insulator
23 # 215846606 A B C D Timer-defrost, 60 Hz, 120 V, 10 hr/30 min
23* 5303001259 A B C D Screw-timer mtg,pan hd ,6-20 x 0.438, (2)
24 240358909 A B C D Shelf-"Spill-Safe",sliding
24A 240358910 A B C D Shelf-"Spill-Safe",sliding
25 240364718 A B C D Cover-crisper pan
25B 240361201 A B C D Control-humidity
25C 240361301 A B C D Damper-humidity control
26 240343803 A B C D Pan-crisper,(2)
28 3201150 A B C D End Cap-shelf,protector ,frzr shelf
31 240371403 A B C D Pan-meat
47 240350654 A B C D Insert-pan cover,glass
58 5308016566 A B C D Screw, hex wshr hd, 8-15A x 0.625, low profile
SHELVES

04/01 8
Publication No. FRT21KS5A
5995352910
SYSTEM

# = Fast-moving Parts 9 04/01
* = Non-Illustrated Parts
FRT21KS5A Publication No.
5995352910
A = FRT21KS5A (FRT21KS5AQ0)
B = FRT21KS5A (FRT21KS5AQ1)
C = FRT21KS5A (FRT21KS5AW0)
D = FRT21KS5A (FRT21KS5AW1)
POS. NO PART NO DESCRIPTION
1 # 240345601 A B C D Condenser,dynamic
4 # 218944001 A B C D Drier-filter,R134a System
6 # 240375301 A B C D Wiring Harness,machine compt, w/ service cord
6* # 240385401 A - C - Wiring Harness,freezer section
6* # 240385402 - B - D Wiring Harness,freezer section
6* # 240388701 A B C D Wiring Harness,control box
14 # 5303918247 A B C D Defrost Heater Kit
15 # 5303918250 A B C D Evaporator Kit
16 5308000110 A B C D Strap-evap/heater,aluminum ,(2)
17 240434002 A B C D Trough-drain
18 240362301 A B C D Insulation Block,RH
20 240362401 A B C D Insulation Block,LH
21 # 5303918202 A B C D Thermostat-defrost,kit
22 240330001 A B C D Plate-compr mtg
22* 218252200 A B C D Screw,#8 truss hd ,10-32CA x 0.500
23 218513300 A B C D Grommet-compr mtg,(4)
25 240420302 A B C D Screw-compr mtg,hex hd ,1/4-28 shoulder
26 240332602 A B C D Pan-defrost drain
29 # 5303918249 A B C D Compressor,w/electricals
30 # 218721113 A B C D Starter-PTC
32 218740800 A B C D Clamp,elec cont mtg ,compressor
34 240405201 A B C D Grommet-cond mtg,(4)
41 218897001 A B C D Screw,hex washer head ,8-32 x 1/4
41* 5308000039 A B C D Screw, hex wshr hd, 8-32CA x 0.500, (7),serrated head
44 5303001199 A B C D Clamp-wiring harness, strain relief, galv steel
45 5308016566 A B C D Screw, hex wshr hd, 8-15A x 0.625, low profile
55 # 218909901 A B C D Capacitor-run,220 VAC ,15 microfarad
57 240403601 A B C D Clip-wiring harness
58 215004600 A B C D Screw-cond fan mtr, hx serr wshr hd, 8-36 x 7/16,(2)
59 240315501 A B C D Shroud-cond fan
59* 240346701 A B C D Tape-foam seal,shroud
59* 240359401 A B C D Screw-fan shroud,(2)
59A 240346501 A B C D Bracket-support,cond mtr ,(3)
59B 240346601 A B C D Grommet-bracket,(3)
60 # 240334001 A B C D Motor-condenser fan
61 # 240315401 A B C D Fan Blade,galv steel ,condenser fan
61A 215004700 A B C D Nut,speed
61B 215004800 A B C D Grommet-silencer
82 5304418225 A B C D Roller-rear,comp base ,(2)
83 215164200 A B C D Pin-roller,(2)
84 240359601 A B C D Tube-drain,lower
85 240346201 A B C D Tube-connector,suction
86 240409301 A B C D Spacer-cond tube,black
* # 5303918210 A B C D Heat Exchanger Kit,suction line
* 5304421289 A B C D Hot Tube Repair Kit,Service
SYSTEM

04/01 10
Publication No. FRT21KS5A
5995352910
WIRING SCHEMATIC

# = Fast-moving Parts 11 04/01
* = Non-Illustrated Parts
FRT21KS5A Publication No.
5995352910
WIRING DIAGRAM
