Frigidaire FSC23LR5J Instruction Manual

E23CS75DSS0.eps N58FCCBBB3.eps N58RCFCHA1.eps N58BABAAD3.eps
N58SACKBB11.eps N58TAAAAD5.eps N58CAAAAC10.eps N58XDAAAA1.eps
N58YDAAAC5.eps N58I115TServo.eps W241516401A.eps S241516401A.eps
Product No. FSC23LR5JM0
Series counter depth
Color silver mist
Volts 115
Wiring Diagram 241516401
Owner's Guide 241856000
Market North America
Energy Guide 241615457
Service Data Sheet 241532603
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995510723
08/03/31
(EN/SERVICE/DCS)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FSC23LR5J
Copyright ©All rights reserved.

Publication No: 5995510723 FSC23LR5JM0
03/08 2
FREEZER DOOR
21C
21
21
21
21C
21C
21
74
74
74
72
72
73
73
73
18
37
22C
11
1
4B
68
4B
4B
13A
22A
21A
N58FCCBBB3

FSC23LR5JM0 Publication No: 5995510723
# Functional Parts 3 03/08
* Non-Illustrated Parts
FREEZER DOOR
POS. NO PART NO. DESCRIPTION
1 # 241510204 Gasket-frzr door, black, magnetic
4B 241511601 Bin-door
11 241837141 Door-frzr, silver mist, complete assy
13A 240581906 Door Stop, black, frzr
18 241934305 Handle-door, black
21 218781101 Screw, pan head, 8-18 x 0.625
21A 240598402 Screw, 10-32 x 1/2
21C 240521304 Screw, #8-18 x 3/4
22A 240328204 Bearing-hinge(frz), black, closer
22C 240328404 Bearing-hinge, black, upper
37 241927002 Trim-door handle, black, bottom
68 241525101 Chute-ice
72 240421701 Button-handle mtg, dovetail
73 218396700 Block-handle mtg, dovetail
74 215503204 Screw, cr pan hd, 10-16
* 240552101 Harness-wiring, door
* 240451503 Screw, ind hex wshr hd, 8-32 x 0.375, trilobe
* 241806601 Connector-water, straight
* 5303918256 Dispenser heater kit

Publication No: 5995510723 FSC23LR5JM0
03/08 4

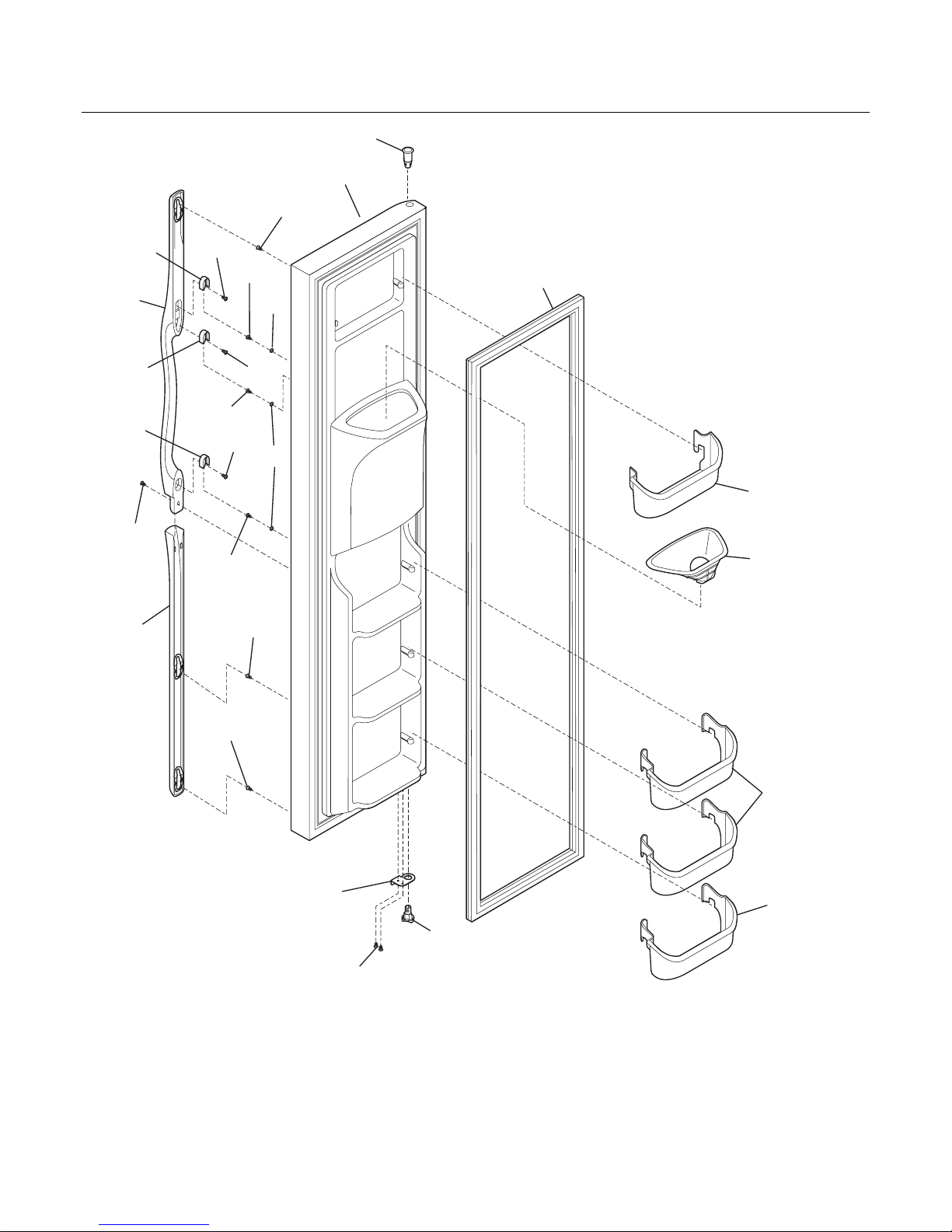

REFRIGERATOR DOOR
70
49A
49
48
7
6
5
21A
22
13
15
22B
2
N58RCFCHA1
50
21
21
21
21C
21C
21
74
74
74
72
72
73
73
73
18
37

FSC23LR5JM0 Publication No: 5995510723
# Functional Parts 5 03/08
* Non-Illustrated Parts
REFRIGERATOR DOOR
POS. NO PART NO. DESCRIPTION
2 # 241510203 Gasket-refr door, black, magnetic
5 241516101 Rack-can
6 241515901 Lug-dairy compartment
7 241515601 Door-dairy
13 240581905 Door Stop, black, ref
15 241534563 Door-refr, silver mist, complete assy
18 241934302 Handle-door, black
21 218781101 Screw, pan head, 8-18 x 0.625
21A 240598402 Screw, 10-32 x 1/2
21C 240521304 Screw, #8-18 x 3/4
22 240328203 Bearing-hinge, black, closer
22B 240328404 Bearing-hinge, black, upper
37 241927002 Trim-door handle, black, bottom
48 241511706 Bin-door, ref
49 241505306 Bin-door, 2-liter
49A 241505506 Bin-door
50 241508401 Cover-magnet
70 241515801 Compartment-dairy, removable
72 240421701 Button-handle mtg, dovetail
73 218396700 Block-handle mtg, dovetail
74 215503204 Screw, cr pan hd, 10-16

Publication No: 5995510723 FSC23LR5JM0
03/08 6
CABINET
100
92
92
90
89
83
82
81
81
72
66
54
50
47
45
45
45
45
45
45
45
43
42
42
41
38
38
37
37
28
30A
30
23
23
22
22
21C
21C
11
10A
10
N58BABAAD3
14A
58
58
40
40

FSC23LR5JM0 Publication No: 5995510723
# Functional Parts 7 03/08
* Non-Illustrated Parts
CABINET
POS. NO PART NO. DESCRIPTION
10 241509804 Cover-air duct
10A 241719711 Cover-evap coil, lower
11 5303208309 Plug-hole, factory test
14A 241547901 Switch-light/lamp, frzr door
21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 Plate-door closer
23 240402702 Screw-#10-32 x 1/4 flat hd
28 240335502 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603703 Bracket-lower hinge, ref
30A 241603704 Bracket-lower hinge
37 240337610 Trim-cabinet corner, black, (2)
38 240327207 Bracket-upper hinge
40 240327007 Cover-upper hinge, black
41 241550801 Grommet-shelf mtg, 1.40" long
41* 241550701 Grommet-shelf mtg, .96" long
42 240578902 Screw, hex head, 1/4-20 x 5/8
43 240335005 Roller Assy, adjustable, front, (2)
45 241500303 Screw, hex washer head, 8-18AB x 0.500
47 241513001 Channel-shelf mtg, side, (2)
50 241511101 Board-main power
50* 241524802 Seal, housing
50* 241532501 Clip-harness
54 241532401 Channel
58 218781101 Screw, pan head, 8-18 x 0.625
66 241513601 Damper Assy
72 240324411 Grille/Kickplate, black
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 Roller, compressor base, rear, (2)
83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733902 Cover-access, w/label
90 218249808 Seal-coil cover
92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 Support, crisper cover, front, (4)
100* 240350802 Support, crisper cover, rear, (4)
* 218515401 Clip
* 240479601 Plug, button, cab liner holes
* 241591701 Louver
* 5303321321 Paint, touch-up, black

Publication No: 5995510723 FSC23LR5JM0
03/08 8

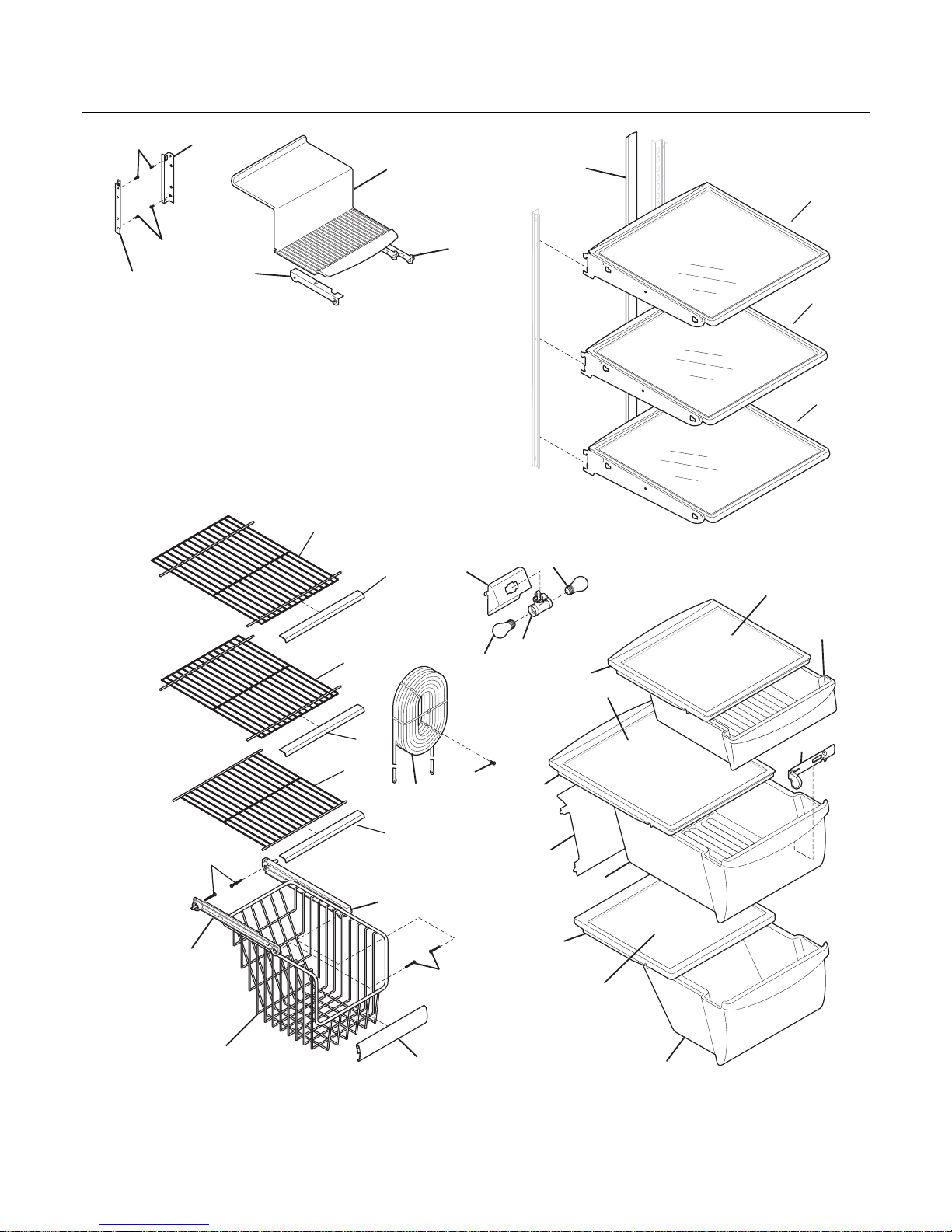

SHELVES
140
126
126
122
121
120
109
101
100
97
81
81
62
52
51
49
47B
47A
47
27
26A
26
25B
25A
25
21
16
15
15
2
N58SACKBB11
24
24
24
11B
11A
11
39A
39A
39
101

FSC23LR5JM0 Publication No: 5995510723
# Functional Parts 9 03/08
* Non-Illustrated Parts
SHELVES
POS. NO PART NO. DESCRIPTION
2 241510605 Trim-basket
11 241657605 Shelf-freezer, flip-up
11A 241657505 Shelf-freezer, fixed wire
11B 241657506 Shelf-freezer, fixed wire
15 241552801 Light Bulb
16 241622802 Socket-light
16* 241523202 Harness-wiring
21 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625
24 240355240 Shelf-"Spill-Safe", fixed, (3)
25 240599301 Cover-crisper pan, upper
25* 240362101 Clip-slide, cover-crisper
25A 240350902 Cover-crisper pan, lower
25B 240599801 Cover-meat pan
26 240351005 Pan-crisper, upper
26* 240349801 Clip-slide, pan-crisper
26A 240362201 Control-humidity
27 240351206 Pan-crisper, lower
39 240430709 Trim-shelf, 11.60", front
39A 240430710 Trim-shelf, 12.86", front
47 240350633 Insert-pan cover, glass
47A 240350603 Insert-pan cover, glass
47B 240443360 Insert-pan cover, glass
49 241515001 Basket-sliding
51 241514501 Hanger-basket, RH
52 241514601 Hanger-basket, LH
62 240599701 Pan-meat
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
97 241532006 Water Tank
100 240326304 Cover-water tank
101 218493101 Screw, hex washer head, 8-18AB x 1-3/4
109 241513202 Base-crisper light socket
120 241691701 Shelf-ice cream
121 241504701 Rail-ice cream shelf, LH
122 241504702 Rail-ice cream shelf, RH
126 241674401 Channel, auger mtg, LH
126 241674402 Channel, auger mtg, RH
140 240430504 Channel, wtr tube cover
* 241615457 Energy Guide

Publication No: 5995510723 FSC23LR5JM0
03/08 10

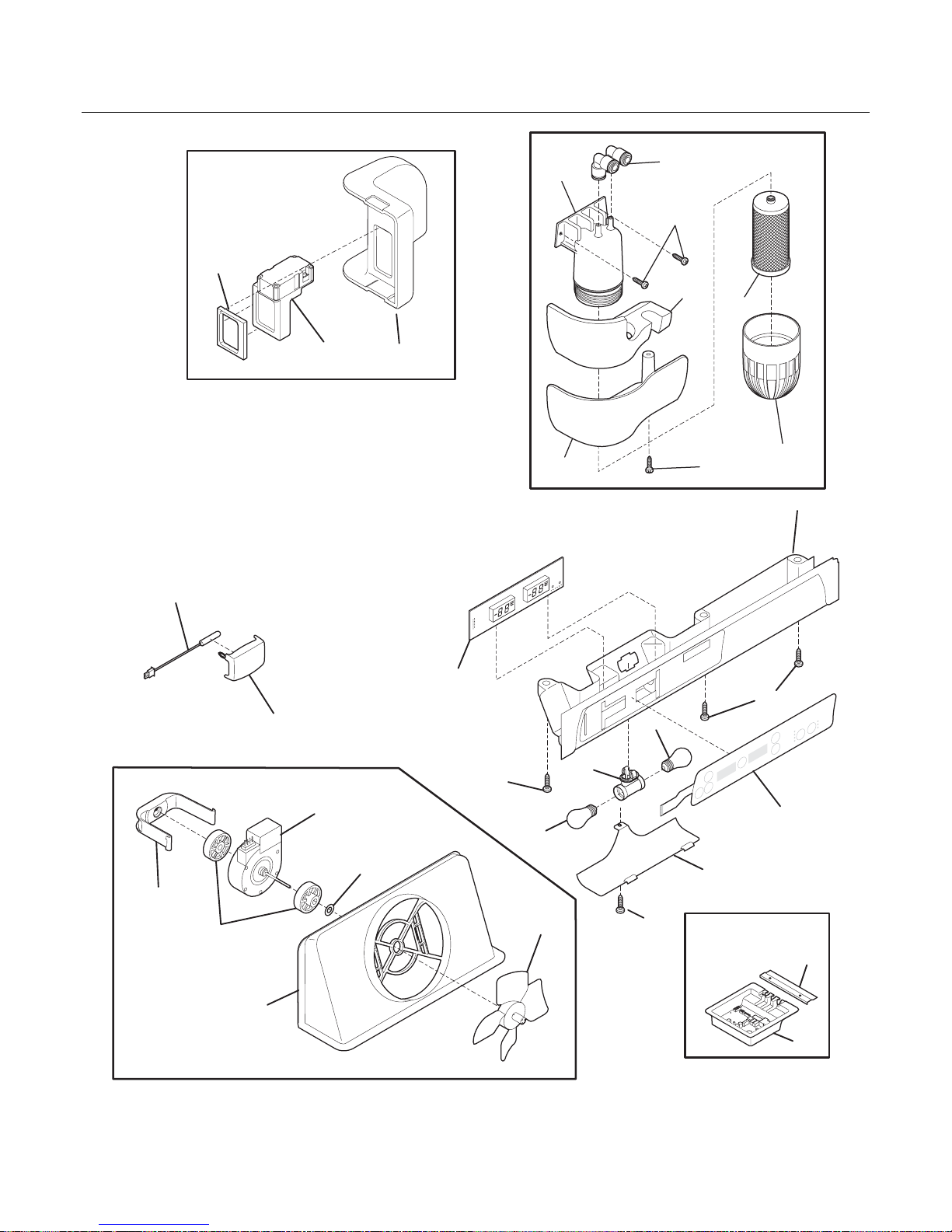

CONTROLS
140
139
45
138
137
75A
151
150
201
149
81
81
75
23
22
21
17
16
15
15
14
13
9
8
5
N58TAAAAD5
54
50
75A
115 60
116

FSC23LR5JM0 Publication No: 5995510723
# Functional Parts 11 03/08
* Non-Illustrated Parts
CONTROLS
POS. NO PART NO. DESCRIPTION
5 # 5308000010 Fan Blade, red, evaporator fan
8 215474201 Washer, "slinger", nylon, evap fan shaft
9 241518301 Bushing, motor mounting
13 241509402 Motor, evaporator fan
13* 241510501 Seal-diffuser
14 241517701 Clip, evap fan motor
15 241552801 Light Bulb
16 241622802 Socket-light
17 241522801 Box-control, front
17*# 241510802 Harness-wiring, control box
21 # 240596801 Control, electronic
22 240597203 Sensor
23 241512901 Cover-sensor
45 241500303 Screw, hex washer head, 8-18AB x 0.500
50 241511101 Board-main power
50* 241524802 Seal, housing
50* 241532501 Clip-harness
54 241532401 Channel
60 241510301 Diffuser-air
75 241517802 Shield-light
75A 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
81 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625
115 241518501 Damper, motorized
116 241518601 Seal-damper, foam
137# 240389102 Filter, water, carbon canister, rear, with o'rings
137* 218710300 Wrench-filter
138 240434401 Cup-water filter
138* 218904301 O-ring, wtr filter cup
139 240434301 Housing-water filtr
140 240545201 Elbow-water tube
149 241517601 Shroud-evap fan mtg
149* 241528304 Seal, foam, evap fan assy
150 240394102 Insulation-water filter cover
151 240376002 Cover-water filter
201 240598701 Switch-membrane

Publication No: 5995510723 FSC23LR5JM0
03/08 12
SYSTEM
85
84
83
83
82
82
70
62
61
60
59B
59B
59A
59A
59A
59
58
57
55
45
45
44
41
34
34
32
30
29
26
N58CAAAAC10
25
25
23
23
22
21
16
15
14
6
4
3
1
86

FSC23LR5JM0 Publication No: 5995510723
# Functional Parts 13 03/08
* Non-Illustrated Parts
SYSTEM
POS. NO PART NO. DESCRIPTION
1 # 240333605 Condenser
3 218679607 Block-evap coil, styrofoam, (2)
4 # 218944001 Drier-filter, R134a System
6 # 241516901 Cord-service
6* # 241510802 Harness-wiring, control box
6* # 241519902 Harness-wiring
6* # 241635603 Harness-wiring, machine compt
14 # 240316107 Heater-defrost
15 # 5303918284 Evaporator Kit
16 5308000110 Strap-evap/heater, aluminum, (2)
21 5303918214 Thermostat-defrost, kit
22 240330011 Base-compressor mtg
22* 218252201 Screw, #8 truss hd, 10-32CA x 0.500
23 241659701 Grommet, compressor
25 240491503 Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241697501 Pan-defrost drain
29 # 5303918360 Compressor Kit
30 # 241707703 Starter, PTC
32 216649200 Clip, controller
34 240405201 Grommet, rubber, black, cond tube/wire
41 240555002 Screw-#8-32 X 3/8
44 215174700 Clamp-service cord, strain relief, galv steel
45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
55 218909913 Capacitor, run, 220 VAC, 15 microfarad
57 240542601 Clip-wiring harness
58 240433203 Screw, hex washer head, 8-18 x 3/8
59 240315502 Shroud-cond fan
59* 240346701 Tape-foam seal, shroud
59* 240359403 Screw-fan shroud, (2)
59A 240346501 Bracket-support, cond mtr, (3)
59B 240346601 Grommet-bracket, (3)
60 # 241584301 Motor-condenser fan
61 241639501 Blade-condenser fan
62 240429402 Trough-drain
70 218990801 Bracket-evap/cvr mtg
82 5304418225 Roller, compressor base, rear, (2)
83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 Tube-drain, lower
85 241871501 Tube-connector, suction
86 240409302 Spacer-cond tube, black
* 5303918222 Hot Tube Repair Kit, service
* # 5303918327 Heat Exchanger Kit, suction line

Publication No: 5995510723 FSC23LR5JM0
03/08 14
ICE & WATER DISPENSER

FSC23LR5JM0 Publication No: 5995510723
# Functional Parts 15 03/08
* Non-Illustrated Parts
ICE & WATER DISPENSER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube, water, door
1* 218976420 Tube-water inlet, inlet valve, to filter
1* 218976421 Tube-water inlet, valve to door
1* 218976915 Tube-water inlet, inlet valve, to filter
1* 240561702 Seal-water inlet, inlet valve, to ice maker
4 241679003 Cover-module, black
8 241680507 Module-dispenser
10 241688901 Spring-torsion
14 240570206 Label-module cover, black
15 241689401 Light Bulb
16 240548901 Socket-light
17 241679801 Screw
17A 241679901 Screw, switch mtg.
23 241649003 Drip Tray, black
24 241682003 Actuator-water, black
24A 241681903 Actuator-ice, black
30 241688401 Door Assy-ice chute
30A 241688501 Door center
30B 241688601 Insulation-door
30C 241688701 Door seal
35 241689301 Damper-rotary
38A# 241689101 Switch-micro, single pole, double throw
38A* 241679201 Harness-wiring
38C# 241679101 Switch
38C* 241686001 Harness-wiring
39 241688801 Pin-hinge
41 241689001 Spring-actuator
43 215296301 Screw, plask h/l, #6 x 3/8
56 241689201 Screw-micro switch, pan head
82 240363402 Screw-#8-18 X 1/2, #6 hd plask
87 241688302 Bearing Plate
87A 241688301 Bearing Plate
88 241686101 Shield-light
* 218515403 Clip-grille
* 5303918256 Dispenser heater kit

Publication No: 5995510723 FSC23LR5JM0
03/08 16
ICE CONTAINER
45
4
45A
48
47
46
45B
45C
45D
50
18 20
15
16
44
44
58
51
26
26
26
26
10
26
43
43
43
49
7
3
2
23
39
70
39
6
17
53
52
37A 34
33
37B
34 33
37C
54
35A
35B
41
56
55
13
25
25
22
N58YDAAAC5
39

FSC23LR5JM0 Publication No: 5995510723
# Functional Parts 17 03/08
* Non-Illustrated Parts
ICE CONTAINER
POS. NO PART NO. DESCRIPTION
2 241684701 Auger-ice
3 241685201 Cam-drive
4 241515202 Container-ice, bucket only
6 241685101 Drum-ice disp
7 241515301 Front-ice container
10 241726501 Bar-drive
13 241685301 Gate
15 241555401 Light Bulb
16 241559801 Socket-light
17 241684501 Drive Blade
18 # 241676201 Motor-auger
18* 241522901 Harness-wiring, icmkr/container
20 241675502 Cover-motor
22 240597203 Sensor
22* 241519401 Clip, sensor
23 241684001 Plate-front
25 241690701 Screw, hex washer head, 8-32T x 0.375
26 215503205 Screw, cr pan hd, 10-16 x 0.500
33 241684801 Spacer
34 241689801 Spacer
35A 241684301 Fixed Blade, round
35B 241684201 Fixed Blade, square
37A 241684101 Blade, crusher #1
37B 241684102 Blade, crusher #2
37C 241684103 Blade, crusher #3
39 241690501 Screw
41 241685601 Housing-crusher
43 215005101 Screw, hanger/rlr mtg, 8-10 x 7/16
44 241842101 Screw, 8-32 x 1/4
45 # 241675701 Solenoid Assy, 115V
45A 241675901 Spring-solenoid
45B 241676001 E-Ring-solenoid
45C 241676101 Actuator-solenoid
45D# 241675801 Solenoid, 115V
46 241684402 Control Rod
47 241731801 Spring-control rod
48 241684602 Bracket-control rod
49 241676501 Rail Assy
50 241675601 Guide-solenoid
51 241676301 Rotation Stop
52 241684901 Spacer-fixed blades
53 241690402 Pin-spiral, fixed blades
54 241685001 Nut-auger
55 241690306 Washer
56 241690201 E-ring
58 218359202 Screw, pan head, 8-32 x 0.250
70 241504601 Plate-mounting
70* 241551602 Screw, hex head, 8-18B x 0.875
70* 241716801 Clip
* 240562101 Insulator
* 241914702 Ice Container Assy

Publication No: 5995510723 FSC23LR5JM0
03/08 18
ICE MAKER
14 15
2
41
24
25
51
64
6
640
43
7
6
16
67
21
19
22
66
60
18
17
39
23
23
34
34
34
11
38
29
30
27
9
15
15
31
32
36
4
35
5
37
8
1
55 INSTALLATION PARTS
N58I115TServo
12
33
13
45
42

FSC23LR5JM0 Publication No: 5995510723
# Functional Parts 19 03/08
* Non-Illustrated Parts
ICE MAKER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube, water, door
1* 218976420 Tube-water inlet, inlet valve, to filter
1* 218976421 Tube-water inlet, valve to door
1* 218976915 Tube-water inlet, inlet valve, to filter
1* 240561702 Seal-water inlet, inlet valve, to ice maker
2 5304459922 Spring, shut-off arm
4 5304458380 Gear
5 5304458383 Plate-mounting
6 5304458386 Screw
7 # 5304458382 Motor-ice maker Svo
8 5304458388 Spacer-hold switch
9 5304456662 Cam
11 # 5304458400 Thermal Cutoff, ice maker
12 5304458379 Harness-wiring
13 5304456665 Thermostat, ice maker
14 5304458384 Screw
15 # 5304456667 Switch-micro, (3)
16 5304458395 Housing, control
17 5304456669 Mold-ice maker, w/therm cut off
18 5304458377 Ejector-ice
18*# 240352601 Wiring Harness, internal, with plug
19 5304458378 Cup-water inlet
21 5304458390 Ice Stripper
22 5304458375 Shut-off Arm
23 5304458394 Screw
24 5304458391 Lever Arm
25 5304456676 Screw, M 4x12.8 #2, lever arm/sprt
27 5304458385 Screw
29 5304458393 Screw
30 5304458387 Screw
31 5304458381 Insulator
32 5304456681 Plate-valve switch
33 5304458403 Retainer-thermostat
34 5304456678 Screw, M 3x12 #3, (2)
35 5304456684 Screw
36 5304458376 Cover-ice maker
37 5304456682 Spring, timing adjust
38 5304458398 Clip
39 5304458399 Conductor-heat
40 5304458401 Clip-retainer
41 5304458389 Screw
42 218515403 Clip-grille
43 241720601 Extension
45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
51 241796402 Tube-water fill, extension
55 # 241734301 Valve-water, triple solenoid
55* 218709101 Screw, hex head, 10-32 x 0.500
55* 240363602 Screw-shoulder
55* 240542901 Cap-water valve
60 5304455651 Screw, hex washer head, 8-15A x 0.500
64 5304455846 Clamp, .31 ID, steel, water tube
66 5304458374 Bracket-ice maker
67 5304458392 Switch-on/off
* 241583301 Deflector-air, ice maker
* 241806601 Connector-water, straight
* 5304456660 Screw, M 4x6 #2
* 5304456689 Washer, nylon
* # 241709801 Ice Maker, radius cube, 115 V, no instl parts

Publication No: 5995510723 FSC23LR5JM0
03/08 20
WIRING SCHEMATIC
