Frigidaire FSC23R5D Instruction Manual

E23CS75DSS0.eps N58FCCBBB3.eps N58RCFCHA1.eps N58BABAAD3.eps
N58SACKBB11.eps N58TAAAAD5.eps N58CAAAAC10.eps N58XDAAAA1.eps
N58YDAAAC4.eps N58I115TServo.eps W241516401A.eps S241516401A.eps
Product No. FSC23R5DBB FSC23R5DWB FSC23R5DSBB
Series R134a R134a R134a
Color black white stainless
Volts 115 115 115
Wiring Diagram 241516401A 241516401A 241516401A
Owner's Guide 241695101 241695101 241695101
Market North America North America North America
Energy Guide 240598644 240598644 241585940
Service Data Sheet 241532603 241532603 241532603
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995486395
07/03/14
(EN/SERVICE/DCS)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FSC23R5D
Copyright ©All rights reserved.

Publication No: 5995486395 FSC23R5DS
03/07 2
FREEZER DOOR
21C
21
21
21
21C
21C
21
74
74
74
72
72
73
73
73
18
37
22C
11
1
4B
68
4B
4B
13A
22A
21A
N58FCCBBB3

FSC23R5DS Publication No: 5995486395
# Functional Parts 3 03/07
* Non-Illustrated Parts
FREEZER DOOR
Model Index: AFSC23R5D (FSC23R5DBB)
BFSC23R5D (FSC23R5DWB)
CFSC23R5D (FSC23R5DSBB)
POS. NO PART NO. DESCRIPTION
1 # 241510204 A - C Gasket-frzr door, black, magnetic
1 # 241510202 - B - Gasket-frzr door, white, magnetic
4B 241511601 A B C Bin-door
11 241668173 A - - Door-frzr, black, complete assy
11 241668124 - B - Door-frzr, white, complete assy
11 241526736 - - C Door-frzr, stainless, complete assy
13A 240581906 A - C Door Stop, black, frzr
13A 240581902 - B - Door Stop, white, frzr
18 241711705 A - C Handle-door, black
18 241711704 - B - Handle-door, white, frzr
21 218781101 A B C Screw, pan head, 8-18 x 0.625
21A 240598402 A B C Screw, 10-32 x 1/2
21C 240521304 A B C Screw, #8-18 x 3/4
22A 240328204 A - C Bearing-hinge(frz), black, closer
22A 240328202 - B - Bearing-hinge(frz), closer
22C 240328404 A - C Bearing-hinge, black, upper
22C 240328402 - B - Bearing-hinge, natural, upper
37 241711602 A - C Trim-handle, 30.13", black, lower
37 241711601 - B - Trim-handle, 30.13", white, lower
68 241525101 A B C Chute-ice
72 240421701 A B C Button-handle mtg, dovetail
73 218396700 A B C Block-handle mtg, dovetail
74 215503204 A B C Screw, cr pan hd, 10-16
* 240352102 A B C Connector-water, straight
* 240552101 A B C Harness-wiring, door
* 5303918256 A B C Dispenser heater kit
* 218490901 - - C Cleaner, stainless steel

Publication No: 5995486395 FSC23R5DS
03/07 4
REFRIGERATOR DOOR
70
49A
49
48
7
6
5
21A
22
13
15
22B
2
N58RCFCHA1
50
21
21
21
21C
21C
21
74
74
74
72
72
73
73
73
18
37

FSC23R5DS Publication No: 5995486395
# Functional Parts 5 03/07
* Non-Illustrated Parts
REFRIGERATOR DOOR
Model Index: AFSC23R5D (FSC23R5DBB)
BFSC23R5D (FSC23R5DWB)
CFSC23R5D (FSC23R5DSBB)
POS. NO PART NO. DESCRIPTION
2 # 241510203 A - C Gasket-refr door, black, magnetic
2 # 241510201 - B - Gasket-refr door, white, magnetic
5 241516101 A B C Rack-can
6 241515901 A B C Lug-dairy compartment
7 241515601 A B C Door-dairy
13 240581905 A - C Door Stop, black, ref
13 240581901 - B - Door Stop, white, refr
15 241534507 A - - Door-refr, black, complete assy
15 241534506 - B - Door-refr, white, complete assy
15 241534525 - - C Door-refr, stainless, complete assy
18 241711702 A - C Handle-door, black
18 241711701 - B - Handle-door, white, refr
21 218781101 A B C Screw, pan head, 8-18 x 0.625
21A 240598402 A B C Screw, 10-32 x 1/2
21C 240521304 A B C Screw, #8-18 x 3/4
22 240328203 A - C Bearing-hinge, black, closer
22 240328201 - B - Bearing-hinge(ref), closer
22B 240328404 A - C Bearing-hinge, black, upper
22B 240328402 - B - Bearing-hinge, natural, upper
37 241711602 A - C Trim-handle, 30.13", black, lower
37 241711601 - B - Trim-handle, 30.13", white, lower
48 241511706 A B C Bin-door, ref
49 241505306 A B C Bin-door, 2-liter
49A 241505506 A B C Bin-door
50 241508401 A B C Cover-magnet
70 241515801 A B C Compartment-dairy, removable
72 240421701 A B C Button-handle mtg, dovetail
73 218396700 A B C Block-handle mtg, dovetail
74 215503204 A B C Screw, cr pan hd, 10-16
* 218490901 - - C Cleaner, stainless steel

Publication No: 5995486395 FSC23R5DS
03/07 6
CABINET
100
92
92
90
89
83
82
81
81
72
66
54
50
47
45
45
45
45
45
45
45
43
42
42
41
38
38
37
37
28
30A
30
23
23
22
22
21C
21C
11
10A
10
N58BABAAD3
14A
58
58
40
40

FSC23R5DS Publication No: 5995486395
# Functional Parts 7 03/07
* Non-Illustrated Parts
CABINET
Model Index: AFSC23R5D (FSC23R5DBB)
BFSC23R5D (FSC23R5DWB)
CFSC23R5D (FSC23R5DSBB)
POS. NO PART NO. DESCRIPTION
10 241509804 A B C Cover-air duct
10A 240475911 A B C Cover-evap coil, lower
11 5303208309 A B C Plug-hole, factory test
14A 241547901 A B C Switch-light/lamp, frzr door
21C 218252201 A B C Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 A - C Plate-door closer
22 240457701 - B - Plate-door closer
23 240402702 A B C Screw-#10-32 x 1/4 flat hd
28 240335502 A B C Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603703 A B C Bracket-lower hinge, ref
30A 241603704 A B C Bracket-lower hinge
37 240337603 A - C Trim-cabinet corner, black, (2)
37 240337601 - B - Trim-cabinet corner, white, (2)
38 240327207 A B C Bracket-upper hinge
40 240327007 A - C Cover-upper hinge, black
40 240327005 - B - Cover-upper hinge, white
41 241550801 A B C Grommet-shelf mtg, 1.40" long
41* 241550701 A B C Grommet-shelf mtg, .96" long
42 240578902 A B C Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335005 A B C Roller Assy, adjustable, front, (2)
45 241500303 A B C Screw, hex washer head, 8-18AB x 0.500
47 241513001 A B C Channel-shelf mtg, side, (2)
50 241511101 A B C Board-main power
50* 241524802 A B C Seal, housing
50* 241532501 A B C Clip-harness
54 241532401 A B C Channel
58 218781101 A B C Screw, pan head, 8-18 x 0.625
66 241513601 A B C Damper Assy
72 241521619 A - C Grille/Kickplate, black
72 241521617 - B - Grille/Kickplate, white
81 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B C Roller, compressor base, rear, (2)
83 5304455655 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733902 A B C Cover-access, w/label
90 218249808 A B C Seal-coil cover
92 241710601 A B C Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 A B C Support, crisper cover, front, (4)
100* 240350802 A B C Support, crisper cover, rear, (4)
* 241591701 A B C Louver
* 5303321321 A - C Paint, touch-up, black
* 5303321319 - B - Paint, touch-up, white

Publication No: 5995486395 FSC23R5DS
03/07 8
SHELVES
140
126
126
122
121
120
109
101
100
97
81
81
62
52
51
49
47B
47A
47
27
26A
26
25B
25A
25
21
16
15
15
2
N58SACKBB11
24
24
24
11B
11A
11
39A
39A
39
101

FSC23R5DS Publication No: 5995486395
# Functional Parts 9 03/07
* Non-Illustrated Parts
SHELVES
Model Index: AFSC23R5D (FSC23R5DBB)
BFSC23R5D (FSC23R5DWB)
CFSC23R5D (FSC23R5DSBB)
POS. NO PART NO. DESCRIPTION
2 241510605 A B C Trim-basket
11 241657605 A B C Shelf-freezer, flip-up
11A 241657505 A B C Shelf-freezer, fixed wire
11B 241657506 A B C Shelf-freezer, fixed wire
15 241552801 A B C Light Bulb
16 241622802 A B C Socket-light
16* 241523202 A B C Harness-wiring
21 5304455658 A B C Screw, hx wshr hd sems, 8-15A x 0.625, 21
24 240355240 A B C Shelf-"Spill-Safe", fixed, (3)
25 240599301 A B C Cover-crisper pan, upper
25* 240362101 A B C Clip-slide, cover-crisper
25A 240350902 A B C Cover-crisper pan, lower
25B 240599801 A B C Cover-meat pan
26 240351005 A B C Pan-crisper, upper
26* 240349801 A B C Clip-slide, pan-crisper
26A 240362201 A B C Control-humidity
27 240351206 A B C Pan-crisper, lower
39 240430709 A B C Trim-shelf, 11.60", front
39A 240430710 A B C Trim-shelf, 12.86", front
47 240350633 A B C Insert-pan cover, glass
47A 240350603 A B C Insert-pan cover, glass
47B 240443360 A B C Insert-pan cover, glass
49 241515001 A B C Basket-sliding
51 241514501 A B C Hanger-basket, RH
52 241514601 A B C Hanger-basket, LH
62 240599701 A B C Pan-meat
81 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, low profile
97 241532003 A B C Water Tank
100 241549902 A B C Cover-water tank
101 218493101 A B C Screw, hex washer head, 8-18AB x 1-3/4
109 241513202 A B C Base-crisper light socket
120 241691701 A B C Shelf-ice cream
121 241504701 A B C Rail-ice cream shelf, LH
122 241504702 A B C Rail-ice cream shelf, RH
126 241674401 A B C Channel, auger mtg, LH
126 241674402 A B C Channel, auger mtg, RH
140 240430504 A B C Channel, wtr tube cover

Publication No: 5995486395 FSC23R5DS
03/07 10
CONTROLS
140
139
45
138
137
75A
151
150
201
149
81
81
75
23
22
21
17
16
15
15
14
13
9
8
5
N58TAAAAD5
54
50
75A
115 60
116

FSC23R5DS Publication No: 5995486395
# Functional Parts 11 03/07
* Non-Illustrated Parts
CONTROLS
Model Index: AFSC23R5D (FSC23R5DBB)
BFSC23R5D (FSC23R5DWB)
CFSC23R5D (FSC23R5DSBB)
POS. NO PART NO. DESCRIPTION
5 # 5308000010 A B C Fan Blade, red, evaporator fan
8 215474201 A B C Washer, "slinger", nylon, evap fan shaft
9 241518301 A B C Bushing, motor mounting
13 241509402 A B C Motor, evaporator fan
13* 241510501 A B C Seal-diffuser
14 241517701 A B C Clip, evap fan motor
15 241552801 A B C Light Bulb
16 241622802 A B C Socket-light
17 241522801 A B C Box-control, front
17* 241510802 A B C Harness-wiring, control box
21 # 240596801 A B C Control, electronic
22 240597203 A B C Sensor
23 241512901 A B C Cover-sensor
45 241500303 A B C Screw, hex washer head, 8-18AB x 0.500
50 241511101 A B C Board-main power
50* 241524802 A B C Seal, housing
50* 241532501 A B C Clip-harness
54 241532401 A B C Channel
60 241510301 A B C Diffuser-air
75 241517802 A B C Shield-light
75A 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, low profile
81 5304455658 A B C Screw, hx wshr hd sems, 8-15A x 0.625, 21
115 241518501 A B C Damper, motorized
116 241518601 A B C Seal-damper, foam
137# 240389102 A B C Filter, water, carbon canister, rear, with o'rings
137* 218710300 A B C Wrench-filter
138 240434401 A B C Cup-water filter
138* 218904301 A B C O-ring, wtr filter cup
139 240434301 A B C Housing-water filtr
140 240545201 A B C Elbow-water tube
149 241517601 A B C Shroud-evap fan mtg
149* 241528304 A B C Seal, foam, evap fan assy
150 240394102 A B C Insulation-water filter cover
151 240376002 A B C Cover-water filter
201 240598701 A B C Switch-membrane

Publication No: 5995486395 FSC23R5DS
03/07 12

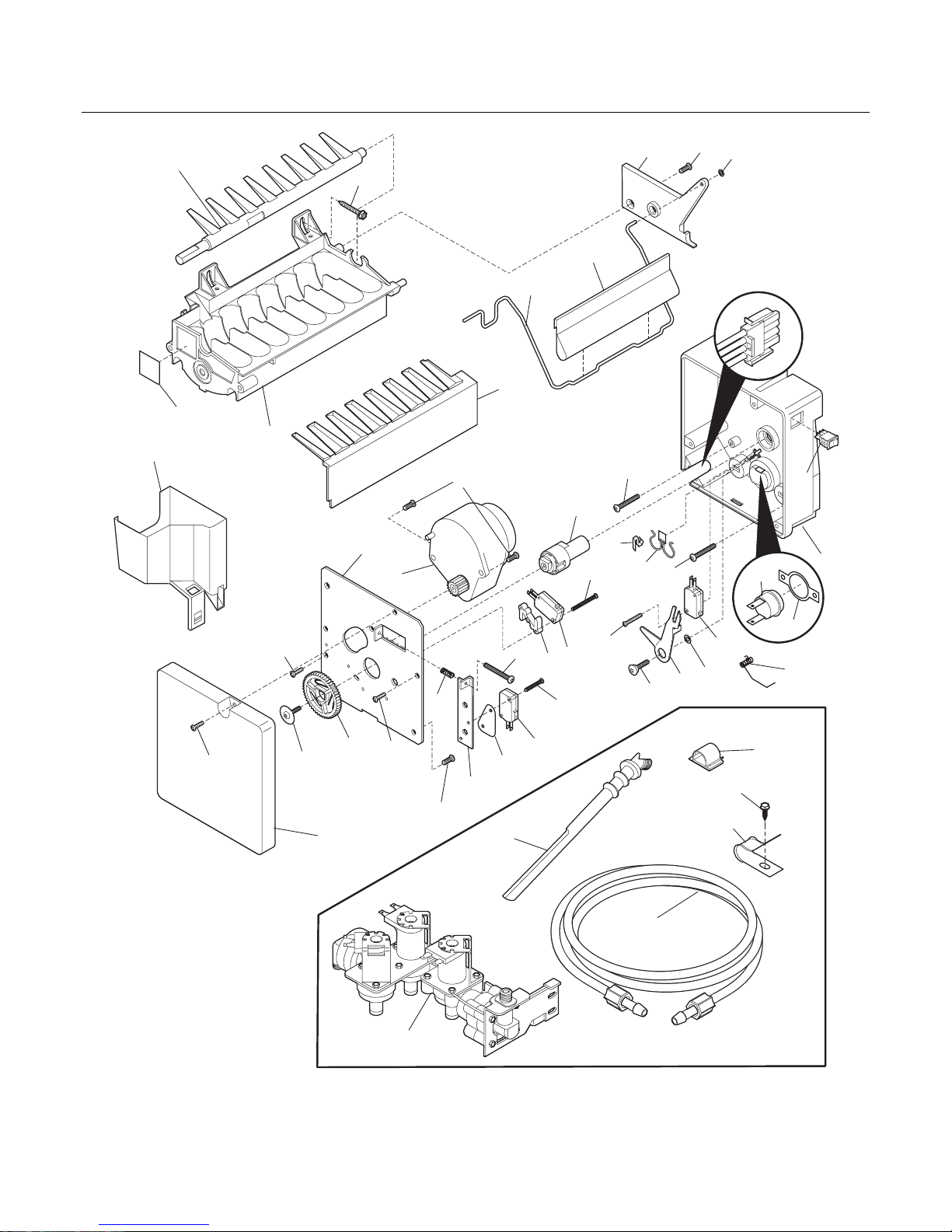

SYSTEM
85
84
83
83
82
82
70
62
61
60
59B
59B
59A
59A
59A
59
58
57
55
45
45
44
41
34
34
32
30
29
26
N58CAAAAC10
25
25
23
23
22
21
16
15
14
6
4
3
1
86

FSC23R5DS Publication No: 5995486395
# Functional Parts 13 03/07
* Non-Illustrated Parts
SYSTEM
Model Index: AFSC23R5D (FSC23R5DBB)
BFSC23R5D (FSC23R5DWB)
CFSC23R5D (FSC23R5DSBB)
POS. NO PART NO. DESCRIPTION
1 240333603 A B C Condenser
3 218679607 A B C Block-evap coil, styrofoam, (2)
4 # 218944001 A B C Drier-filter, R134a System
6 # 241516901 A B C Cord-service
6* # 241519902 A B C Harness-wiring
6* # 241635603 A B C Harness-wiring, machine compt
6* 241510802 A B C Harness-wiring, control box
14 # 240316107 A B C Heater-defrost
15 # 5303918284 A B C Evaporator Kit
16 5308000110 A B C Strap-evap/heater, aluminum, (2)
21 5303918214 A B C Thermostat-defrost, kit
22 240330011 A B C Base-compressor mtg
22* 218252201 A B C Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 A B C Grommet-compr mtg, (4)
25 240491503 A B C Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241697501 A B C Pan-defrost drain
29 # 5303918314 A B C Compressor, w/o electricals
30 # 241527803 A B C Starter-TSD
32 241544101 A B C Clamp, elec cont mtg, compressor, bale wire
34 240405201 A B C Grommet, rubber, black, cond tube/wire
41 240555002 A B C Screw-#8-32 X 3/8
44 215174700 A B C Clamp-service cord, strain relief, galv steel
45 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, low profile
55 218909915 A B C Capacitor, run, 220 VAC, 15 microfarad
57 240542601 A B C Clip-wiring harness
58 240433203 A B C Screw, hex washer head, 8-18 x 3/8
59 240315502 A B C Shroud-cond fan
59* 240346701 A B C Tape-foam seal, shroud
59* 240359403 A B C Screw-fan shroud, (2)
59A 240346501 A B C Bracket-support, cond mtr, (3)
59B 240346601 A B C Grommet-bracket, (3)
60 # 241584301 A B C Motor-condenser fan
61 241639501 A B C Blade-condenser fan
62 240429402 A B C Trough-drain
70 218990801 A B C Bracket-evap/cvr mtg
82 5304418225 A B C Roller, compressor base, rear, (2)
83 5304455655 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 A B C Tube-drain, lower
85 241719501 A B C Tube-connector, suction
86 240409302 A B C Spacer-cond tube, black
* 5303918222 A B C Hot Tube Repair Kit, service
* # 5303918327 A B C Heat Exchanger Kit, suction line

Publication No: 5995486395 FSC23R5DS
03/07 14
ICE & WATER DISPENSER

FSC23R5DS Publication No: 5995486395
# Functional Parts 15 03/07
* Non-Illustrated Parts
ICE & WATER DISPENSER
Model Index: AFSC23R5D (FSC23R5DBB)
BFSC23R5D (FSC23R5DWB)
CFSC23R5D (FSC23R5DSBB)
POS. NO PART NO. DESCRIPTION
1 218976409 A B C Tube, water, door
1* 218976901 A B C Tube, water inlet, valve to IM
1* 218976904 A B C Tube-water inlet, valve to filter
1* 218976917 A B C Tube-water inlet, valve to door
1* 240561701 A B C Seal-water inlet, inlet valve, to ice maker
4 241679003 A - C Cover-module, black
4 241679001 - B - Cover-module, white
8 241680507 A - C Module-dispenser
8 241680505 - B - Module-dispenser
10 241688901 A B C Spring-torsion
14 240570206 A - C Label-module cover, black
14 240570204 - B - Label-module cover, white
15 241689401 A B C Light Bulb
16 240548901 A B C Socket-light
17 241679801 A B C Screw
17A 241679901 A B C Screw, switch mtg.
23 241649003 A - C Drip Tray, black
23 241649001 - B - Drip Tray, white
24 241682003 A - C Actuator-water, black
24 241682001 - B - Actuator-water, white
24A 241681903 A - C Actuator-ice, black
24A 241681901 - B - Actuator-ice, white
30 241688401 A B C Door Assy-ice chute
30A 241688501 A B C Door center
30B 241688601 A B C Insulation-door
30C 241688701 A B C Door seal
35 241689301 A B C Damper-rotary
38A# 241689101 A B C Switch-micro, single pole, double throw
38A* 241679201 A B C Harness-wiring
38C# 241679101 A B C Switch
38C* 241686001 A B C Harness-wiring
39 241688801 A B C Pin-hinge
41 241689001 A B C Spring-actuator
43 215296301 A B C Screw, plask h/l, #6 x 3/8
56 241689201 A B C Screw-micro switch, pan head
82 240363402 A B C Screw-#8-18 X 1/2, #6 hd plask
87 241688302 A B C Bearing Plate
87A 241688301 A B C Bearing Plate
88 241686101 A B C Shield-light
* 218515403 A B C Clip-grille
* 5303918256 A B C Dispenser heater kit

Publication No: 5995486395 FSC23R5DS
03/07 16
ICE CONTAINER
45
4
45A
48
47
46
45B
45C
45D
50
18 20
15
16
44
44
44
51
26
26
26
26
10
26
43
43
43
49
7
3
2
23
39
70
39
6
17
53
52
37A 34
33
37B
34 33
37C
54
35A
35B
41
56
55
13
25
25
22
N58YDAAAC4
39

FSC23R5DS Publication No: 5995486395
# Functional Parts 17 03/07
* Non-Illustrated Parts
ICE CONTAINER
Model Index: AFSC23R5D (FSC23R5DBB)
BFSC23R5D (FSC23R5DWB)
CFSC23R5D (FSC23R5DSBB)
POS. NO PART NO. DESCRIPTION
2 241684701 A B C Auger-ice
3 241685201 A B C Cam-drive
4 241515201 A B C Container-ice, bucket only
6 241685101 A B C Drum-ice disp
7 241515301 A B C Front-ice container
10 241726501 A B C Bar-drive
13 241685301 A B C Gate
15 241555401 A B C Light Bulb
16 241559801 A B C Socket-light
17 241684501 A B C Drive Blade
18 # 241676202 A B C Motor-auger, 115V
18* 241522901 A B C Harness-wiring, icmkr/container
20 241675502 A B C Cover-motor
22 240597203 A B C Sensor
22* 241519401 A B C Clip, sensor
23 241684001 A B C Plate-front
25 241690701 A B C Screw, hex washer head, 8-32T x 0.375
26 215503205 A B C Screw, cr pan hd, 10-16 x 0.500
33 241684801 A B C Spacer
34 241689801 A B C Spacer
35A 241684301 A B C Fixed Blade, round
35B 241684201 A B C Fixed Blade, square
37A 241684101 A B C Blade, crusher #1
37B 241684102 A B C Blade, crusher #2
37C 241684103 A B C Blade, crusher #3
39 241690501 A B C Screw
41 241685601 A B C Housing-crusher
43 215005101 A B C Screw, hanger/rlr mtg, 8-10 x 7/16
44 218359202 A B C Screw, pan head, 8-32 x 0.250
45 # 241675701 A B C Solenoid Assy, 115V
45A 241675901 A B C Spring-solenoid
45B 241676001 A B C E-Ring-solenoid
45C 241676101 A B C Actuator-solenoid
45D# 241675801 A B C Solenoid, 115V
46 241684402 A B C Control Rod
47 241731801 A B C Spring-control rod
48 241684602 A B C Bracket-control rod
49 241676501 A B C Rail Assy
50 241675601 A B C Guide-solenoid
51 241676301 A B C Rotation Stop
52 241684901 A B C Spacer-fixed blades
53 241690402 A B C Pin-spiral, fixed blades
54 241685001 A B C Nut-auger
55 241690306 A B C Washer
56 241690201 A B C E-ring
70 241504601 A B C Plate-mounting
70* 241551601 A B C Screw, hex head, 8-18B x 0.875
70* 241716801 A B C Clip
* 240562101 A B C Insulator
* 241504303 A B C Ice Container Assy, w/moving parts

Publication No: 5995486395 FSC23R5DS
03/07 18
ICE MAKER
14 15
2
41
24
25
51
64
6
640
43
7
6
16
67
21
19
22
66
60
18
17
39
23
23
34
34
34
11
38
29
30
27
9
15
15
31
32
36
4
35
5
37
8
1
55 INSTALLATION PARTS
N58I115TServo
12
33
13
45
42

FSC23R5DS Publication No: 5995486395
# Functional Parts 19 03/07
* Non-Illustrated Parts
ICE MAKER
Model Index: AFSC23R5D (FSC23R5DBB)
BFSC23R5D (FSC23R5DWB)
CFSC23R5D (FSC23R5DSBB)
POS. NO PART NO. DESCRIPTION
1 218976409 A B C Tube, water, door
1* 218976901 A B C Tube, water inlet, valve to IM
1* 218976903 A B C Tube-water inlet, inlet valve, to filter
1* 218976917 A B C Tube-water inlet, valve to door
1* 240561701 A B C Seal-water inlet, inlet valve, to ice maker
2 5304456650 A B C Spring-shutoff arm, ICE MAKER
4 5304458380 A B C Gear
5 5304458383 A B C Plate-mounting
6 5304458386 A B C Screw
7 # 5304458382 A B C Motor-ice maker Svo
8 5304458388 A B C Spacer-hold switch
9 5304456662 A B C Cam
11 # 5304458400 A B C Thermal Cutoff, ICE MAKER
12 5304458379 A B C Harness-wiring
13 5304456665 A B C Thermostat, ICE MAKER
14 5304458384 A B C Screw
15 # 5304456667 A B C Switch-micro, (3)
16 5304458395 A B C Housing, control
17 5304456669 A B C Mold-ice maker, w/therm cut off
18 5304458377 A B C Ejector-ice
18*# 240352601 A B C Wiring Harness, internal, with plug
19 5304458378 A B C Cup-water inlet
21 5304458390 A B C Ice Stripper
22 5304458375 A B C Shut-off Arm
23 5304458394 A B C Screw
24 5304458391 A B C Lever Arm
25 5304456676 A B C Screw, M 4x12.8 #2, lever arm/sprt
27 5304458385 A B C Screw
29 5304458393 A B C Screw
30 5304458387 A B C Screw
31 5304458381 A B C Insulator
32 5304456681 A B C Plate-valve switch
33 5304458403 A B C Retainer-thermostat
34 5304456678 A B C Screw, M 3x12 #3, (2)
35 5304456684 A B C Screw
36 5304458376 A B C Cover-ice maker
37 5304456682 A B C Spring, shut-off arm
38 5304458398 A B C Clip
39 5304458399 A B C Conductor-heat
40 5304458401 A B C Clip-retainer
41 5304458389 A B C Washer
42 218515403 A B C Clip-grille
43 241720601 A B C Extension
45 5304455650 A B C Screw, hex washer head, 8-15A x 0.625, low profile
51 241523502 A B C Tube-water fill, extension
55 # 240531101 A B C Valve-water, triple solenoid
55* 218709101 A B C Screw, hex head, 10-32 x 0.500
55* 240363602 A B C Screw-shoulder

Publication No: 5995486395 FSC23R5DS
03/07 20
ICE MAKER
14 15
2
41
24
25
51
64
6
640
43
7
6
16
67
21
19
22
66
60
18
17
39
23
23
34
34
34
11
38
29
30
27
9
15
15
31
32
36
4
35
5
37
8
1
55 INSTALLATION PARTS
N58I115TServo
12
33
13
45
42
