Frigidaire FRT21H8C User manual

N05L00003.eps N05DCDBBA8.eps N05BAAABC2.eps N05SABAFC13.eps
N05CAAAAC0.eps 240398801.eps 240398601.eps
Product No. FRT21H8CB2 FRT21H8CK2 FRT21H8CQ2 FRT21H8CT2 FRT21H8CW2 FRT21H8CZ2
Series R134a R134a R134a R134a R134a R134a
Color black (RH) black (LH) bisque (RH) bisque (LH) white (RH) white (LH)
Volts 115 115 115 115 115 115

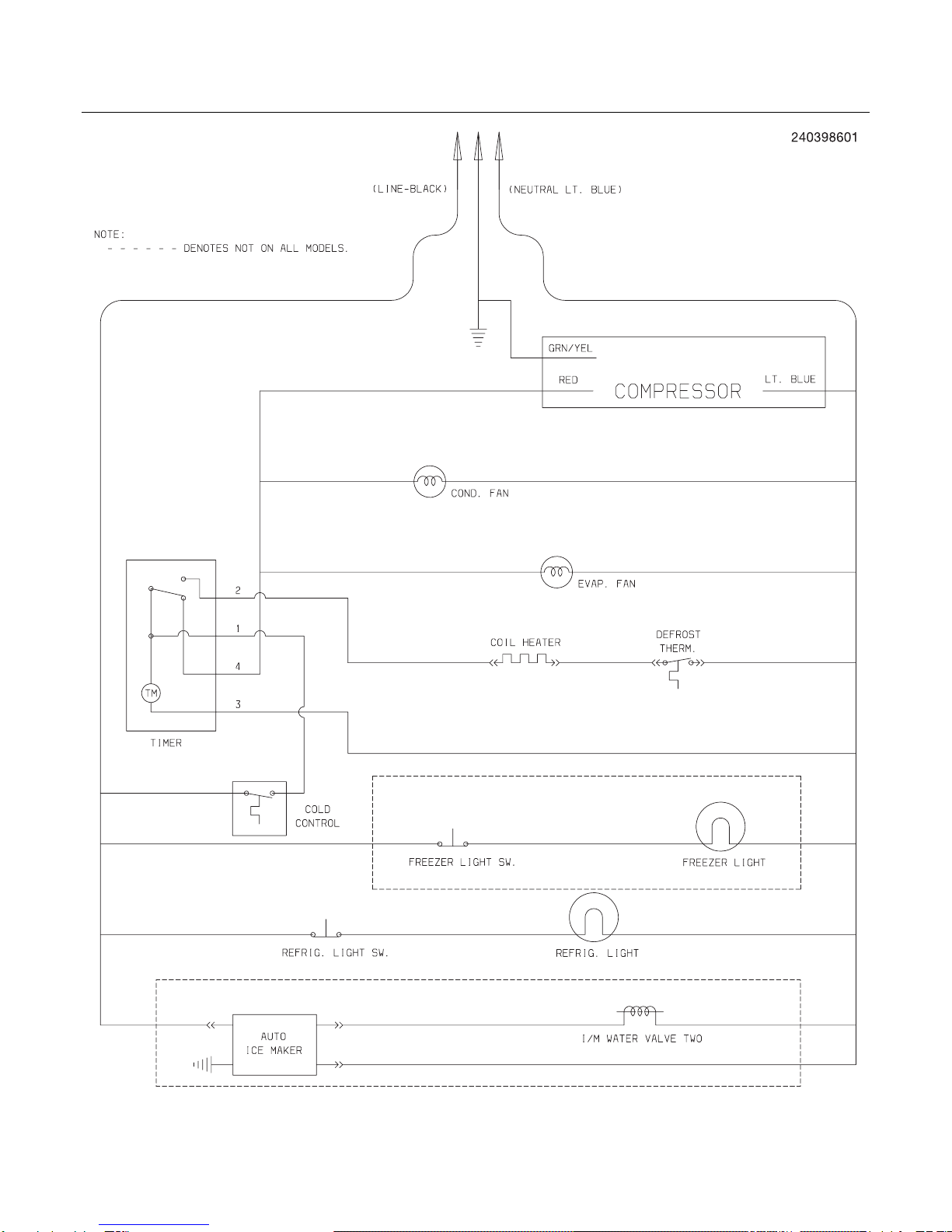

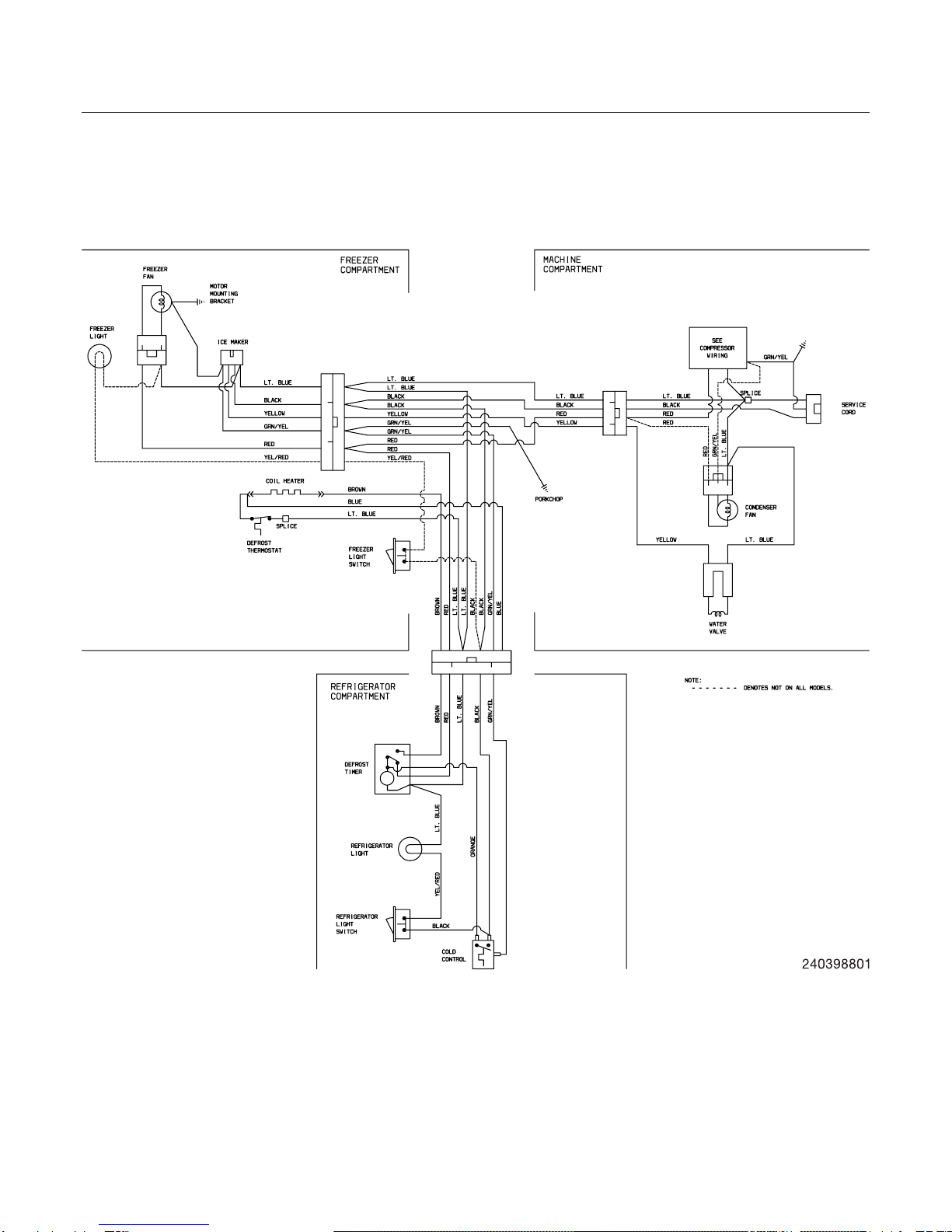

Wiring Diagram 240398801 240398801 240398801 240398801 240398801 240398801
Owner's Guide 240400110 240400110 240400110 240400110 240400110 240400110
Market North America North America North America North America North America North America
Energy Guide 240592212 240592212 240592212 240592212 240592212 240592212
Service Data Sheet 240379014 240379014 240379014 240379014 240379014 240379014
Installation Instructions 240568300 240568300 240568300 240568300 240568300 240568300
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378, Augusta, GA 30917
Publication No.
5995404869
04/02/27
(EN/SERVICE/DCS)
357
TOP-MOUNT
REFRIGERATOR
Model No.
FRT21H8C
Copyright ©All rights reserved.

Publication No: 5995404869 FRT21H8C
02/04 2

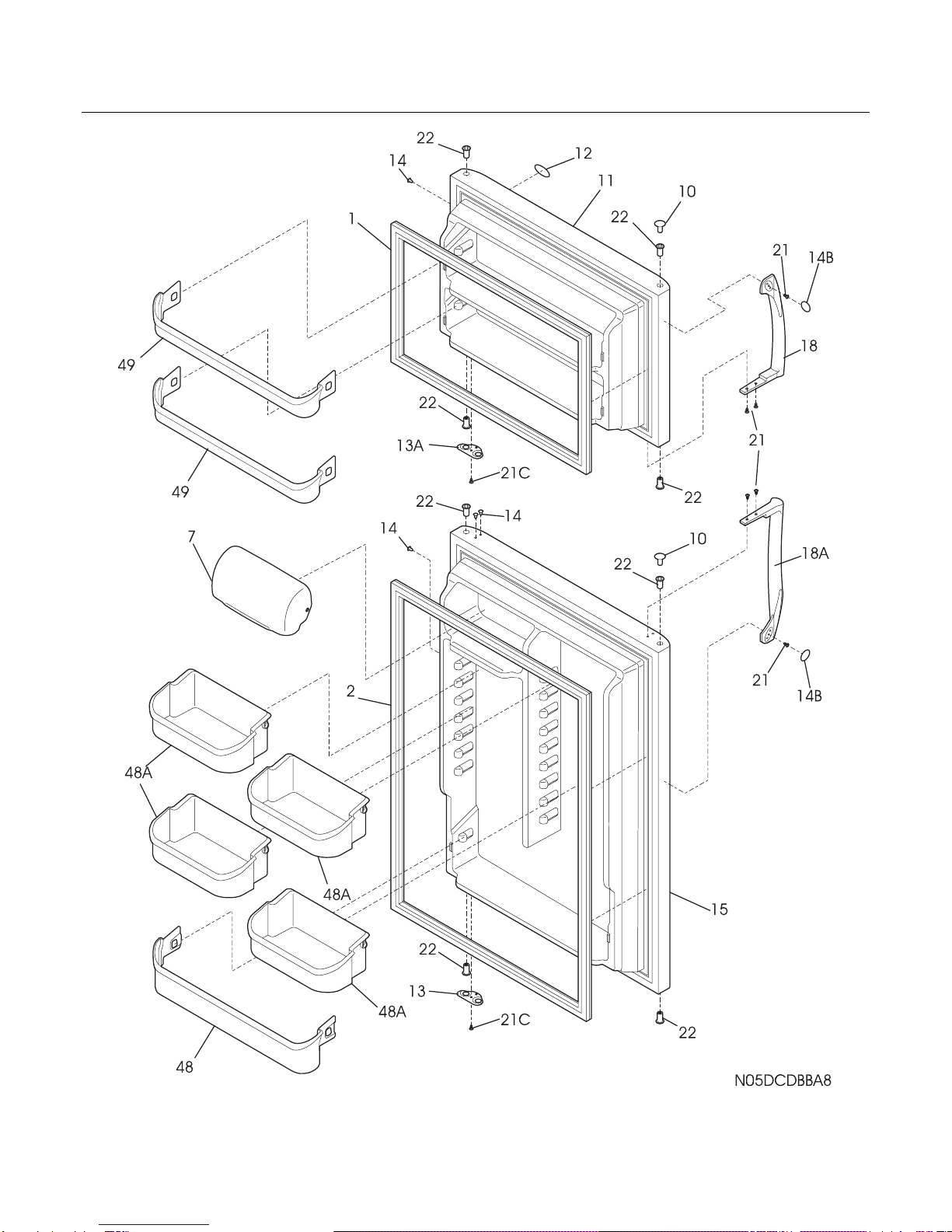

DOOR

FRT21H8C Publication No: 5995404869
# Functional Parts 3 02/04
* Non-Ilustrated Parts
DOOR
Model Index: AFRT21H8C (FRT21H8CB2)
BFRT21H8C (FRT21H8CK2)
CFRT21H8C (FRT21H8CQ2)
DFRT21H8C (FRT21H8CT2)
EFRT21H8C (FRT21H8CW2)
FFRT21H8C (FRT21H8CZ2)
POS. NO PART NO. DESCRIPTION
1 # 240514611 A B - - - - Gasket, seal, black, frzr door, magnetic
1 # 240514607 - - C D E F Gasket, seal, white, frzr door, magnetic
2 # 240514612 A B - - - - Gasket, seal, black, refr door, magnetic
2 # 240514608 - - C D E F Gasket, seal, white, refr door, magnetic
7 240338303 A B C D E F Door, dairy, clear
10 240381303 A B - - - - Plug-button, black, hinge brg hole
10 240381302 - - C D - - Plug-button, bisque, hinge brg hole, (2)
10 240381301 - - - - E F Plug-button, white, hinge brg hole, (2)
11 240450342 A B - - - - Door, frzr, black
11 240450341 - - C D - - Door, frzr, bisque
11 240450340 - - - - E F Door, frzr, white
12 240572601 A B C D E F Label-nameplate
13 240312405 A B - - - - Door Stop, black, refr
13 240312407 - - C D - - Door Stop, bisque, ref
13 240312403 - - - - E F Door Stop, white, ref
13A 240312406 A B - - - - Door Stop, black, frzr
13A 240312408 - - C D - - Door Stop, bisque, frzr
13A 240312404 - - - - E F Door Stop, white, frzr
14 240494003 A B - - - - Plug-button, black
14 240494002 - - C D - - Plug-button, bisque
14 240494001 - - - - E F Plug-button, white
14B 240383603 A B - - - - Plug-button, black, door handle
14B 240383602 - - C D - - Plug-button, bisque, door handle
14B 240383601 - - - - E F Plug-button, white, door handle
15 240450450 A B - - - - Door-refr, black, complete assy
15 240450449 - - C D - - Door-refr, bisque, complete assy
15 240450448 - - - - E F Door-refr, white, complete assy
18 240339203 A B - - - - Handle-door, black
18 240339204 - - C D - - Handle-door, bisque
18 240339201 - - - - E F Handle-door, white
18A 240339208 A B - - - - Handle-door, black
18A 240339209 - - C D - - Handle-door, bisque
18A 240339206 - - - - E F Handle-door, white
21 240383401 A B C D E F Screw, truss hd quad, #10-16 x .500
21C 218252200 A B C D E F Screw, #8 truss hd, 10-32CA x 0.500
22 240527102 A B - - - - Bearing-hinge, black
22 240527101 - - C D E F Bearing-hinge, natural color
48 240338101 A B C D E F Bin-door, pseudo, bottom
48A 240338202 A B C D E F Bin-door, gallon
49 240495805 A B C D E F Bin-door, pseudo, frzr

Publication No: 5995404869 FRT21H8C
02/04 4

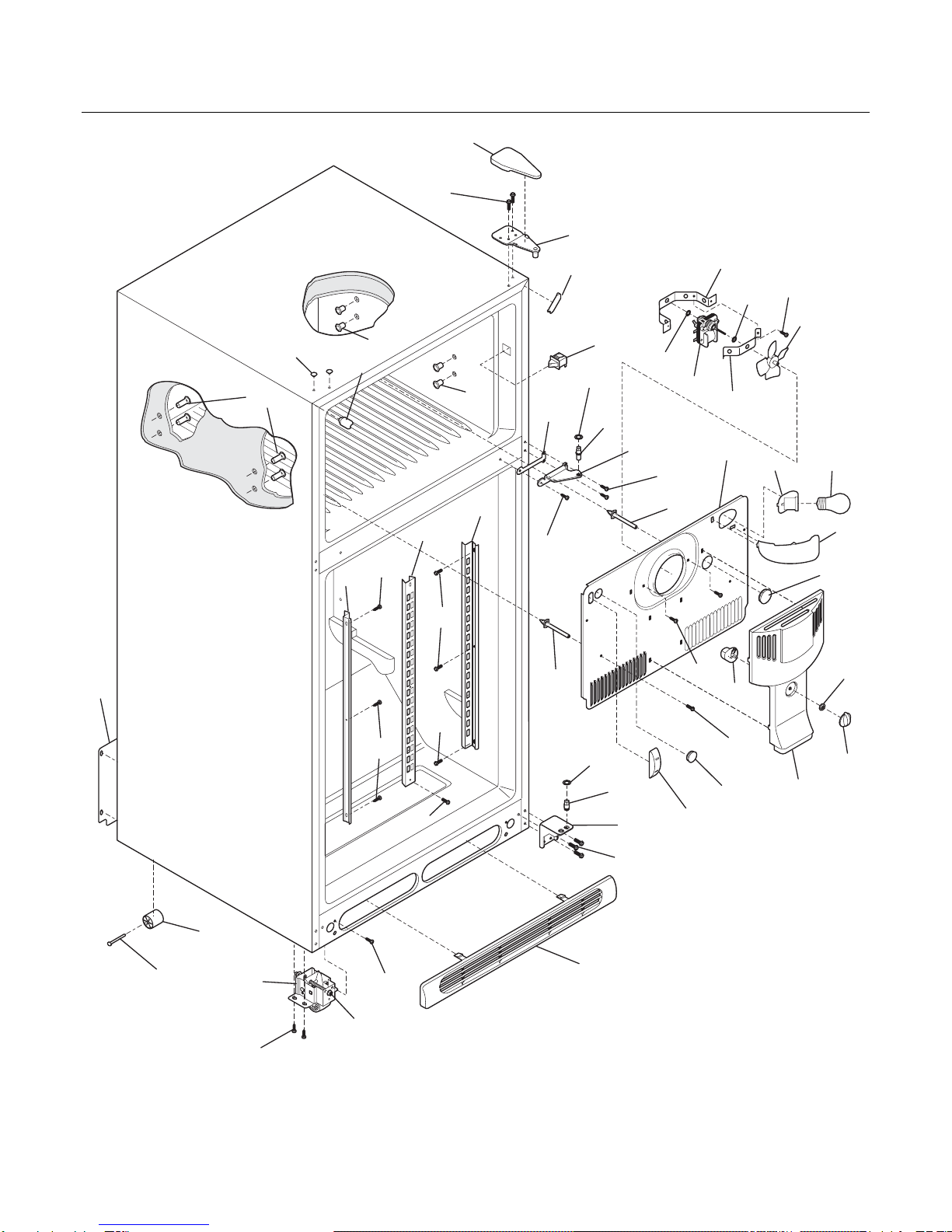

CABINET
81
81
81
81
49
47
47
48
114
83
82
89
11
10
12
12A
81
58
40
92
38
37
37
13
5
58
35A 36
34
35
59
59
56
42
30
72
N05BAAABC2
43
28
21C
21C
41
41
22
41
8
8
9
14
34
18
18
15
16
74
1
4
2
3

FRT21H8C Publication No: 5995404869
# Functional Parts 5 02/04
* Non-Ilustrated Parts
CABINET
Model Index: AFRT21H8C (FRT21H8CB2)
BFRT21H8C (FRT21H8CK2)
CFRT21H8C (FRT21H8CQ2)
DFRT21H8C (FRT21H8CT2)
EFRT21H8C (FRT21H8CW2)
FFRT21H8C (FRT21H8CZ2)
POS. NO PART NO. DESCRIPTION
1 240355402 A B C D E F Cover-fan
2 240367001 A B C D E F Knob-damper control
3 5303001028 A B C D E F Nut, push-on
4 240367401 A B C D E F Damper-fan cover
5 # 5308000010 A B C D E F Fan Blade, red, evaporator fan
8 5300157666 A B C D E F Bushing-motor mtg, (2)
9 5303292396 A B C D E F Bracket-motor mtg, front
10 240313609 A B C D E F Cover-evap coil, w/light
10* 240568606 A B C D E F Seal-coil cover
10*# 241537701 A B C D E F Wiring Harness, freezer section, with light
11 5303208309 A B C D E F Plug-hole, factory test
12 240366801 A B C D E F Plug-ice maker harness, rectangular
12* 218843800 A B C D E F Screw, hex wshr hd, 8-15A x 0.500
12A 240374401 A B C D E F Plug-wtr inlet tube, round, 1"
13 # 240369701 A B C D E F Motor-evap fan
13* 218931001 A B C D E F Clamp-motor wiring, nylon, w/adhesive tape
14 5303292397 A B C D E F Bracket-motor mtg, rear
15 215812200 A B C D E F Light Bulb/Lamp, 25W
16 # 241513901 A B C D E F Socket-light
18 240411901 A B C D E F Support-evap cover, (2)
21C 218252200 A B C D E F Screw, #8 truss hd, 10-32CA x 0.500
22 215774918 A B - - - - Plug-button, black, upr hinge holes
22 215774919 - - C D - - Plug-button, bisque, upr hinge holes
22 215774901 - - - - E F Plug-button, white, upr hinge holes
28 240335501 A B C D E F Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 240314003 A B - - - - Bracket-lower hinge, black
30 240314004 - - C D - - Bracket-lower hinge, bisque
30 240314002 - - - - E F Bracket-lower hinge, white
34 240311303 A B C D E F Washer, hinge, nylon, (2)
35 240313803 A B - - - - Bracket-ctr hinge, black
35 240313804 - - C D - - Bracket-ctr hinge, bisque
35 240313802 - - - - E F Bracket-ctr hinge, white
35A 240336802 A B C D E F Spacer-hinge, center
36 240516401 A B C D E F Pin-center hinge
37 240337603 A B - - - - Trim-cabinet corner, black, (2)
37 240337604 - - C D - - Trim-cabinet corner, bisque, (2)
37 240337601 - - - - E F Trim-cabinet corner, white, (2)
38 240313701 A B C D E F Bracket-upper hinge
40 240354404 A B - - - - Cover-upper hinge, black
40 240354403 - - C D - - Cover-upper hinge, bisque
40 240354401 - - - - E F Cover-upper hinge, white
41 5303001609 A B C D E F Grommet, shelf mtg, 0.69", RH
41* 5308009759 A B C D E F Grommet, shelf mtg, 1.25", LH
42 240578901 A B C D E F Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335003 A B C D E F Roller Assy, front, (2)

Publication No: 5995404869 FRT21H8C
02/04 6
CABINET
81
81
81
81
49
47
47
48
114
83
82
89
11
10
12
12A
81
58
40
92
38
37
37
13
5
58
35A 36
34
35
59
59
56
42
30
72
N05BAAABC2
43
28
21C
21C
41
41
22
41
8
8
9
14
34
18
18
15
16
74
1
4
2
3

FRT21H8C Publication No: 5995404869
# Functional Parts 7 02/04
* Non-Ilustrated Parts
CABINET
Model Index: AFRT21H8C (FRT21H8CB2)
BFRT21H8C (FRT21H8CK2)
CFRT21H8C (FRT21H8CQ2)
DFRT21H8C (FRT21H8CT2)
EFRT21H8C (FRT21H8CW2)
FFRT21H8C (FRT21H8CZ2)
POS. NO PART NO. DESCRIPTION
47 218233300 A B C D E F Channel-shelf mtg, side, (2)
48 5303292395 A B C D E F Channel-shelf mtg, center
49 218362500 A B C D E F Screw, hex washer head, 8-18AB x 1.250
56 240516501 A B C D E F Pin-lower hinge
58 5303001343 A B C D E F Screw, hex washer head, 8-15A x 0.500
59 240442703 A B - - - - Screw-#10-32 X 3/4, black
59 240442704 - - C D - - Screw-#10-32 X 3/4, bisque
59 240442702 - - - - E F Screw-#10-32 X 3/4, white
72 240368207 A B - - - - Grille/Kickplate, black
72 240368206 - - C D - - Grille/Kickplate, bisque
72 240368205 - - - - E F Grille/Kickplate, white
74 240354301 A B C D E F Shield-light, frzr
81 5308016566 A B C D E F Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B C D E F Roller, compressor base, rear, (2)
83 5303316859 A B C D E F Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 240326115 A B C D E F Cover-access, with label
89* 241500301 A B C D E F Screw, hex washer head, 8-18AB x 0.500
92 216850900 A B C D E F Screw, hex washer hd, 1/4 x 7/8, hinge mtg
114# 241554901 A B C D E F Switch-light/lamp
* 240479601 A B C D E F Plug, button, cab liner holes, (2)
* 5303305345 A B - - - - Paint, touch-up, black
* 5304414035 - - C D - - Paint, touch-up, bisque
* 5303305324 - - - - E F Paint, touch-up, white

Publication No: 5995404869 FRT21H8C
02/04 8

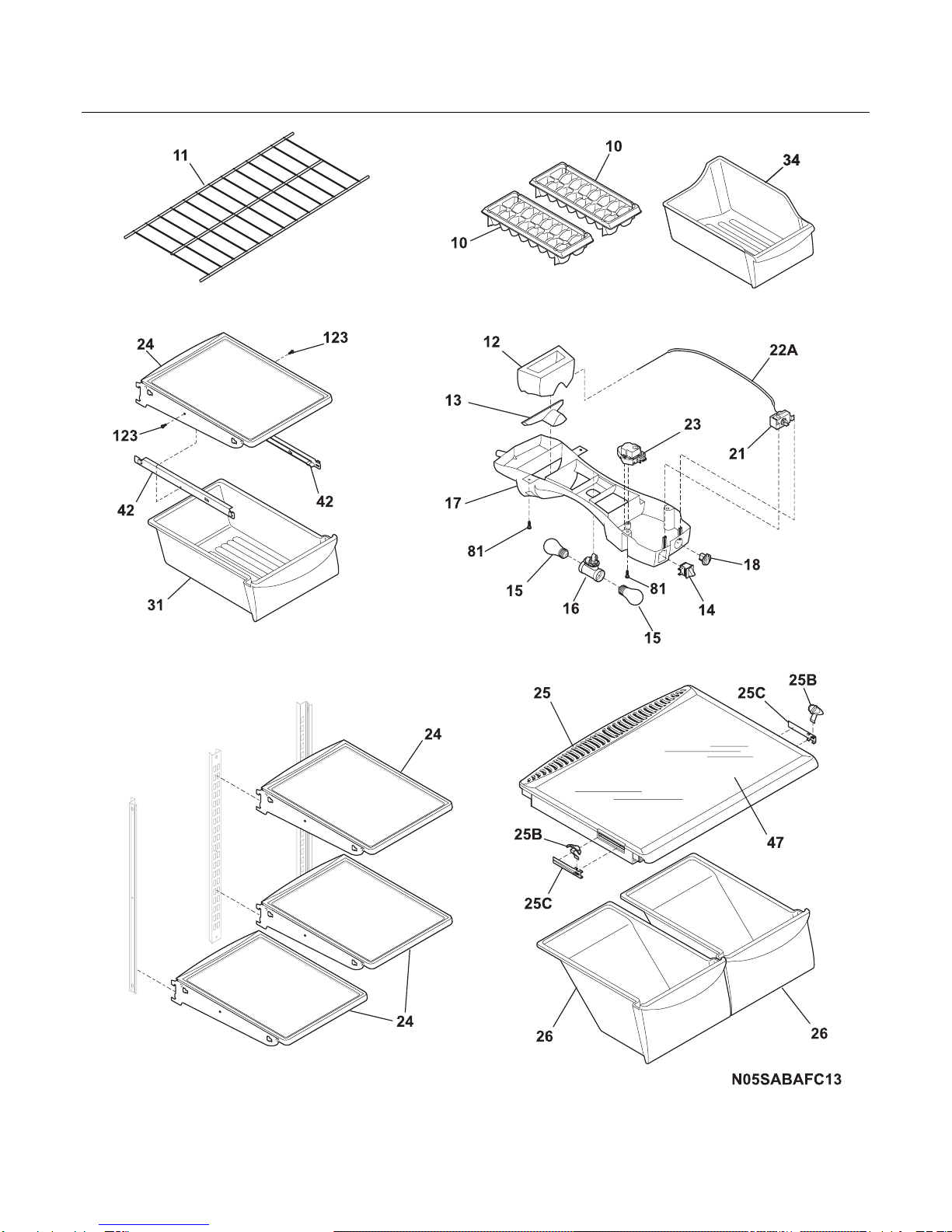

SHELVES

FRT21H8C Publication No: 5995404869
# Functional Parts 9 02/04
* Non-Ilustrated Parts
SHELVES
Model Index: AFRT21H8C (FRT21H8CB2)
BFRT21H8C (FRT21H8CK2)
CFRT21H8C (FRT21H8CQ2)
DFRT21H8C (FRT21H8CT2)
EFRT21H8C (FRT21H8CW2)
FFRT21H8C (FRT21H8CZ2)
POS. NO PART NO. DESCRIPTION
10 215667501 A B C D E F Tray, ice cube, plastic
11 240358003 A B C D E F Shelf, freezer, full-width, wire
12 240545901 A B C D E F Diffuser-air, top
13 240362601 A B C D E F Diffuser, air, bottom
14 # 241554901 A B C D E F Switch-light/lamp
15 240436702 A B C D E F Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature
16 240364201 A B C D E F Socket-light/lamp, dual
17 240368101 A B C D E F Control Box
17*# 240388701 A B C D E F Wiring Harness, control box
18 240360801 A B C D E F Knob, temp control
21 # 5304421256 A B C D E F Control, temperature
22A 5303916855 A B C D E F Tube, sensor sleeve, plastic, clear
23 # 215846606 A B C D E F Timer, defrost, 60 Hz, 0.25 W, 120 V, 10 hour/30 min
23* 5303001259 A B C D E F Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
24 240355214 A B C D E F Shelf-"Spill-Safe", cantilever, fixed
25 240364718 A B C D E F Cover-crisper pan
25B 240361201 A B C D E F Control-humidity
25C 240361301 A B C D E F Damper, humidity cont.
26 240343803 A B C D E F Pan, crisper, (2)
31 240530903 A B C D E F Pan-meat, w/o graphics, clear
34 240385201 A B C D E F Container, ice bin
42 240356501 A B C D E F Track, meat pan hanger, RH
42 240365401 A B C D E F Track, meat pan hanger, LH
47 240350654 A B C D E F Insert-pan cover, glass
81 5308016566 A B C D E F Screw, hex washer head, 8-15A x 0.625, low profile
123 215005100 A B C D E F Screw, hanger/rlr mtg, 8-10 x 0.438
* 240592212 A B C D E F Energy Guide

Publication No: 5995404869 FRT21H8C
02/04 10
SYSTEM

FRT21H8C Publication No: 5995404869
# Functional Parts 11 02/04
* Non-Ilustrated Parts
SYSTEM
Model Index: AFRT21H8C (FRT21H8CB2)
BFRT21H8C (FRT21H8CK2)
CFRT21H8C (FRT21H8CQ2)
DFRT21H8C (FRT21H8CT2)
EFRT21H8C (FRT21H8CW2)
FFRT21H8C (FRT21H8CZ2)
POS. NO PART NO. DESCRIPTION
1 240444401 A B C D E F Condenser, dynamic
4 # 218944001 A B C D E F Drier-filter, R134a System
6 240496101 A B C D E F Wiring Harness, machine compt, w/electric cord
6* 241537701 A B C D E F Wiring Harness, freezer section, with light
6* # 240388701 A B C D E F Wiring Harness, control box
14 # 5303918247 A B C D E F Defrost Heater Kit
15 # 5303918274 A B C D E F Evaporator Kit
16 5308000110 A B C D E F Strap-evap/heater, aluminum, (2)
17 240434004 A B C D E F Trough-drain
20 240518402 A B C D E F Insulation, evap block, foam, LH/RH
21 # 5303918202 A B C D E F Thermostat-defrost, kit
22 240330001 A B C D E F Plate-compr mtg
22* 218252200 A B C D E F Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 A B C D E F Grommet-compr mtg, (4)
25 240491501 A B C D E F Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF
26 240332602 A B C D E F Pan-defrost drain
29 # 5303918299 A B C D E F Compressor, w/electricals
30 # 241527802 A B C D E F Starter
32 241527901 A B C D E F Clamp, elec cont mtg, compressor
34 240405201 A B C D E F Grommet, rubber, black, cond tube/wire
41 240555001 A B C D E F Screw-#8-32 X 3/8
44 215174700 A B C D E F Clamp-service cord, strain relief, galv steel
45 5308016566 A B C D E F Screw, hex washer head, 8-15A x 0.625, low profile
55 218909915 A B C D E F Capacitor-run, 220 VAC, 15 microfarad
57 240542601 A B C D E F Clip-wiring harness
58 240569201 A B C D E F Screw, 8-18 x 0.500
59 240315501 A B C D E F Shroud-cond fan
59* 240346701 A B C D E F Tape-foam seal, shroud
59* 240359401 A B C D E F Screw-fan shroud, (2)
59A 240346501 A B C D E F Bracket-support, cond mtr, (3)
59B 240346601 A B C D E F Grommet-bracket, (3)
60 # 241537901 A B C D E F Motor-condenser fan
60* 240569501 A B C D E F Screw, 8-18 X 1 3/4, (2)
61 241536201 A B C D E F Blade-condenser fan
61B 240564001 A B C D E F Bracket-support, cond mtr, (3)
82 5304418225 A B C D E F Roller, compressor base, rear, (2)
83 5303316859 A B C D E F Rivet, flat head, 1/4 OD x 1-3/4, roller pin
85 240553501 A B C D E F Tube-connector, suction
86 240409302 A B C D E F Spacer-cond tube, black
* # 5303918210 A B C D E F Heat Exchanger Kit, suction line
* # 5304421289 A B C D E F Hot Tube Repair Kit, Service

Publication No: 5995404869 FRT21H8C
02/04 12
WIRING SCHEMATIC

FRT21H8C Publication No: 5995404869
# Functional Parts 13 02/04
* Non-Ilustrated Parts
WIRING DIAGRAM
