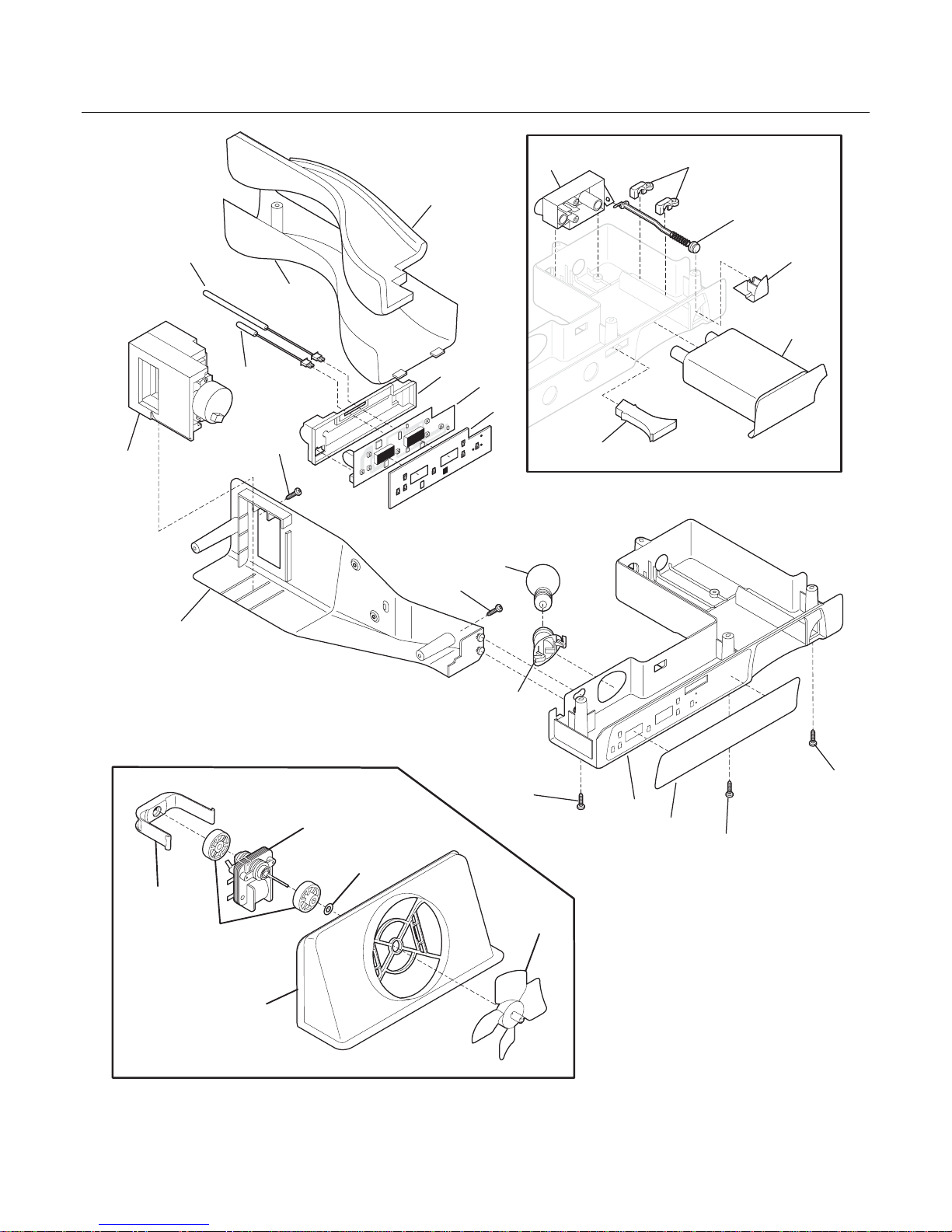

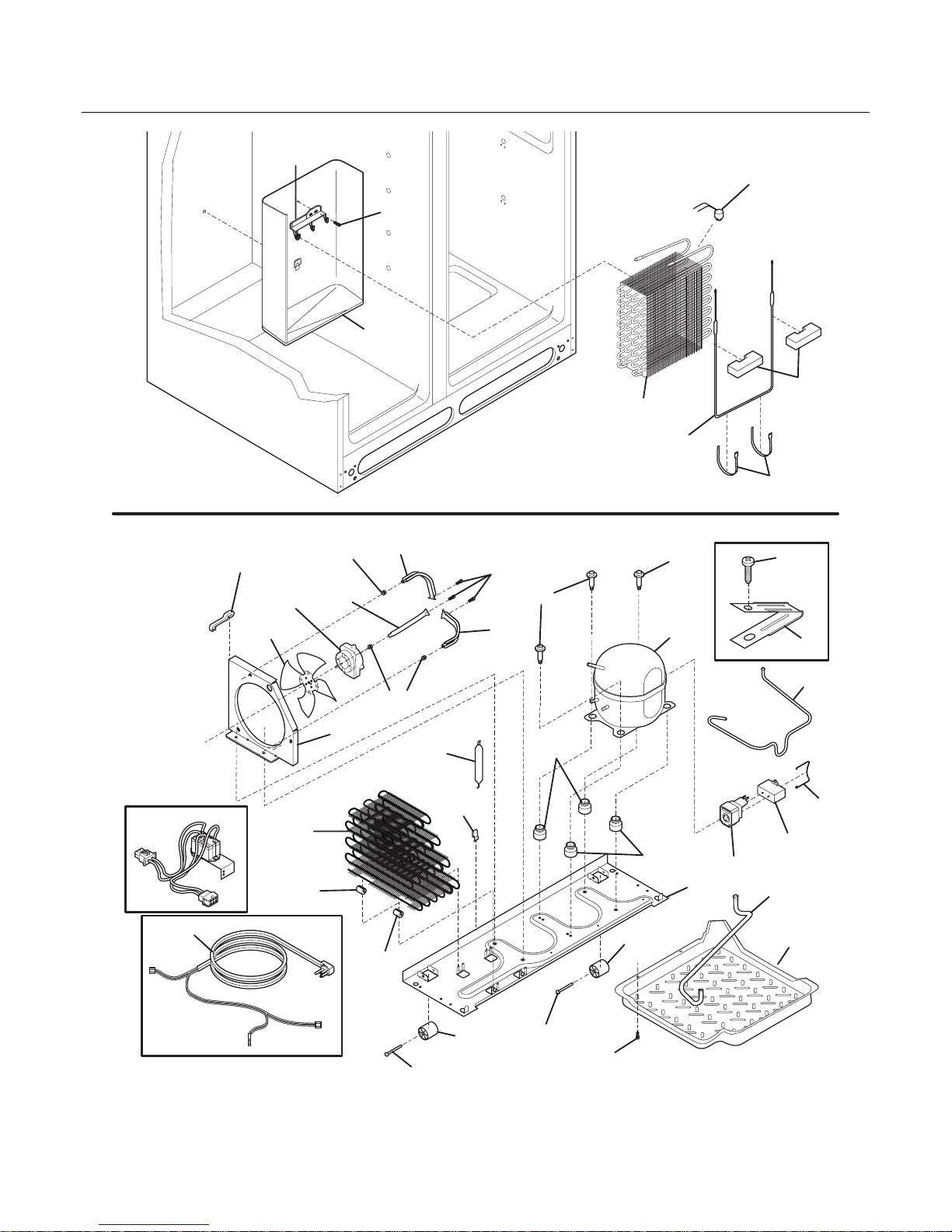

Frigidaire GLHS68EESB0 User manual

N58L00001.eps N58FCFEFA2.eps N58RCCBBC5.eps N58BAAAAB2.eps
N58SKDJBD1.eps N58TCAAAB0.eps N58CAAAAC3.eps N58XEAAAA0.eps
N58YDAAAC0.eps N58I115T.eps W241622001.eps W241660401.eps S241622001.eps
S241660401.eps
Product No. GLHS68EESB0 GLHS68EESB3 GLHS68EESB5
Series R134a Gallery R134a Gallery R134a Gallery
Color stain/blk stain/blk stain/blk
Volts 115 115 115
Wiring Diagram 241622001 241660401 241660401
Owner's Guide 241622401 241622401 241622401
Market North America North America North America
Energy Guide 241649206 241649206 241649206
Service Data Sheet 240389620 240389623 240389623
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995439576
05/06/15
(EN/SERVICE/DCS)
357
SIDE-BY-SIDE
REFRIGERATOR
Model No.
GLHS68EE
Copyright ©All rights reserved.

Publication No: 5995439576 GLHS68EE
06/05 2
FREEZER DOOR
68
5
22C
22A
21A
13A
11
4A
4B
4B
N58FCFEFA2
1
21C
21
21
21
21C
21C
21
74
74
74
72
72
73
73
73
18
37 4C

GLHS68EE Publication No: 5995439576
# Functional Parts 3 06/05
* Non-Illustrated Parts

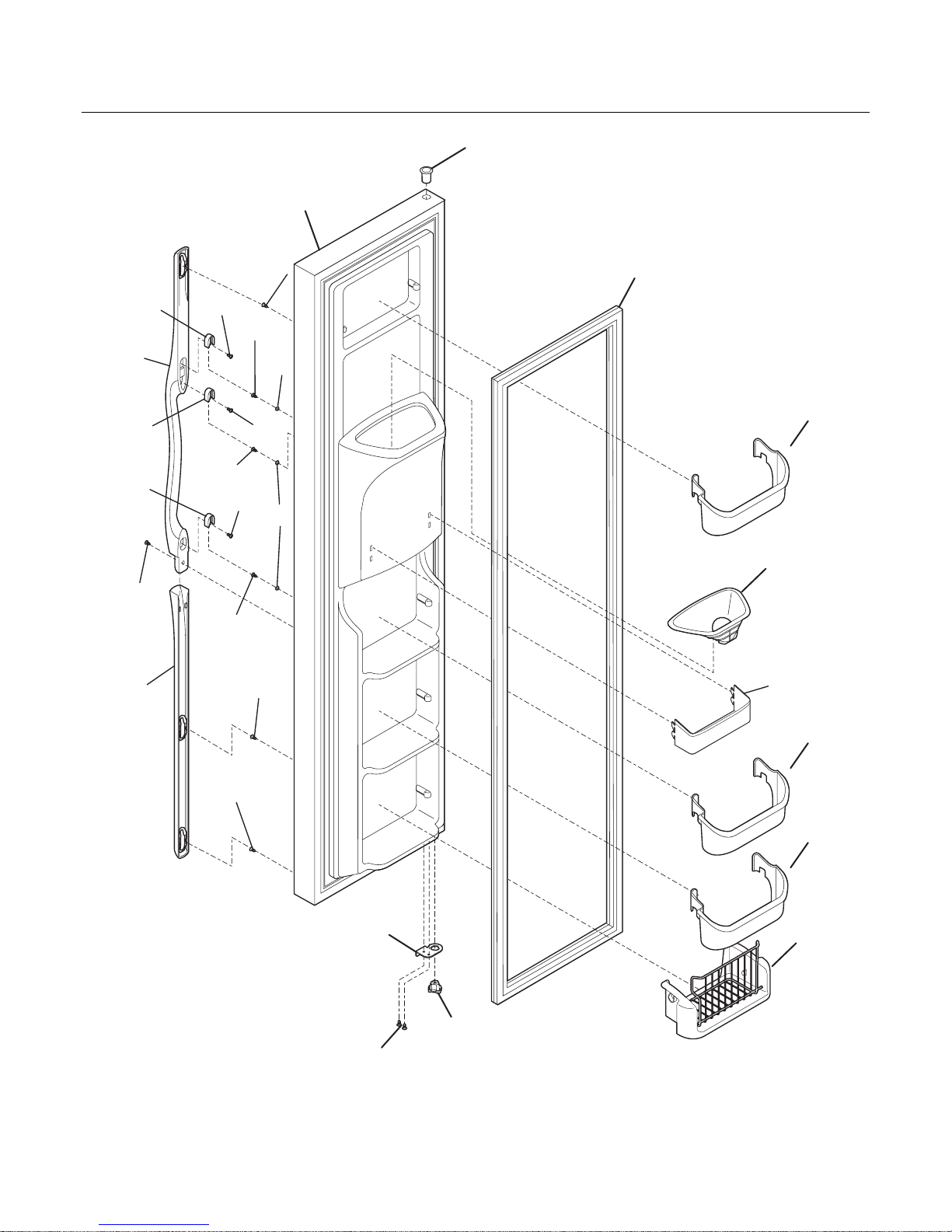

FREEZER DOOR
Model Index: AGLHS68EES (GLHS68EESB0)
BGLHS68EES (GLHS68EESB3)
CGLHS68EES (GLHS68EESB5)
POS. NO PART NO. DESCRIPTION
1 # 240390606 A - - Gasket-frzr door, black, magnetic
1 # 241569806 - B C Gasket-frzr door, black, magnetic
4A 240334201 A B C Bin-door, frzr-upper
4B 240351601 A B C Bin-door
4C 240351701 A B C Bin-door, frzr-dispenser
5 241545005 A B C Bin-tilt out, tilt-out
11 241615109 A B - Door-frzr, stainless, complete assy
11 240554283 - - C Door-frzr, stainless, complete assy
13A 240581906 A B C Door Stop, black, frzr
18 240359108 A B C Handle-door, black, LH
21 218781100 A B C Screw, pan head, 8-18 x 0.625
21A 240598401 A B C Screw, 10-32 x 1/2
21C 240521302 A B C Screw, #8-18 x 3/4
22A 240328204 A B C Bearing-hinge(frz), black, closer
22C 240328404 A B C Bearing-hinge, black, upper
37 240359203 A B C Trim-handle, 30.13", black, lower
68 241525101 A B C Chute-ice
72 240421701 A B C Button-handle mtg, dovetail
73 218396700 A B C Block-handle mtg, dovetail
74 215503200 A B C Screw, cr pan hd, 10-16 x 0.500
* 240352102 A B C Connector-water, straight
* 240552102 A B C Harness-wiring, door
* 5303918256 A B C Dispenser heater kit

Publication No: 5995439576 GLHS68EE
06/05 4
REFRIGERATOR DOOR

GLHS68EE Publication No: 5995439576
# Functional Parts 5 06/05
* Non-Illustrated Parts
REFRIGERATOR DOOR
Model Index: AGLHS68EES (GLHS68EESB0)
BGLHS68EES (GLHS68EESB3)
CGLHS68EES (GLHS68EESB5)
POS. NO PART NO. DESCRIPTION
2 240390605 A - - Gasket-refr door, black, magnetic
2 # 241569805 - B C Gasket-refr door, black, magnetic
4 240323002 A B C Bin-door, pseudo, bottom
7 240326203 A B C Door-dairy
12 240449710 A B C Nameplate
13 240581905 A B C Door Stop, black, ref
15 241534537 A B - Door-refr, stainless, complete assy
15 241534513 - - C Door-refr, stainless, complete assy
18 240359103 A B C Handle-door, black, RH
21 218781100 A B C Screw, pan head, 8-18 x 0.625
21A 240598401 A B C Screw, 10-32 x 1/2
21C 240521302 A B C Screw, #8-18 x 3/4
22 240328203 A B C Bearing-hinge, black, closer
22B 240328404 A B C Bearing-hinge, black, upper
27A 240396102 A B C Retainer, tall bottle
37 240359203 A B C Trim-handle, 30.13", black, lower
49 240430311 A B C Bin-door, gallon
72 240421701 A B C Button-handle mtg, dovetail
73 218396700 A B C Block-handle mtg, dovetail
74 215503200 A B C Screw, cr pan hd, 10-16 x 0.500

Publication No: 5995439576 GLHS68EE
06/05 6
CABINET
58
58
40 66
40
92
92
38
38
37
37
14A
14
41
100
89
83
82
43
21C
21C
28
42
42
23
22
23
22
30A
30
72
10A
N58BAAAAB2
10
90
11
45
45
45
45
45
81
81
81
47

GLHS68EE Publication No: 5995439576
# Functional Parts 7 06/05
* Non-Illustrated Parts
CABINET
Model Index: AGLHS68EES (GLHS68EESB0)
BGLHS68EES (GLHS68EESB3)
CGLHS68EES (GLHS68EESB5)
POS. NO PART NO. DESCRIPTION
10 240435908 A B C Cover-air duct
10A 240475907 A B C Cover-evap coil, lower
11 5303208309 A B C Plug-hole, factory test
14 240505801 A B C Switch, light/lamp
14A 241547901 A B C Switch-light/lamp, frzr door
21C 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 A B C Plate-door closer
23 240402701 A B C Screw-#10-32 x 1/4 flat hd
28 240335501 A B C Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603701 A B C Bracket-lower hinge, ref
30A 241603702 A B C Bracket-lower hinge
37 240337603 A B C Trim-cabinet corner, black, (2)
38 240327201 A B C Bracket-upper hinge
40 240327007 A B C Cover-upper hinge, black
41 241550801 A B C Grommet-shelf mtg, 1.40" long
41* 241550701 A B C Grommet-shelf mtg, .96" long
42 240578901 A B C Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335003 A B C Roller Assy, adjustable, front, (2)
45 241500301 A B C Screw, hex washer head, 8-18AB x 0.500
47 240349402 A B C Channel-shelf mtg, side, (2)
58 218781100 A B C Screw, pan head, 8-18 x 0.625
66 5304424968 A B C Damper Cover Assy
66* 240518802 A B C Pin-push, push-in, plastic
72 240324406 A B C Grille/Kickplate, black
81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B C Roller, compressor base, rear, (2)
83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241574602 A B C Cover access
90 218249808 A B C Seal-coil cover
92 216850900 A B C Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 A B C Support, crisper cover, front, (4)
100* 240350802 A B C Support, crisper cover, rear, (4)
* 240396801 A B C Clamp, tube/wiring, nylon, black/natural
* 240479601 A B C Plug, button, cab liner holes, (2)
* 240481601 A B C Shim-lower hinge
* 5303305345 A B C Paint, touch-up, black

Publication No: 5995439576 GLHS68EE
06/05 8

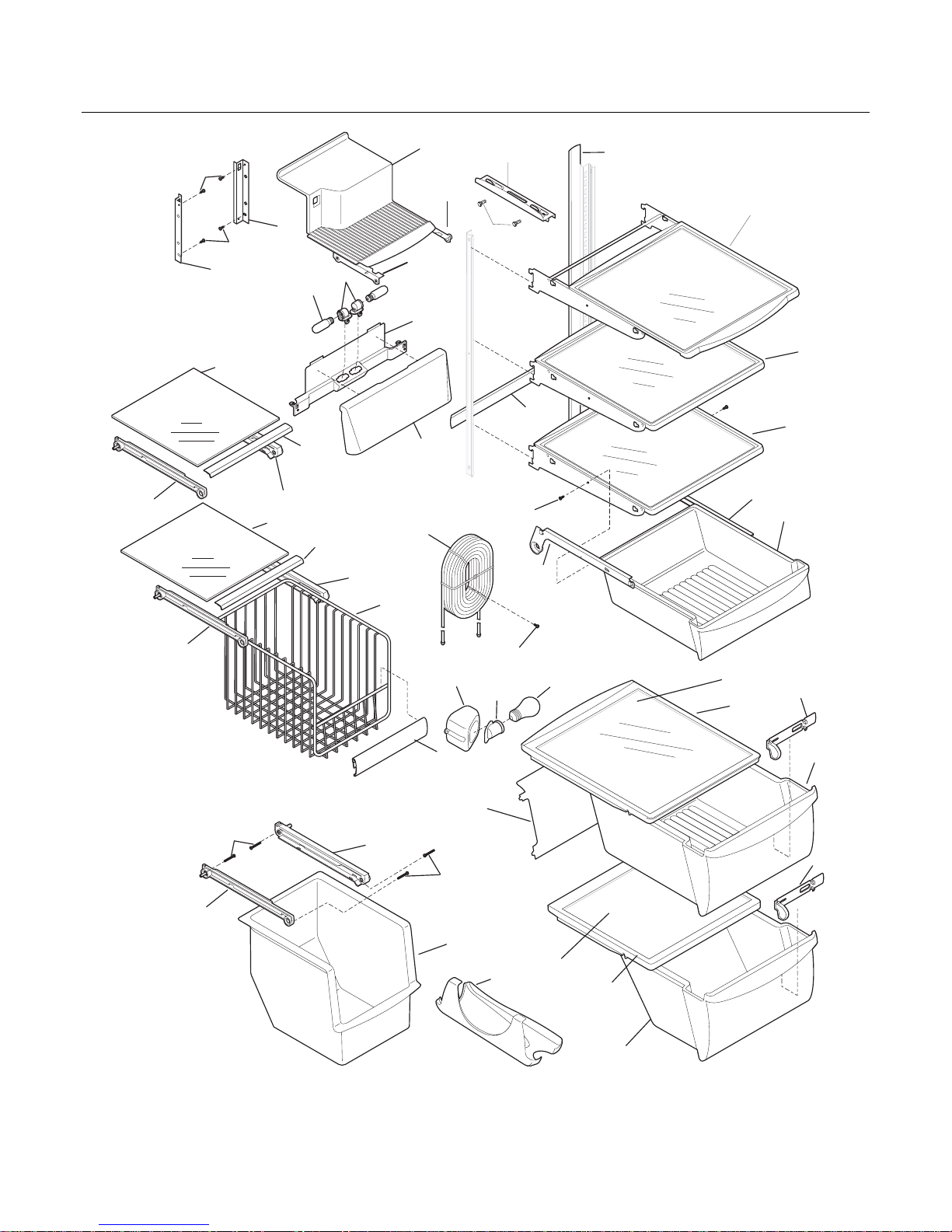

SHELVES
11
39
11A
39
126
81
81
126
52
52A
109
51
51A
49B
2
97
51
52
101
101
49
N58SKDJBD1
100
25A
27
47A
15A
16A
81
25
26
47
26A
26A
42A
62
123
42
24A
24
140
81
11C
24B
136
16 15
141
142
15
140A
120
122
121

GLHS68EE Publication No: 5995439576
# Functional Parts 9 06/05
* Non-Illustrated Parts
SHELVES
Model Index: AGLHS68EES (GLHS68EESB0)
BGLHS68EES (GLHS68EESB3)
CGLHS68EES (GLHS68EESB5)
POS. NO PART NO. DESCRIPTION
2 241510604 A B C Trim-basket
11 240350668 A B C Shelf-freezer, glass, lower
11A 240350667 A B C Shelf-freezer, glass, upper
11C 240324101 A B C Shelf-pizza
15 241552801 A B C Light Bulb
15A 241555401 A B C Light Bulb
16 240590401 A B C Socket-light
16A* 241537502 A B C Harness-wiring
16A# 241513901 A B C Socket-light
24 240355203 A B C Shelf-"Spill-Safe", fixed
24A 240355205 A B C Shelf-"Spill-Safe", fixed
24B 240350106 A B C Shelf-"Spill-Safe", cantilever, sliding
25 240350702 A B C Cover-crisper pan, upper
25* 240362101 A B C Clip-slide, cover-crisper
25A 240350902 A B C Cover-crisper pan, lower
26 240351020 A B C Pan-crisper, upper
26* 240349801 A B C Clip-slide, pan-crisper
26A 240362201 A B C Control-humidity
27 240351218 A B C Pan-crisper, lower
39 240367602 A B C Trim-shelf, front
42 240356501 A B C Track, meat pan hanger, RH
42A 240349701 A B C Hanger-meat pan, LH
42A* 240349901 A B C Block-meat pan rail, LH
42A* 240350001 A B C Spring-meat pan rail
47 240350602 A B C Insert-pan cover, glass
47A 240350603 A B C Insert-pan cover, glass
49 240564401 A B C Basket-sliding
49B 240530504 A B C Basket-sliding, upper, full
51 240343002 A B C Hanger-basket, RH
51A 240395502 A B C Hanger-basket, RH
52 240343102 A B C Hanger-basket, LH
52A 240395602 A B C Hanger-basket, LH
62 240342817 A B C Pan-meat
81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
97 240545303 A B C Water Tank Assy, coiled tubing, front filter
100 240326302 A B C Cover-water tank
101 218493100 A B C Screw, hex washer head, 8-18AB x 1-3/4
109 240351301 A B C Base-crisper light socket
120 241559001 A B C Shelf-ice cream
121 241561001 A B C Rail-ice cream shelf, LH
122 241561201 A B C Rail-ice cream shelf, RH
123 215005100 A B C Screw, hanger/rlr mtg, 8-10 x 0.438
126 241630701 A B C Channel, auger mtg, LH
126 241630702 A B C Channel, auger mtg, RH
136 240424501 A B C Dispenser-can, white
140 240430501 A B C Channel, wtr tube cover
140A 240430503 A B C Channel, wtr tube cover
141 240585404 A B C Bracket-light socket
142 240582701 A B C Shield-light, deli pan
